110/130 Base 35nm/50nm Three phase Stepper Motor Driver Set Single Phase AC 220V Hybrid Nema 42 Stepper Motor Stepping Motor 9A
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (1600891747382):
Product Overview
Description

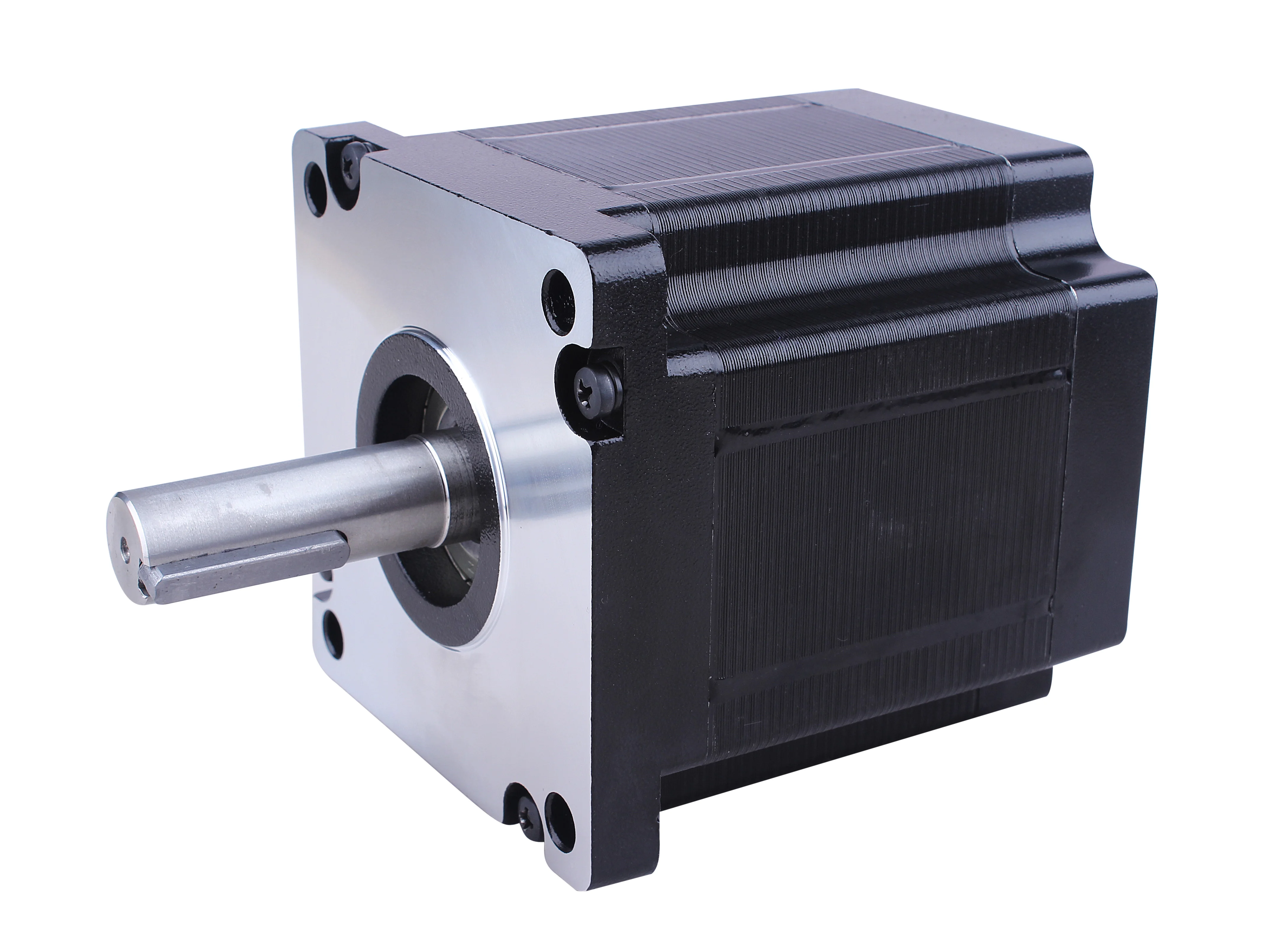

110/130 Base 35nm/50nm Three-phase Stepper Motor Driver Set Single Phase AC 220V Hybrid Nema 42 Stepper Motor Stepping Motor 9A
Markets
* device, machine and plant manufacturing
* tufting machines
* labelling technology
* post- and package handling
* assembly automation
* device, machine and plant manufacturing
* tufting machines
* labelling technology
* post- and package handling
* assembly automation

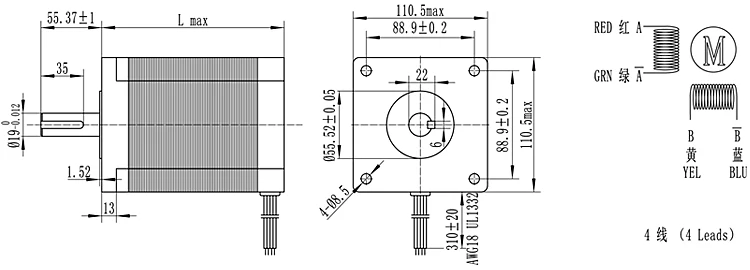

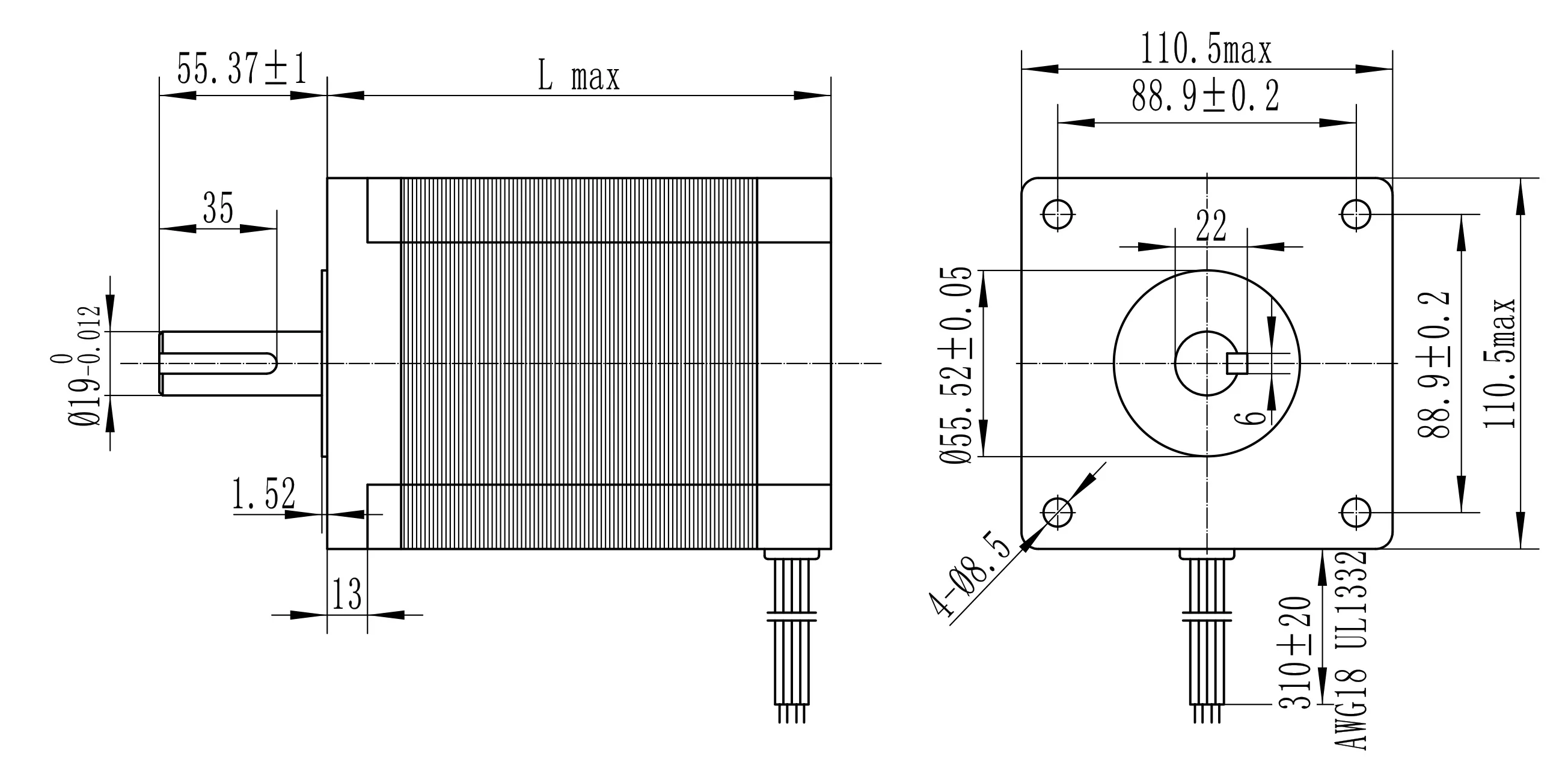

Specification
Model No | Step Angle(°) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (N.M) | Rotor Inertia (Kg.cm²) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
110HS99-5504 | 1.8 | 5.5 | 0.72 | 10.9 | 11 | 108 | 99 | 4 | 5 |
110HS115-6004 | 1.8 | 6 | 0.44 | 7.17 | 12 | 132 | 115 | 4 | 6.2 |
110HS150-6504 | 1.8 | 6.5 | 0.72 | 12.8 | 20 | 210 | 150 | 4 | 8.4 |
110HS168-6004 | 1.8 | 6 | 0.9 | 16 | 24 | 240 | 168 | 4 | 9.8 |
110HS201-8004 | 1.8 | 8 | 0.71 | 15.38 | 33 | 330 | 201 | 4 | 11.7 |

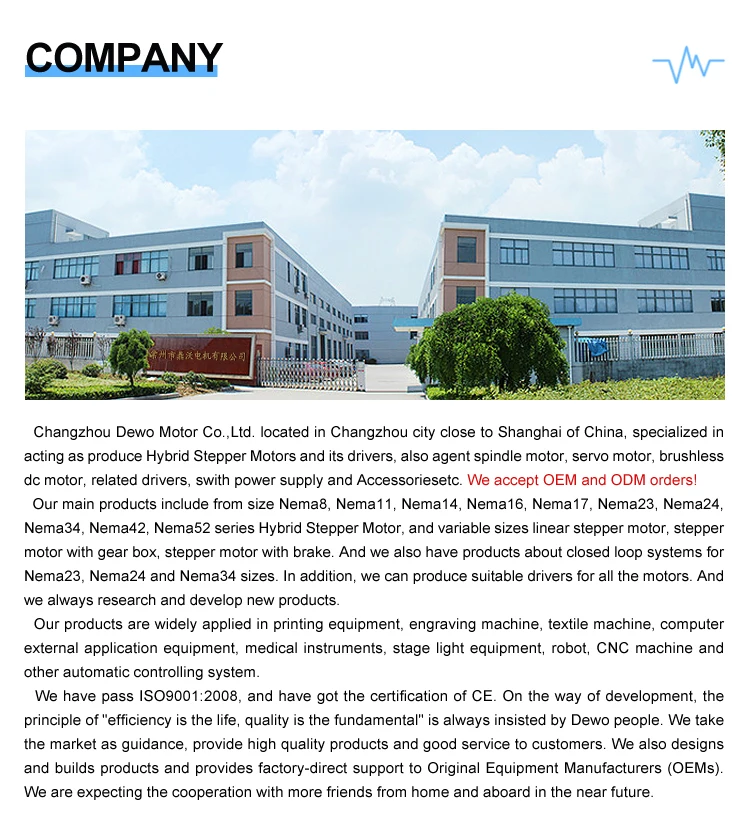

Company Profile
Changzhou Dewo Motor Co.,Ltd. located in Changzhou city close to Shanghai of China, specialized in acting as produce Hybrid Stepper Motors and its drivers, also agent spindle motor,servo motor, brushless dc motor, related drivers, swith power supply and Accessoriesetc. Our main aim is to be one professional mechatronics supplier and perfect after sale service to our customers.
Our products are widely applied in printing equipment, engraving machine, textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine and other automatic controlling system.
Our main products include from size NEMA 8, NEMA11, NEMA14, NEMA16, NEMA17, NEMA 23, NEMA24, NEMA 34, NEMA 42, NEMA52 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And we have products about closed loop systems for nema23, nema24 and nema34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.
We have pass ISO9001:2008, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental. We take the market as guidance, provide high quality products and good service to customers. We also designs and builds products and provides factory-direct support to Original Equipment Manufacturers (OEMs). We are expecting the cooperation with more friends from home and aboard in the near future.
Our products are widely applied in printing equipment, engraving machine, textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine and other automatic controlling system.
Our main products include from size NEMA 8, NEMA11, NEMA14, NEMA16, NEMA17, NEMA 23, NEMA24, NEMA 34, NEMA 42, NEMA52 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And we have products about closed loop systems for nema23, nema24 and nema34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.
We have pass ISO9001:2008, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental. We take the market as guidance, provide high quality products and good service to customers. We also designs and builds products and provides factory-direct support to Original Equipment Manufacturers (OEMs). We are expecting the cooperation with more friends from home and aboard in the near future.
Certifications

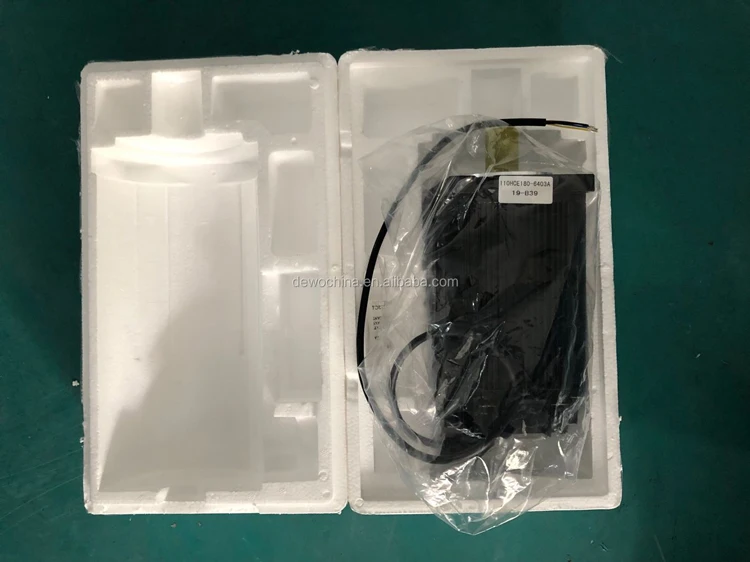

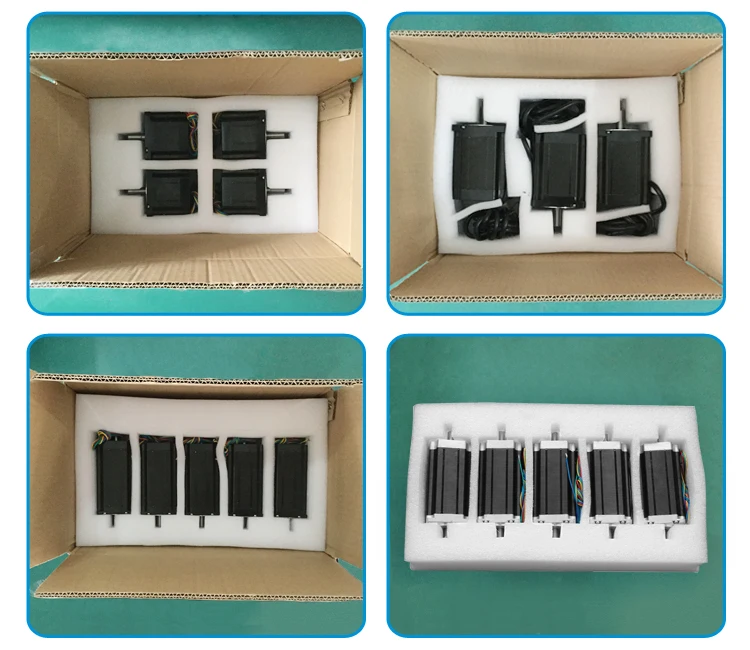

Product packaging
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
