FCST D400 SMC02 manhole frame and clark drain cover chamber cover price for sale
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (1600891766453):
Product Overview
Description
Product Views
Product Overview

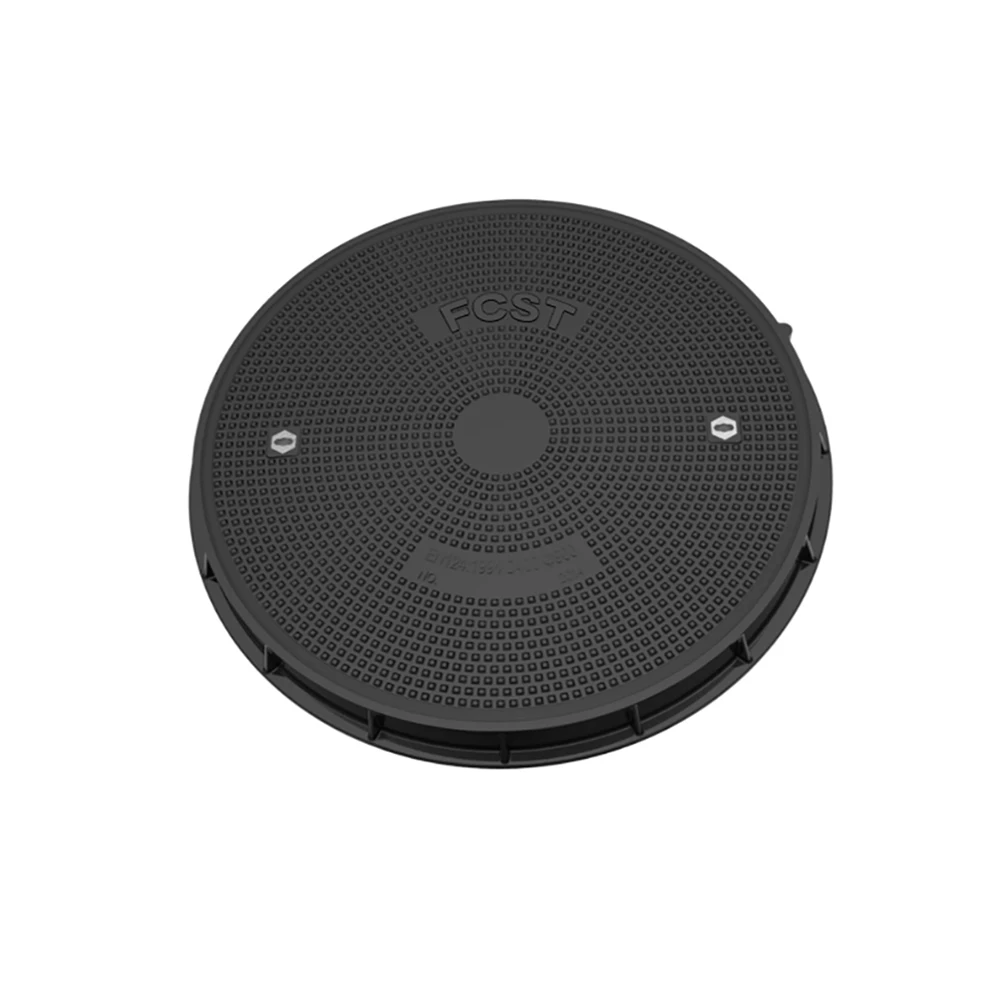

FCST-D400-SMC SMC Round Composite Manhole Cover & Frame,standard EN124:1994 bearing level;the manhole seat and the manhole cover consist of SMC composite materials,the sealing and locking structure consists of 304 stainless steel and corrosive rubber.Widely used in the roads and venues of frequent driving of heavy vehicles such as car gas stations, freight stations, docks.
Product Advantages
*Rubber ring waterproof.
*Support customization.
*Rubber ring waterproof.
*High corrosion resistance.
*With 350m small cover, can be opened.
*Support customization.
*Rubber ring waterproof.
*High corrosion resistance.
*With 350m small cover, can be opened.
FCST-D400-SMC01
FCST-D400-SMC02

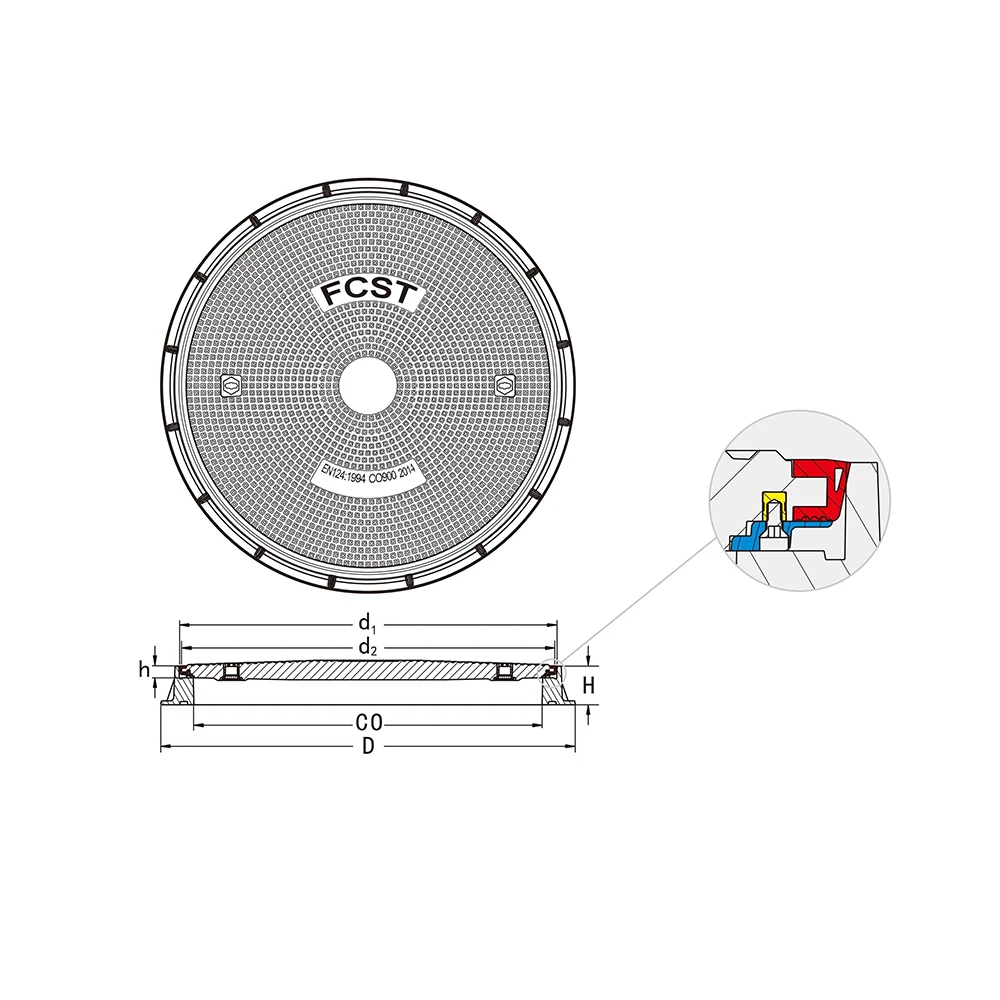

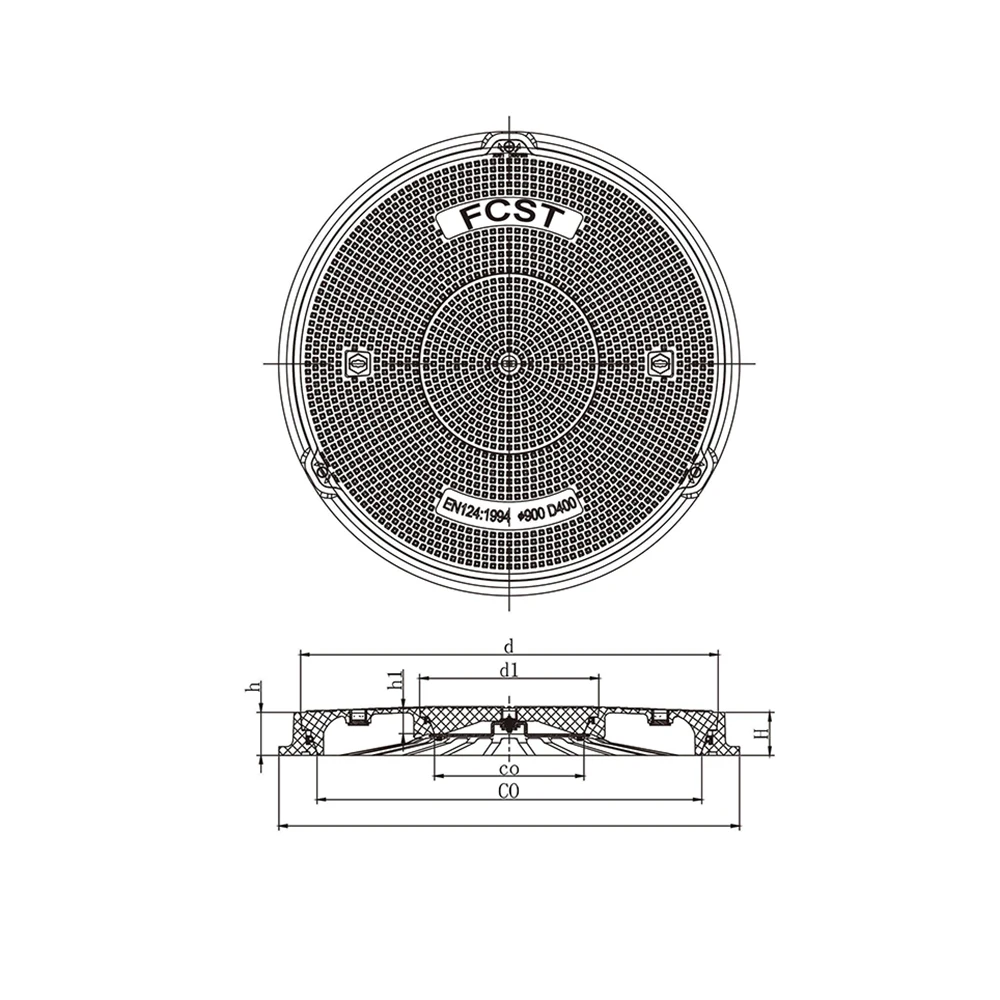

Construction | Description | |
Cover | ||
Load Rating | FCST-D400-SMC01:D400 FCST-D400-SMC02:C250/D400 | |
Cover Dimension (mm) | FCST-D400-SMC01:Φ1008*115 FCST-D400-SMC02:Φ977*55 | |
Depth of Insertion (h) | FCST-D400-SMC01:100 m FCST-D400-SMC02:30 m | |
Diameter of Sealing Ring (d1) | FCST-D400-SMC01: / FCST-D400-SMC02:Φ977mm | |
Cover Diameter (d₂) | FCST-D400-SMC01:Φ980mm FCST-D400-SMC02:Φ966mm | |
Weight (kg) | FCST-D400-SMC01:50 FCST-D400-SMC02:49 | |
Frame | ||
Frame Dimension (mm) | FCST-D400-SMC01:Φ1080*100 FCST-D400-SMC02:Φ1074*100 | |
Frame Depth(H) | FCST-D400-SMC01:100mm FCST-D400-SMC02:100mm | |
Frame Outer Diameter (D) | FCST-D400-SMC01:Φ1080mm FCST-D400-SMC02:Φ1074mm | |
Net Opening (CO) | FCST-D400-SMC01:900mm FCST-D400-SMC02:900mm | |
Weight (kg) | FCST-D400-SMC01:21 FCST-D400-SMC02:19 | |
Central Cover | ||
Central Cover Dimension (mm) | FCST-D400-SMC01:Φ420*60 FCST-D400-SMC02: / | |
Depth of Insertion(h₁) | FCST-D400-SMC01:60mm FCST-D400-SMC02: / | |
Cover Diameter (d₁) | FCST-D400-SMC01:Φ420mm FCST-D400-SMC02: / | |
Central Cover Clean Opening (co) | FCST-D400-SMC01:350mm FCST-D400-SMC02: / | |
Weight (kg) | FCST-D400-SMC01:10.5 FCST-D400-SMC02:/ | |
Fastener and Corrosion Resistant Rubber Operating Temperature Range(℃) | -40~100 | |
Company Profile
Company Information
Fiber Cable Solution Technology Co.,Ltd (FCST) was established in 2003, which is a leading FTTH solution provider in the field of telecommunication.Our business has been extended to R&D, manufacturing, marketing in oversea market. Including Europe, South American, North American, Asia, Africa.FCST can offer four main solutions for FTTH(Fiber To The Home) as following: Underground Cable Installation Solution, Aerial Cable Installation Solution, ODN Solution, Fiber Optic Test Solution. Welcome select our products for your business option and let's create more cooperation opportunity together.

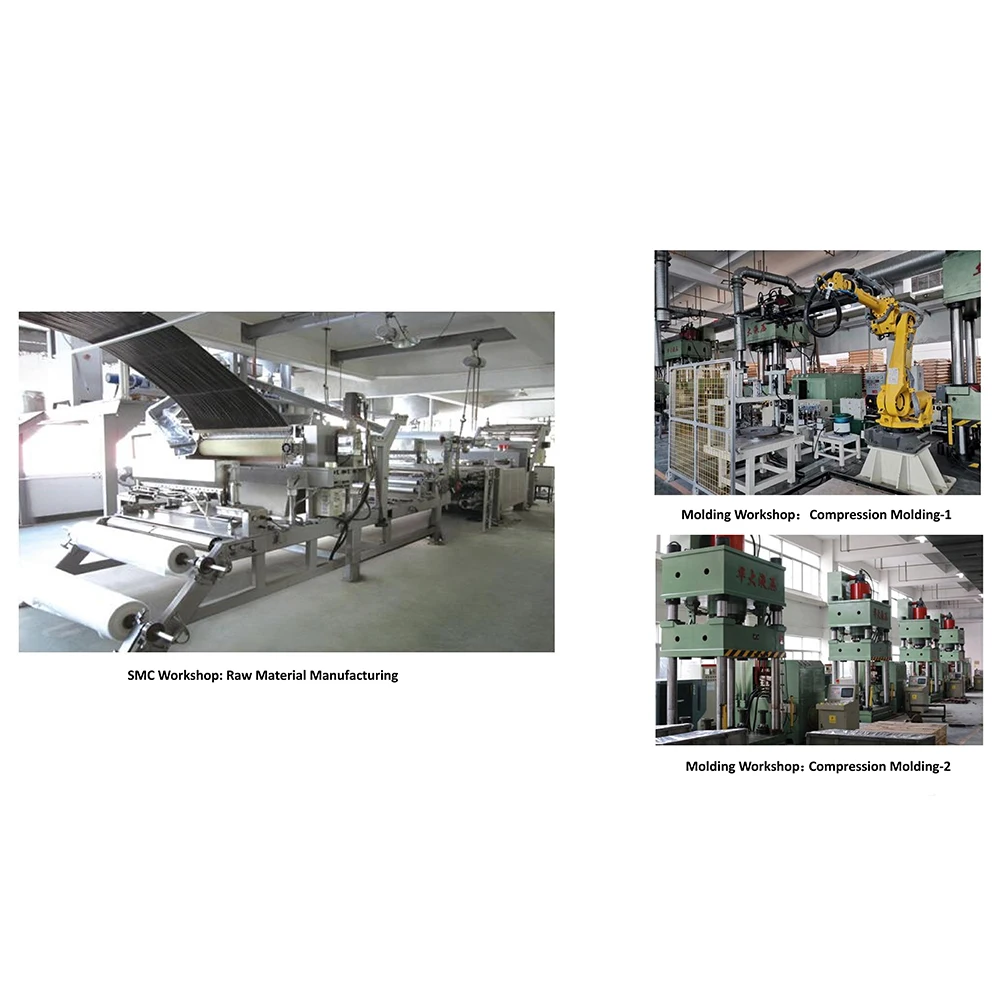

Our Factory
Our Exhibition
