Price:$13,000.00 - $15,000.00

Quantity:


Product Overview

Description



Products Description




1. The casting structure is stable, reasonable and beautiful. The cast iron of our company is cast with HD250 grade, which has time aging and annealing aging to ensure that the cast iron body is stable and not deformed and durable.
2. The main parts of the fuselage are the first and second configuration parts imported from the same industry: for example: the guide rails are precision grade guide rails from Taiwan Shangyin or Yintai or ABBA; the screw rods are Japan's NSK, THK or German Rexroth (Rexroth); the system adopts Taiwan's new generation bus absolute value control system and integrated drive; the servo motor adopts the high inertia of Japan's Panasonic servo motor; the wire adopts Japanese wire and custom wire;





Applicable industries: ceramics, glasses, fiberboard, mobile phones, molds, hardware (hardware accessories in various industries), glass, auto parts, electronic cigarettes, smart wear, PCD circuit boards, accessories, handicrafts, die-casting parts, jewelry, seal signs,




A
Technical parameters of machine tool：
1
The machine body and all parts are made of nano castings
2
Table size
130×130mm
3
T-groove (width x quantity x spacing)
/
4
The largest load
10KG
5
Maximum feed height
240mm
6
Distance from spindle face to work
0-170mm
7
Triaxial travel X/Y/Z
200/170/170mm
8
The spindle diameter
Ǿ62mm
9
Spindle speed
30000RPM/60000RPM
10
Spindle motor power
2.5KW
11
Spindle tool library capacity
8
12
Tool change time
5S
13
The spindle taper
Ǿ6mm
14
/Knife library classes
/
15
Fast moving rate X/Y/Z
12/12/12m/Min
16
Processing speed
1－6m/Min
17
Positioning accuracy
±0.01/300mm
18
Repetitive positioning accuracy
±0.01/300mm
19
Machined surface accuracy
≤Ra3.2
20
The machining accuracy
±0.02mm
21
Optional four-axis five-axis
Yes
22

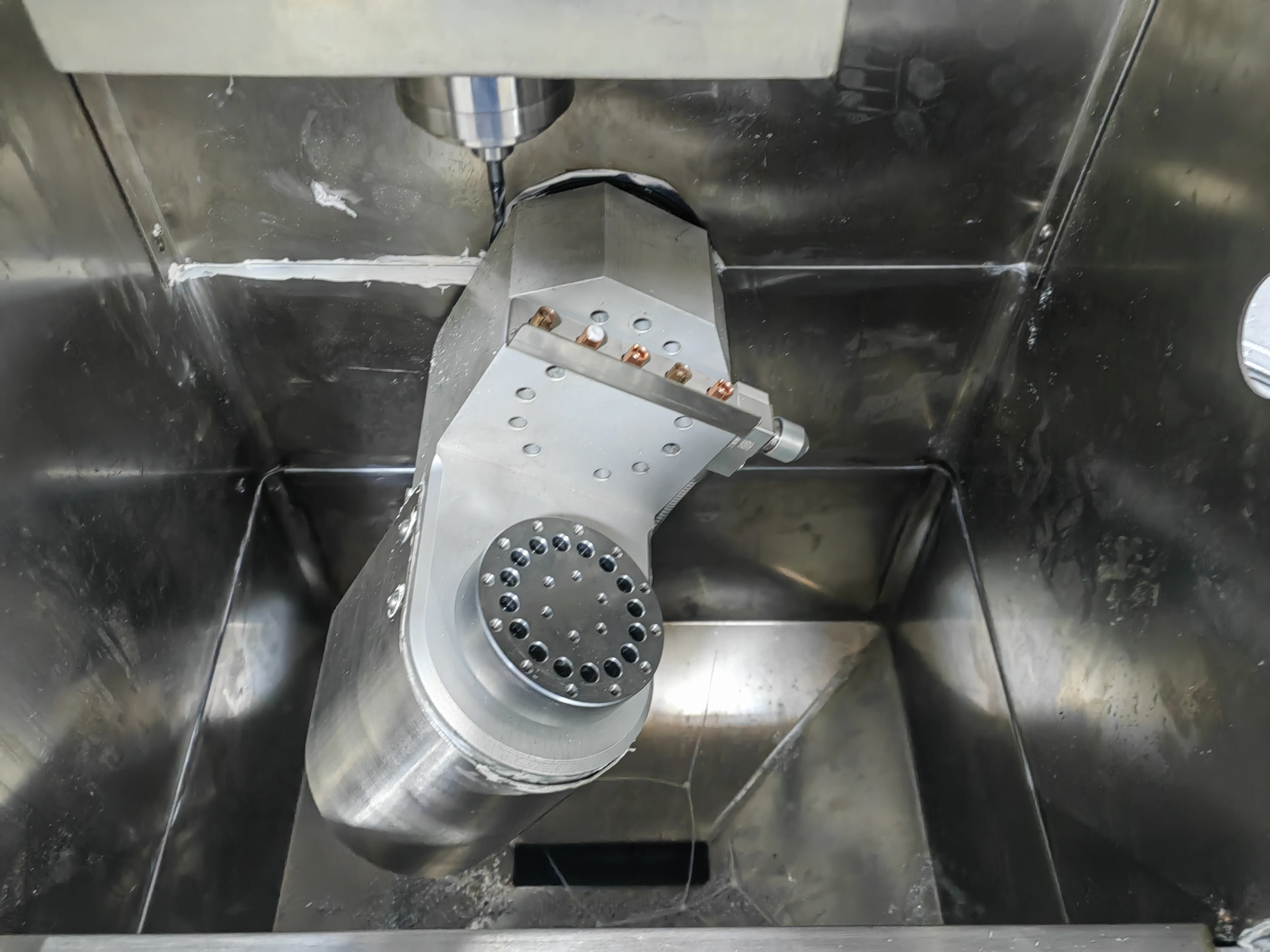

Angle of rotation of axis A
±105 degrees
23
Fifth axis C axis rotation Angle
360 degrees
24
Five-axis linkage mode
5 axis with the move
25
Working voltage
 220V/60HZ
26
Machine size (l * W * H)
800×800×1700mm
27
The body weight
500KG
B
Machine tool configuration details brand parameters：
1

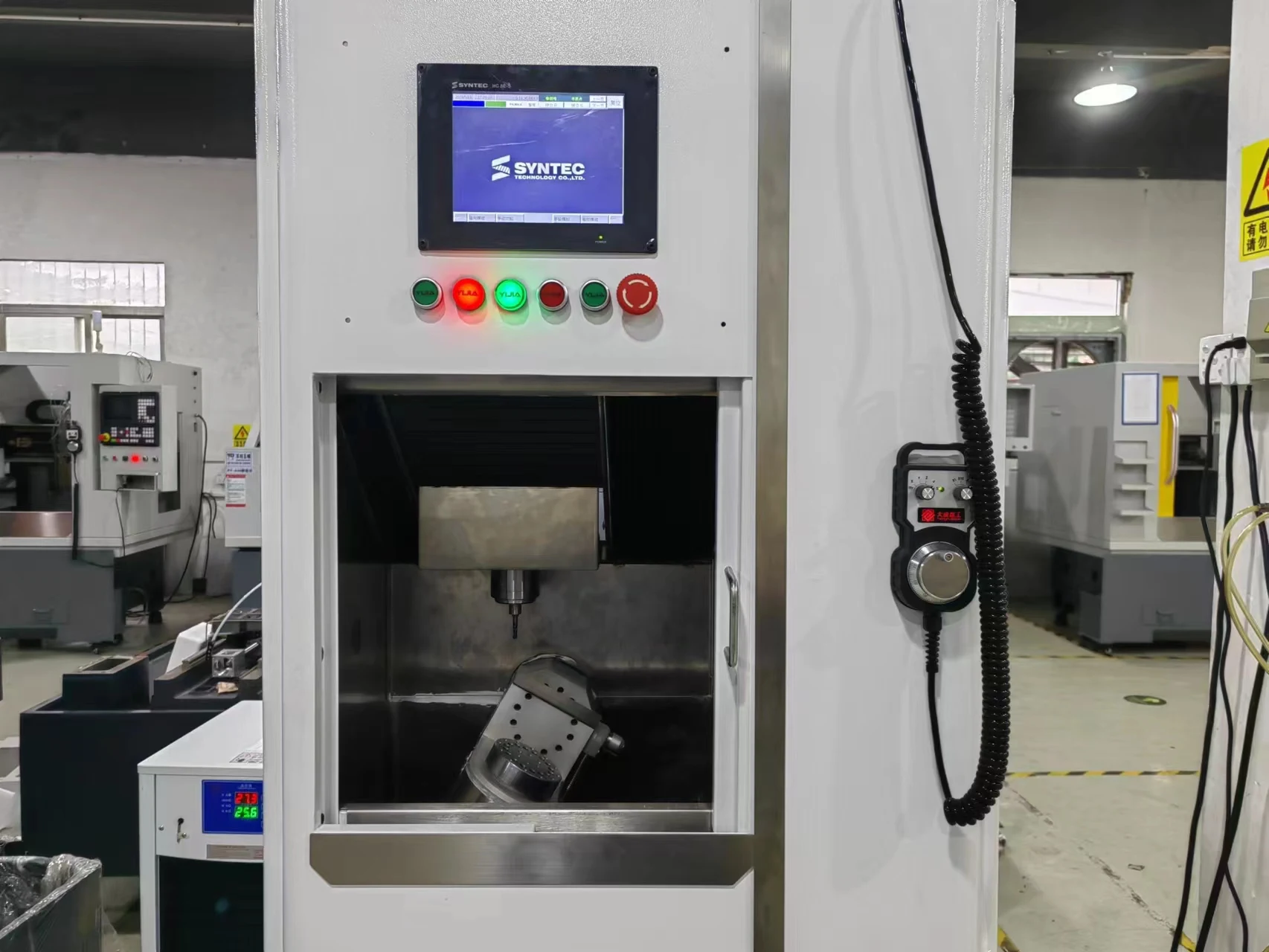

The system configuration
Taiwan Syntec
2
The spindle
2.5KW high-precision, high-speed, high-quiet oil-cooled spindle
3
 Ball screw
China grinding grade
4
Linear guide
China high precision guide H25
5
Servo unit
Easy Servo motor
6
Wire rod bearing
Taiwan TPI precision grade bearing
7
Switching power supply
Taiwan Ming weft
8
Electric switch
China chint
9
converter
 * Square converter








Shenzhen Yudiao CNC Technology Co., Ltd.

Contact: Hong Fengsheng

Contact number:0086 13421359966 (same number on WeChat or WhatsApp)

Address: Room 101, Building 1, No. 13, Dakang Road, Dakang Community, Yuanshan Street, Longgang District, Shenzhen
