Cable Rewinding Machine Automatic Electrical Motor Rewinding Machine

Product Overview

Description

Cable Rewinding Machine Automatic Electrical Motor Rewinding Machine



Cable Reel  JCD Series



Brief Description:



Magnetic hysteresis type cable drum realizes coiling up and spooling off cables through transmitting the torque of motor in magnetic field. Adopt records of difference ring device, it can be in synchronous operation with the mobile electric apparatus to coil up or spool off the cables. It features compact, small structure, invariable of tension, widely used in supply power of the electric apparatus on large-scale mobile devices.



Model Designation:



Cable drum category		L0	H0	H1	B1	B2	A	Mounting rack
For power force (380v)		633	1205	325	420	480	583	Unused
For power force (380v)		922	1346	461	636	682	837	Unused
For power force (6000v)		1025	1346	432	685	745	850	Use
For power force (10000v)		1228	1346	466	698	745	896	Use
For control	14rings	633	1205	466	420	480	583	Unused
	24rings	753
	37rings	970	1346	466	420	480	747	Use
	48rings	1100

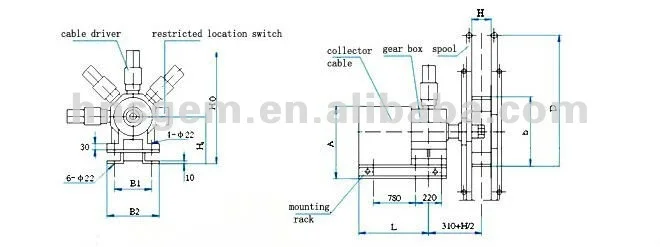

 Overall Dimension Drawing:

Features:



• It is the structure in bulk that each coiler bar is greater than 2500, users refer to assembling and installing drawing by oneself, it is the whole structure that be less than or equal to 2500.


• Parameters and cable capacity refer to spool of data long-timely hindered rotation motor.


• The category of the electrical collector.

Number 1 electrical collector' s single current is less than 150A, Number 2 electrical collector's single current is less than 400A, Number 3 electrical collector is kind of high voltage slip ring group with current is great than 400A, Number 4 electrical collector's single current is less than 30A.

• The connection method of cable

        A. Number 1, 4 collector slip ring group have lead wire which the incoming cable connects with the connecting end of the spool.

        B. Number 2, 3 collector slip ring group is without lead wire cable connects with slip ring directly.

• Quantity selection of driver:

        A. Total torque that the cable needs.

                 P=W*h*D/μ

           w: Cable unit weight N

           h: The height from spool center to

           D: Cable capacity' diameter of spool

           μ: working efficiency u=0.85

       B. Driver number

           n>Adopt 2 thread

           n>Adopt 3 thread analogize sequentially

• User provide below data after model selection

     (1).cable specification and contour size;

     (2).cable length (including reserve coil number)

     (3). winding arranged single row or multi-row.

     (4). the installation height of the cable drum.

     (5). whether taking cable rack for setting cable.

     (6).whether taking restricted position of protection.

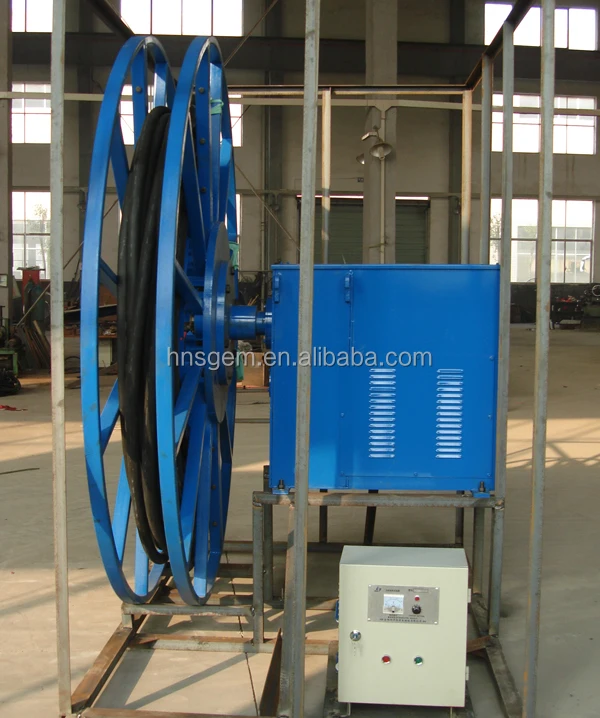

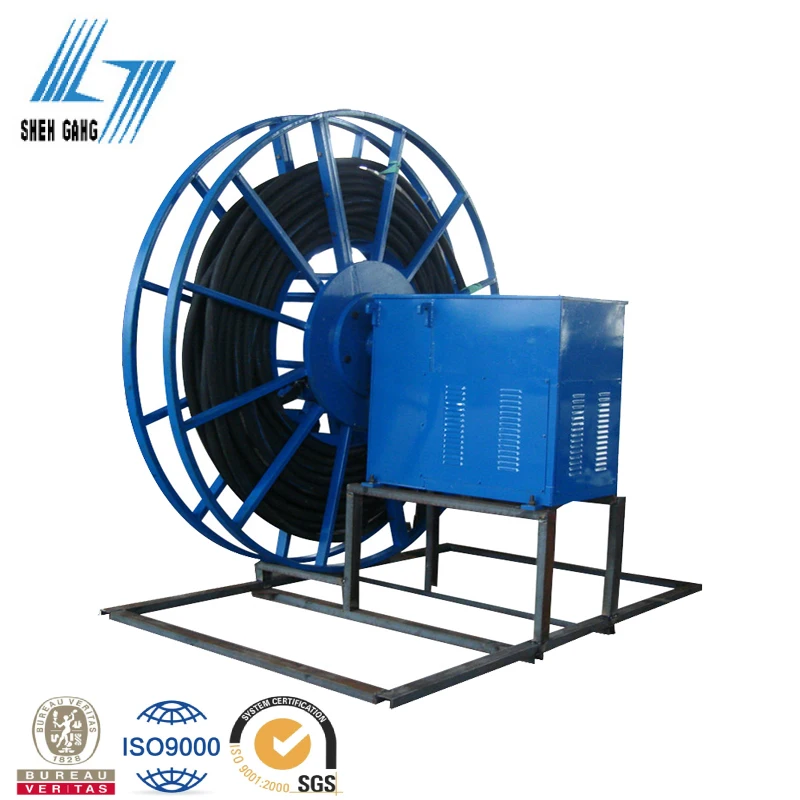

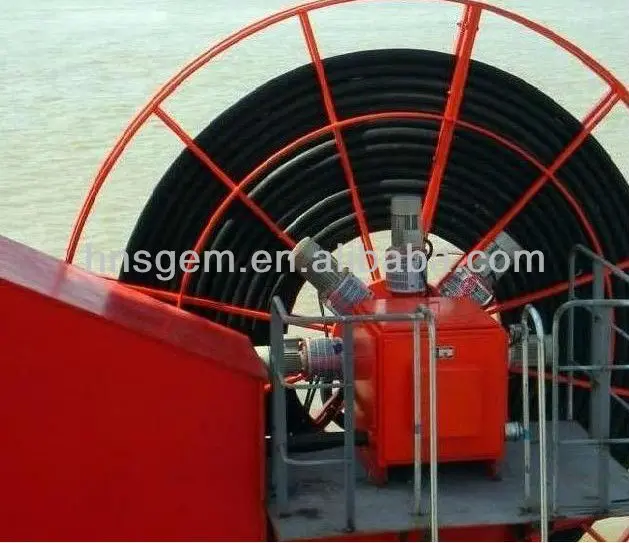

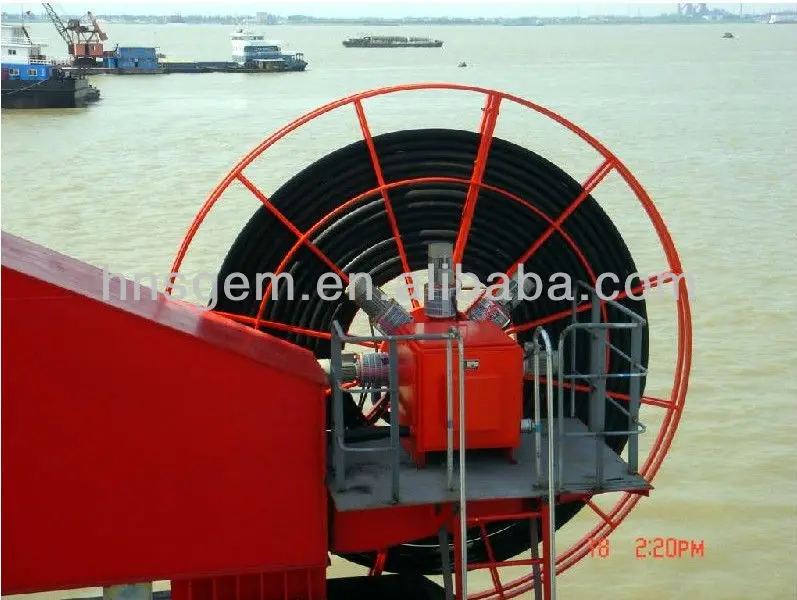

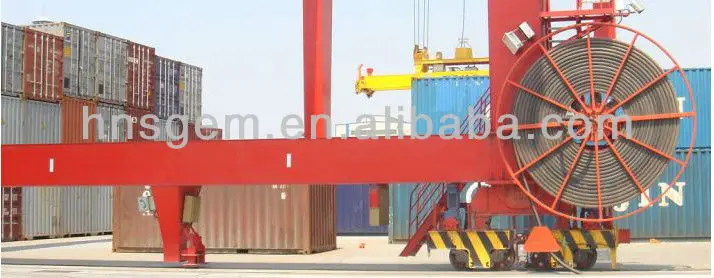

Physical Product Photo:
