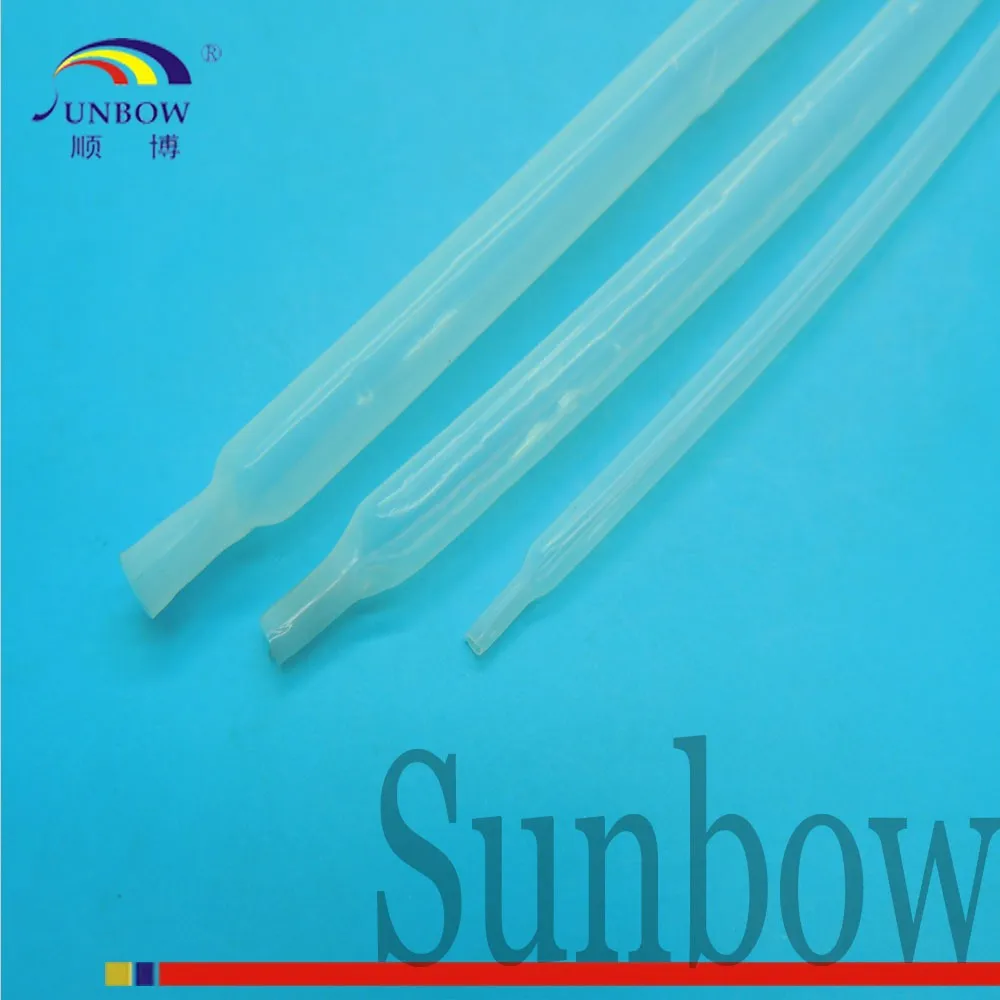

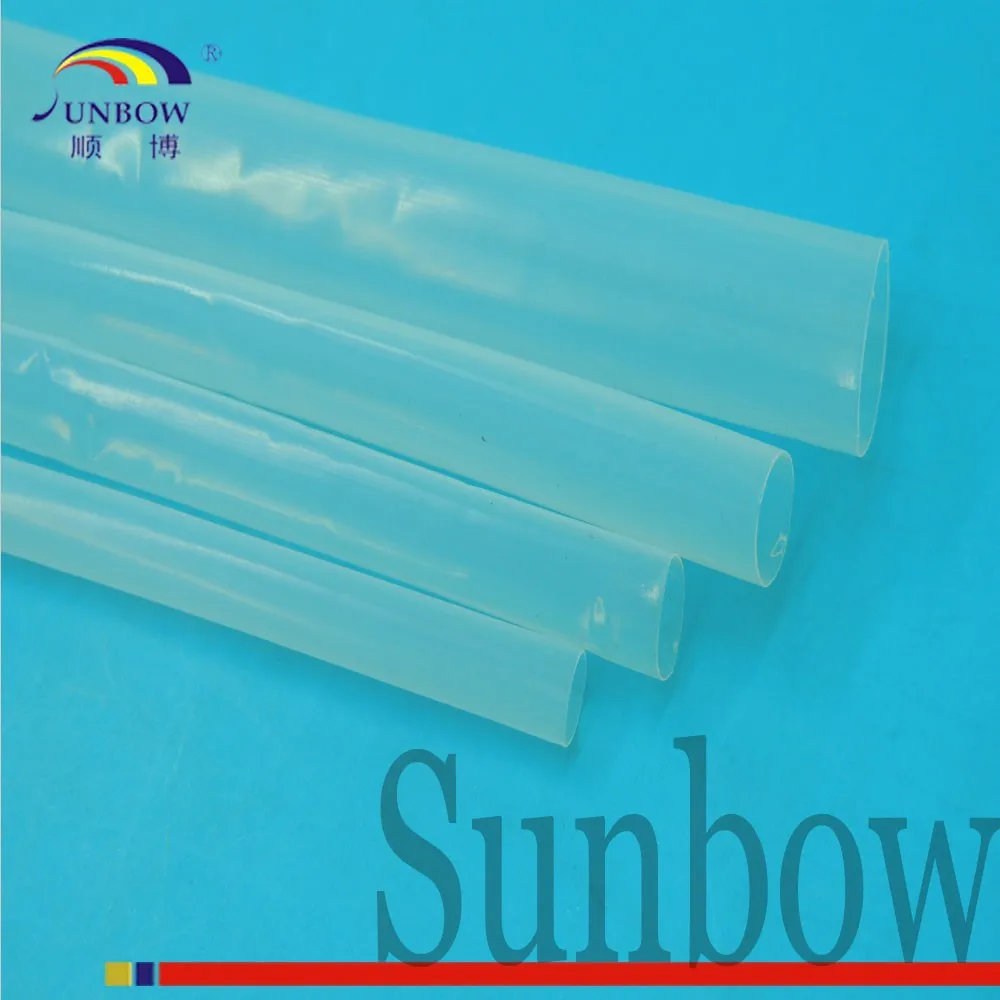

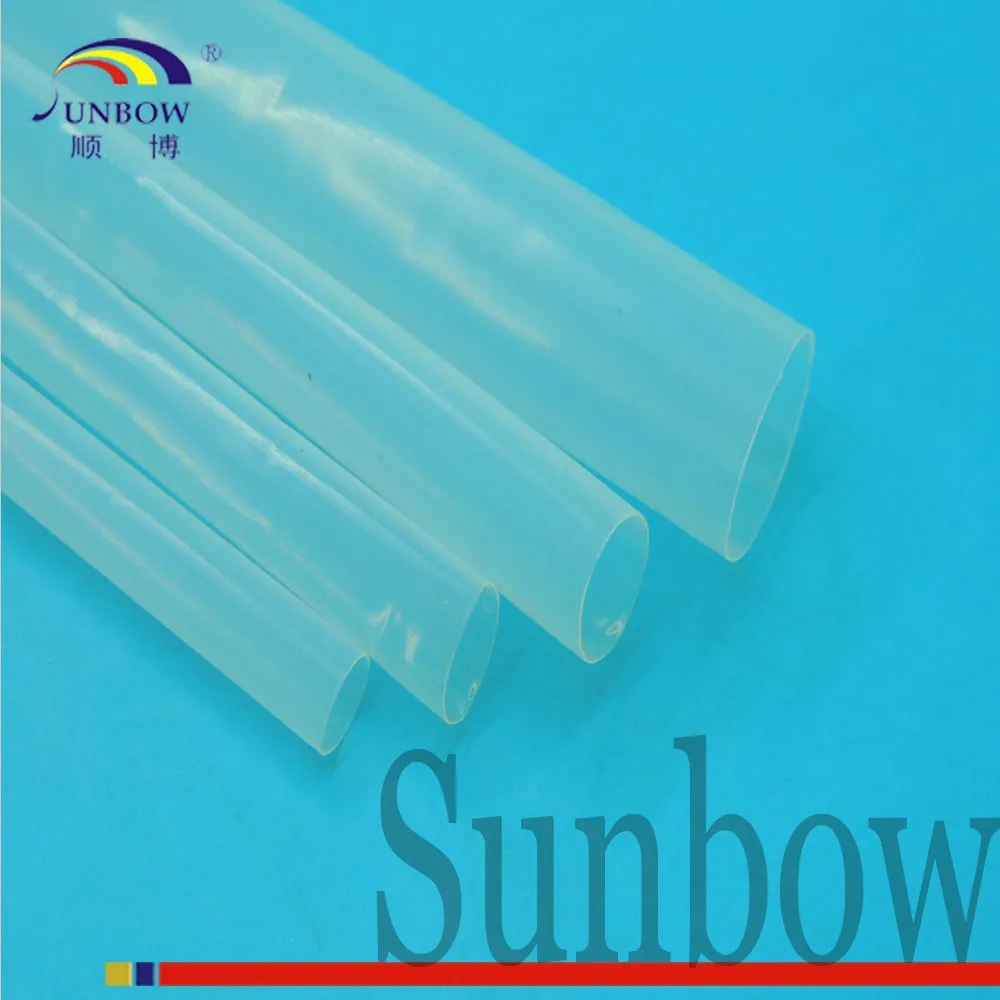

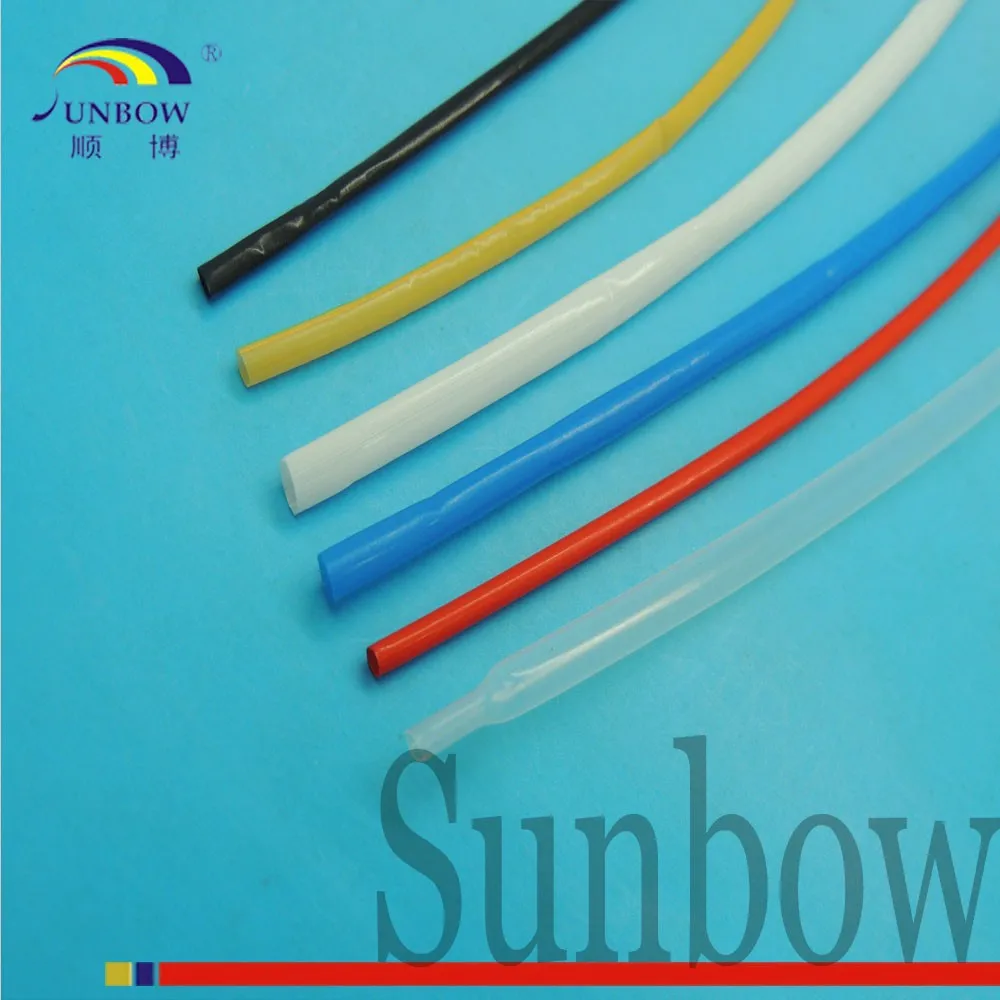

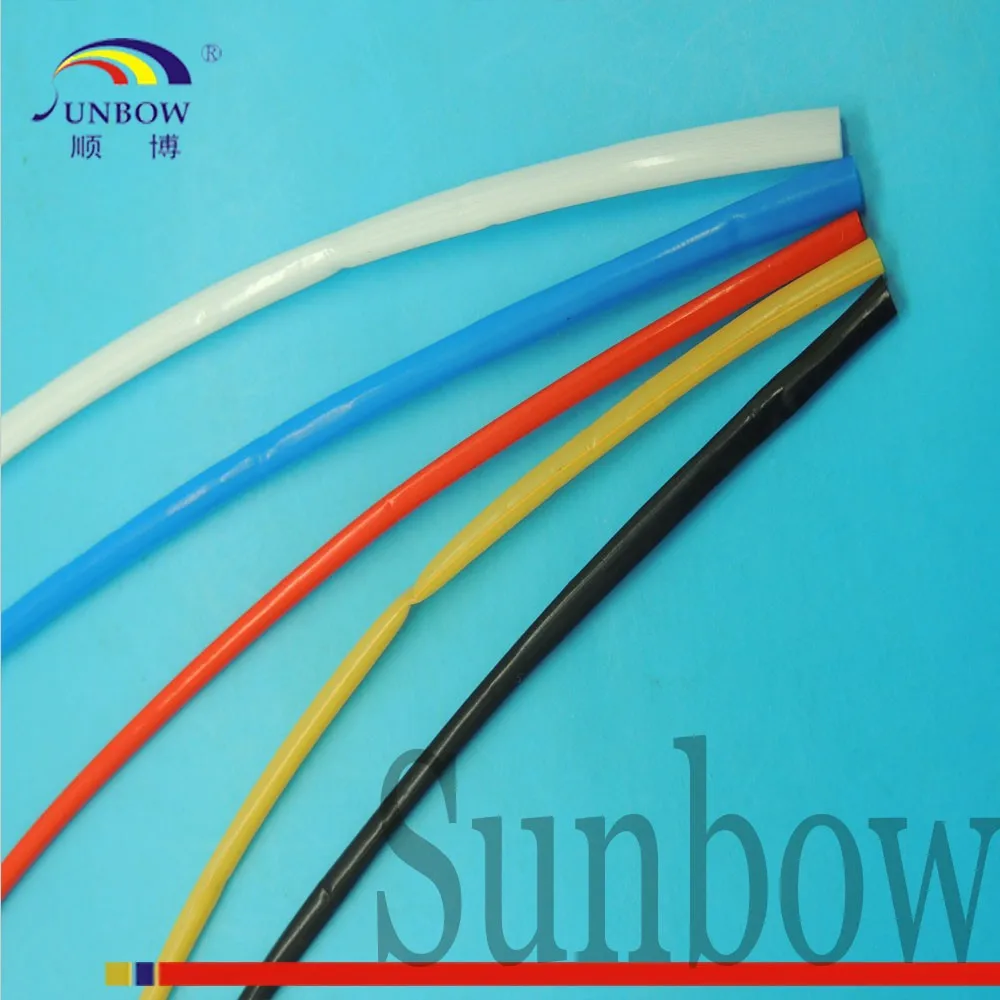

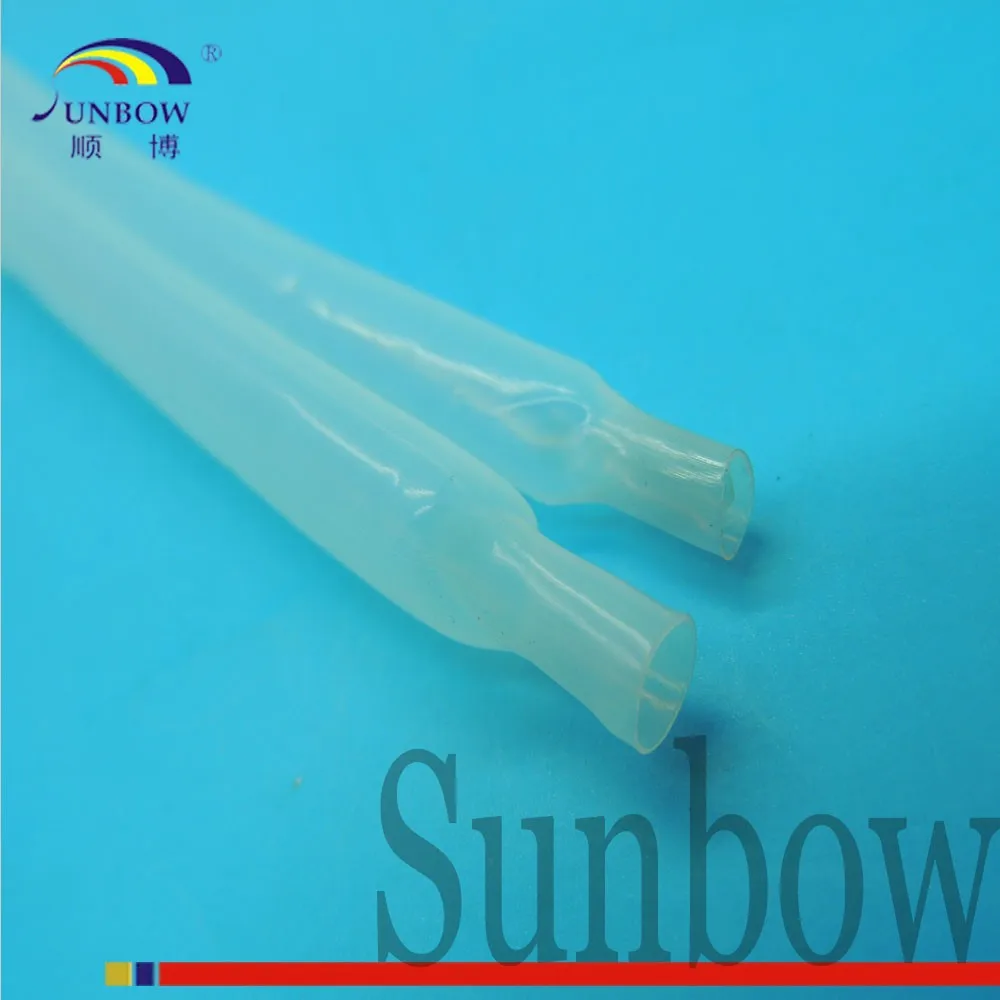

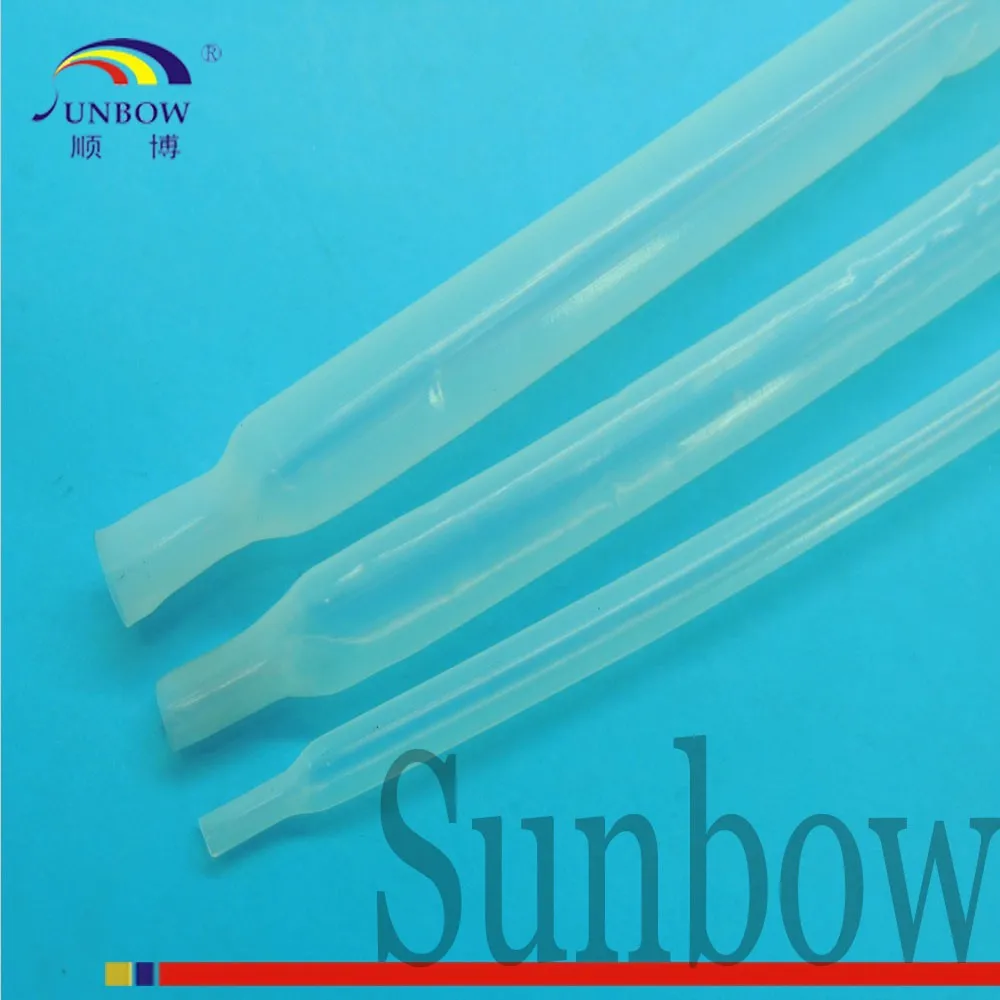

High Temperature Medical Device Polytetrafluoroethylene Clear PTFE Heat Shrinkable Tubing

Product Overview

Description

High Temperature Medical Device Polytetrafluoroethylene Clear PTFE Heat Shrinkable Tubing



Characteristics

Operating Temperature: -80°C~260°C

Shrink temperature: 320°C

Shrink ratio: 1.7:1 / 4:1



STRUCTURE



High Temperature Medical Device Polytetrafluoroethylene Clear PTFE Heat Shrinkable Tubing is applied imported polytetrafluoroethylene (PTFE). High Temperature Medical Device Polytetrafluoroethylene Clear PTFE Heat Shrinkable Tubing has excellent chemical resistance, heat resistance, weather and corrosion resistance. High Temperature Medical Device Polytetrafluoroethylene Clear PTFE Heat Shrinkable Tubing possesses excellent rigid and transparent.

SGS and ROHS compliant.



Usage

High Temperature Medical Device Polytetrafluoroethylene Clear PTFE Heat Shrinkable Tubing is widely used in electrical, computer, electro thermal, and telecommunication etc. Such as mini transformer, special sensor, artificial blood vessel etc.



 Specification of High Temperature Medical Device Polytetrafluoroethylene Clear PTFE Heat Shrinkable Tubing

Melting	≥280C
Dielectric constant(*)50HZ	2.1
Rigidity	85
Copper corrosion	No corrosion
Antibiotic property, erosion resistance property	Excellent
Toughness(fold, bend, tear etc.)	Excellent
Tensile strength Mpa(kgf/cm)	20.5
Breakdown strength(kv/mm)	30
Appearance	Smooth, no visible fur and defects , no impurity
Longitudinal change(%)	≤5%
Elongation	VW-1
Resistance	Wear resistant, anti-acid and corona discharge, solvent resistance, etc
Environment	No hazardous to humans and environment

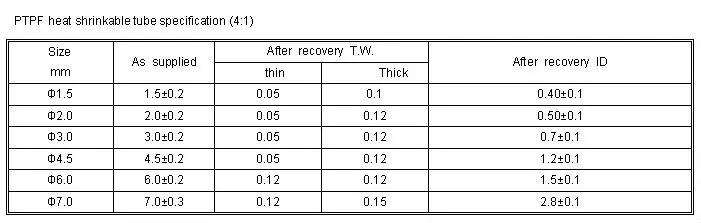

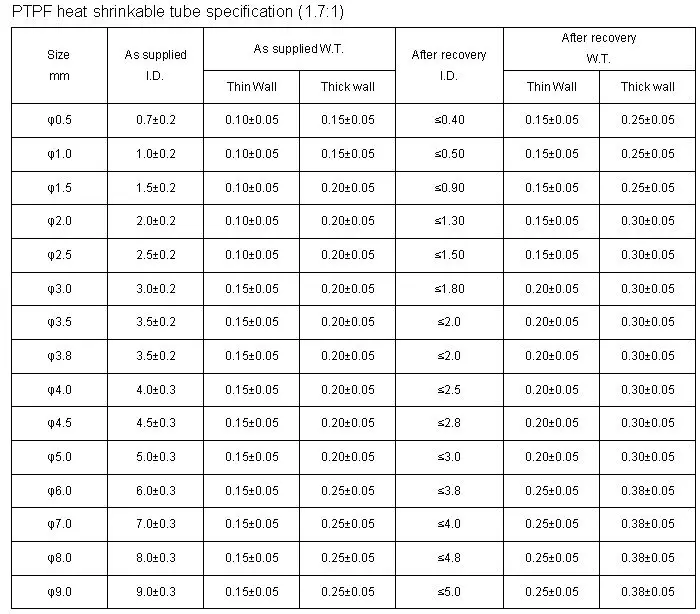

 Specification of High Temperature Medical Device Polytetrafluoroethylene Clear PTFE Heat Shrinkable Tubing



7



 Package:

 ID: 1.0-2.5 mm  200 meter/roll

 ID: 3.0-7.0 mm 100 meter/roll

 ID: 8.0-9.0 mm  50 meter/roll





ABOUT SUNBOW

Shenzhen Sunbow insulation Materials MFG Co., Ltd, established in 2003, mainly engaged in the research& development, manufacture and sales of various insulation materials. In year 2016, Donguan Sunbow factory was founded.

Our products are silicone fiberglass sleeving, PVC tubing, silicone Tubing, Heat shrinkable Tube, PET expandable sleeve, corrugated pipe.

We are a IATF16949 and ISO 9001 manufactuer of insulation materials. We supply to many big brands as as ABB, WHIRLPOOL, Benz, Toshiba, Siemens, TOYATA, Volvo and son on

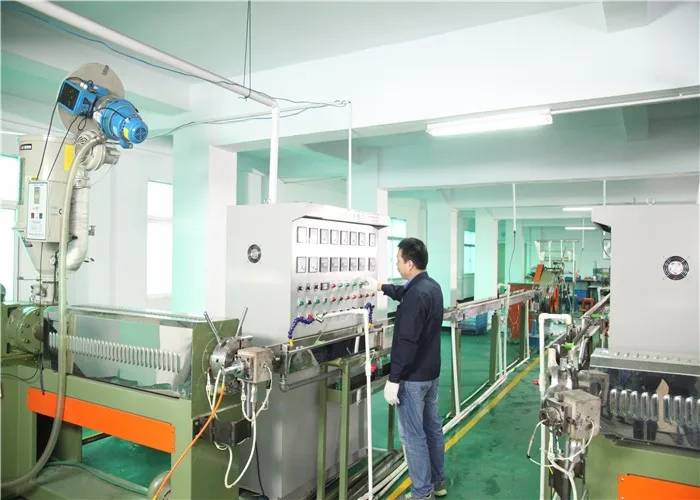

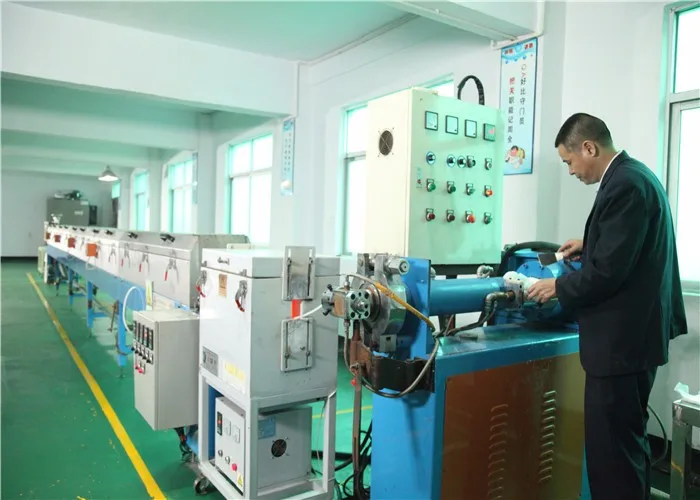

WORKSHOP





WHY SUNBOW

1. We are the china Top leading manufacture of PTFE heat shrink tube.

2. Good after sales service. we can promise one year quality gurantee.

3. Price is competitive.

4.We are TS16949 and ISO 9001 manufactuer.

5. Our products are complied with UL, ROHS, REACH.

6. We are in Shenzhen, which is a trade and manufacturing city.
