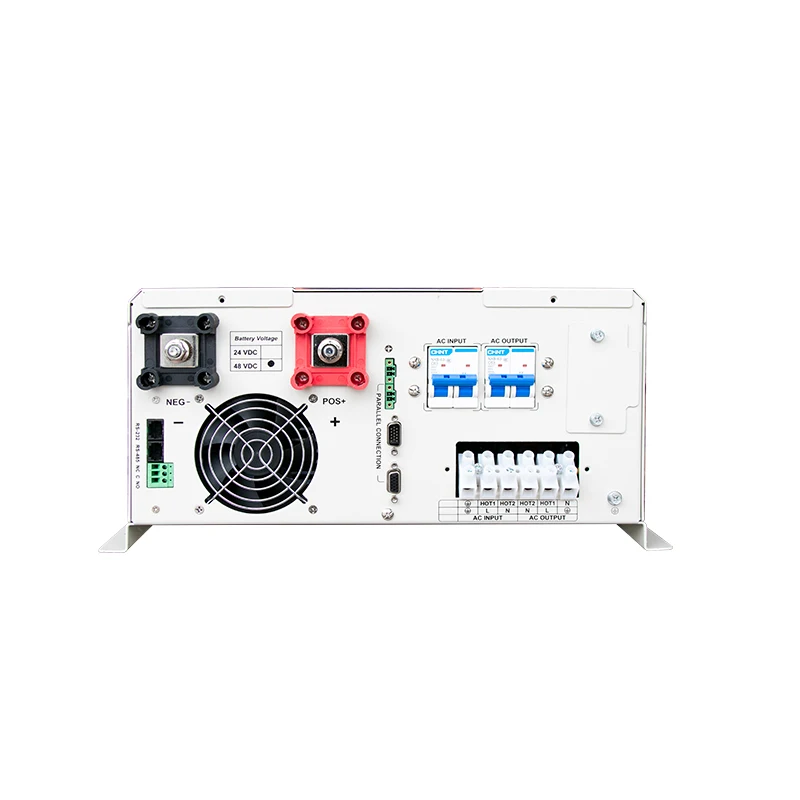

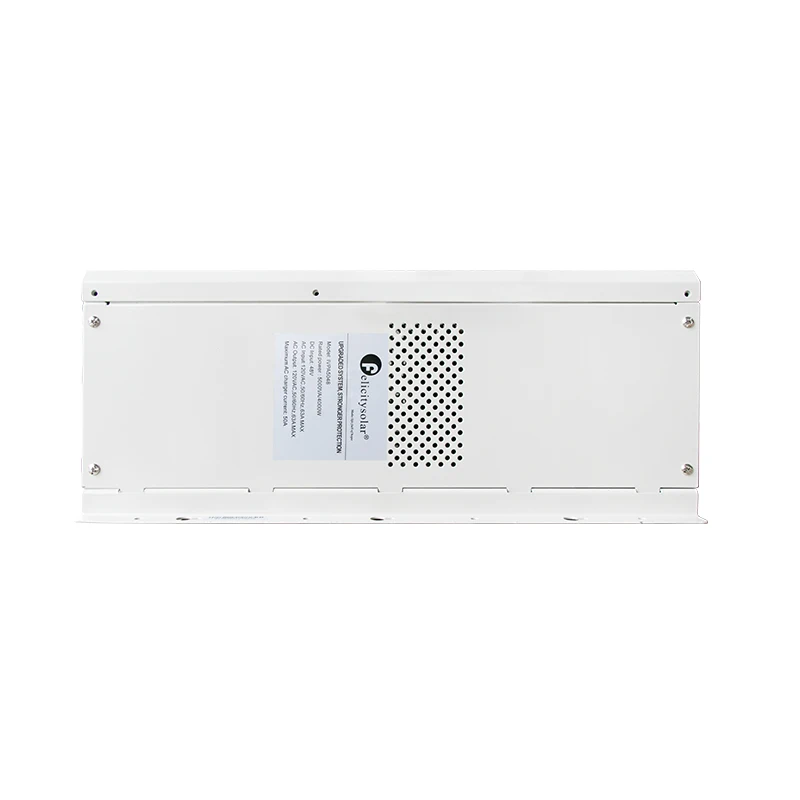

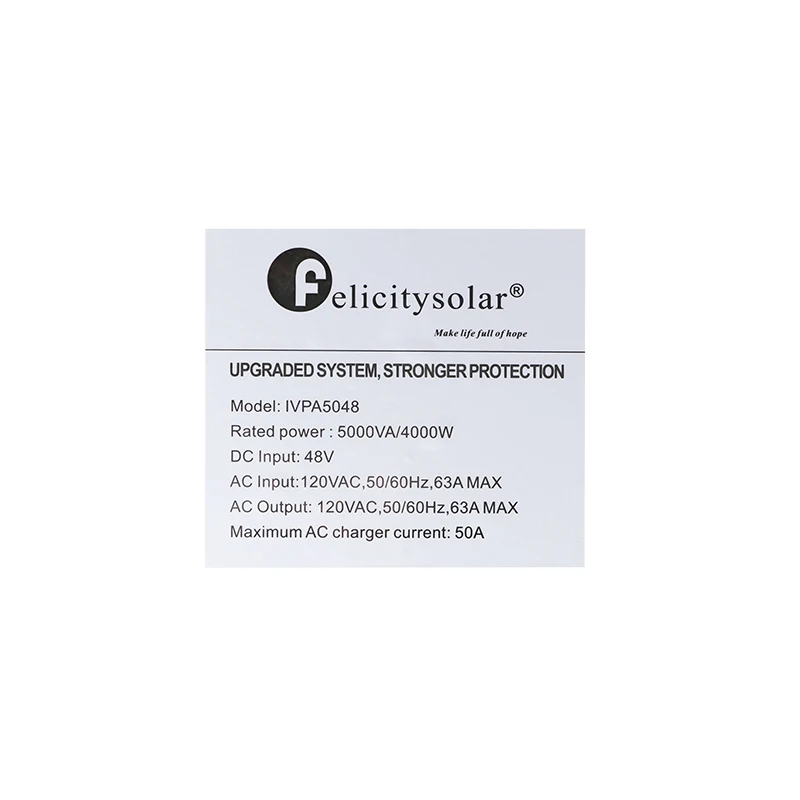

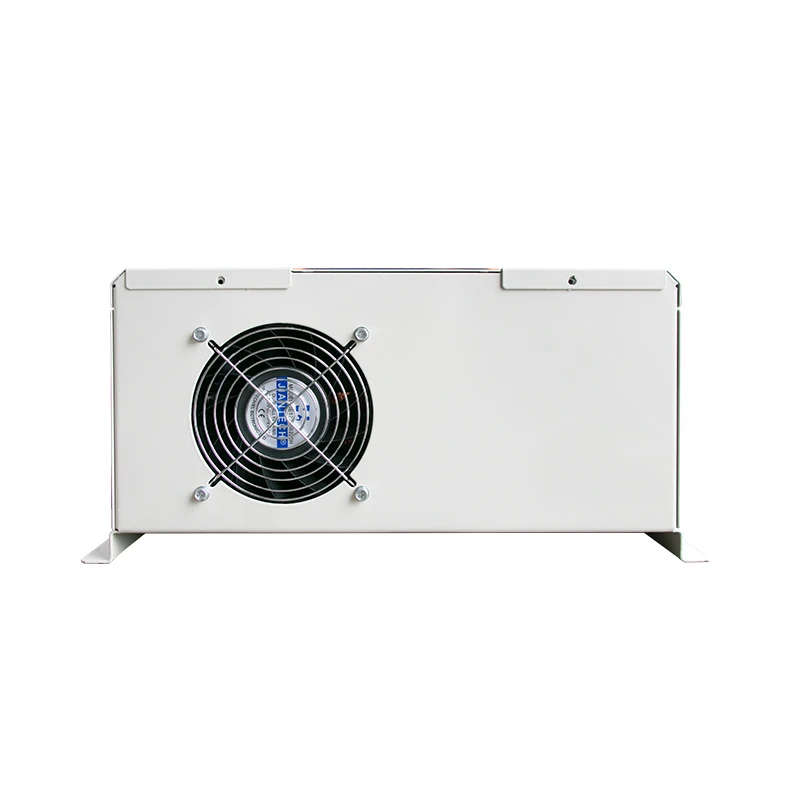

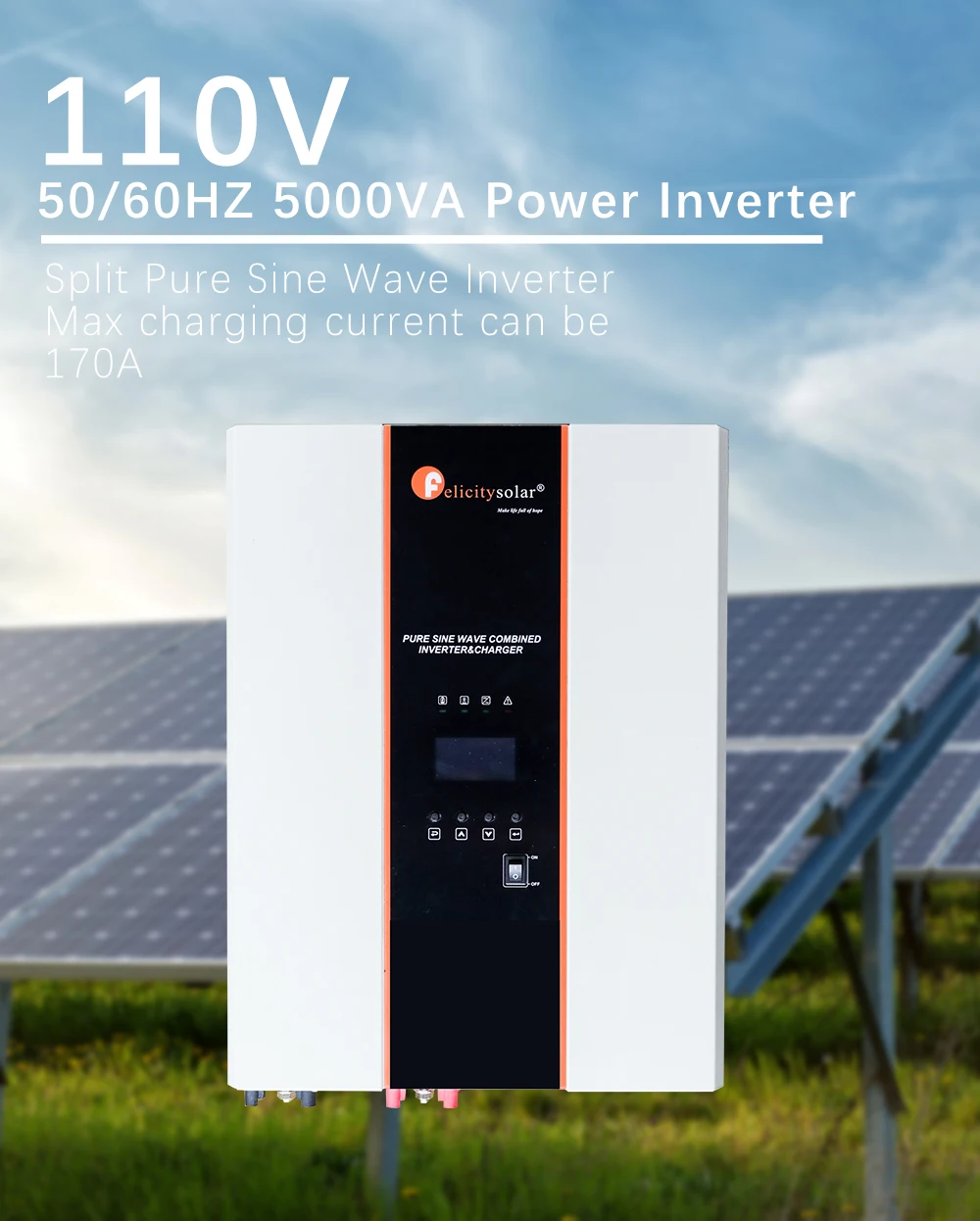

felicity Smart 5000VA 4000W on grid solar solar inverter power inverter 48V hybrid inverter
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.
Share on (1600891868488):
Product Overview
Description
Features
·Bypass charging function,AC charge available When the unit off.
·Built-in MPPT Controller.
·80-140V/90-280VACWide input voltage.
·110V/220V Double line wire port.
·Grid electricity and battery power priority is optional.
·Higher charging current and adjustable.
·Communicate with felicity MPPT charge controller.
·Intelligent protection,higher class of security.
·Built-in MPPT Controller.
·80-140V/90-280VACWide input voltage.
·110V/220V Double line wire port.
·Grid electricity and battery power priority is optional.
·Higher charging current and adjustable.
·Communicate with felicity MPPT charge controller.
·Intelligent protection,higher class of security.
Model | IVPA3524 | IVPA5048 | IVPA7548 | IVPA10048 | ||||
Rated Output Power(VA) | 3500VA | 5000VA | 7500VA | 10000VA | ||||
Rated Output Power(W) | 2800W | 4000W | 6000W | 8000W | ||||
Nominal DC Input Voltage | 24V | 48V | 48V | 48V | ||||
Input Voltage Wavelom | Sinusoldal(Utility or generator) | |||||||
Teriminal connection | L-N | HOT1-HOT2 | ||||||
Nominal Input Voltage | 120Vac | 220Vac | ||||||
Low Line Disconnect | 90±3Vac(UPS) 80Vac±3V(APL) | 170±7Vac (UPS) 90±7Vac(APL) | ||||||
Low Line Re-comect AC Input Range | 90±3Vac(UPS) 85Vac±3V(APL) | 180±7Vac(UPS)100±7Vac(APL) | ||||||
High Line Disconnect | 140±3Vac | 280±7Vac | ||||||
High Line Re-connect | 135±3Vac | 270±7Vac | ||||||
Max AC Input Voltage | 140Vrms | 280Vrms | ||||||
Nominal Input Frequency | 50Hz/60Hz | |||||||
Output Voltage Wavefom | As same as input waveform | |||||||
Over-Load Protection(SMPS load) | Overcurrent protector | air switch protection | Overcurrent protector | air switch protection | ||||
Output Short Circut Protection | Overcurrent protector | air switch protection | Overcurrent protector | air switch protection | ||||
Effidency(Line mode) | ≥95% | |||||||
Transfer Time(AC to DC) | 15ms(typical value) | |||||||
Transfer Time (DC to AC) | 15ms(typical value)/30ms(special value) | |||||||
Pass Through Without Battery | NO | |||||||
Overcurrent Protector(Utility) | 50A | 63A | 63A | 63A | ||||
Utility Charge Mode Specifications | ||||||||
Input Voltage Range | 80-140Vac | 90-280Vac | ||||||
Max Charge Current | 40A | 50A | 60A | 80A | ||||
Charge Current Regulation | 0-40A | 0-50A | 0-60A | 0-80A | ||||
Charger Short Circuit | 50A | 63A | 63A | 63A | ||||
Breaker Size | Dependent on battery type or Self-defined | |||||||
Over Charge Protection | YES | |||||||
Solar Charing& Utilty Charging(MPPT bulit-in controller is optional) | ||||||||
Max PV Open Circuit Voitage | 145Vdc | 195Vdc | 195Vdc | 195Vdc | ||||
PV Voltage Working Range | 30~-145Vdc | 60-195Vdc | 60-195Vdc | 60-195Vdc | ||||
Max Input Power | 2200W | 6600W | 6600W | 6600W | ||||
Max Solar Charging Current | 120A | 120A | 120A | 120A | ||||
Max Charging current(Utity+Solar) | 120A | 170A | 180A | 200A | ||||
Geral Specification | ||||||||
Operating temperature | 0℃~40℃ | |||||||
Storage temperature | -15℃~60℃ | |||||||
Net Weight(KG) | 31.0KG | 35.5KG | 41.6KG | 58.5KG | ||||
Gross Weight(KG) | 34.3KG | 39.2KG | 44.8KG | 70.6KG | ||||
Product Size(D*W*H) | 472x391x195mm | 525x420x195mm | 615x420x195mm | |||||
Package Dimension(D*W*H) | 552x408x290mm | 607x540x290mm | 690x480x335mm | |||||
Company Profile
Guangzhou Felicity Solar Technology Co., Ltd. (hereinafter referred to as "Felicity") is a photovoltaic high-tech enterprise integrating R&D, production, sales, engineering design, installation guidance and after-sales service. Founded in 2010, the company covers an area of 35 acres, and has an annual output value of nearly 1 billion yuan. At present, the company has more than 600 employees, including more than 100 senior experts in new energy and professional technical personnel in various disciplines. There are 6 production plants, 3 research and development institutions, and 25 product technology patents, including 20 practical invention patents and 5 invention patents.
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .

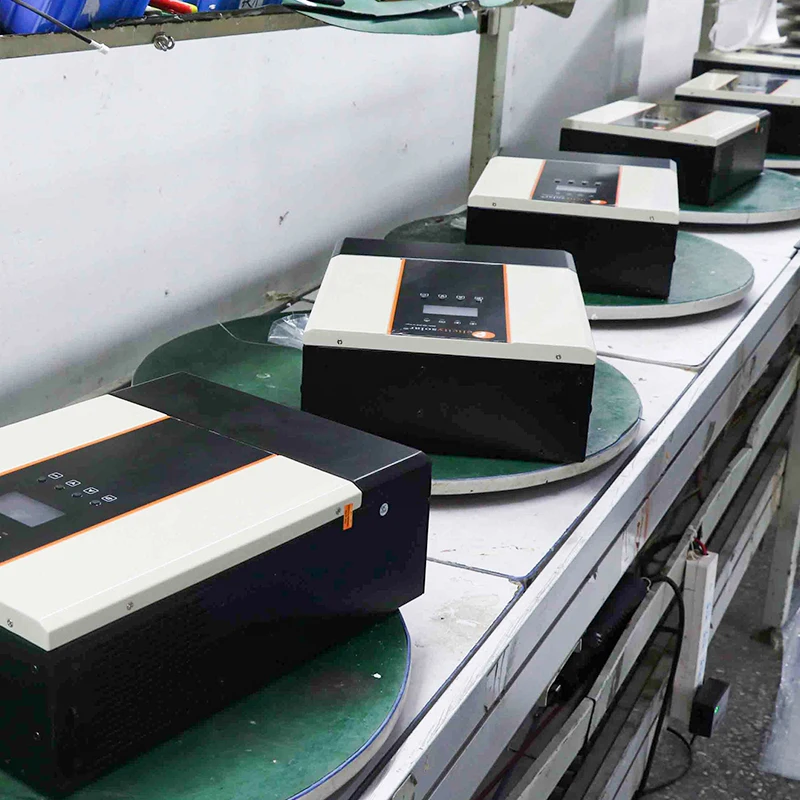

Production line

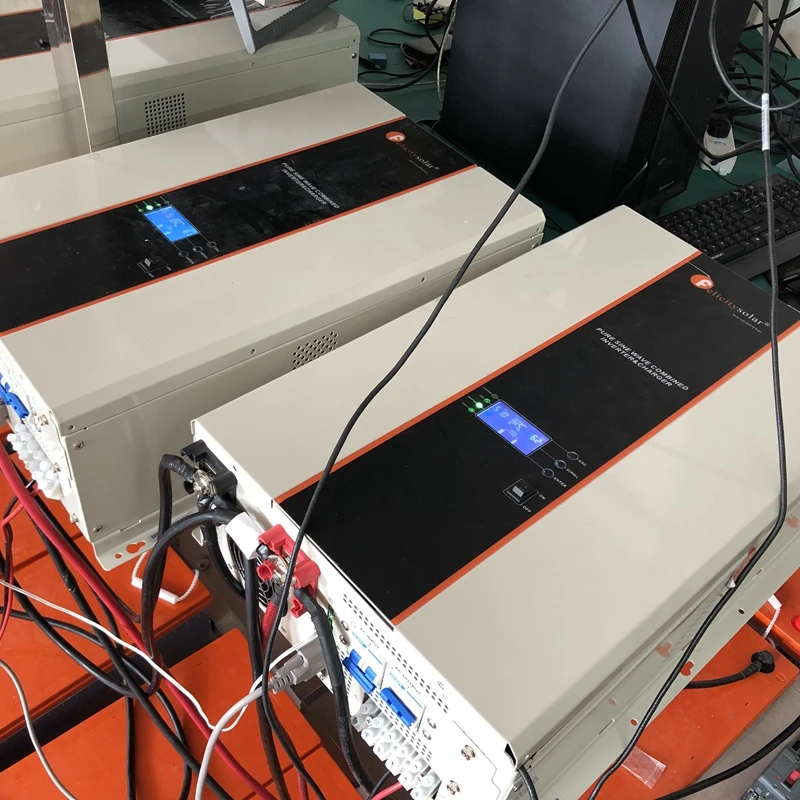

R & D technology
Advanced Equipment
Warehouse Stock
Packaging & Transportation
Exhibition

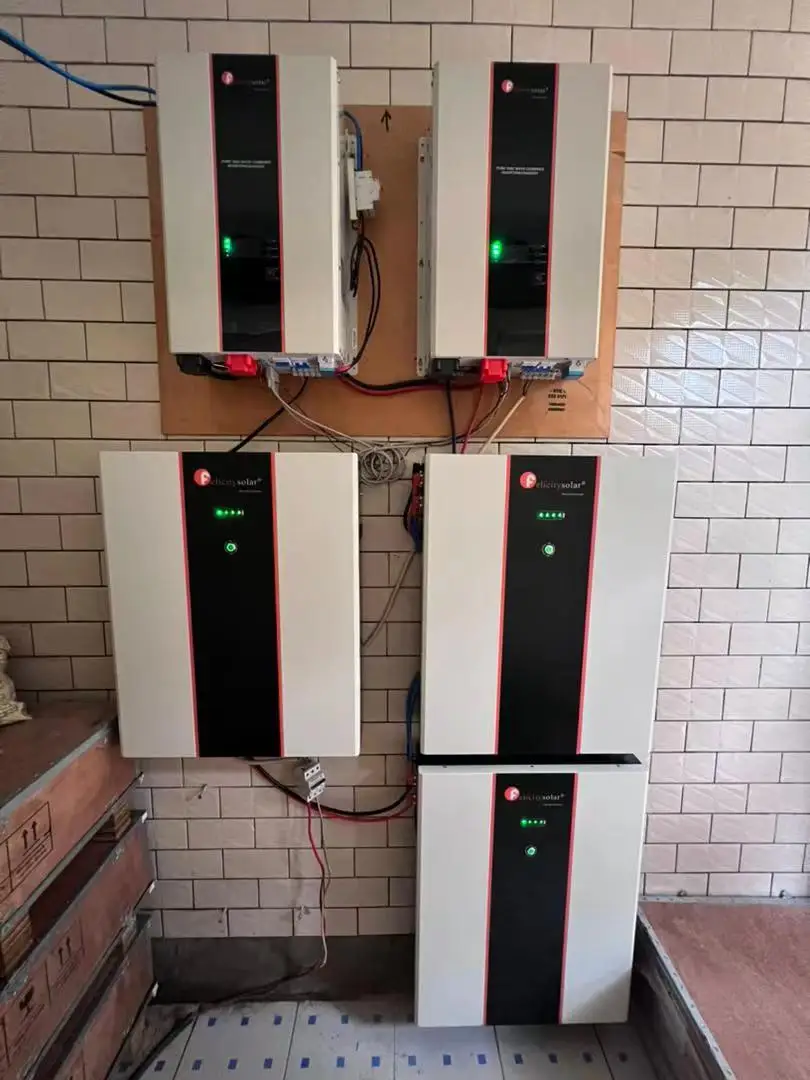

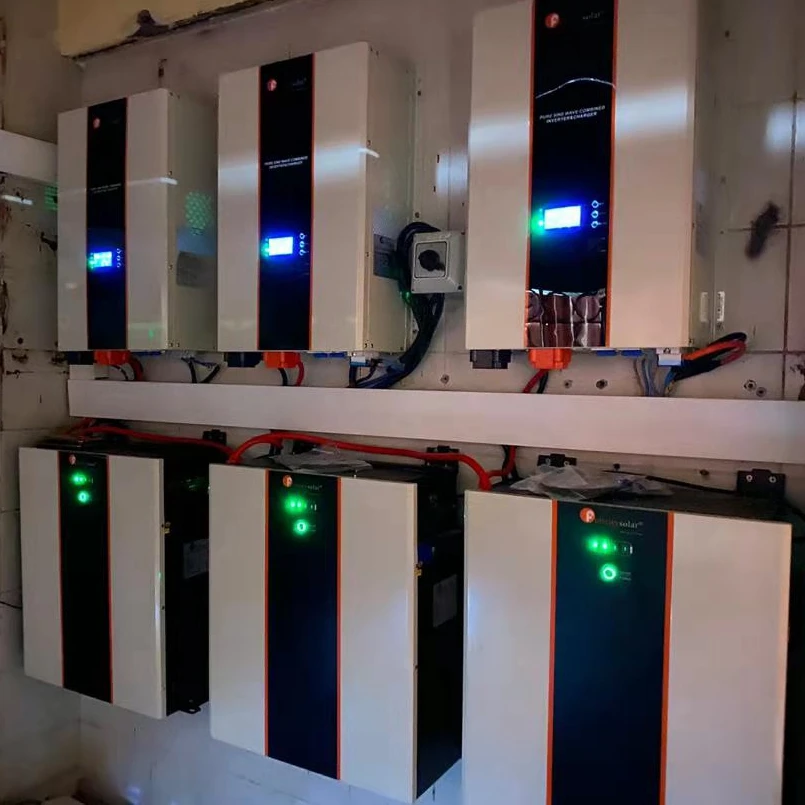

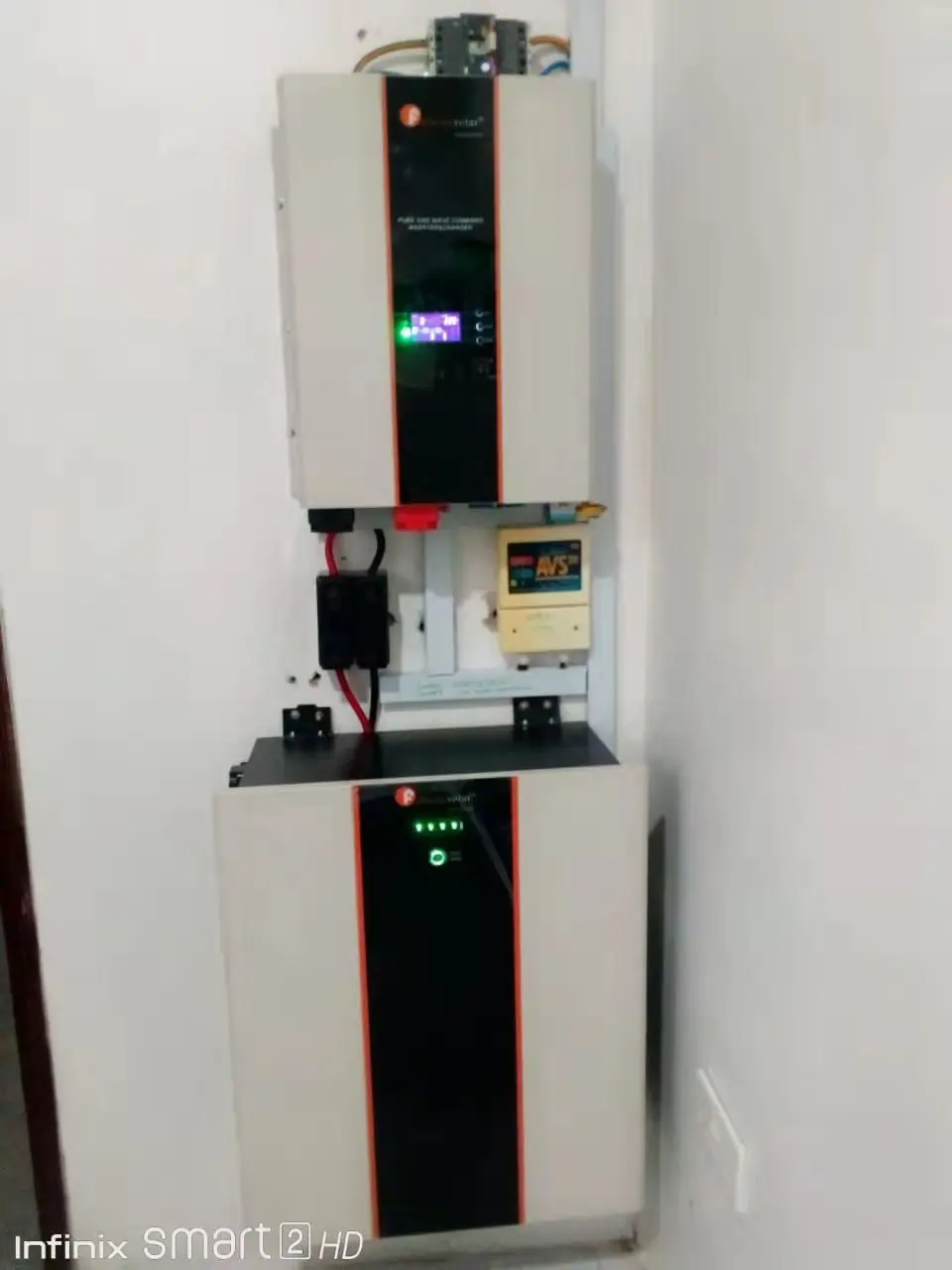

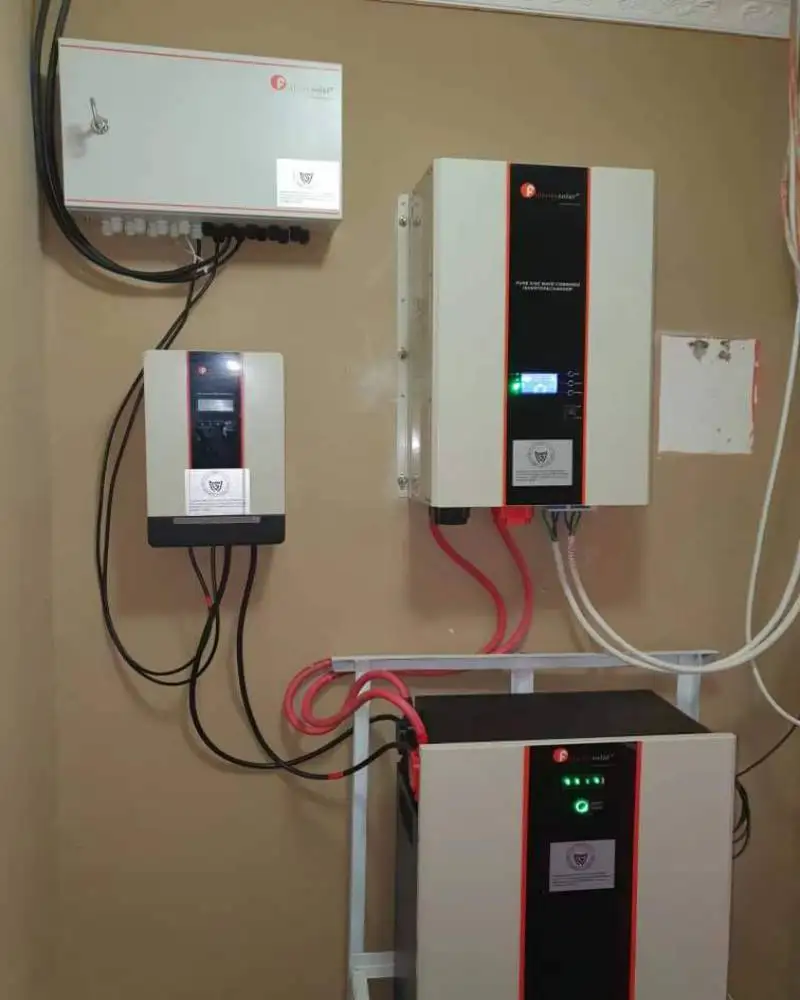

Customer Case

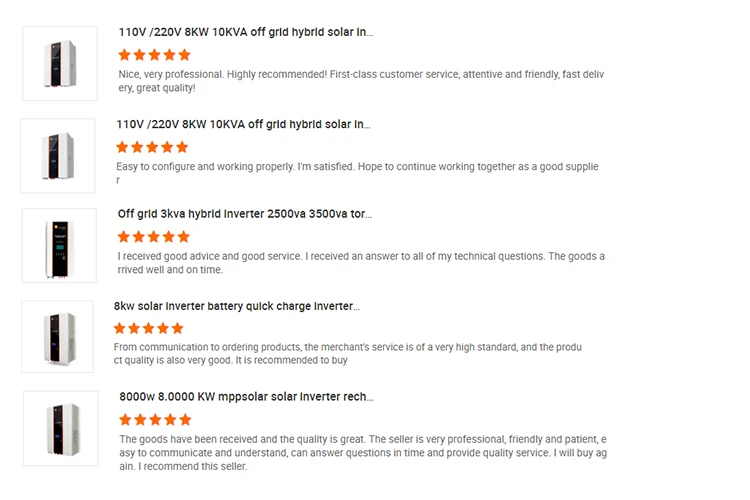

Feedback
