dth drilling machine factories deep rock well drilling price

Product Overview

Description

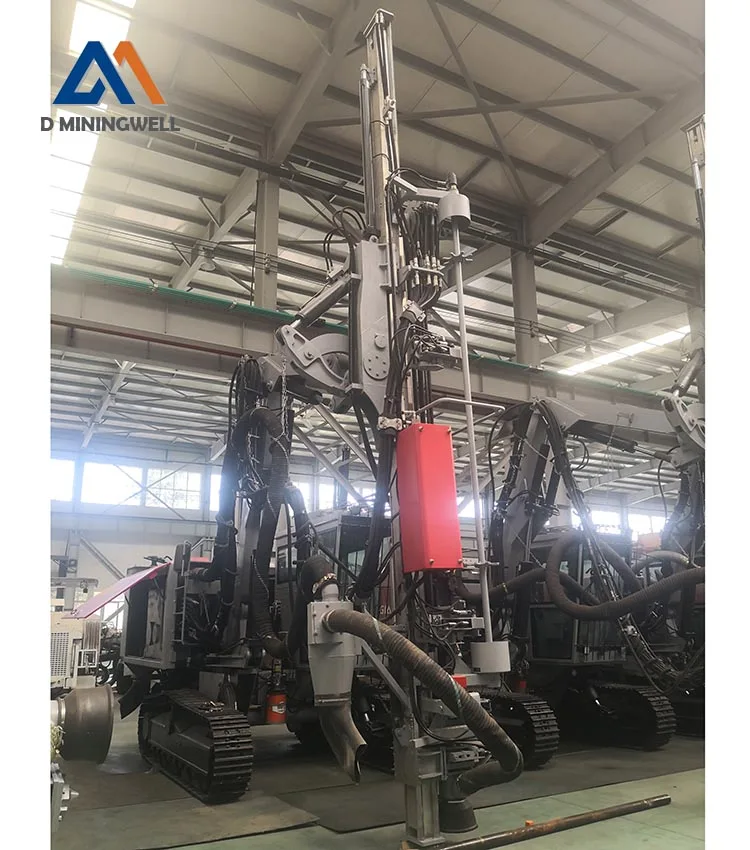

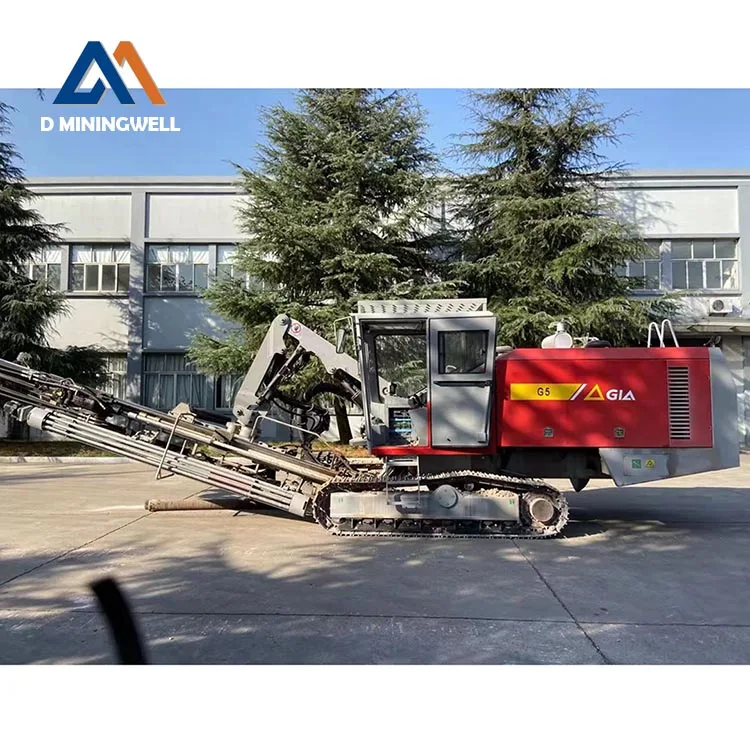

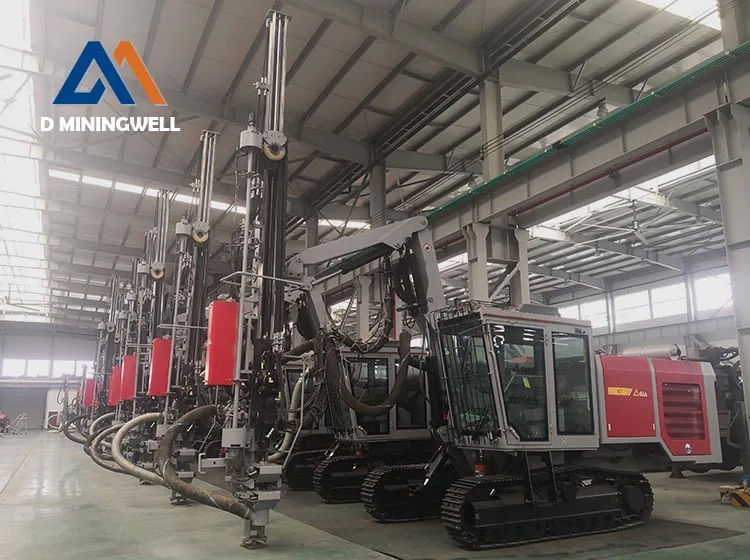

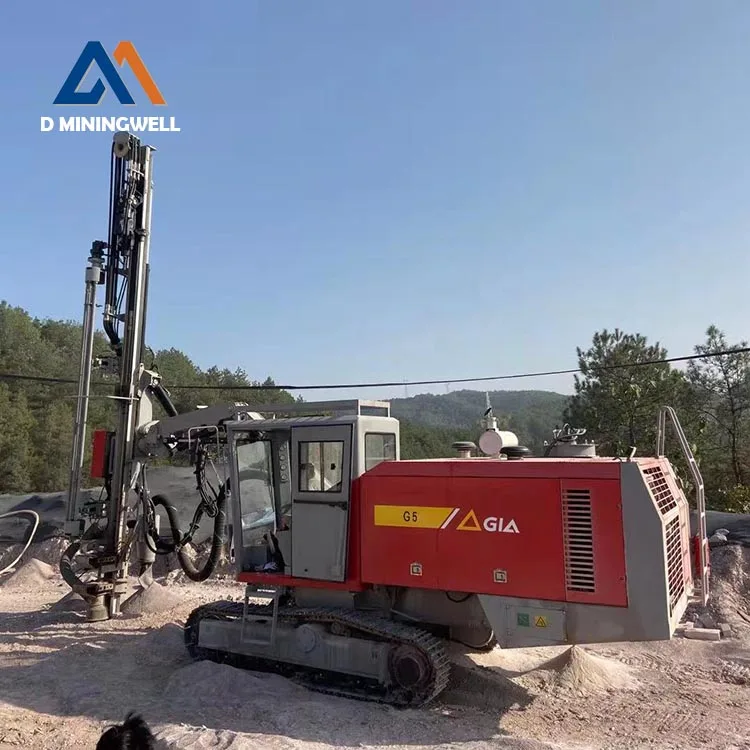

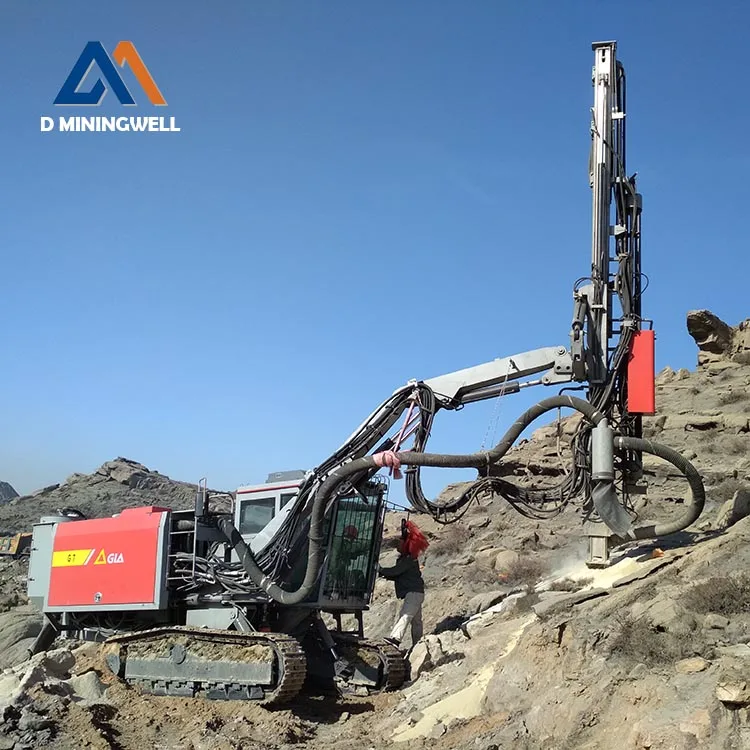

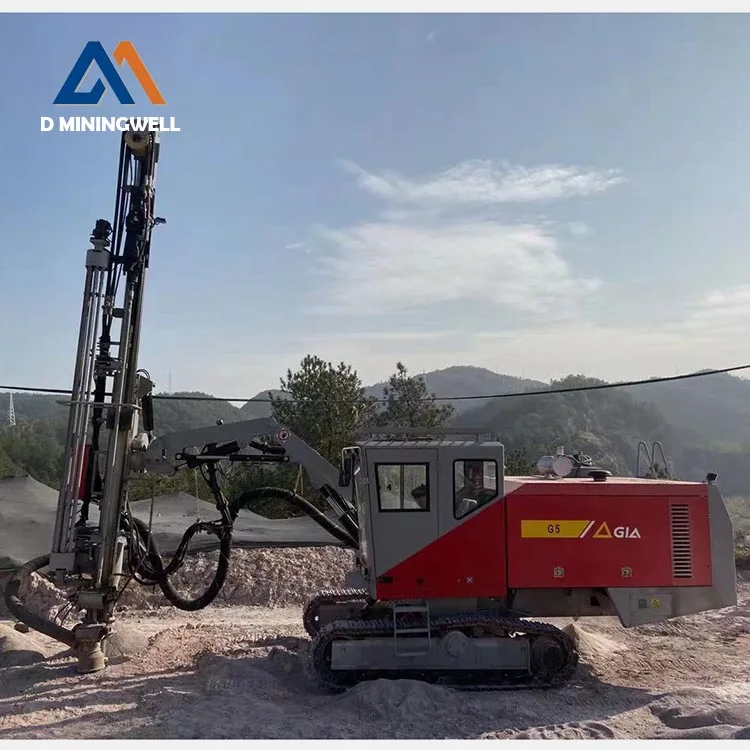

Technical parameters of G5/G7 hydraulic top hammer drilling rig
	G5	G7
Hole range	45 - 90 mm	76 - 115 mm
Rod size	T38/T45	T51
Max. depth	25m	25 m
Drilling coverage area	17 m2	17 m2
Engine	Cummins	Cummins
Engine power	134 kW/2200 r/min	194 kW/2200 r/min
Drafter	Atlas Copco RD14S / 14 kW	Atlas Copco RD18S / 18 kW
Impact pressure	145 bar	200 bar
Advance itinerary	3500mm	3500mm
Propelling beam length	6030mm	6030mm
Advance compensation	1400 mm	1400 mm
Max. advancing speed	0.9 m/s	0.9 m/s
Max. thrust	20 kN	20 kN
Walking speed	1.5/3.1 km/h	1.5/3.1 km/h
Gradeability	20°	20°
Dimensions (L x W x H)	10800x2350x3000 mm	11610x2450x3200 mm
Weight	13500kg	14500kg

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.



Q2: Can you send products  to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.



Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70%  before shipment.



Q5: How can I place the order?

A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay  balance. Finally we will ship the Goods.



Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
