Automatic Plastic Laminated Cosmetic Cream Soft Ointment Tube Filling Sealing Machine
- Category: >>>
- Supplier: Zhejiang Leadtop Pharmaceutical Machinery Co. Ltd.
Share on (1600892054833):
Product Overview
Description
This Tube Filling Machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad, is ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries, and strictly meet GMP requirement.
PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.
PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.
Machine Data

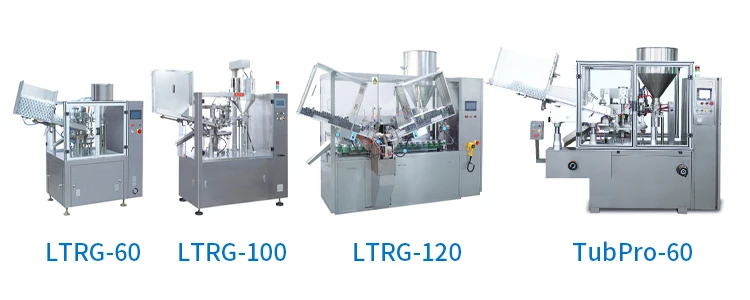

Model | LTRG-60 | LTRG-100 | LTRG-120 |
Tube Diameter | Φ5mm-60mm | Φ12.5mm-50mm | Φ12mm-50mm |
Tube Length(customizable) | 50-300mm | 210mm | 50-240mm |
Filling Volume (Adjustable) | 5-250ml/piece | 5-250ml/piece | 5-250ml/piece |
Filling Accuracy | ≤±1% | ≤±1% | ≤±1% |
Product Capacity | 30-50/min | 80/min | 80-120/min |
Air Supply | 0.55-0.65Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa |
Motor Power | 1.2kw | 1.5kw | 2.2kw |
Heat Sealing Power | 5kw | 5kw | 5kw |
Overall Dimension(mm) | 1600*1640*1900 | 2500*1200*2400 | 2950*1310*2300 |
Machine Weight (kg) | 1100 | 1200 | 3000 |
Detailed Images

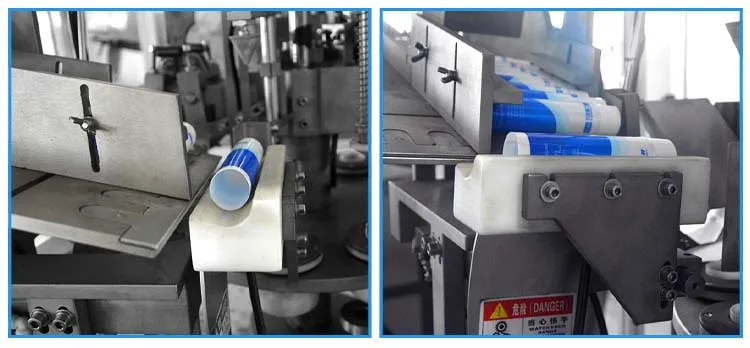

Tube Feeding
Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

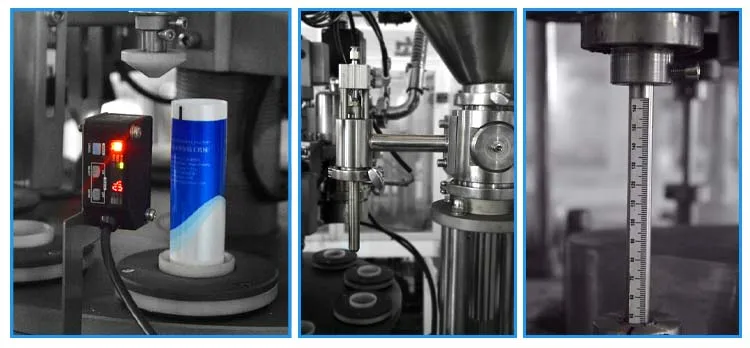

Print Registering and Filling
According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

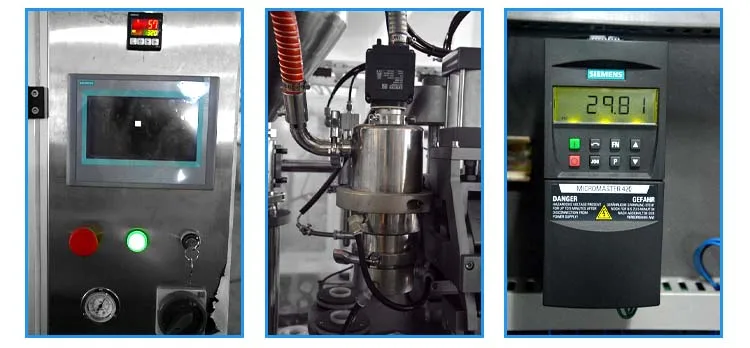

1.Touch Screen 2.Heating Station 3.Electronic Controlling System
Servo control makes it precise and convenient to adjust the filling amount by touch screen.

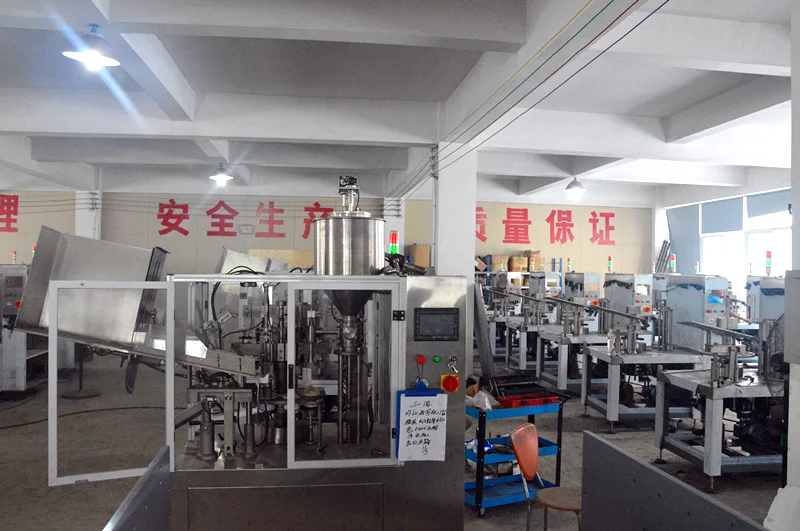

Manufacturing Workshop
According to the needs of users, packing machine of various specifications can be customized.
Main Feature

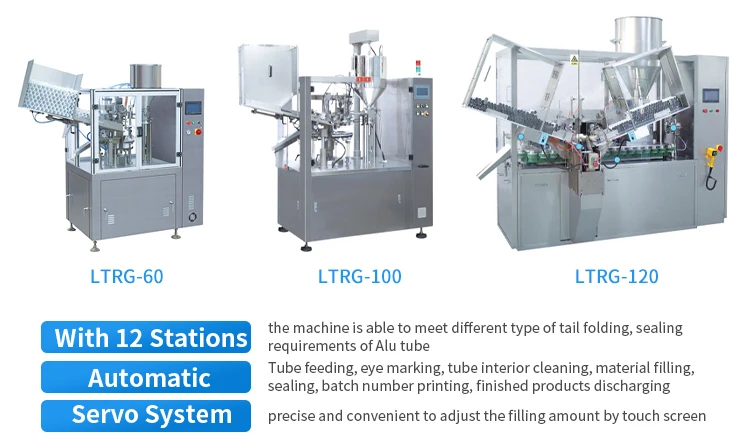

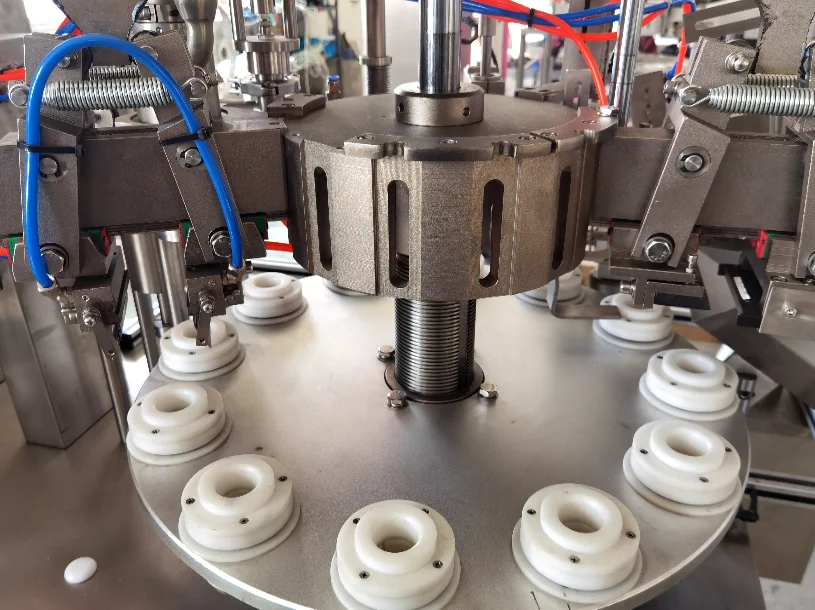

1.With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.
2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3.Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4.According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
7.Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3.Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4.According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
7.Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
Company Introduction
Our Company
- LTPM CHINA is one of China's leading system suppliers for the pharmaceutical, beverage and food sectors.
- Our portfolio includes machinery and plants as well as advanced process technology, components and comprehensive services. Used across diverse industries, they enhance the sustainability and efficiency of production processes globally.
- Our business model has evolved significantly since our founding in 1996 as a Pharmaceutical Machinery Company. Our machinery manufacturing bases all have been in this field for more than 15years which can give our client more reliable service. Professional, Service, Genuineness, Enthusiasm are our value. LTPM CHINA exports pharmaceutical machinery to more than 30countries which includes European country and Americans. Through serving different pharmaceutical companies in different country, we believe in success would affect success.
- Our company mission is creating a professional platform for the industry and achieving individual value. LTPM CHINA, Your best pharmaceutical production solution!
- Our portfolio includes machinery and plants as well as advanced process technology, components and comprehensive services. Used across diverse industries, they enhance the sustainability and efficiency of production processes globally.
- Our business model has evolved significantly since our founding in 1996 as a Pharmaceutical Machinery Company. Our machinery manufacturing bases all have been in this field for more than 15years which can give our client more reliable service. Professional, Service, Genuineness, Enthusiasm are our value. LTPM CHINA exports pharmaceutical machinery to more than 30countries which includes European country and Americans. Through serving different pharmaceutical companies in different country, we believe in success would affect success.
- Our company mission is creating a professional platform for the industry and achieving individual value. LTPM CHINA, Your best pharmaceutical production solution!

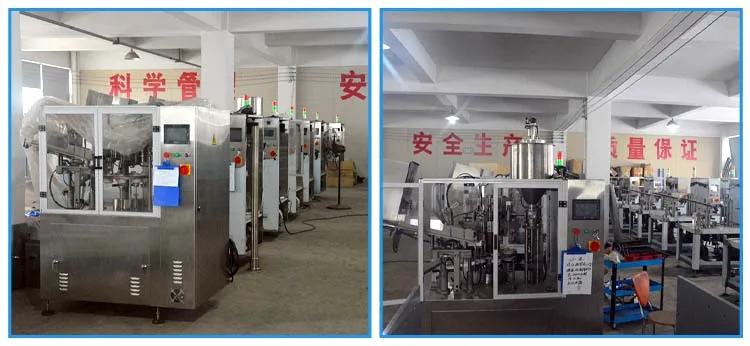

Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q1: How many different types of Tube Filling Machine you have?
Q9: How can I trust you for the first time business ?
A: If you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q10: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q11: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
A: We have Four different types of tube filling machine which are LTRG-30, LTRG-60. LTRG-100 and LTRG-120.
Q2: Does one machine works for Aluminum Tube, Plastic tube and Laminated Tube?
A: Except Model LTRG-30 can works for one type of tube only. The other models can works for all kinds of tube by changing parts.
Q3: What kind of filling pump you are using for filling?
A: We are using SS316L Stainless Steel Piston pump for filling.
Q4: We found one machine from another supplier gets dripping problem while filling, how you solve the problem?
A: Our filling system comes with Automatic Pneumatic Cutting Function while filling. So there will be no Dripping at all while filling.
Q5: For different Filling volume, does your machine do mechanically adjustment or automatic adjustment?
A: Our standard model machine is manually mechanical adjustment by hand wheel. But our newly Launched LTRG-S Series comes with automatic servo calibration and volume adjustment system.
Q6: Our products comes with high percentage of Ethanol and other flammable materials, what you can do on explosive proof while production?
A: We install explosive proof motor for this kind of production. The most important thing is that we can do Ultrasonic sealing while you are doing plastic tube, that will be no headache on heating and explosive risk.
Q7: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How many years for warranty?
A: all of our machines comes with 5 years free warranty.
Q9: How can I trust you for the first time business ?
A: If you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q10: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q11: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
