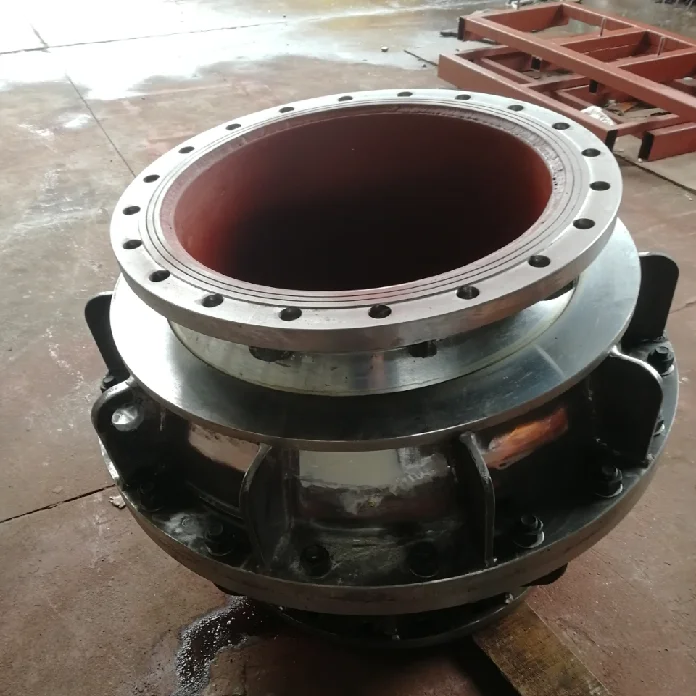

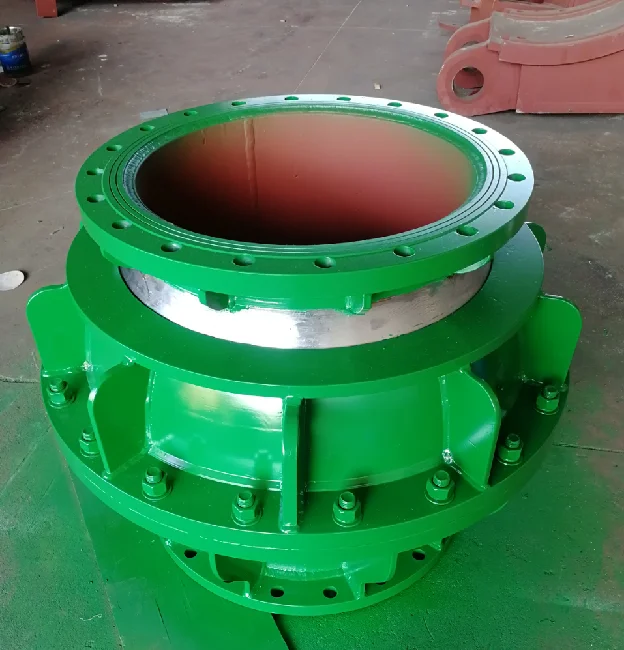

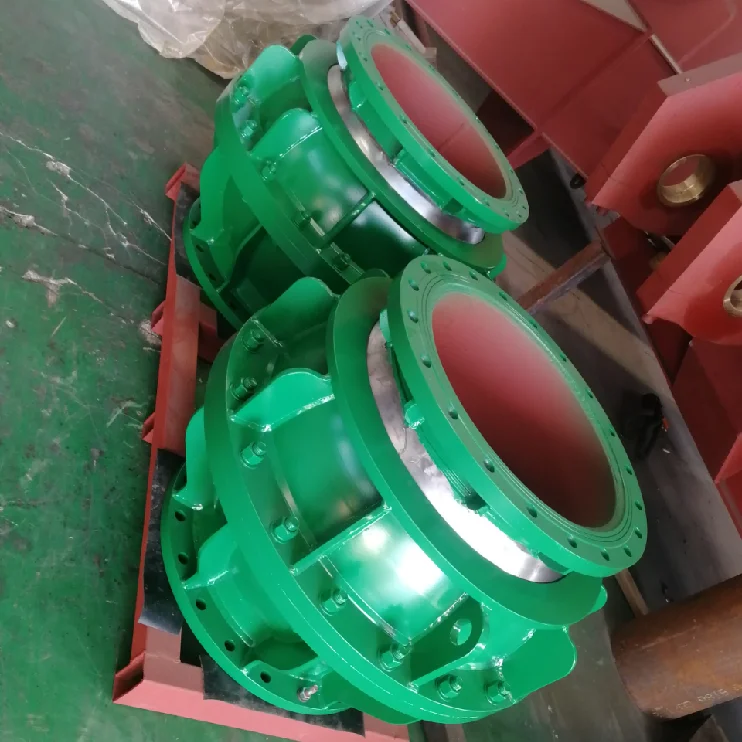

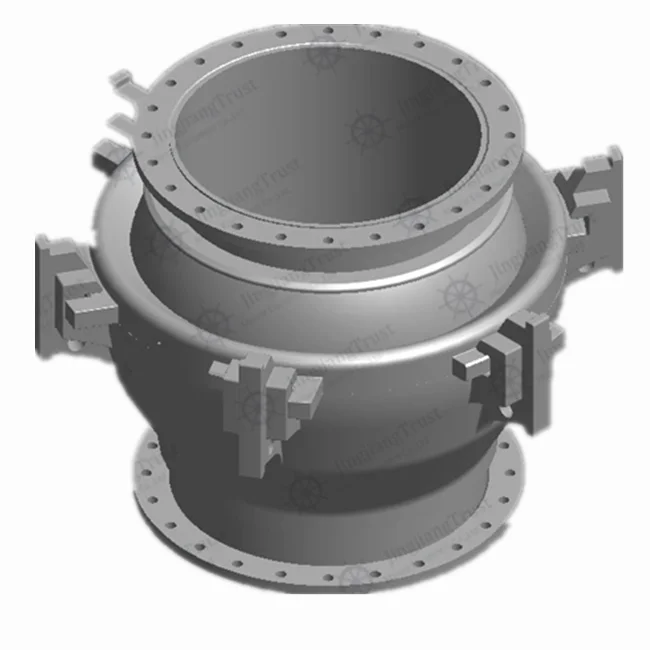

China dredge ball joint and water ball joint Universal rotary joint
A dredge ball joint is a connenction between two pipes that are used to transport a mixture of water and sand from a dredge to the discharging area.
Corrosion resistance dredge pipe ball joint for dredge provide a flexible load-bearing connection between sections of a pipeline.
Dredge Ball Joint includes 15 degrees tilting angle and 18 dgree tilting angle. Dredge ball jiont provides a flexible load-bearing connection between sections of a pipeline. The priciple field of application is in floating lines, whose sections are supported by pontoons or other buoyancy.
The dredge ball joint ensures a flexible connection of the different pipe sections. It is capable of transmitting high loads from one section to another. There are various pressure levels, sunch as 10, 20, 30bar.
In addition to the use in floating pipelines, dredge ball joint can also be use in swan-neck bends in section and discharge pipelines. The dredge ball joint can also be applied as a replacement for stern turning glands in cases where besides pure torsion freedom along the longitudinal axis, an amount of tilting is also required.
Features:
1. Easy assembly and dis-assembly
2. It is hard to leak with flexible seal
3. LIner is made from war-resistance material and it is replaceable.
4. Quick fix, low cost
5. Operate at low friction
6. Low, Medium and high pressure, high efficiency.
For more information. pls feel free to contact us.








Specification





Ser No.
Inner Diameter
10 bar
20 bar
30 bar
(mm)
Welding Type
Flange Type
Welding Type
Flange Type
Welding Type
Flange Type
Weight (Kg)
Weight (Kg)
Weight (Kg)
Weight (Kg)
Weight (Kg)
Weight (Kg)
DN400
400
260
292
332
368
425
461
DN450
450
356
405
471
536
630
695
DN500
500
485
549
645
718
847
921
DN550
550
601
672
858
930
1130
1204
DN600
600
799
879
1119
1199
1462
1546
DN650
650
1189
1315
1432
1565
1865
1997
DN700
700
1264
1464
1749
1956
2132
2337
DN750
750
1566
1783
2258
2484
2796
3015
DN800
800
1847
2093
2597
2840
3114
3362
DN850
850
2188
2438
3108
3365
3894
4153
DN900
900
2617
2889
3661
3936
4551
4825
DN1000
1000
3585
3883
5043
5341
6321
6617
DN1100
1100
4753
5086
6616
6967
9185
9536
DN1200
1200
5946
6308
8539
8924
10425
10845

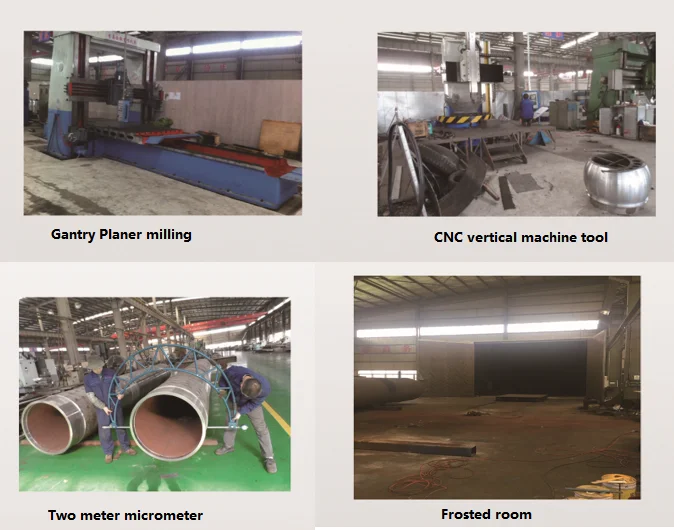

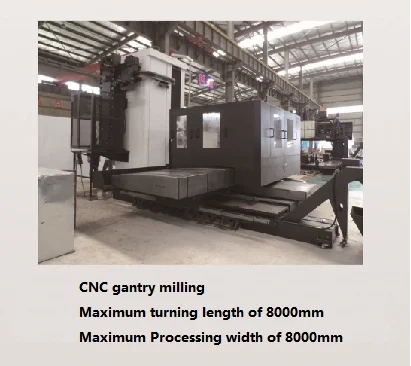

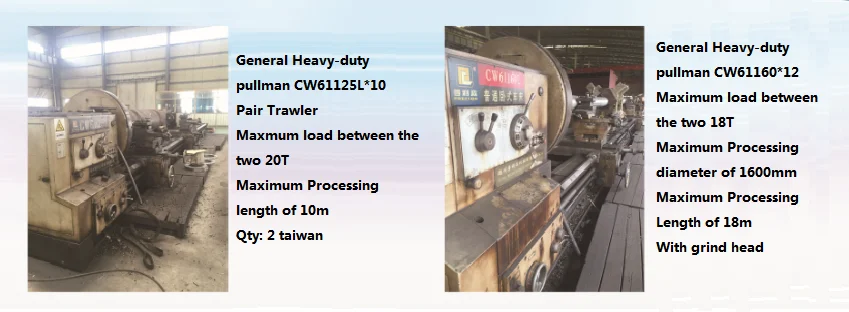

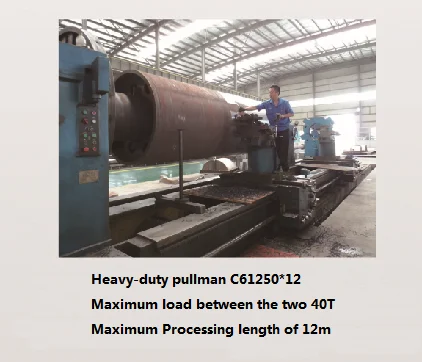

Company Profile

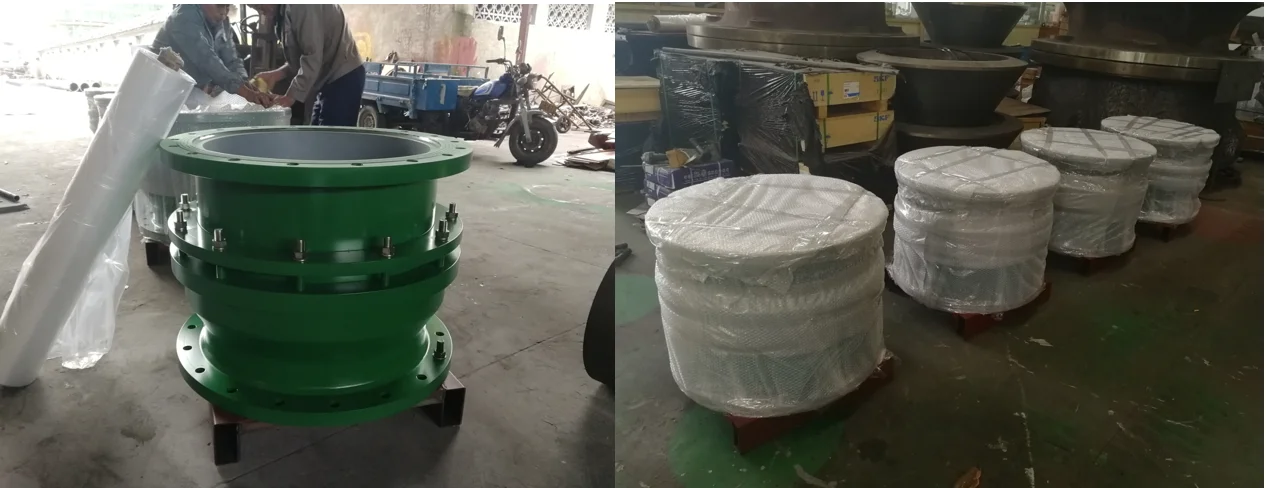

Packing & Delivery




FAQ


Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement

Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests

Q: Do you accept small quantity order?
A: Of course we do.

Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
