Product Overview
Description
Product name: D2/ 1.2379 Hot tool mold Steel

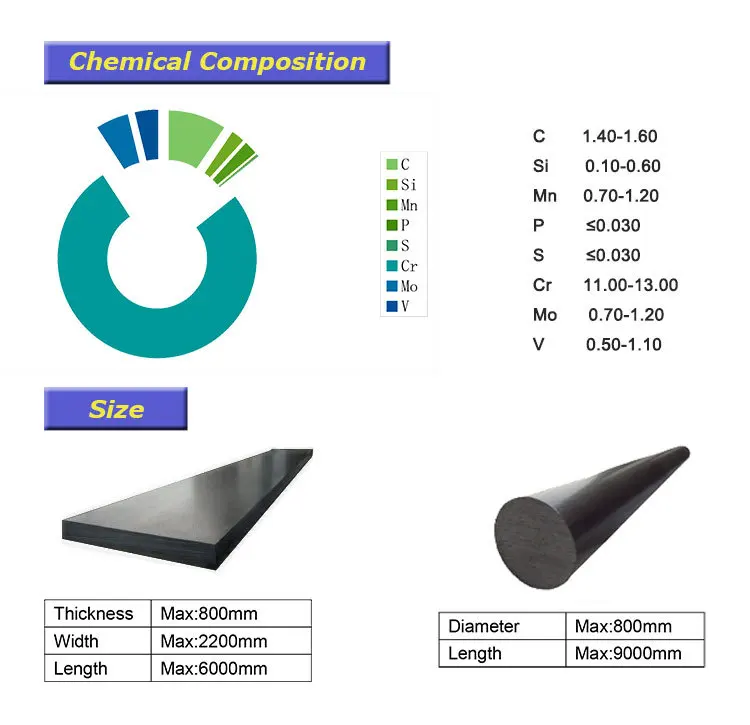

1. Chemical composition
| C | Si | Mn | P | S | Cr |
| 1.4-1.6 | 0.1-0.6 | 0.1-0.6 | ≤0.03 | ≤0.030 | 11-13 |
2. Equivalent Steel Grade
| DIN | ASTM | GB | JIS | TOCT | BS |
1.2379 | D2 | Cr12Mo1V1 | SKD10 |

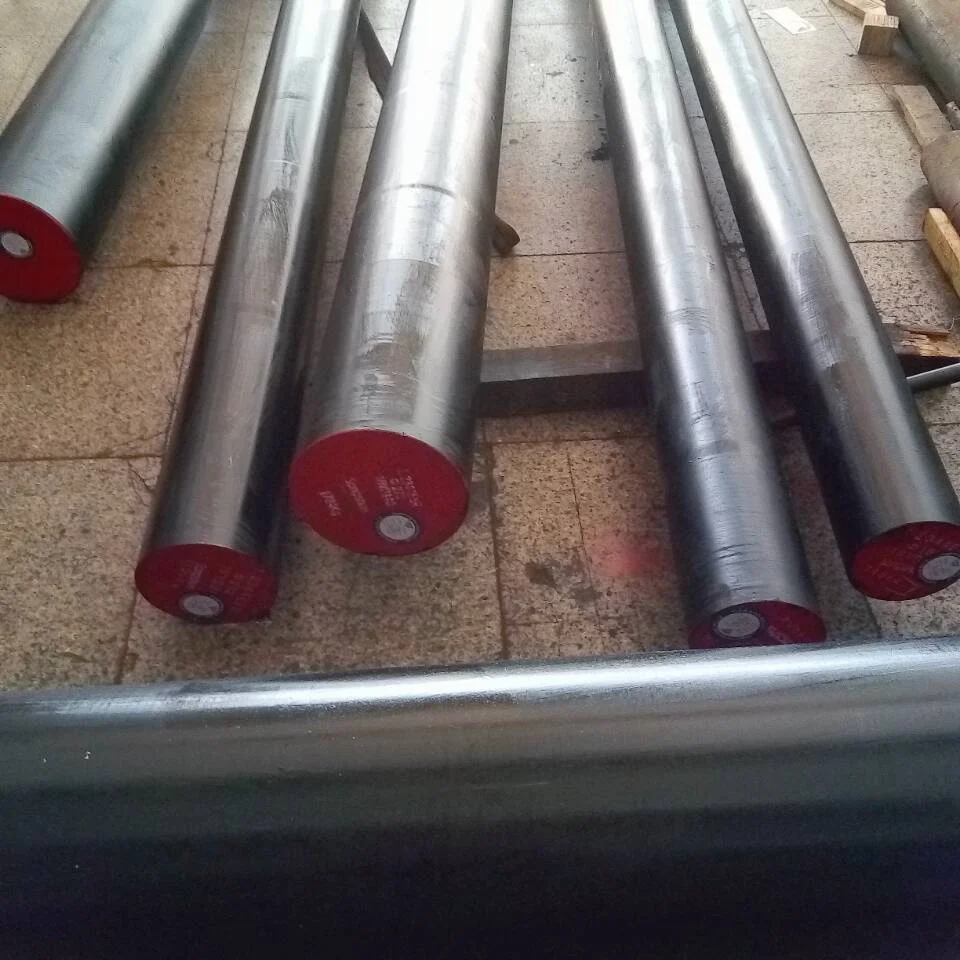

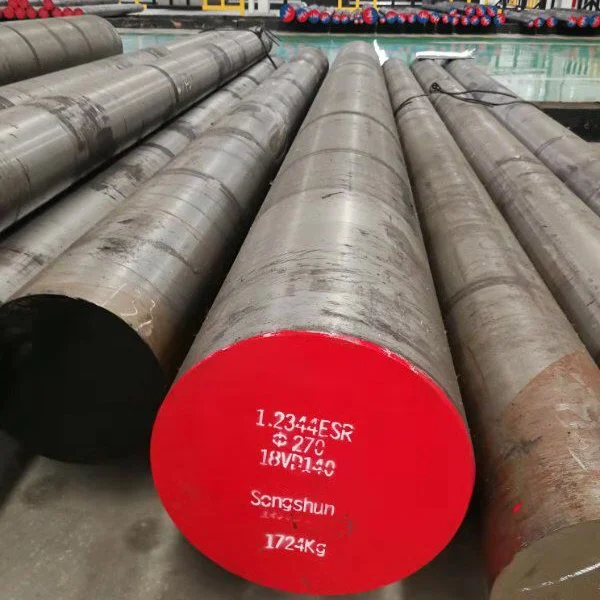

Product Show
3. Surface Treatment
Bar: Turned /Peeled
4. Size
Round bar: Diameter50-70mm; 80-120 MM ...
Length(mm) 3000-5800mm

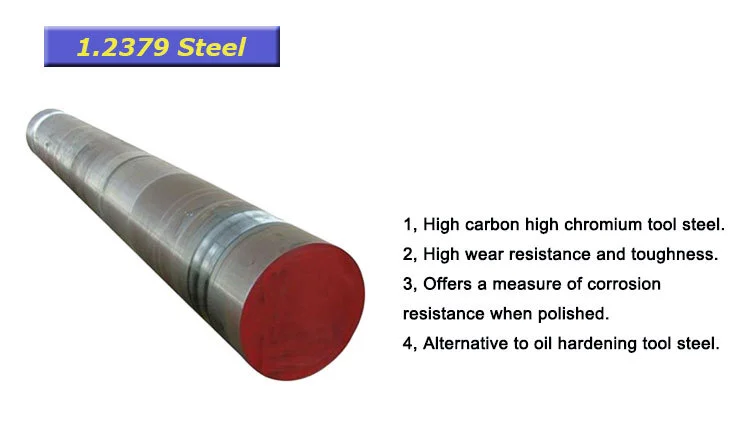

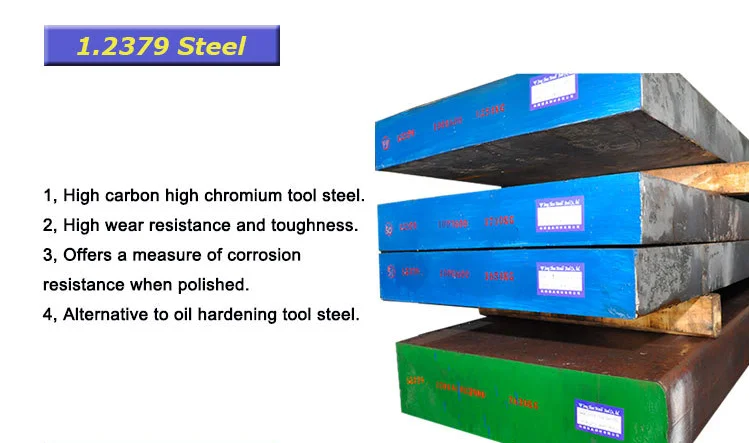

AISI D2/DIN 1.2379 Introduction:
D2 steel is an air-hardening, high-carbon, high-chromium tool steel. It has high wear and abrasion-resistant properties. It is heat treatable and machinable in annealed conditions. D2 steel shows little distortion on correct hardening. D2 steel’s high chromium content gives it mild corrosion-resisting properties in hardened conditions.
5. Fabrication and Heat Treatment
Heat Treatment
D2 steels should be preheated very slowly to 815ºC (1500ºF) and then the temperature can be increased to 1010ºC (1850ºF). They are then held at 1010ºC (1850ºF) for 20 to 45 minutes and air-cooled (air quenched).
Forging
Forging of D2 steels can be done from 1065ºC (1950ºF) down to 954ºC (1750ºF). Do not forge below 926ºC (1700ºF).
Annealing
Annealing of D2 steels should be done at 871 to 898ºC (1600 to 1650ºF) followed by slow furnace cooling at 4.4ºC (40ºF) per hour or less.
Tempering
D2 steels can be tempered at 204ºC (400ºF) for achieving a Rockwell C hardness of 61 and at 537ºC (1000ºF) for a Rockwell C hardness of 54.
Applications
D2 tool steels are used for long-run tooling applications, where wear resistance is important, such as blanking or forming dies and thread rolling dies.
6. Applications
For pounch mold, knife mold, screw mold, chinaware mold .

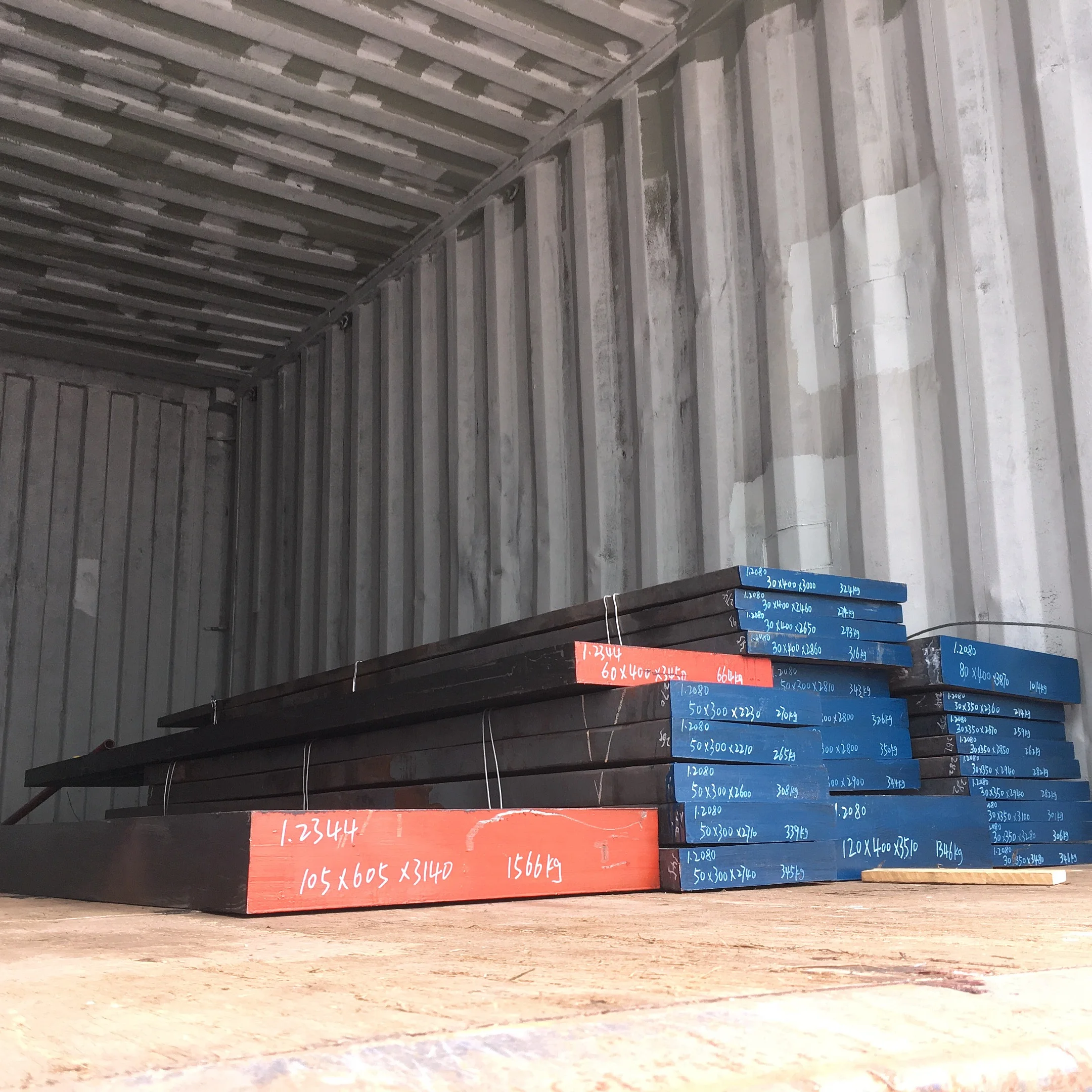

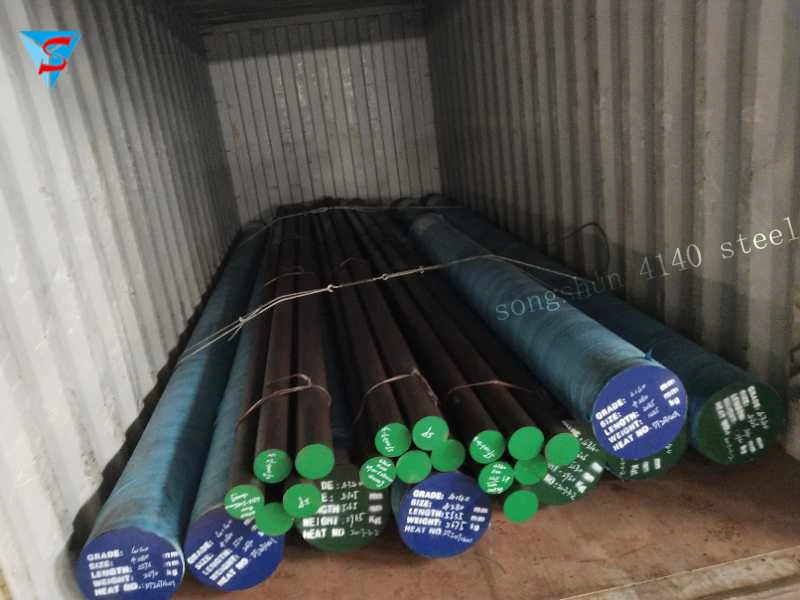

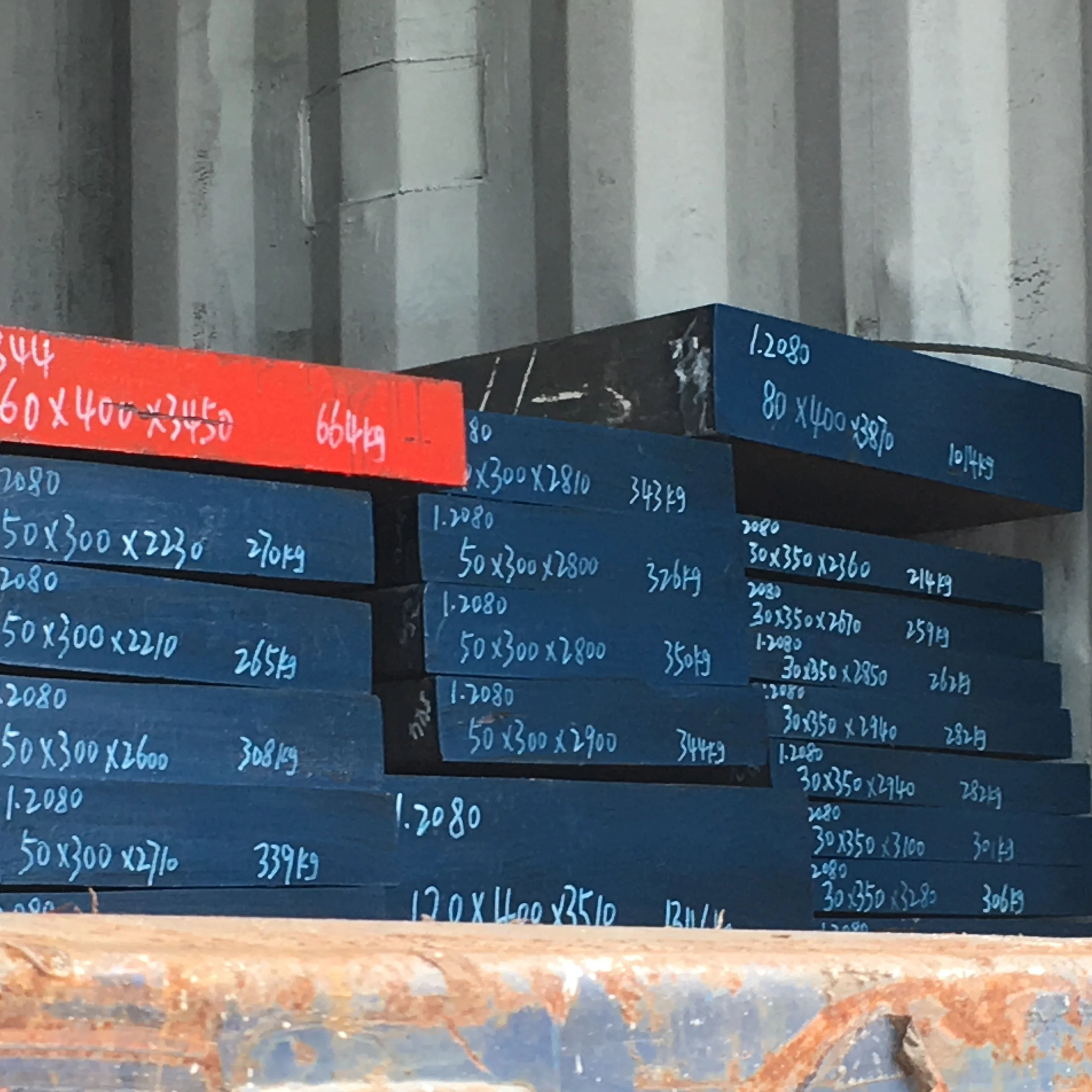

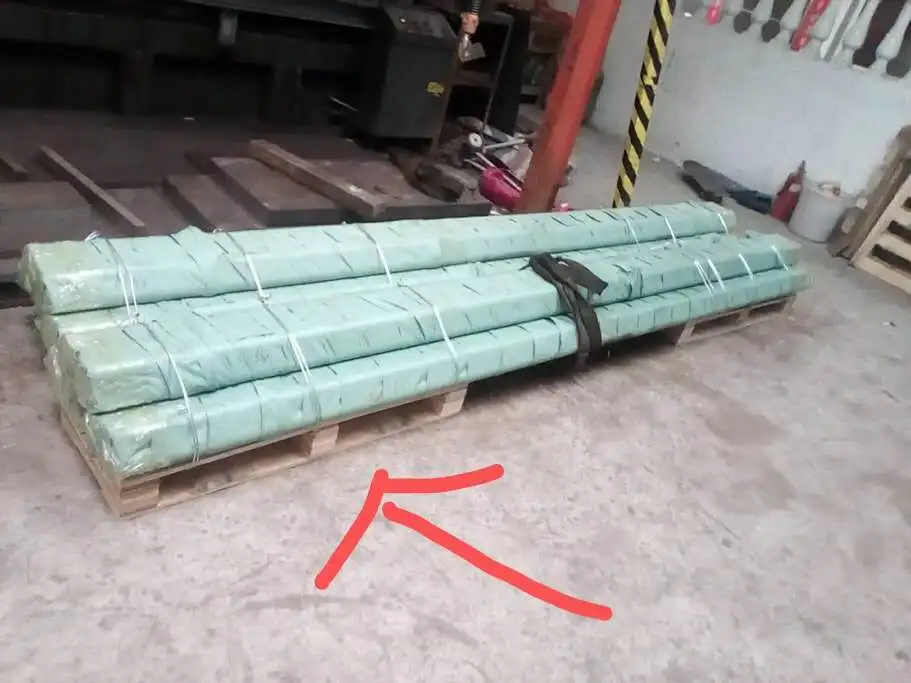

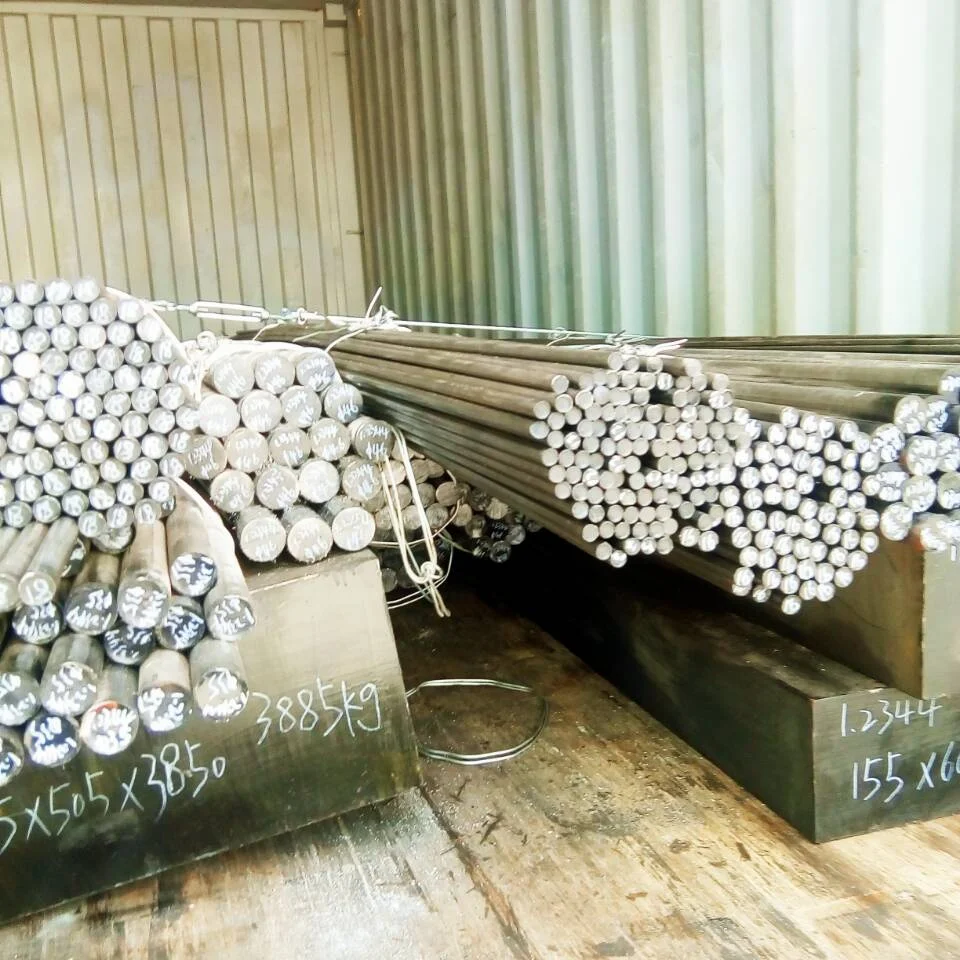

7. PACKING
8. CONTACT PERSON
