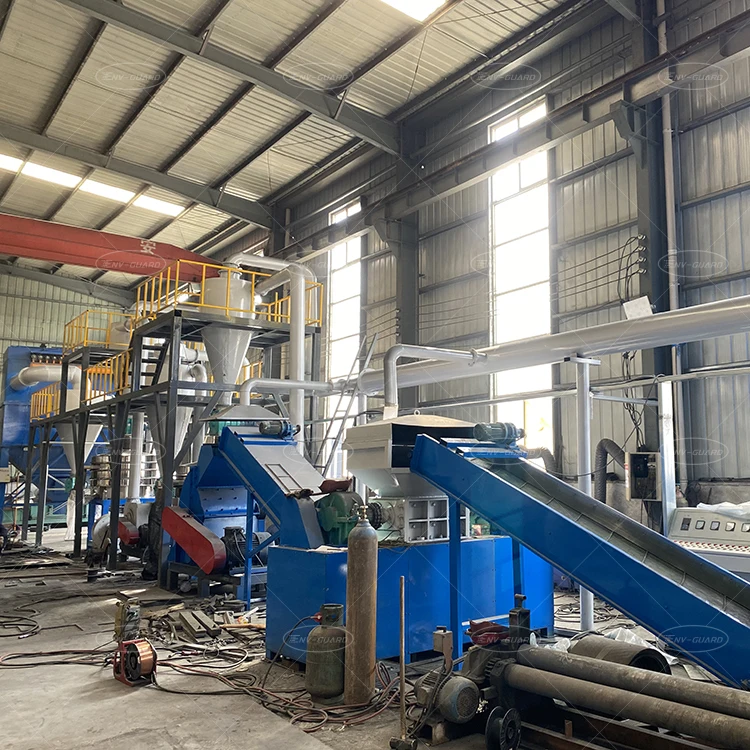

1000kg/h Waste Lithium Ion Battery Recycling Machine Waste Batteries Recycling Production Line
- Category: >>>
- Supplier: Henan ENV-Guard Machinery Co. Ltd.
Share on (1600892394540):
Product Overview
Description
Lithium Ion Battery Recycling Plant
The waste lithium battery contains various rare raw materials such as copper, aluminum, graphite powder and lithium powder, and has high recycling value.
Copper in the negative electrode of waste lithium battery (content up to 35%) is an important production raw material widely used.Carbon powder adhered to it can be used as additives such as plastics and rubber. Based on the structural characteristics of lithium batteries,our company adopts an environmentally-friendly physical separation process to realize efficient separation and recovery of waste lithium batteries.
Copper in the negative electrode of waste lithium battery (content up to 35%) is an important production raw material widely used.Carbon powder adhered to it can be used as additives such as plastics and rubber. Based on the structural characteristics of lithium batteries,our company adopts an environmentally-friendly physical separation process to realize efficient separation and recovery of waste lithium batteries.
RAW MATERIALS
Soft lithium battery
Hard-shell lithium battery
Cylindrical lithium battery
Positive and negative plates
The lithium battery recycling production line is used for dismantling and recycling the Soft pack-age battery, cellphone battery,Shell battery,Cylindrical battery etc.
Different types of lithium batteries have different recycling procedures. Please contact us for detailed configuration.
Different types of lithium batteries have different recycling procedures. Please contact us for detailed configuration.
PRODUCTS DESCRIPTION
The pretreatment process of waste lithium ion batteries mainly comprises the following steps:after discharging the recovered waste batteries, crushing, magnetic separation, air separation,crushing, gravity separation, screening and other processes are carried out by mechanical equipment,so that the powder on the positive and negative pole pieces is effectively separated from the copper aluminum foil, and the batteries are treated as valuable materials.
FINAL PRODUCTS
Copper
Aluminum
Shell
Diaphragm
Lithium Cobaltate
Graphite

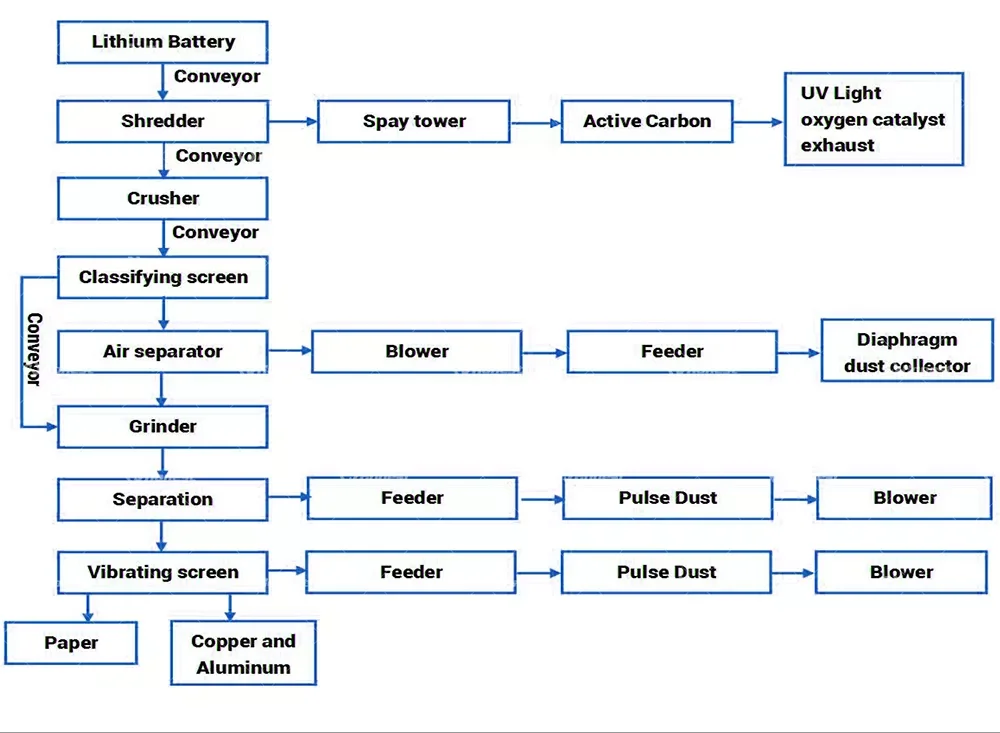

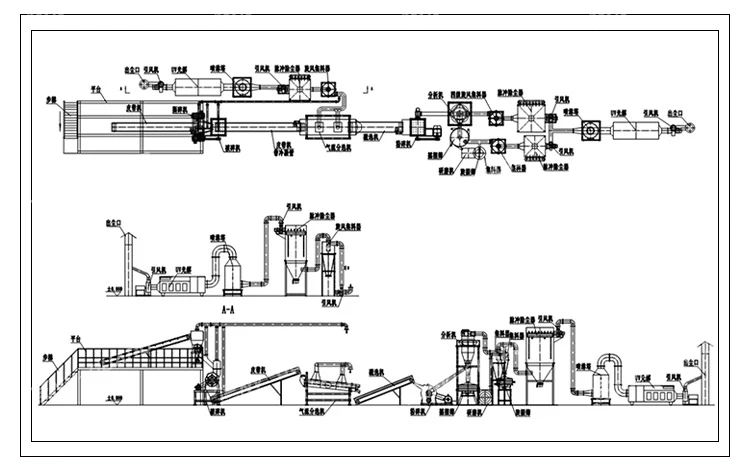

TECHNOLOGICAL PROCESS
Shredder: Shredded lithium batteries into smaller pieces.Hammer crusher: For the secondary crushing of shredded materials.
Grinder: For the grinding of the crushed materials.
Separation machine: Separate the materials after being ground.
Collector: Collect and release the dust .
Pulse purifier (air cleaner): Clean all the dust produced during the operation of the whole system.
Classifying screen:Screen the materials sorted by the separation machine,and screen out oflarger metal materials.
Magnetic machine: Separate nickel from the metals.
Gravity separator:Separate those finer materials got from the screening machine and separatethe metal completely.
High-pressure blower: Keep the whole system in a negative state so as to collect the materialsand purity the air .
Grinder: For the grinding of the crushed materials.
Separation machine: Separate the materials after being ground.
Collector: Collect and release the dust .
Pulse purifier (air cleaner): Clean all the dust produced during the operation of the whole system.
Classifying screen:Screen the materials sorted by the separation machine,and screen out oflarger metal materials.
Magnetic machine: Separate nickel from the metals.
Gravity separator:Separate those finer materials got from the screening machine and separatethe metal completely.
High-pressure blower: Keep the whole system in a negative state so as to collect the materialsand purity the air .
TECHNICAL PARAMETERS
Model | Capacity | |
ENVDC-300 | 200-300 Kg/H | |
ENVDC-500 | 500 Kg/H | |
ENVDC-800 | 800 Kg/H | |
ENVDC-1000 | 1T/H | |
ENVDC-1500 | 1.5T/H | |
ENVDC-2000 | 2T/H | |
Feature Item | Indicator Requirments | |
Recovery Rate of Metallic Aluminum | >98% | |
Powder Recovery Rate | >98% | |
Content of Powder In Metal Aluminum | <2% | |
Content of Metallic Aluminum In Powder | <2% | |
Other | Contain dust collecter with not pollute | |
Qualified Rate | 99% | |
Failure Rate | <1% | |
CMR | ≥1.67 | |
WORKING PERFORMANCE | ||
Raw Material | Lithium Battery | |
Final Product | Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder | |
NOTE:
The above lithium-ion battery recycling equipment is our standard configuration. For different raw materials to be shredded, the configuration might be different.
Please feel free to contact us for detailed information or special request;
Please feel free to contact us for detailed information or special request;
Machine Details
1. Suitable structure and layout, stable performance and recycling water is used to control temperature and reduce noise in the grinder;
2. Lithium Ion Battery Recycling Plant adopts PLC system, electrostatic separator and air makes higher and quicker separation,moreover gets more non-ferrous metal;
3. The negative pressure feeding system prevent the dust from running out, the separation rate of pulse dust cleaning device can reach 99%;
4. The separation rate of air separator can reach 97%, with the magnetic separator, the iron can be separated from other metals.
2. Lithium Ion Battery Recycling Plant adopts PLC system, electrostatic separator and air makes higher and quicker separation,moreover gets more non-ferrous metal;
3. The negative pressure feeding system prevent the dust from running out, the separation rate of pulse dust cleaning device can reach 99%;
4. The separation rate of air separator can reach 97%, with the magnetic separator, the iron can be separated from other metals.

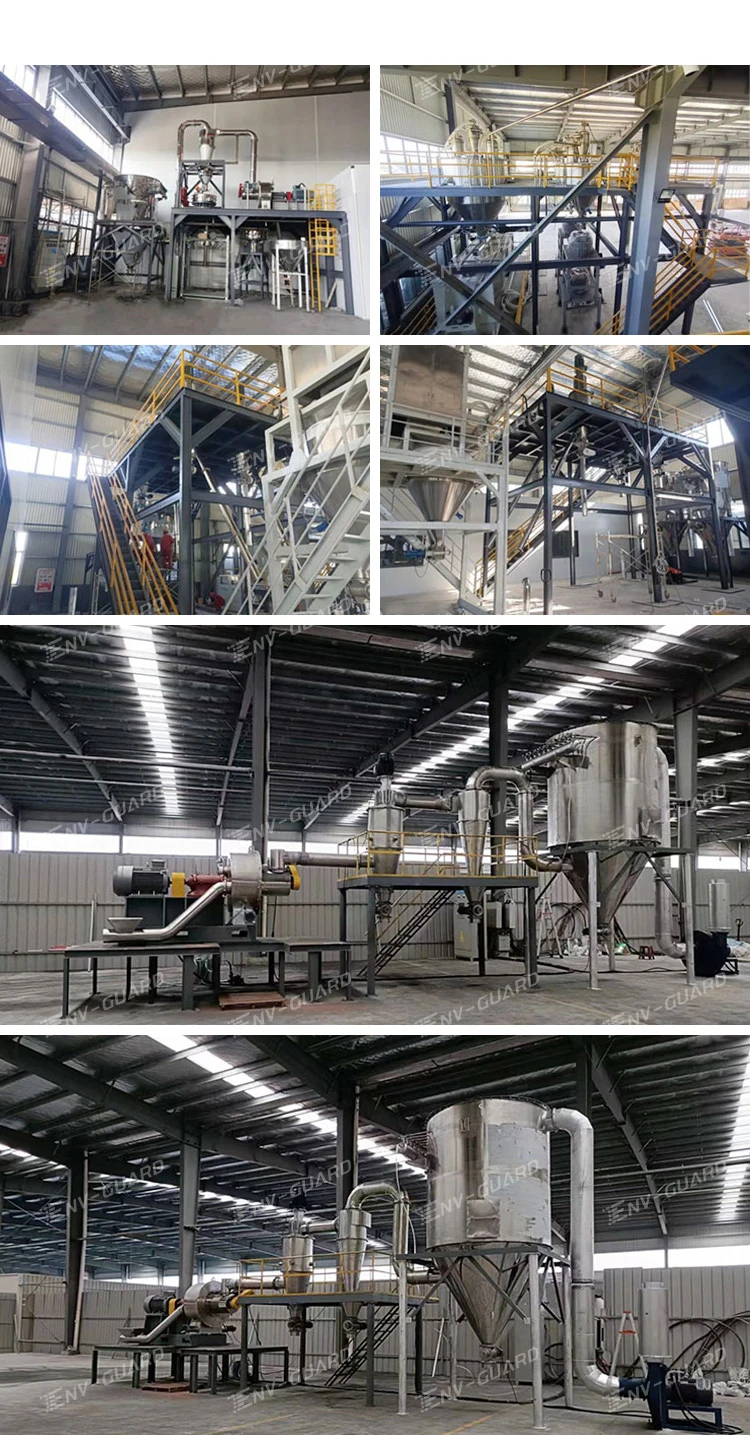

Customer Site
About Us
FAQ
Q: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How Do You Ensure The Machine Quality?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
Q: How About The Motor?
A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How Do You Ensure The Machine Quality?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
Q: How About The Motor?
A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
