Изолированные алюминиевые кабели для электропередачи низкого напряжения
- Category: Electrical Wires >>>
- Supplier: Henan,Huaxing,Wires,And,Cables,Co.,Ltd.
Share on:
Product Overview
Description
Exhibition
Product description

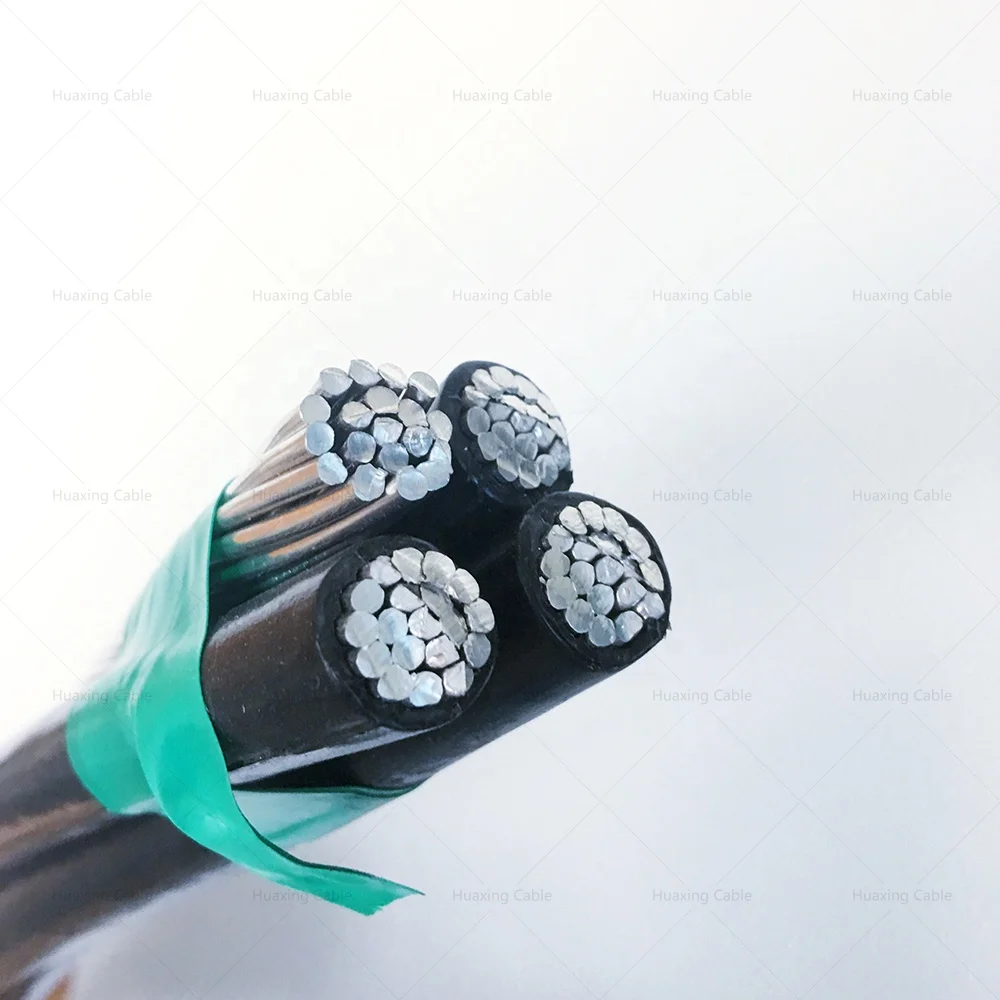

Low voltage xlpe insulated aluminum electric transmission wires ABC overhead cables
Construction:
1.Conductor (both phase and Neutral)
The conductors shall be of aluminum 1350 wires and compacted circular stranded ;
2.Insulation:
The conductors shall be extruded with XLPE as insulation ,each phases is marked with numbers and letters ,1 ONE,2 TWO,3 THREE or with one rib,two ribs or three ribs to denote the phases.The neutral core carries equally space ribs right round the circumference
3.Assembly
The Core shall be laid up with a left hand Lay.
1.Conductor (both phase and Neutral)
The conductors shall be of aluminum 1350 wires and compacted circular stranded ;
2.Insulation:
The conductors shall be extruded with XLPE as insulation ,each phases is marked with numbers and letters ,1 ONE,2 TWO,3 THREE or with one rib,two ribs or three ribs to denote the phases.The neutral core carries equally space ribs right round the circumference
3.Assembly
The Core shall be laid up with a left hand Lay.
Parameter：
Standard: IEC/ASTM/NFC/BS/AS
Conductor: Aluminum
Insulation: XLPE
Cores: 1/2/3/4 cores
Origin: China
Standard: IEC/ASTM/NFC/BS/AS
Conductor: Aluminum
Insulation: XLPE
Cores: 1/2/3/4 cores
Origin: China
Application :
ABC cables are intended for use either as a service drop cable between a power pole and the service entrance, or as a secondary distribution cable between poles. The use of these service drop or secondary distribution cables is limited to circuits, not exceeding 600 volts phase-to-phase or 480 volts phase-to-ground, to a normal temperature rating of the service conductor temperature of 90 °C.Product Standard
Nominal Cross Section | Minimum Breaking Load | Current Rating in Air | Nominal Overall Diameter | Total Weight | Outer Diameter |
mm2 | Kn | A | mm | kg/km | mm |
2*16RM | 1.190 | 2.5 | 72 | 147 | 15.6 |
2*25RM | 1.200 | 4.0 | 107 | 208 | 18 |
2*35RM | 0.868 | 5.5 | 132 | 277 | 20 |
2*50RM | 0.641 | 8.0 | 165 | 361 | 23.5 |
4*16RM | 1.190 | 2.5 | 72 | 286 | 18.8 |
4*25RM | 1.200 | 4.0 | 107 | 430 | 21.2 |
4*35RM | 0.868 | 5.5 | 132 | 553 | 24.1 |
4*50RM | 0.641 | 8.0 | 165 | 746 | 27.8 |
4*70RM | 0.443 | 10.7 | 205 | 1.009 | 31.8 |
4*95RM | 0.320 | 13.7 | 240 | 1.332 | 37.8 |
4*120RM | 0.253 | 18.6 | 290 | 1.632 | 54.4 |
4*35+1*35RM | 0.868/0.868 | 5.5/5.5 | 132/132 | 694 | 30 |
4*50+1*25RM | 0.641/1.200 | 8.0/4.0 | 165/107 | 814 | 31.9 |
4*50+1*35RM | 0.641/0.868 | 8.5/5.5 | 165/132 | 845 | 31.9 |
4*70+1*25RM | 0.443/1.200 | 10.7/4.0 | 205/107 | 1.105 | 36 |
4*70+2*35RM | 0.443/1.200 | 10.7/4.0 | 205/107 | 1.217 | 40 |
4*70+1*25RM | 0.443/0.868 | 10.7/5.5 | 205/132 | 1.15 | 36.2 |
4*70+2*25RM | 0.443/0.868 | 10.7/5.5 | 205/132 | 1.289 | 40.1 |
4*95+1*25RM | 0.320/1.200 | 13.7/4.0 | 240/107 | 1.438 | 41.8 |
4*95+1*35RM | 0.320/0.868 | 13.7/5.5 | 240/132 | 1.467 | 41.8 |
4*95+2*25RM | 0.320/1.200 | 13.7/4.0 | 240/107 | 1.544 | 42 |

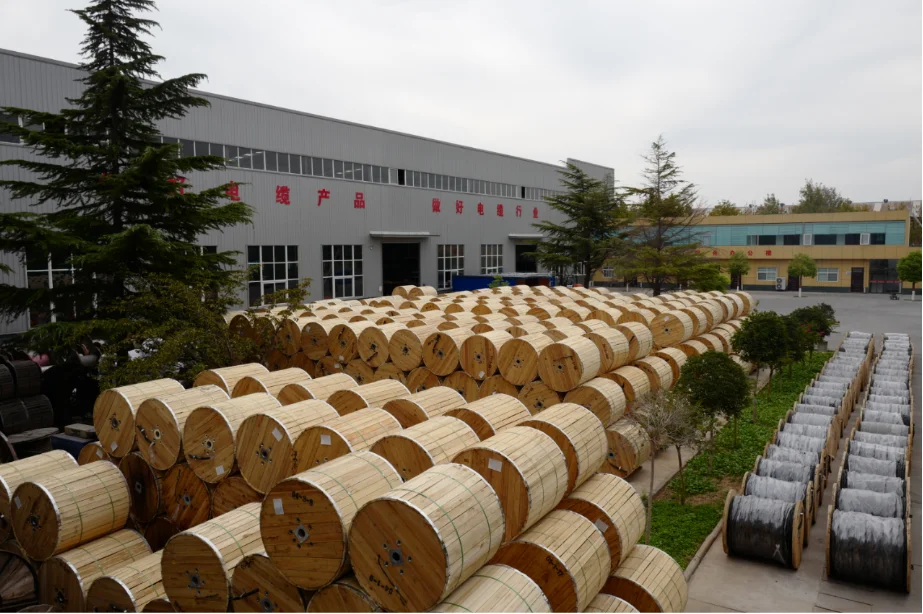

Product packaging

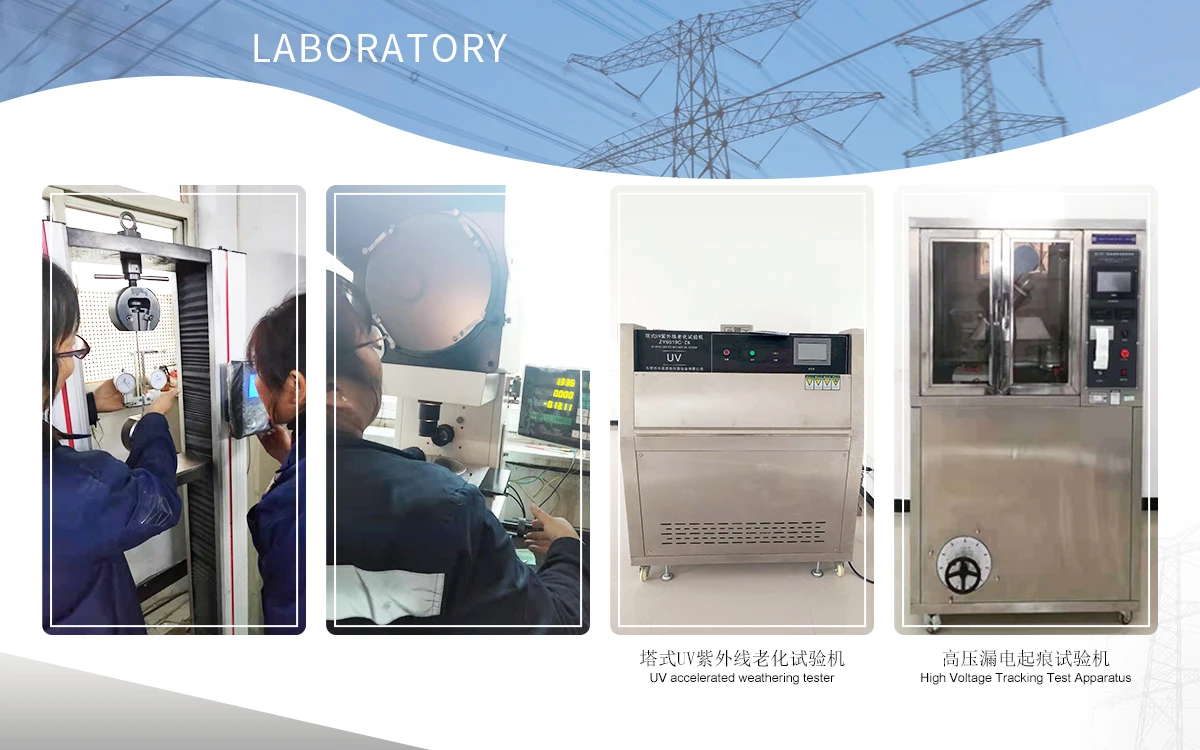

Inspection of quality
