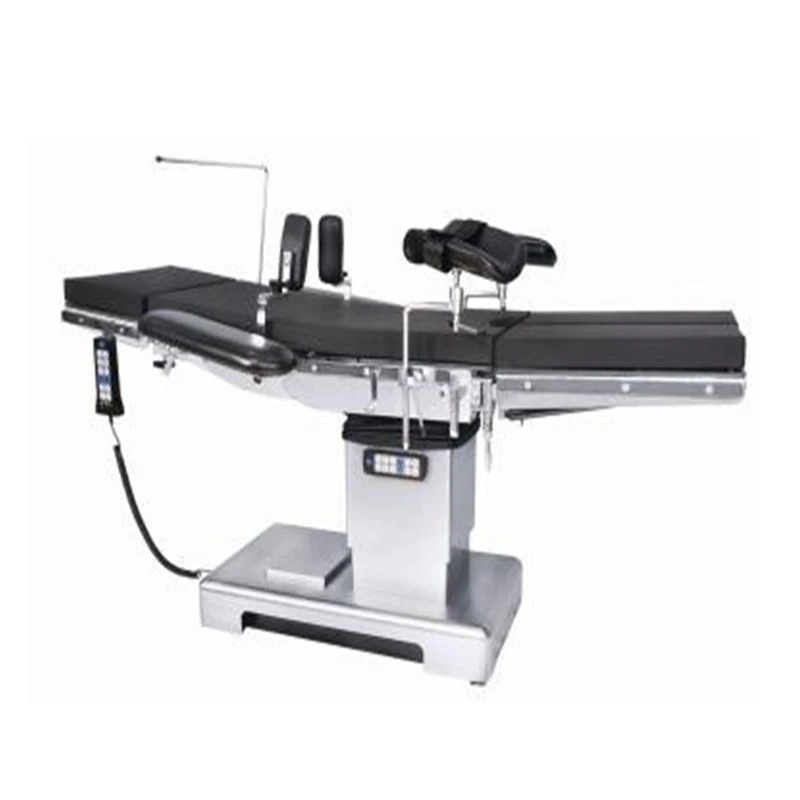

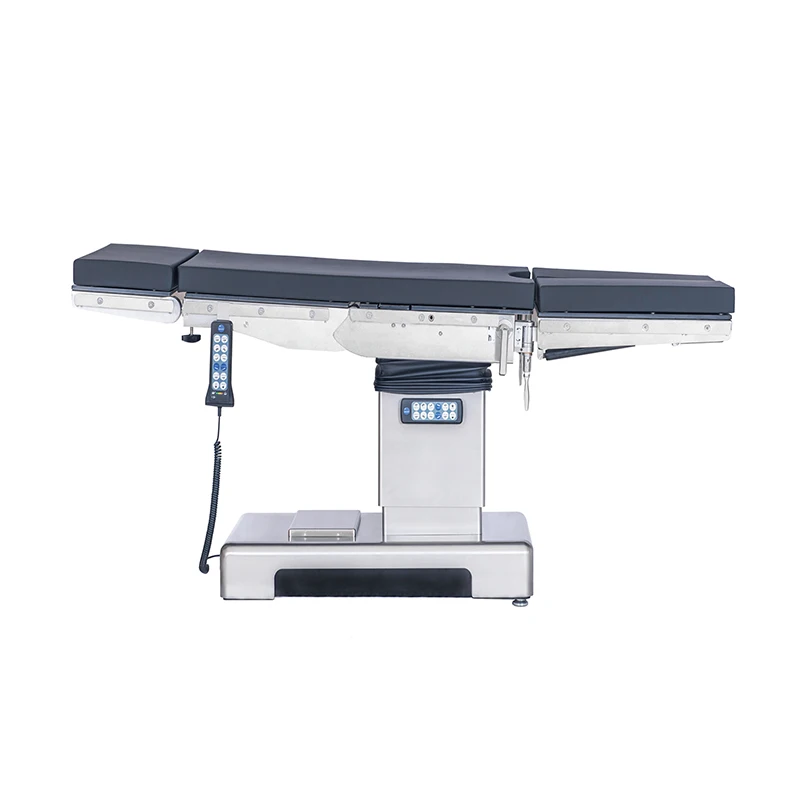

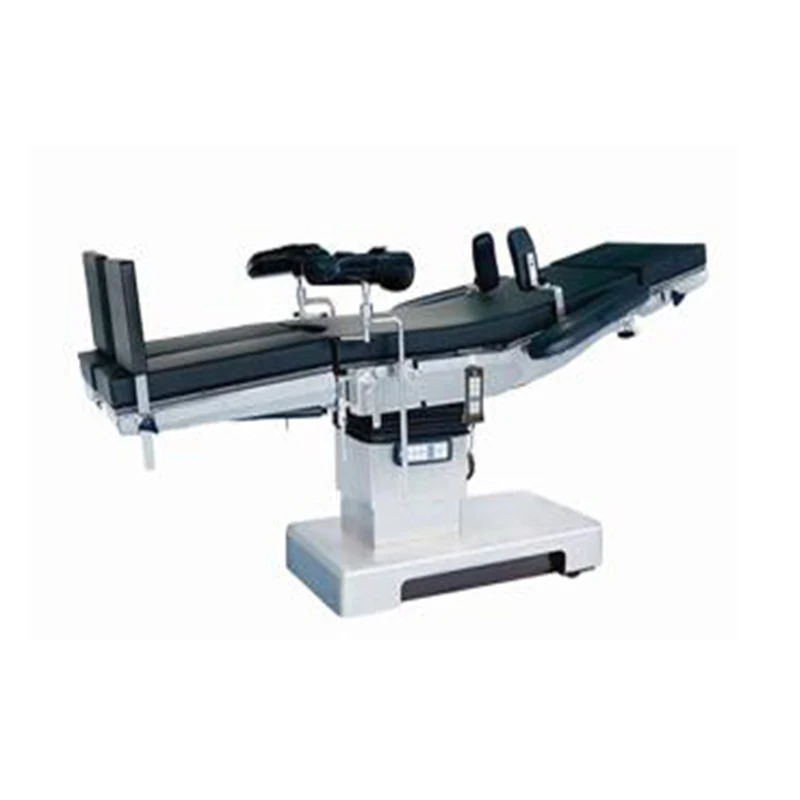

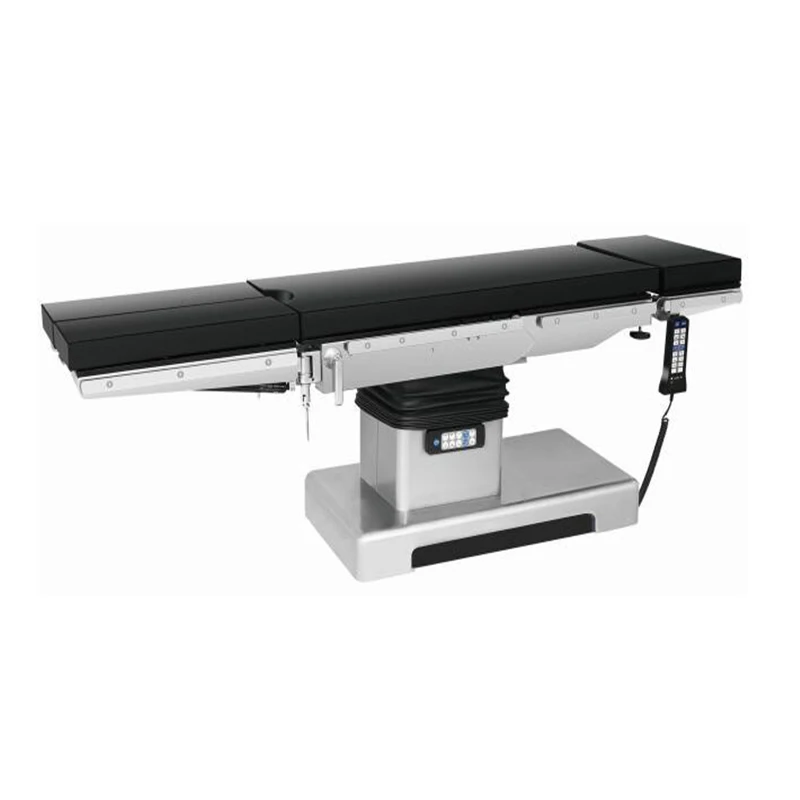

High Quality Medical Durable operation bed surgical operating theater table
- Category: >>>
- Supplier: Hangzhou Boyn Instrument Co. Ltd.
Share on (1600892467306):
Product Overview
Description
Products Description
Product features:
\tThe base and column cover, table top and rails on both sides are all made of 304 stainless steel
\tThe bed surface is made of high-quality carbon plastic panels, which can meet X-ray inspection and filming
\tIt adopts electro-hydraulic working principle, has AC and DC dual functions, and controls various actions through dual controllers
\tThe mattress is made of imported artificial leather wrapped with high-density memory foam and formed at one time with no seam
\tImported motors, pipelines and solenoid valves
\tImported sealing ring, durable
\tBulit-in casters, combined with electric brakes, facilitate the displacement of the operating table
\tThe head plate and leg plates are controlled by imported gas springs, and the leg plates are split and detachable
\tThe bed surface is made of high-quality carbon plastic panels, which can meet X-ray inspection and filming
\tIt adopts electro-hydraulic working principle, has AC and DC dual functions, and controls various actions through dual controllers
\tThe mattress is made of imported artificial leather wrapped with high-density memory foam and formed at one time with no seam
\tImported motors, pipelines and solenoid valves
\tImported sealing ring, durable
\tBulit-in casters, combined with electric brakes, facilitate the displacement of the operating table
\tThe head plate and leg plates are controlled by imported gas springs, and the leg plates are split and detachable
Product Paramenters
Mode | BN-D.IA-I | BN-D.IA-II |
Length | 2000±10 0 mm | 2 0 0 0 ±10 0 mm |
Width | 5 2 0 ±2 0 mm | 5 2 0 ±2 0 mm |

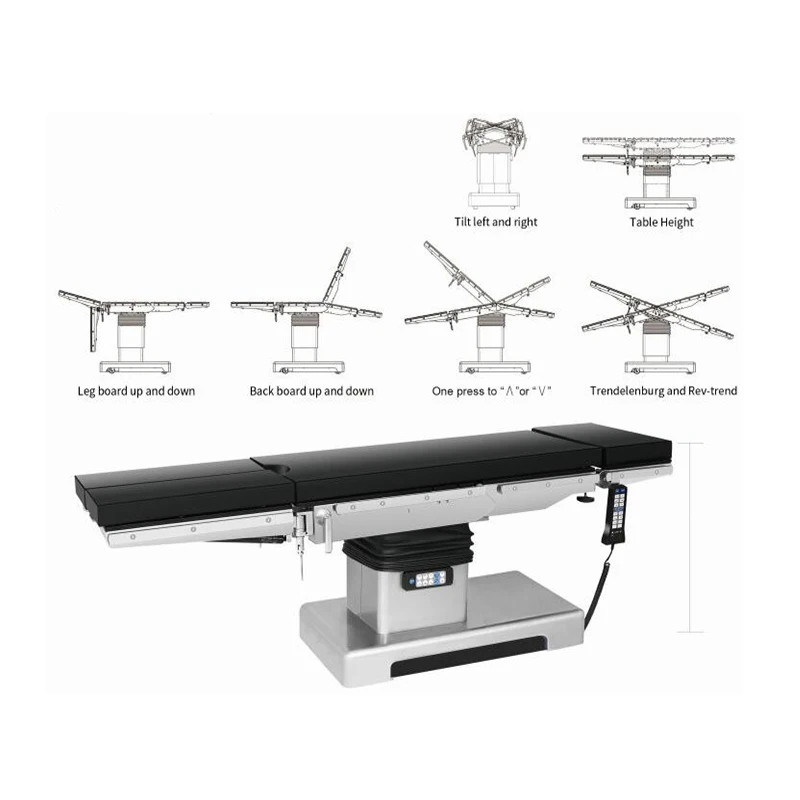

Height Adjustment | ( 56 0 - 860 ) ±5 0 m m | (700 - 1000 ) ±50 mm |
Tilt(left) / Tilt(right) | ≥20°/≥20° | ≥15°/≥15 ° |
Trendelenburg / Rev-Trend | ≥20° /≥18 ° | ≥20° / ≥15 ° |
Head board upwards | ≥5 0 ° | ≥45° |
Head board downwards | ≥90 ° | ≥90 ° |
Back board upwards | ≥7 0 ° | ≥7 0 ° |
Backboard downwards | ≥20 ° | ≥20 ° |
Waist board lifting | 100±2 0 m m | 10 0 ±2 0 m m |
Leg board Upwards | ≥1 5 ° | ≥1 0 ° |
Leg board Downwards | ≥90 ° | ≥90 ° |
Leg board Outwards | ≥18 0 ° | ≥18 0 ° |
Lumbar upper corner " A " | ≤160 ° | ≤160 ° |
Lumbar lower corner " V" | ≤105 ° | ≤105 ° |
Horizontal and longitudinal movement | ||
Main Voltage AC | 220V±2 2 V , 5 0 ±1 H z | 220V±22V , 50 ±1 H z |
Input power VA | 500 ±10 % | 500 ±10 % |
