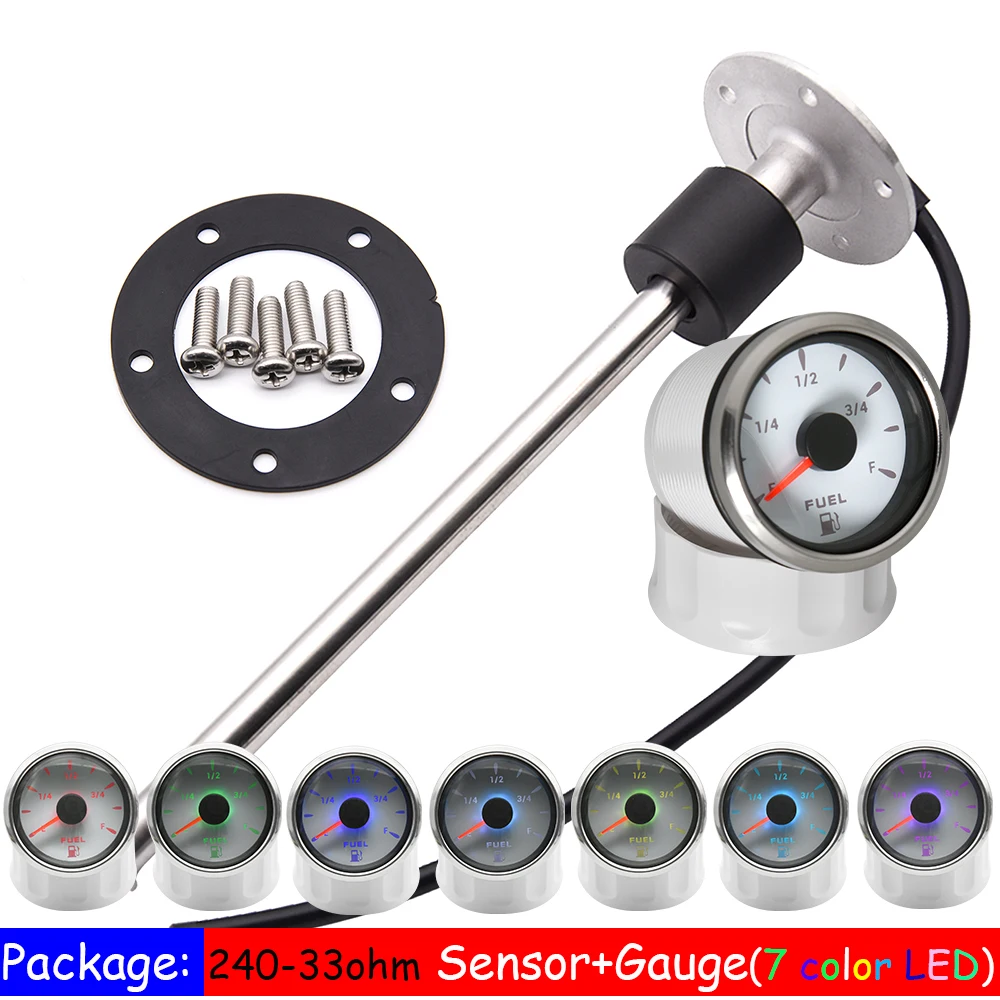

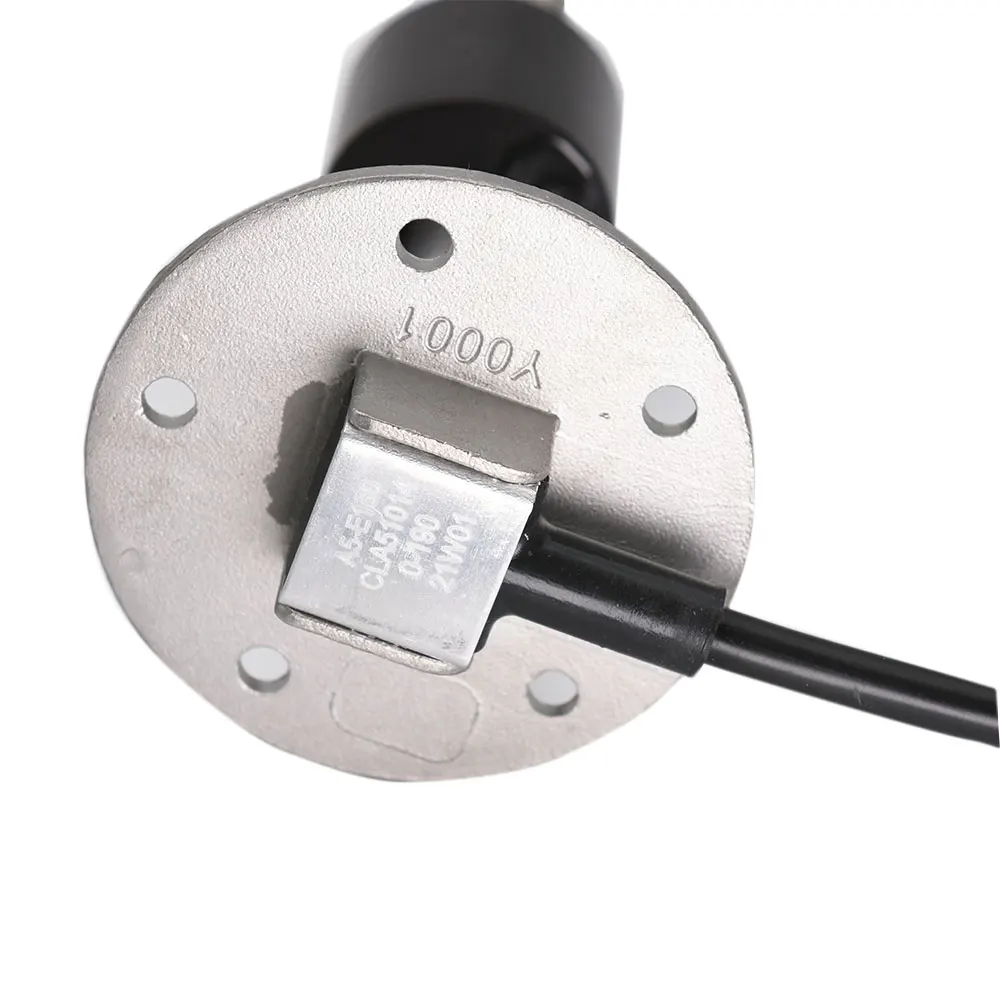

240-33Ω Fuel Float Sensor with 52mm Fuel Level Gauge 7 Color LED Oil Tank Level Indicator for Marine Boat Car Truck Empty to Full

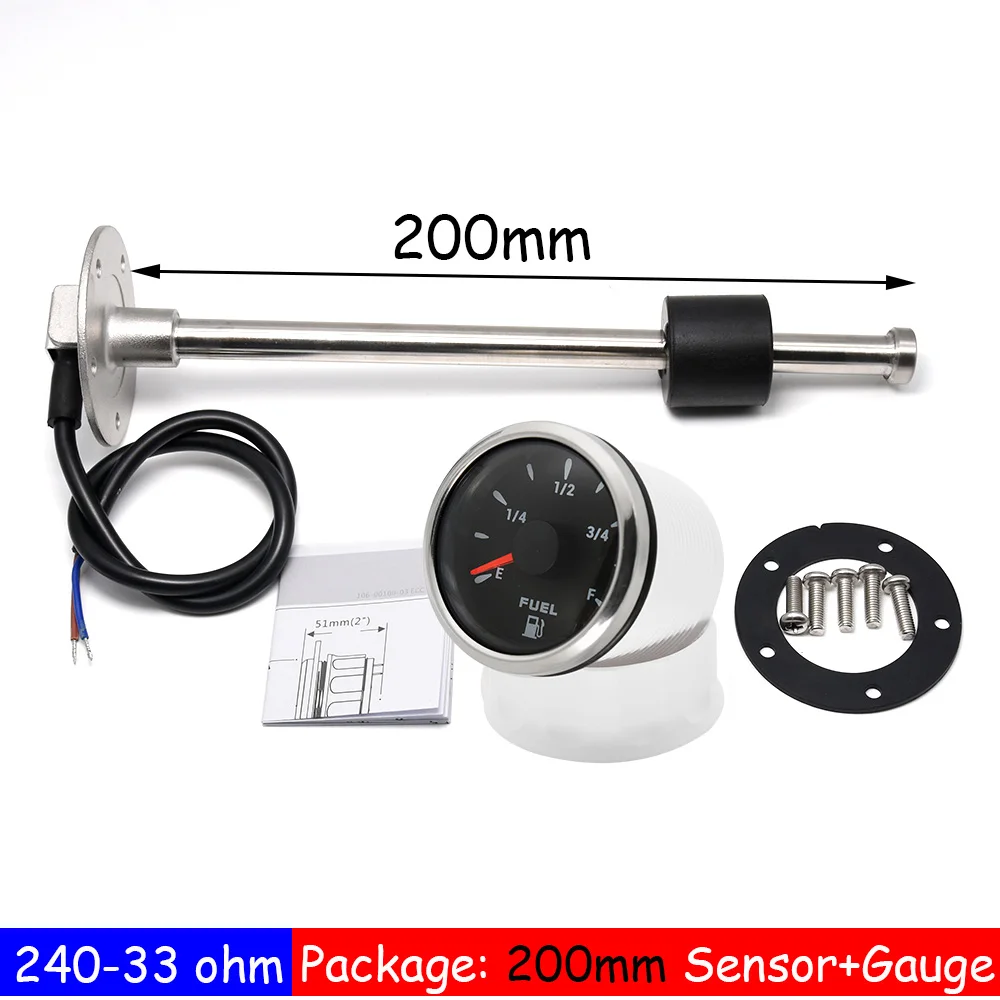

150mm 200 300 400 500 600mm Fuel Level Sensor with 52MM Gauge 7 Color Backlight 240-33 ohm Oil Tank Level Indicator for Marine Boat Car
Feature:
- IP67 waterproof and dustproof grade.
- With curved glass (with anti-fogging function).
- Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
- Be suitable for all kinds of water level sensors with same signal, and display level of the water tank.
- With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
- Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
Specification:
- Indicating Range:E-1/4-1/2-3/4-F
- Name:Fuel Level Gauge
- Fixing dimension: 52mm or 2-1/16"
- Operating Voltage: 9-32V /fit 12V-24V
- Materials: stainless steel+nickel-plated plastic
- Input signal:240-33ohm
-Backlight Color: 7 Color
Attention:
- Empty oil level : 240 ohm
- Full oil level : 33 ohm
- When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~
Package:
1pcs sensor+1pcs gauge
About Customization/Drop Shipping/Wholesale
Support Customized : if you need other length / signal of sensor , welcome to contact to us to customized it .
Support Drop shipping and wholesale: if you want to wholesale , we can give some discount for you , welcome to making orders .
