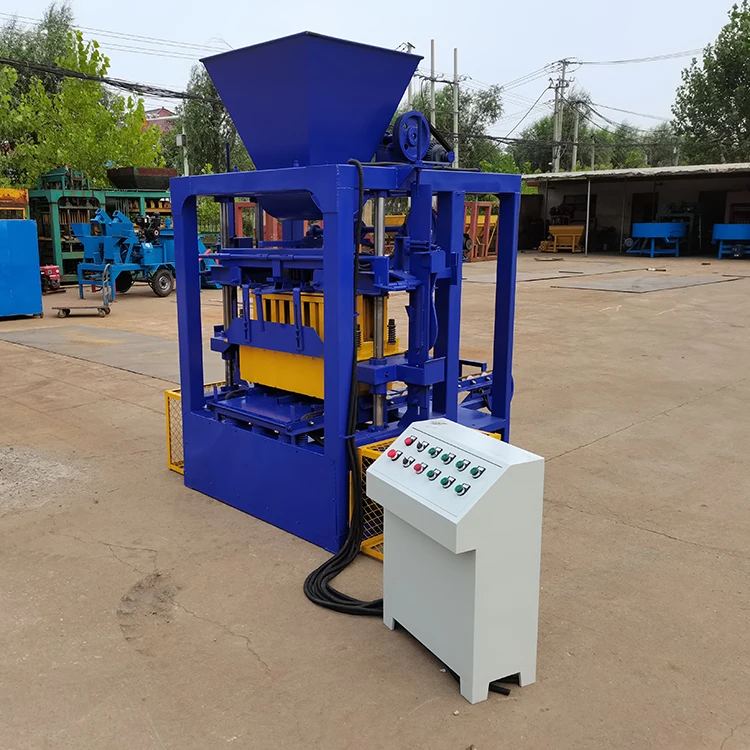

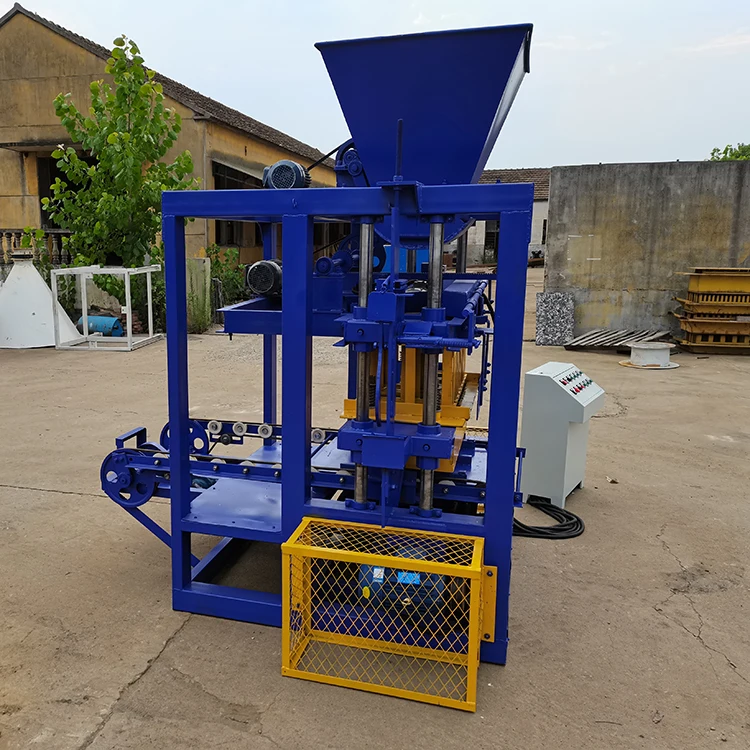

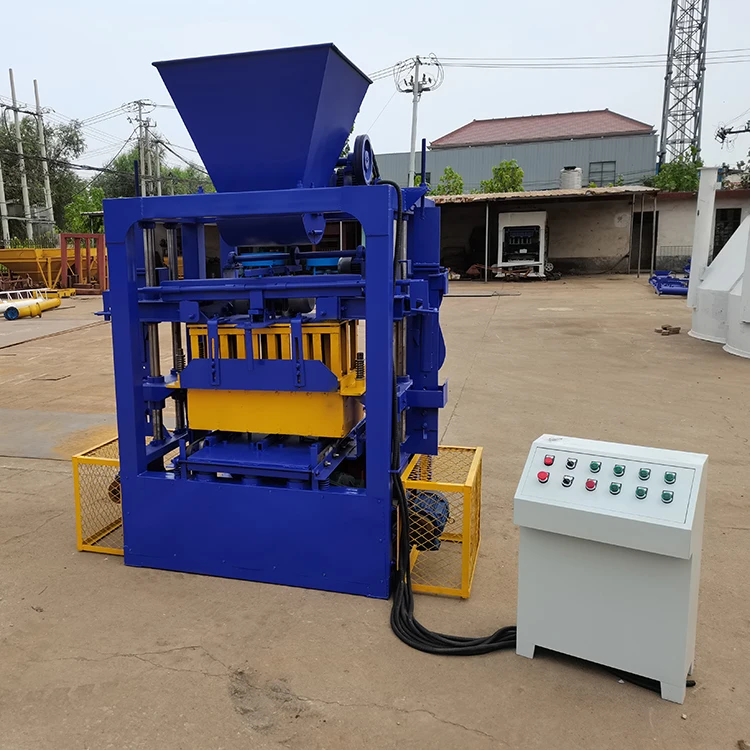

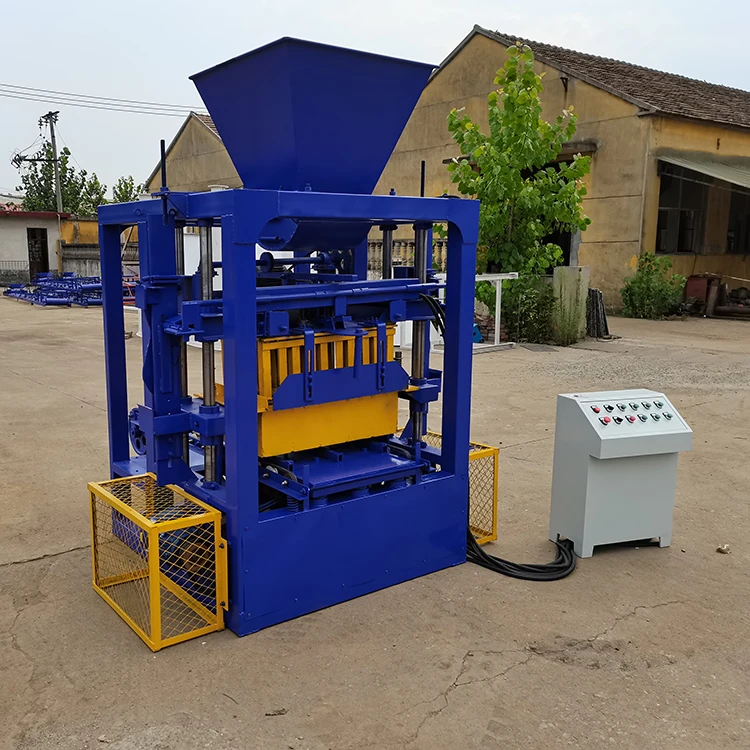

Vibration method automatic qtj4 26 brick manufacturing equipment

Product Overview

Description

Vibration method automatic qtj 4-26 brick manufacturing equipment

















 Advantage :



   1. Low cost and easy to operate

   2. Suitable for buliding a small brick factory

   3. Heat treatmet on brick mould and main parts,make sure longlife.

   4. Can produce hollow,solid an paverbricks by changing different moulds.





 Technical Specification :



 1. Automatic weighing system

 2. Twin shaft compulsory mixer

 3. Heave duty frame of steel structure for heave working

 4. Mould heat treatment with wire cutting

 5. One production line can make all kinds block, just only change the mould



Outside Dimension (mm)	2200x2000x2400mm	Operation Cycle (s)	25 - 30
Main Machine Weight (T)	1.8ton	Vibration Frequency (Hz)	0 - 60
Power Capacity (Kw)	15Kw	block	holloe,solid and porous
Pallet Dimension (mm)	850*550*25mm	reducer	No.400
Molding Method	Automatic charging, vibrating	Control Mode	semi- Automatic





 Production capacity:



Block Size	Blocks/Mould	Blocks/Hour	Blocks/Shift	block type
390x190x190mm	4	580	5800	hollow
240x115x90mm	18	9	14000	porous
400x250x200mm	2	288	2880	hollow
240x53x115mm	36	22	33000	solid









The followings are equipments in the complete production line,they are optional,you can choose to buy according to your need.

1	JS750 mixer
2	PLD1200 batching machine
3	screw conveyor for conveyoring cement
4	color feeding system for color paver
5	extra building or paving block molds
6	forklift 3 ton
7	loader
8	cement soil (60 ton or 80ton)











 FAQ:

1. Payment term: TT or LC,by your request.

2. Price term: FOB,CNF,and CIF.

3. When you decide to buy our machine,please tell us the electricity details in your local,such as 380v,50Hz.
