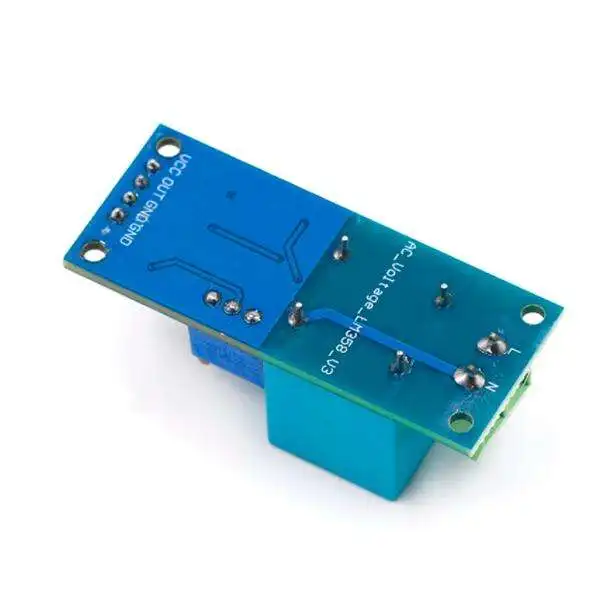

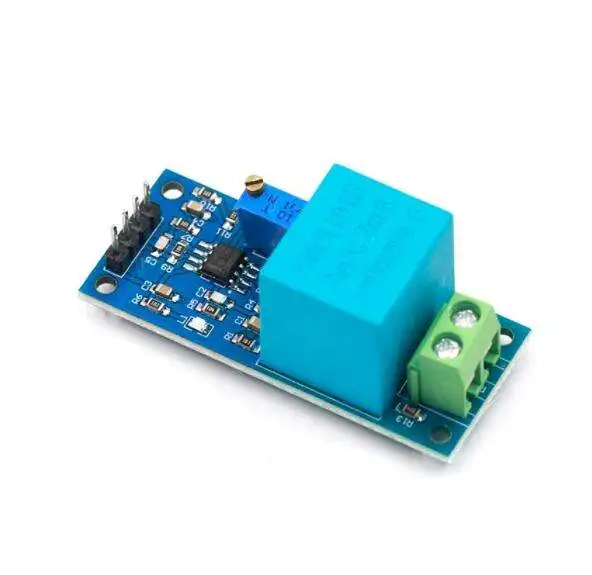

ZMPT101B Voltage transformer module single phase AC active output voltage sensor module
ZMPT101B Voltage transformer module single-phase AC active output voltage sensor module
ZMPT101B Voltage transformer module single-phase AC active output voltage sensor module
ZMPT101B Voltage transformer module single-phase AC active output voltage sensor module
ZMPT101B Voltage transformer module single-phase AC active output voltage sensor module
ZMPT101B Voltage transformer module single-phase AC active output voltage sensor module

ZMPT101B Voltage transformer module single phase AC active output voltage sensor module

Share on (1600892912985):


Price:$1.30 - $1.50

Quantity:


Product Overview

Description


Product Information · Craftsmanship
Input: Input is 2mA, sampling resistance is 1002
Rated input current: 2mA
Rated output current: 2mA
Transformation ratio: 1000: 1000
Phase difference:<20
Linear range: 0~1000V0~10mA
Linearity:? 0.2% (20% electricity~120% points)
Allowable error: -0.5%? F? 0
Purpose: 4000V
Isolation and withstand voltage: Accurate measurement of voltage and power
Same name end: 1,3 is called the same name
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: 40 ° C~+70 ° C
Output signal: The output signal is a sine wave, and the intermediate value (DC component) of the waveform is 1/2VCC
Power supply voltage: 5-30V

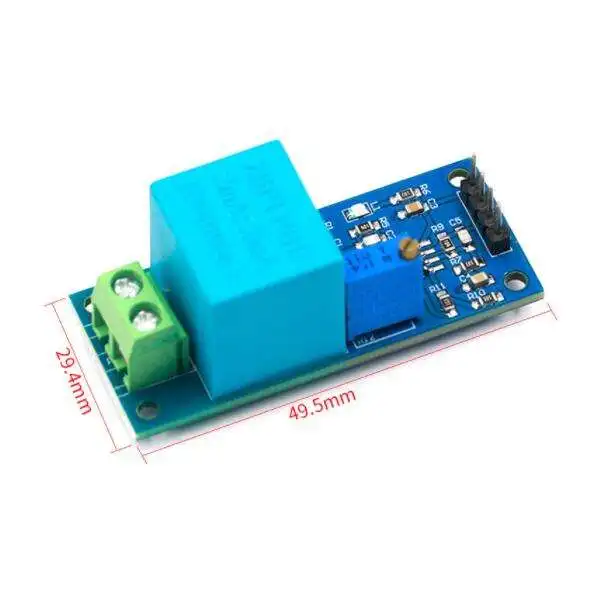

Product weight: 56 * 19 * 16.7mm

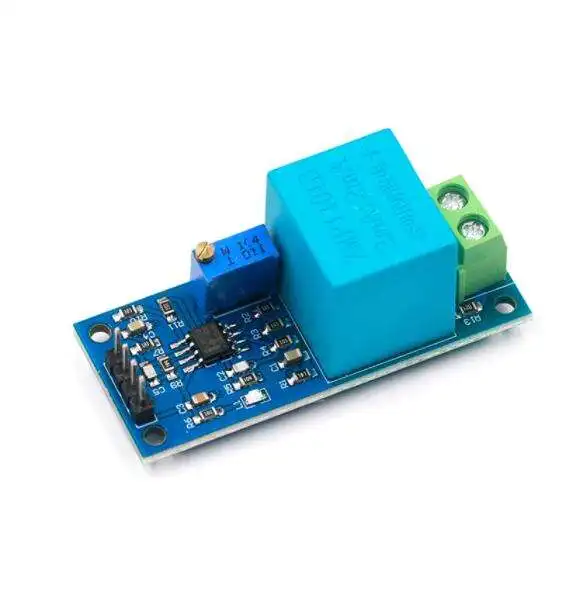

Product weight: 20.7g_002.jpg_003.jpg_004.jpg_005.jpg
