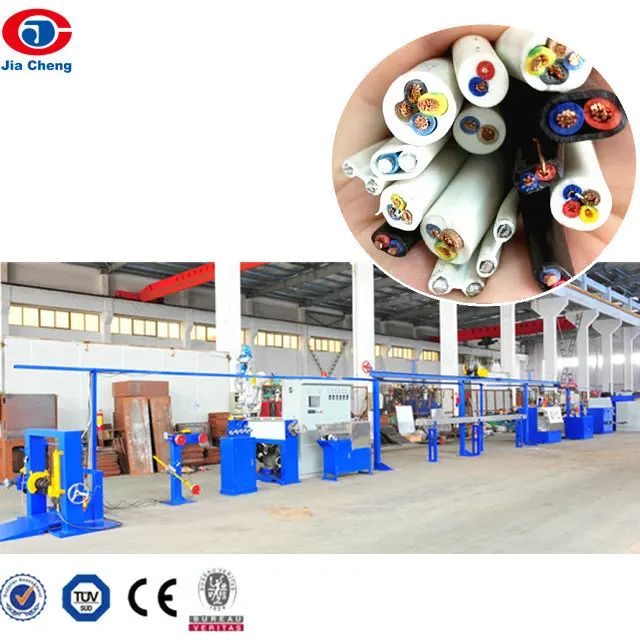

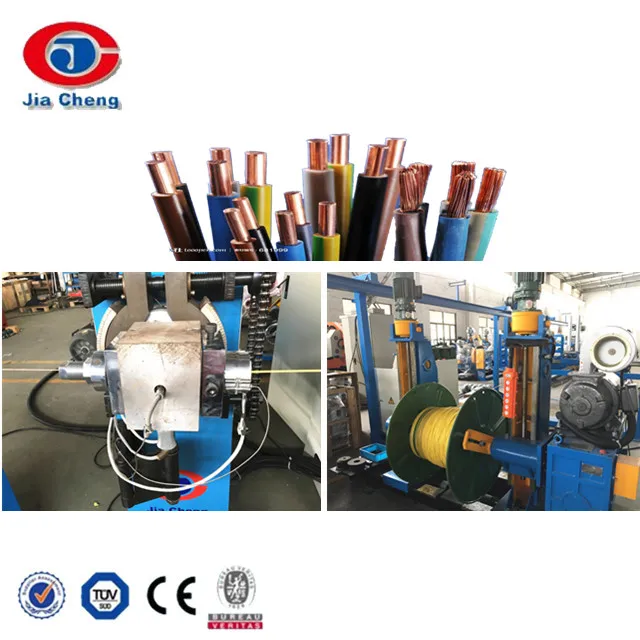

JIACHENG electric cable making machine copper wire
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (1600893354799):
Product Overview
Description
Product Description
Main technical parameter | Screw Parameters | Extrusion Capacity (kg/h) | Finished Dia.(mm) | Line Speed(m/min) | ||||||||
Dia(mm) | L/D Ratio | Ratation Speed(r/min) | PVC | LDPE | PP | |||||||
JCJX-30 Extrusion | Φ30 | 25:1 | 20-110 | 25 | 16 | 13 | 0.2-1 | 10-650 | ||||
JCJX-40 Extrusion | Φ40 | 25:1 | 20-110 | 40 | 20 | 17 | 0.4-3 | 10-650 | ||||
JCJX-50 Extrusion | Φ50 | 25:1 | 20-110 | 80 | 40 | 34 | 0.8-5 | 10-650 | ||||
JCJX-60 Extrusion | Φ60 | 25:1 | 15-110 | 100 | 53 | 41 | 1-8 | 10-650 | ||||
JCJX-70 Extrusion | Φ70 | 25:1 | 15-110 | 130 | 86 | 68 | 2-12 | 10-500 | ||||
JCJX-80 Extrusion | Φ80 | 25:1 | 10-90 | 200 | 122 | 96 | 3-25 | 10-350 | ||||
JCJX-90 Extrusion | Φ90 | 25:1 | 10-80 | 240 | 133 | 124 | 5-35 | 10-250 | ||||
Detailed Images
Features:
Precise design of the screw, durable, non-mucus, not take off chrome, change color quickly, with high capacity, high quality, the concentricity of wire is more than 90%, with high precision ±0.03. With touch screen+PLC control, easy operation, more hommization.

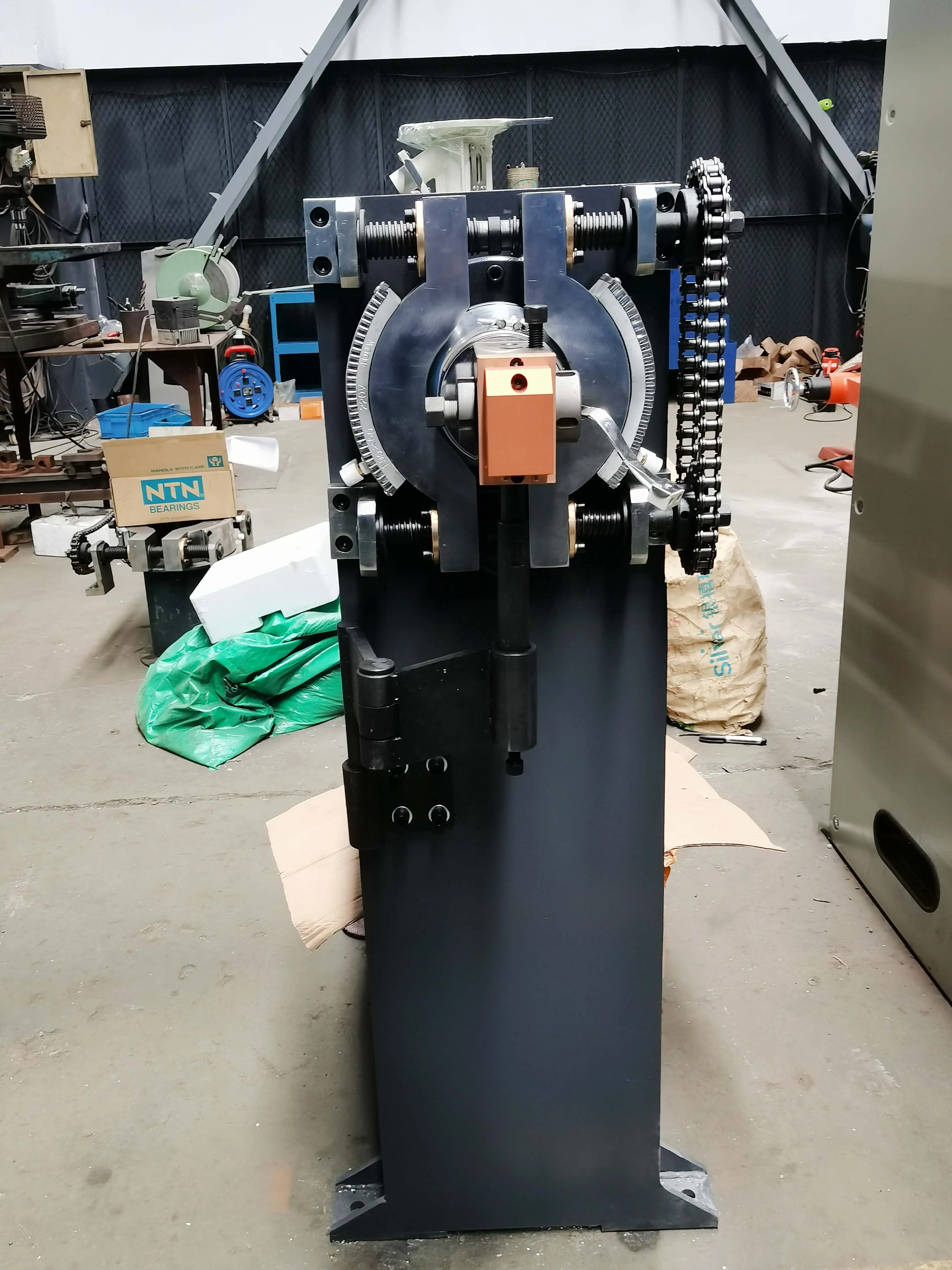

Extruder Core
1) Screw-cylinder connected with the reduction gear box at a special heat elimination design,which greatly improve the life of the
screw and the gear box
screw and the gear box
2) Machine head: adjustable, free of the head(1 group), the nose temperature in two, head 1 section, eye model 1 section
Auto material feeder
1) Type: SAL-300C;
2) Motor: carbon brush，1000W;
3) Transport capacity: 300kg/h;
4) Hopper capacity: 6L;
5) Dimension: （length）360*（width）410*（height）540;
6) Weight: 11kg.
2) Motor: carbon brush，1000W;
3) Transport capacity: 300kg/h;
4) Hopper capacity: 6L;
5) Dimension: （length）360*（width）410*（height）540;
6) Weight: 11kg.

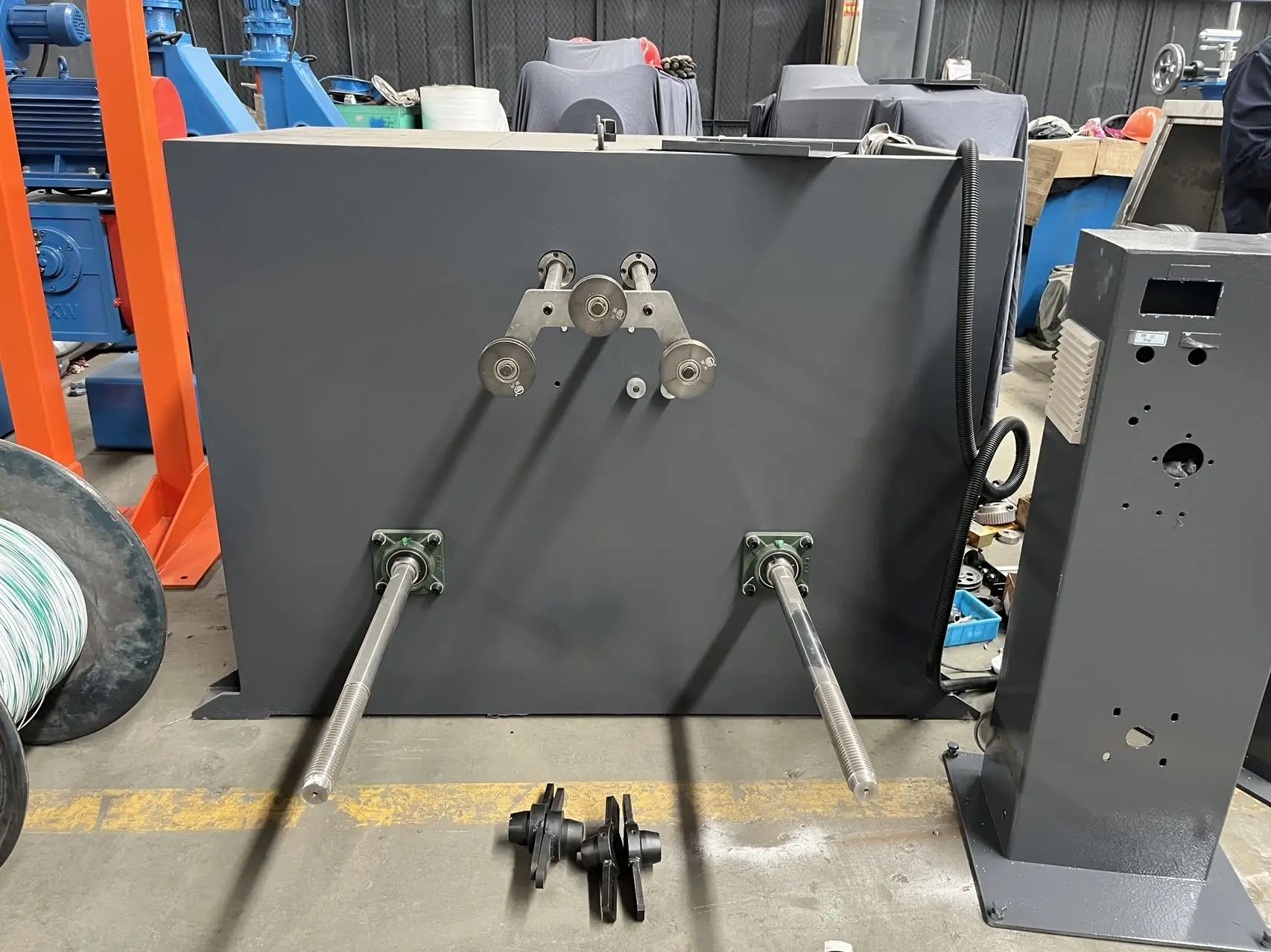

Pay Off
1）Tension control: magnetic powder tension
2）Wire-broken, stop automatically
3）Handling mode: lifting by electricity
2）Wire-broken, stop automatically
3）Handling mode: lifting by electricity
Straightening Table
1) Straightening direction: one-way
2) Straightening wheel, it can be adjusted up and down
3) With tool box
2) Straightening wheel, it can be adjusted up and down
3) With tool box

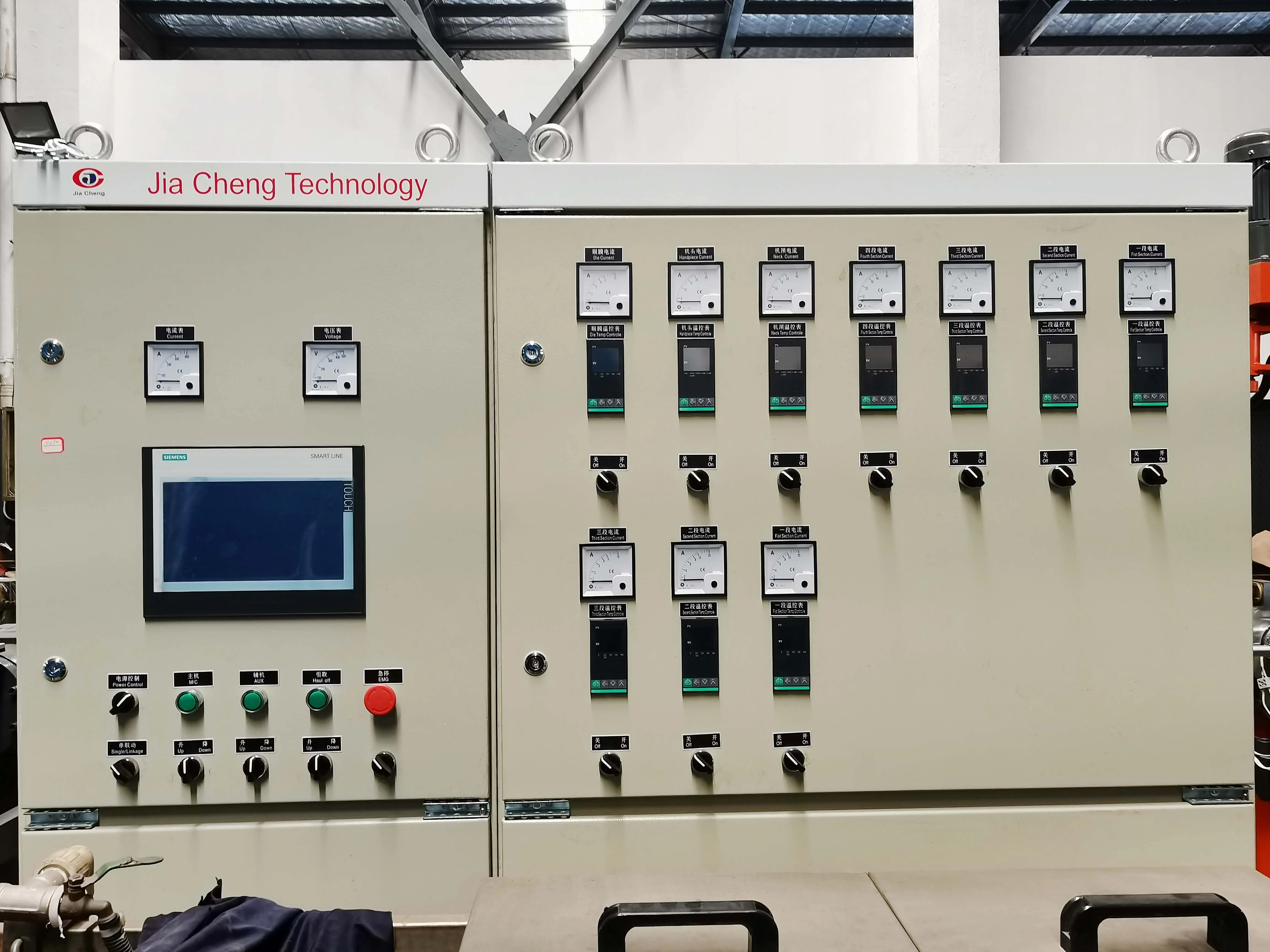

Electric Control/Operation Panel
All computer control system(HMI), programmable logic controller with Taiwan and Taiwan EV PLC + HMI (MT510T-10.4-inch color) full control.
System
(1) Heating temperature
(2) Power Control
(3) Motor operation control
(4) Instruction sheet control
(5) Process control system
(6) Linked control accessories
System
(1) Heating temperature
(2) Power Control
(3) Motor operation control
(4) Instruction sheet control
(5) Process control system
(6) Linked control accessories

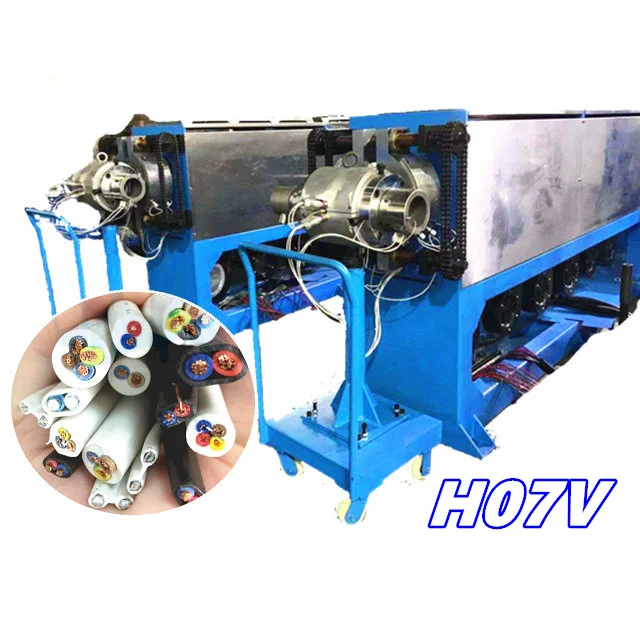

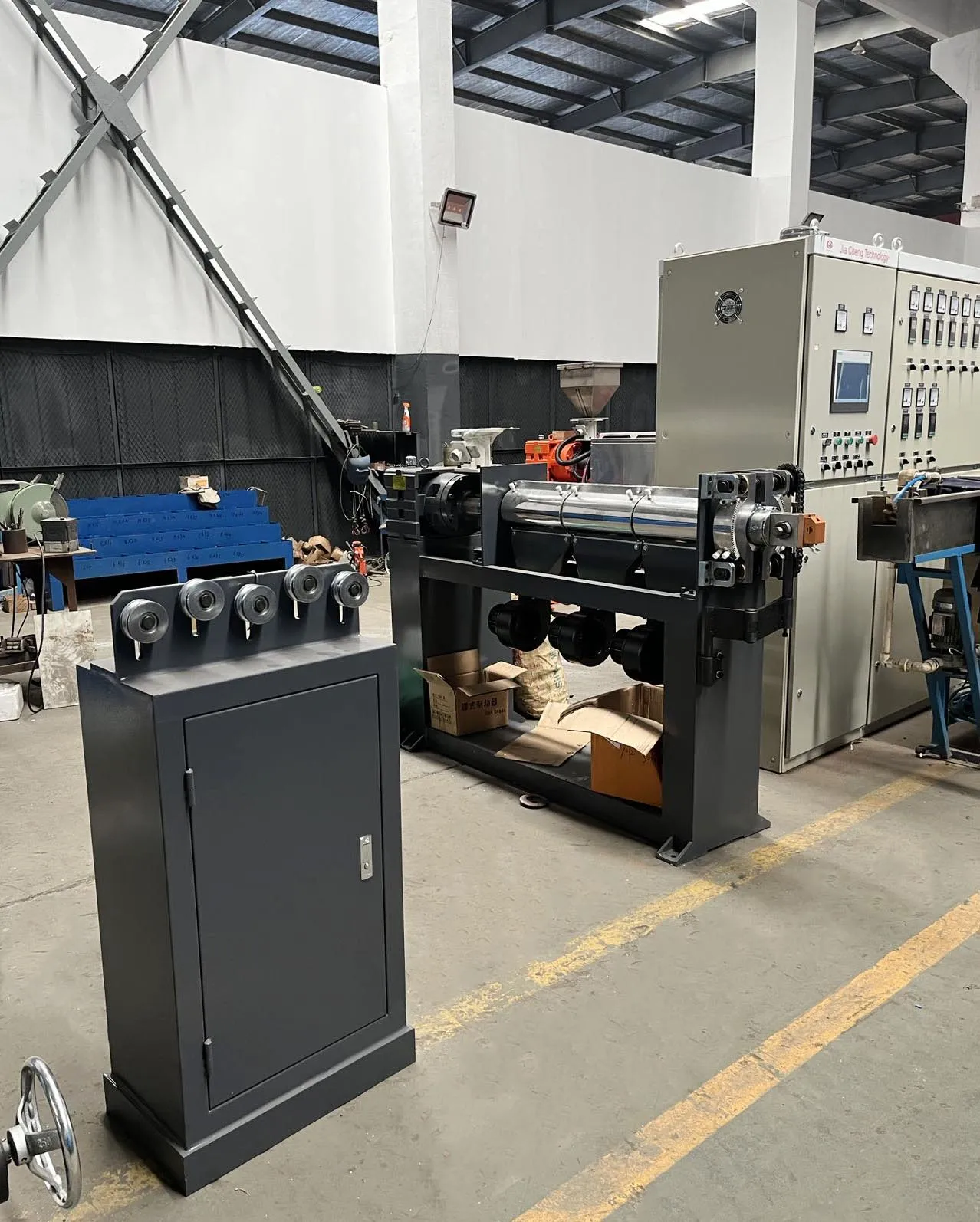

Main Extruder Machine
1) Gear Lubrication: gear mandatory for oil
A, square box shape casting and annealing, the material HT200-300
B, induction hardened gear tooth surface, after the grinding process, the noise figure
is lower than 75 decibels
A, square box shape casting and annealing, the material HT200-300
B, induction hardened gear tooth surface, after the grinding process, the noise figure
is lower than 75 decibels
2) Screw-cylinder connected with the reduction gear box at a special heat elimination design,which greatly improve the life of the screw and the gear box
Horizontal Wire Accumulator
1) Anti-collision: compression spring
2) Double checking devices: Detection of non-contact linear displacement sensor
3) Safety device: Front and rear set limit switches, emergency stop control synchronization break
4) 1 piece meter, upside is meter device and underneath is tool box
2) Double checking devices: Detection of non-contact linear displacement sensor
3) Safety device: Front and rear set limit switches, emergency stop control synchronization break
4) 1 piece meter, upside is meter device and underneath is tool box
Double Take-up Machine
1) Power: 2*3KW
2) Traversing: plain shaft, transverse and distance can be changed
3) Max. speed: 600M/Min
4) Tapping size: Output Dia. ≤320mm, Inner Dia. 120mm
Width 30-100mm(adjustable)
2) Traversing: plain shaft, transverse and distance can be changed
3) Max. speed: 600M/Min
4) Tapping size: Output Dia. ≤320mm, Inner Dia. 120mm
Width 30-100mm(adjustable)
Spark Tester
1) Test panels Length: 280mm; Center height: 1m
2) Comply with Japan, the United States, Europe and Great Wall of China national standards or certification
2) Comply with Japan, the United States, Europe and Great Wall of China national standards or certification
Ink Printer
1) Type: super speed power stirring, printing speed 300m/min
2) Print wheel: outside diameter Ø100m/m，innner hole Ø20m/m
* Standard: Printing quality meets UL, CSA, VDE, JIS, T-MARK series of standards
2) Print wheel: outside diameter Ø100m/m，innner hole Ø20m/m
* Standard: Printing quality meets UL, CSA, VDE, JIS, T-MARK series of standards
LGD-25 Diameter Gauge
1) It is used laser scanner technique, then it with big measuring range
2) It is used SMD circuit. Small volume, light weight and strong anti-interference
2) It is used SMD circuit. Small volume, light weight and strong anti-interference
Application:
it's used for the insulation of wire&cable with PVC.LDPE,NYLON,TPU.
Also it can be equipmented with triple co-extrusion crosshead and double layer
Single core bare wire extrusion cable
Multi core bare wires extrusion cable
Multi core extrusion cable
Packing&Shipping
After Sales Service
Pre-Sales Service
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training,
includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
After-Sales Service
①Free service guarantee period is: 12 months after shipping (except wearing parts)
② Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee
and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as
possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
② Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee
and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as
possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
