Mini Tractor 4x4 Front Skidsteer Loader/mini Skid Steer Hydraulic Engine Wheel Loader
- Category: >>>
- Supplier: Yantai Rima Machinery Co. Ltd.
Share on (1600893403142):
Product Overview
Description
Product Description

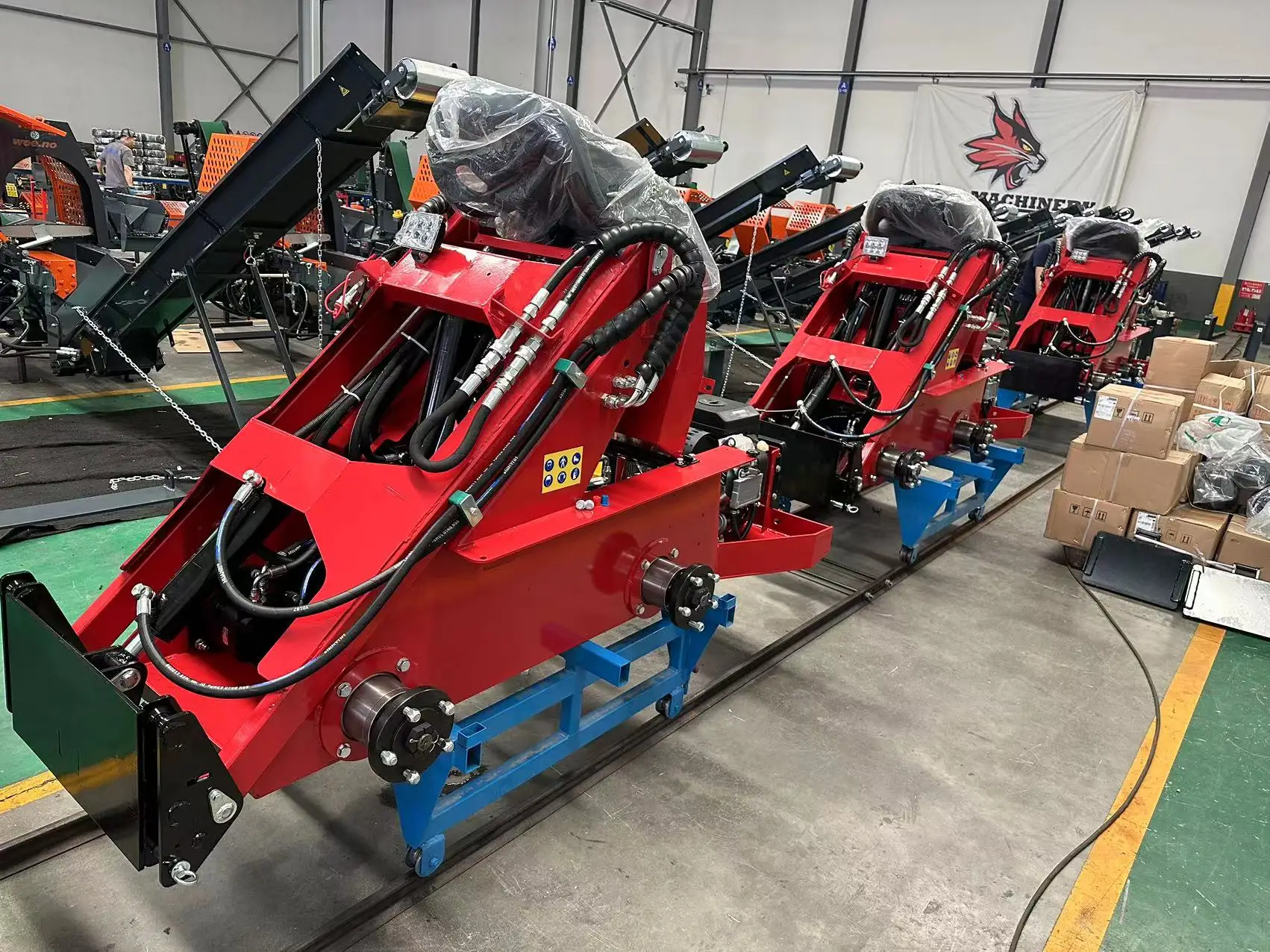

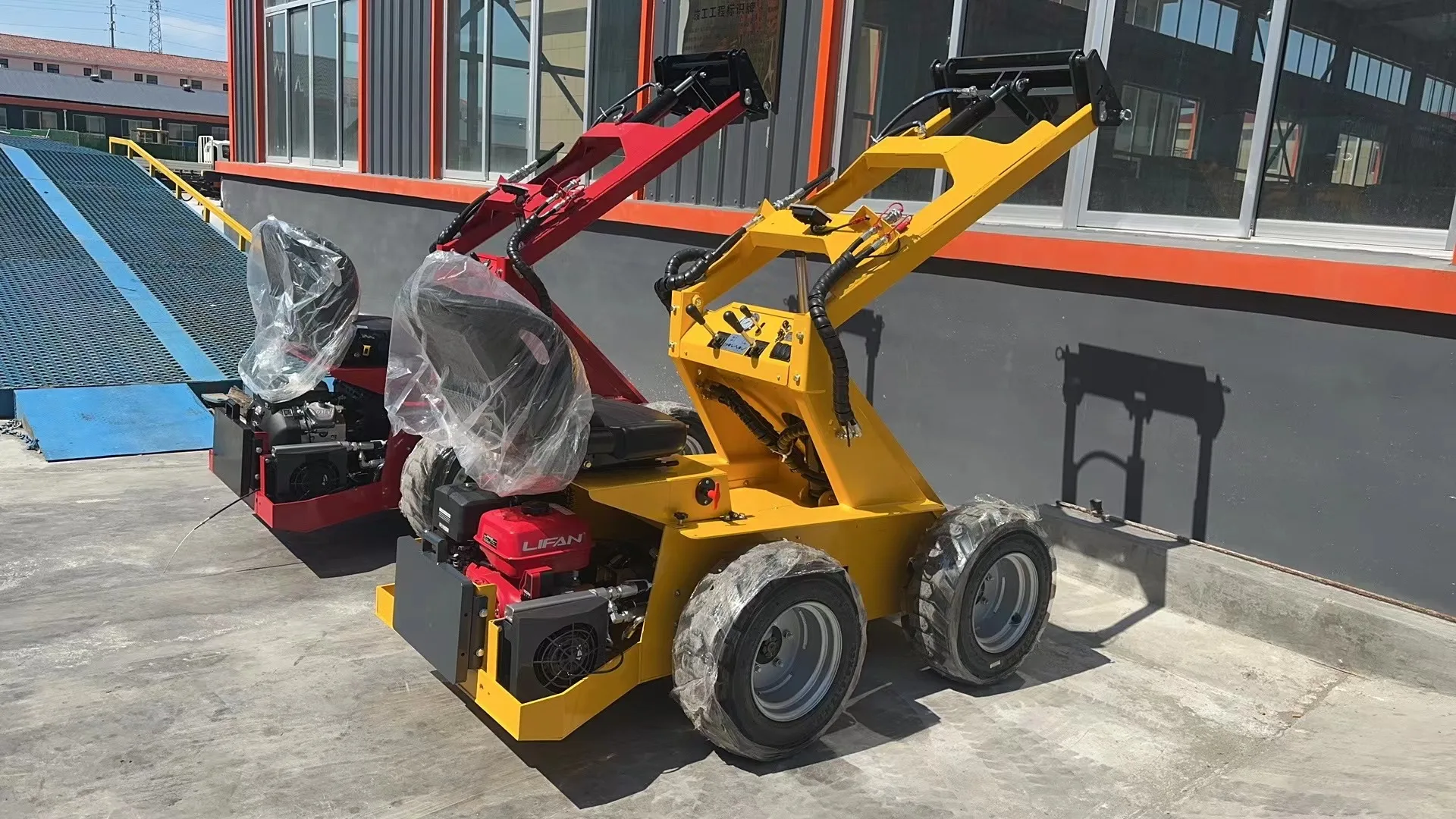

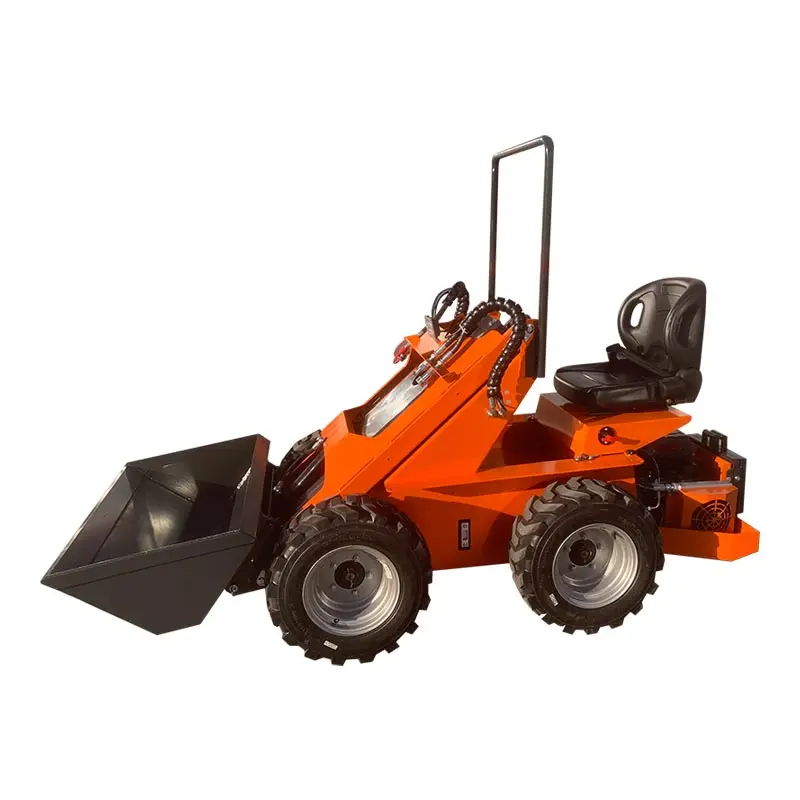

Mini articulated wheel front end skid steer loader

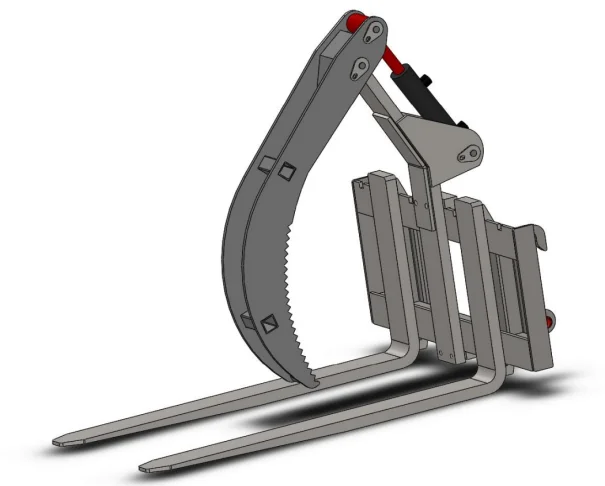

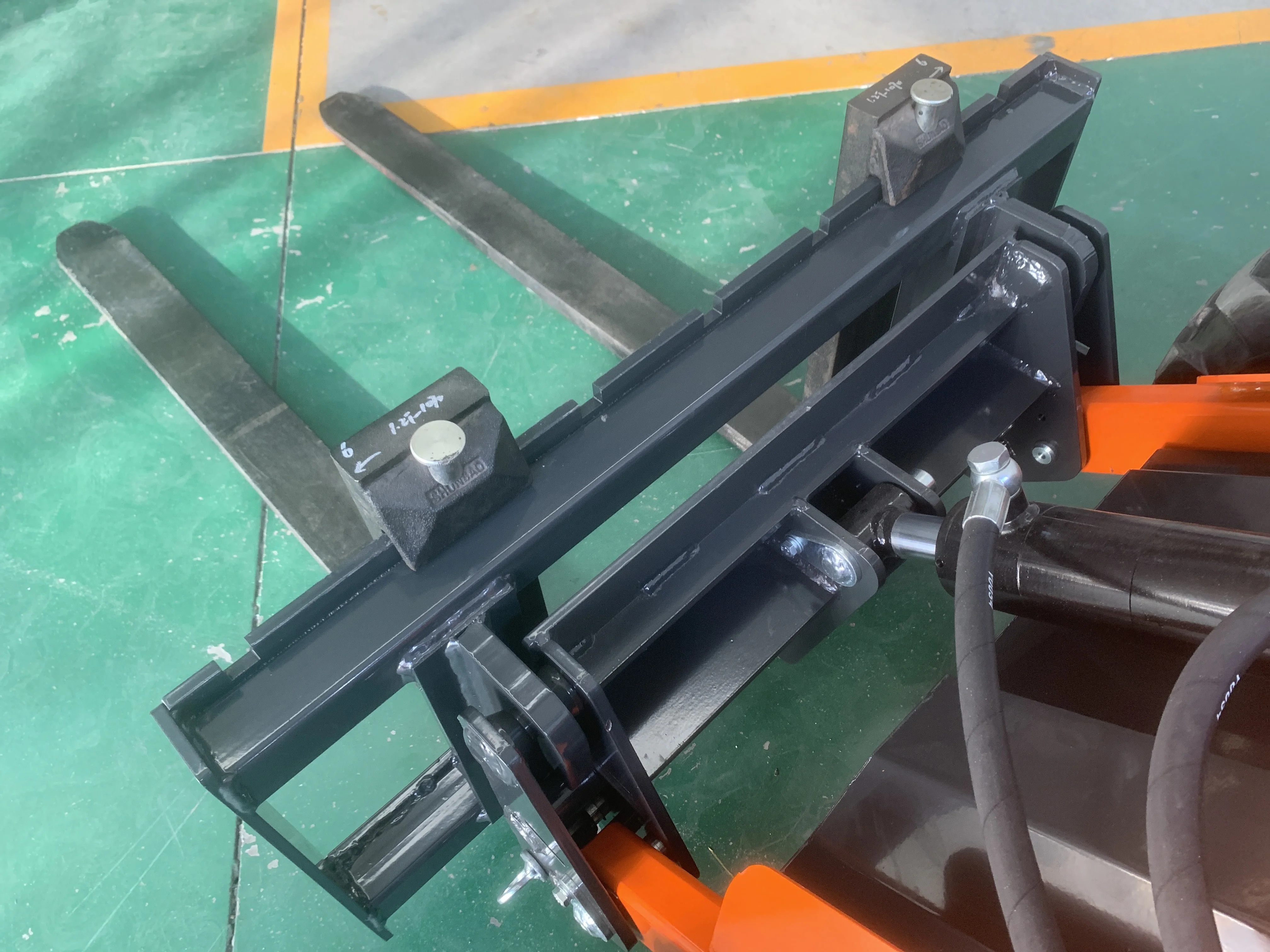

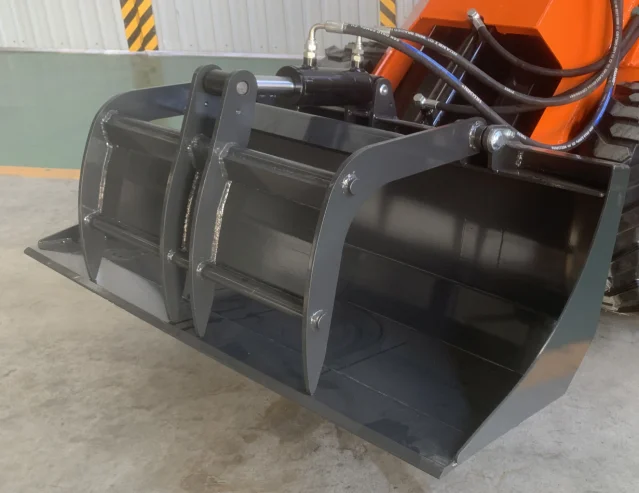

Attachments
#Attachments can be customized according to needs.

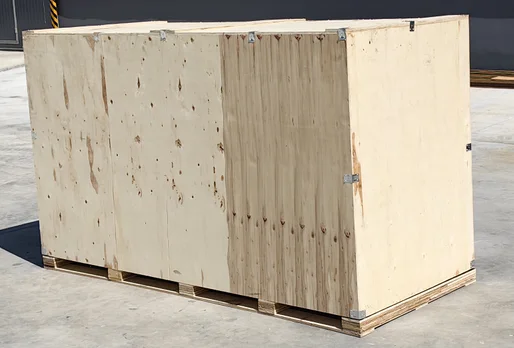

Packing and Delivery
Specifications
Model | RL500/15 | RL500/24 |
Engine | Petrol, LIFAN, 15HP, 10A | Petrol, LIFAN 24HP |
Petrol, KOHLER,14HP (Optional) | Petrol, HONDA GX630 (Optional) | |
Length | 2640mm | 2640mm |
Width | 1130mm | 1130mm |
Height | 1730-2380mm | 1730-2380mm |
Standard Bob-weight | 25kg | 25kg |
Tipping load *) | 500kg | 500kg |
Optimal lifting capacity with bucket | 300kg | 300kg |
Optimal lifting capacity without bucket | 360kg | 360kg |
High speed | 0-6km/h | 0-6km/h |
Low speed | 0-3km/h | 0-3km/h |
Hydraulic flow on low speed | 20L/min | 20L/min |
Hydraulic flow on high speed | 40L/min | 40L/min |
Transmission drive | 4-WD | 4-WD |
Drive motor | Hydraulic | Hydraulic |
Pulling force | 650kg | 650kg |
Working pressure | 19Mpa | 21Mpa |
Oil cooler | Yes | Yes |
Hydraulic tank capacity | 32L | 32L |
Bucket width | 1130mm | 1130mm |
Standard bucket weight | 61kg | 61kg |
Wheel | 23x8.5-12 | 23x8.5-12 |
Wheel-base | 900mm | 900mm |
Ground clearance | 200mm | 200mm |
Loader weight without bucket | 733kg | 763kg |
Company Information and Customer Visiting
1.Nice quality with competitive price
2.Quick delivery time
3.Money refund in case of bad quality
4.Small order welcome
5.Alibaba trade assurance payment for safety
6.QC for each pc before delivery
7.Nice after sale service
We trust we will be your trustworthy supplier in China if we have a chance to serve you!!! So please don't hesitate to contact us by the following ways, if any machines you are interested in!
2.Quick delivery time
3.Money refund in case of bad quality
4.Small order welcome
5.Alibaba trade assurance payment for safety
6.QC for each pc before delivery
7.Nice after sale service
We trust we will be your trustworthy supplier in China if we have a chance to serve you!!! So please don't hesitate to contact us by the following ways, if any machines you are interested in!
