Reinforced Concrete Jacking Pipe Steel Bar Cage Welding Machine

Product Overview

Description

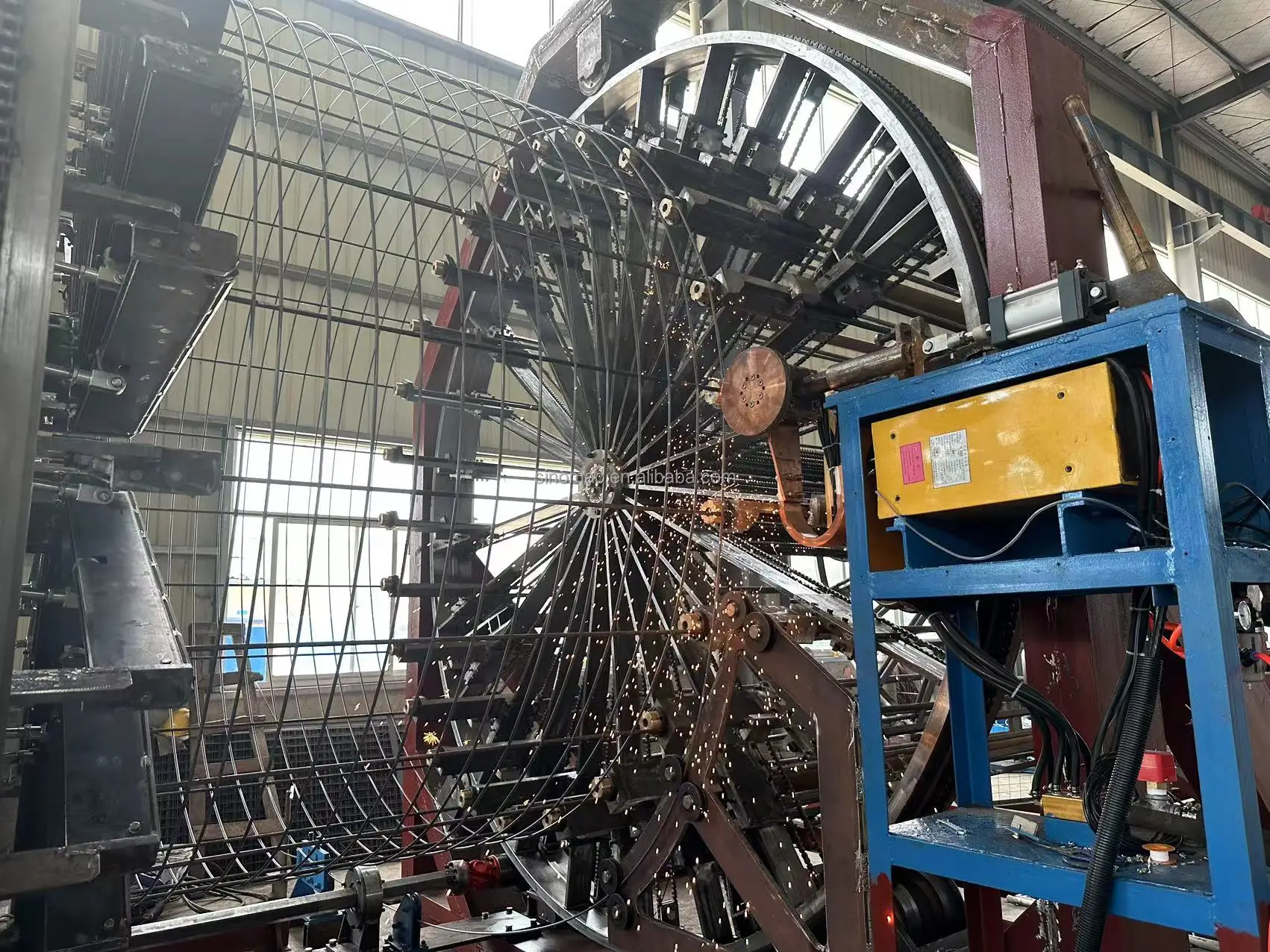

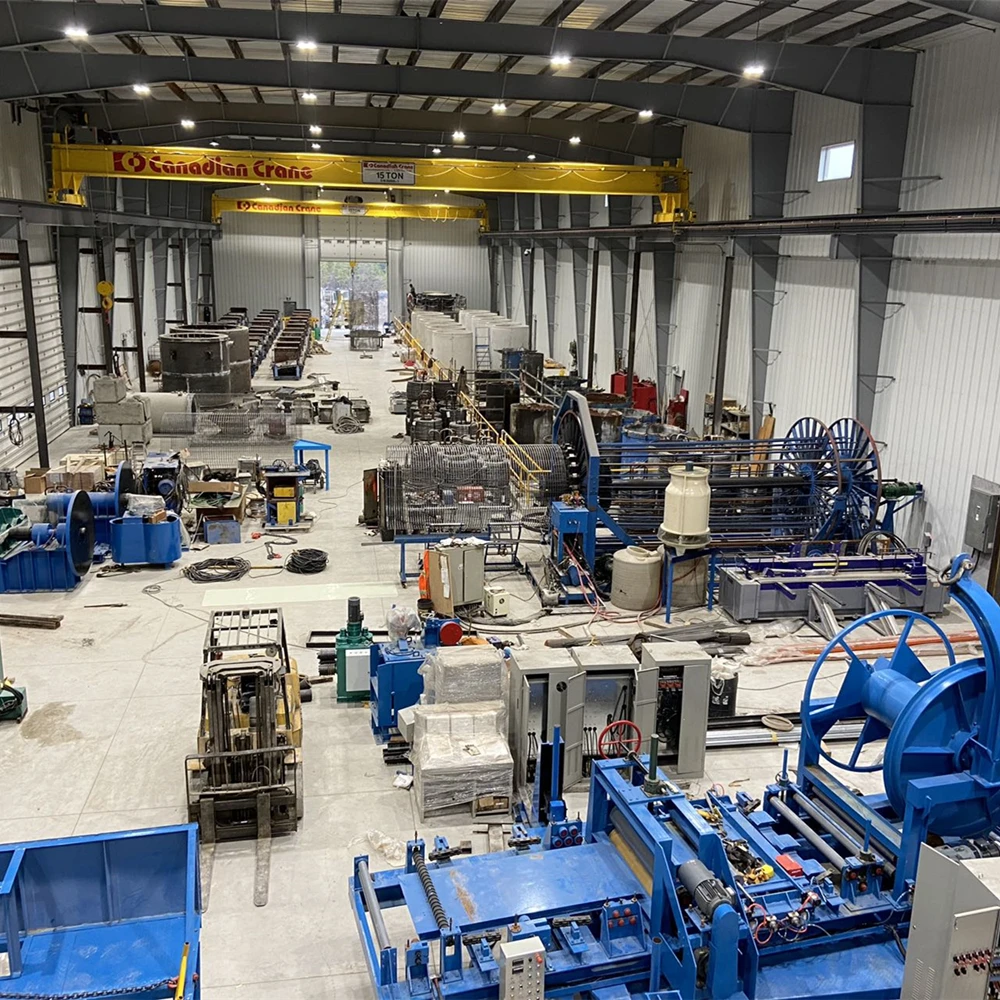

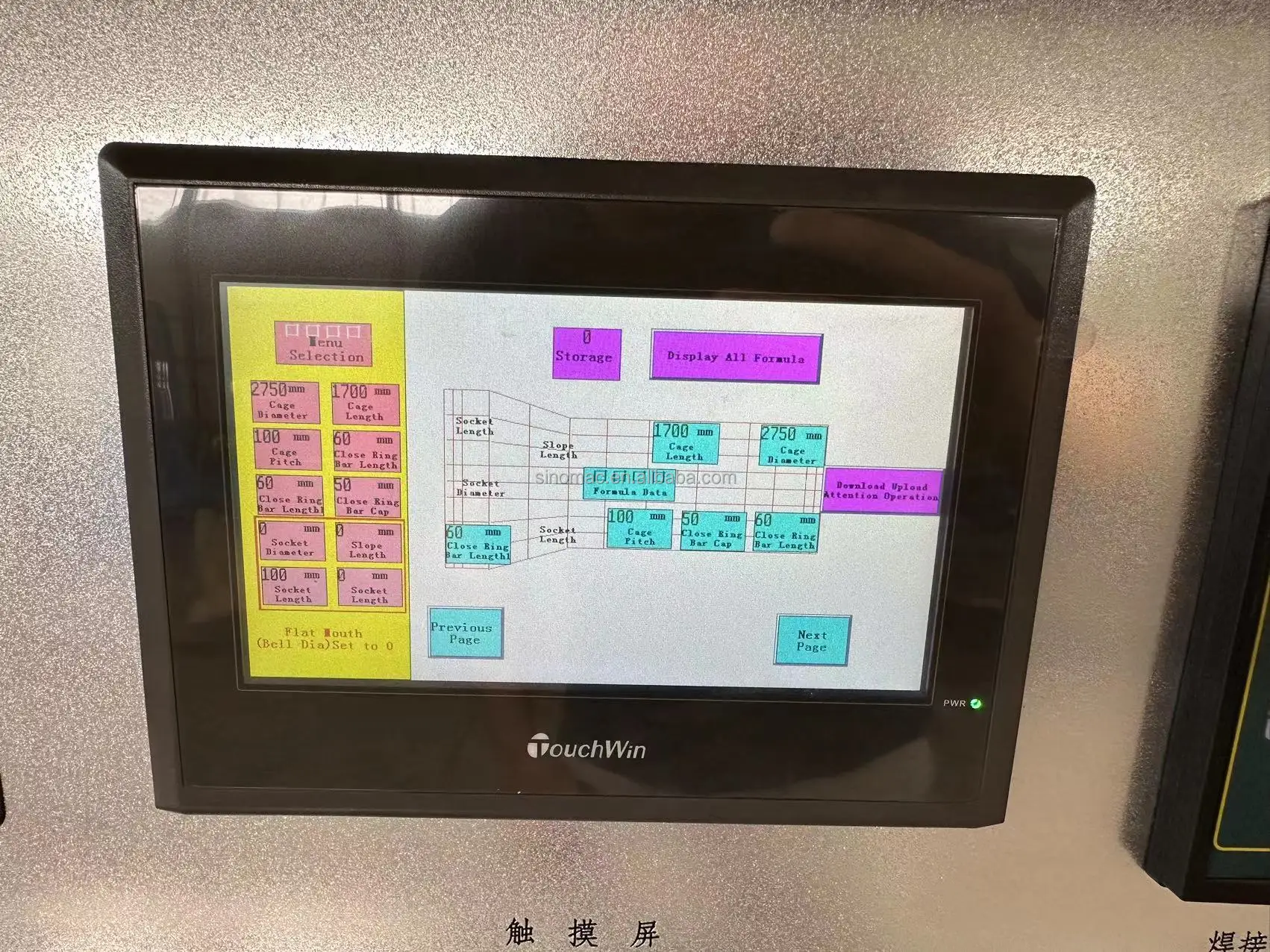

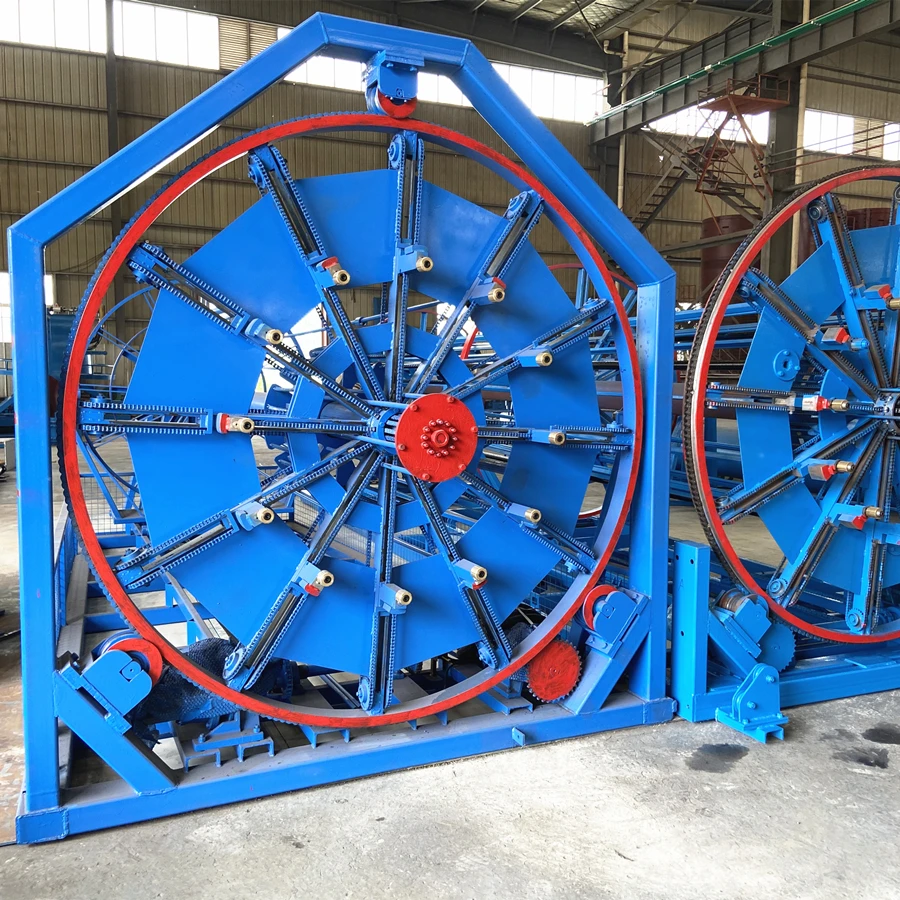

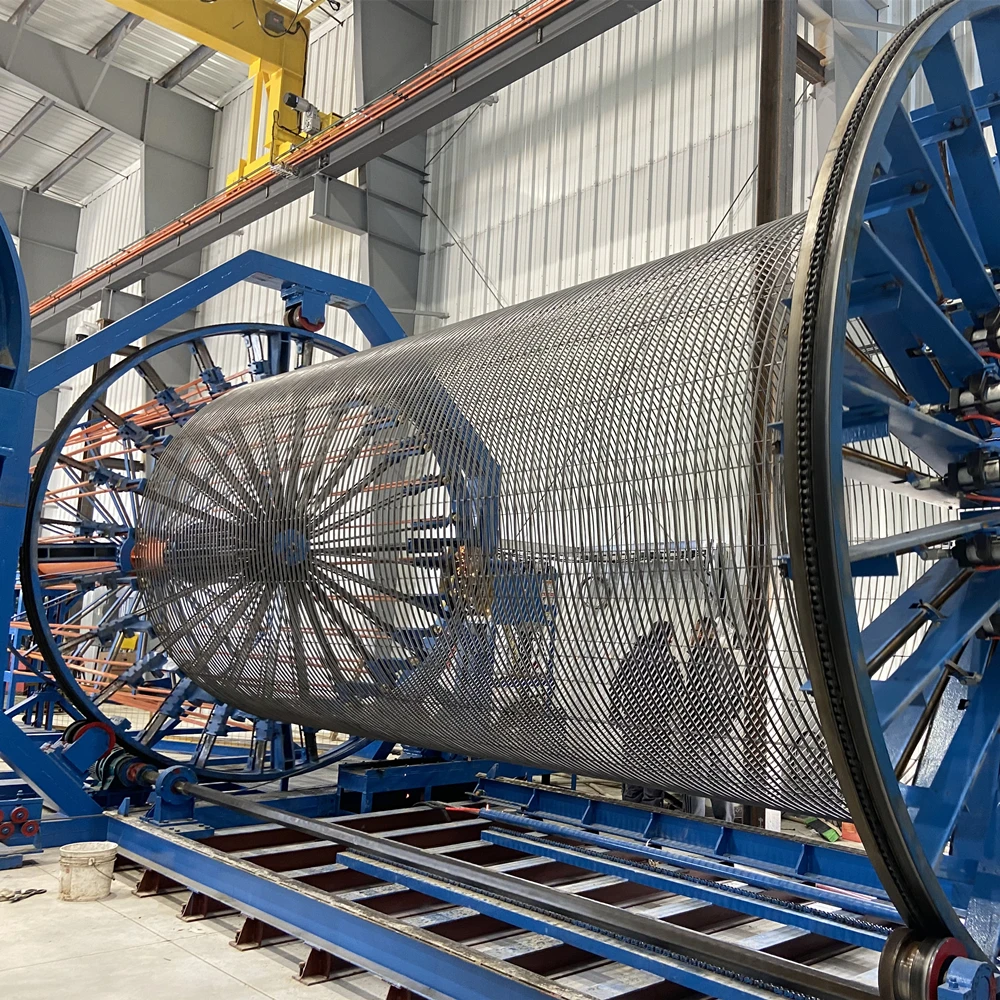

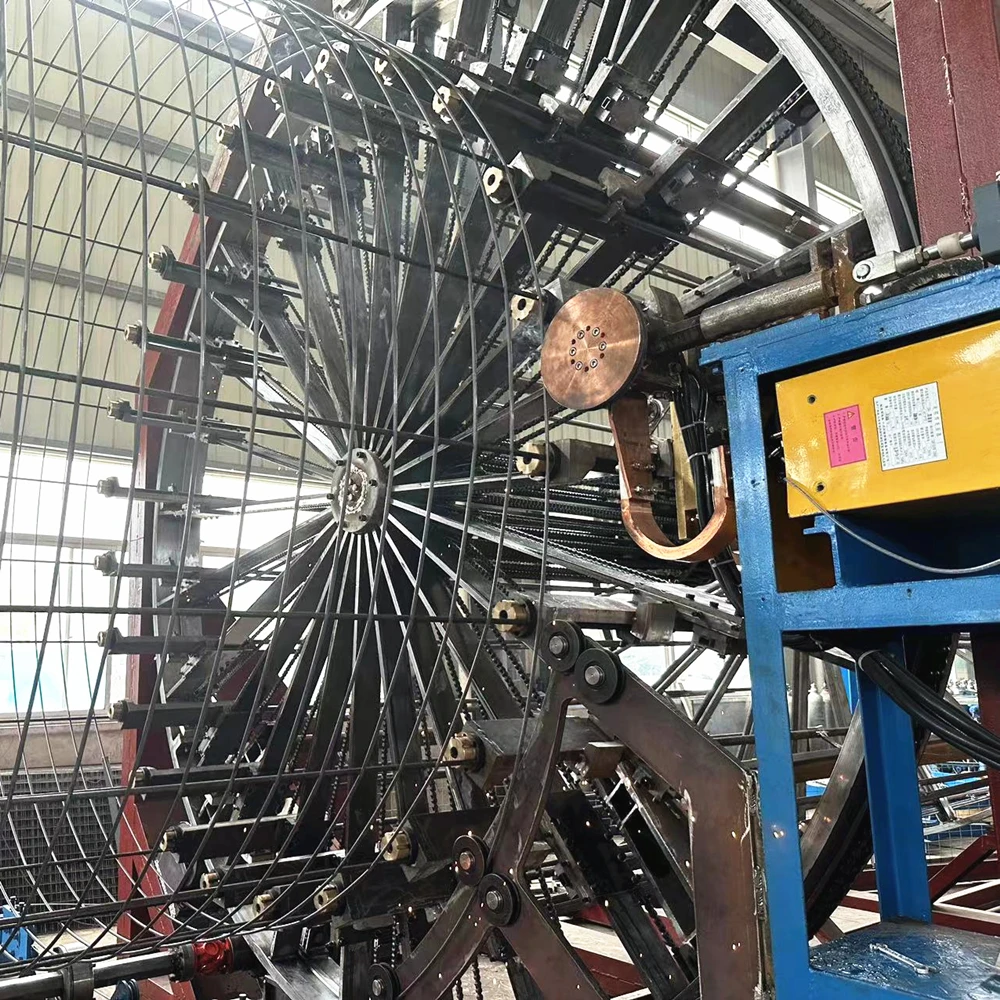

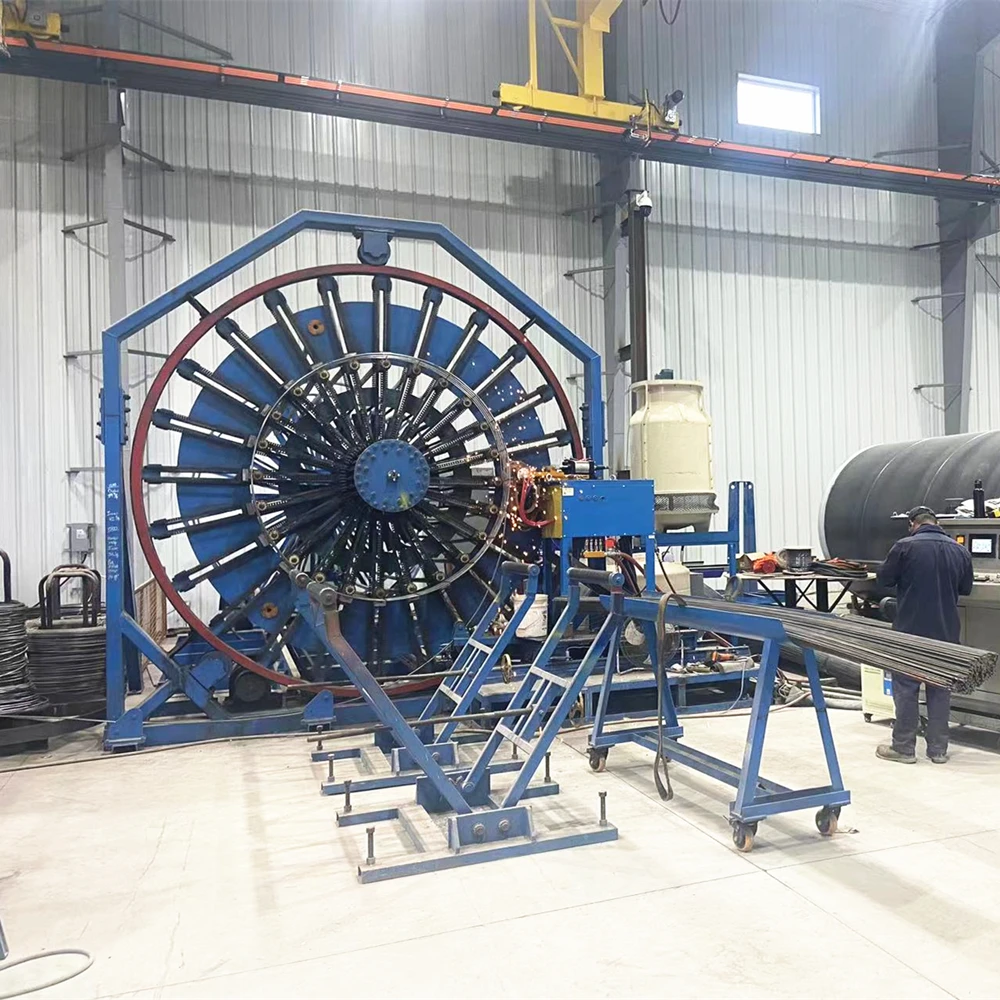

Reinforced Concrete Jacking Pipe Steel Bar Cage Welding Machine

Product Description

Application range: suitable for DN400-3600mm spigot and bell port reinforcement cage and DN400-3600 flat/tongue-groove/steel socket reinforcement cage. The welding cage diameter:DN425-3850mm.Suitable

Diameter: ring and longitudinal wire:4-12mm

Spigot/Bell Angle:0-15 degree

Welding longitudinal reinforcement: 6 or 12 or 18 or 24 or 36 pieces

Welding Length: 0-6000mm

Ring reinforce gap distance:40-110mm

Steel Bar should be low carbon cold wire drawing (meet GB/T343-94 Standard). The steel bar should be clean, no oil and rust.

Technical Parameter:

Model	SMC---1200	SMC---2400	SMC---3600
Application Range	DN600-1200	DN800-2400	DN2400-3600
Nominal Length(mm)	3000/6000	3000/6000	3000/6000
Number of longitudinal bar(pieces)	6/12	8/12/24	8/12/24
Steel Bar Thickness(mm)	4-12mm
Ring Reinforcement Pitch(mm)	40-110
Socket Angle	0-15degree
Power	Less than 6KW	Less than 10KW	Less than 20KW
Transformer(KVA)	75	100	150
Reference Weight(ton)	About 7.5tons	About 9tons	About 10tons
Dimension(mm)	7700X3410X2475	8580X3990X3231	8755X4650X3660

Company Information:

Our factory is a professional manufacturer of cement products complete sets equipment and molds. It has more than 40 years of experience in research and development, design and manufacture of cement products machinery and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2008 quality management system certification, and obtained a number of national invention patents. Our main products:

1. DN400-4000mm PCCP Pipe Production Line

2. Concrete Drainage Pipe Production Line

3. Cage Welding Machine

4. Concrete Pipe Mold

Our company have sell more than 60sets complete PCCP pipe production line equipment to domestic and foreign market. Now our company's PCCP production line equipment has been exported to Canada, Egypt, India, South America, Africa and so on.



The full completely DN600-4000mm PCCP Pipe Production Line main equipment includes: Spigot Bell Ring Roller, Bell Plate Edger, Spigot/Bell Ring Expanding Machine, Spigot/Bell Port Assemble Platform, Steel Cylinder Welding Machine, Steel Cylinder Water Pressure Testing Machine, Concrete Placer, Wire Wrapping Machine, Concrete Spraying Machine, PCCP pipe internal/External Pressure Testing Machine, Concrete Molds etc.

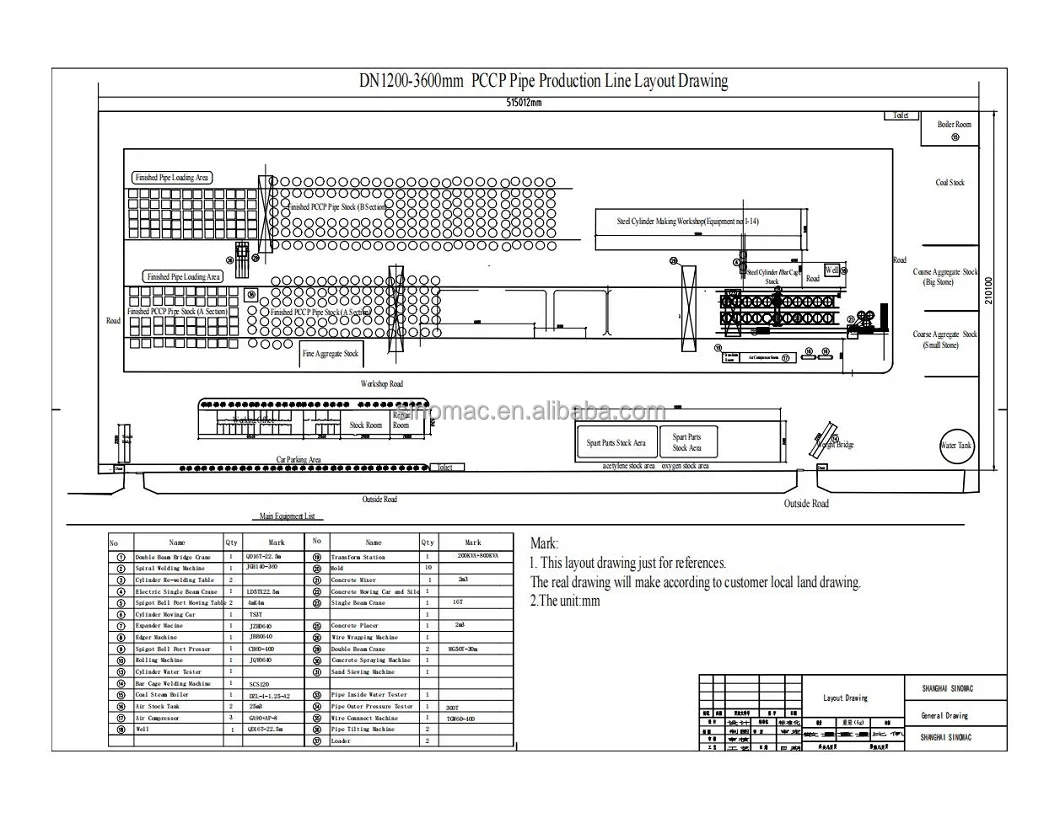

2. PCCP Concrete Pipe Flowchart and Layout

3.Main Making Machine List:

A.Spigot and Bell Port Rolling Machine

Power Plant Cooling-Water Lines PCCPL/PCCPE Pipe Making Machinery Plant :plate rolling machine

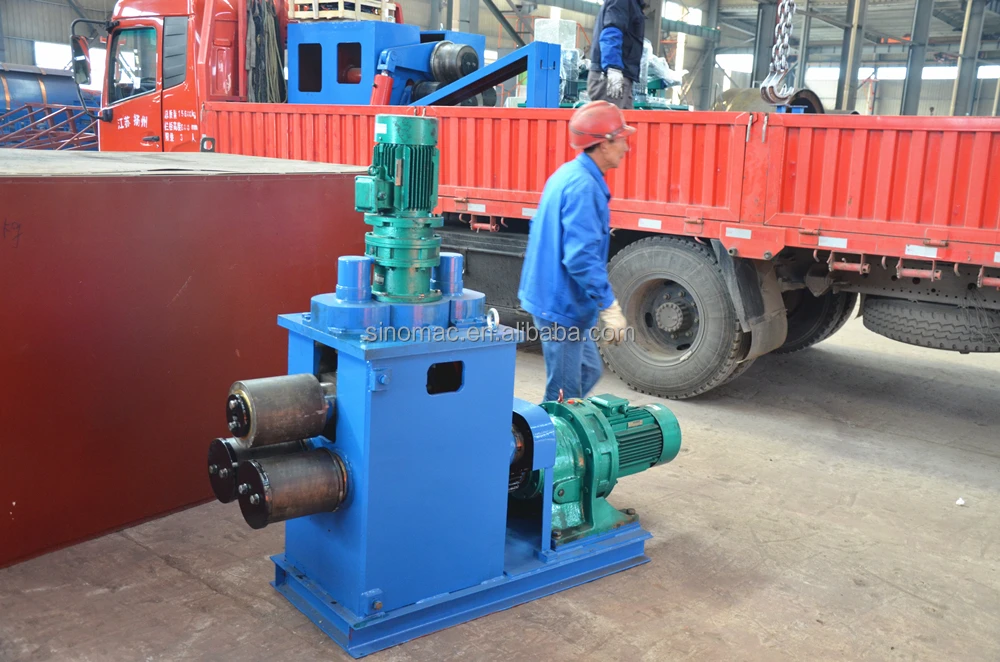

The rolling machine is main to form the spigot/bell port into circle.It could make different diameter spigot and bell circle through changing upper roller.

B. Edge Rolling Machine

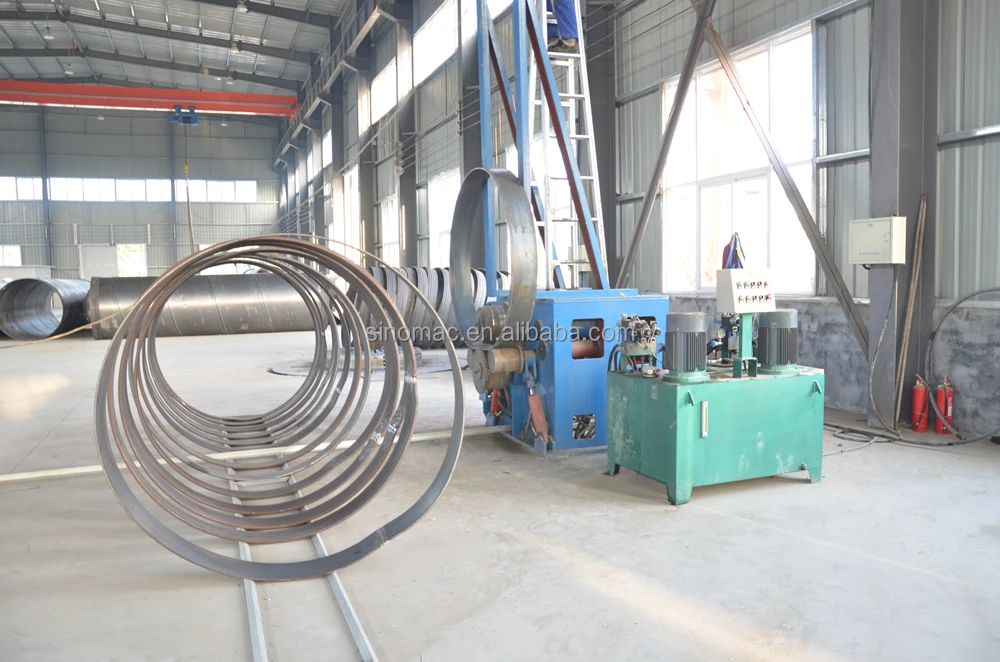

 Power Plant Cooling-Water Lines PCCPL/PCCPE Pipe Making Machinery Plant  :edging machine

The Edge Rolling Machine is to change the spigot plate into requirement size plate through rolling.

C. Expanding Machine

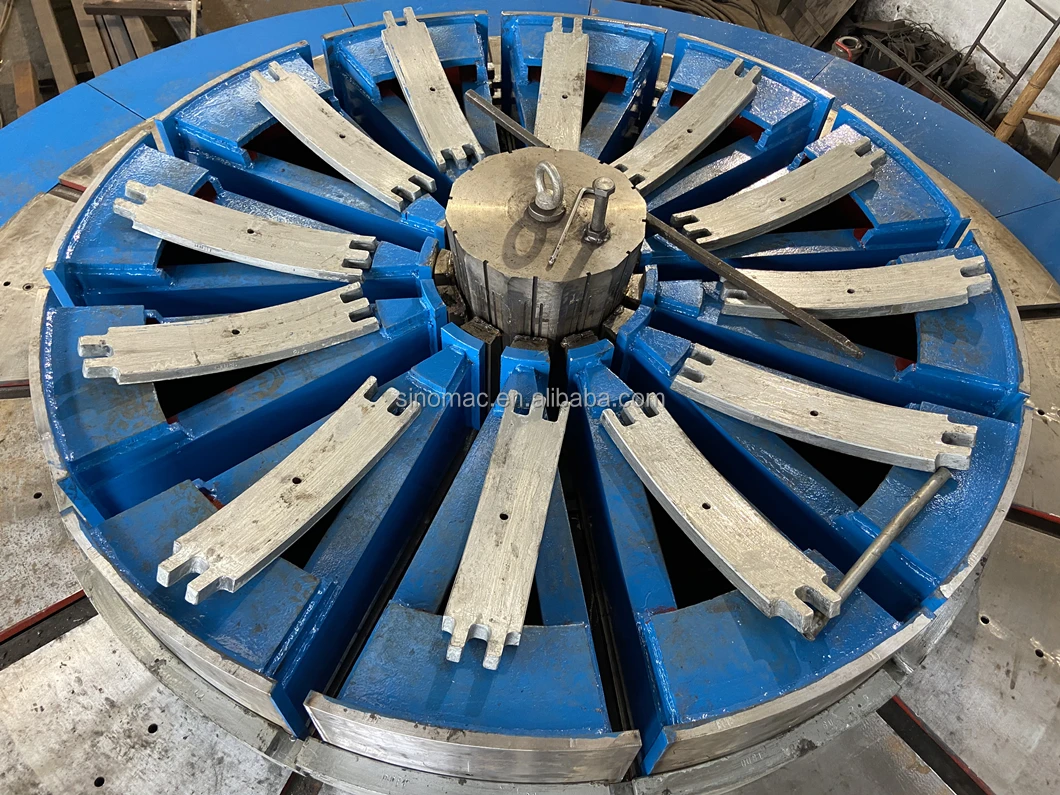

Power Plant Cooling-Water Lines PCCPL/PCCPE Pipe Making Machinery Plant :spigot and bell expanding machine

D.Φ600-1600 Small Spiral Welding Machine

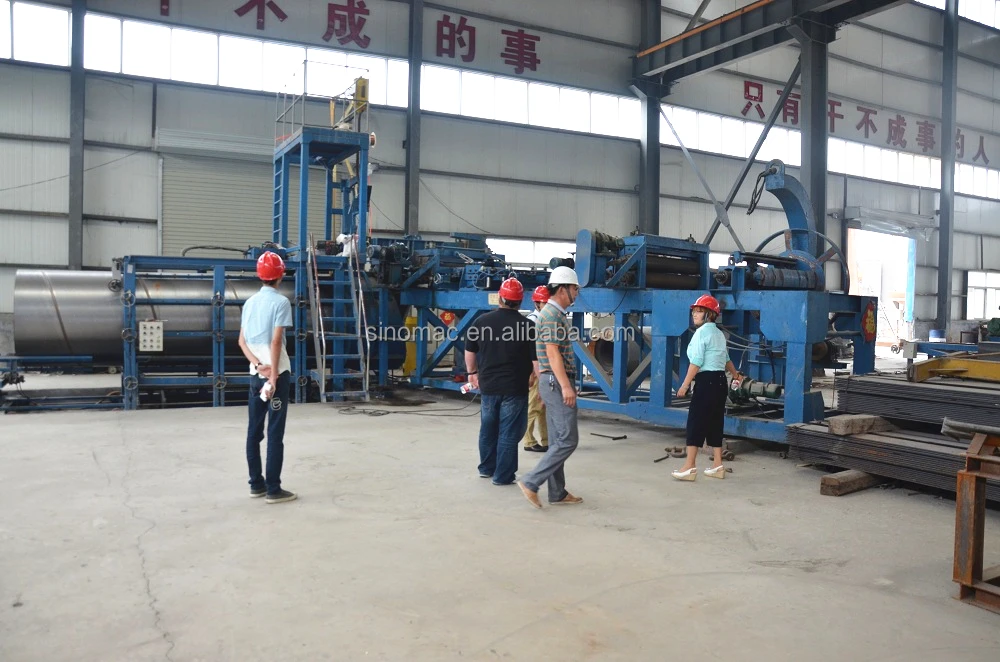

Power Plant Cooling-Water Lines PCCPL/PCCPE Pipe Making Machinery Plant :spiral welding machine

The small spiral welding machine main through continuous winding/rolling/welding and automatic cutting to make required length cylinder.



E.Φ1600-3600 Big Diameter Steel Cylinder Welding Machine

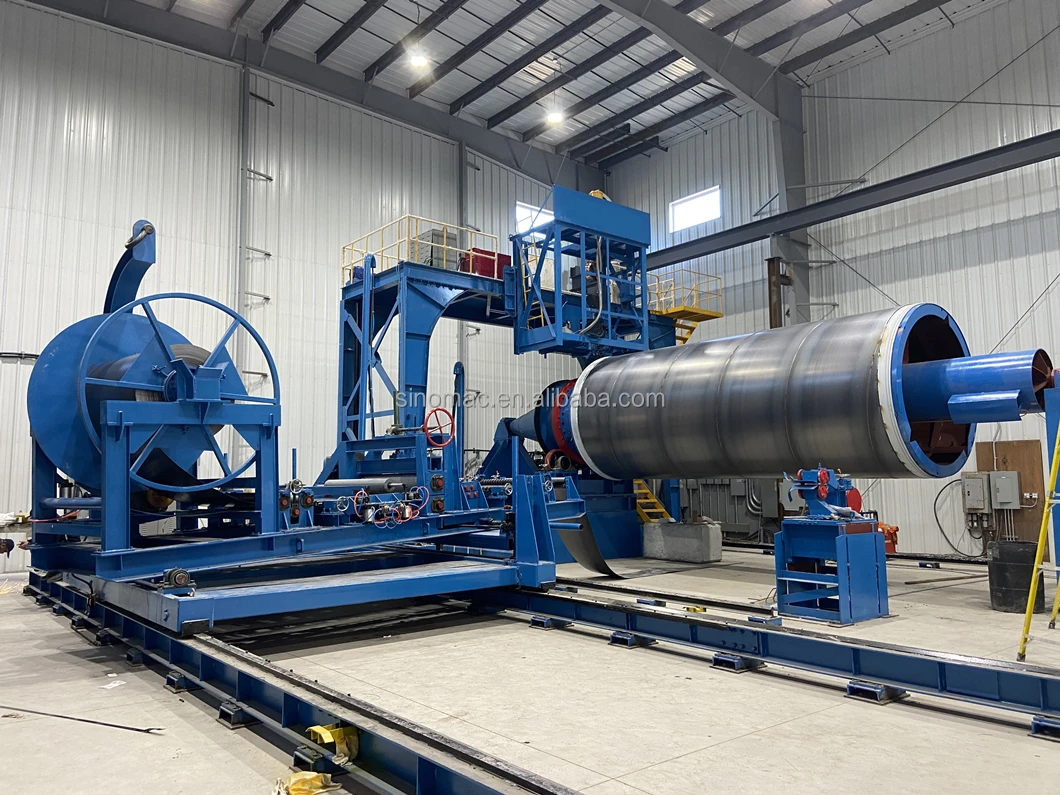

 Power Plant Cooling-Water Lines PCCPL/PCCPE Pipe Making Machinery Plant :seam welder

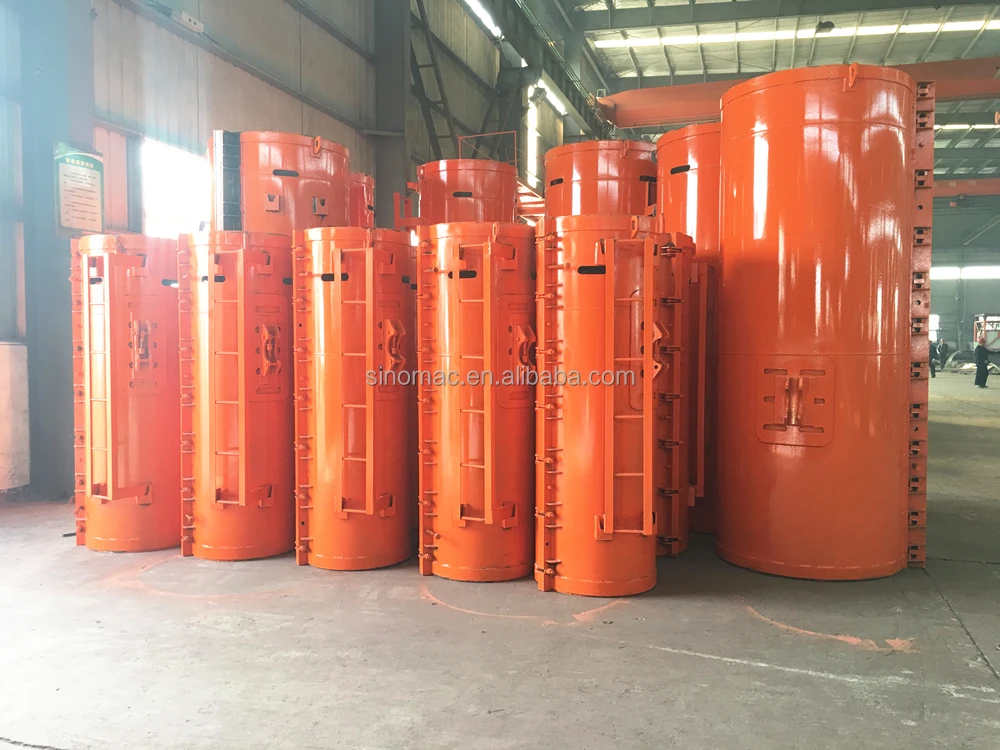

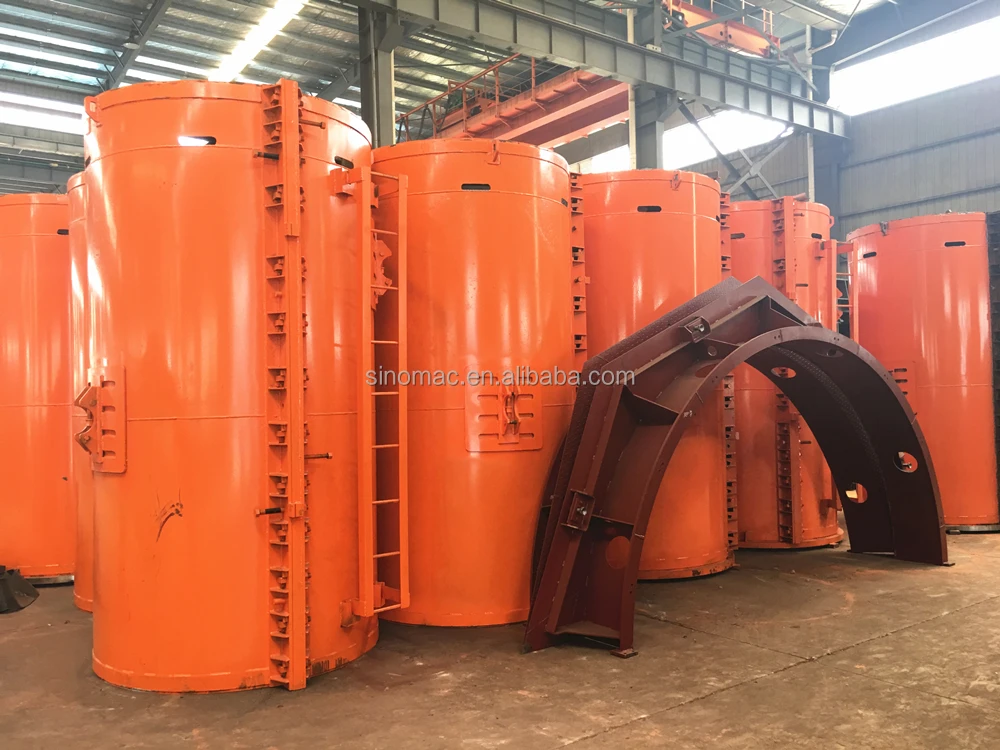

F.DN600-3600X6000MM Concrete Pipe Molds



G.Φ600-1600 Horizontal Cylinder Water Testing Machine

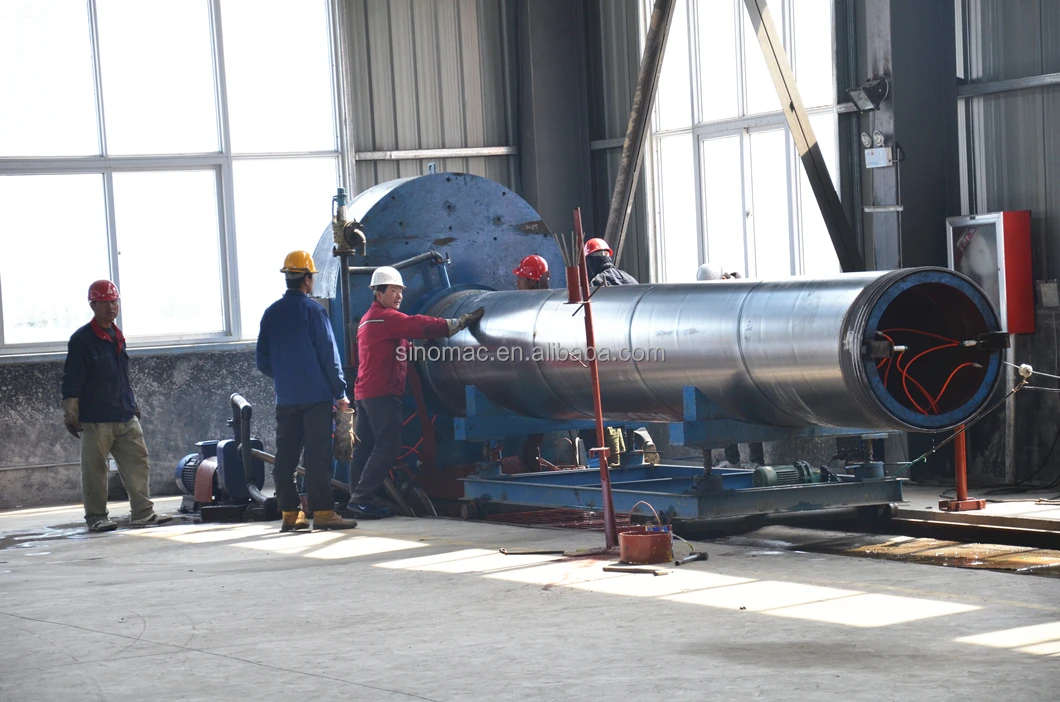

   Power Plant Cooling-Water Lines PCCPL/PCCPE Pipe Making Machinery Plant :pipe water testing machine

Horizontal Cylinder Water Testing Machine main to make water pressure testing for cylinder.



 H.Φ600-1600 Different Speed Horizontal Wire Wrapping Machine

  Power Plant Cooling-Water Lines PCCPL/PCCPE Pipe Making Machinery Plant  :wire wrap machine

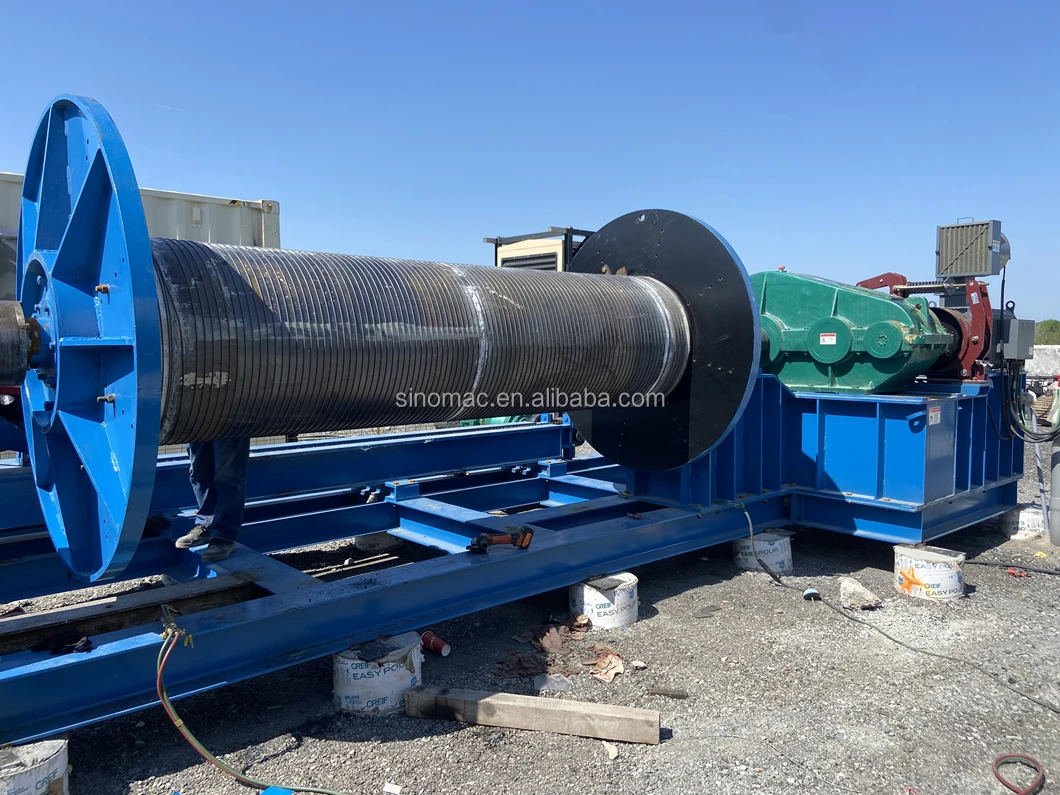

Horizontal Wrapping Machine is to wrap the wire into the outside of pipe core.

I. Concrete Spray Coating Machine

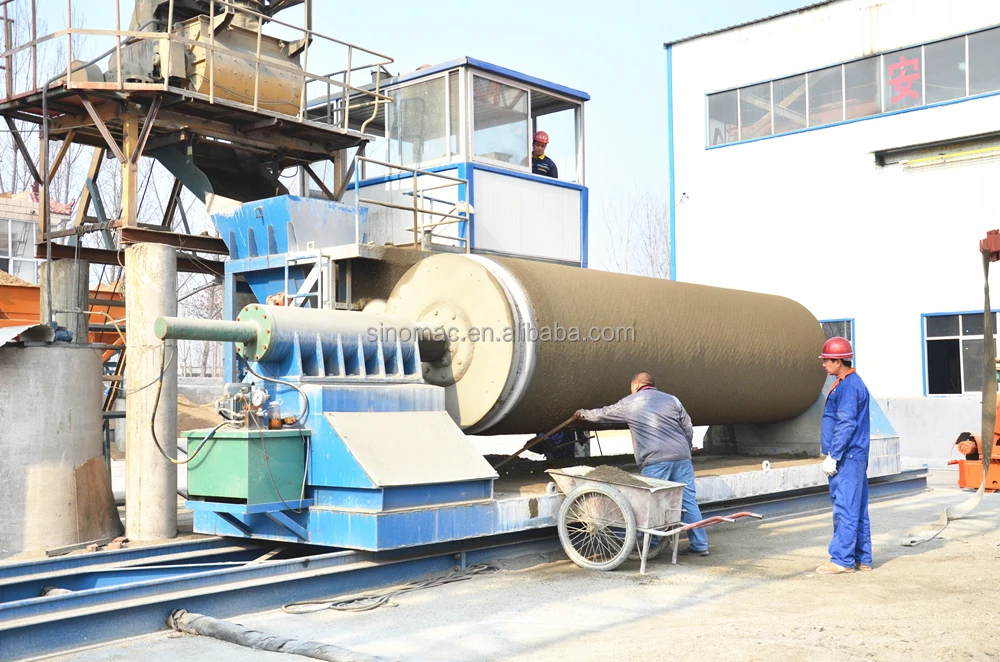

 Power Plant Cooling-Water Lines PCCPL/PCCPE Pipe Making Machinery Plant : coating spray machine

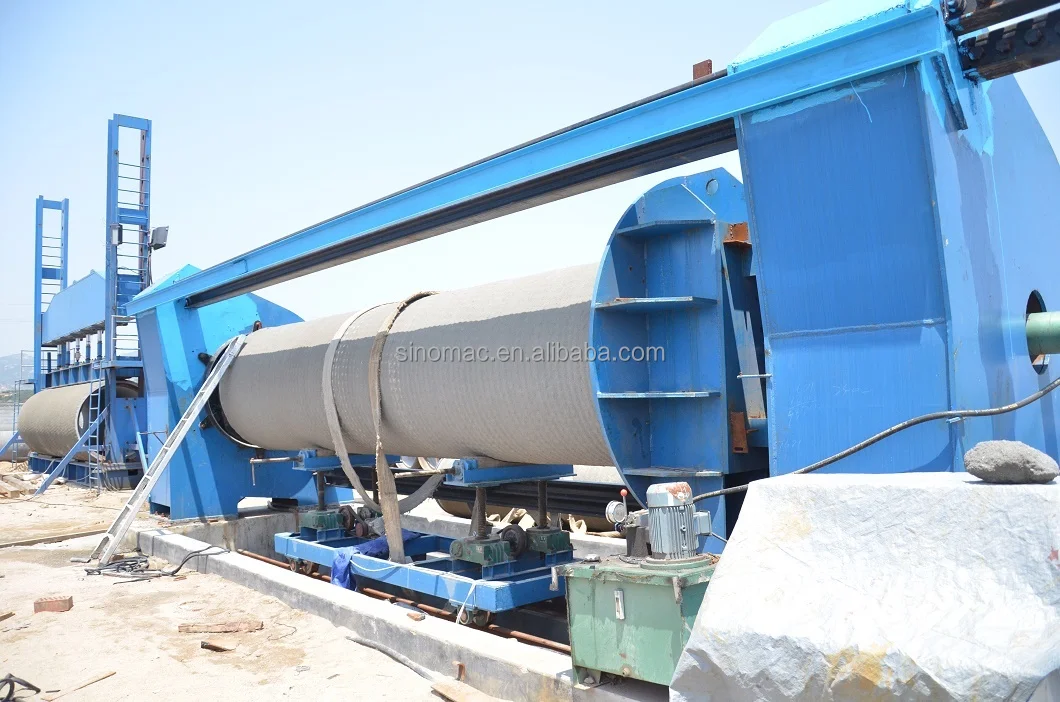

J. PCCP Pipe Inside and Outer Pressure Testing Machine

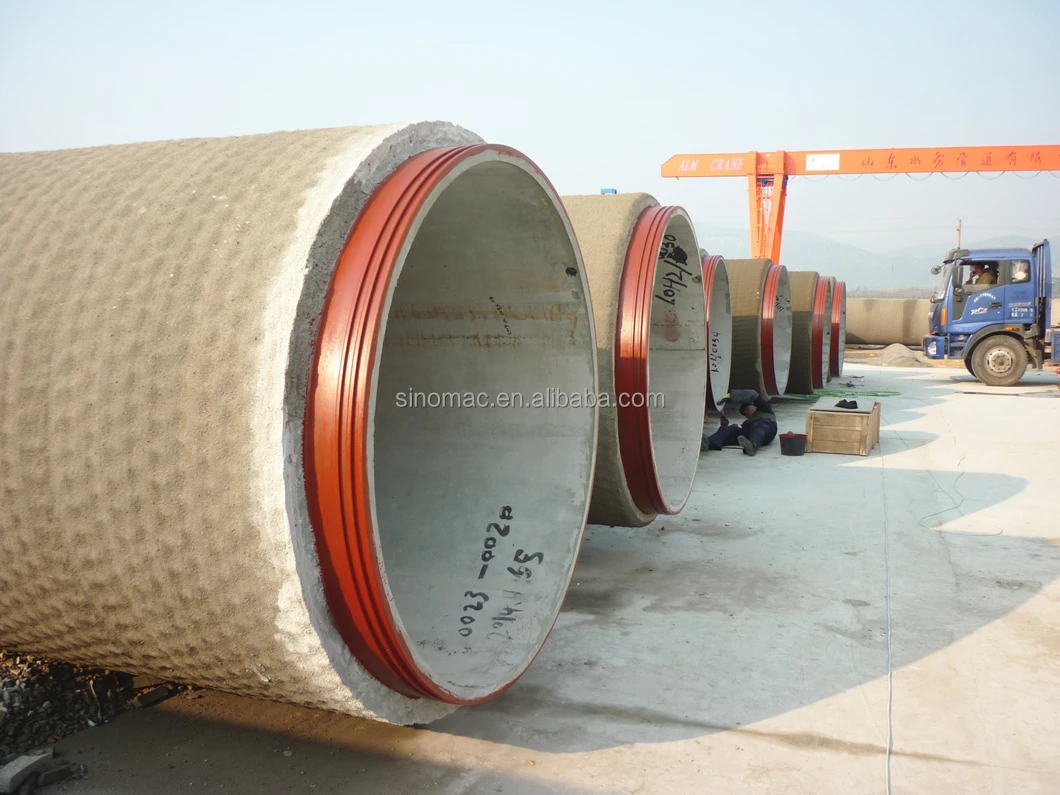

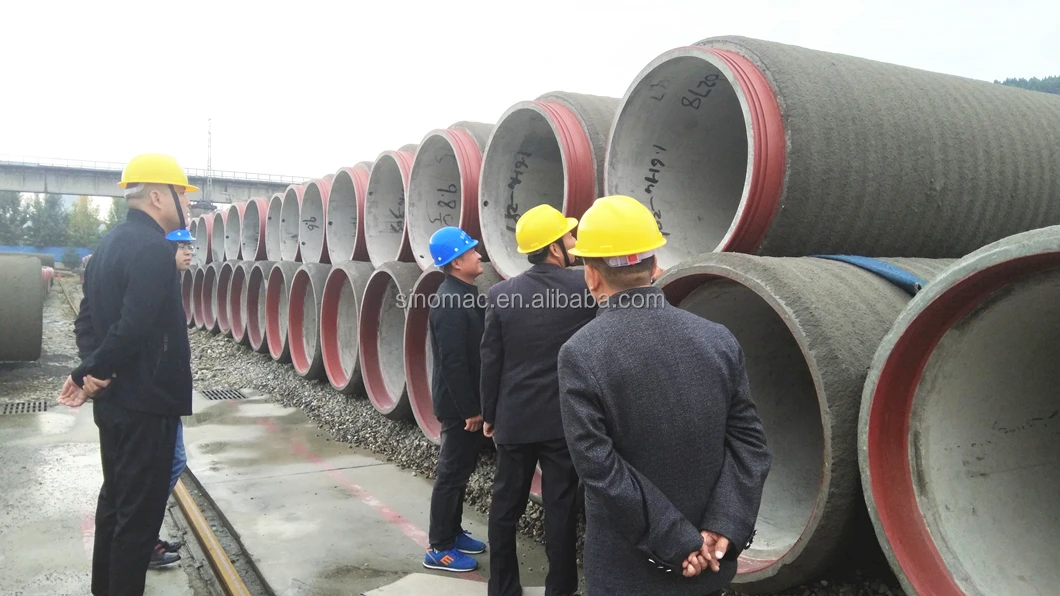

K. Final Products

Packing&Shipping:

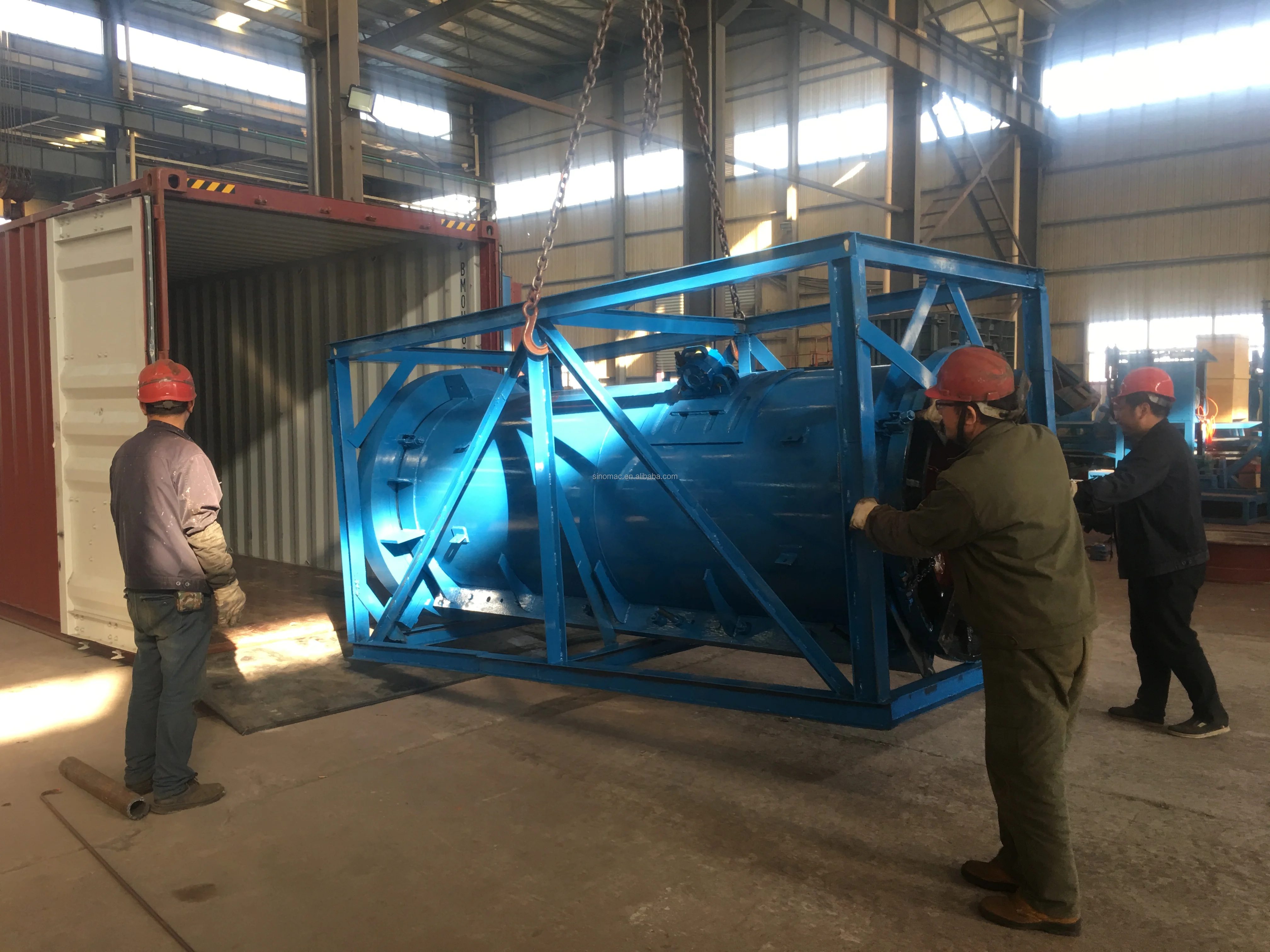

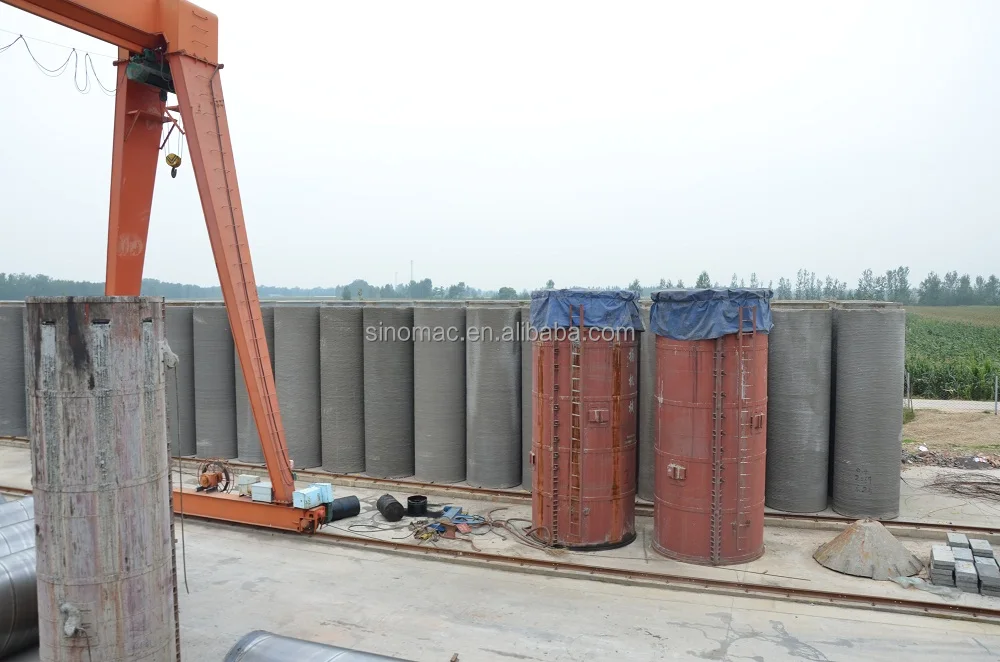

concrete pipe mold export to Canada

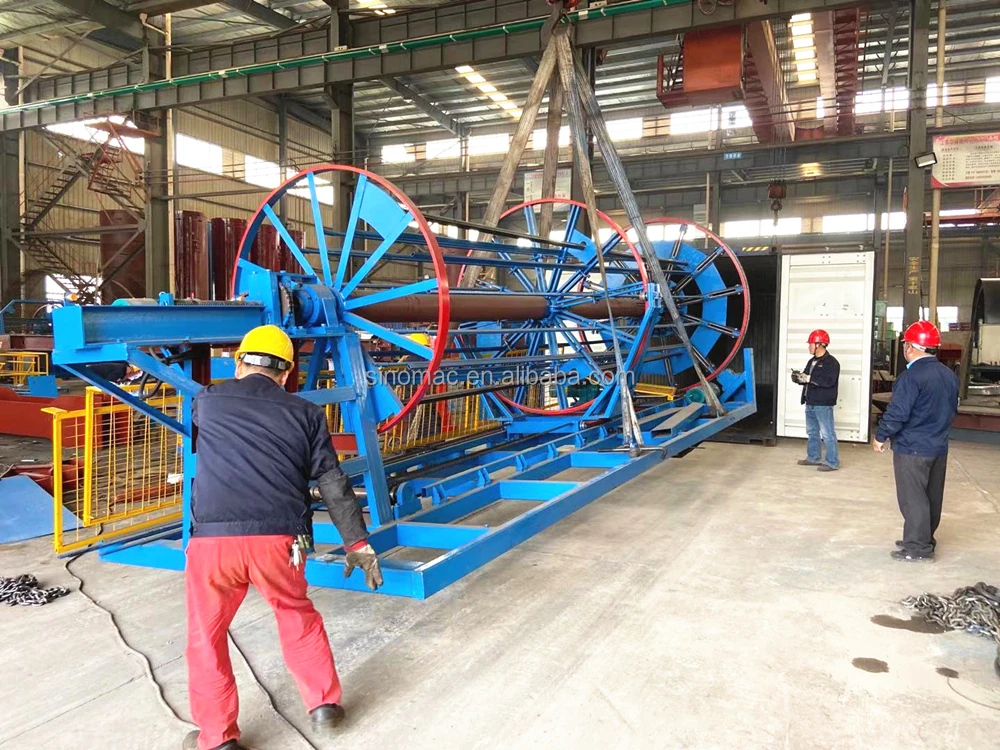

DN800-2400X3000mm cage welding machine export to India

Our Services:

Our factory have professional engineers for all the customers installation.

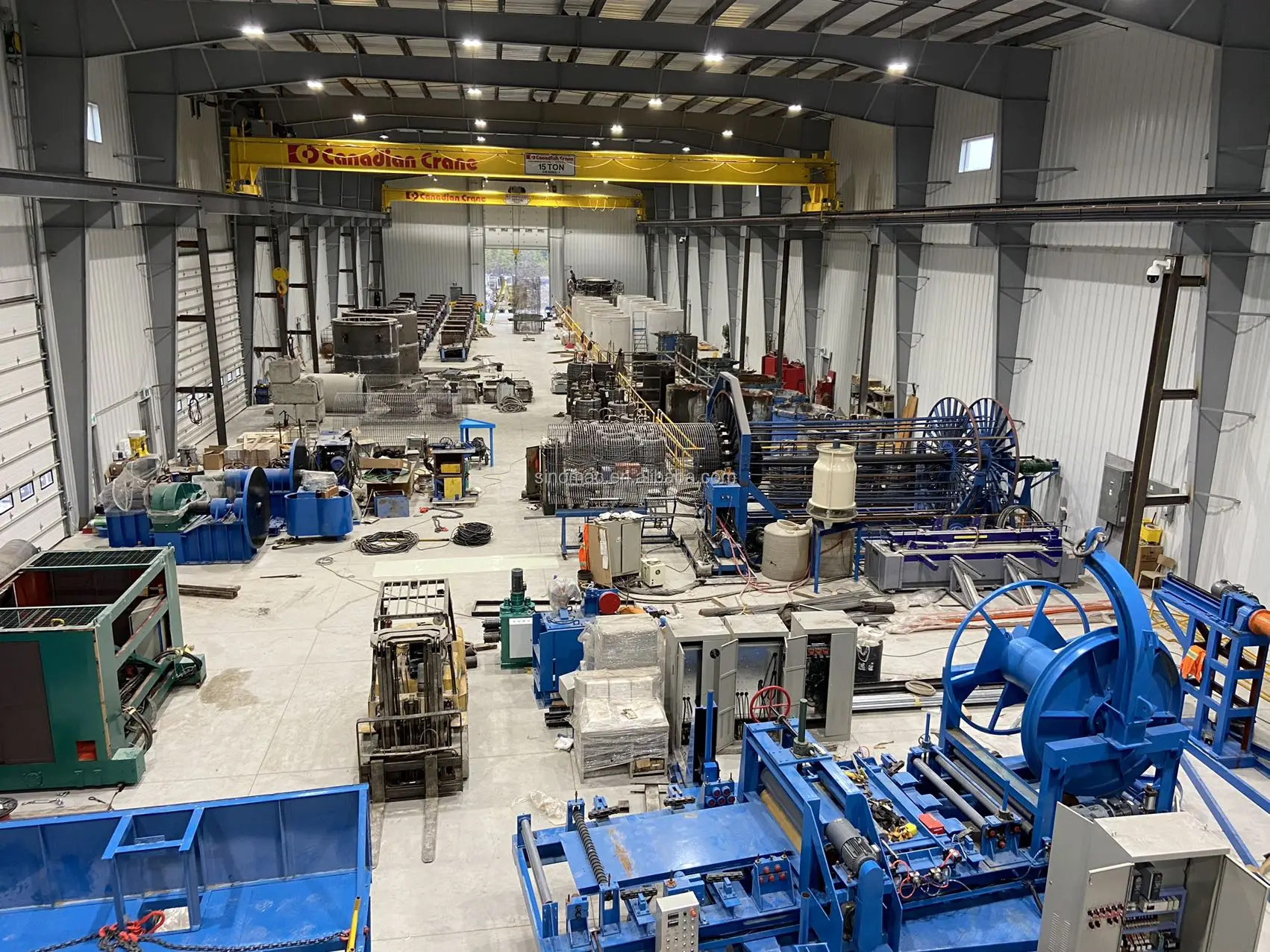

Canada technicore underground company installation

Egypt NPC national pipe company installation

FAQ:

1.why choose us?

our factory have more than 40 years experiences in concrete pipe making machine industry.

Welcome to visit our factory and PCCP Pipe Production Line Working Site.
