Hot sale 15kw 20hp submersible pump slurry sludge sewage sump pumps 150WQ120 25 15
Hot sale 15kw 20hp submersible pump slurry sludge sewage sump pumps 150WQ120-25-15
Hot sale 15kw 20hp submersible pump slurry sludge sewage sump pumps 150WQ120-25-15
Hot sale 15kw 20hp submersible pump slurry sludge sewage sump pumps 150WQ120-25-15
Hot sale 15kw 20hp submersible pump slurry sludge sewage sump pumps 150WQ120-25-15
Hot sale 15kw 20hp submersible pump slurry sludge sewage sump pumps 150WQ120-25-15
Hot sale 15kw 20hp submersible pump slurry sludge sewage sump pumps 150WQ120-25-15

Hot sale 15kw 20hp submersible pump slurry sludge sewage sump pumps 150WQ120 25 15

Share on (1600893534099):


Price:$359.00 - $1,240.00

Quantity:


Product Overview

Description



Video Description




Products Description




Submersible Centrifugal Wastewater Pump For Sewage ，The Cast Iron Dewatering Sewage Pump is mainly used for municipal works, industrial buildings,hotels,hospitals,civil air defense,mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.


Performance Paramete


Type
Outlet Dia. (mm)
Capacity (m3/h)
Head (m)
Power (kw)
Efficiency (%)
50WQ15-8-0.75
50
15
12
0.75
52
65WQ30-10-2.2
65
30
10
2.2
62
80WQ50-8-2.2
80
50
8
2.2
60
100WQ80-7-3
100
80
7
3
64
150WQ150-10-7.5
150
150
10
7.5
72
200WQ300-10-15
200
300
10
15
74
250WQ500-10-30
250
500
10
30
72
300WQ700-19-55
300
700
19
55
75
350WQ1100-25-110
350
1100
25
110
76
400WQ2000-23-185
400
2000
23
185
80
500WQ3000-15-132
500
3000
15
185
72


Advantages

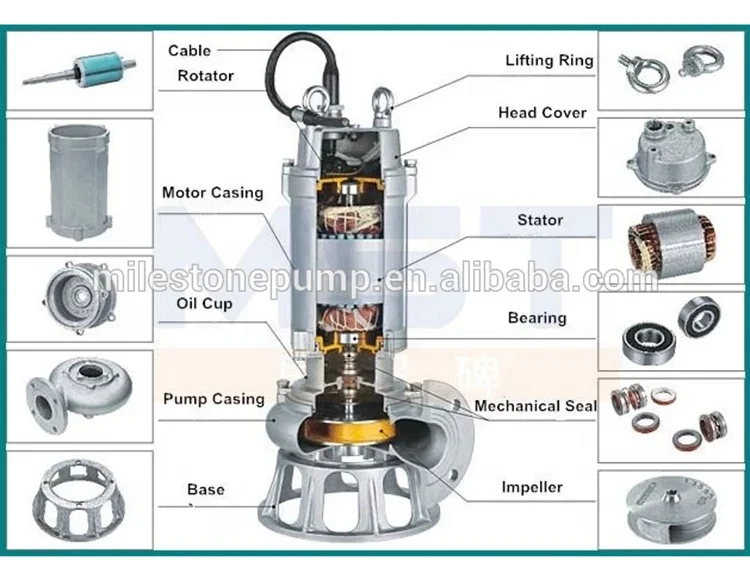

●The impeller adopts particular large channel structure, so the drain capacity has been improved greatly, it can effecitively pass the solid grain whose diameter is about 50% of the pump caliber.

●To improve the applicatio safety this pump can be fixed with various protective devices according to the consumer's requirements, including: stator winding tempreture-rise protection, bearing tempreture-rise protection, oil chamber water-leakage protection etc devices.

●It adopts inner sefl-flow circulation system. The motor is cooled by liquid, so it is safer o use. At the same time, the electric pump can be installed in dry and fixed form by this structure.

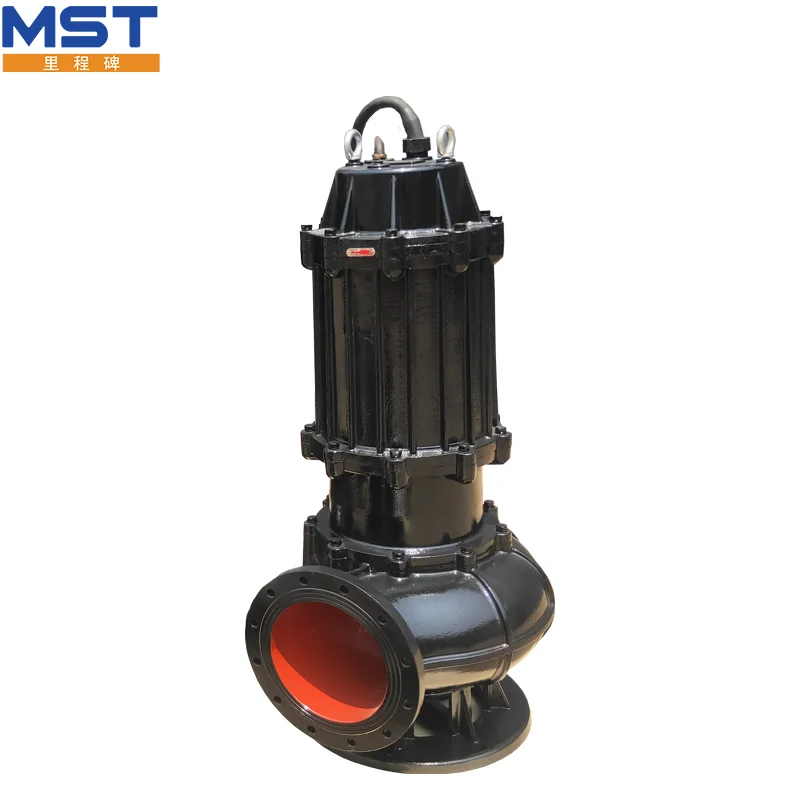

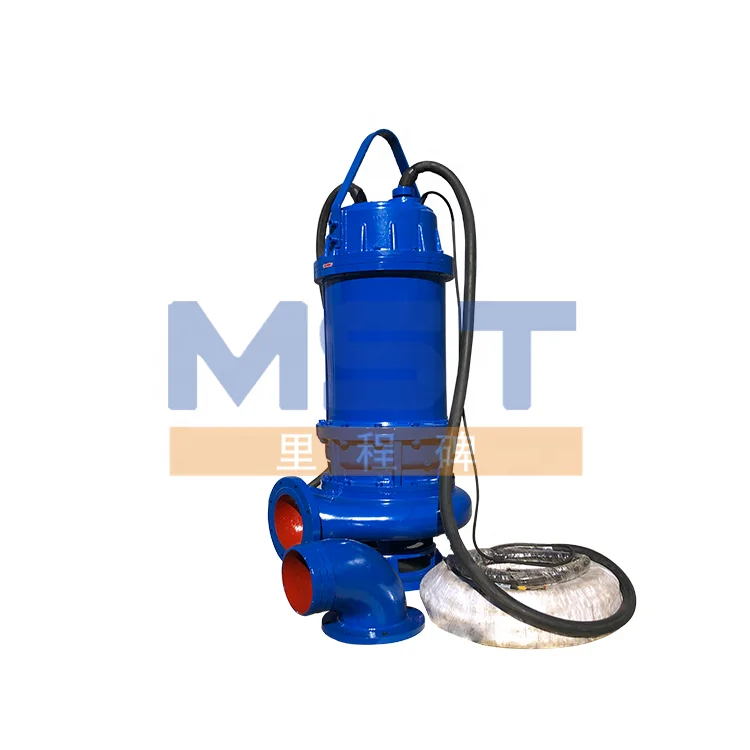

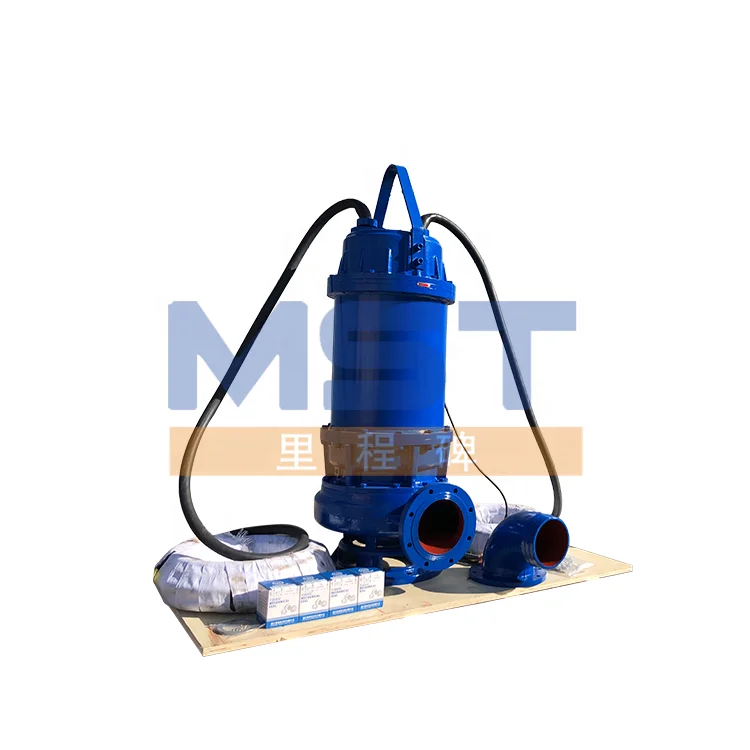

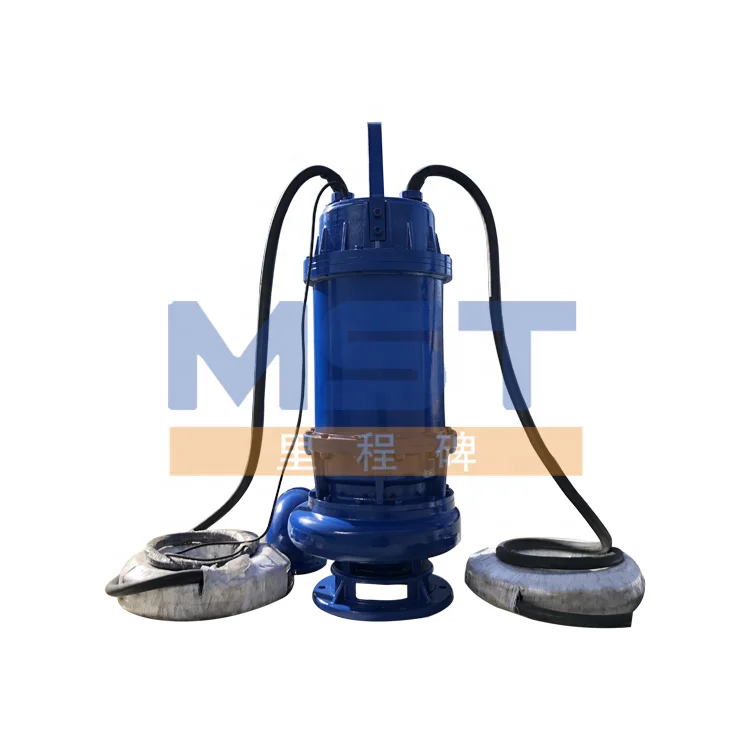

Detailed Images

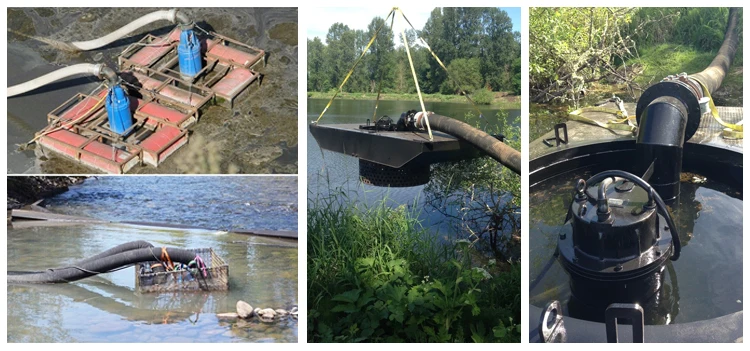

Application




It is especially suitable for underground water pumping in rural areas, field drainage and irrigation, garden irrigation and
household water use, and can also be used to remove industrial water accumulation, water supply and drainage for construction and breeding industry.


Why Choose Us












FAQ


Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.

Q2: What’s your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.

Q3: What payment methods are supported?
A: Payment Term: T/T, L/C, Western Union, Paypal and Trade assurance.

Q4: How long is the lead time?
A:In general 7 working days for slurry pump, 15 working days for water pump.

Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz

Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing. Different materials is available.
