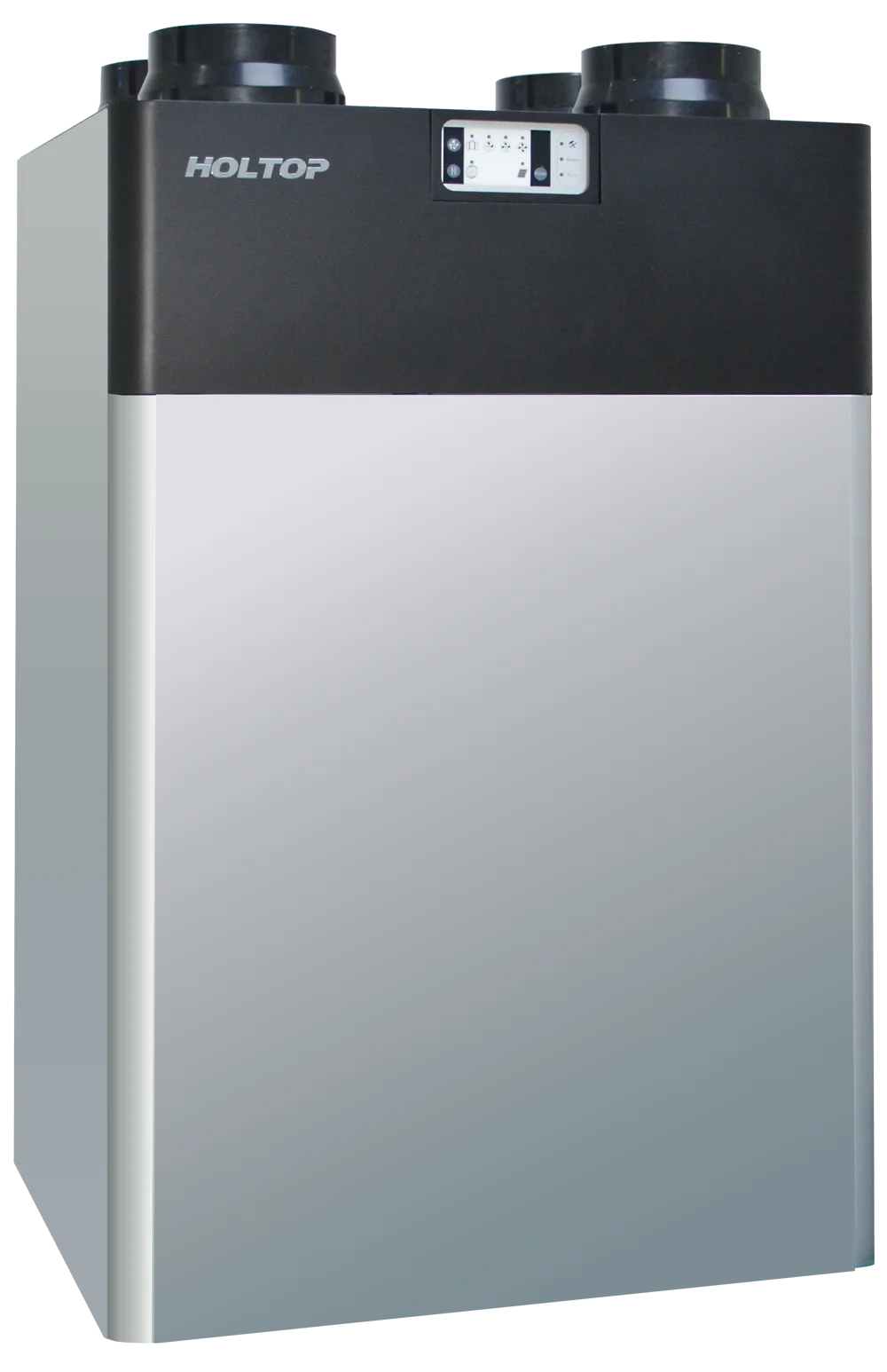

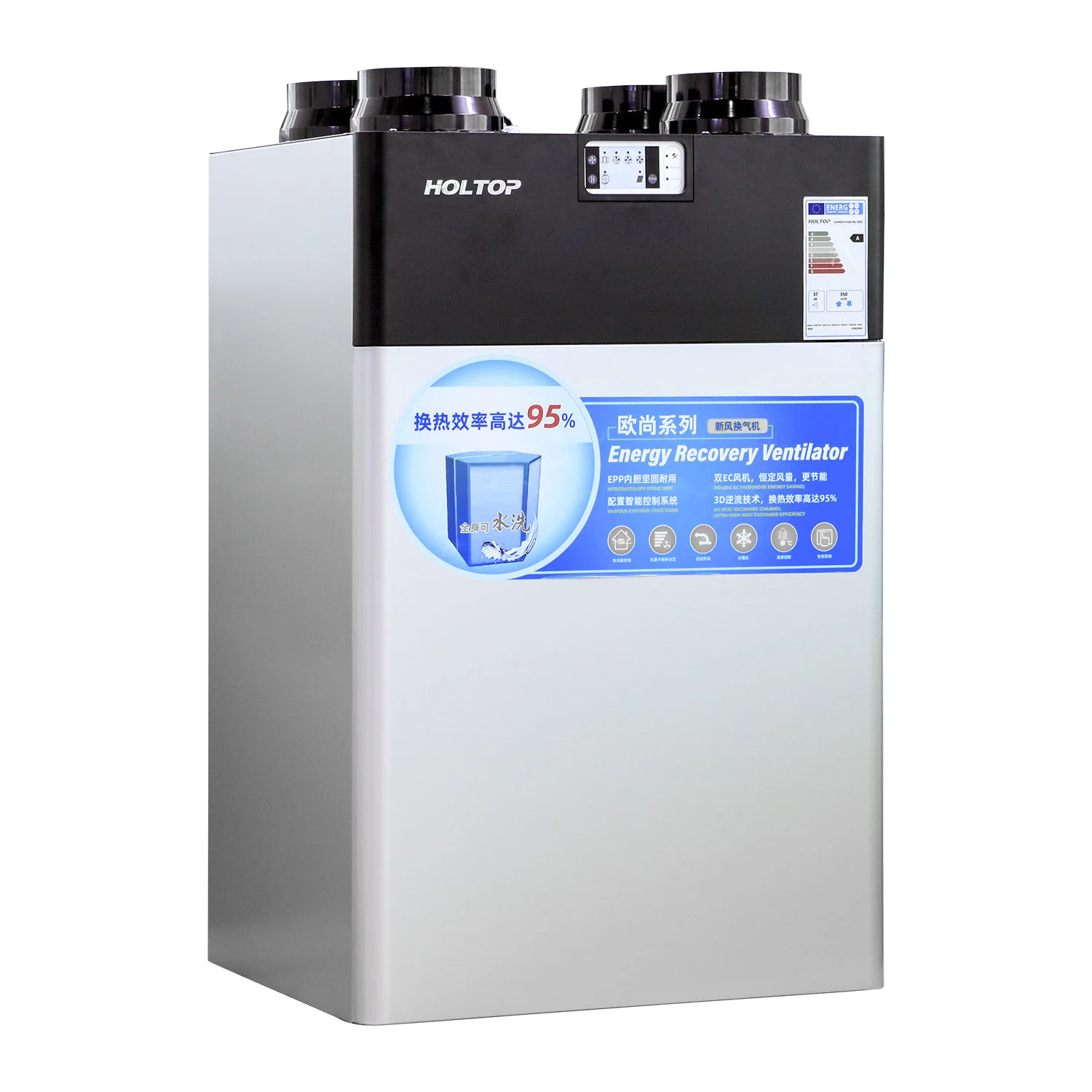

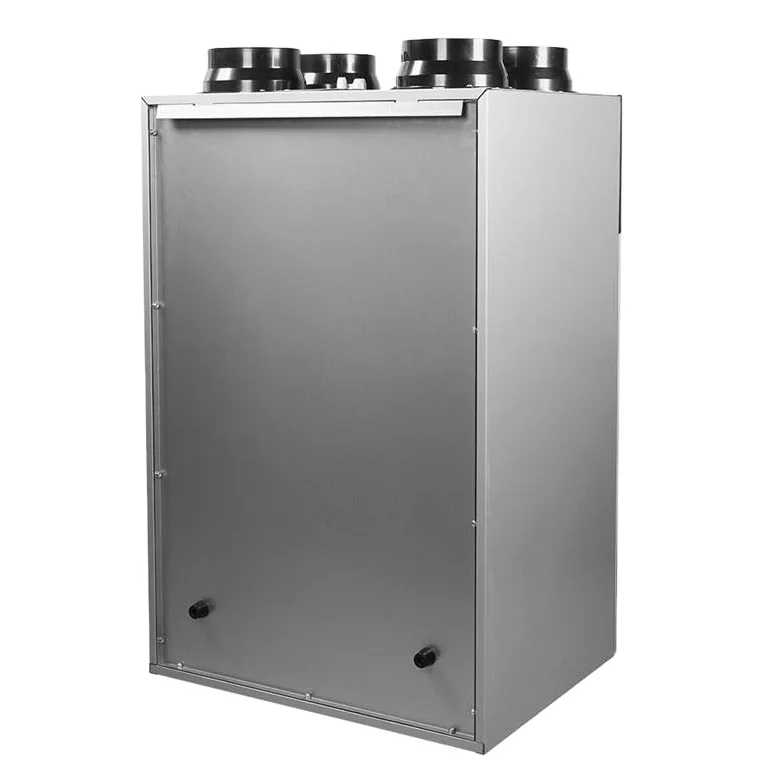

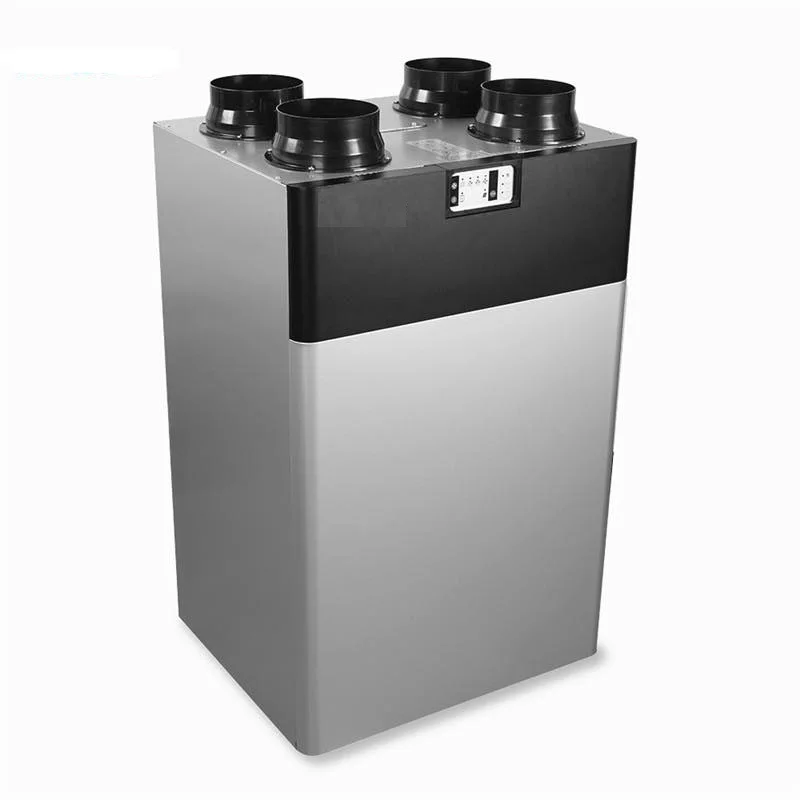

HOLTOP Auto Bypass Function Whole House Erv Energy Ventilation Air Exchanger Ventilator Mvhr Unit
- Category: >>>
- Supplier: Beijing Holtop Les Air Conditioning Co. Ltd.Beijing Ltd.
Share on (1600893604397):
Product Overview
Description
Product Description

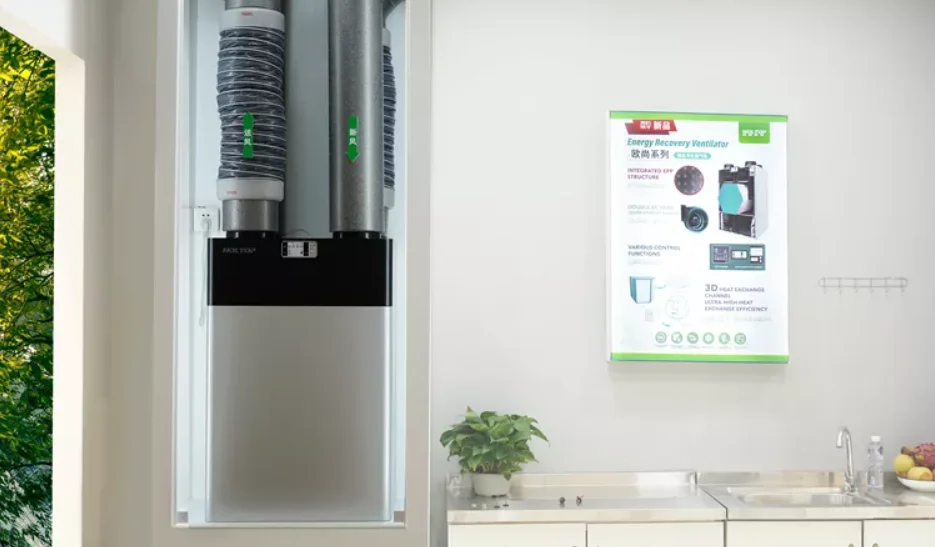

Top port, compact unit. Ideally suited for tight installations.

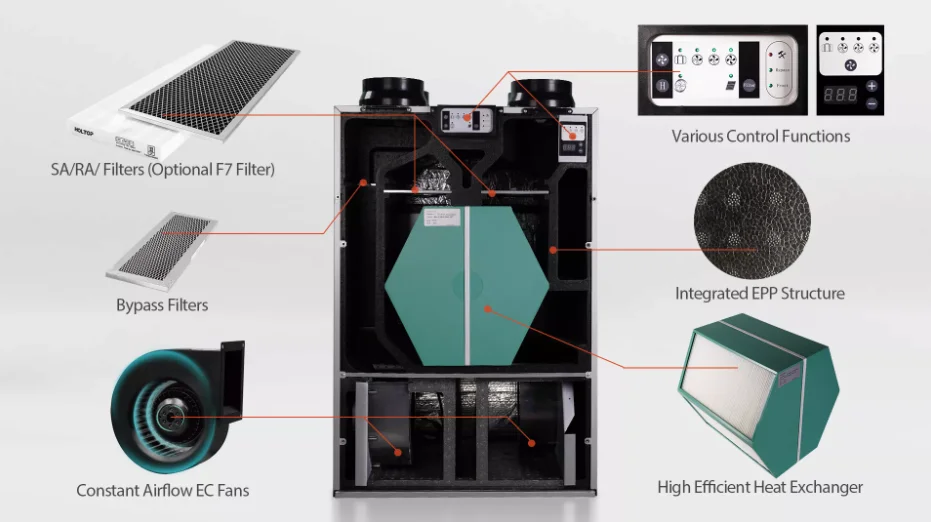

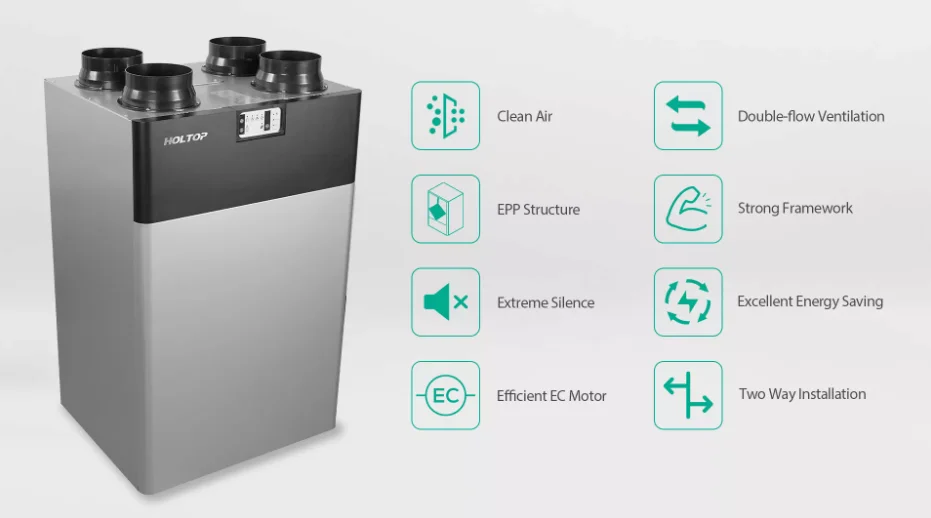

* Top Ported, compact design* Control included with 4-mode operation
* Top air outlets/outlets
* EPP inner struction

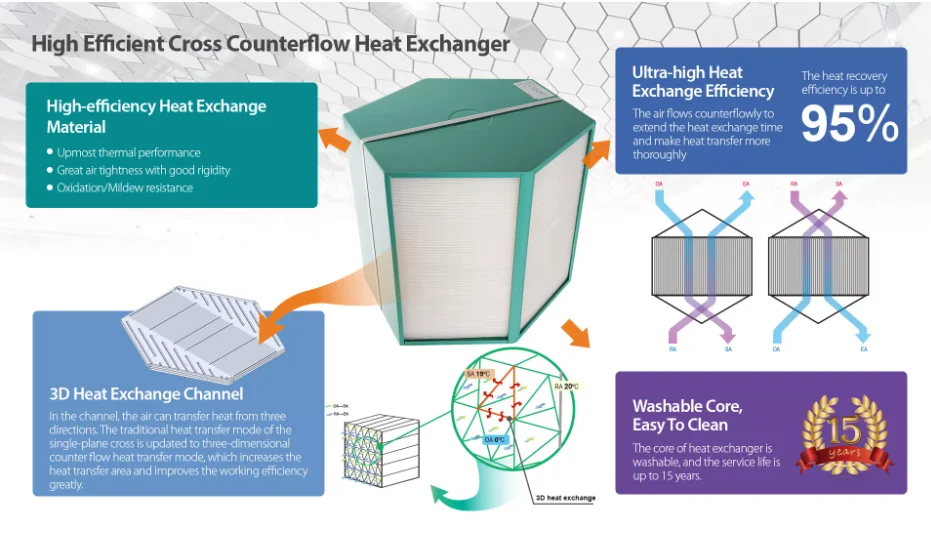

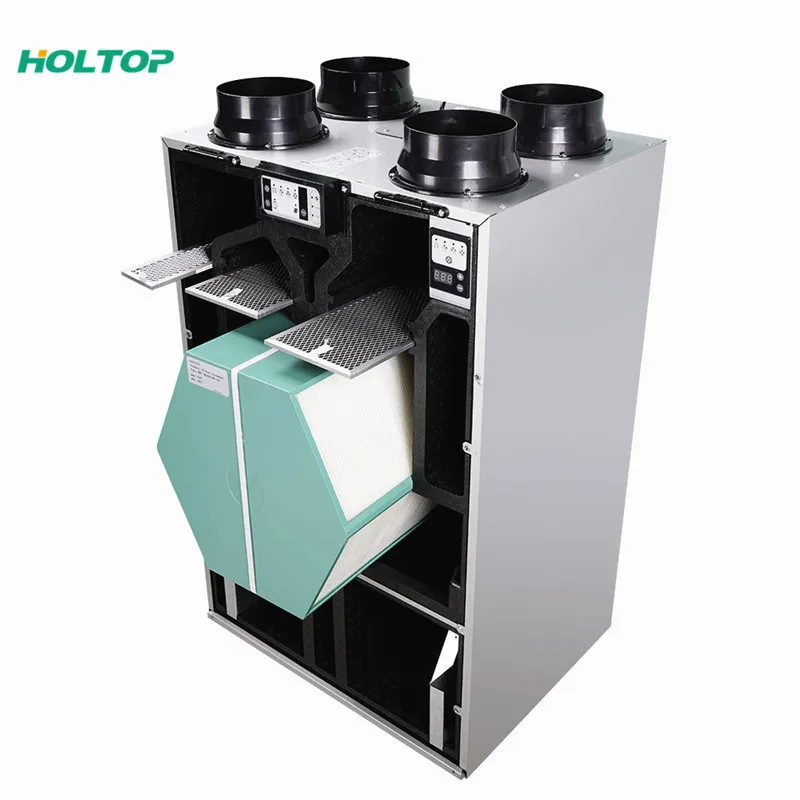

* Counterflow heat exchanger

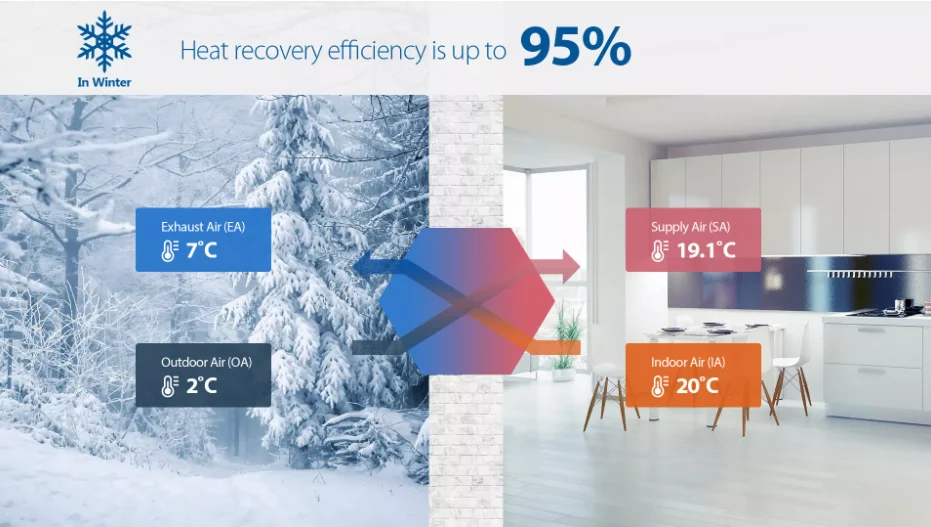

* Heat recovery efficiency up to 95%
* EC fan
* Bypass function
* Machine body control + remote control
* Left or right type optnal for installation
Specification

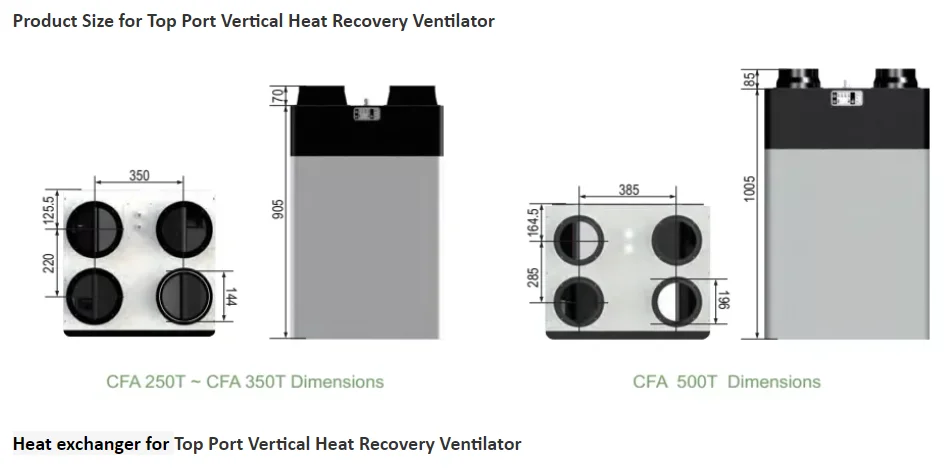

Model | CFA 250T | CFA 350T | CFA 500T | |||
HRV | Housing material | sprayed sheet metal | ||||
Internal structure | EPP | |||||
Heat exchanger | Polystyrene | |||||
Fan motor | EC | |||||
Filter grade | G4 or optional F7 | |||||
Control Panel | Two screen control, buttons + indica tor light/digital tube | |||||
Bypass | 100% auto bypass | |||||
Working condition | Standard | -10~40°C | ||||
Equipped with pipeline heater | -20 to 40°C | |||||
Pipe connection | pipe diameter | Φ160mm | Φ200mm | |||
Electrical | Power supply | 230V 50Hz 1Ph | ||||
Max. power | 170W | 320W | 480W | |||
Max. current | 1.5A | 2.4A | 3.2A | |||

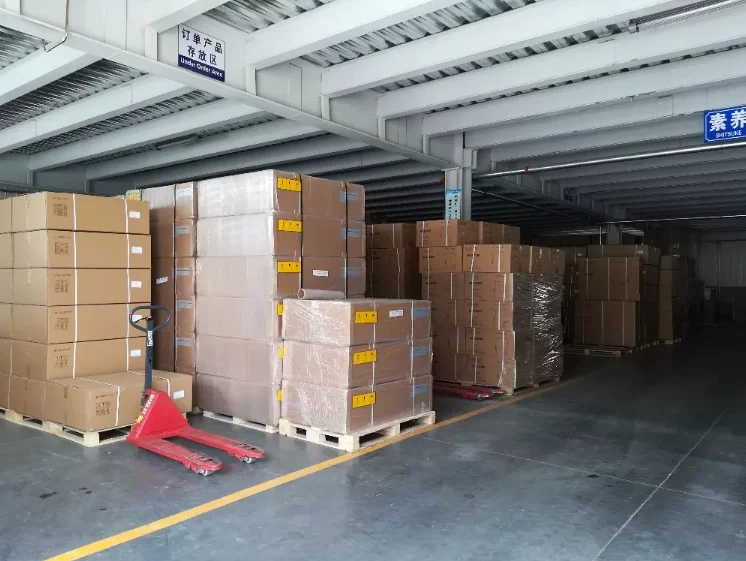

Packing & Delivery
Company Profile

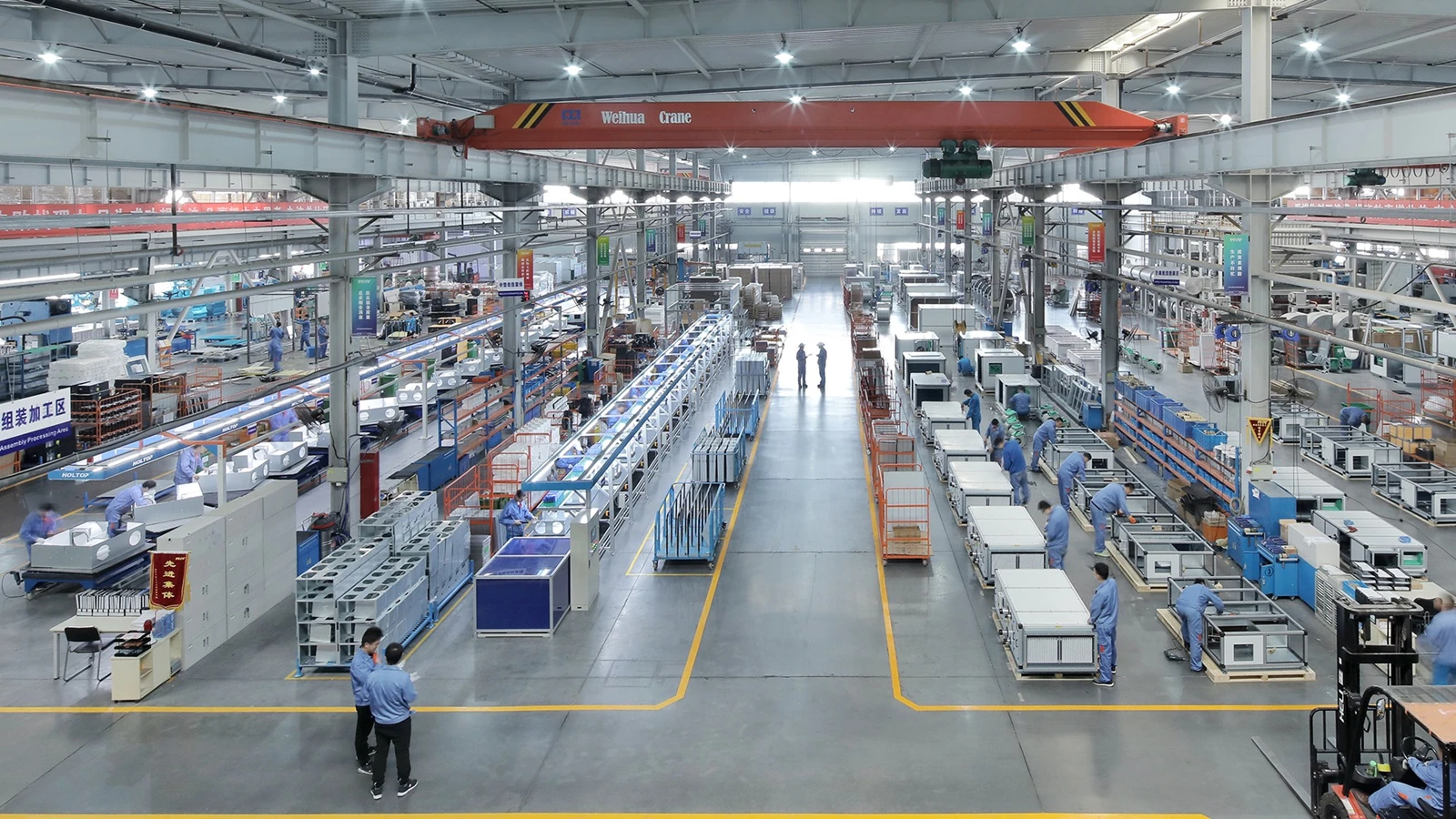

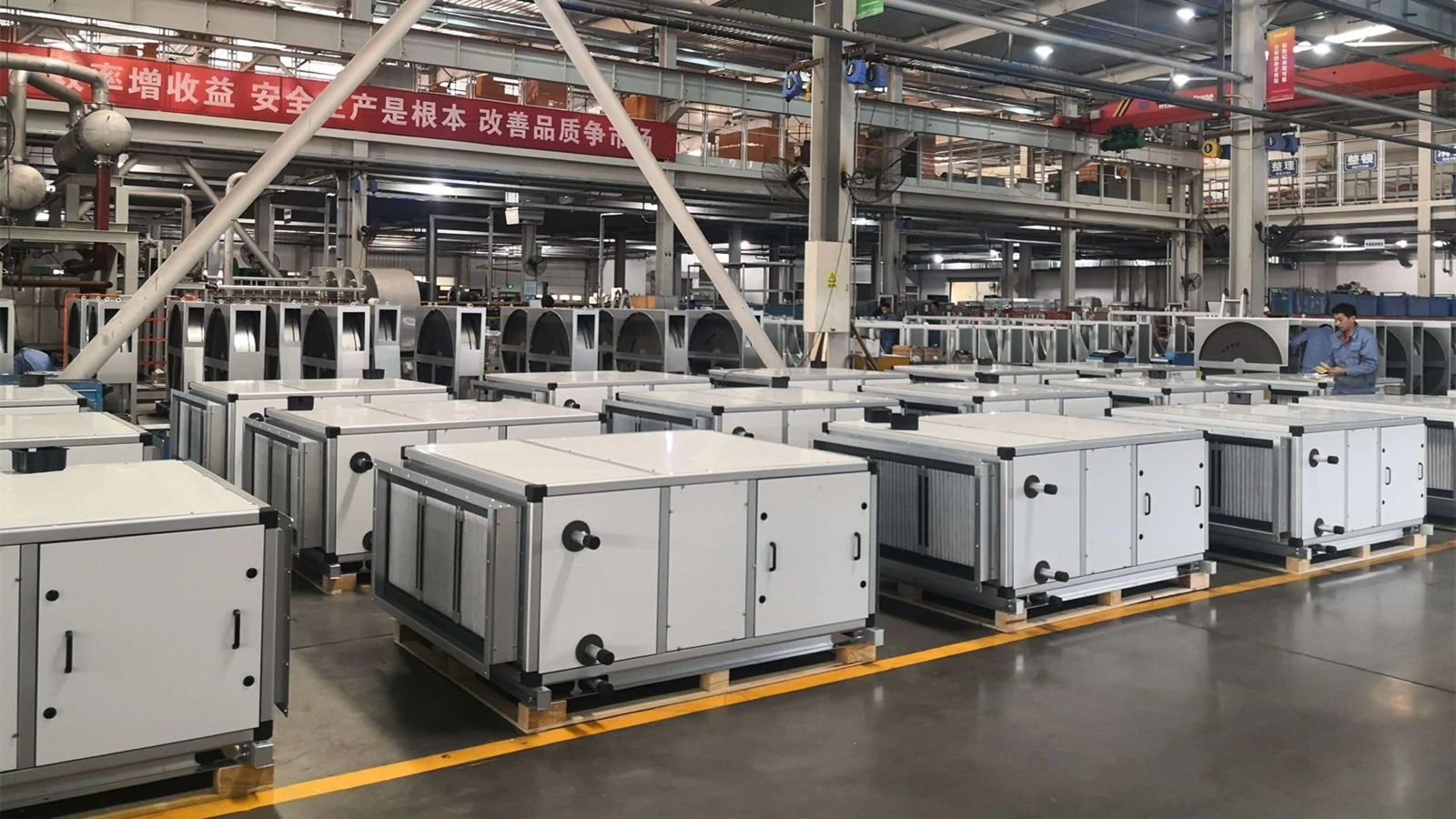

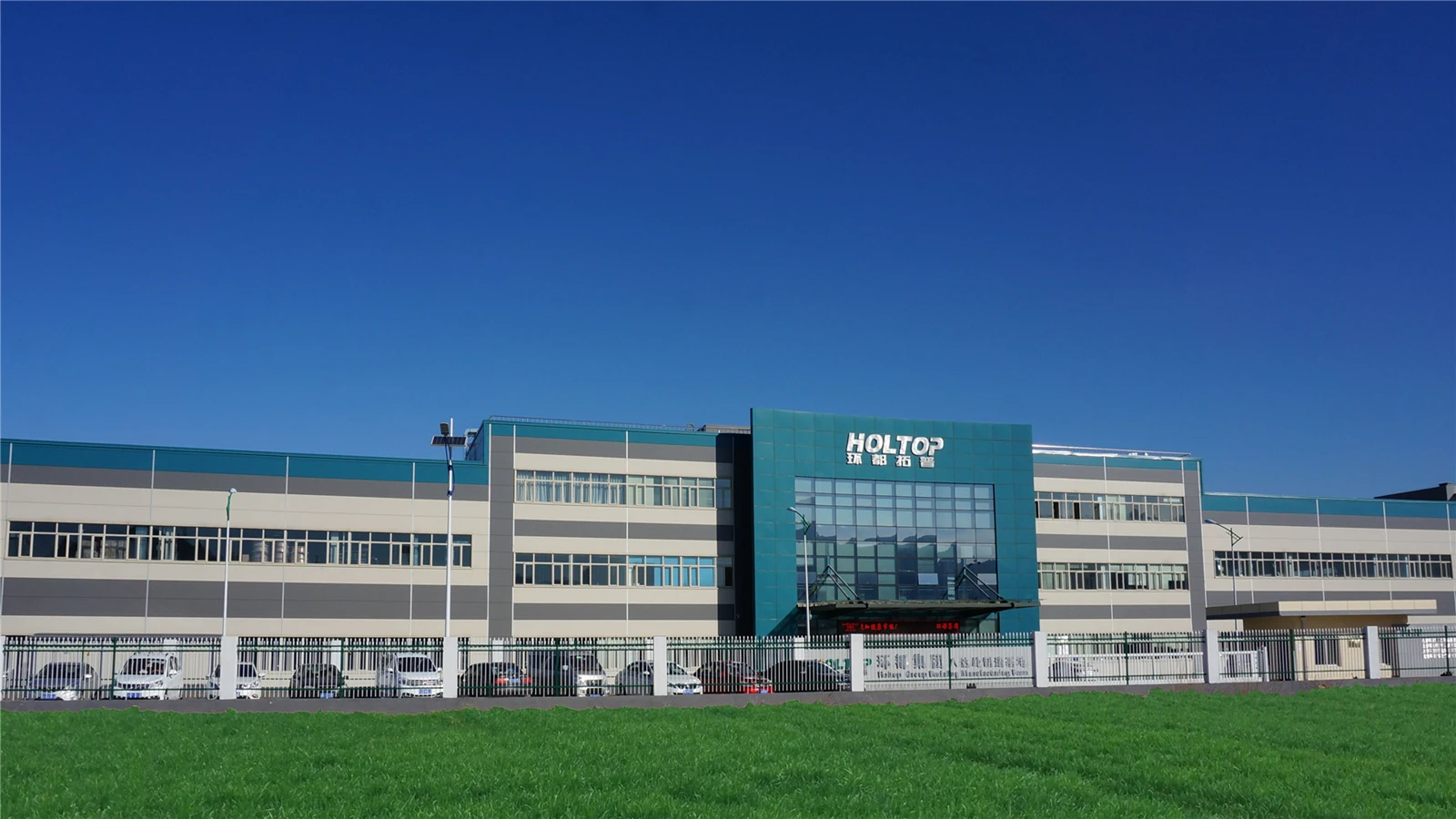

Holtop Factory
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
