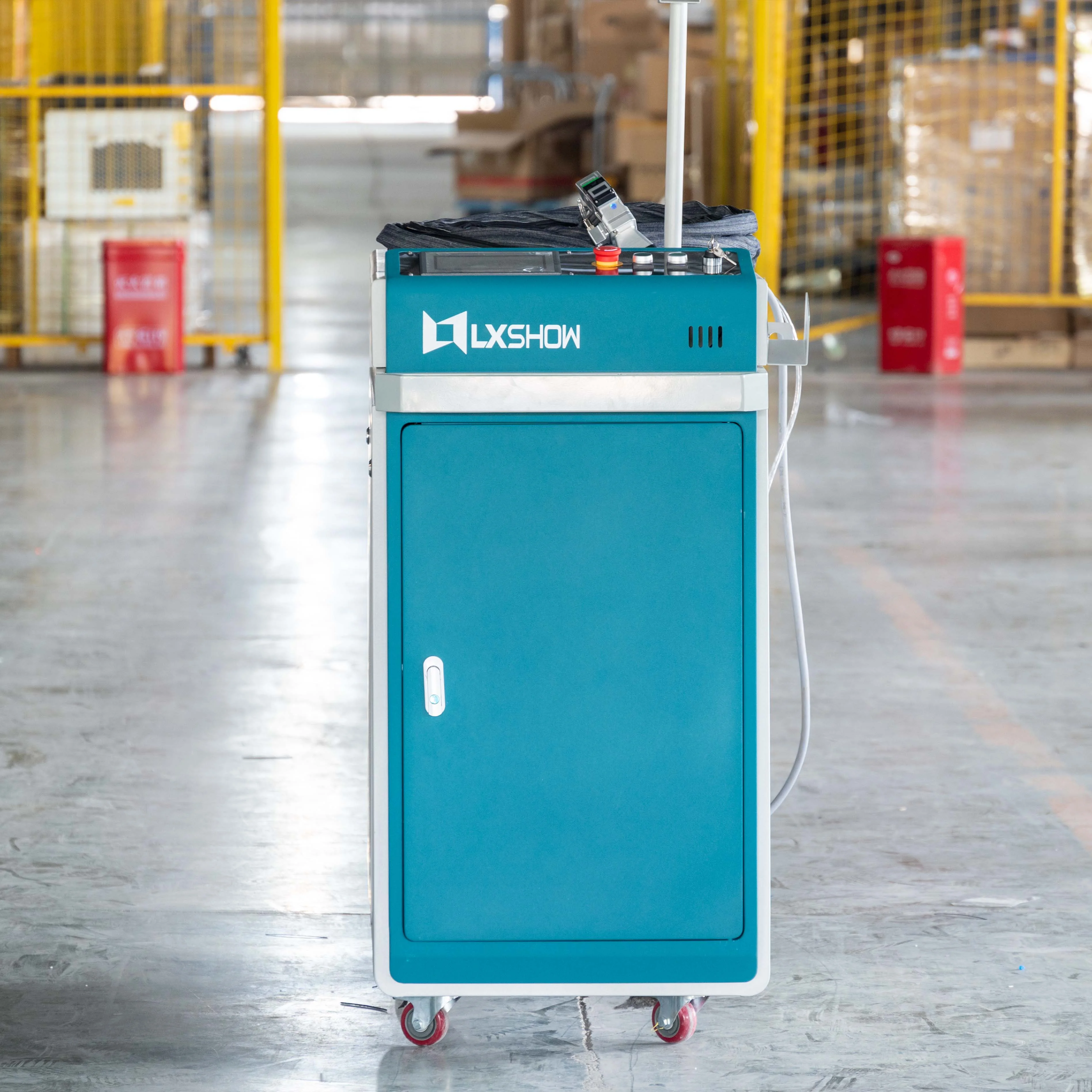

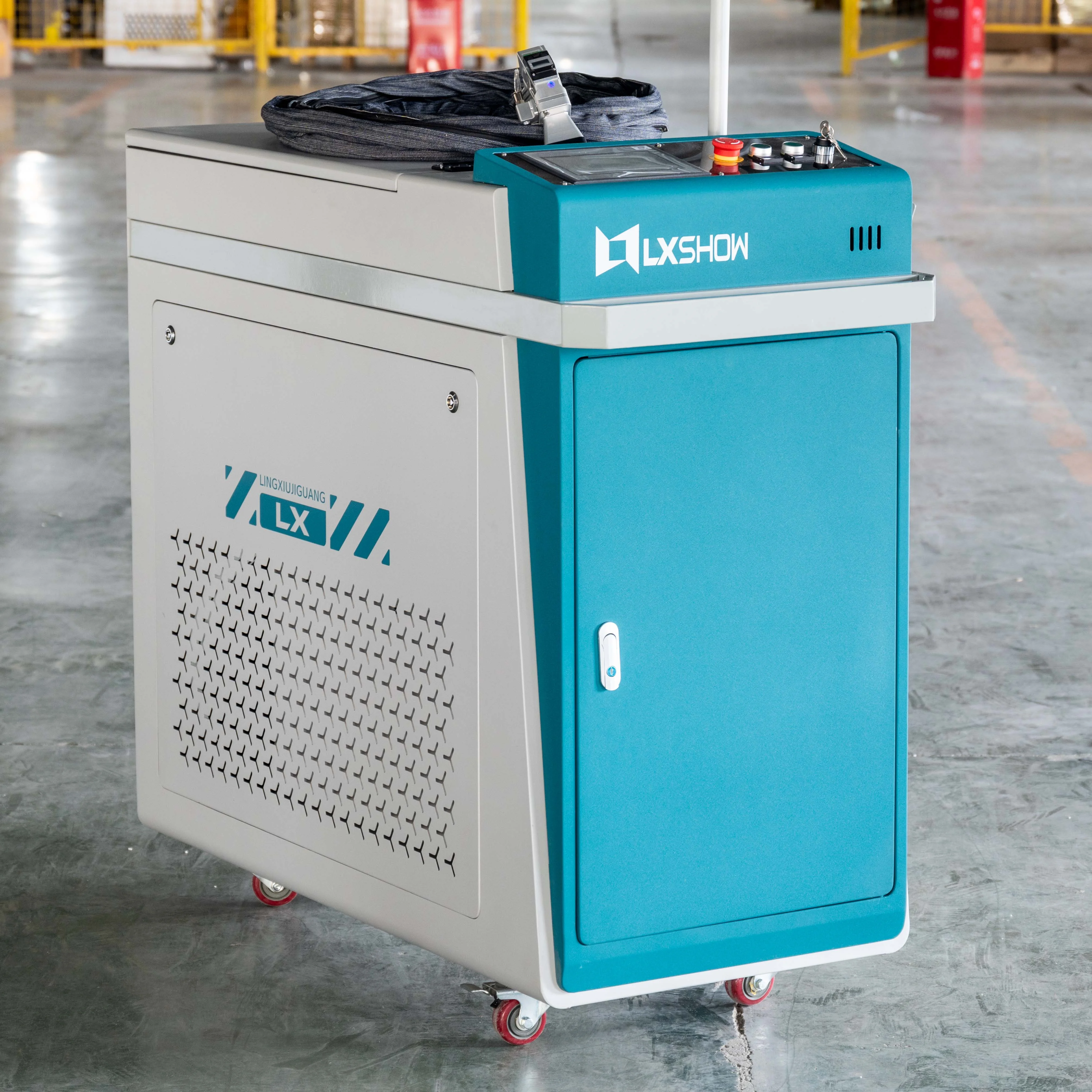

Fiber Laser Welder 3 in 1 welder cleaning cutting multifunction fiber laser welding machine
- Category: >>>
- Supplier: Jinan Lxshow Laser Manufacture Co. Ltd.
Share on (1600893615564):
Product Overview
Description
Machine Application

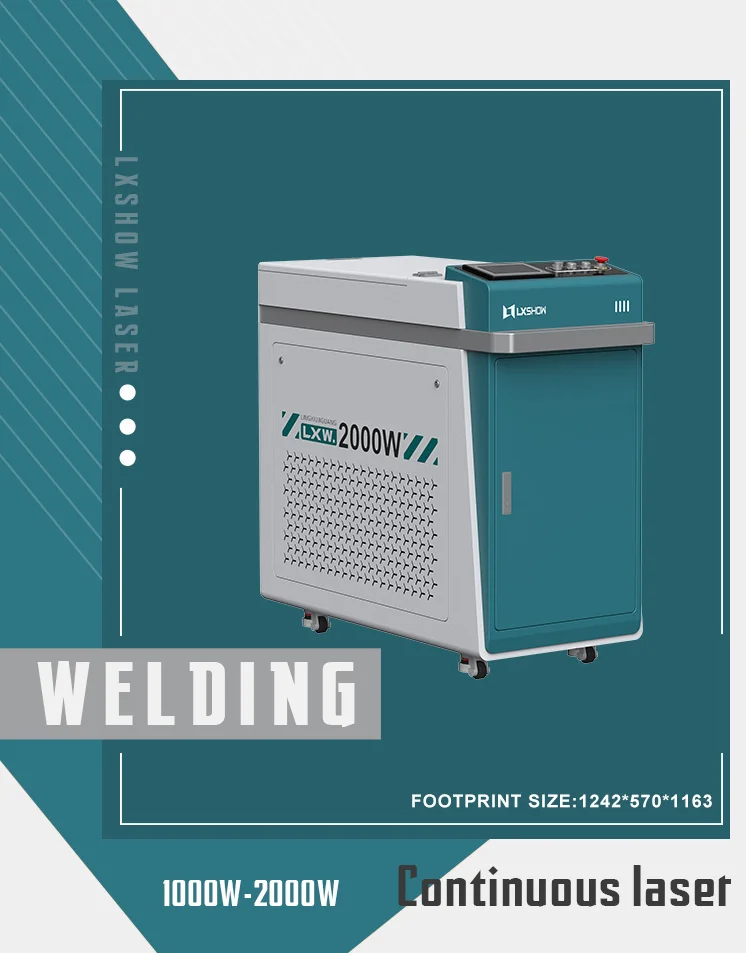

Fiber Laser Welding Machine

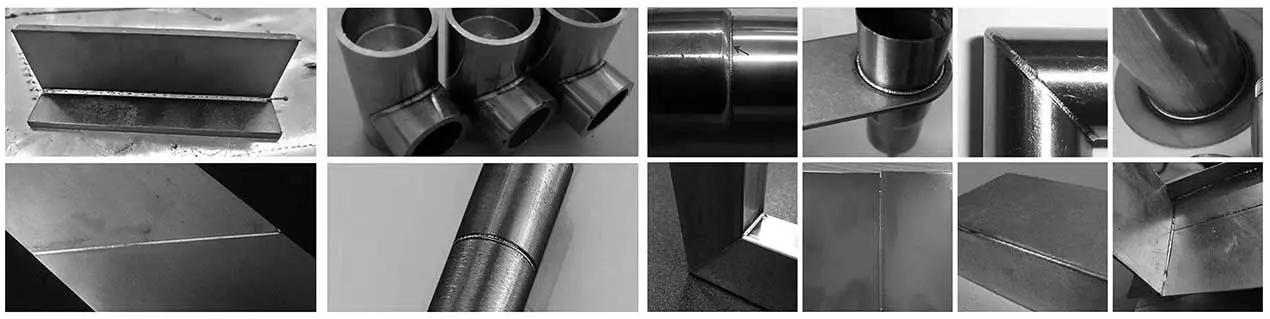

Laser welding is a new welding method, which is widely used in precision processing industries such as automobile industry, metal processing industry, ship and aircraft manufacturing, Furniture and kitchenware processing, electronic products processing, metal parts maintenance, etc. It is mainly aimed at the welding of thin-walled materials and precision parts. It can realize spot welding, butt welding, overlap welding and seal welding. Laser welding machines for titanium alloy, galvanized sheet, aluminum material and copper material can accurately weld
Product Description
We have our OWN FACTORY, so we can provide you with a full range of services.
* FREE Visiting (Support Real-time video)
* FREE Training
* FREE Training
* FREE Testing
* FREE Samples
Advantages of laser welding
1. It can weld some other components that are easy to be damaged or cracked during welding without contact and will not cause mechanical stress to the welding object
1. It can weld some other components that are easy to be damaged or cracked during welding without contact and will not cause mechanical stress to the welding object
2. It can irradiate the narrow parts that cannot be accessed by the soldering iron head on the circuit with dense components and change the angle when there is no distance between adjacent components in dense assembly, without heating the whole circuit board
3. During welding, only the welded area is heated locally, and other non welded areas are not subject to thermal effect
4. The welding time is short, the efficiency is high, and the solder joint will not form a thick intermetallic layer, so the quality is reliable
5. High maintainability. The traditional electric soldering iron welding needs to replace the soldering iron head regularly, while the laser welding needs to replace very few accessories, so the maintenance cost can be reduced
What You Want
1. What's the machine package size?
L*W*H: 1150*760*1370mm; Cross Weight:250kg
2. How to confirm the machine cleaning effect?
Please tell us your needs, we will finish the testing video for you, and we also support real-time video, You can observe the cleaning effect of the machine more directly.
3. What are consumable parts?
Protective glass, etc, if you order, we will send it to you together with machine.
4. Which languages are supported? Is it easy to operate?
Support language：Chinese French Japanese Korean Russian Spanish
CNC Control System, with clear and simple interface page Stable
Various parameters can be set by yourself
Protective glass, etc, if you order, we will send it to you together with machine.
4. Which languages are supported? Is it easy to operate?
Support language：Chinese French Japanese Korean Russian Spanish
CNC Control System, with clear and simple interface page Stable
Various parameters can be set by yourself
5. When I get the machine, how to operate the machine?
We have machine manual, and we have professional after sale group, if you have any questions, they can help you anytime.
We have machine manual, and we have professional after sale group, if you have any questions, they can help you anytime.
6. Do the machine can be customized according to my own requirements ?
Sure, we have a strong technical team and have rich experience. Our final service goal is to let you satisfied.
Sure, we have a strong technical team and have rich experience. Our final service goal is to let you satisfied.
Specification
Equipment Mode | LX-1000 | LXw-1500 | LX-2000 | ||
Laser Power | 1000W | 1500W | 2000W | ||
Laser Wavelength | 1064~1080nm | ||||
Pulse Frequency | 5000~10000Hz | ||||
Cooling Method | Water cooling | ||||
Dimension(mm3) | 1150*760*1370mm | ||||
Total Weight | 260KG | 260KG | 280KG | ||
Total Power | 8000W | 10000W | 12000W | ||
Scan Width | 10-50mm/10-67mm/10-80mm optional | ||||
Working Temperature | 0-40 ℃ | ||||
Laser Power Brand | Raycus(MAX/JPToptional) | ||||
Optional Parts and Style
Different Customer as Different Needs; More Optional , More chosen.
^ ^ Here, you will surely find the one that suits you!
Tell us your needs, we will recommend the suitable soluation to you.
(The section is limited, just list some)

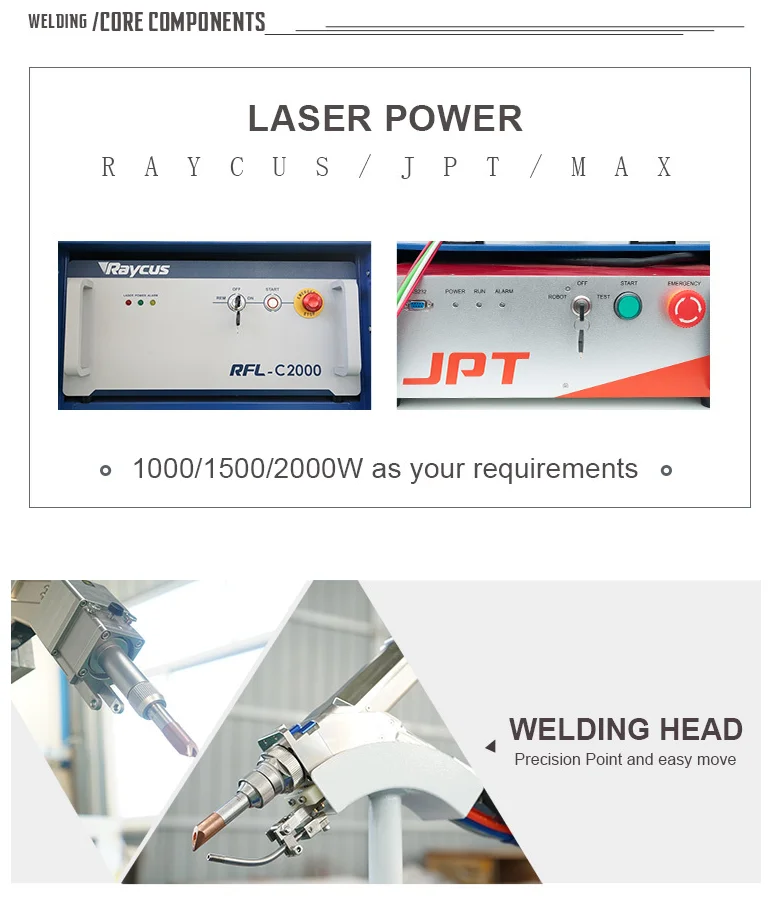

Raycus laser generator
Different laser power can be chosen, 200w 300w 500w 100w 1500w 2000w,etc, we also have different laser brand.
Water Chiller
Water cooling way. the machine has two cooling ways, one is air cooling, another is water cooling. depends on power.
Laser cleaning head
Differnet cleaning head can can optional, just tell us your needs, we will give you a suitable soluation.
Your Choice, Our Responsibility
* Jinan Lxshow Laser Manufacture Co., Ltd.
is established in July 2004, owns more than 500 square meters of researching and officespace, more than 32000 square meters factory. All machines , passed the European Union CE authentication.
* Certification Display
About machine quality, we have get the third party certification, and about the machine, we have 2 years machine warranty, if you need, we always here.
* Customer Feedback
If you have a plan to visit our factory, please tell us your schedule, we will book a hotel for you and arrange a driver. we also support real-time video.
* After Sale Group
Create More Value for You
In our factory, we also have other machine style, if you have any other work that want to finish, hope the following solution can help you.
* Fiber laser Cutting machine
* Fiber laser welding machine
The whole Process: Metal Cutting ---> Metal Welding ---> Metal Cleaning
