Product Overview
Description
Heavy Type Crimped Wire Mesh Weaving Machine
It's also called crimped wire mesh machine, mining meshmachine, square wire mesh machine. Crimped Wire Mesh Machine can be divided into three types: Semi-automaticcrimped wire mesh machines, automatic crimped wire mesh machine.
Product Description

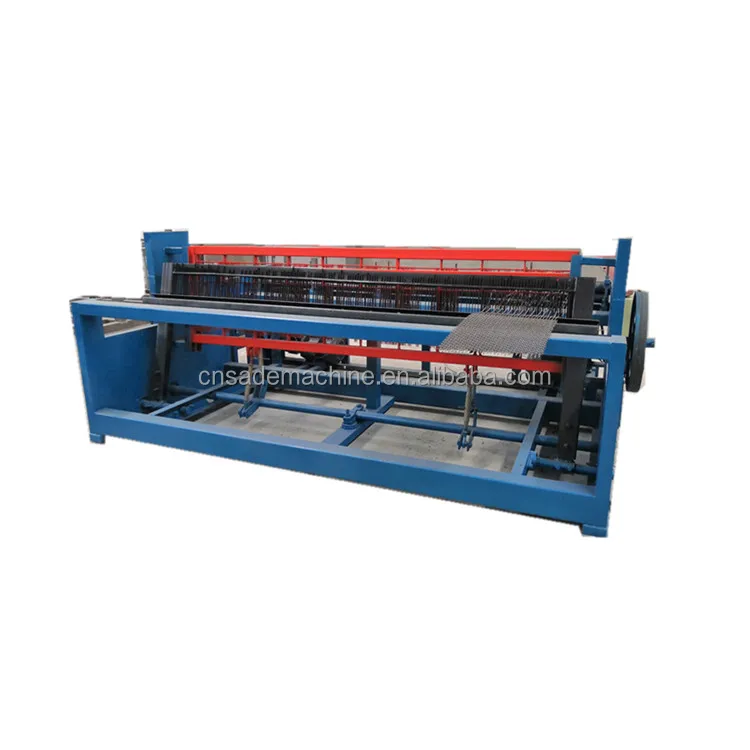

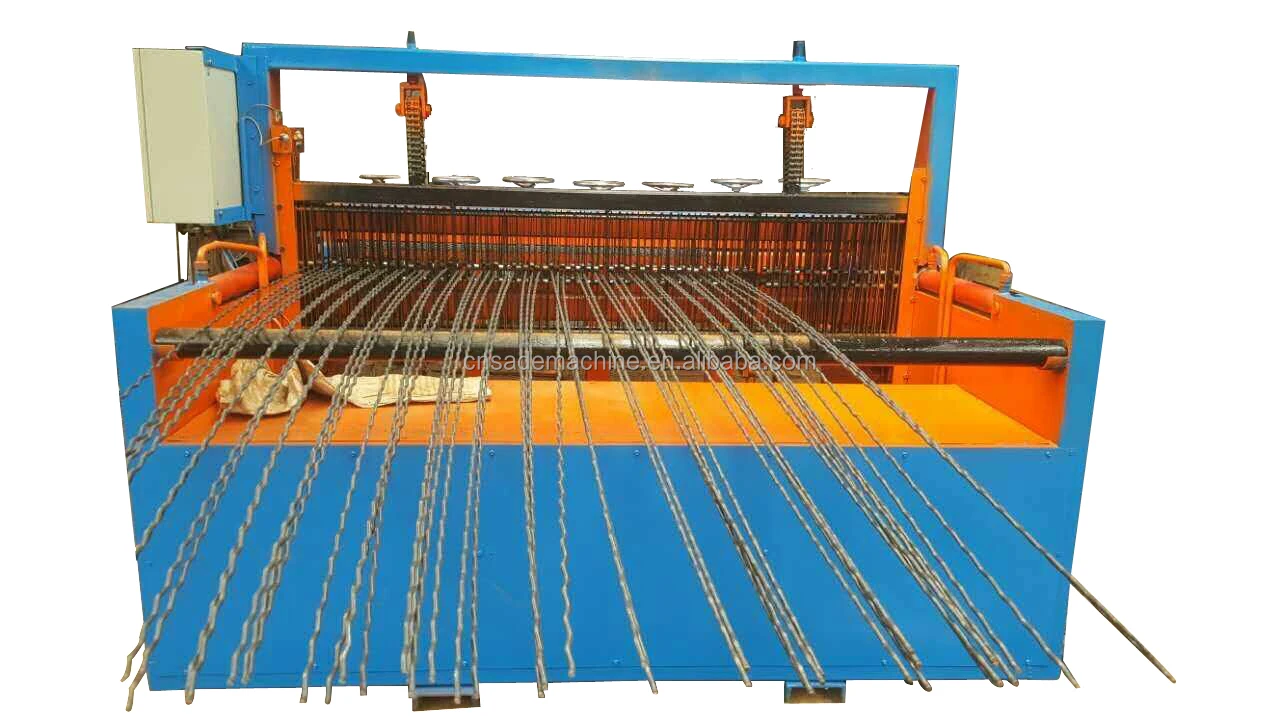

Semi-automatic Wire Mesh Crimping Machine
Semi-automatic Wire Mesh Crimping Machine operates in the form of crimping before weaving, with weft wire feeding byhand and automatic feeding of warp wire, designed for thick wire. This type of wire mesh crimping machine is designedfor weaving of wire ranging from 2mm to 6mm, with simple operation, non-broken weft wire phenomenon. lt offers highefficiency, stable mechanical properties, etc. Finished products can be steel bar crimping, screen wire crimping, etc.
Main parameter for Common Type for 4meters width :
Item |
|
Maximum Width(m) | 4.0 |
Mesh size(mm) | 3*3-100*100 |
Wire diameter(mm) | 2-6 |
Production speed(times/minute) | 30 |
Rated voltage | 380V,50HZ |
Motor power(KW) | 6kw |
Overal diamension(mm) | 5500x2200x1700 |
Weight(T) | 2.5 |
Accessories | Crimping wire Machine 1 set Crimping Gear 1set |
Main parameter for Common Type for 2meters width :
Item |
|
Maximum Width(m) | 2.0 |
Mesh size(mm) | 3*3-100*100 |
Wire diameter(mm) | 2-6 |
Production speed(times/minute) | 30 |
Rated voltage | 380V,50HZ |
Motor power(KW) | 6kw |
Overal diamension(mm) | 3500x2200x1700 |
Weight(T) | 2.5 |
Accessories | Crimping wire Machine 1 set Crimping Gear 1set |

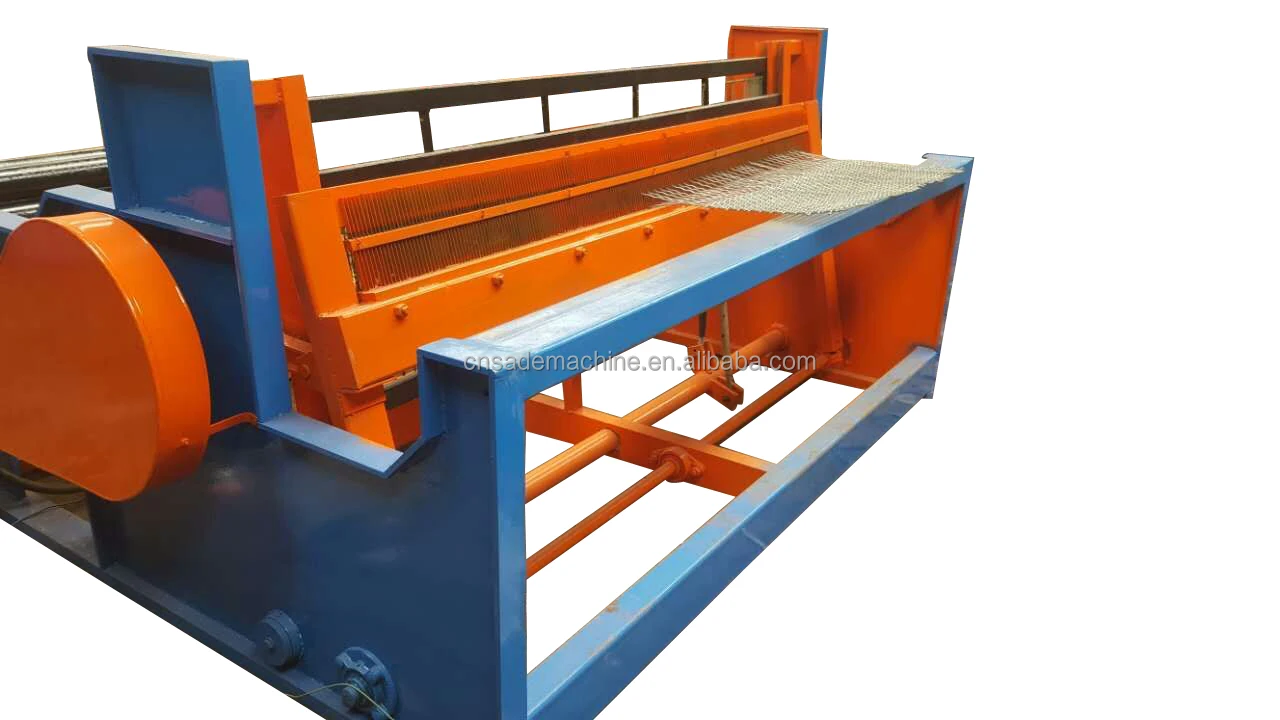

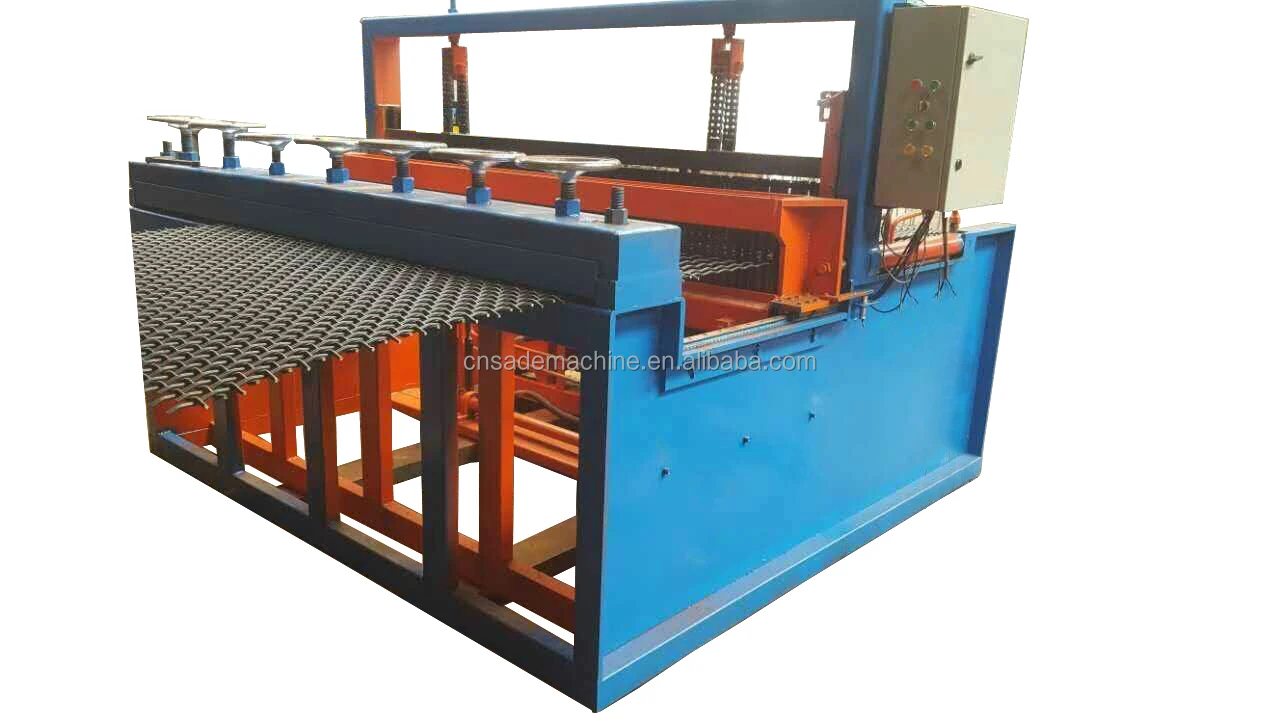

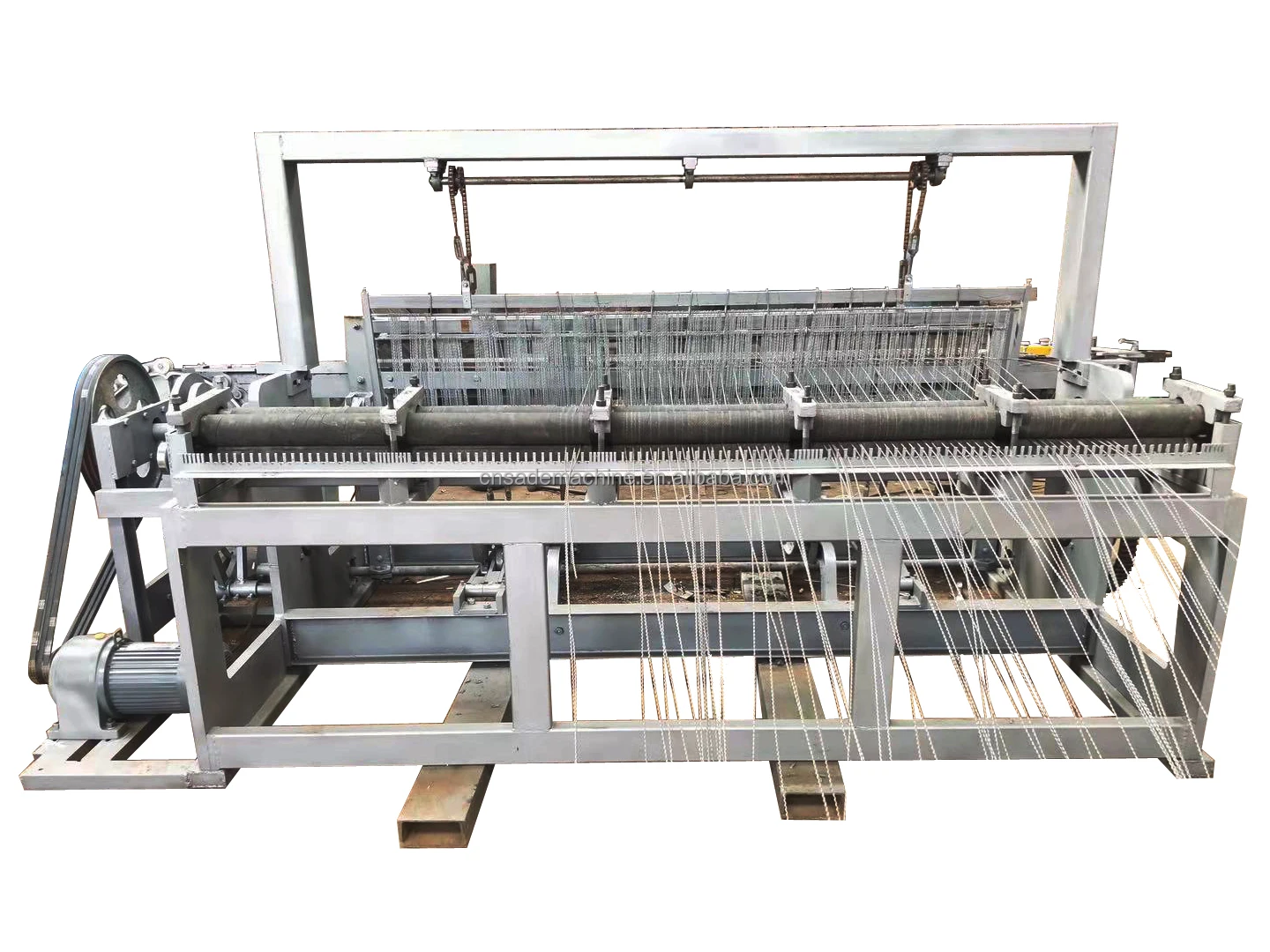

Automatic Wire Mesh Crimping Machine

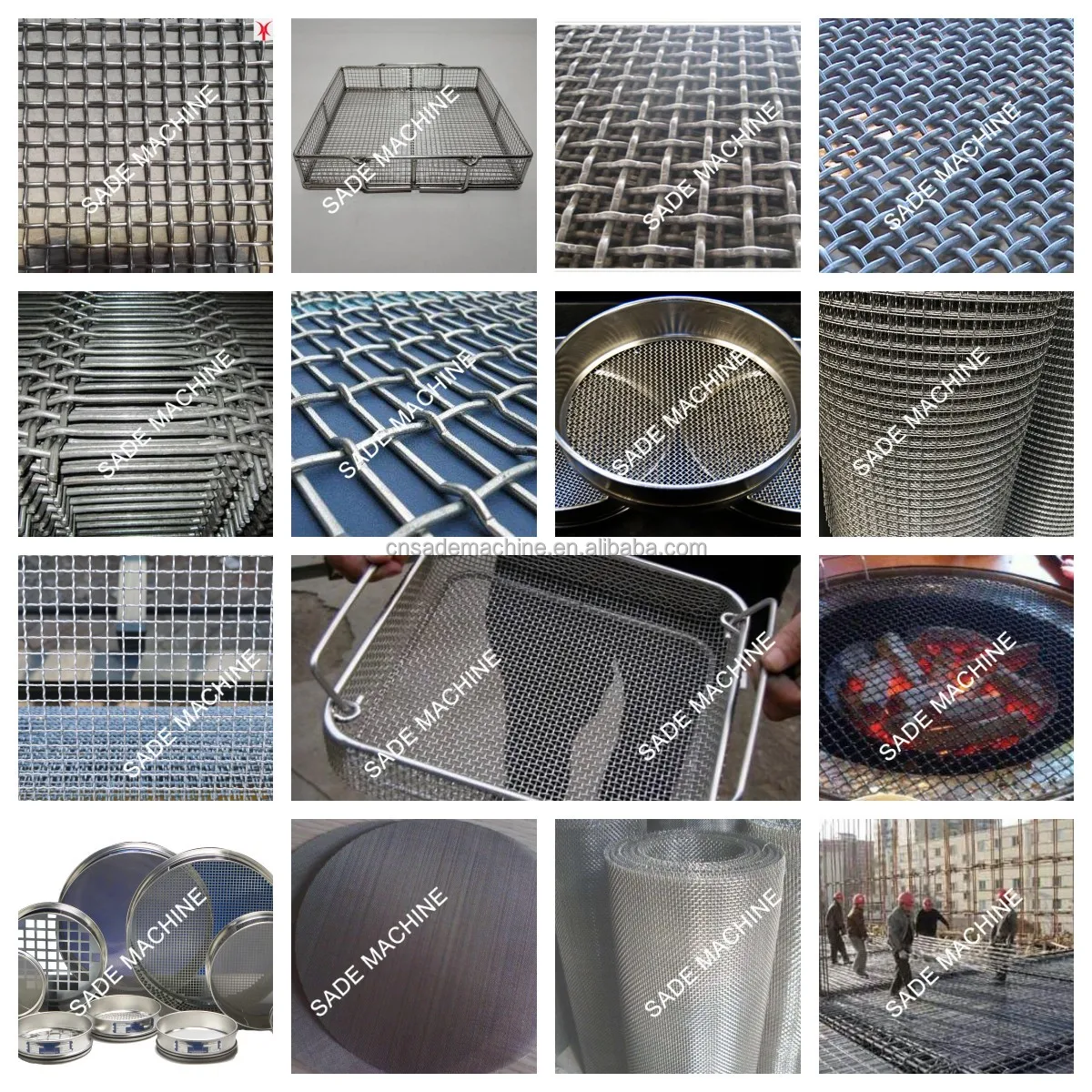

Automatic Wire Mesh Crimping Machine can be divided into a one-off wire mesh crimping machine, universal wire meshcrimping machine and whole machine crimping machine. One-time wire mesh crimping machine comes with a one-timeset of embossing dies, the weft wire can be crimped and woven with the fixed warp wire. The universal crimping wiremesh machine can achieve crimping and weaving with one set of mold. t can produce crimped wire mesh with a varietyof mesh openings with one machine by adjusting. With crimped warp wire, it can weave fully automatically.The machine will automatically stop and alarm with weft wire or warp wire mistakes, CNC control, easy operation.Suitable for fully automatic weavina of metal wire with diameter under 2mm. With chanding of molds. it can adiustcrimped wire mesh of warious meshopeninas, Products can be barbecue crimped mesh. crimped mesh. skimmer netting etc.
Main parameter for Common Type for 4meters width
Item |
|
Maximum Width(m) | 4.0 |
Mesh size(mm) | 3*3-100*100 |
Wire diameter(mm) | 2-6 |
Production speed(times/minute) | 30 |
Rated voltage | 380V,50HZ |
Motor power(KW) | 6kw |
Overal diamension(mm) | 5500x2200x1700 |
Weight(T) | 2.5 |
Accessories | Crimping wire Machine 1 set Crimping Gear 1set |
Main parameter for Common Type for 2meters width :
| |
Maximum Width(m) | 2.0 |
Mesh size(mm) | 3*3-100*100 |
Wire diameter(mm) | 2-6 |
Production speed(times/minute) | 30 |
Rated voltage | 380V,50HZ |
Motor power(KW) | 6kw |
Overal diamension(mm) | 3500x2200x1700 |
Weight(T) | 2.5 |
Accessories | Crimping wire Machine 1 set Crimping Gear 1set |

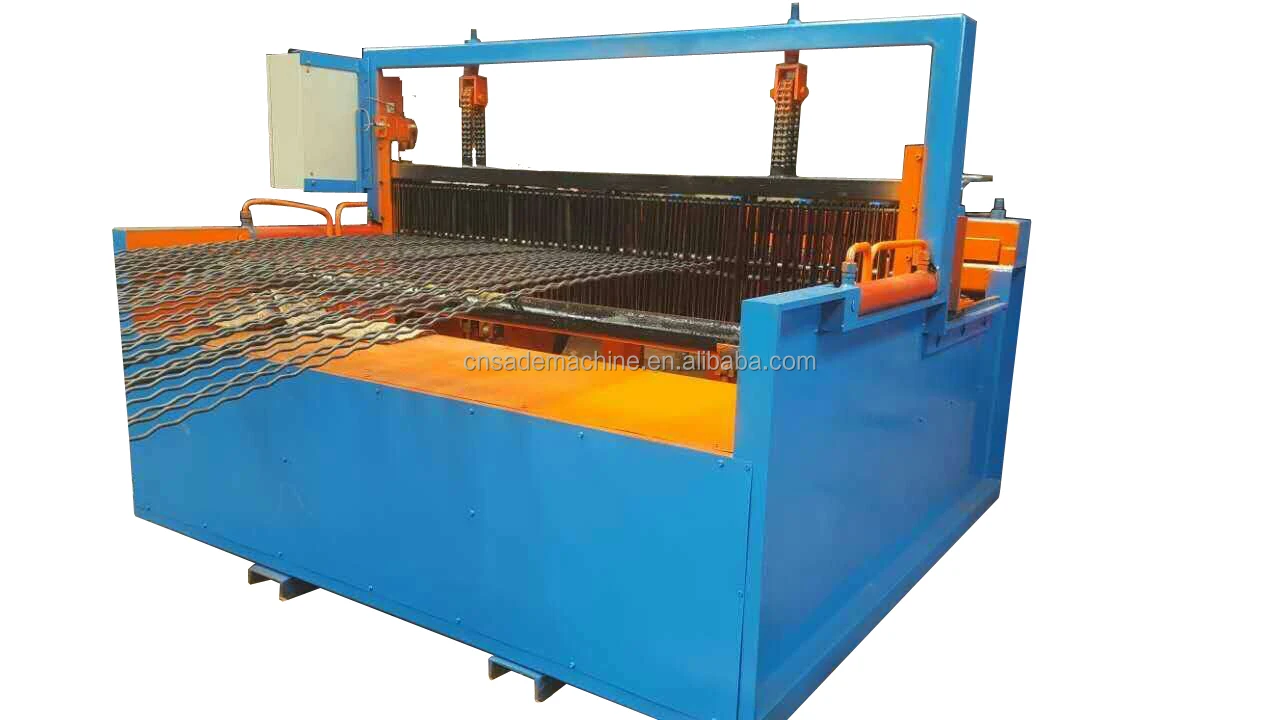

Hydraulic crimped wire mesh weaving machine
1) The lower cost and high quality mesh could help the buyers take the cost back soon and establish a long cooperation with the end user.
2) CNC design could save salary and time for the buyers.One worker can handle one full set of machine
Main Parameter for hydraulic type for 4meters width :
| |
Maximum Width(m) | 4.0 |
Mesh size(mm) | 20*20-100*100 |
Wire diameter(mm) | 5-14 |
Production speed(times/minute) | 20 |
Rated voltage | 380V,50HZ |
Motor power(KW) | 11kw |
Overal diamension(mm) | 5500x3000x1200 |
Weight(T) | 3.0 |
Accessories | Crimping wire Machine 1 set Crimping Gear 1set |
Company Information
Packaging & Shipping
FAQ
Please contact with us.
