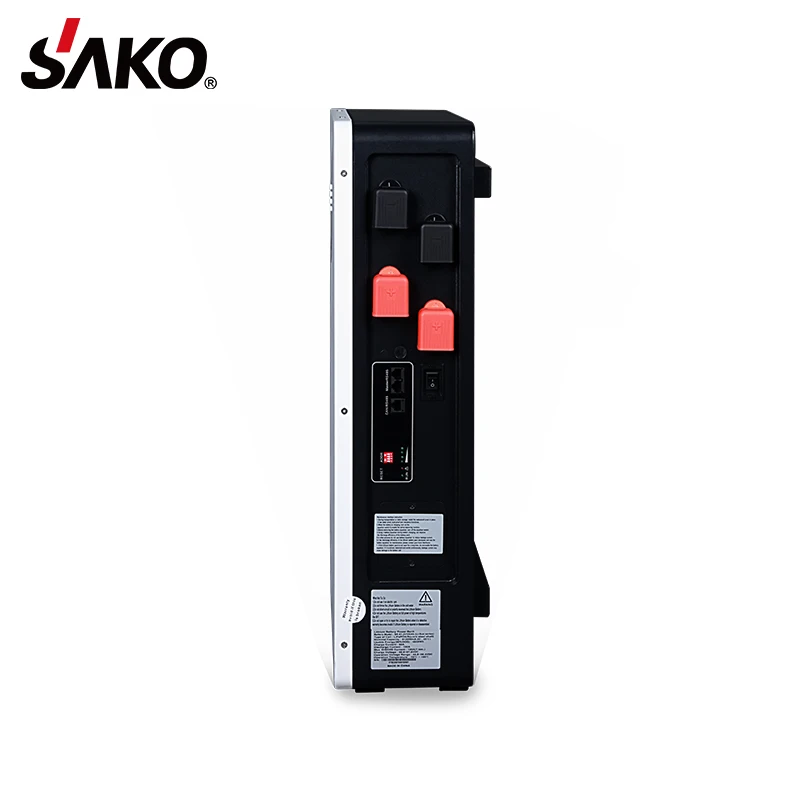

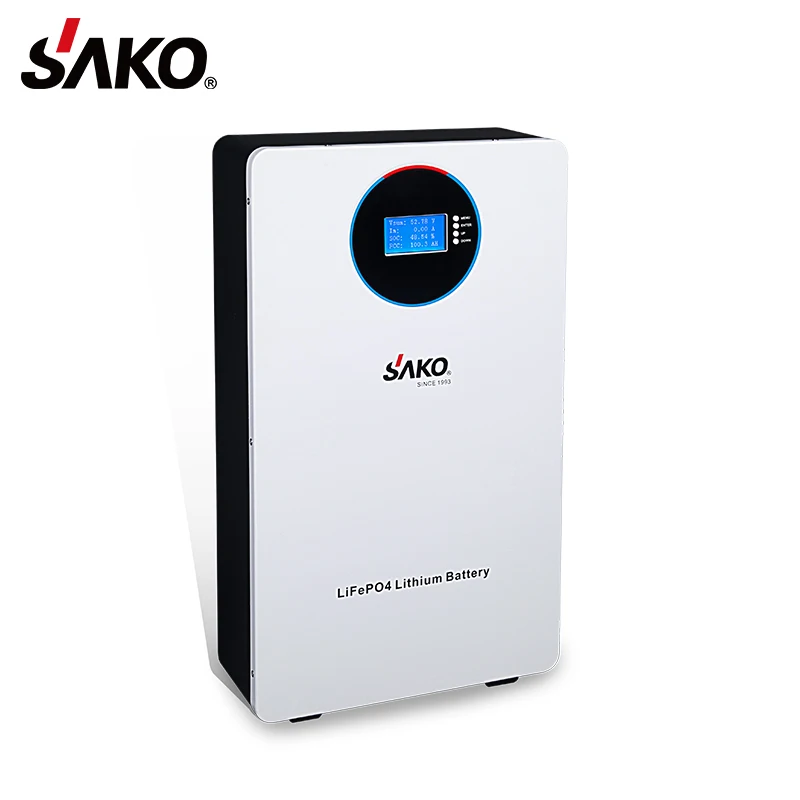

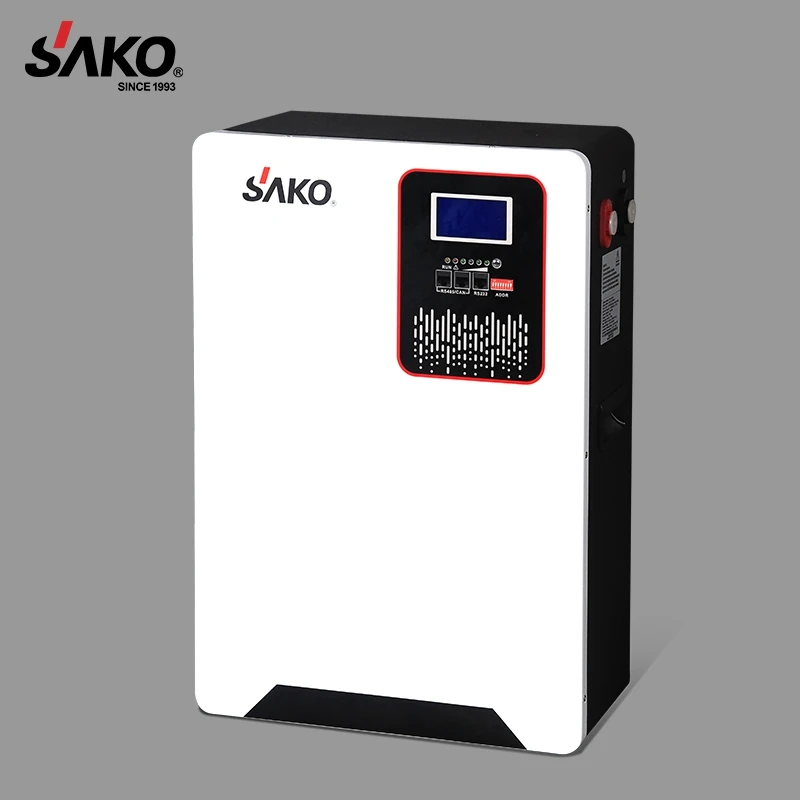

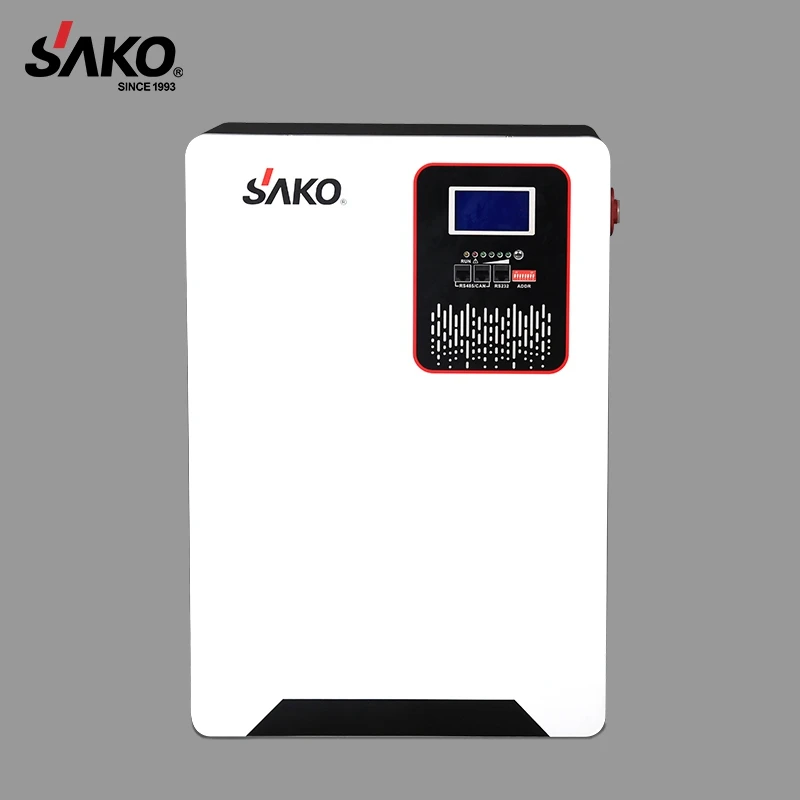

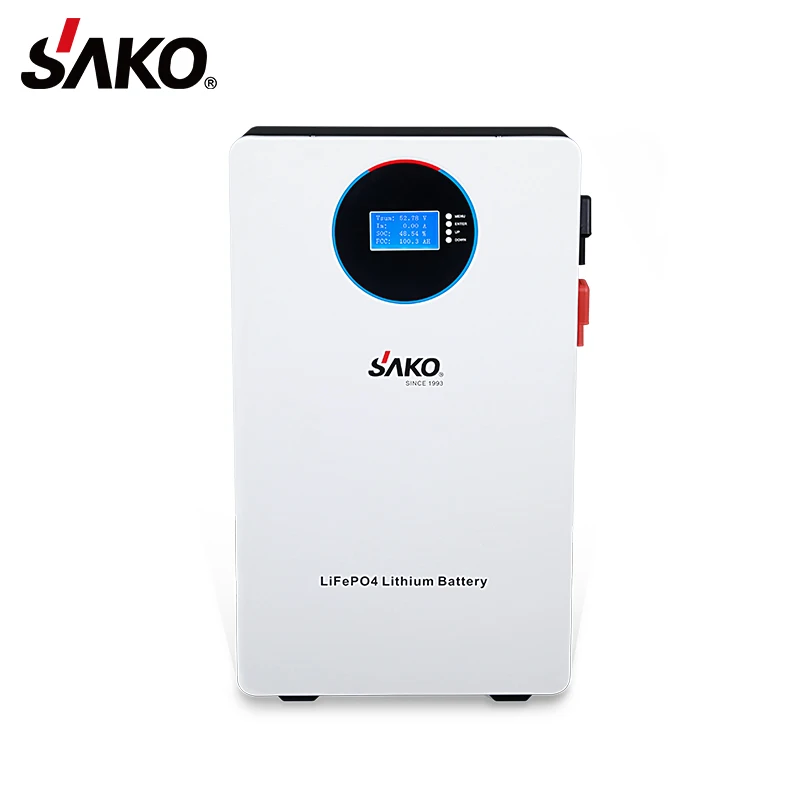

sako li sun wholesale 48 volt 300ah lifepo4 batteries for solar power system 15kw 24v 100ah 51.2v 200ah lithium battery
- Category: >>>
- Supplier: Shenzhen Sako Solar Co. Ltd.
Share on (1600894047582):
Product Overview
Description
Products Description
CATL new cells , A quality
6000 cells cycle times, 5 years warranty, 10+ years life design
Power wall design, space saving design
High density, small size and weight
Big charge/discharge current up to 100A/200A, suitable for solar storage system
Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter
LCD display with communication port(CAN/RS485/RS232) .
All around protection
6000 cells cycle times, 5 years warranty, 10+ years life design
Power wall design, space saving design
High density, small size and weight
Big charge/discharge current up to 100A/200A, suitable for solar storage system
Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter
LCD display with communication port(CAN/RS485/RS232) .
All around protection
MODEL | SK-25.6V200Ah Li-Sun series | SK-25.6V300Ah Li-Sun series | SK-51.2V100Ah Li-Sun series | SK-51.2V200Ah Li-Sun series | ||||||||||||
SPECIFICATION | ||||||||||||||||
Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | ||||||||||||
Total Energy | 5120Wh | 7680Wh | 5120Wh | 10240Wh | ||||||||||||
Usable Energy(90%DOD) | 4608Wh | 6912Wh | 4608Wh | 9216Wh | ||||||||||||
Voltage window | 22.4～29.2V | 22.4～29.2V | 44.8～58.4V | 44.8～58.4V | ||||||||||||
Fast Charge Voltage | 28.8V | 28.8V | 57.6V | 57.6V | ||||||||||||
Folat Charge Voltage | 28.0V | 28.0V | 56.0V | 56.0V | ||||||||||||
Low DC Cut-off Voltage | 23.4V | 23.4V | 46.8V | 46.8V | ||||||||||||
Max.continue discharge current | 100A | 100A | 100A | 100A | ||||||||||||
Max.pulse discharge current | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. | ||||||||||||
Max.continue charge current | 100A | 100A | 50A | 100A | ||||||||||||
Scalable | 1~15 in parallel | |||||||||||||||
Communication | RS485 | CAN,RS485 | ||||||||||||||
Cycle life | ＞6000 Cycles@(+25℃,0.5C,90%DOD,60%EOL) | |||||||||||||||
Terminal | double M8 | |||||||||||||||
Storage temperature | 0℃～30℃ | |||||||||||||||
Storage duration | 6 months at 25℃ | |||||||||||||||
Safety standard | UN38.3,MSDS | |||||||||||||||
IP degree | IP20 | |||||||||||||||
PROTECTION | ||||||||||||||||
Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、Overtemperature protection | |||||||||||||||
AMBIENT | ||||||||||||||||
working Temperature | -10℃～+50℃ | |||||||||||||||
Humidity | 0~95% ( no condensation) | |||||||||||||||
DIMENSION | ||||||||||||||||
L×W×H (products size) mm | 641*389*179mm | 691*455*189mm | 641*389*179mm | 850*560*179mm | ||||||||||||
L×W×H (package size) mm | 684*440*240mm(UN carton) | 734*515*247mm(UN carton) | 684*440*240mm(UN carton) | 898*635*265mm(UN wooden cases) | ||||||||||||
Weight(NW Kg) | 44.5Kg | 62.0Kg | 44.5Kg | 86.5Kg | ||||||||||||
Weight(GW Kg) | 48.0Kg | 66.0Kg | 48.0Kg | 101.5Kg | ||||||||||||
20FT QTY( UNIT) | ||||||||||||||||
Our Projects

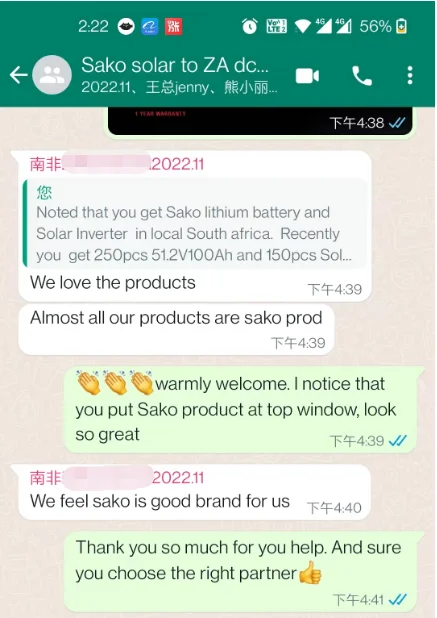

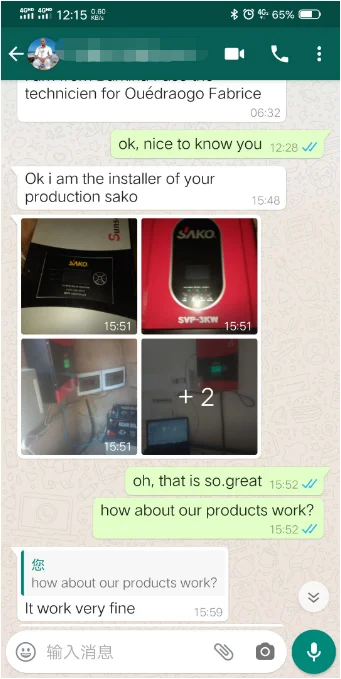

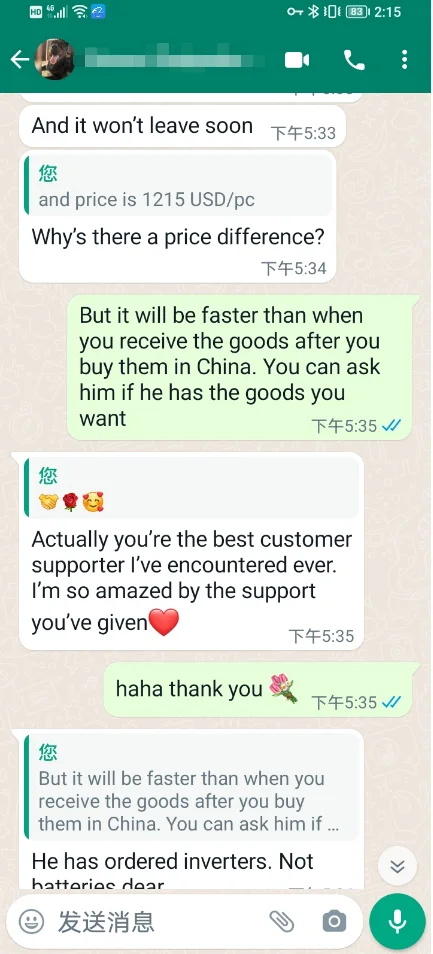

Customer reviews
Certifications
Company Profile
TEDEPE Solar is a new PV factory founded in the year of 2016 , we have a number of experienced professionals who have been eagaged in this field with product development , production and marketing for more than 10 years . TEDEPE Solar located in Changping Town ,Dongguan city which is the most famous manufacturing city ,from Guangzhou or Shenzhen city to Changping Town by high speed train only 30 minutes .
TEDEPED Solar with most advanced equipments of Tabber and Stringer Solar Machine,two laser cutting machine ,two solar Simulator ,one Auto Selection Solar Cell Tester,one of line EL Detector ,two solar panel Tester and Three Laminationg Machine .
SAKO POWER has three branch manufacturers,Stabilizer manufacturer was located in Wenzhou city ,UPS and Inverter was located in Shenzhen City,DC power supply and switching power supply was located in Hangzhou city ,sako is committed to provide defferent location advantages to customers and each manufacturer.We have professional marketing engineering teams to dedicate in product development.Sako Power guarantees reliable product development and consistent manufacturing quality ,from raw materials to finished products ,and deeply respects its delivery deadlines.
Sako Powre is a trulty reliable company,with its personnel providing in service ,innovation and growth .Sako Power's professional team is always be one of the best sincerely and realiable cooperators in global powre market .
SAKO Enterprise ,like a pearl,shinning so ever brightly in the power supply industry of China.
Leading OEM/ODM Manufacturer in Solar System ,Solar Inverter ,Home Inverter ,UPS,Frequency Inverter ,switching power supply ,Stabilizers and AVR.
TEDEPED Solar with most advanced equipments of Tabber and Stringer Solar Machine,two laser cutting machine ,two solar Simulator ,one Auto Selection Solar Cell Tester,one of line EL Detector ,two solar panel Tester and Three Laminationg Machine .
SAKO POWER has three branch manufacturers,Stabilizer manufacturer was located in Wenzhou city ,UPS and Inverter was located in Shenzhen City,DC power supply and switching power supply was located in Hangzhou city ,sako is committed to provide defferent location advantages to customers and each manufacturer.We have professional marketing engineering teams to dedicate in product development.Sako Power guarantees reliable product development and consistent manufacturing quality ,from raw materials to finished products ,and deeply respects its delivery deadlines.
Sako Powre is a trulty reliable company,with its personnel providing in service ,innovation and growth .Sako Power's professional team is always be one of the best sincerely and realiable cooperators in global powre market .
SAKO Enterprise ,like a pearl,shinning so ever brightly in the power supply industry of China.
Leading OEM/ODM Manufacturer in Solar System ,Solar Inverter ,Home Inverter ,UPS,Frequency Inverter ,switching power supply ,Stabilizers and AVR.
Product packaging
FAQ
Q1：What certificates you have？
A1：We are an ISO9001 manufacture,all the produces are of CE certified,and some of the inverters are of RoHS ULcertified
Q2：What is the MOQ if i want you to apply my design for parameter,outside looking ,logo on producsts and cartons?
A2：MOQ30-100pcs for different products
Q3：How if i just want one sample OEM and ODM?Is it possible
A3：Yes,that possible but need to pay certain percent OEM cost
Q4：What about the warranty?what you will do if the inverter in problem during 1 or 2 years?If refund should i return the goods?
A4：the inverters are of 1years warranty,during the warranty we offer you free replacements for parts,no need to send back to china.and after warranty period，we will offer support but you need to pay for the parts component cost.
Q5：How long the delivery time if i order?how soon can you send out the goods?
A5：some of the inverters in stock,and to make new inverters take 1-2 weeks time,ODM OEM take 4-5 weeks time for customization
Q6：What happen if i meet problem during instalation?Will you support and how.
A5：Yes that we are 24hours online to help,pls contact us by email or by whatsapp should anything need help,no matter technical service or after sale service.
Q7: Does your company also provide other solar products except Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger and other accesories
related to the solar power system.
A1：We are an ISO9001 manufacture,all the produces are of CE certified,and some of the inverters are of RoHS ULcertified
Q2：What is the MOQ if i want you to apply my design for parameter,outside looking ,logo on producsts and cartons?
A2：MOQ30-100pcs for different products
Q3：How if i just want one sample OEM and ODM?Is it possible
A3：Yes,that possible but need to pay certain percent OEM cost
Q4：What about the warranty?what you will do if the inverter in problem during 1 or 2 years?If refund should i return the goods?
A4：the inverters are of 1years warranty,during the warranty we offer you free replacements for parts,no need to send back to china.and after warranty period，we will offer support but you need to pay for the parts component cost.
Q5：How long the delivery time if i order?how soon can you send out the goods?
A5：some of the inverters in stock,and to make new inverters take 1-2 weeks time,ODM OEM take 4-5 weeks time for customization
Q6：What happen if i meet problem during instalation?Will you support and how.
A5：Yes that we are 24hours online to help,pls contact us by email or by whatsapp should anything need help,no matter technical service or after sale service.
Q7: Does your company also provide other solar products except Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger and other accesories
related to the solar power system.
