Solar Inverter Hybrid 5Kw 6Kw Pv Solar System 6Kw Solar Inverter Price




Product Introduction


Solar Inverter Hybrid 5Kw 6Kw Pv Solar System 6Kw Solar Inverter Price



SUN-5~25K-SG01HP3-EU-AM2
5-25kW | Three Phase | 2 MPPT | Hybrid Inverter

SUN-5K-SG01HP3-EU-AM2
SUN-6K-SG01HP3-EU-AM2
SUN-8K-SG01HP3-EU-AM2
SUN-10K-SG01HP3-EU-AM2
SUN-12K-SG01HP3-EU-AM2
SUN-15K-SG01HP3-EU-AM2
SUN-20K-SG01HP3-EU-AM2
SUN-25K-SG01HP3-EU-AM2


Higher yields / Safe & Reliable / Smart / User-friendly

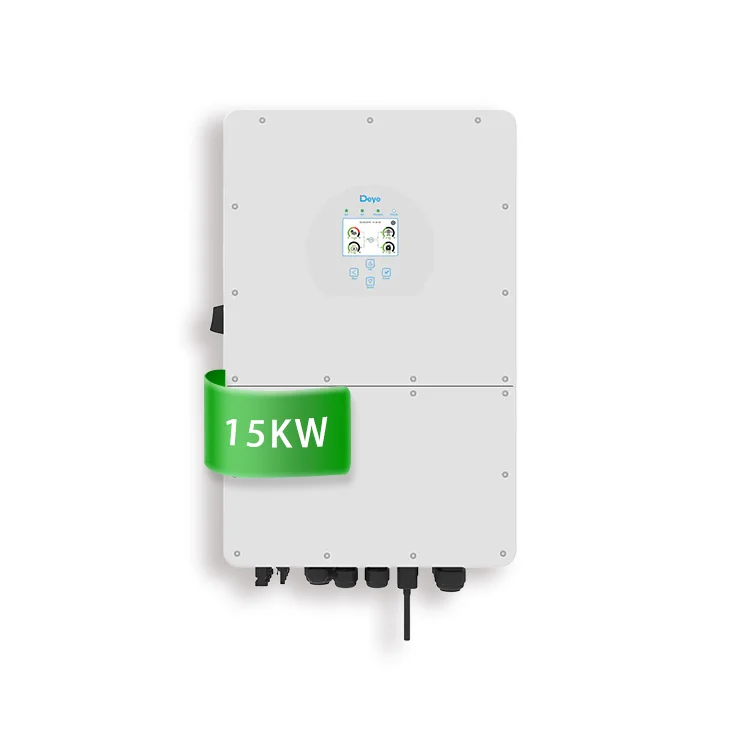

SUN 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is brand new three phase hybrid inverter with High voltage battery 160-700V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

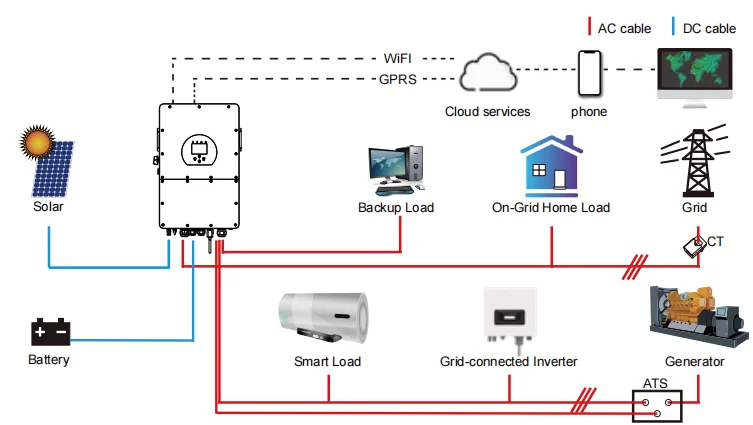

The following illustration shows basic application of this inverter. It also includes following devices to have a complete running system.
- Generator or Utility
- PV modules




Product Paramenters




Model
SUN-5K-SG01
HP3-EU-AM2
SUN-6K-SG01
HP3-EU-AM2
SUN-8K-SG01
HP3-EU-AM2
SUN-10K-SG01
HP3-EU-AM2
SUN-12K-SG01
HP3-EU-AM2
SUN-15K-SG01
HP3-EU-AM2
SUN-20K-SG01
HP3-EU-AM2
SUN-25K-SG01
HP3-EU-AM2
Battery Input Data








Battery Type
Lithium-ion







Battery Voltage Range (V)

160~700







Max. Charging Current (A)
30

37




50
Max. Discharging Current (A)
30

37




50
Number of battery input
1







Charging Strategy for Li-Ion Battery

Self-adaption to BMS







PV String Input Data








Max. DC Input Power (W)
6500
7800
10400
13000
15600
19500
26000
32500
Max. DC Input Voltage (V)
1000







Start-up Voltage (V)
180







MPPT Range (V)
150-850







Full Load DC Voltage Range (V)

195-850

195-850

260-850

325-850

340-850

420-850

500-850

625-850
Rated DC Input Voltage (V)
600







PV Input Current (A)
20+20



26+20

26+26

Max. PV I (A)
30+30



39+30

39+39

No.of MPP Trackers
2







No.of Strings per MPP Tracker

1+1




2+1


2+2

AC Output Data








Rated AC Output and UPS Power (W)

5000

6000

8000

10000

12000

15000

20000

25000
Max. AC Output Power (W)

5500

6600

8800

11000

13200

16500

22000

27500
AC Output Rated Current (A)

7.6/7.3

9.1/8.7

12.2/11.6

15.2/14.5

18.2/17.4

22.8/21.8

30.4/29

37.9/36.3
Max. AC Output Rated Current (A)

8.4/8

10/9.6

13.4/12.8

16.7/16

20/19.2

25/24

33.4/31.9

41.7/39.9
Max. Three-phase Unbalanced Output Current(A)


13


13


18


22


25


30


35


41.7
Max. Continuous AC Passthrough (A)

40




80



Peak Power (off grid)
1.5 time of rated power, 10 S







Generator Input/Smart Load
/AC Couple Current (A)


7.6/40/7.6


9.1/40/9.1


12.2/40/12.2


15.2/40/15.2


18.2/80/18.2


22.8/80/22.8


30.4/80/30.4


37.9/80/37.9
Power Factor
0.8 leading to 0.8 lagging







Output Frequency and Voltage

50/60Hz; 3L/N/PE 220/380, 230/400Vac







Grid Type
Three Phase







Total Harmonic Distortion (THD)

<3% (of nominal power)







DC Current Injection
<0.5% In
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
General Data
Operating Temperature Range (℃)

-40-60℃, >45℃ Derating
Cooling
Free Cooling
Smart Cooling
Noise (dB)
≤55 dB
Communication with BMS
RS485; CAN
Weight (kg)
30.5
Cabinet Size (WxHxD mm)
408×638×237 (Excluding Connectors and Brackets)
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 Years (10 Years Optional)


Product Packaging


Check the equipment before installation. Please make sure nothing is damaged in the package. You should have received the items in the following package:
