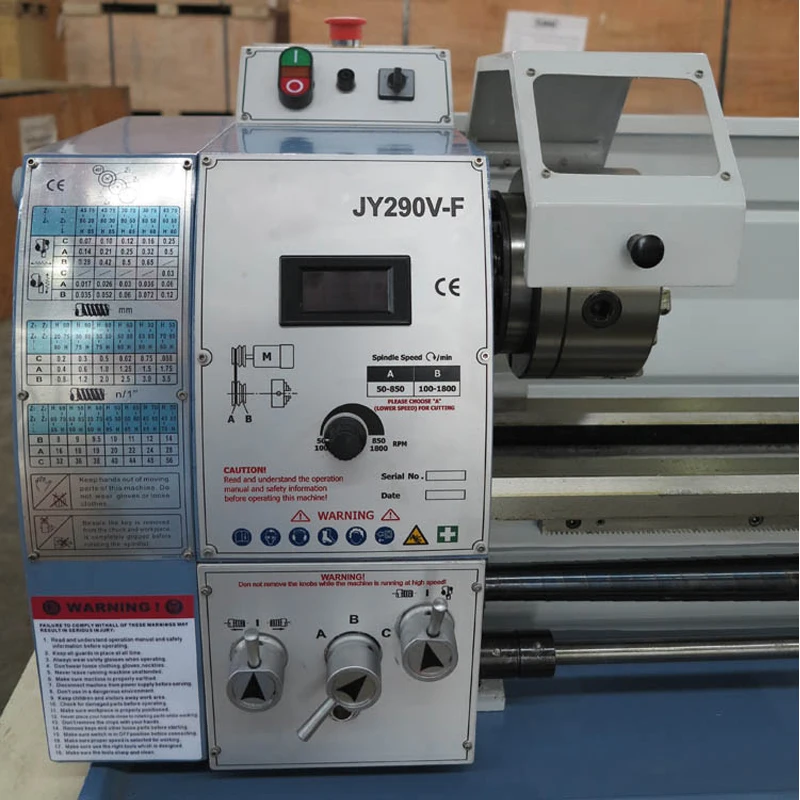

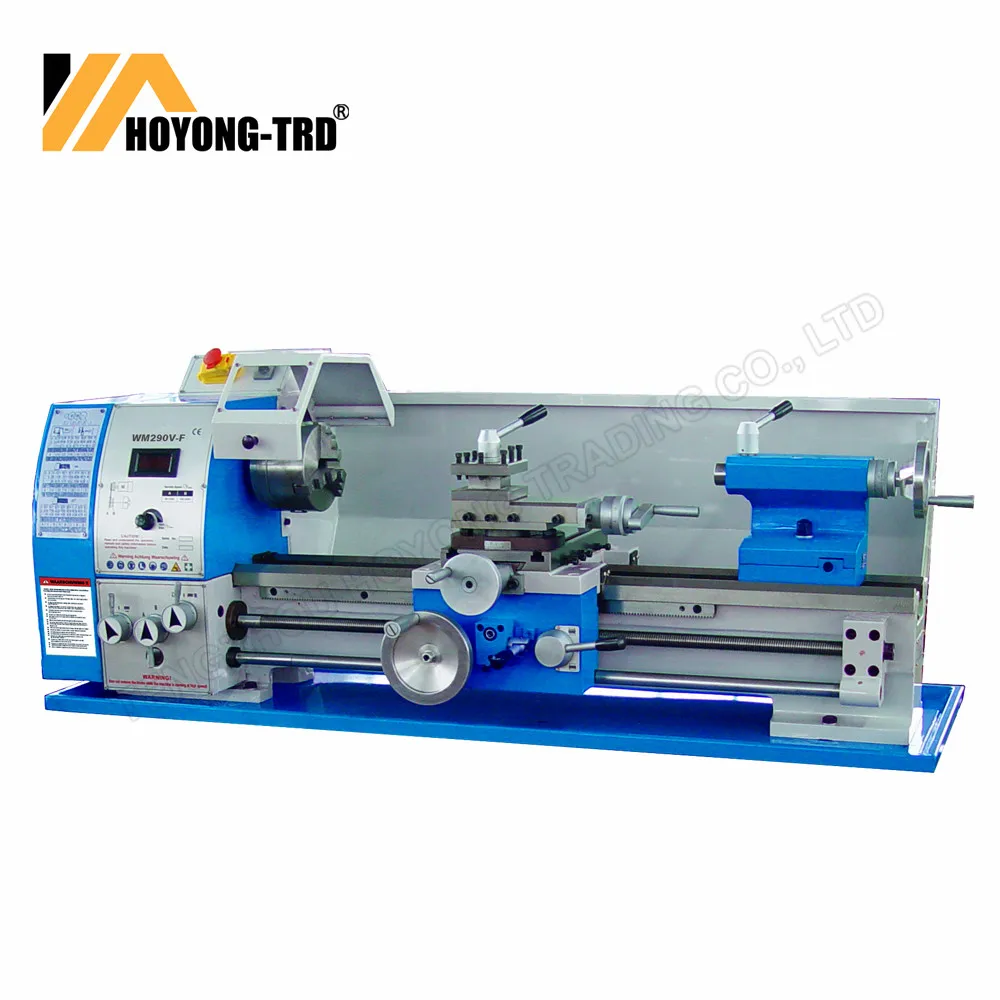

MPV290 JYP290VF mini drilling milling combo lathe machine
- Category: >>>
- Supplier: Tengzhou Hoyong Trading Co. Ltd.
Share on (1600894091455):
Product Overview
Description
MULTI USE LATHE FEATURES:
Frequency inverter
38mm spindle bore
V-way bed is hardened and precision ground
Independent leadscrew and feedshaft.
Power cross feed function.
Automatic feed and threading are fully interlocked
MT5 spindle hole gets greater capacity with Φ 160 mm three-jaw chuck

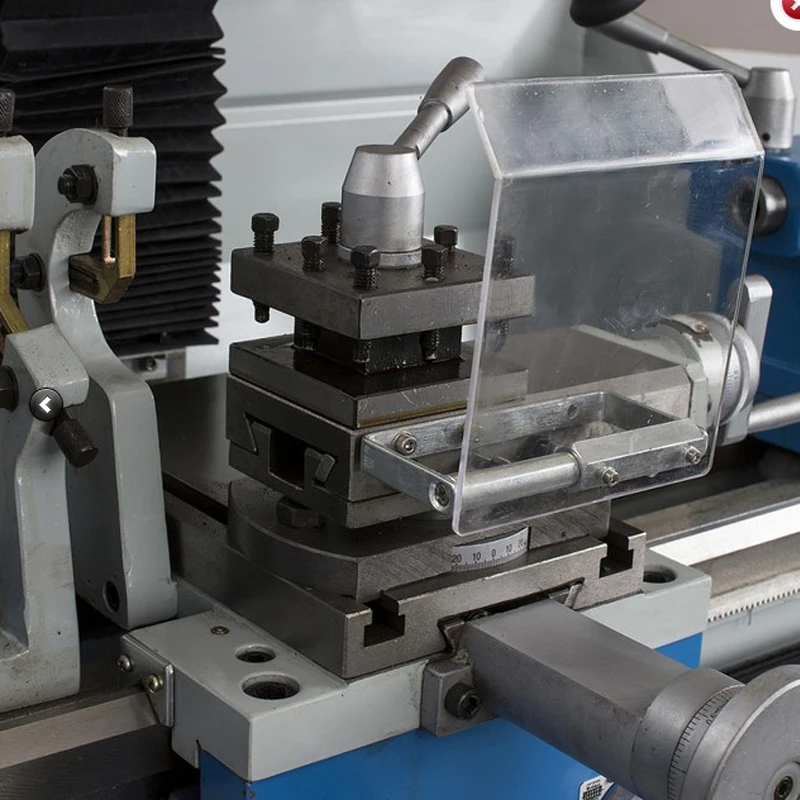

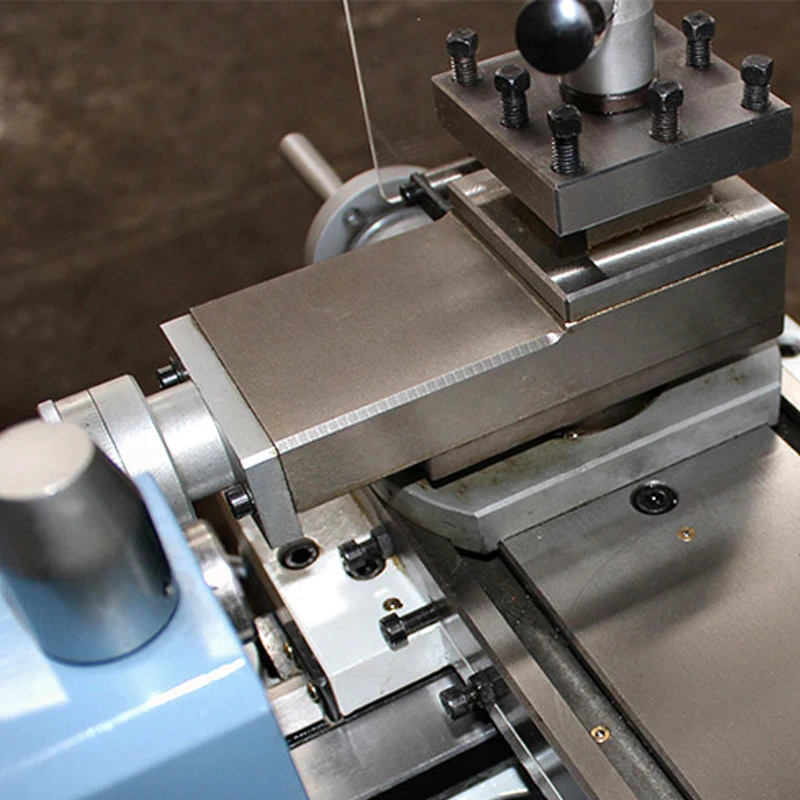

T-slotted cross slide
Top design of gearbox gets more function
Tailstock may be offset for turning tapers

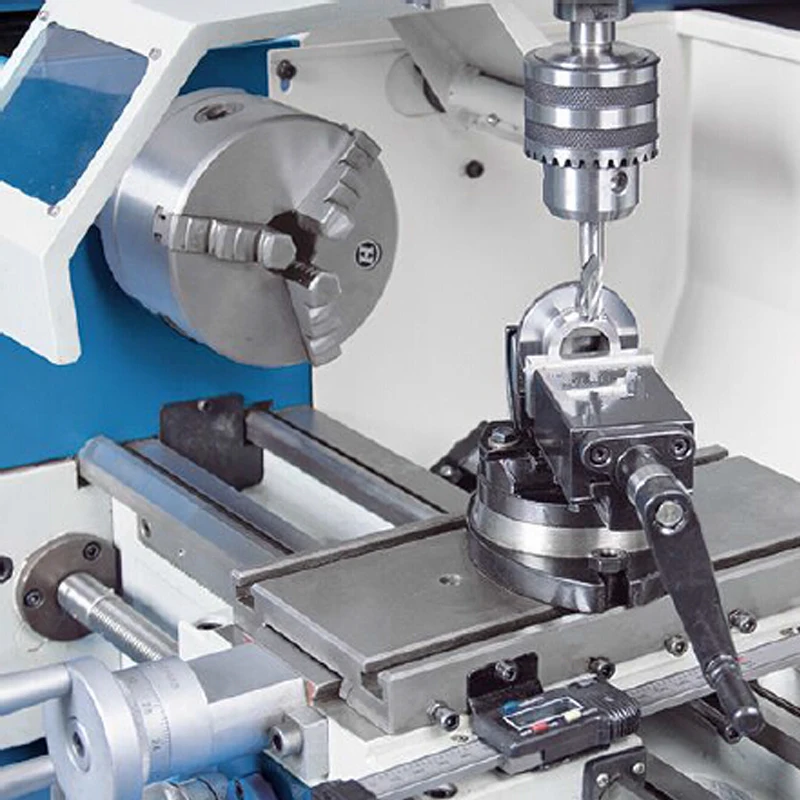

Geared mill head gets more torque.
Mill head can be tilted ± 90° .
Tolerance test certificate, test flow chart included.
Frequency inverter
38mm spindle bore
V-way bed is hardened and precision ground
Independent leadscrew and feedshaft.
Power cross feed function.
Automatic feed and threading are fully interlocked
MT5 spindle hole gets greater capacity with Φ 160 mm three-jaw chuck
T-slotted cross slide
Top design of gearbox gets more function
Tailstock may be offset for turning tapers
Geared mill head gets more torque.
Mill head can be tilted ± 90° .
Tolerance test certificate, test flow chart included.
MODEL | JYP290VF | |
Distance between centers | 700 mm | |
Swing over bed | 290 mm | |
Swing over cross slide | 165 mm | |
Width of bed | 180 mm | |
Taper of spindle bore | MT5 | |
Spindle bore | 38 mm | |
Number of spindle speeds | Variable | |
Range of spindle speeds | 50-1800 rpm | |
Range of longitudinal feeds | 0.07-040 mm/r | |
Range of inch threads | 8-56 T.P.I | |
Range of metric threads | 0.2-3.5 mm | |
Top slide travel | 50 mm | |
Cross slide travel | 165 mm | |
Tailstock quill travel | 80 mm | |
Taper of tailstock quill | MT3 | |
Motor | 1.1 kw | |
Mill & drill | ||
Taper of spindle bore | MT3 | |
Spindle stroke | 50mm | |
Spindle speed | 50-2250 rpm | |
Max. distance spindle to table | 375 mm | |
Max. distance spindle to column | 185 mm | |
Motor | 600W | |
Packing size | 1400x780x1070 mm | |
Net weight | 290/300 kg | |
Machine dimensions (W x D x H)* | 1210 x 610 x 860 mm | |
Weight approx. | 165 kg | |
STANDARD ACCESSORIES : | OPTIONAL ACCESSORIES |
3-jaw chuck Dead centers Reductions sleeve Change gears Oil gun Some tools | Steady rest Follow rest Face plate 4 jaw chuck Live center Stand Lathe tools Thread chasing dial Lead screw cover Tool post cover Disc milling cutter Mill chuck Side brake |
