EW 100S 700S Automatic Heat Shrinking Tube Nickel Strip Tape Cutting Machine PVC Plastic Tube Label Film Foil Cutting machine

Product Overview

Description

1. EW-100S - EW-1500S is designed for cutting wide range of industrials materials.

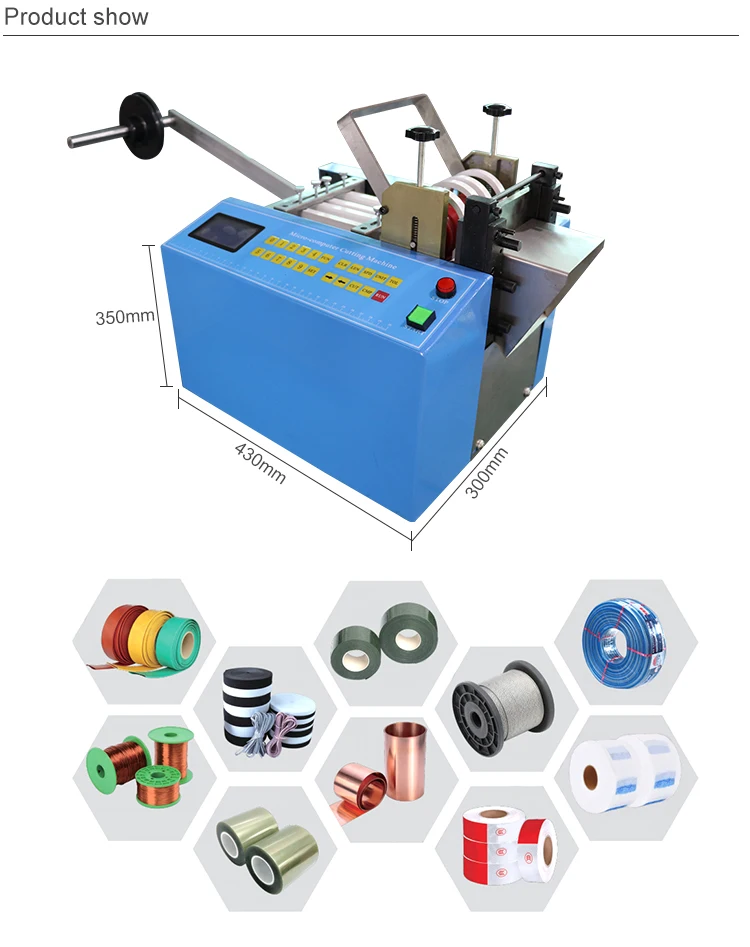

2. Various tube, pipe, hose, fabric, paper, film, sheet, strip, band, foam, foil, wire, cable and rope are within the capability.

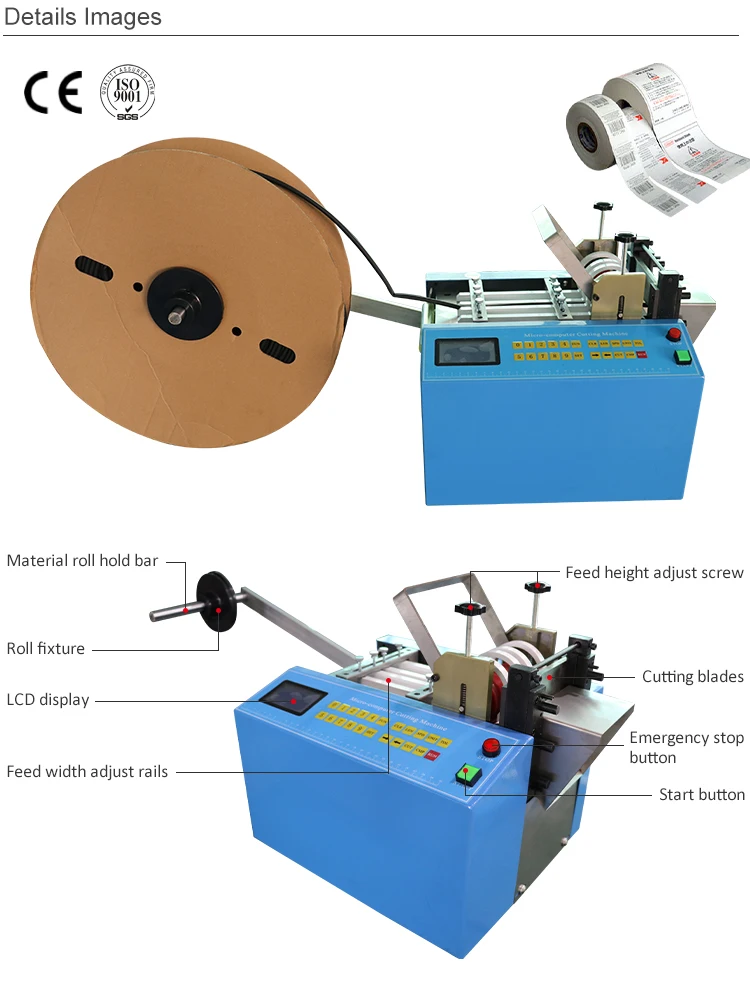

3. Equipped with material roll hold bar and roll fixture to ensure the steady feeding and cutting process.

4. Equipped with 4 feeding rails. The gap between the strips can be adjusted according to the material width, which also allows maximum 3 production lines.

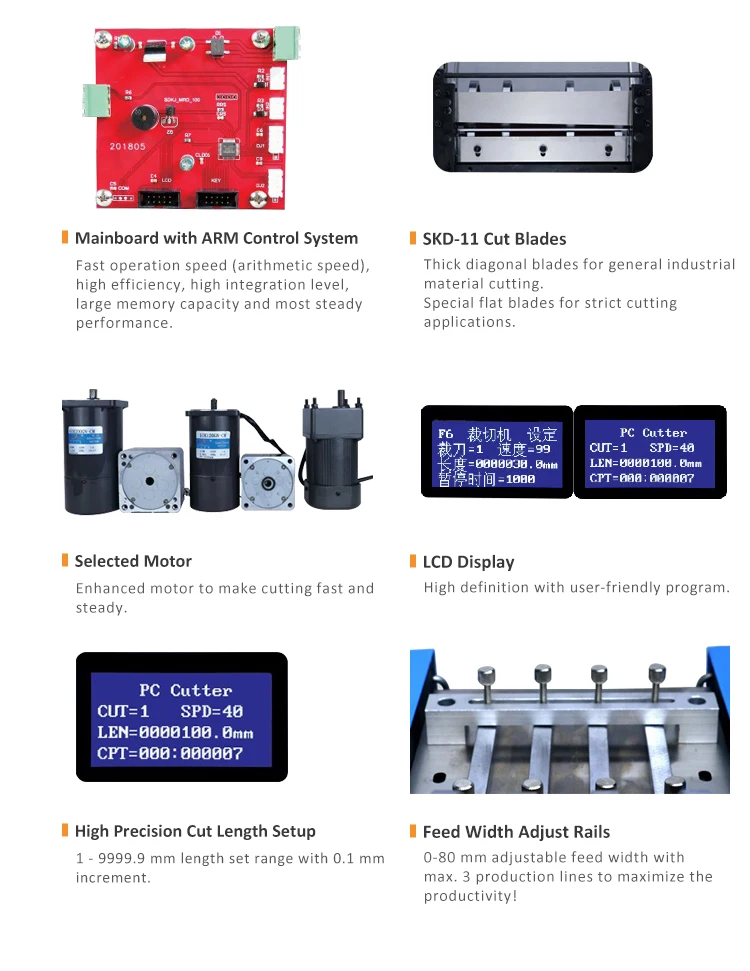

5. SKD-11 material is selected as the balde material, and the average lifetime is up to 18 months.

Model	EW-100S
Applicable material	Wide rang of industrial materials
Material width	0 - 80 mm
Cutting length	1 - 9999.9 mm
Cutting length increment	0.1 mm
Cutting tolerance	0.1 mm
Productivity	7200 - 9000 pcs./h
Control mode	ARM processor
Motor	AC motor
Power supply	110, 220 V (50 - 60 Hz)



Model	Maximum material width
EW-100S	80 mm
EW-160S	140 mm
EW-200S	180 mm
EW-300S	280 mm
EW-400S	380 mm
EW-500S	480 mm
EW-600S	580 mm
EW-700S	680 mm
EW-800S	780 mm
EW-900S	880 mm
EW-1000S	980 mm
EW-1100S	1080 mm
EW-1200S	1180 mm
EW-1300S	1280 mm
EW-1400S	1380 mm
EW-1500S	1480 mm
