CE Certificate Approval Industrial Coal fired Steam Boiler Generators for eps Expander 1 tonhr 6tonhr 8th 10tph
- Category: >>>
- Supplier: Xinxiang Xinda Boiler Co. ltd.
Share on (1600894952579):
Product Overview
Description
Product Description

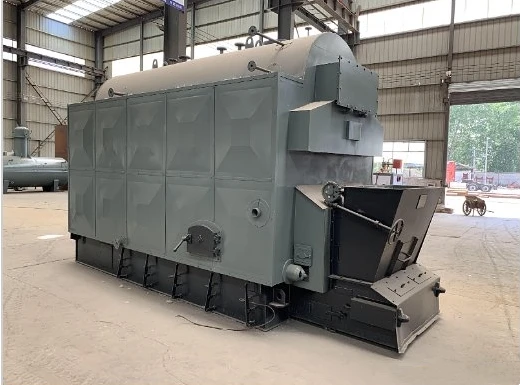

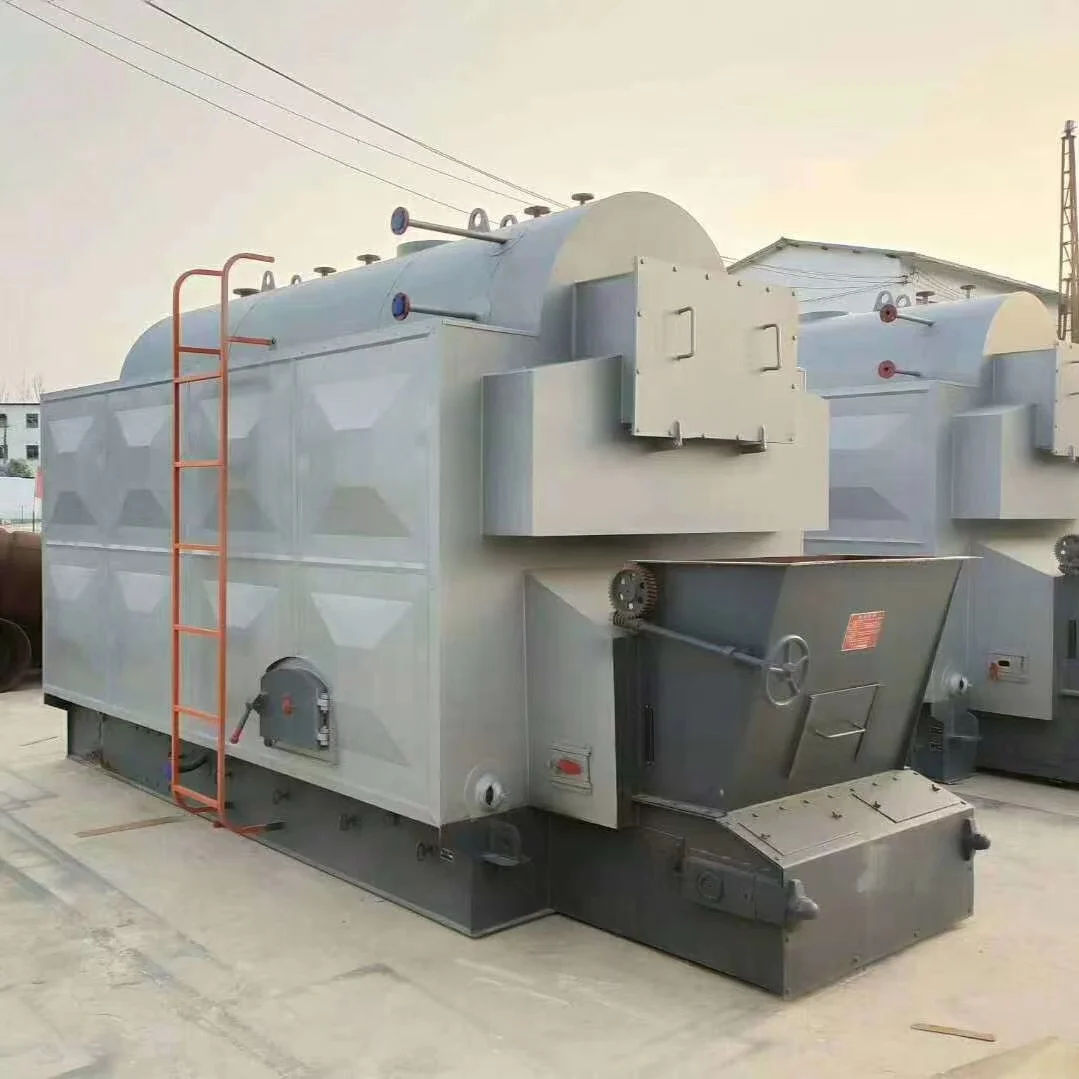

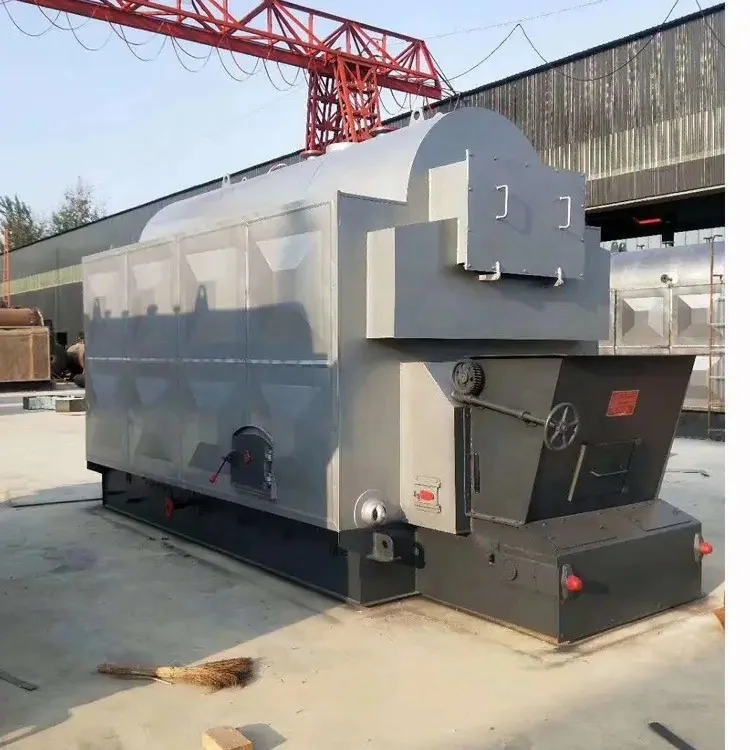

CE Certificate Approval Industrial Coal fired Steam Boiler Generators for eps Expander 1 tonhr 6tonhr 8th 10tph

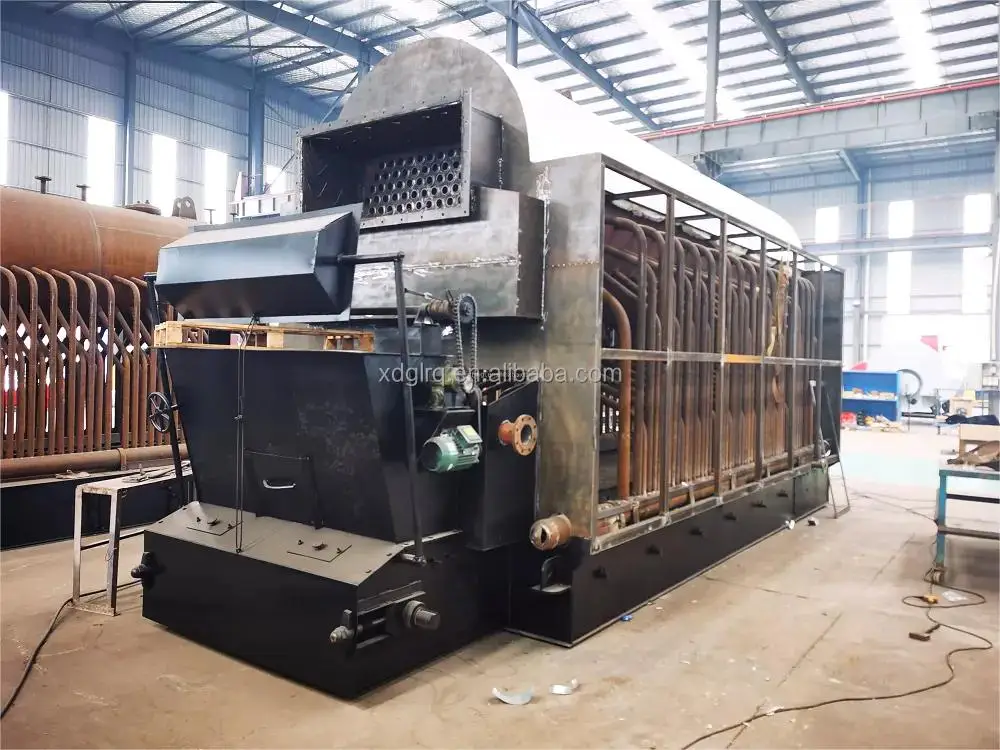

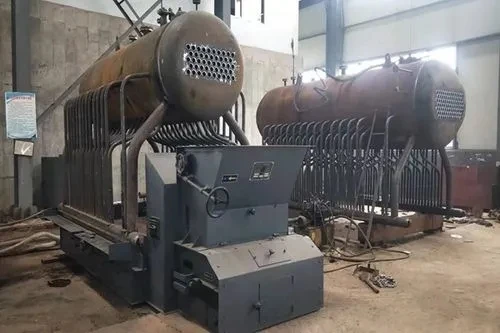

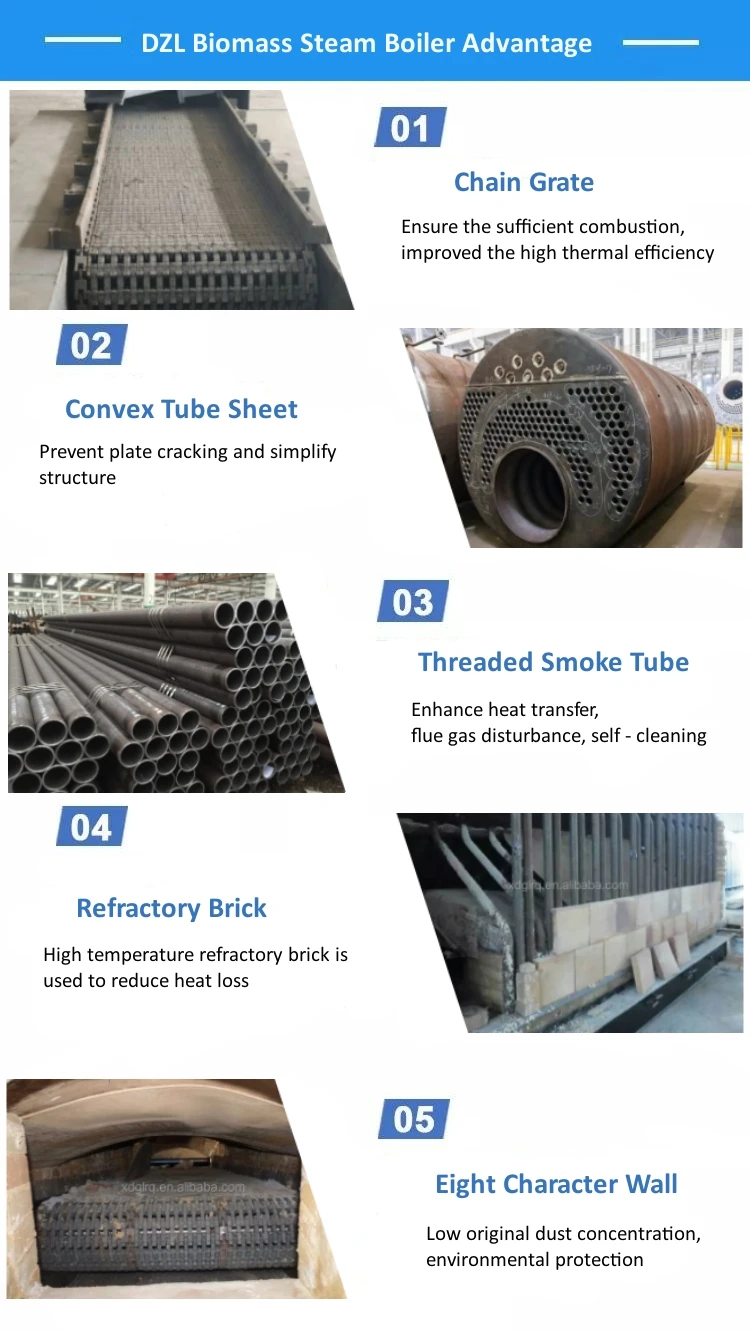

Product description: DZL series boiler is a single-drum vertical water-fire tube shell boiler, and the combustion equipment is a chain grate. The water walls on the left and right sides of the furnace are radiant heating surfaces, the two wings of the furnace are convective heating surfaces, and the convection heating surfaces of threaded smoke pipes are arranged in the drum. Shield shell. This series of boilers uses newer scientific research results, such as arched tube sheets, threaded smoke tubes, etc., to solve the problems of shell-type boiler tube sheet cracks, bulges at the bottom of the drum, tube bursts on the water wall, low thermal efficiency, and insufficient output.
Product Details
Technical Parameters
Type | Rated capacity | Rated Pressure | Temperature | Active grate area | Design efficiency | Fuel consumption |
t/h | MPa | ℃ | ㎡ | % | kg/h | |
DZL1-1.0-All | 1 | 1 | 184 | 1.85 | 80 | 118 |
DZL2-1.25-All | 2 | 1.25 | 194 | 3.4 | 80 | 238 |
DZL4-1.25-All | 4 | 1.25 | 194 | 5.18 | 80 | 472 |
DZL6-1.25-All | 6 | 1.25 | 194 | 7.55 | 80 | 685 |
DZL10-1.25-All | 10 | 1.25 | 194 | 12 | 80 | 1128 |
SZL15-1.25-All | 15 | 1.25 | 194 | 18 | 80 | 1698 |
SZL20-1.25-All | 20 | 1.25 | 194 | 22.9 | 80 | 2241 |
SZL30-1.25-All | 30 | 1.25 | 194 | 27.5 | 81 | 3380 |
SZL40-1.25-All | 40 | 1.25 | 194 | 34.5 | 81 | 4481 |
Accessories
Application
Packing & Delivery
Company Profile
Certificate
Exhibition
Our Services
FAQ
How to choose a boiler type?
Identify the type of boiler you want(steam boiler or hot water boiler).
The boiler capacity,pressure,and fuel(oil,gas,biomass,coal),or you can consult us.
How about the installation?
Guide installation online or we can provide staff installation by our staffs, but you have to afford the extra cost if If we send professional staff overseas to install it.
How about your delivery time?
Generally, it will take 20 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
What about after-sale service?
We will supply professional after-sale service team as soon as we receiving your problem feedback, we will dispatch our engineers to your country and solve your problems right now.
Identify the type of boiler you want(steam boiler or hot water boiler).
The boiler capacity,pressure,and fuel(oil,gas,biomass,coal),or you can consult us.
How about the installation?
Guide installation online or we can provide staff installation by our staffs, but you have to afford the extra cost if If we send professional staff overseas to install it.
How about your delivery time?
Generally, it will take 20 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
What about after-sale service?
We will supply professional after-sale service team as soon as we receiving your problem feedback, we will dispatch our engineers to your country and solve your problems right now.
