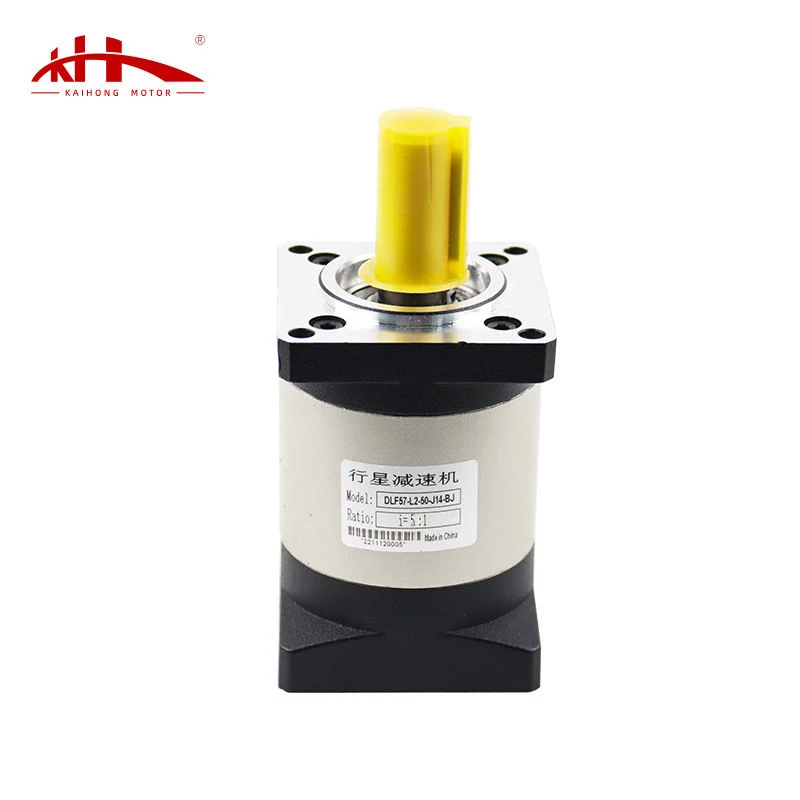

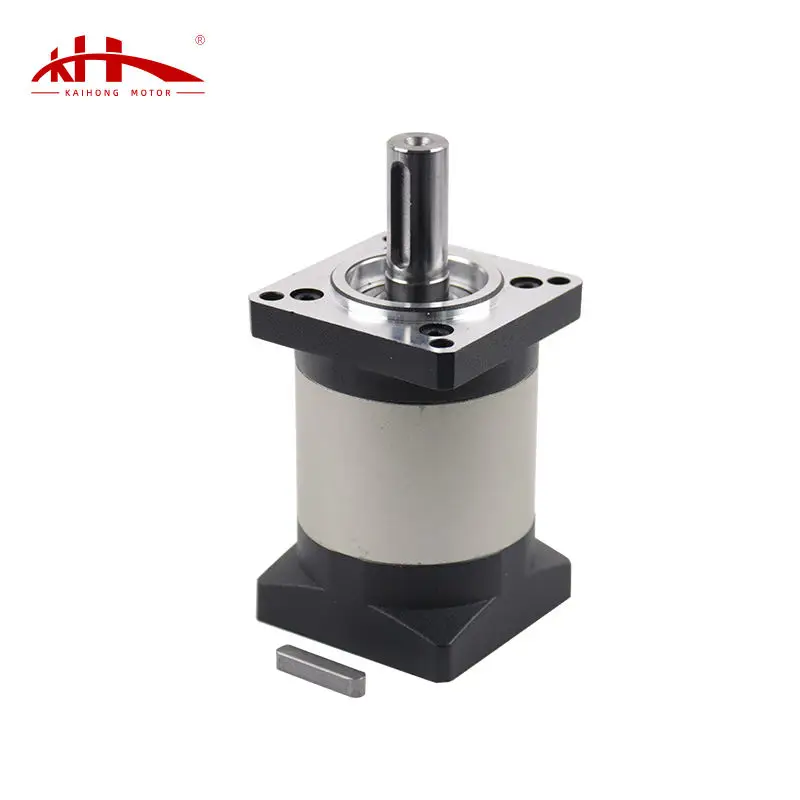

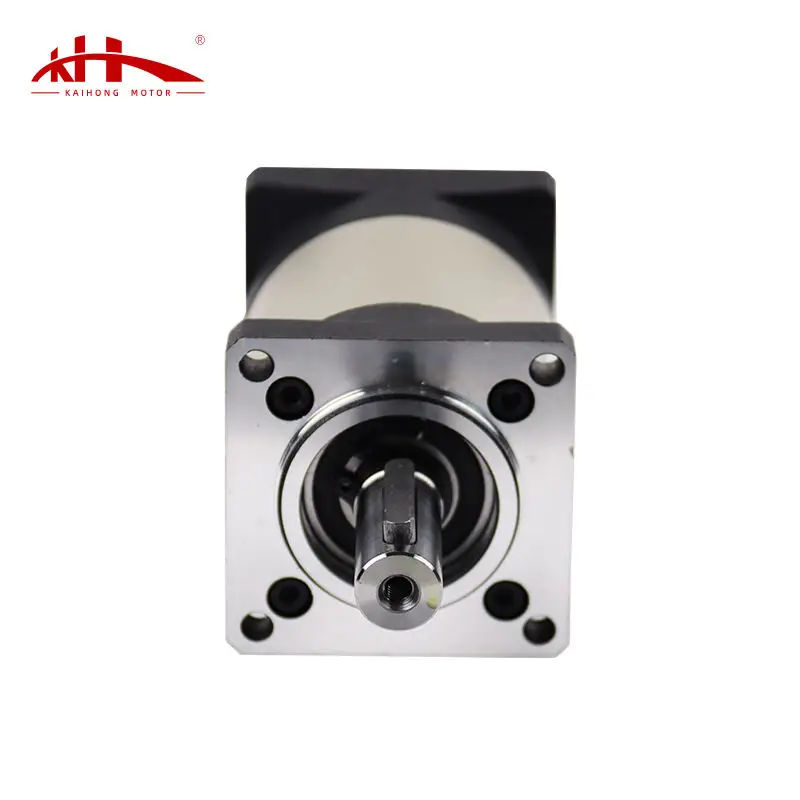

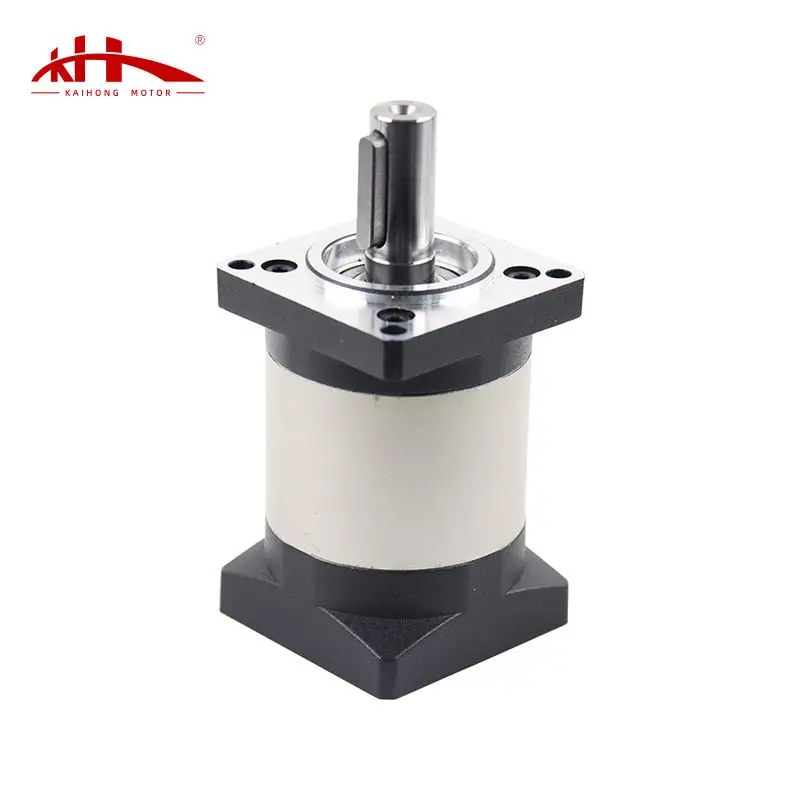

Kaihong High Torque Ratio 5:1 Planetary Gear Precision Stepper Motor Gearbox Nema 23 Planetary Reducer For Cnc
- Category: >>>
- Supplier: Guangdong Kaihong Motor Co. Ltd.
Share on (1600894953403):
Product Overview
Description
VR
Factory Video
Best selling
Product Paramenters
Nema 23 Stepper Motor
Step angle 1.8 °Flange side length 57 × 57mm
Step accuracy ± 5%
Ambient temperature - 20 ℃~+50 ℃
Maximum radial force 75N
Maximum axial force 15N
Model (No.) | Motor length L(mm) | Moment (N.m) | Current (A) | Resistance (Ω) | Moment of inertia (g.cm2) | Weight (kg) |
57BYGH41-204 | 41 | 0.6 | 2.0 | 1.2 | 150 | 0.47 |
57BYGH45-254 | 45 | 0.7 | 2.5 | 1.0 | 190 | 0.52 |
57BYGH51-254 | 51 | 1.0 | 2.5 | 1.2 | 230 | 0.59 |
57BYGH56-304 | 56 | 1.2 | 3.0 | 0.8 | 280 | 0.68 |
57BYGH64-304 | 64 | 1.4 | 3.0 | 1.5 | 380 | 0.85 |
57BYGH76-404 | 76 | 2.0 | 4.0 | 0.7 | 480 | 1.05 |
57BYGH84-404 | 82 | 2.3 | 4.2 | 1.0 | 560 | 1.15 |
57BYGH100-424 | 100 | 2.6 | 4.2 | 0.8 | 680 | 1.4 |
57BYGH112-424 | 112 | 3.0 | 4.2 | 1.4 | 800 | 1.5 |

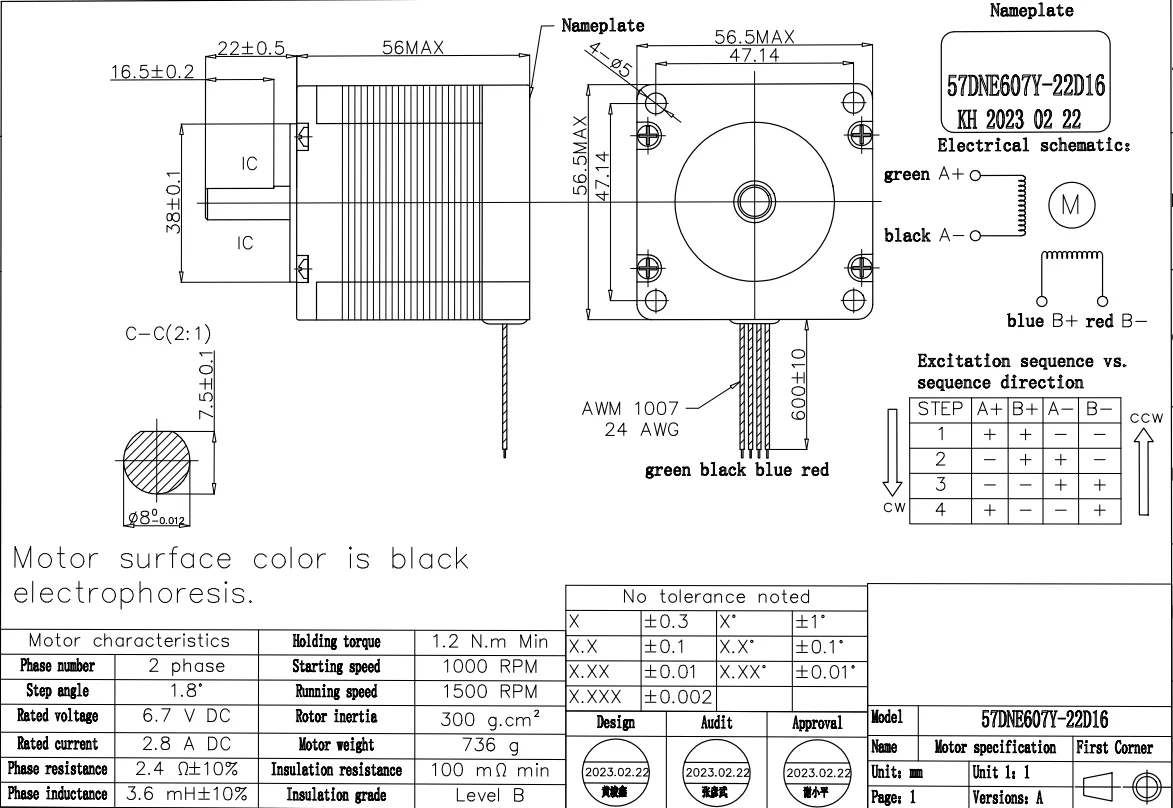

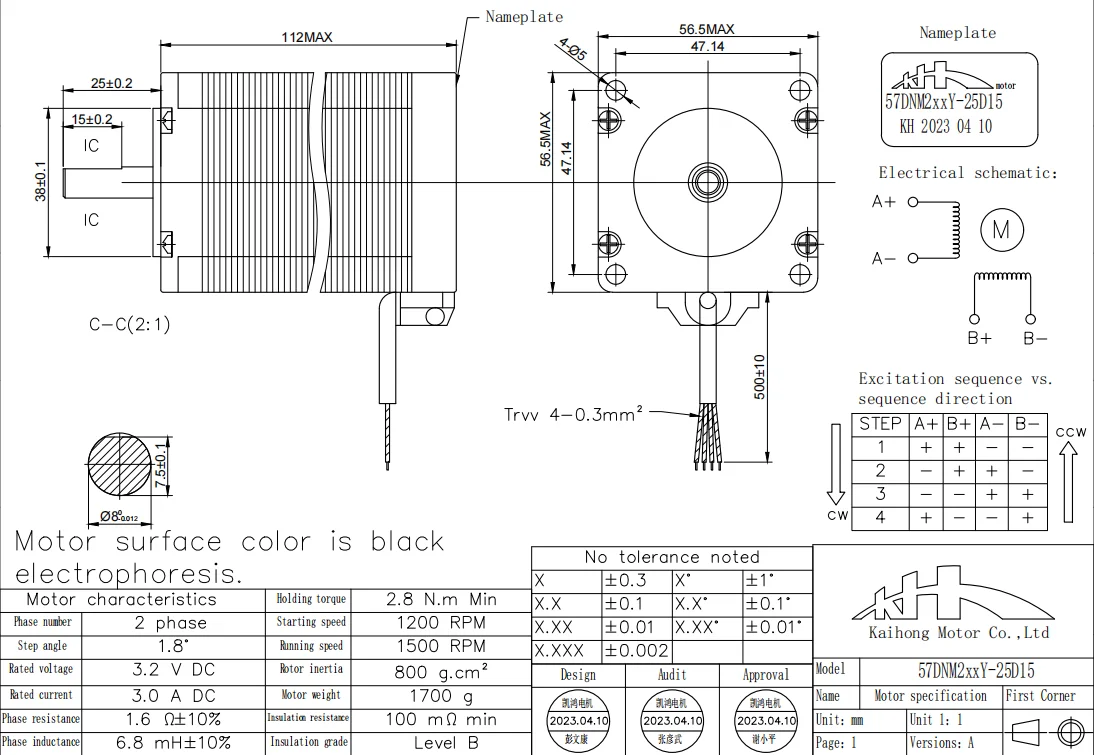

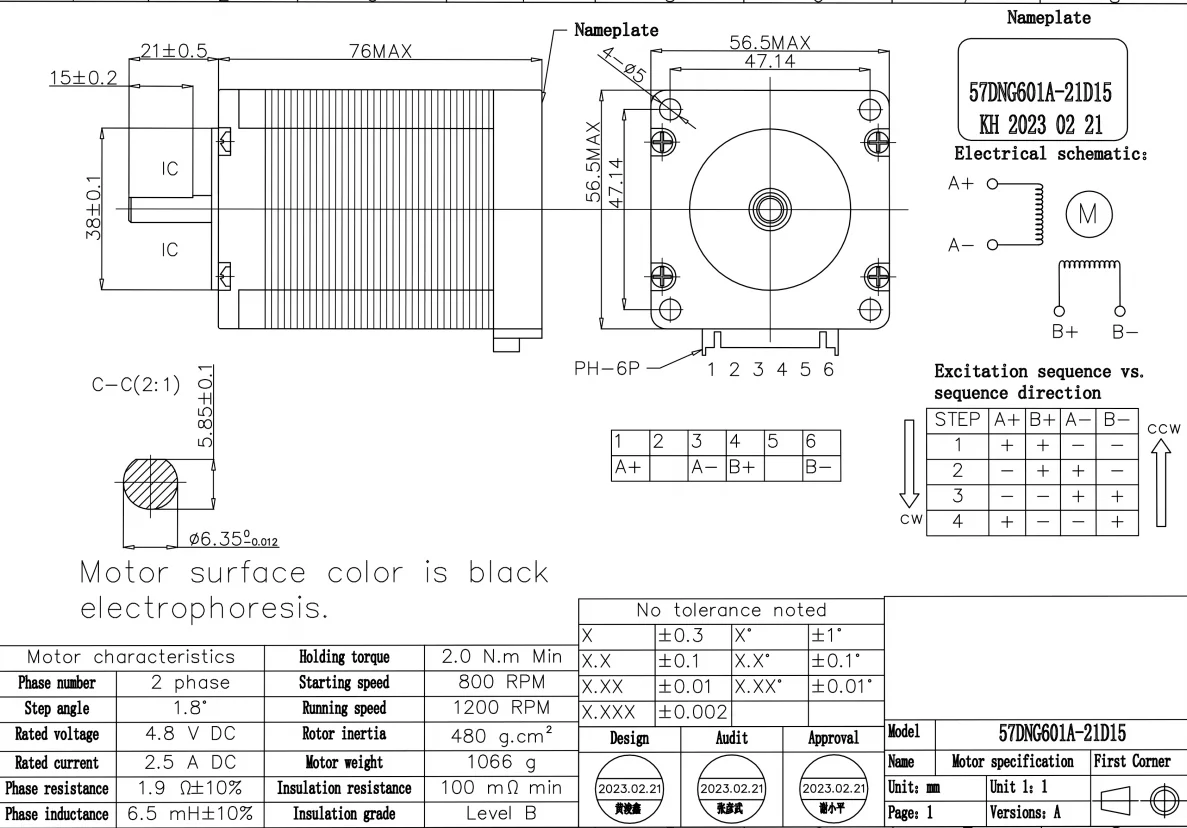

Motor Drawing
Motor Internal Details
