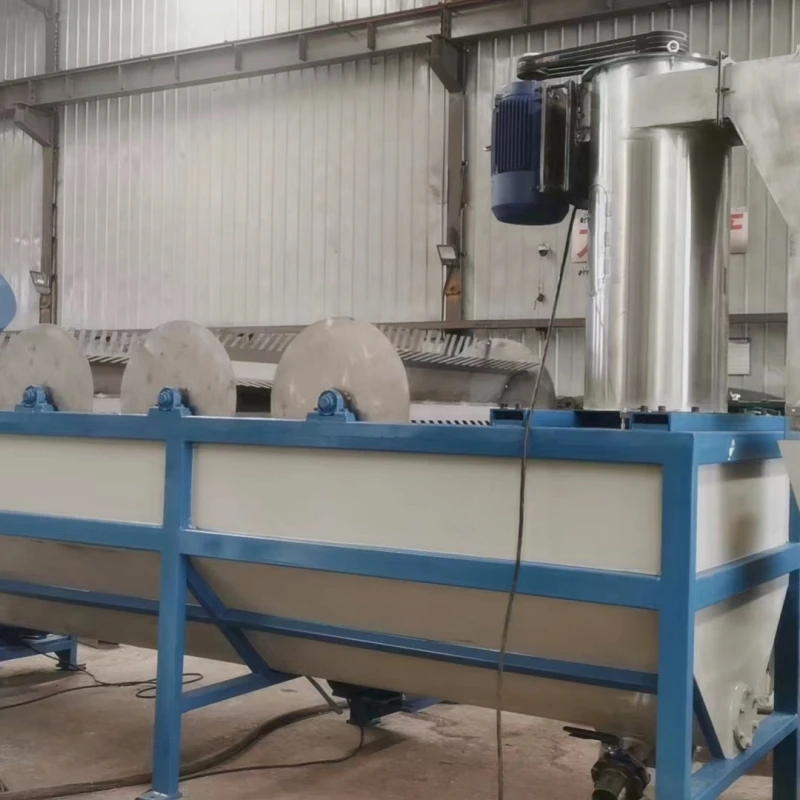

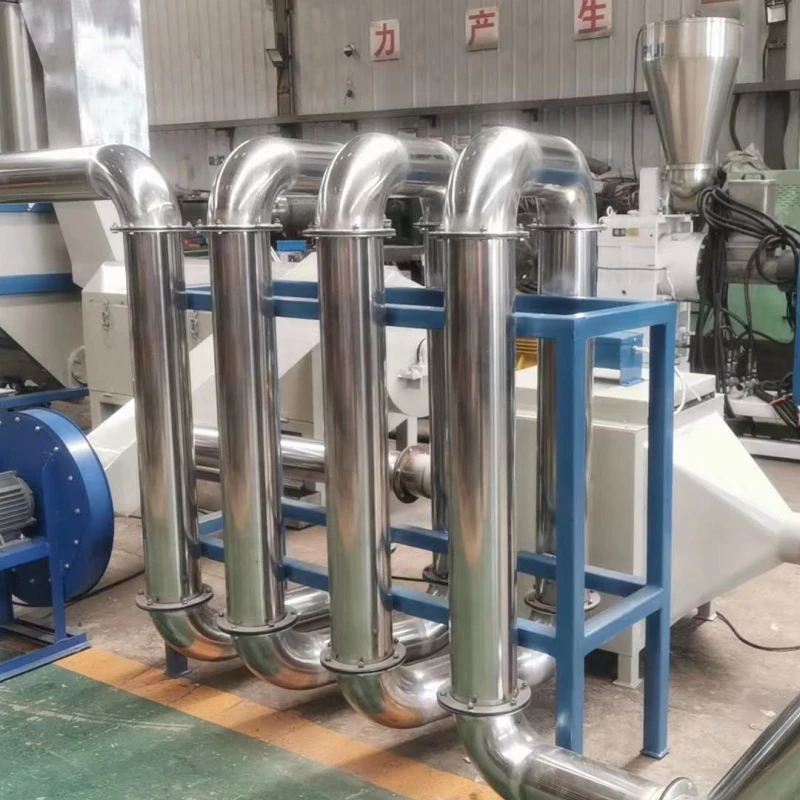

extruder machine for waste plastic scrap washing recycling machine line
- Category: >>>
- Supplier: Shandong Rope Net Machinery Co. Ltd.
Share on (1600895140307):
Product Overview
Description
Product Description
PE PP Film Waste Plastic Recycling Pelletizing Machine
ROPENET series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic. Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS,ABS, PA, PLA, PET waste plastic materials recycling field.
Main Features
●The plastic material feed through belt conveyor get into the compactor.

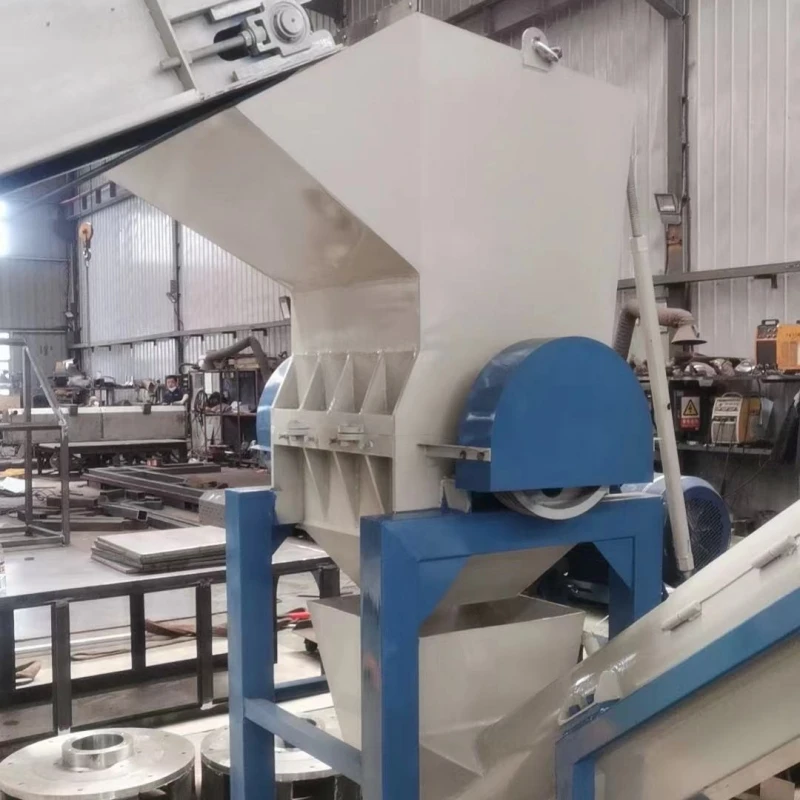

●Metal detector can be installed on conveyor, to protect the compactor and extruder machine.The rotatory blades of compactor will cut up incoming scraps.
● Frictional heating which caused by high speed rotatory blades and stationary blades will heat and let scraps shrinking just below their agglomerating point.
● Optimal designed guide structure compacts the material and directs it into extruder screw.
●A specialized single screw extruder applied to gently melt the pre-compacted material.
●The plastic scraps will be well melted, plasticized in the extruder.
●With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
●Metal detector can be installed on conveyor, to protect the compactor and extruder machine.The rotatory blades of compactor will cut up incoming scraps.
● Frictional heating which caused by high speed rotatory blades and stationary blades will heat and let scraps shrinking just below their agglomerating point.
● Optimal designed guide structure compacts the material and directs it into extruder screw.
●A specialized single screw extruder applied to gently melt the pre-compacted material.
●The plastic scraps will be well melted, plasticized in the extruder.
●With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
●A screen changer can be installed before die head to remove some metal, wood, dust, paper such impurities to get high quality output plastic melt.

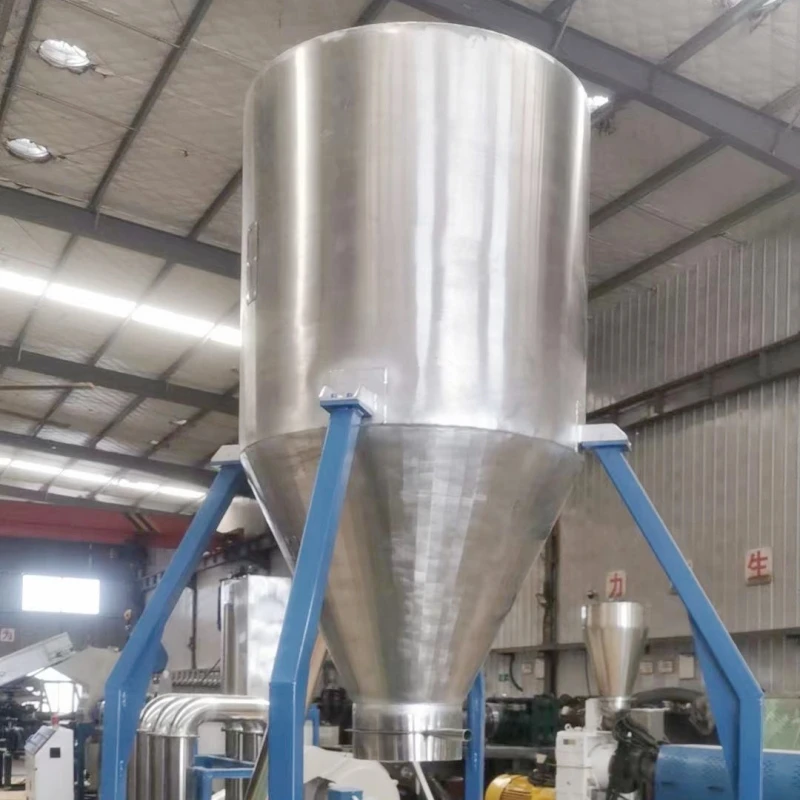

●Die-face water ring pelletizing system set as the standard granulating method to get uniform size plastic pellets. ●The pellets would be cooled by water and dried by centrifugal dryer and finally conveyed into storage silo.
Item | RMSJ-70*33 | RMSJ-80*33 | RMSJ-90*33 | ||
Screw Diameter | 70mm | 80mm | 90mm | ||
Fiber Diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm | ||
Fiber Type | PP/PE/HDPE Monofilament Yarn For Making Rope or Net | ||||
Ratio of L/D | 33 | 33 | 33 | ||
Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min | ||
Drawing Ratio | 4-10 | 4-10 | 4-10 | ||
Cooling Mode | Water cooling | Water cooling | Water cooling | ||
Power Consumpstion | 100KW/65KW | 130KW/80KW | 150KW/100KW | ||
Max Output capacity | 1200KG/24H | 2000KG/24H | 3000KG/24H | ||
Machine Dimension(L*W*H) | 20*3*2.5M | 23*3*2.5M | 27*3*2.5M | ||
Details Images
Our company
Company Introduction
Rope Net Group was founded in April 2002.The production of our company is machinery which can produce all kinds of rope,twine,net and webbing,all these machines are independently designed and researched by ourselves.The products mainly include extruder,ring twister,rope machine,rope packing machine etc.
We have over 1000 employees,machine can be customized.Now we are one of the most professional companies in China.
Rope Net Group is awarded as”president unit of China textile industry association”.
We have over 1000 employees,machine can be customized.Now we are one of the most professional companies in China.
Rope Net Group is awarded as”president unit of China textile industry association”.
Pre-sale service
* Inquiry and consulting support.
* Sample testing support.
* 24 Hours online consultation
* Visit our factory at anytime.
* Inquiry and consulting support.
* Sample testing support.
* 24 Hours online consultation
* Visit our factory at anytime.
After-sale service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Material Choose
All of our machinery parts or electrical devices are in line with national standards
All of our machinery parts or electrical devices are in line with national standards
Certifications
Related Product
Ringing twister
Rope making machine
Inflow twister machine
Why trust Us
What can we do for you?
1).Strong material, we use new strong material at main axis, which is important for stability, use time, running smooth,and
produce the product more attractive. Good quality motor and electrical parts ,guarantee the use time and running of the machine. We can change the motor brand as you need.
2).Professional technology team. We have professional and strong technical team which service you during the whole business and after-sale.The engineer can change the machine as your production need. And customize the machine according to your product and actual production need.
3).Reliability after-sale team, we can send engineers to your factory for installing the machine and teaching the staff using the machine skillfully .
4)Strictly quality control for machine with competitive price.
