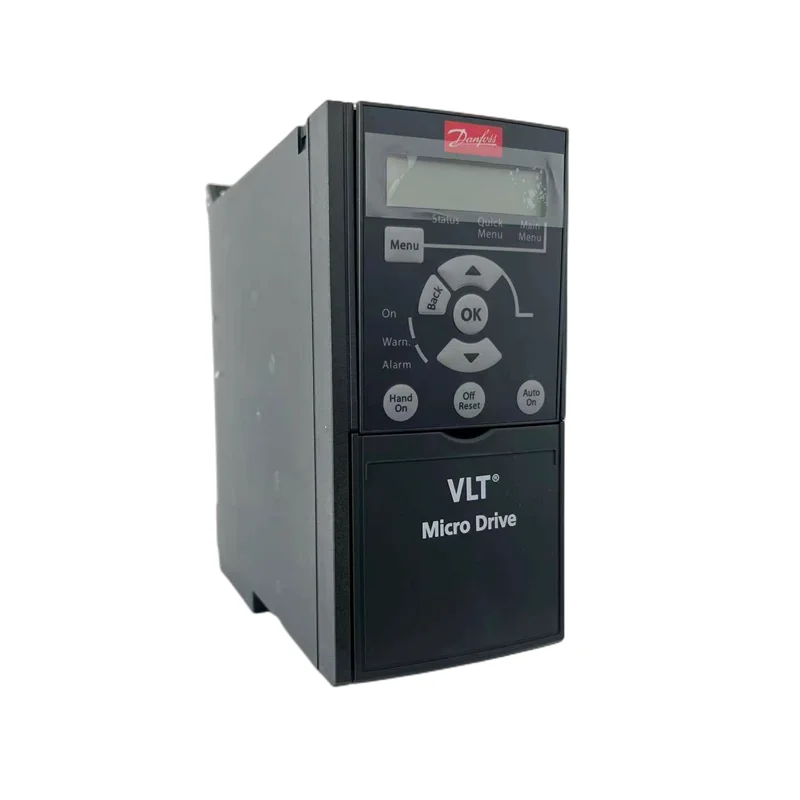

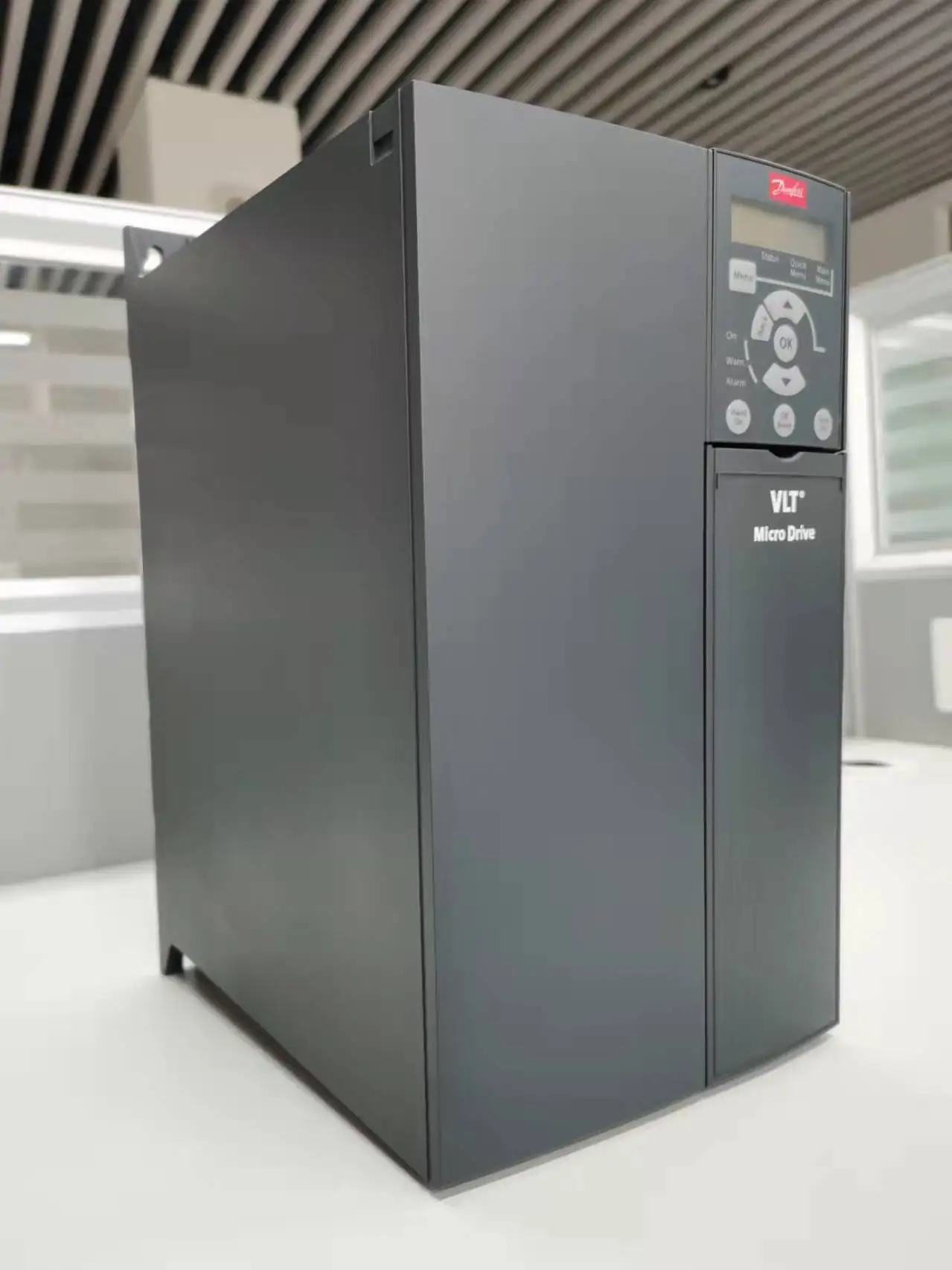

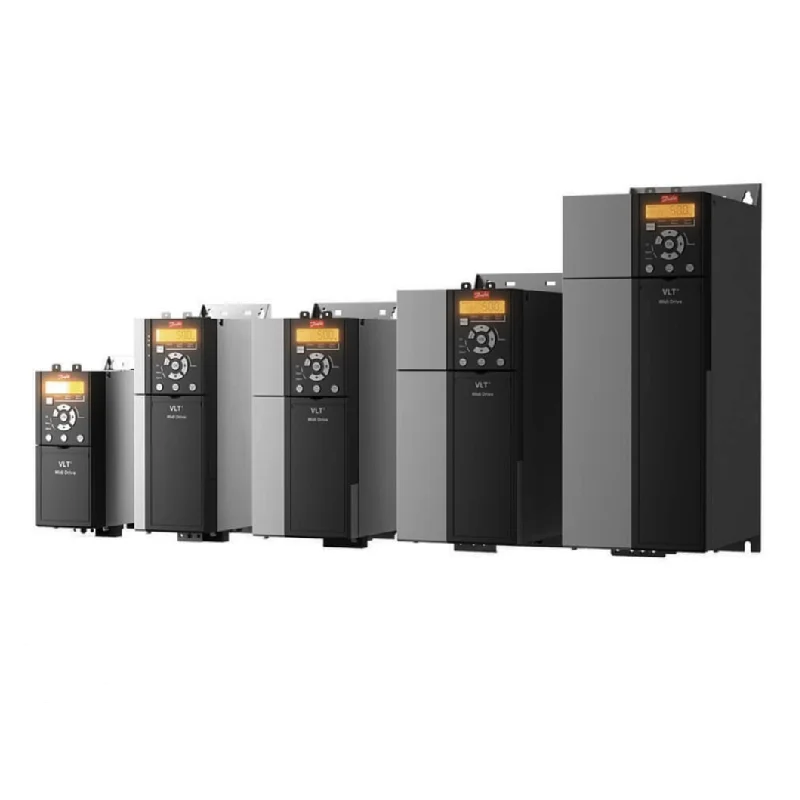

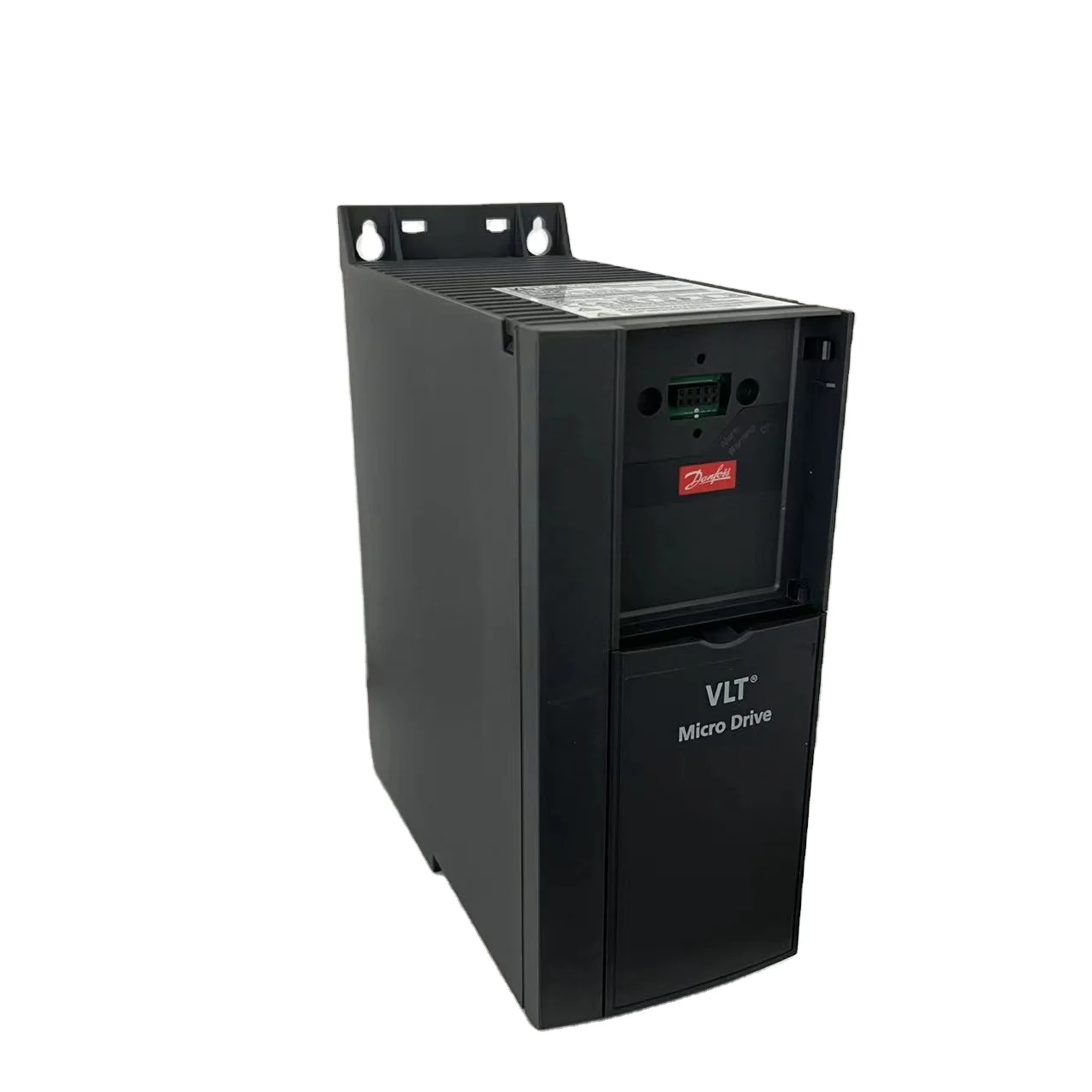

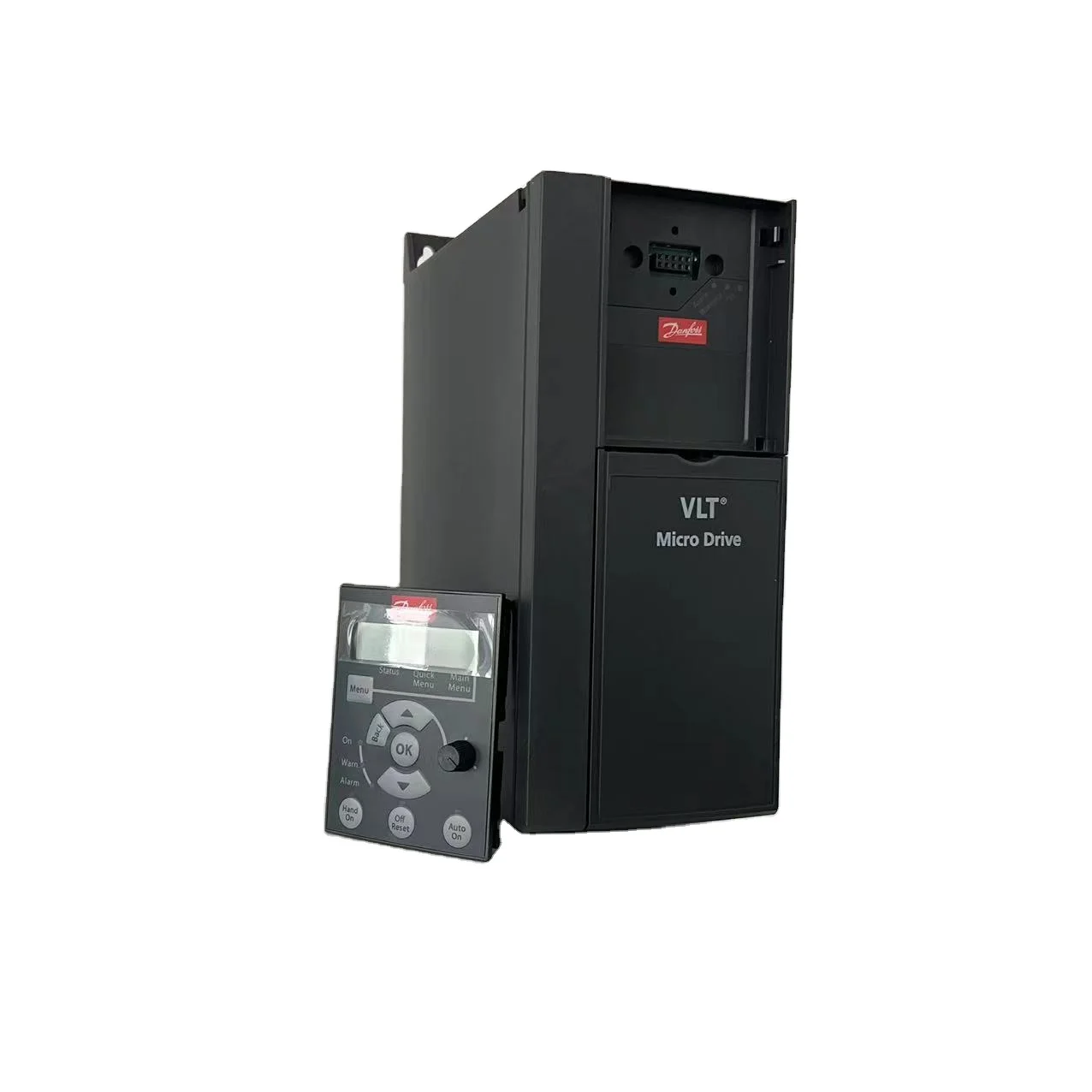

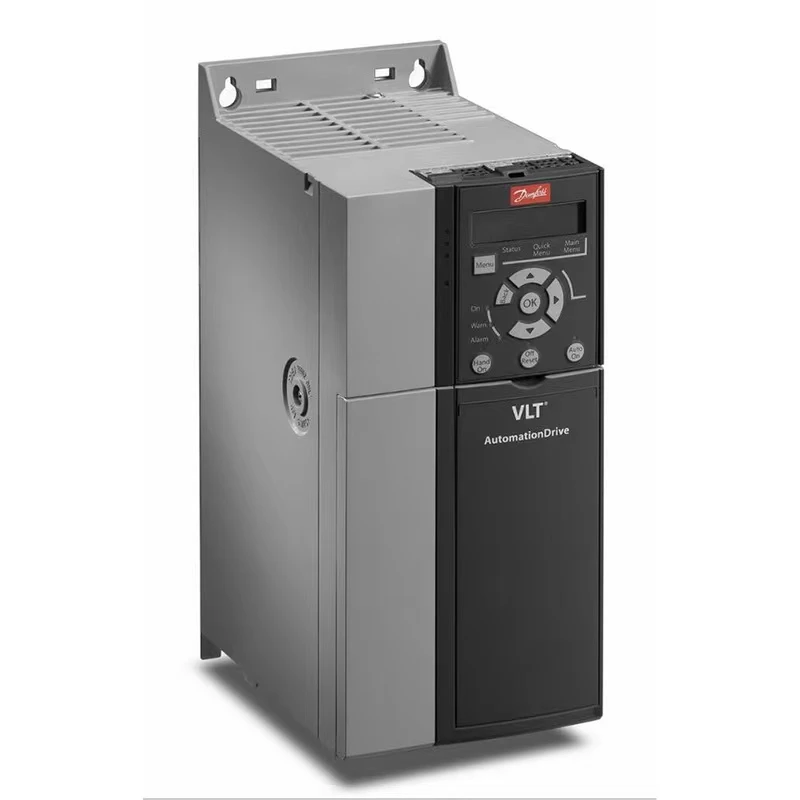

Original 100% brand new Danfoss inverters FC 51 FC 360 FC 101 FC 302 Series stock danfoss vfd
- Category: >>>
- Supplier: Shanghai Fmz Industry Co. Ltd.
Share on (1600895154265):
Product Overview
Description
Product Description
Product specifications
Model | Power | Power supply | Output current (A) | ||
FC-051PK75T4E20HXXXCXXXSXXX | 0.75KW | Three-phase alternating 380V-440V 50Hz/60Hz | 2.2 | ||
FC-051P1K5T4S20HXXXCXXXSXXX | 1.5KW | 3.7 | |||
FC-051P4K0T4E20HXBXCXXXSXXX | 4KW | 9 | |||
FC-051P5K5T4E20HXBXCXXXSXXX | 5.5KW | 12 | |||
FC-051P7K5T4E20HXBXCXXXSXXX | 7.5KW | 15 | |||
FC-051P11KT4E20HXBXCXXXSXXX | 11KW | 23 | |||
FC-051P15KT4E20HXBXCXXXSXXX | 15KW | 31 | |||
FC-051P18KT4E20HXBXCXXXSXXX | 18.5KW | 37 | |||
FC-051P22KT4E20HXBXCXXXSXXX | 22KW | 43 | |||
Packing & Delivery
1) Trade Term: FOB Shanghai/Yiwu/Guangzhou/Shenzhen
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)

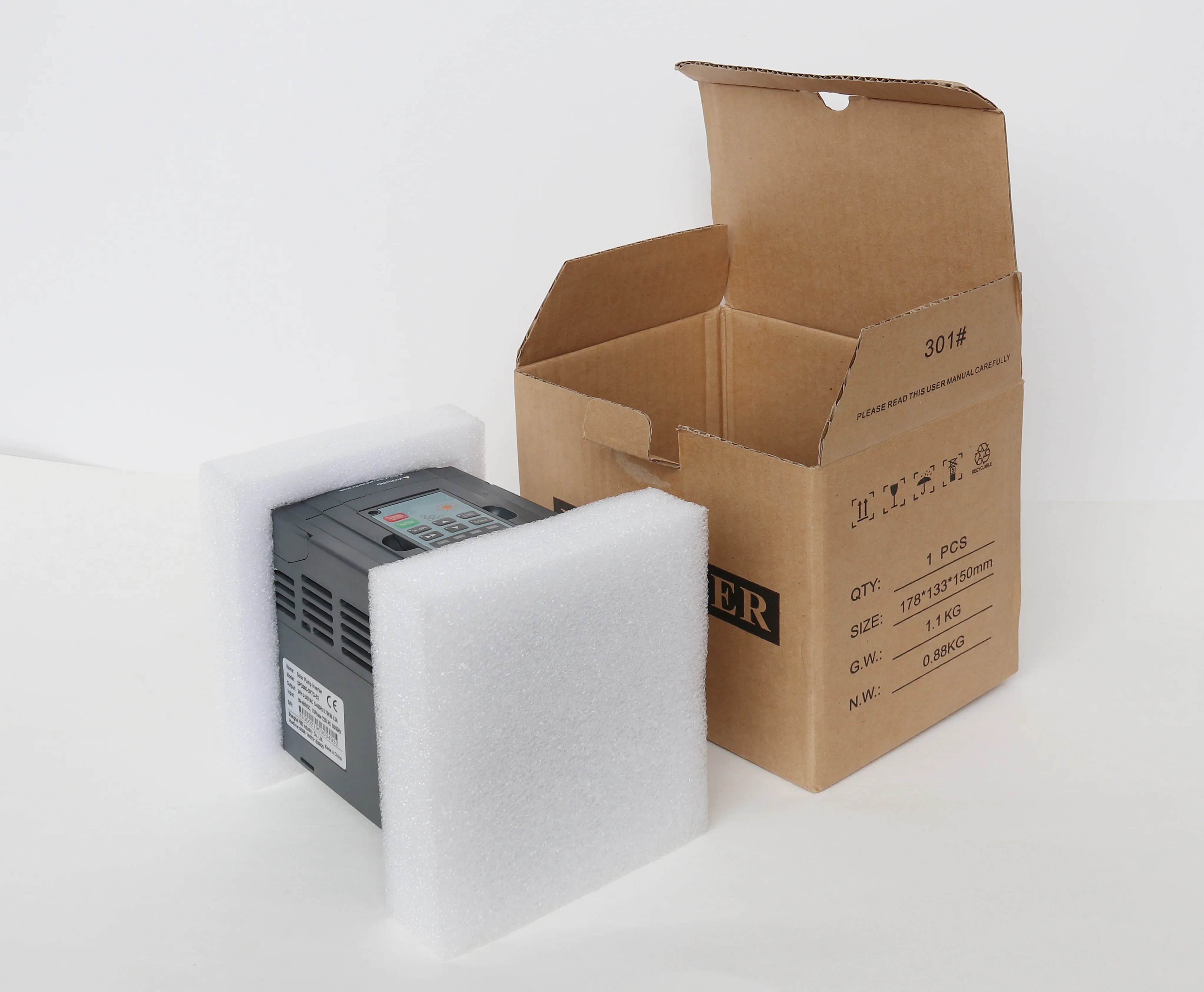

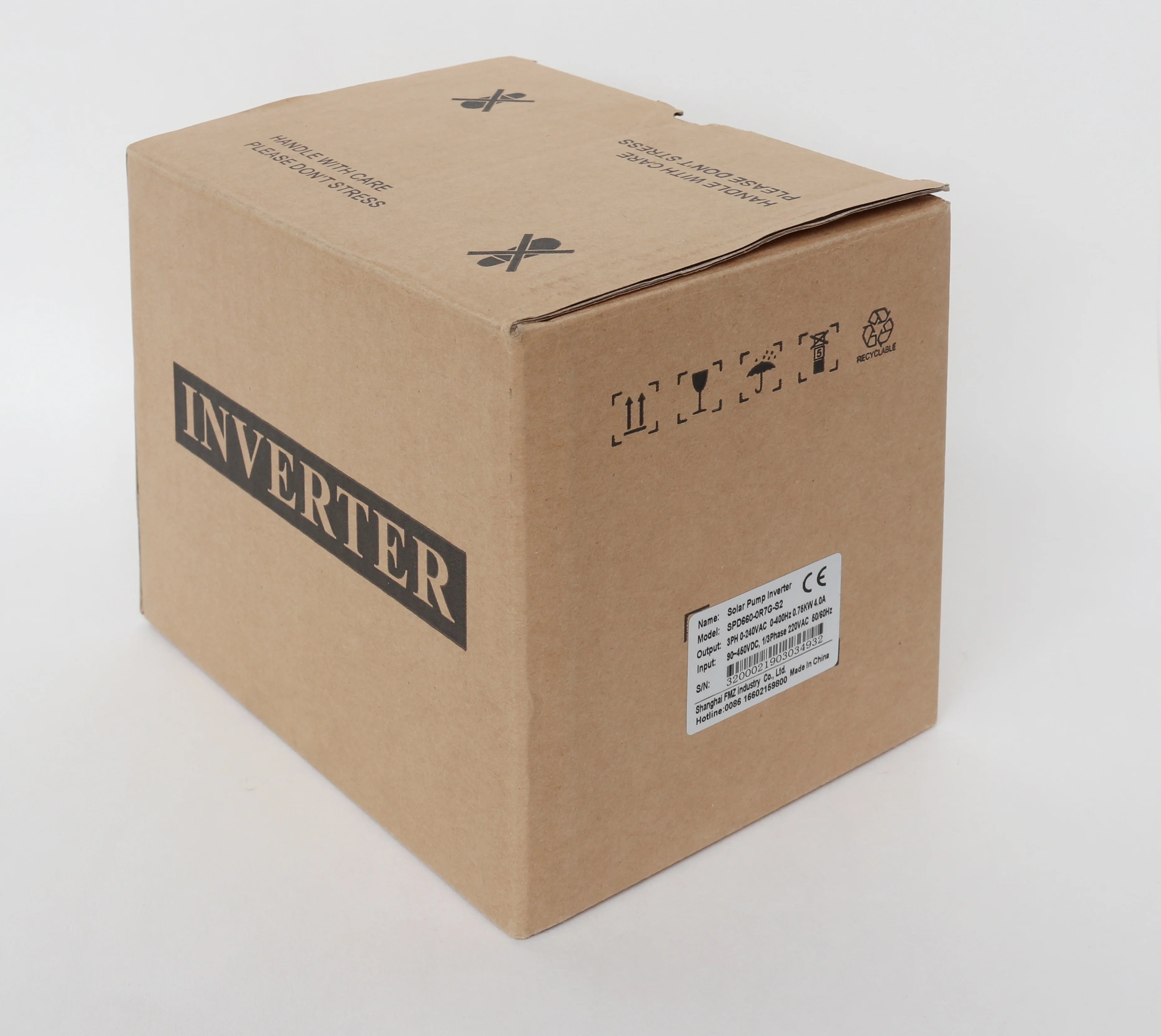

2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(If there is any special request, the packing cost should be re-negotiated)
3)Delivery
We support a variety of transportation methods such as ocean shipping, land transportation, air transport, express, etc., and can also be consigned by the customer's designated freight forwarder.You can be negotiated with us.
Lead time:
Can be negotiated.
Sample order: | 1~2 working days for delivery. | ||||||
Large order: | 10-20 working days for delivery. | ||||||
Application
(1) constant pressure water supply control by frequency converter
A: Electric contact pressure gauge control (the simplest control method)
Use the electric contact pressure gauge to control the water pressure.
You only need to connect 2 wires, one from the green needle and the other from the black needle, respectively connected to the upper 2 of the 3 terminals of the electric contact pressure gauge (some electric contact table may be different). When the water pressure is low, the black needle is underneath the green needle, and the frequency converter is in the acceleration start state. When the water pressure is high, the black needle is on the top of green needle, and the frequency converter is in the deceleration stop state. Very simple and easy to maintain.
For this frequency converter, the debugging steps are as follows:
① Connect the two wires from the electric contact pressure gauge,
one wire of the start signals to X1, and the other wire to GND
(do not need to distinguish between positive and negative pole,
please connect the start signal after setting all parameters).
② Set parameter F0.01=1 to select external terminal to start control.
③ Turn up the speed control knob on the panel to the maximum.
④ Frequency converter parameter setting: F0.20=3 (default value), F0.09=60, F0.10=60, F0.37 =1
It can start automatically after power on. If it does not start, you can use a wire to directly connect X1 and GND to see if it starts. If it still fails, it means there is a problem with the internal settings of the frequency converter. If it can be started, it means the external electric contact meter or circuit problem. You can check whether the two wires on the electric contact are connected. If the black needle is lower than the green needle, it should be connected, and if the black needle is higher than the green needle, it should be disconnected.
Use the electric contact pressure gauge to control the water pressure.
You only need to connect 2 wires, one from the green needle and the other from the black needle, respectively connected to the upper 2 of the 3 terminals of the electric contact pressure gauge (some electric contact table may be different). When the water pressure is low, the black needle is underneath the green needle, and the frequency converter is in the acceleration start state. When the water pressure is high, the black needle is on the top of green needle, and the frequency converter is in the deceleration stop state. Very simple and easy to maintain.
For this frequency converter, the debugging steps are as follows:
① Connect the two wires from the electric contact pressure gauge,
one wire of the start signals to X1, and the other wire to GND
(do not need to distinguish between positive and negative pole,
please connect the start signal after setting all parameters).
② Set parameter F0.01=1 to select external terminal to start control.
③ Turn up the speed control knob on the panel to the maximum.
④ Frequency converter parameter setting: F0.20=3 (default value), F0.09=60, F0.10=60, F0.37 =1
It can start automatically after power on. If it does not start, you can use a wire to directly connect X1 and GND to see if it starts. If it still fails, it means there is a problem with the internal settings of the frequency converter. If it can be started, it means the external electric contact meter or circuit problem. You can check whether the two wires on the electric contact are connected. If the black needle is lower than the green needle, it should be connected, and if the black needle is higher than the green needle, it should be disconnected.
(2) Two speed setting mode control
Equipment requirements: use the potentiometer knob to adjust the speed during forward rotation, and use multi-speed low-speed operation during reverse rotation.
①Parameter setting: F0.02=1, F0.03=3, F1.17=10 (reverse running
speed 10HZ)
②Connection: 3 wires of the potentiometer are connected to GND, AVI, +10V, the forward rotation signal is connected to X1 and GND, the reverse signal is connected to X2, GND, and X2 and X3 are short-circuited (set the frequency at the same time when reverse Select the setting value of multispeed 1).
①Parameter setting: F0.02=1, F0.03=3, F1.17=10 (reverse running
speed 10HZ)
②Connection: 3 wires of the potentiometer are connected to GND, AVI, +10V, the forward rotation signal is connected to X1 and GND, the reverse signal is connected to X2, GND, and X2 and X3 are short-circuited (set the frequency at the same time when reverse Select the setting value of multispeed 1).
(3) Jog control
Equipment that needs jog control:
① Parameter setting: F0.02=1, F2.15=1 (forward jog), F2.16=2
(reverse jog), forward jog frequency is given by parameter F1.09, reverse point The dynamic frequency is given by parameter F1.10. The jog acceleration time is set by parameter F1.11, and the jog deceleration time is set by parameter F1.12.
② Wiring: the forward jog signal is connected to GND and X3, and the reverse jog signal is connected to GND and X4.
① Parameter setting: F0.02=1, F2.15=1 (forward jog), F2.16=2
(reverse jog), forward jog frequency is given by parameter F1.09, reverse point The dynamic frequency is given by parameter F1.10. The jog acceleration time is set by parameter F1.11, and the jog deceleration time is set by parameter F1.12.
② Wiring: the forward jog signal is connected to GND and X3, and the reverse jog signal is connected to GND and X4.
(4) Torque is insufficient when running at low speed (rotation is
weak)
weak)
Adjust parameter F0.14, gradually adjust from small to large. Don't adjust it too large at the beginning
. If it is adjusted too large, it may report OC overcurrent fault.
Adjust parameter F0.15, which is the cutoff frequency of torque boost.
. If it is adjusted too large, it may report OC overcurrent fault.
Adjust parameter F0.15, which is the cutoff frequency of torque boost.

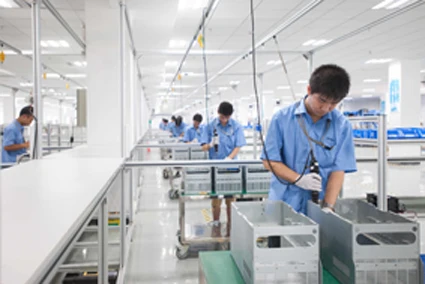

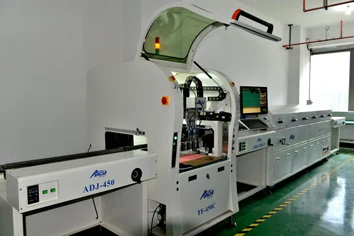

Company Profile
Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil, plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to 'Always be with you and enjoy success together'.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil, plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to 'Always be with you and enjoy success together'.
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter
4.Why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market.
Own software to offer customized service.
We accept OEM service with technical support.
CE &TUV, ISO9001, CCC certificate.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter
4.Why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market.
Own software to offer customized service.
We accept OEM service with technical support.
CE &TUV, ISO9001, CCC certificate.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
