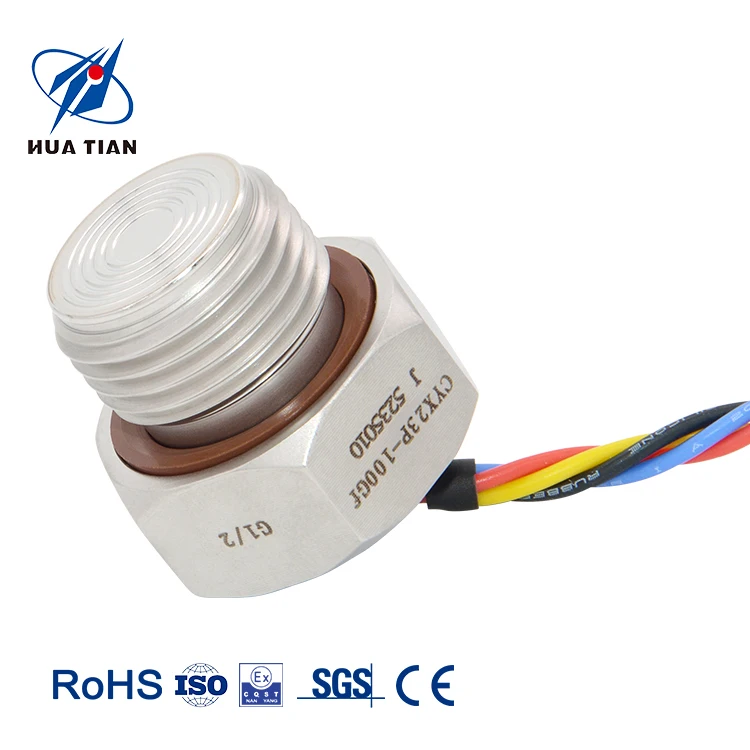

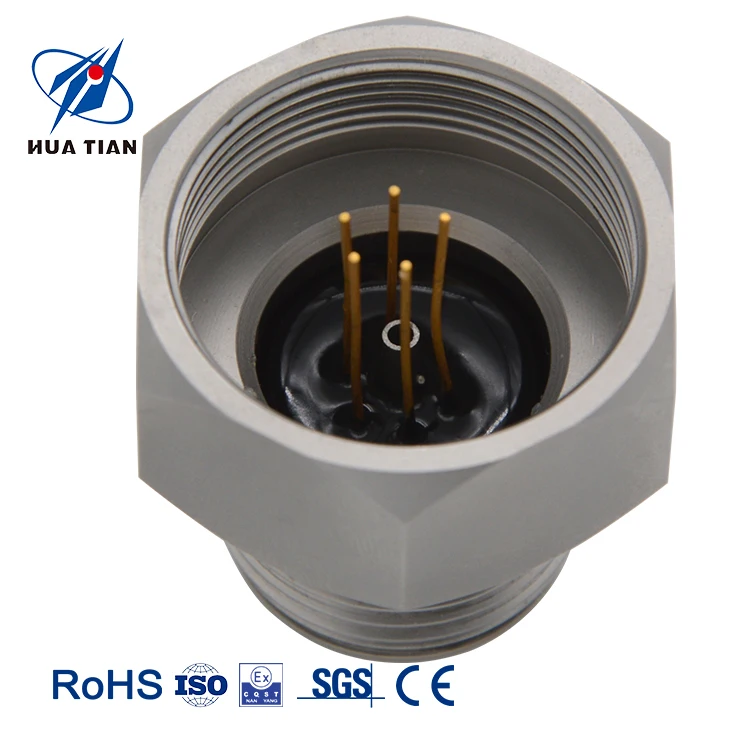

China Huatian CYX23P sensitive joint type thin film gas and liquid absolute flat pressure sensor 4 20ma
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1600895175665):
Product Overview
Description
China Huatian high precise CYX23P thin film hydraulic pressure sensor with 4 color silicone rubber flexible conductor
Product Parameters
Parameters | Typical value | Maximum | Unit | |
Zero output | + 1 | + 2 | MV | |
Nonlinearity | 0.2 | 0.5 | %FS | |
Hysteresis | 0.05 | 0.08 | %FS | |
Repeatability | 0.05 | 0.08 | %FS | |
Input / output impedance | 2.6 | 5.0 | K Ω | |
Zero temperature drift note 1 | ±0.4 | ±1.0 | %FS, @25℃ | |
Sensitivity temperature drift note 2 | ±0.4 | ±1.0 | %FS, @25℃ | |
Long term stability | 0.2 | 0.3 | %FS / year | |
Exciting current | 1.5(the maximum input voltage can be 10V) | mA | ||
Insulation resistance | 500 (100VDC) | M Ω | ||
Compensation temperature note 3 | 0～50; -10℃～70℃ | ℃ | ||
Working temperature | -40～+125 | ℃ | ||
Storage temperature | -40～+125 | ℃ | ||
Response time | ≤1 | ms | ||
Housing and diaphragm material | 316L stainless steel | |||
Ed seal ring | 18.5× 23.9 × 1.5mm Fluororubber note 4, nitrile rubber | |||
Measuring medium | Fluids compatible with 316L, nitrile rubber or fluoroelastomer | |||
Life (25 ℃) | > 1 × 108 pressure cycle (80% FS) | times | ||
Filling medium | silicone oil | |||
Products Description
CYX23/25 series pressure sensor:
The recommended standard thread connection is M20 × 1.5 and G1/2. The product is used for pressure detection of media compatible with stainless steel 316L, NBR or fluororubber.
Gauge type CYX23/25 series pressure sensor model + Y for negative pressure measurement
The negative pressure type is produced by negative pressure special process, which can reliably detect the pressure lower than atmospheric pressure. The range is between – 100kPa and 3MPa.
The negative pressure type is produced by negative pressure special process, which can reliably detect the pressure lower than atmospheric pressure. The range is between – 100kPa and 3MPa.
Details Images

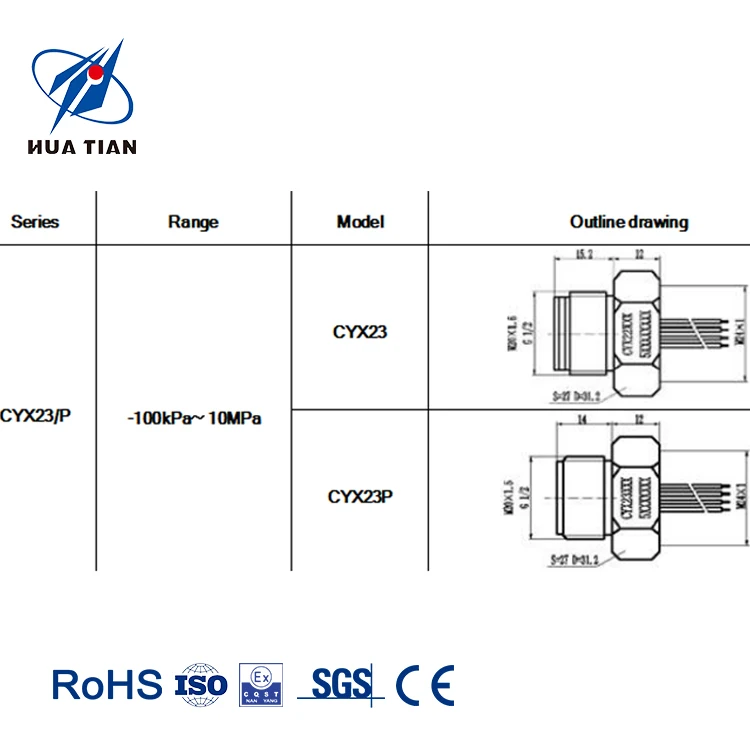

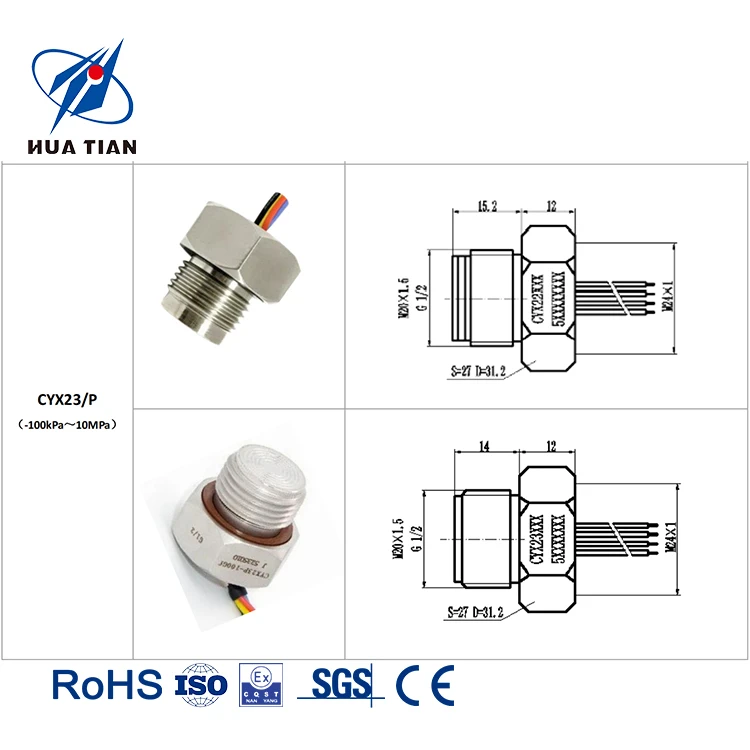

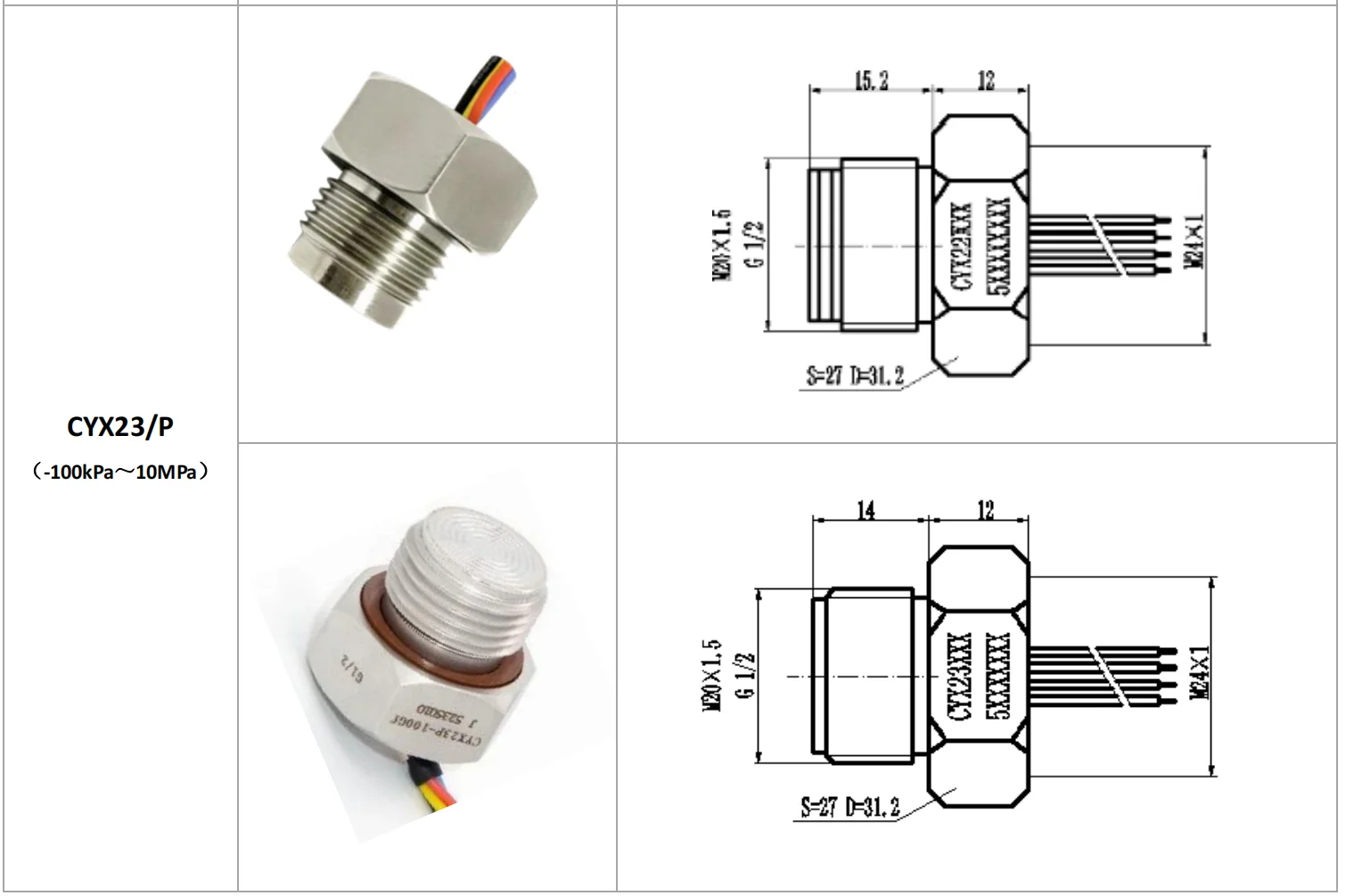

CYX23/25 series oil filled pressure sensor

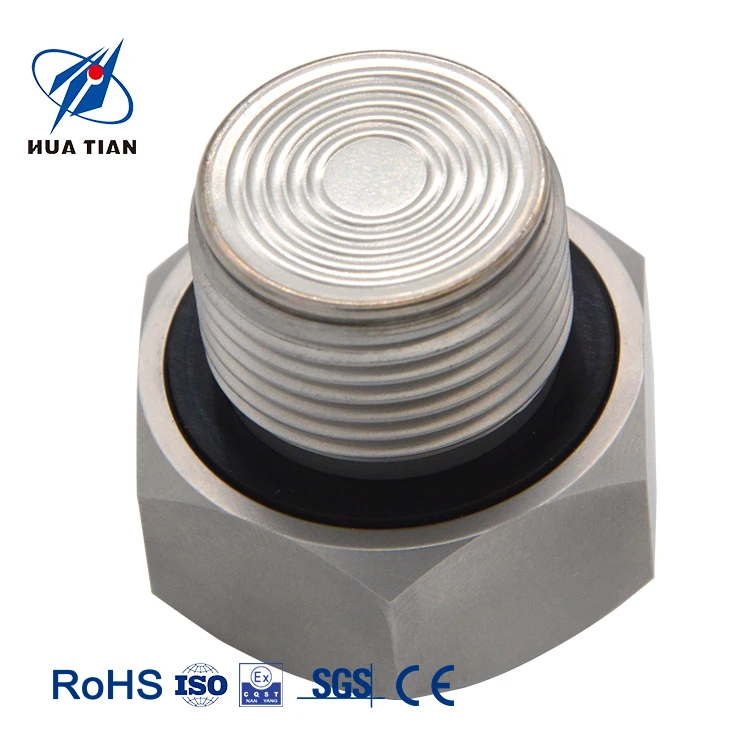

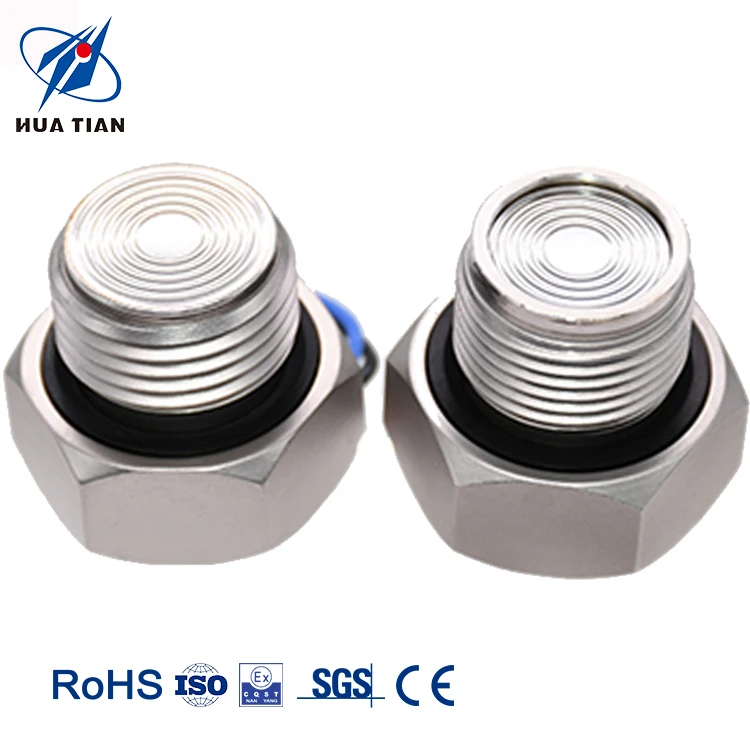

Joint type flat film sensitive device

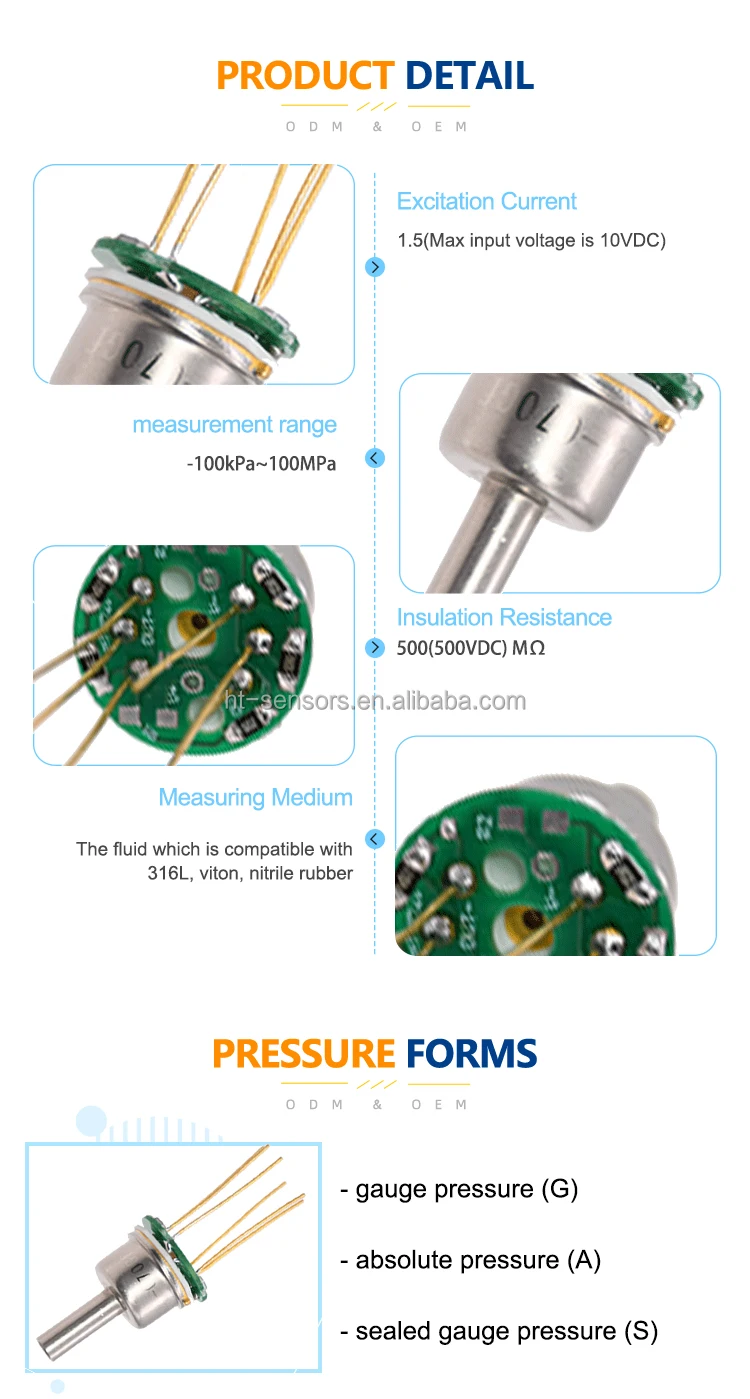

Core: International advanced highly stable and high precision silicon pressure chip
Excellent stability and excellent performance
Features:
the measuring range is 0kPa ～ 10KPa···10MPa
it has the form of gauge pressure G, absolute pressure A and sealing gauge pressure S
constant current / constant voltage power supply
isolated structure, suitable for a variety of fluid media
M20 × 1.5, G1/2 thread optional
all 316L stainless steel
it has the form of gauge pressure G, absolute pressure A and sealing gauge pressure S
constant current / constant voltage power supply
isolated structure, suitable for a variety of fluid media
M20 × 1.5, G1/2 thread optional
all 316L stainless steel
