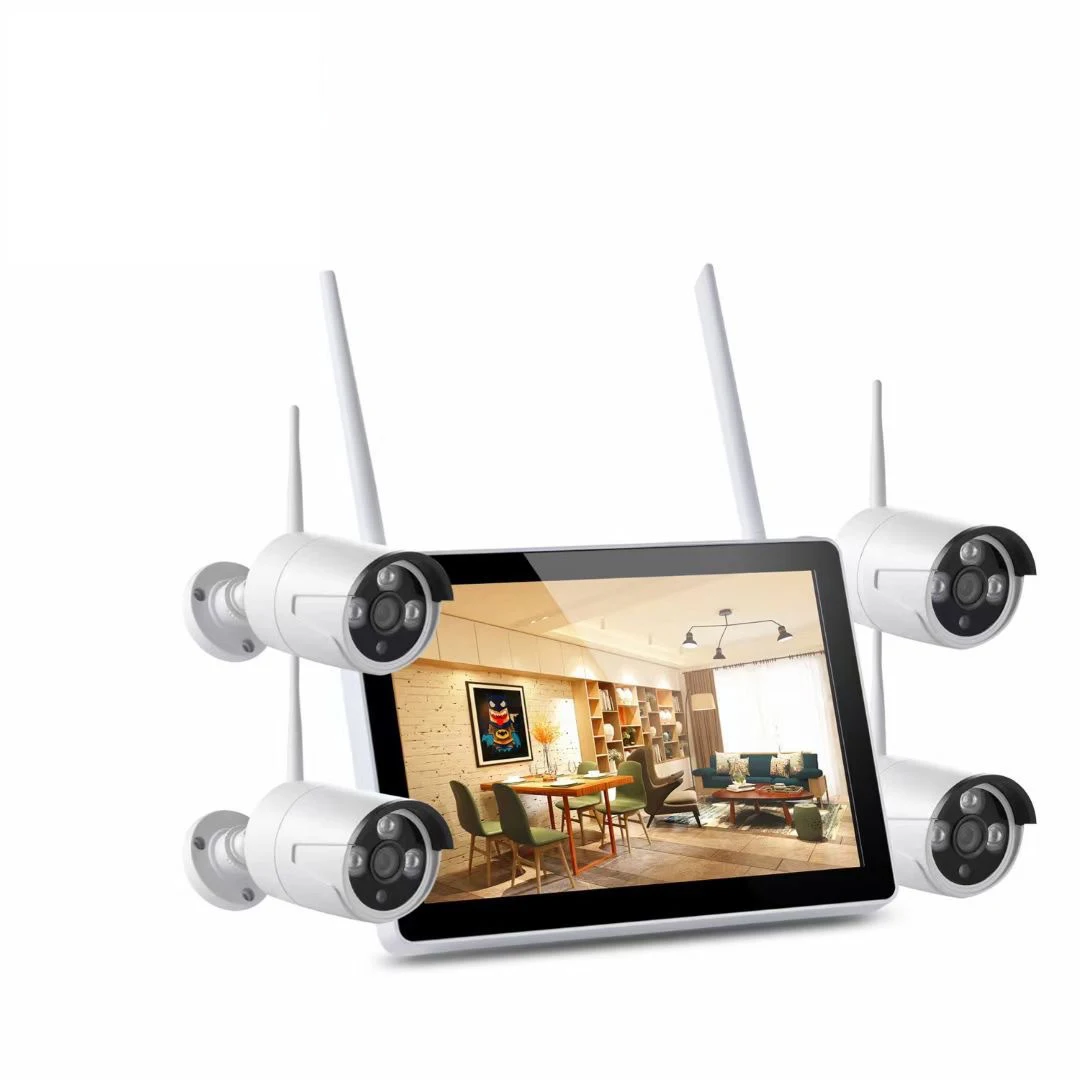

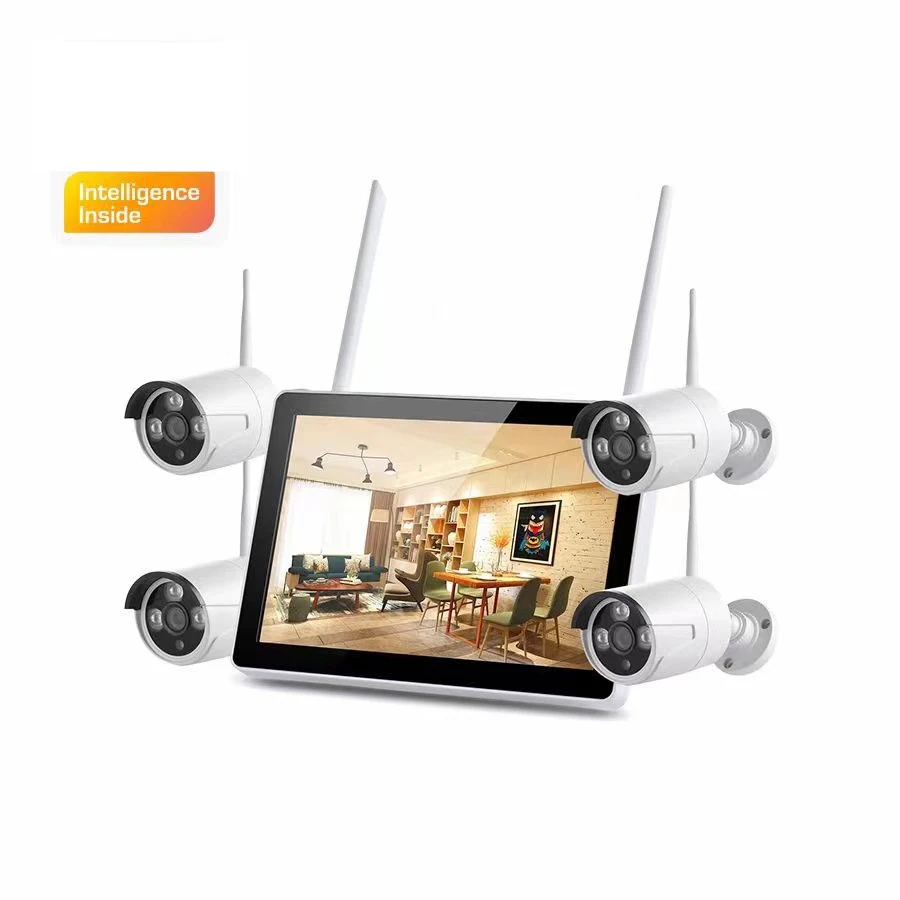

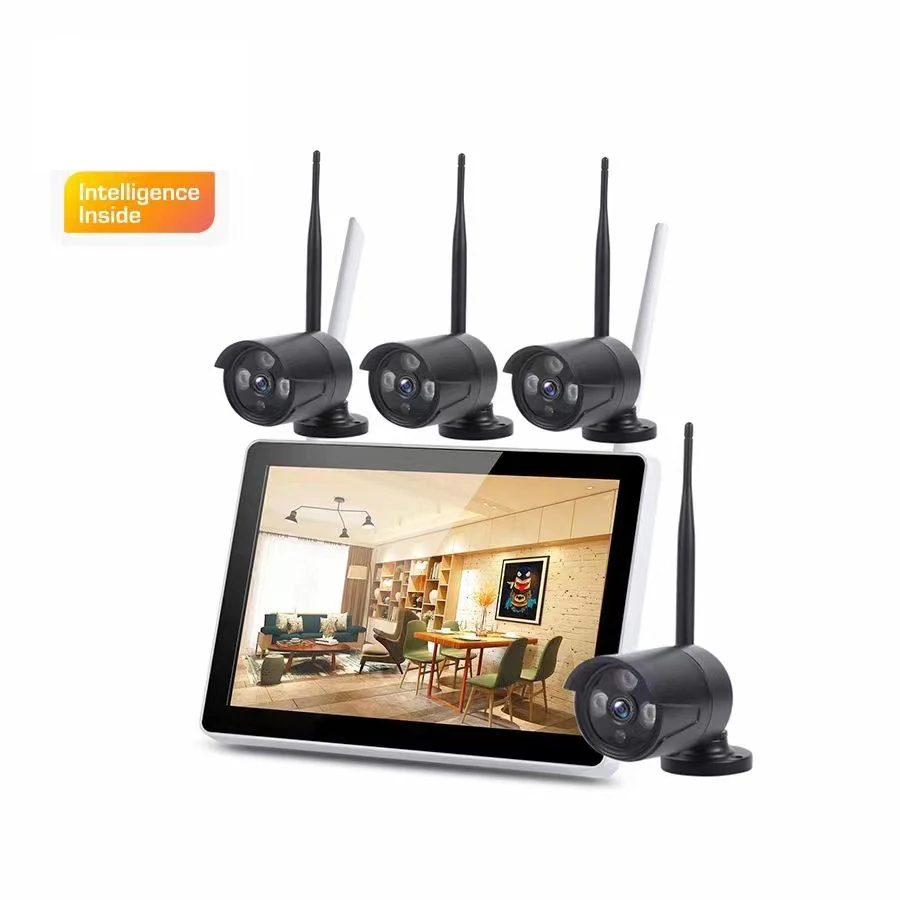

1080p hd mini wifi wireless ip hidden camera outdoor 12inch LCD security camera
- Category: >>>
- Supplier: Shenzhen Jin Ding Shi Security Equipment Co. Ltd.
Share on (1600895190825):
Product Overview
Description
Product Description
Specification
perating System | Embedded Linux OS | |
Screen | Build in 12.5 inch HD LCD Screen (resolution:1280*1024) | |
Network Video | 4CH | |
Network video input broadbank | 20Mbps | |
AUdio Bitrate | 64Kbps | |
HD M1 input | 1ch,resolution:1024x768,1366x768, | |
1440x900,1920x1080p | ||
VGA output | 1ch,resolution:1024x768,1366x768, | |
1440x900,1920x1080p | ||
Video Resolution | 1080P | |
synch-playback | 4CH | |
Video/Capture mode | Maual,Time,Motion,Alarm | |
Playback mode | Real time,Routine,Event | |
Backup | USB backup | |
Alarm Input | 4ch/8CH (optional) | |
Alarm Output | 1ch (optional) | |
Type | 1*SATA interface | |
Max Capacity | 4 TB at most for each | |
Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface | |
USB Interface | 2 USB 2.0 | |
Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) | |
DHCP (Automatically obtain an IP address), etc… | ||
Power Supply | DC12V3A | |
Power Consumption (W) | ≤5W(Without HDD) | |
Operate Temperature (°C) | -10℃~+55℃ | |
Working Humidity (%) RH | 10%~90% | |
Size | 257mm(W)×210mm(V)×45mm(H) | |
Weight(excluding HDD) | ≤1Kg | |
IPC Specification | ||
Sensor | 1/4" Progressive Scan Sensor | |
Signal System | PAL/NTSC | |
Resolution | 1080P | |
Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
Shutter | 1/25s to 1/25,000s | |
Lens | 3.6mm | |
OSD | Date Time & Title | |
White Balance | Auto | |
Day&Night | Auto / Color / BW | |
3D-DNR | Auto | |
Mirror/Flip | On / Off | |
Frame Specification | Three Streaming at the Same Time: | |
H.264 128x720@30fps or below | ||
H.264 640x480@30fps or below | ||
S/N | > 39.1 Db | |
Interface | RJ45 / WIFI 802.11b/g/n | |
Anti-thunder Level | Standard IEC61000-4-5 | |
Working Temperature | -20℃ to +60℃ / 20% to 90% RH | |
Power Input | DC12V-1A | |
Power consumption | ≤6W | |
Size | 205(L)×70(W)×55 (H)mm | |
Weight | 500g | |
Level of Protection | IP66 | |
