Full digital Trolley color doppler 3D 4D medical scan machine ultrasound
- Category: >>>
- Supplier: Xuzhou Sunbright Electronic Technology Co. Ltd.
Share on (1600895218079):
Product Overview
Description
Hot Picks
Product Description
Full-digital Trolley color doppler 3D 4D medical scan machine ultrasound
Application
Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal
Sales point: 128 elements + PW + CW + phased array probe + 4D volume probe + 3D + 4D
Sales point: 128 elements + PW + CW + phased array probe + 4D volume probe + 3D + 4D
More Specs

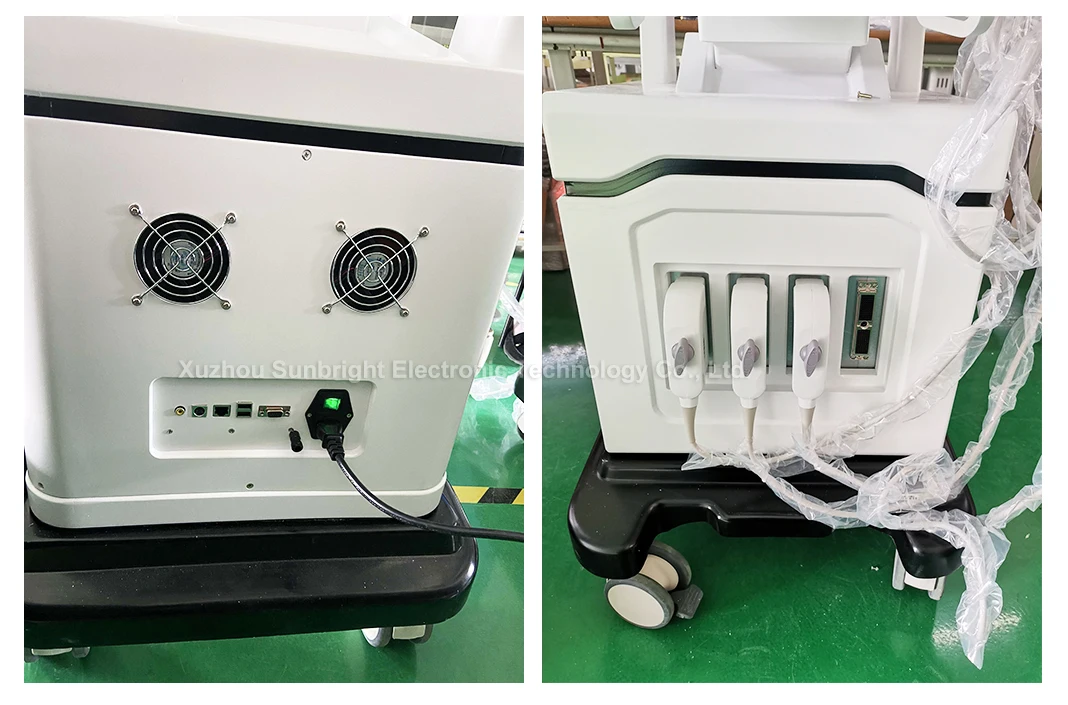

Connectivity/Media/Peripherals
Transducer Ports | 4 |
USB Ports | 4 |
Hard Disc | 64GB (SSD), 120G/200GB SSD (Optional) |
Footswitch | USB |
Ethernet Port | 2(100Mb/1000Mb) |
External Display | VGA, HDMI, |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
Printing Area | Image, report, Image+report |
Cine/Image Memory
Cine Memory | 1200 frame (max) |
Cine Review Speed | 1, 2, 4, 8 |
Cine Review Loop | YES |
Cine Capture Function | YES |
DICOM Connectivity
DICOM3.0 Compliant
3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
Technology
DICOM3.0 Compliant
3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
Technology
Panoramic Imaging Tech | ||||||||
All-digital signal processing Tech | ||||||||
Multi-beam formation Tech | ||||||||
Speckle Reduction Tech | ||||||||
Tissue Harmonic Imaging Tech | ||||||||
Dynamic Tissue Optimization Tech | ||||||||
Duplex & Triplex Synchronous Display | ||||||||
Directional Power Doppler | ||||||||
Imaging Parameters Preset | ||||||||
Tissue Special Image | ||||||||
PW Auto Trace | ||||||||
Update in line | ||||||||
CF+B mode in one screen | ||||||||
Complex Model Imaging | ||||||||
IMT auto measurements | ||||||||
Virtual convex array | ||||||||
Trapezoidal imaging | ||||||||

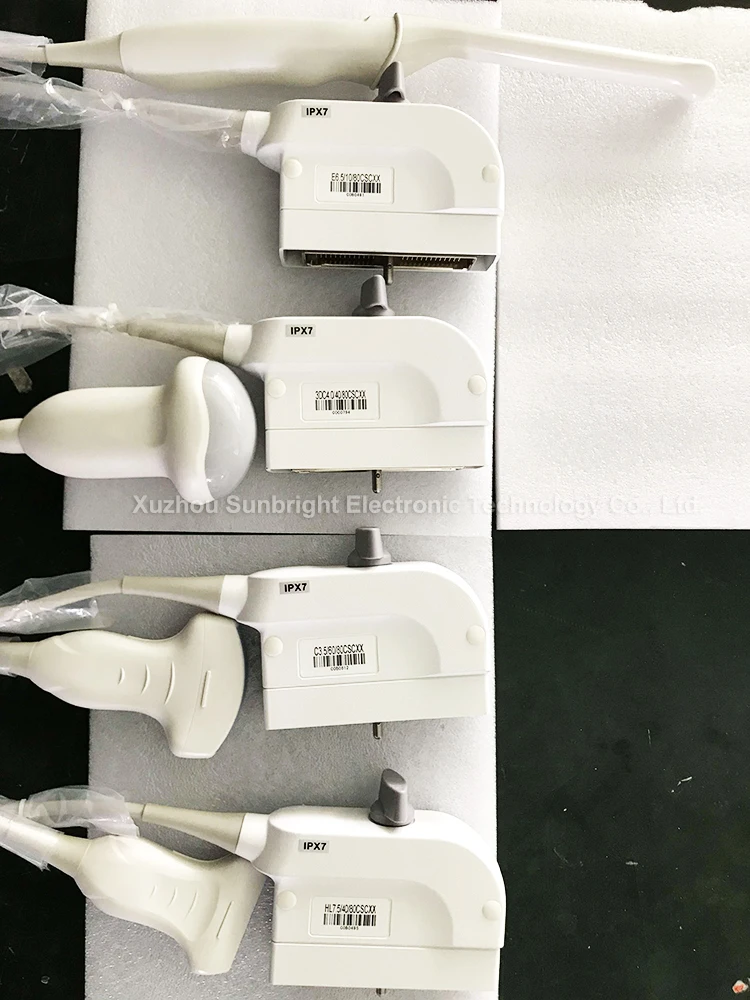

Probe | Convex Array Probe | Linear Array Probe | Intra-Cavity Probe | Micro-convex probe |
Frequency | Central 3.5 MHz (2.0MHZ to 10.0MHZ) | Central 7.5 MHz (6.0MHZ to 10.0MHZ) | Central 6.5 MHz (5.0MHZ to 9.0MHZ) | Central 4.0 MHz (2.0MHZ to 5.5MHZ) |
Pitch | 0.516mm | 0.352mm | 0.216mm | |
Radius | 60mm | N/A | 10 mm | |
Elements | 128 | 128 | 128 | 128 |
General Performance
Digital Broadband | 12288 channels |
Beam-former | Re-programmable |
Transmit Voltage | Adjustable (15 steps) |
Beam-former Frequency Range | 1~40 MHz |
Pan/Zoom
Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion
Hardware Specification
LED Monitor
Size (Diagonal) | 15" | ||||||
Contrast Ratio | 800:1 | ||||||
Resolution | 1024×768 pixels | ||||||
Brightness | 230 cd/m2 | ||||||
Color Depth | 24bit | ||||||
Rotate Angle | ± 90° | ||||||
Grey Levels | 256 | ||||||

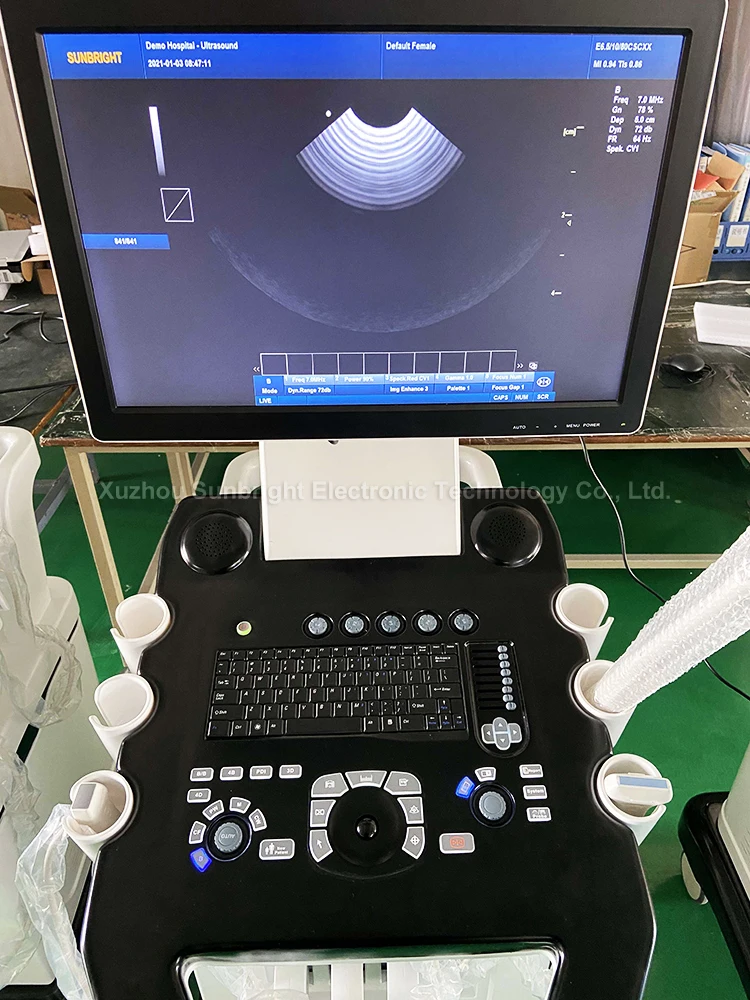

User Interface:
ser Permission settingIntuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
On/Off task light and back-lit illumination of control panel
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
UPS (Optional)
Embedded Speakers
Impedance: 4Ω
Power: 5 W
Imaging Modes
B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color, Simultaneous 2D/Color Compound, PW, Duplex/Triplex, CFM, CDE,
PD, Directional PD, CD
Power: 5 W
Imaging Modes
B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color, Simultaneous 2D/Color Compound, PW, Duplex/Triplex, CFM, CDE,
PD, Directional PD, CD
Imaging Performance
Startup Time (Max): Avg. < 90 seconds
Preset Switching Time: Avg. < 1 second
Storage Time (Image to Disk): Avg. < 0.5 second
Preset Switching Time: Avg. < 1 second
Storage Time (Image to Disk): Avg. < 0.5 second

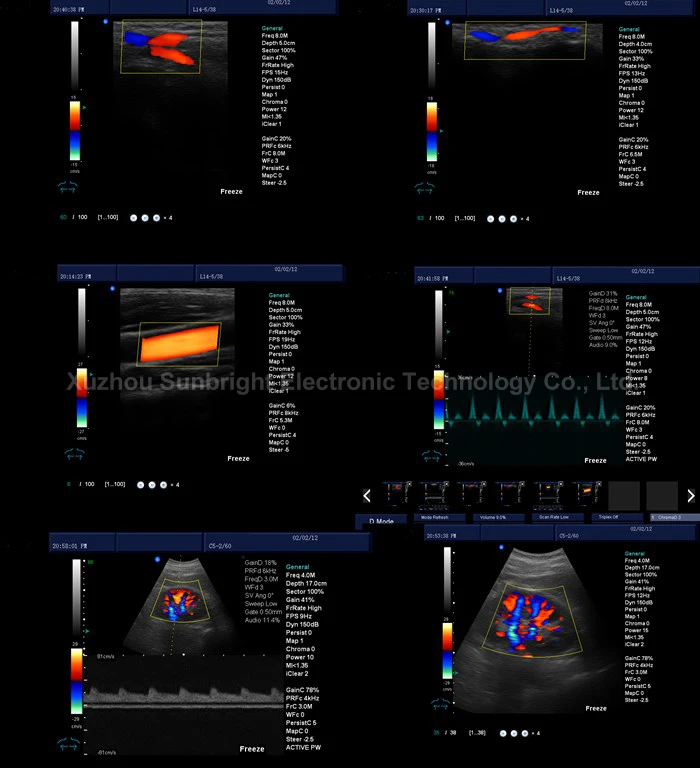

Scanning Images
Standard Congfiguration:
906B color Doppler 3D 4D main unit+one convex probe(128 elements)+lithium battery
15"LCD with high resolution
3D/4D software
CW and PW function
Two USB ports
Two probe connectors
One s-video out port
One video port
One power inlet
One convex probe(3.2M R50)
One VGA video converter
Plenty of measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
906B color Doppler 3D 4D main unit+one convex probe(128 elements)+lithium battery
15"LCD with high resolution
3D/4D software
CW and PW function
Two USB ports
Two probe connectors
One s-video out port
One video port
One power inlet
One convex probe(3.2M R50)
One VGA video converter
Plenty of measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
Recommend Products
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
