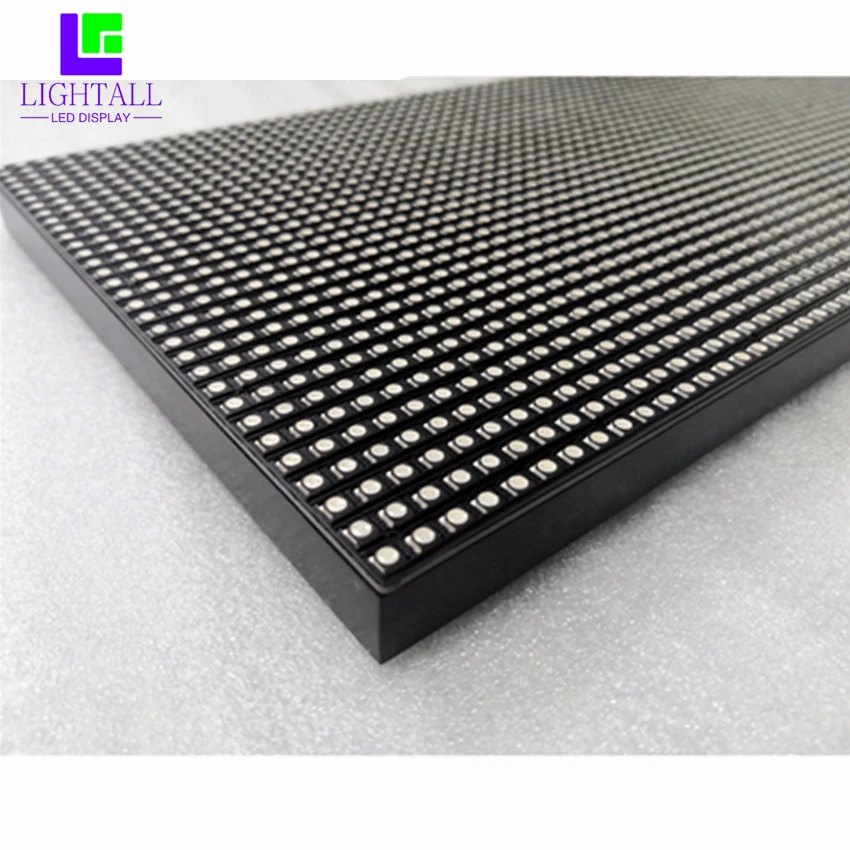

P6 Outdoor LED Module Full Color 3IN1 192x192mm 32x32 dots 1/8 Scanning Matrix Panel Waterproof LED Screen Module
- Category: >>>
- Supplier: Shenzhen Lightall Optoelectronic Co. Limited
Share on (1600895219671):
Product Overview
Description
Products Parameters
Outdoor P6 Full Color LED Matrix Hub75 LED Video Wall LED Screen Module | ||||||
Pixel Pitch | 6mm | Density | 27777 pixels/m2 | |||
Module Size | 192mm x 192mm | Module Resolution | 32x 32 pixels | |||
Pixel Configuration | SMD 1R1G1B | LED Lamp | SMD3535 | |||
Cabinet Size | 576mm x 576mm | Cabinet Resolution | 96x 96pixels | |||
Cabinet Thickness | 80mm | Cabinet Weight | 8.5 kg | |||
Viewing Angle | H: 160° V: 140° | Viewing Distance | 6 - 100m | |||
Refresh Rate | ≥3840Hz | Frequency Rate | ≥60 Hz | |||
Scan Mode | 1/8 scanning | Gray Scale | 16 grade adjustable | |||
Input Voltage | DC 5V | Brightness | ≥6500 nits | |||
Interface | HUB75 | Life Span | 100000 hours | |||
Warranty | 3 years | Certificate | CE/FCC/ROHS/CCC... | |||

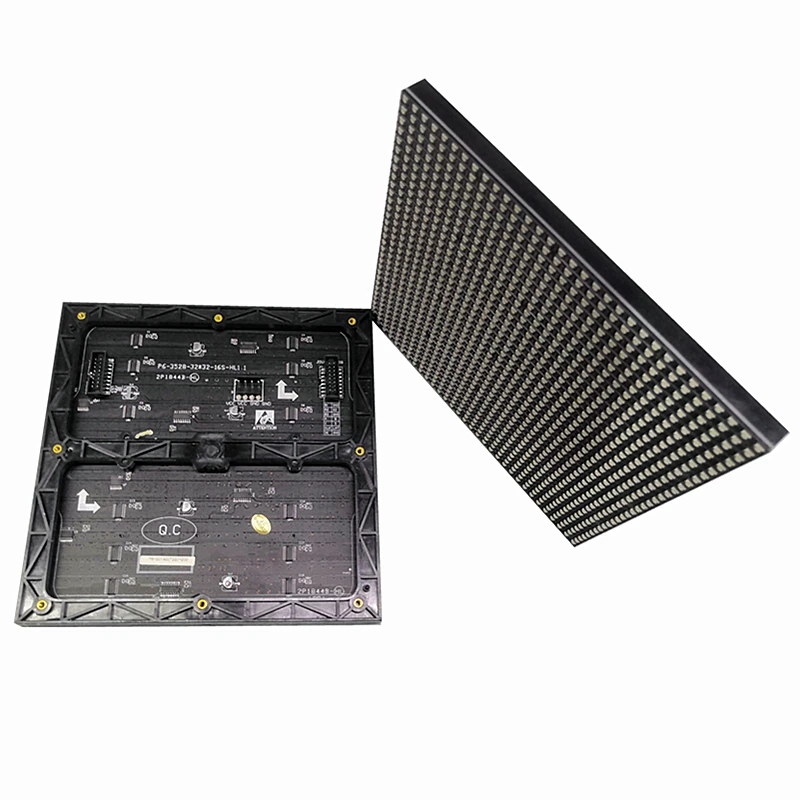

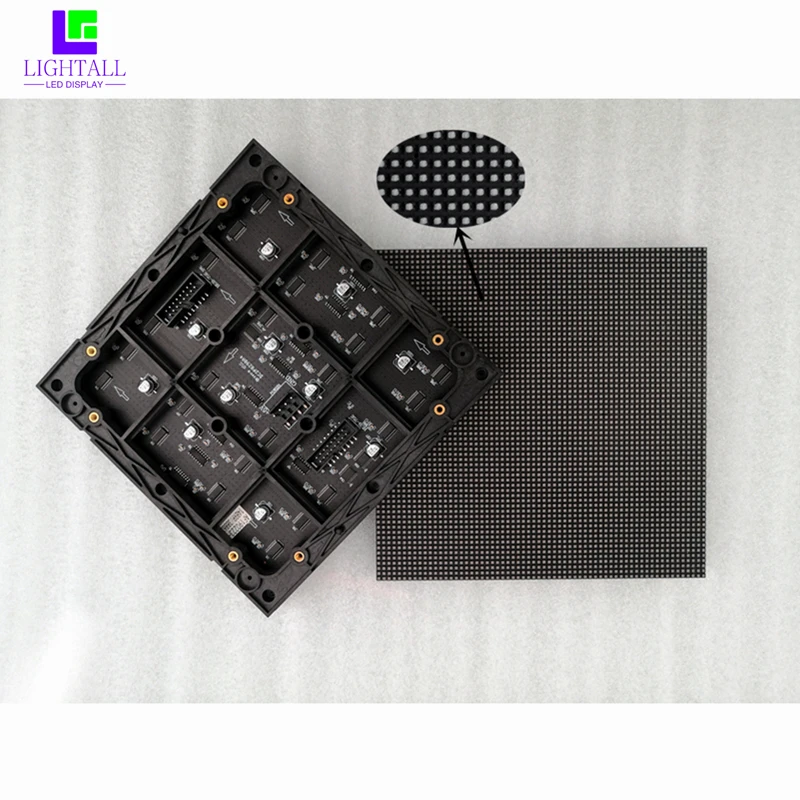

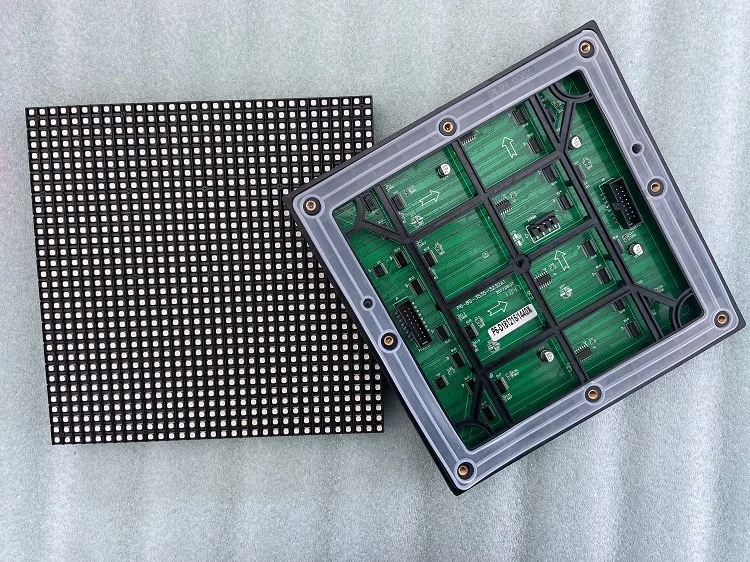

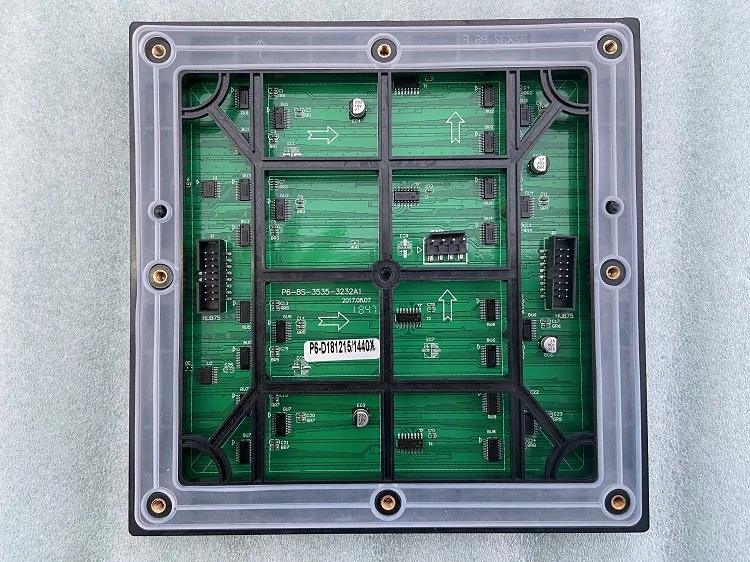

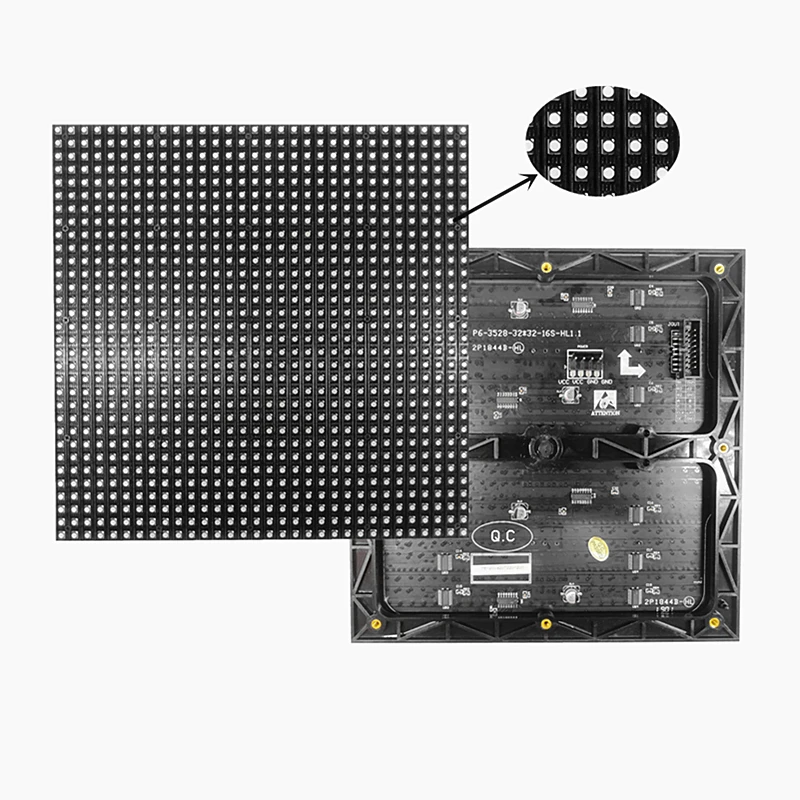

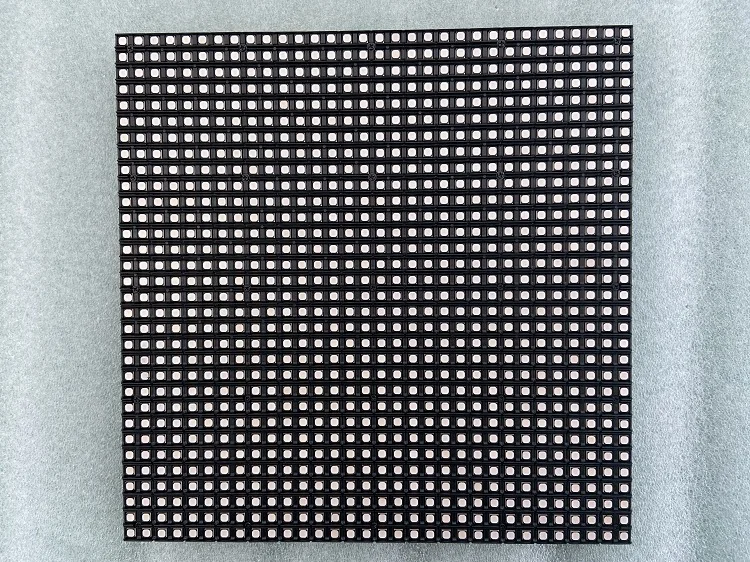

Product detail
* P6mm Full Color Outdoor LED Display Module
* Size: 192*192mm
* Size: 192*192mm
* Resolution: 32*32pixel

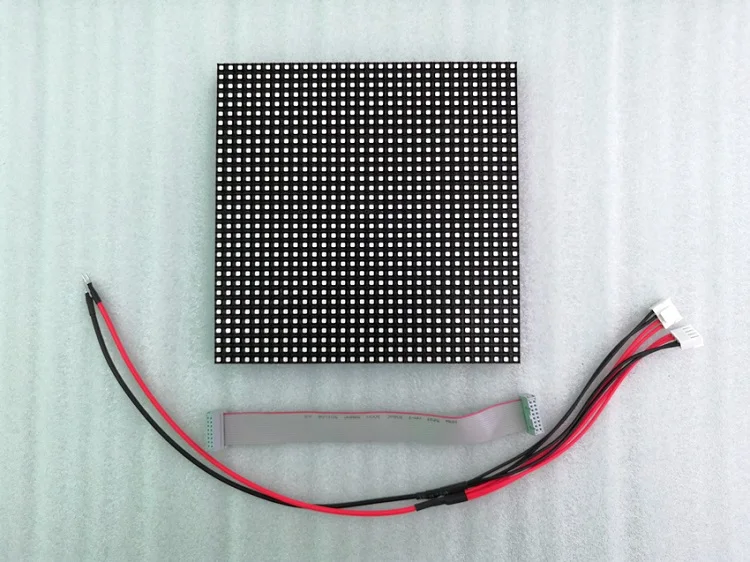

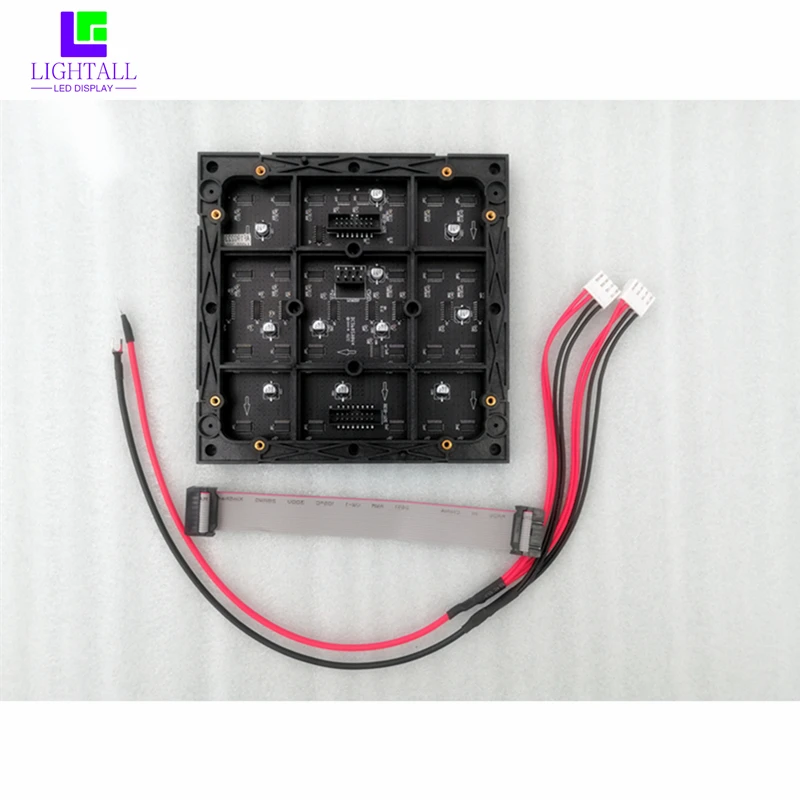

Packing List
* 1 pcs full color led module ( P6 Outdoor 192*192mm )
* 1 pcs date cable
* 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )
* 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )
* Power/Data Cable For Free

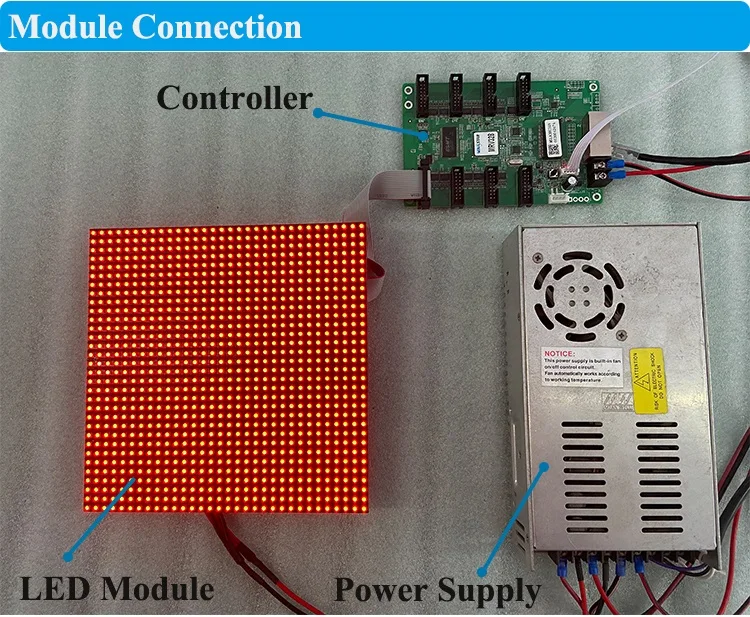

Module Connection
The module need power supply and controller to driving.

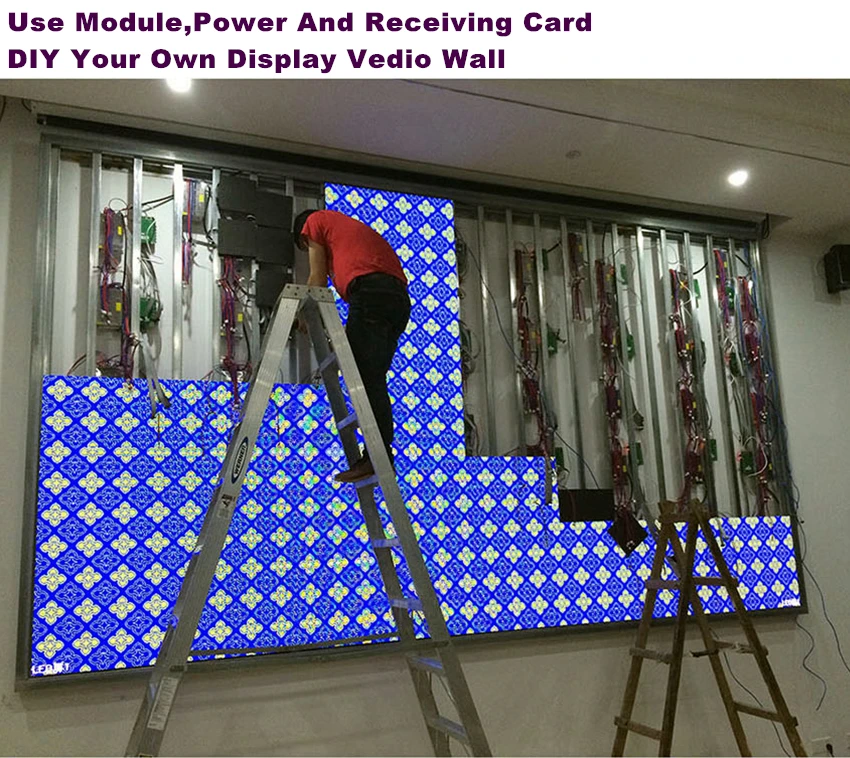

LED Display Assembly
It can be assembled according to your needs of any size of LED screen you need.

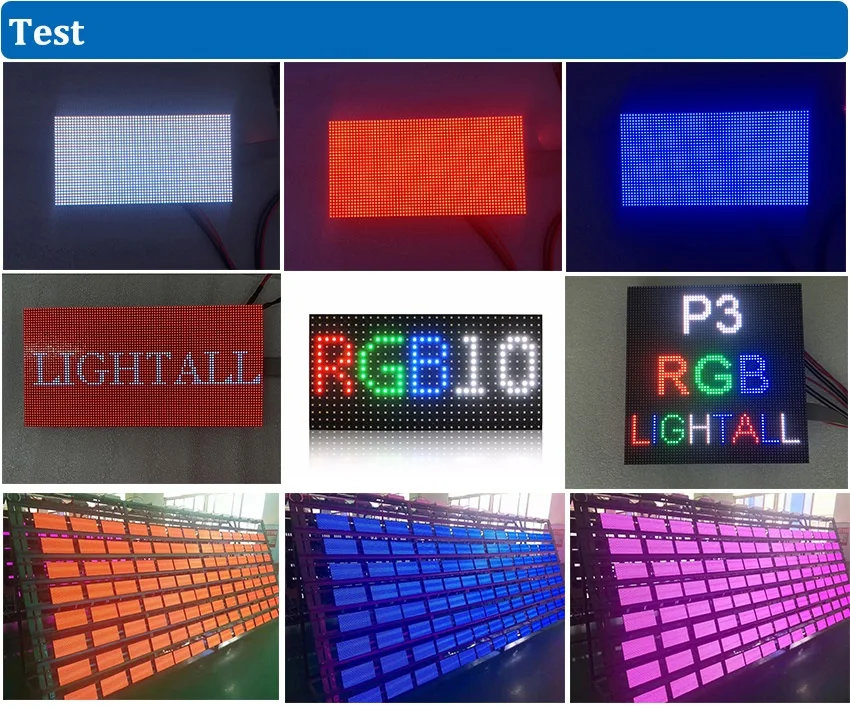

Product Test
Each product tested more than 72 hours before shipment.
Recommend For You
Full Range Indoor & Outdoor LED Display Module Led Video Wall Stage LED Panel HD LED Display Board
P1.25/P1.56/P1.667/P1.875/P2/P2.5/P3/P3.91/P4/P4.81/P5/P6/P8/P10
Please feel free to contact us to get more details.
LED Display Case
Company Profile
SZLIGHTALL Optoelectronics Co., LTD, was founded in 2013. Its headquarters is located in Shenzhen. We are a national high-tech enterprise which focuses on R&D, manufacturing, retail and serving of LED display. We have an operation center and production base of 5000 square meters in Shenzhen. The products have already exported to more than 100 countries in the world.
The products have full range and structure diversification, its products cover LED full color display for indoor and outdoor, LED advertisement display, LED stage display, LED irregular- shape display, truck mobile led display, LED sports display, LED traffic information display. Our product took the lead in conforming to the certification of 3C, UL, TUV, EMC, CE, RoHS, FCC and ISO9001 standard in the industry.
Packing & Delivery
FAQ
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. What is your terms delivery?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
