Product Overview

Description

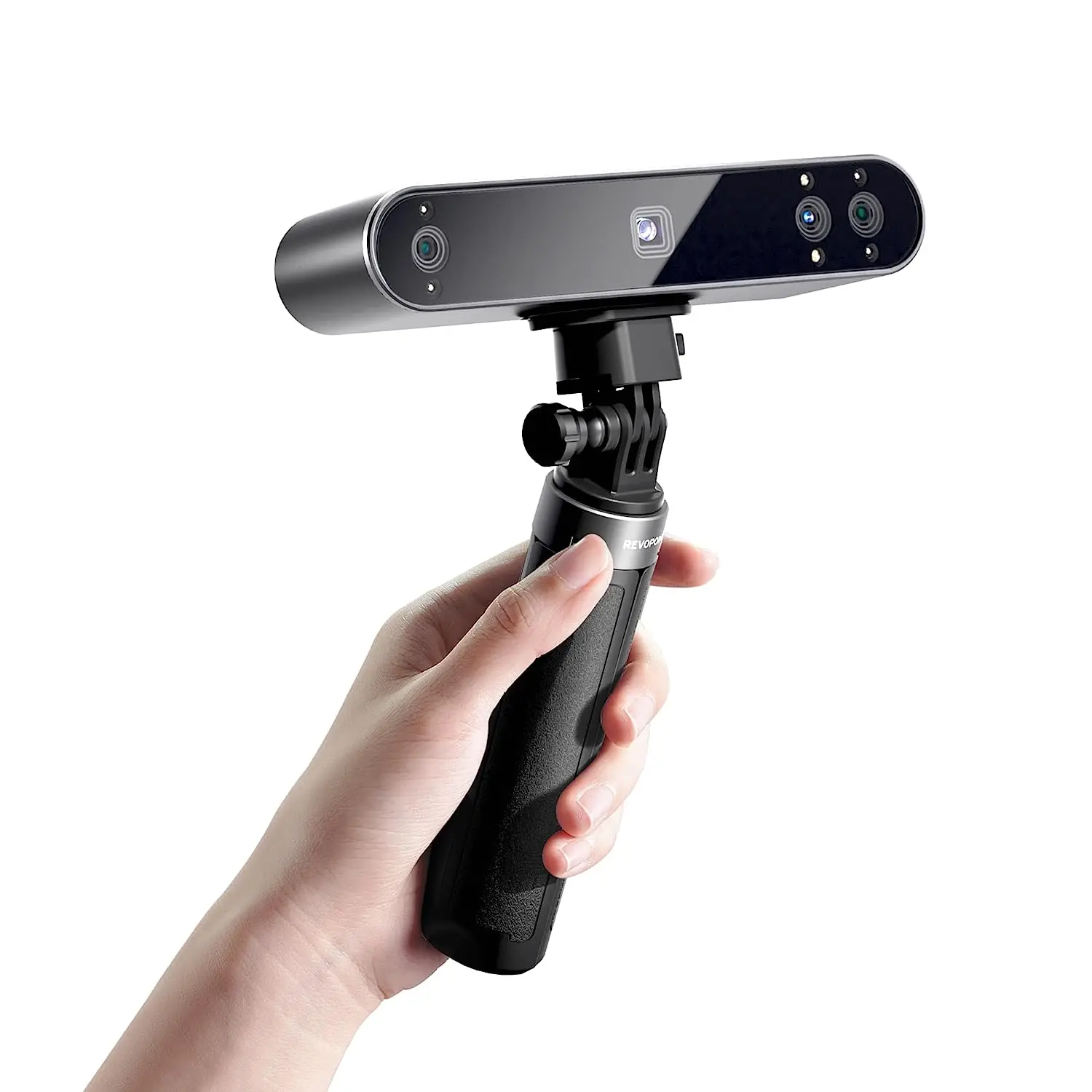

Revopoint POP 3  high-precision 0.05mm 18FPS handheld 3D laser scanner for 3D printer



About this item

• Superior Precision & Stability: The Revopoint POP 3 3D scanner has an IMU and two powerful infrared LEDs to ensure seamless frame stitching and fast, stable marker tracking. And with its rapid 12 to 18fps scanning speeds and single-frame precision of up to 0.05mm and a point distance of 0.05mm, you can quickly and accurately capture intricate details.

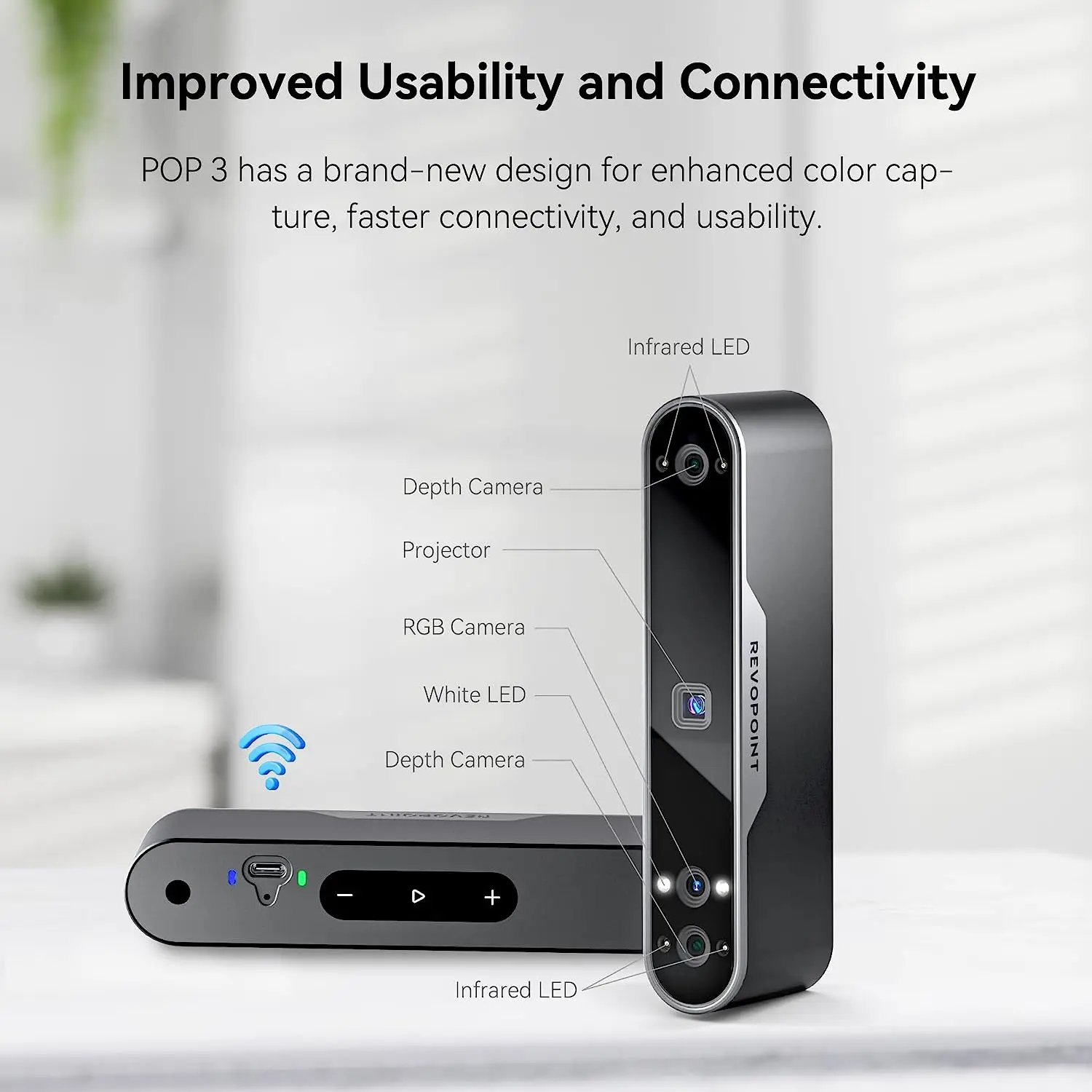

• High Fidelity Color Scans: Immerse yourself in vibrant, lifelike 3D scans with the POP 3's enhanced color scanning capabilities. The RGB camera’s 20% larger aperture lets more light reach the sensor, and dual white LEDs illuminate and remove shadows from the scanned object. So POP 3 can capture more vivid and realistic full-color 3D scans.


• Advanced Connectivity: Enjoy seamless and efficient connectivity with POP 3's Type-C USB or Wi-Fi 6 connections. Plug in the scanner or connect over Wi-Fi with your computer or smartphone and experience swift and stable data transfer and seamless operation.


• Versatile Applications: The POP 3 is a powerful tool ready for various industries and applications. Whether you're an industrial designer wanting precise measurements and accurate models for CAD, an art professional looking to reproduce or preserve cultural items, or a medical practitioner needing advanced 3D scanning for non-invasive healthcare, the POP 3 caters to your scanning needs.


• User-Friendly: Designed with ease of use in mind, the POP 3 scanner ensures a smooth scanning experience. The addition of three touch-sensitive buttons allows you to effortlessly start/pause scans and adjust the depth camera's exposure on the fly for precise control over your scan. Compatible with Windows, macOS, Android, and iOS devices, the scanner easily integrates into your preferred operating system for greater convenience.









Output Formats	PLY, OBJ, and STL	Technology	Biocular Dual Camera Infrared Light
Point Distance/Resolution	0.05mm	Single-frame Precision	Up to 0.05mm
Single-frame Accuracy	Up to 0.1mm	Special Object Scanning	Use scanning spray for transparent, dark, or highly reflective objects.
Scanning Environment	Indoors and Outdoors	Single Capture Range	125mm × 225mm
Scanner Weight	190g	Working Distance	150mm - 400mm
Scanner Dimensions	153mm × 45mm × 29mm	Minimum Scan Volume	20mm x 20mm x 20mm
3D Printing Compatible	Yes	Scanning Speed	12fps - 18fps
IMU	9-axis	Compatible OS	Windows, Android, iOS, macOS
Color Scanning	Yes	Buttons	Three touch buttons.
Light Source	Class 1 Infrared Light	Connection Modes	USB Type-C to USB 3.0 Type-A
Wi-Fi	6.0	Tracking Methods	Feature, Marker
