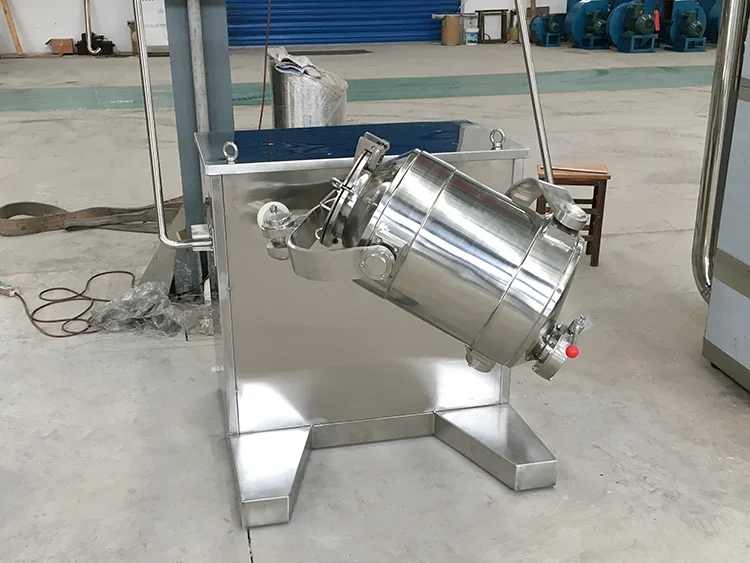

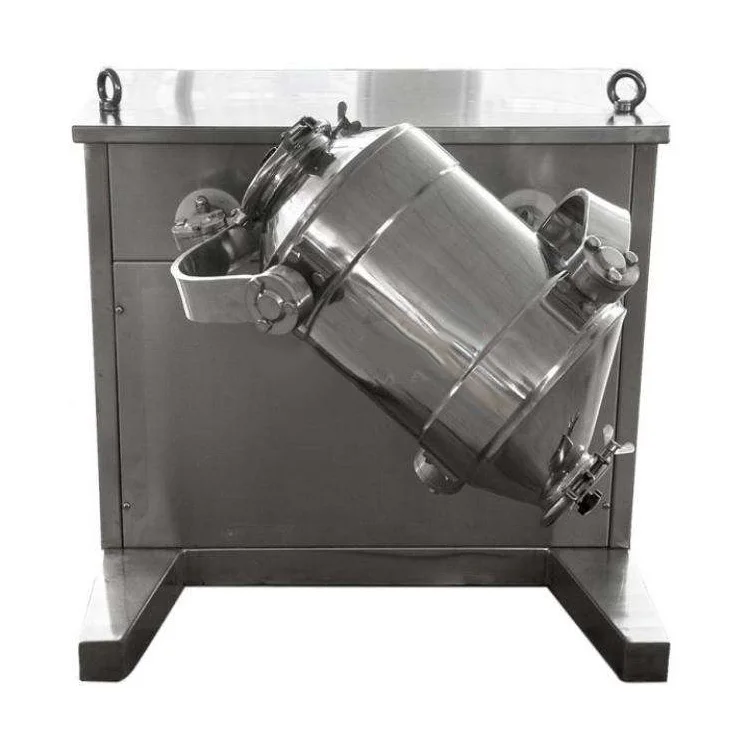

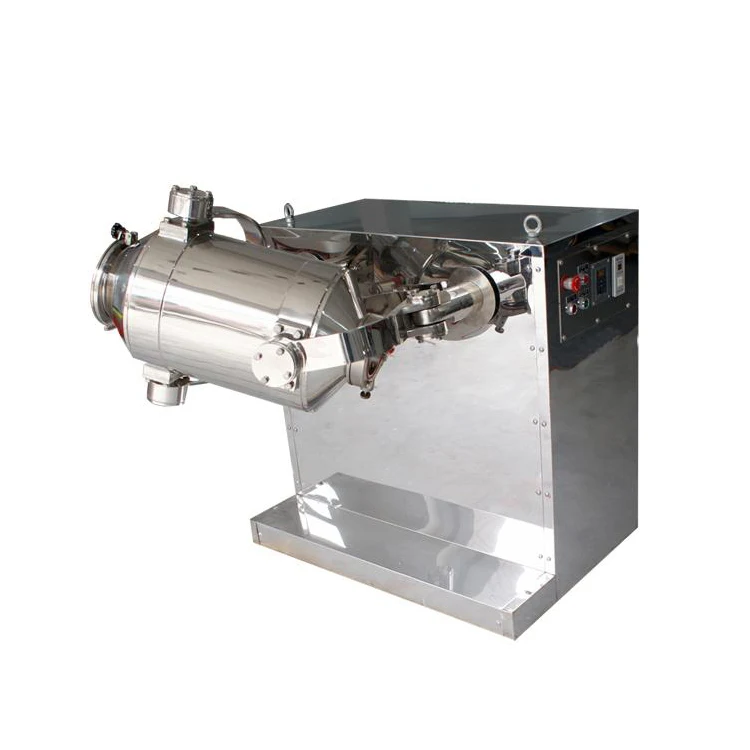

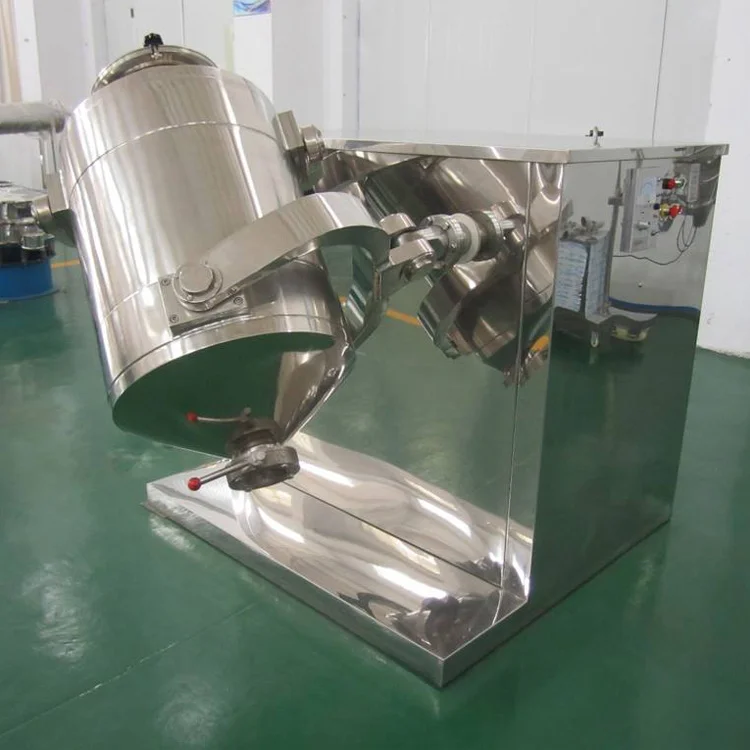

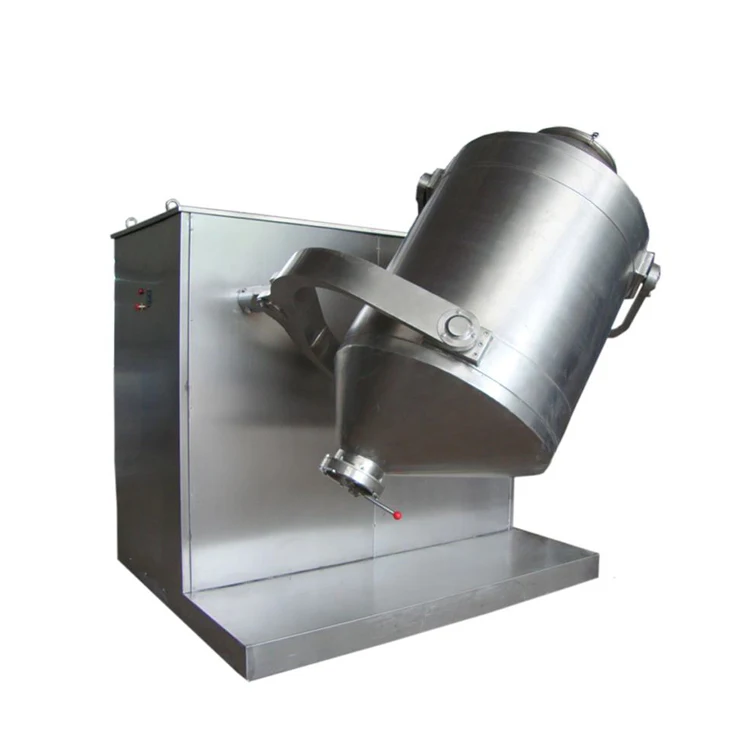

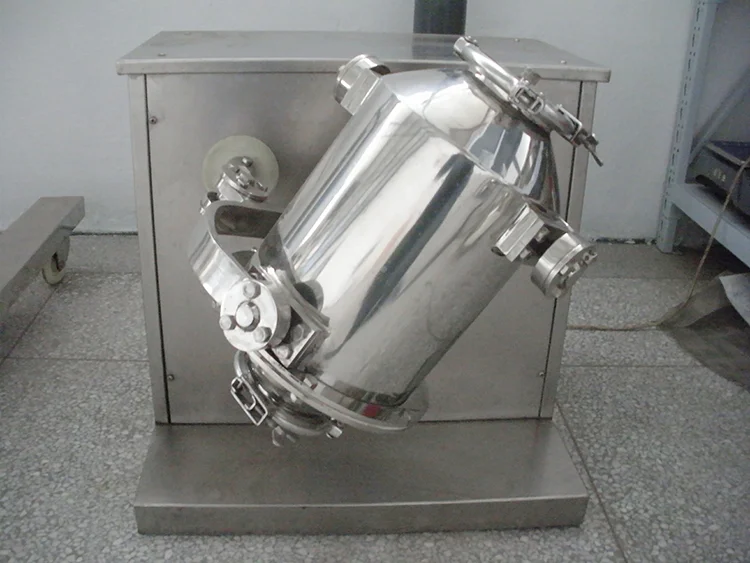

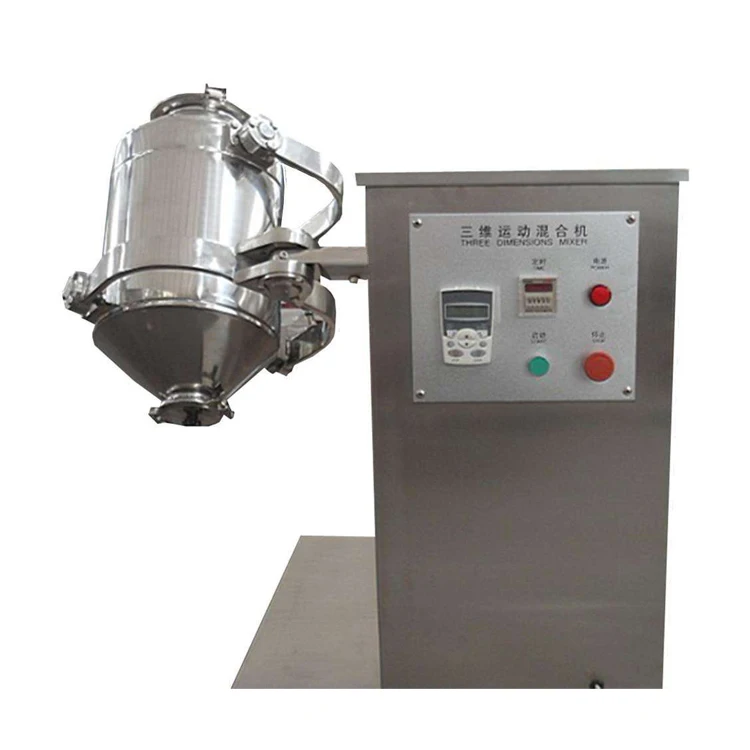

Model SYH Three dimension 3D spice powder blender Mixer mixing machine
- Category: >>>
- Supplier: Wenxiong Holding Group Co. Ltd.
Share on (1600895245502):
Product Overview
Description
Principle
With the driving of main shaft, the loading body will parallel move, rotate and roll again and again to make the materials to do the three-direction combined motion (circle, radial and axial direction) along the wall. So that to realize the mutual flow,
diffusion, accumulation and adulteration of many kinds of materials. Finally achieve the purpose of uniform mixing.
diffusion, accumulation and adulteration of many kinds of materials. Finally achieve the purpose of uniform mixing.
Application
The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmacy, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.
Feature
1. The mixing tube is moved with multi-direction. Materials are out of centrifugal force and no gravity segregation and accumulation. Each component can be of intervallic weight ratio and the mixing ratio could be above 99.9%. So it will be the more ideal mixer.
2. The loading capacity of tube is large which could be largest 80% (ordinary mixer only be 40%). It features high efficiency,
short mixing time.
3. All parts in the tube is circular arc with precision polishing.4. It is used for the high uniformity mixing of powder, granular
materials in the industries such as pharmacy, chemical, food, light industry, electron, machine, mining and metallurgy, national defense and research units.
2. The loading capacity of tube is large which could be largest 80% (ordinary mixer only be 40%). It features high efficiency,
short mixing time.
3. All parts in the tube is circular arc with precision polishing.4. It is used for the high uniformity mixing of powder, granular
materials in the industries such as pharmacy, chemical, food, light industry, electron, machine, mining and metallurgy, national defense and research units.
Technical Parameters
Model | SYH 15 | SYH50 | SYH100 | SYH200 | SYH400 | SYH600 | SYH800 | SYH 1000 | |||||||
Barrel capacity(L) | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | |||||||
Max loading capacity (L) | 12 | 40 | 80 | 160 | 320 | 480 | 640 | 800 | |||||||
Max loading capacity (kg) | 7.5 | 25 | 50 | 100 | 200 | 300 | 400 | 600 | |||||||
Speed of driving shaft (r/min) | 0~8 | ||||||||||||||
Motor power(kw) | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | |||||||
Overall dimensions (mm) | 700× 1000× 700 | 500× 600× 800 | 1000× 1400× 1200 | 1200× 1700× 1500 | 1400× 1800× 1600 | 1900× 2100× 2250 | 2200× 2400× 2300 | 2250× 2600× 2600 | |||||||
Total weight (kg) | 200 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 | |||||||
Company Profile
WENXIONG HOLDING GROUP
We was founded in 2002, We are a high-tech enterprise in Zhejiang province. We specilize in the design, production and installation of phermaceutical machnery, chemical machinery, dairy & food machinery, sanitary fuid equipment and intelligent control system for Traditional Chinese medicine (TOM).
We are the member of "China Association for Pharmaceutical equipment".
We are the member of "China Association for Pharmaceutical equipment".
Company main products and services:
extractor and concentrator equipments, vacuum belt drying equipmenst, purifying and distillation equipment, chemiacal equipments and other non-standard equipments, pumps, fluid pipe fittings and also can provide users with automatic control DCS, Warehouse Management System WMS, manufacturing execution system MES overall planning and design, euipment installation and commissioning services, and undertake turnkey projects.
Office and Manufacturing Workshop
Company personnel: there are more than 200 employees (1 Professor, 5 senior engineers, 16 engineers, 46 technicians, 2 senior technicians, 1 technician and 12 senior workers)
Certificates and Honors
Certified by ISO9001 and ISO14000.
We have got 3 invention patents and 45 new practical letters patents in pharmaceutical machinery, three national key new products, one National Torch Program project, One national technology innovation fund project for small and medium-sized science and technology enterprises, onekey innovation fund project.
Customer Case
FAQ
Q: Are you manufacturer or trading company?
A: wenxiong industry is a professional manufacturer, we have more than 15years experience in pharmaceutical machine field.
Q: Where is your factory located?
A: We are located in Wenzhou, Zhejiang, China. 1 hour flight to Shanghai, 2 hour to Guangzhou, 2.5 hour to Beijing, welcome to visit our factory.
Q: what is your business scope?
A: Active pharmaceutical ingredients, Herbal extracts, Western Medicine, Beverage, Dairy and Food.
Q: How could we confirm the details of the products?
A: Drawings will be provided for you to confirm.
Q: Will you change us for drafting if we have specail requests?
A: No, we will not. Free of charge to make a draft or offer. ODM
Q: How long the warranty will be?
A: 1 year warranty.
Q: How about the installation? And what if the machine goes down
A: Yes, we will do that. There are two options:
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side.
Q: Do you take L/C?
A: Yes, we accept Western Union, T/T and irrevocable L/C payable
Q: Can we become your distributor in our country?
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
A: wenxiong industry is a professional manufacturer, we have more than 15years experience in pharmaceutical machine field.
Q: Where is your factory located?
A: We are located in Wenzhou, Zhejiang, China. 1 hour flight to Shanghai, 2 hour to Guangzhou, 2.5 hour to Beijing, welcome to visit our factory.
Q: what is your business scope?
A: Active pharmaceutical ingredients, Herbal extracts, Western Medicine, Beverage, Dairy and Food.
Q: How could we confirm the details of the products?
A: Drawings will be provided for you to confirm.
Q: Will you change us for drafting if we have specail requests?
A: No, we will not. Free of charge to make a draft or offer. ODM
Q: How long the warranty will be?
A: 1 year warranty.
Q: How about the installation? And what if the machine goes down
A: Yes, we will do that. There are two options:
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side.
Q: Do you take L/C?
A: Yes, we accept Western Union, T/T and irrevocable L/C payable
Q: Can we become your distributor in our country?
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
