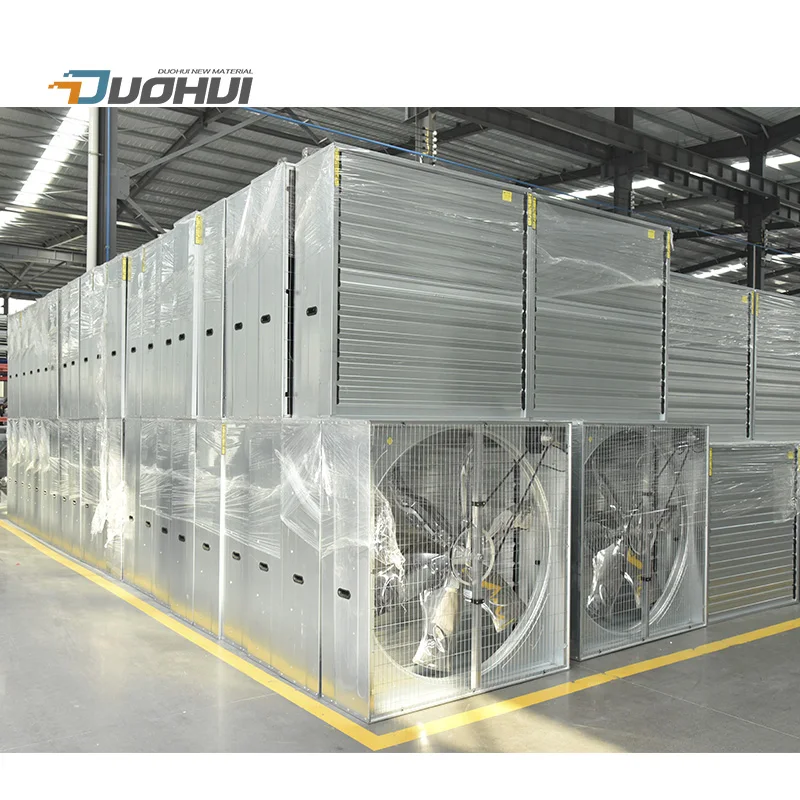

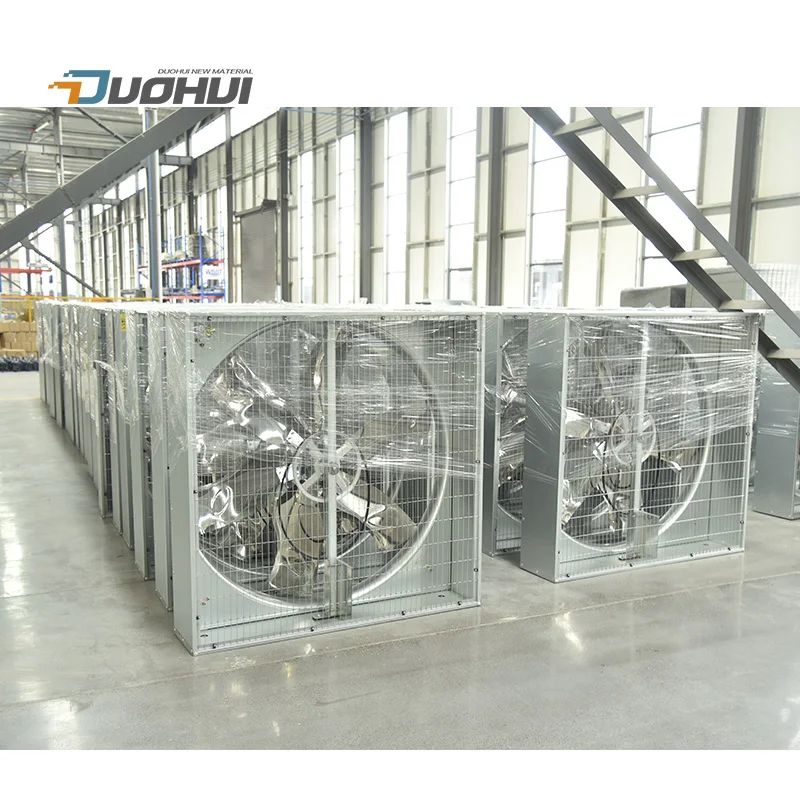

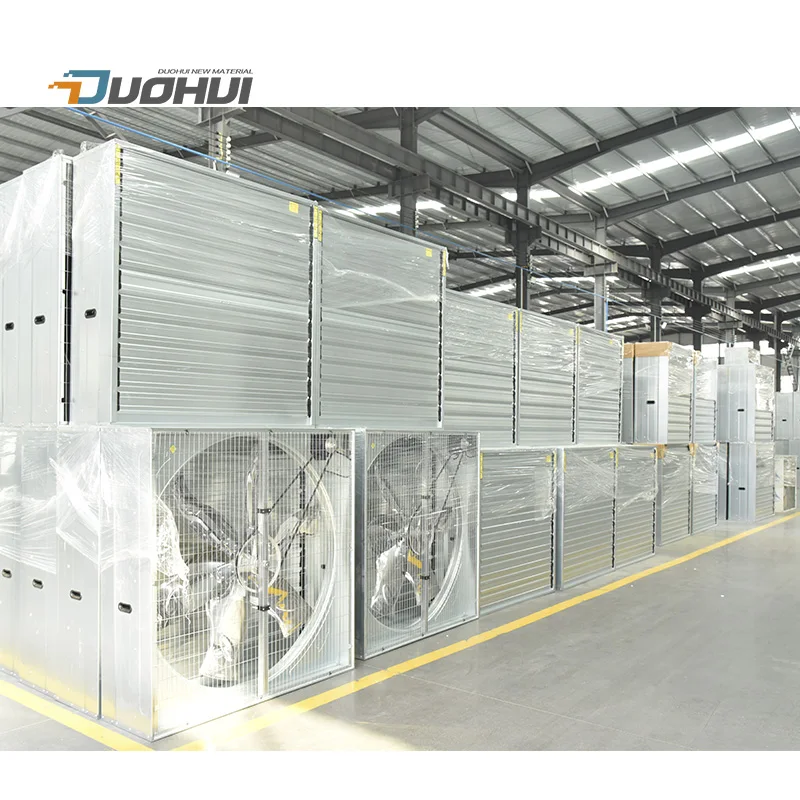

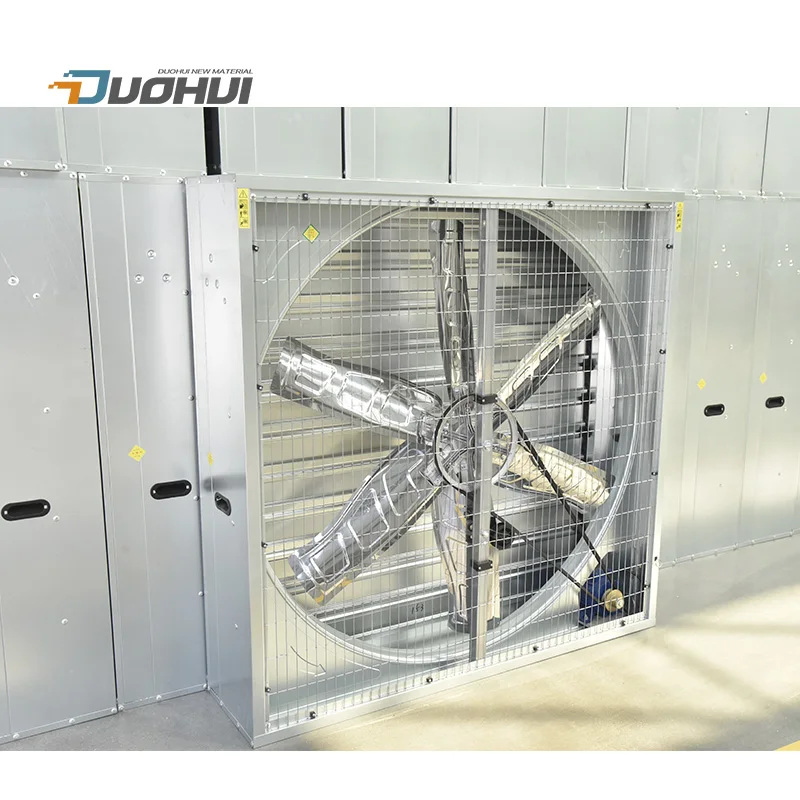

Poultry farm exhaust fan industrial ventilation exhaust fan
- Category: >>>
- Supplier: Qingzhou Duohui New Material Technology Co. Ltd.
Share on (1600895311968):
Product Overview
Description
Product Description

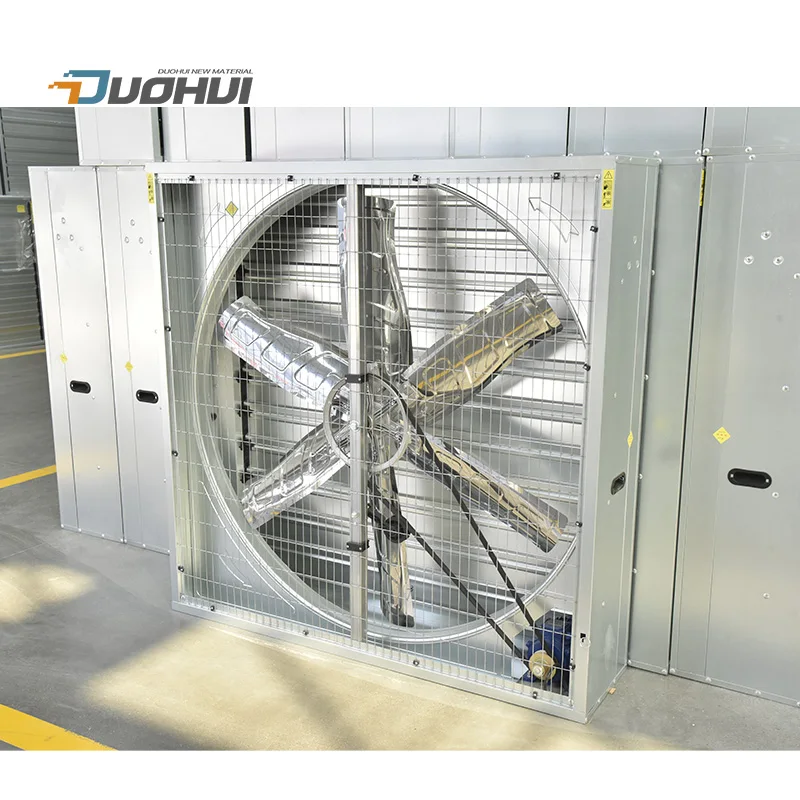

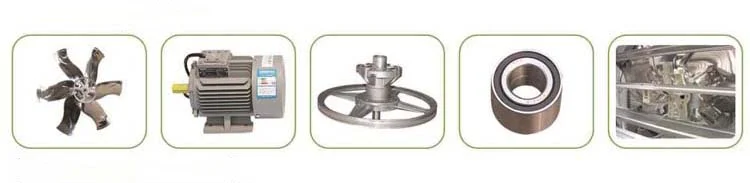

The fan is mainly composed of blades, belt pulley and flange, blade hub, belt, bearing, bladesupport, shutters, frame, protection mesh, motor and other components. The motor drivesthe blades to generate airflow. To prevent outdoor dust and foreign matter from enterinq, andto avoid the effects of rain, snow and wind.
Push pull type negative pressure exhaust fan
⊙ The specially designed fan blade shape could self-cleaning to ensure highly efficient operation, blades are made of stainless steel through punch forming the blades have been tested and calibrated by an advanced computer dynamic balance measure instrument, make sure running smoothly, and small vibrations, low noise, and high airflow.
⊙ Adopting a centrifugal opening system assures the opening and closing of the shutter completely, when the shutter opens, make sure the lowest air resistance and highest air volume are.
⊙ Shutter connection accessories made of good quality nylon material, long life, easy open, make sure the shutter no changing, working stable.
⊙ Frame adopts Hot Galvanized sheet with a zinc thickness of 275 q/m'.Shutters are made of galvanized sheets with thicknesses of 0.8 mm and 1.5 mm, ensuring shutters have no deformation, and running stable.

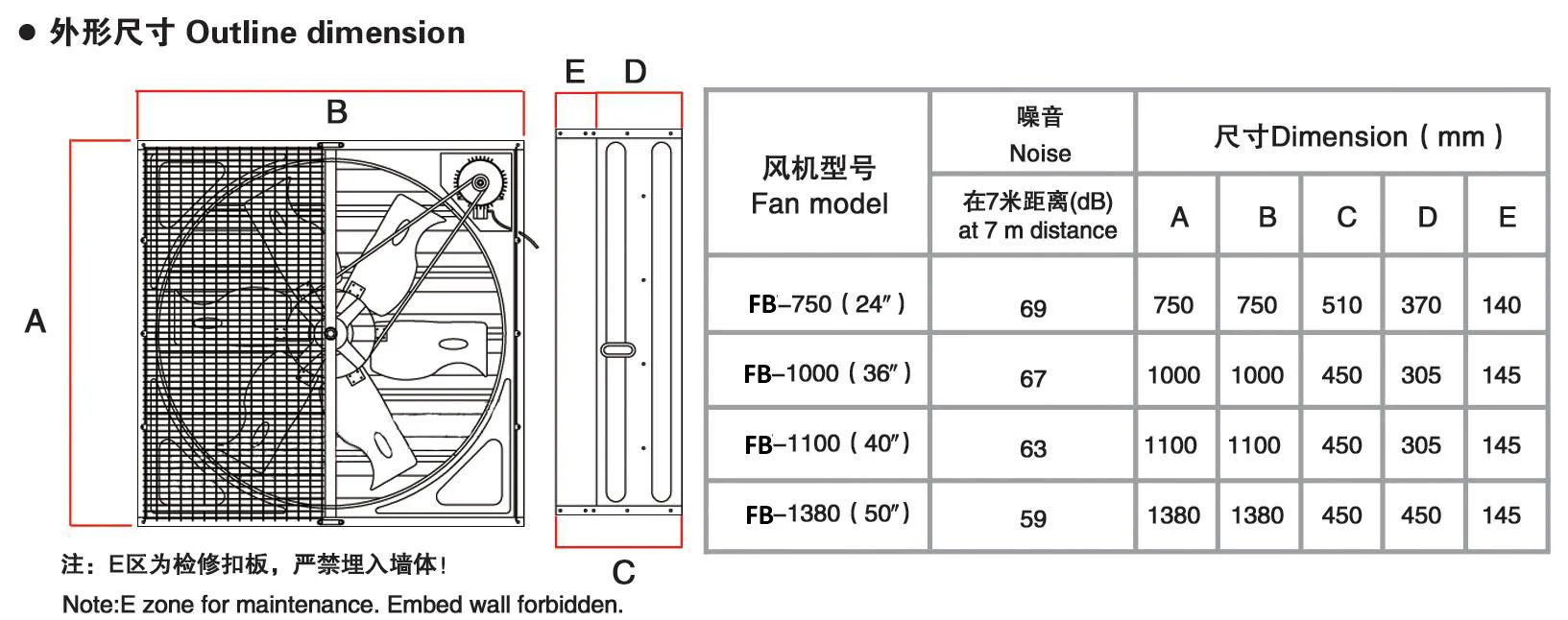

Specification
Model | Air Flow(m³/h) | Input Power(W) | Dimension(mm) |
DH-750(24 Inch) | 11000 | 370 | 750*750*400 |
DH-900(30 Inch) | 22000 | 370 | 900*900*400 |
DH-1000(36 Inch) | 25000 | 550 | 1000*1000*450 |
DH-1100(40 Inch) | 32500 | 750 | 1100*1100*450 |
DH-1220(43 Inch) | 38000 | 750 | 1220*1220*450 |
DH-1380(50 Inch) | 44000 | 1100 | 1380*1380*450 |
DH-1530(56 Inch) | 55800 | 1500 | 1530*1530*450 |
Motor | 1. Chinese famous motor, Siemens motor, ABB motor 2. Motor Protection Grade: IP55 3. lsulation Class: F grade |
Fan Blades | 1. Material : Krupp 430 stainless steel, thickness 1.2mm 2. Diameter 1270mm / 1250mm |
Belt Pulley | 1. Material: High strength aluminum-magnesium alloy by die-castinq. 2. Blast-sandingtreatment, eliminate internal stress to improve its own rigidity and stability. |
Bearing | lmported doublerow bearing with special waterproof design |
Belt | Brand: A type Mitsuboshi belt (Japanese) |
Centrifugal System | 1.Material: High quality Nylon PA66 2.Guide Rod: 304 stainless steel with special material outside, high strength, no rustreduce friction. 3.Rivet: 304 stainless steel , wear-resisting, no rust. |
Frame With Plastic Handle | 1. Frame: Hot Galvanized sheet with zinc thickness of 275q/m³, high anti-corrosion performance 2. Plastic Handle, easy to carry , Convenient to load. |

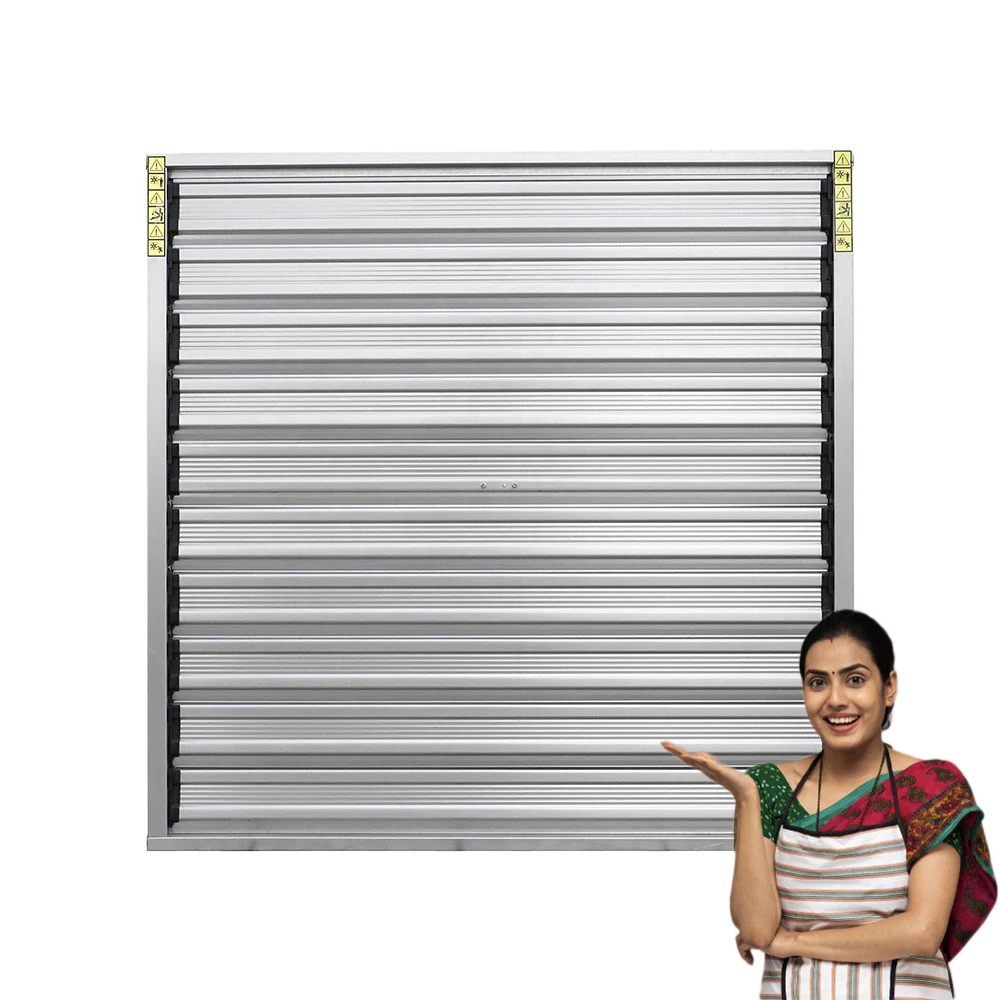

Shutters | 1. Material: Hot Galvanized sheet with zinc thickness of 275g/m³ 2. Shutter Fixed Parts: High quality nylon. |

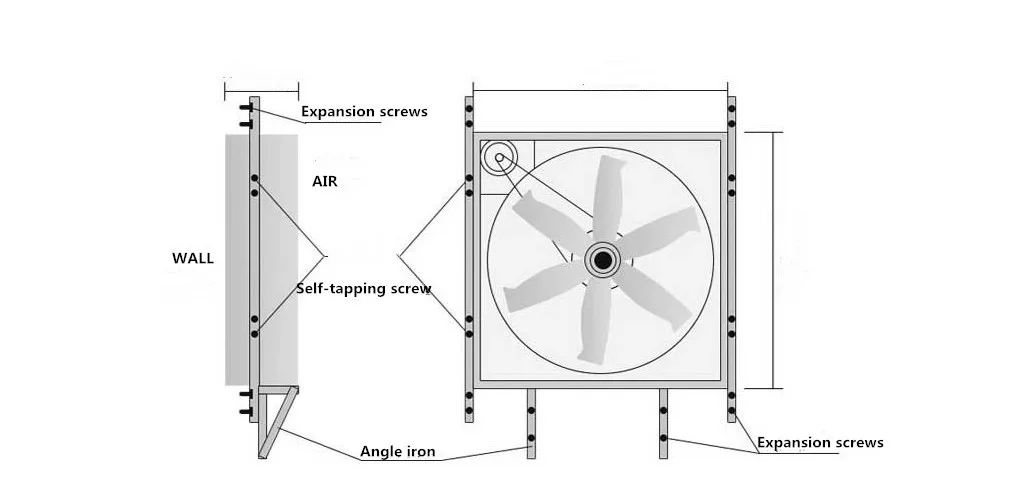

How to install the exhaust fan
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed.
3. The Expansion screws and Self tapping screw can be used to fix.
--> Krupp stainless steel blade, large air volume, no deformation, no broken no dust, attractive and durable.
--> Centrifugal system can open the shuttles at a complete 90 degrees to ensure the lowest air resistance and biggest air volume.
--> Type B belt imported from Japan, ensures long service life
--> Siemens motor and Chinese famous motor are available.
--> Voltage and frequency can be customized.
--> Fan belt pulley and flange, with lightweight and lower vibration, are made of high-strength aluminum-magnesium alloy by die-casting.
--> Blast-sanding treatment for an attractive appearance and eliminate internal stress.
--> Centrifugal system can open the shuttles at a complete 90 degrees to ensure the lowest air resistance and biggest air volume.
--> Type B belt imported from Japan, ensures long service life
--> Siemens motor and Chinese famous motor are available.
--> Voltage and frequency can be customized.
--> Fan belt pulley and flange, with lightweight and lower vibration, are made of high-strength aluminum-magnesium alloy by die-casting.
--> Blast-sanding treatment for an attractive appearance and eliminate internal stress.

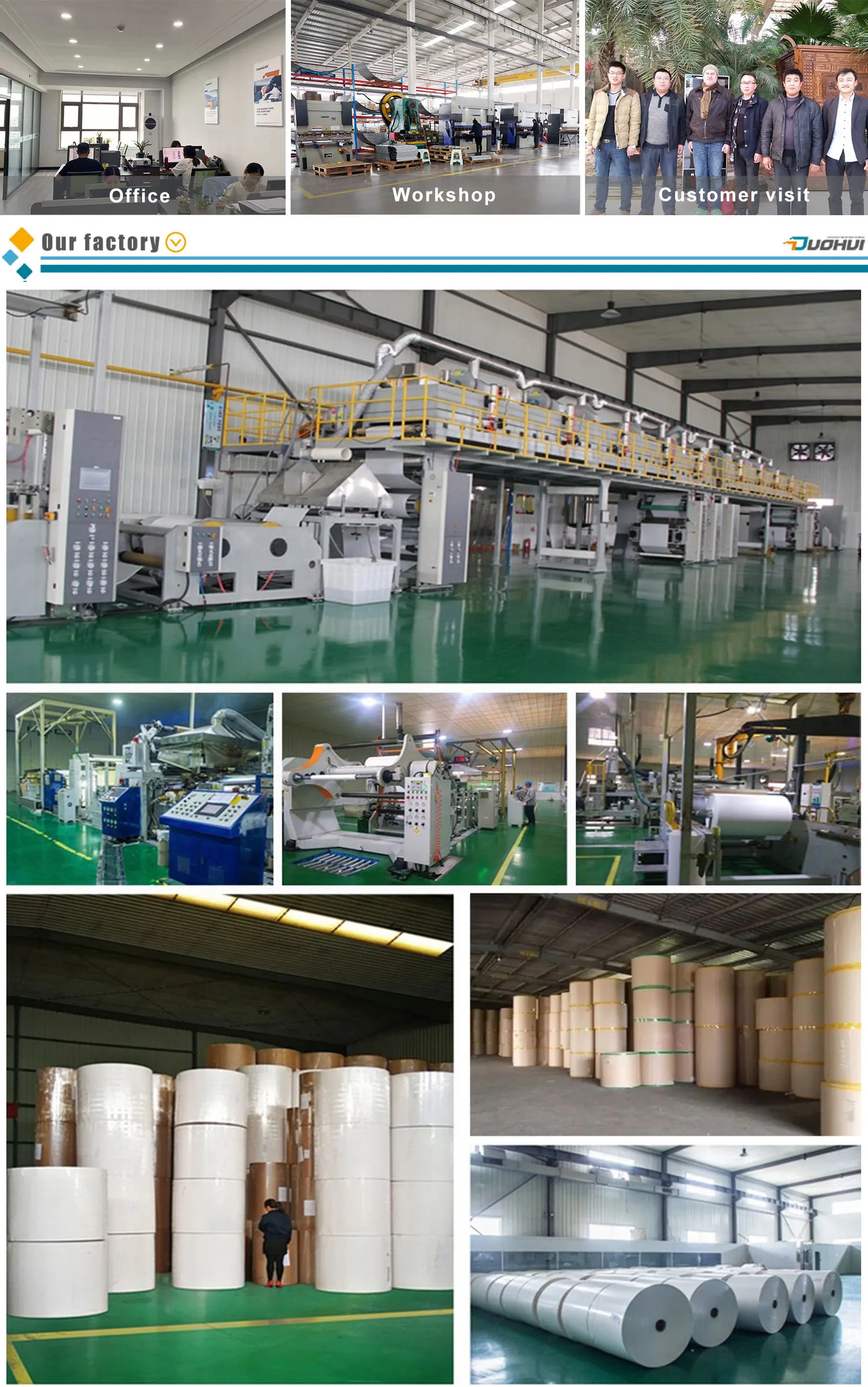

Company & Services
Duohui New Material Technology Co., Ltd was established in 2019 and we are a top professional manufacturer for integrating emulsion, resin research and development, and scientific production and sales in China.
Qingzhou Duohui is a high-tech enterprise, and with many domestic institutions of higher learning, scientific research institutions have established a good scientific and technological research and development cooperation relationship, and successively launched a variety of international standards of new emulsion varieties.
Our main products include evaporative cooling pad production line and accessories, water treatment equipment and accessories, kraft paper, phenolic resin, urea-formaldehyde resin, waterproof emulsion, construction emulsion, textile emulsion, and packaging emulsion.
More importantly, We have our own professional design and development department, providing the best pre-sale service and after-sale service.
Sincerely welcome for your visit and technique communication.
Qingzhou Duohui is a high-tech enterprise, and with many domestic institutions of higher learning, scientific research institutions have established a good scientific and technological research and development cooperation relationship, and successively launched a variety of international standards of new emulsion varieties.
Our main products include evaporative cooling pad production line and accessories, water treatment equipment and accessories, kraft paper, phenolic resin, urea-formaldehyde resin, waterproof emulsion, construction emulsion, textile emulsion, and packaging emulsion.
More importantly, We have our own professional design and development department, providing the best pre-sale service and after-sale service.
Sincerely welcome for your visit and technique communication.
Our Advantage
1. Reasonable price with good quality and short delivery time
2. Advanced processing equipment and professional operators
3. Relevant authoritative test reports and certificates to ensure quality
4. Patented skills and design team, accept all the OEM and ODM orders.
2. Advanced processing equipment and professional operators
3. Relevant authoritative test reports and certificates to ensure quality
4. Patented skills and design team, accept all the OEM and ODM orders.
Before selling:
Learn customers' actual conditions, and recommend suitable products according to the client's actual demand.
Learn customers' actual conditions, and recommend suitable products according to the client's actual demand.
After sell:
24 Hours*365 Days Online Support. And can send engineer and workers to clients site assembly and debugging.
24 Hours*365 Days Online Support. And can send engineer and workers to clients site assembly and debugging.
1. What’s your main product?
Our main products include evaporative cooling pad production line and accessories, water treatment equipment and accessories, kraft paper, phenolic resin, urea-formaldehyde resin, waterproof emulsion, construction emulsion, textile emulsion, and packaging emulsion.
2. Are you a factory or a trading company?
We are a direct factory with guaranteed quality and competitive price.
Support customer visits, and video talk to check the factory.
Support customer visits, and video talk to check the factory.
3. How will you guarantee the quality?
For all of our machinery, 1-year guarantee for the core components.
We support 24 hrs*365 days online service for technical guidance.
We support 24 hrs*365 days online service for technical guidance.
4. How long is the time of production and delivery time?
According to different types and quantities, the production phase is around 7-30 days.
The delivery time is around 7-15 days.
The delivery time is around 7-15 days.
