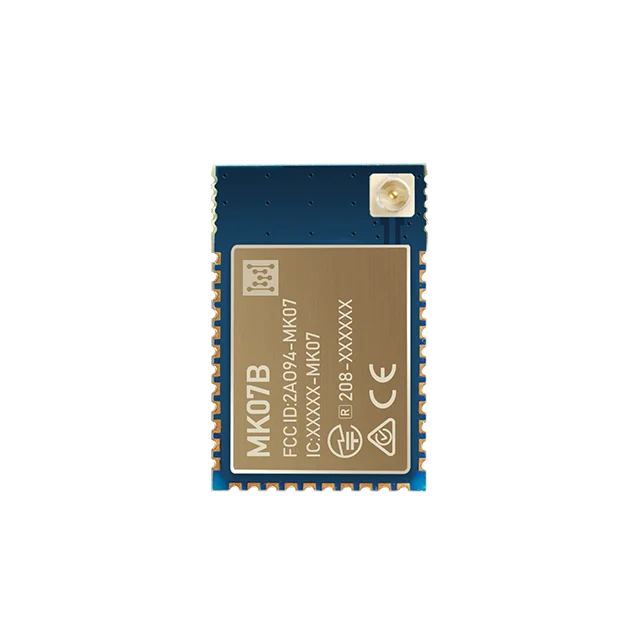

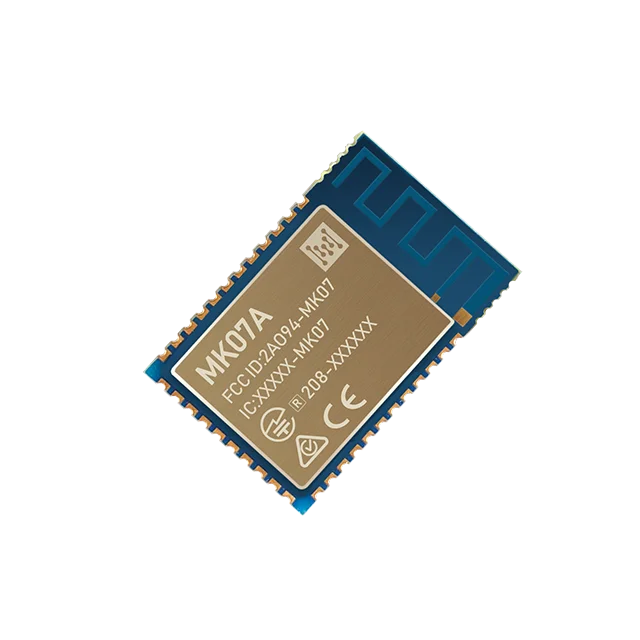

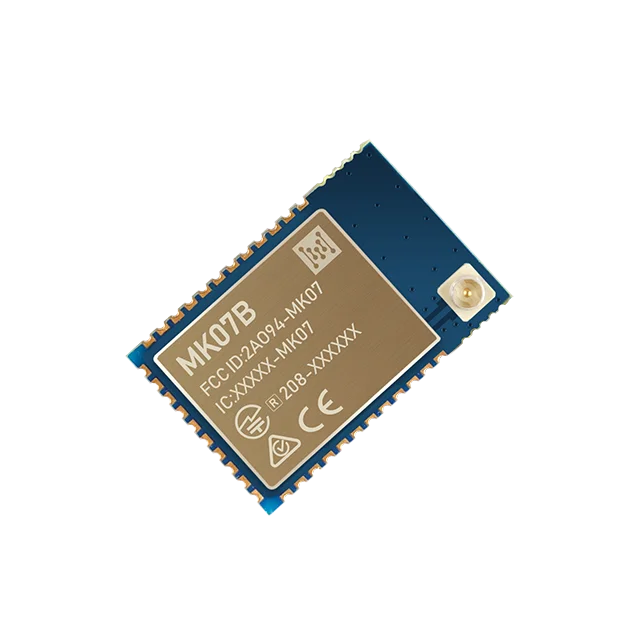

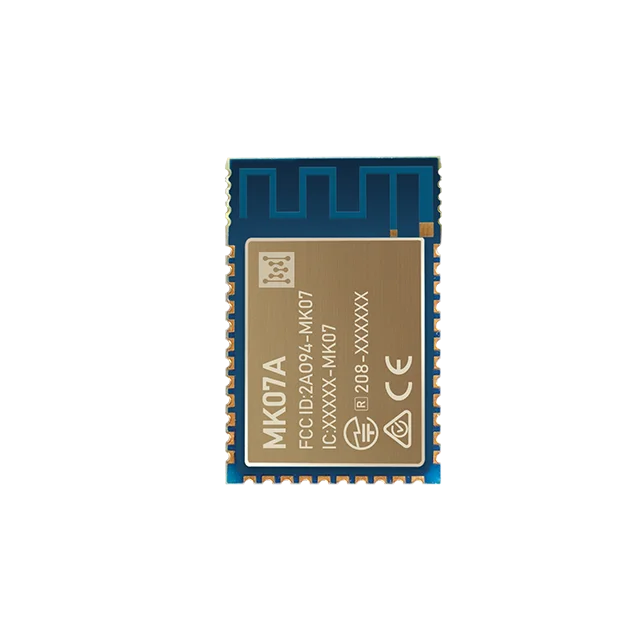

MOKO TECHNOLOGY gateway ble use MK07 nrf52833 bluetooth5.1 nordic ble module low energy for AOA device
MK07 series is a powerful, highly flexible, ultra low power Bluetooth® 5.1 module based on world leading Nordic® Semiconductor nRF52833 SoC solution, which has a 32bit Arm® Cortex™-M4 CPU with floating point unit running at 64MHz. MK07 series is capable of the latest and greatest features of Bluetooth® 5.1, the most prominent being Direction Finding, taking Bluetooth positioning to new heights.
Product Description
MK07 series brings out all nRF52833 hardware features and capabilities including USB access, up to +8 dBm transmit power up to 5.5V supply considerations, and NFC tag (type 2 / 4) implementation. Complete regulatory certifications enable faster time to market and reduced development risk completes MOKO SMART’s simplification of your next Bluetooth design!
MK07 supports an extensive range of wireless protocols. It supports BLE® (Bluetooth Low Energy) , and is capable of Bluetooth® Direction Finding in addition Long Range and 2 Mbps. Bluetooth mesh, 802.15.4, Thread, Zigbee, proprietary 2.4 GHz protocols and NFC-A are also supported.
MK07 supports an extensive range of wireless protocols. It supports BLE® (Bluetooth Low Energy) , and is capable of Bluetooth® Direction Finding in addition Long Range and 2 Mbps. Bluetooth mesh, 802.15.4, Thread, Zigbee, proprietary 2.4 GHz protocols and NFC-A are also supported.

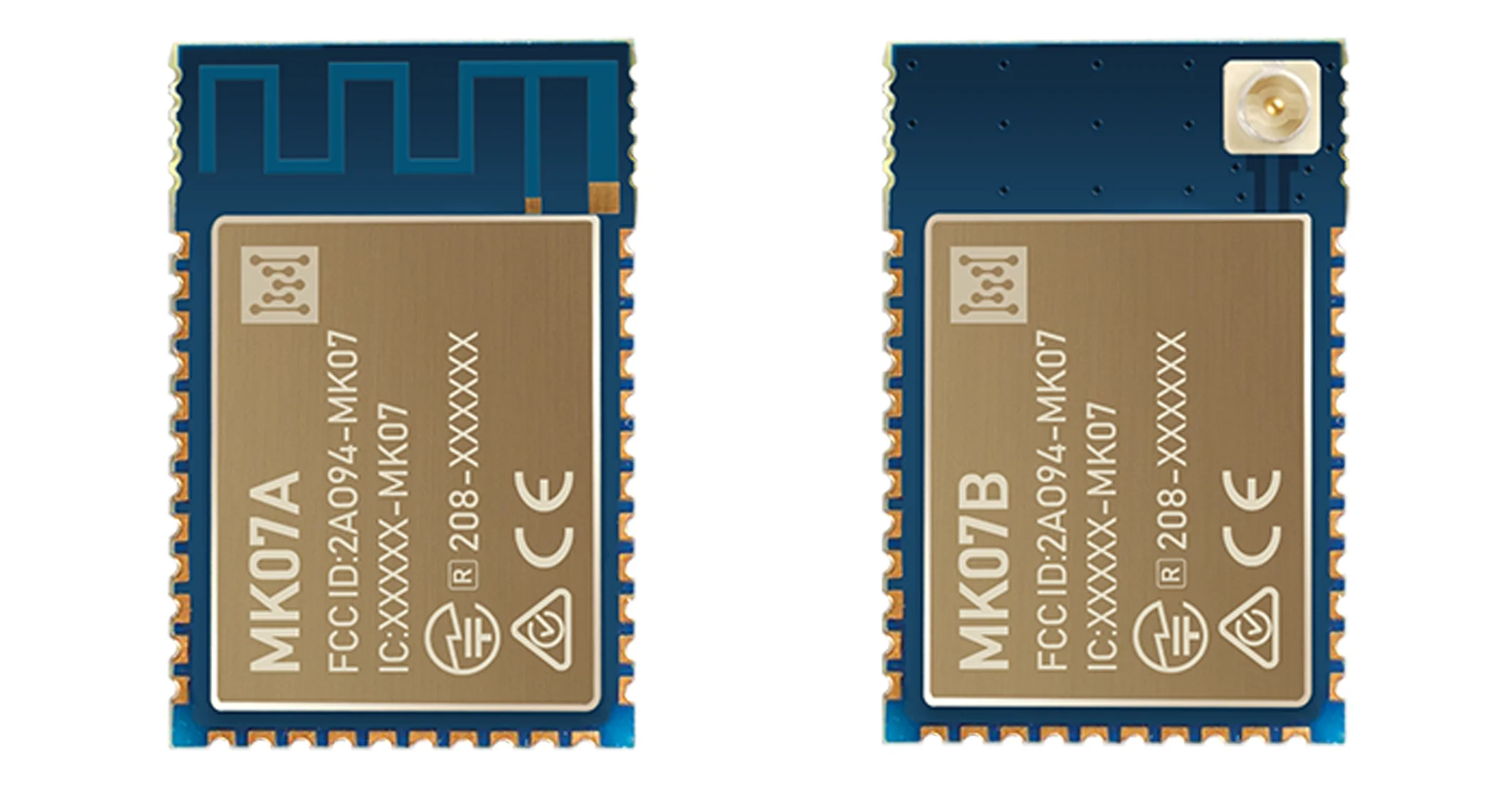

MK07 Series BLE module features | ||
Dimension | 21*13.8*2.3mm（with shield） | |
Flash/RAM | 512KB/128KB | |
Interface | UART, SPI, HS-SPI, TWI, PDM, I 2S, QDEC, PWM, ADC, NFC, USB | |
Power Supply | 1.7-5.5 V | |
Operating temp | -40 to +85°C（-40 to +105°C can be customized） | |
BLE5.0/5.1 Specification | Direction Finding, 2 Mbps, CSA #2, Advertising Extensions, Long Range | |
Cover | Metal shielding with marking | |
BLE Standard | BLE 5.0/5.1 | |
GPIOs | 40 | |
Antenna Type | PCB antenna/u.FL Connector | |
32.768K Crystal Oscillator | Built inside | |
Pad package | Plated Half-hole | |
Other Feature | Bluetooth mesh, Thread, Zigbee, 2.4GHz | |
Module Size

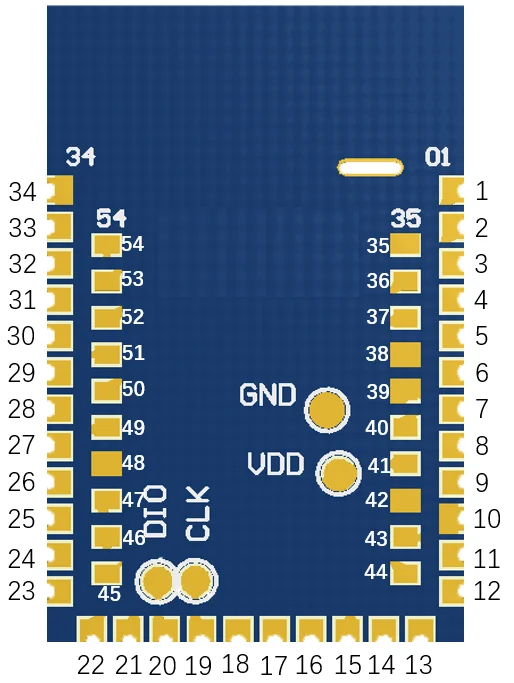

Pin Description
Pin No. | Name | Type | Description |
1 | P0.25 | Digital I/O | General Purpose I/O |
2 | P0.23 | Digital I/O | General Purpose I/O |
3 | P0.03 AIN1 | Digital I/O Analog input 1 | General Purpose I/O SAADC/COMP/LPCOMP input |
4 | P0.02 AIN0 | Digital I/O Analog input 0 | General Purpose I/O SAADC/COMP/LPCOMP input |
5 | P0.28 AIN4 | Digital I/O Analog input 4 | General Purpose I/O SAADC/COMP/LPCOMP input |
6 | P0.29 AIN5 | Digital I/O Analog input 5 | General Purpose I/O SAADC/COMP/LPCOMP input |
7 | P0.30 AIN6 | Digital I/O Analog input 6 | General Purpose I/O SAADC/COMP/LPCOMP input |
8 | P0.31 AIN7 | Digital I/O Analog input 7 | General Purpose I/O SAADC/COMP/LPCOMP input |
9 | VDD | Power | Power Supply |
10 | GND | Power | Ground |
11 | P0.27 | Digital I/O | General Purpose I/O |
12 | P0.26 | Digital I/O | General Purpose I/O |
13 | P0.04 AIN2 | Digital I/O Analog input 2 | General Purpose I/O SAADC/COMP/LPCOMP input |
14 | P0.06 | Digital I/O | General Purpose I/O |
15 | P0.05 AIN3 | Digital I/O Analog input 3 | General Purpose I/O SAADC/COMP/LPCOMP input |
16 | P0.08 | Digital I/O | General Purpose I/O |
17 | P0.09 NFC1 | Digital I/O NFC input | General Purpose I/O NFC antenna connection |
18 | P0.10 NFC2 | Digital I/O NFC input | General Purpose I/O NFC antenna connection |
19 | SWDCLK | Debug | Serial wire debug clock input for debug and programming |
20 | SWDIO | Debug | Serial wire debug clock input for debug and programming |
21 | P0.07 TRACECLK | Digital I/O Trace clock | General Purpose I/O Trace buffer clock |
22 | P0.11 TRACEDATA | Digital I/O Trace data | General Purpose I/O Trace buffer TRACEDATA |
23 | P0.12 TRACEDATA | Digital I/O Trace data | General Purpose I/O Trace buffer TRACEDATA |
24 | P0.13 | Digital I/O | General Purpose I/O |
25 | P0.14 | Digital I/O | General Purpose I/O |
26 | P0.15 | Digital I/O | General Purpose I/O |
27 | P0.16 | Digital I/O | General Purpose I/O |
28 | P0.17 | Digital I/O | General Purpose I/O |
29 | P0.18 nRESET | Digital I/O | General Purpose I/O Configurable as pin RESET |
30 | P0.20 | Digital I/O | General Purpose I/O |
31 | P0.21 | Digital I/O | General Purpose I/O |
32 | P0.22 | Digital I/O | General Purpose I/O |
33 | P0.24 | Digital I/O | General Purpose I/O |
34,35 | GND | Power | Ground |
36 | P1.05 | Digital I/O | General purpose I/O |
37 | P1.03 | Digital I/O | General purpose I/O |
38 | GND | Power | Ground |
39 | GND | Power | Ground |
40 | P0.19 | Digital I/O | General purpose I/O |
41 | VDDH | Power | High voltage power supply |
42 | GND | Power | Ground |
43 | P1.08 | Digital I/O | General purpose I/O |
44 | P1.09 TRACEDATA | Digital I/O Trace data | General purpose I/O Trace buffer TRACEDATA |
45 | VBUS | Power | 5 V input for USB 3.3 V regulator |
46 | D- | USB | USB D- |
47 | D+ | USB | USB D+ |
48 | GND | Power | Ground |
49 | P1.00 TRACEDATA/ SWO | Digital I/O Trace data | General purpose I/O Trace buffer TRACEDATA/ Serial wire output |
50 | P1.01 | Digital I/O | General purpose I/O |
51 | P1.02 | Digital I/O | General purpose I/O |
52 | P1.04 | Digital I/O | General purpose I/O |
53 | P1.06 | Digital I/O | General purpose I/O |
54 | P1.07 | Digital I/O | General purpose I/O |

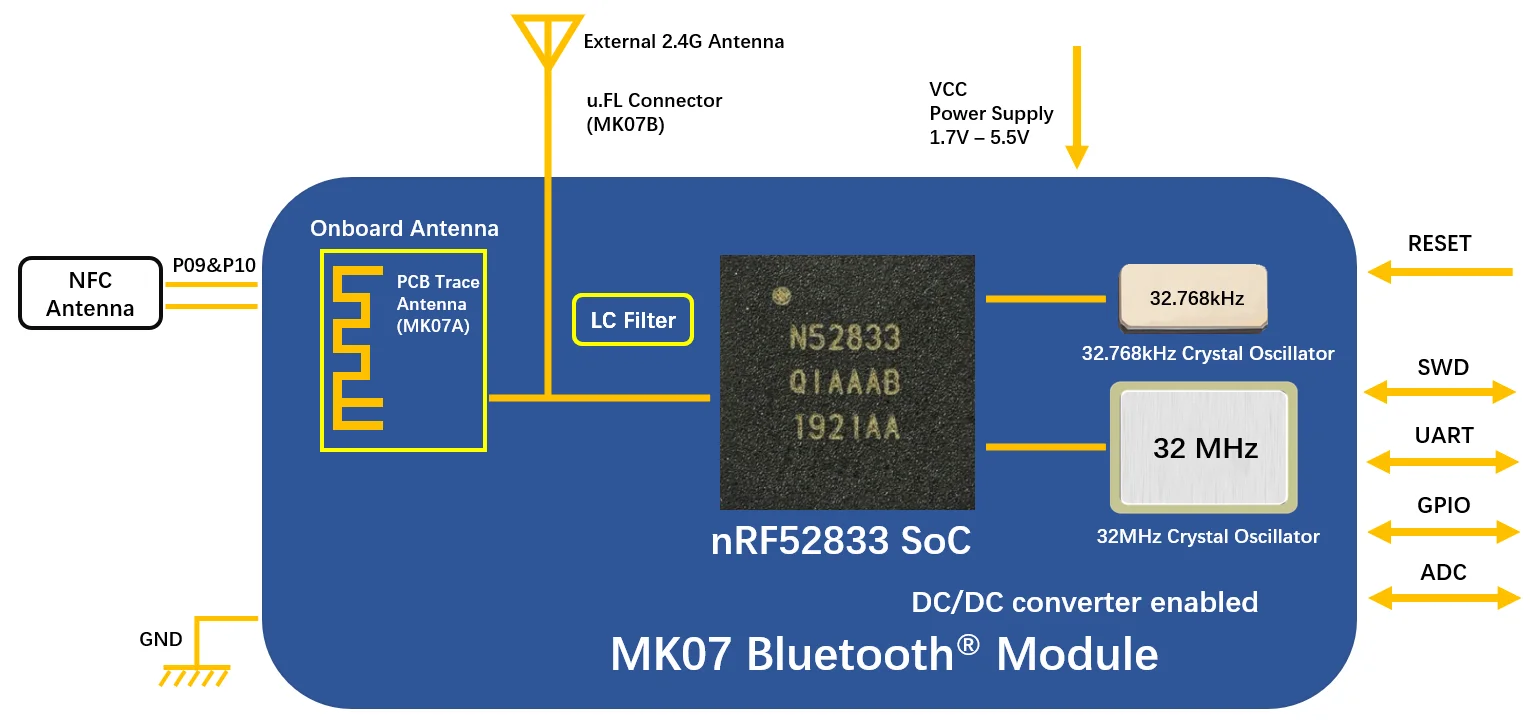

Block Diagram
