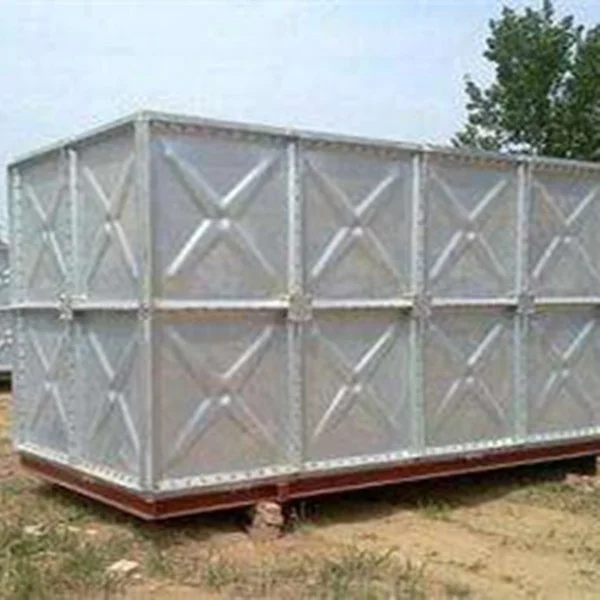

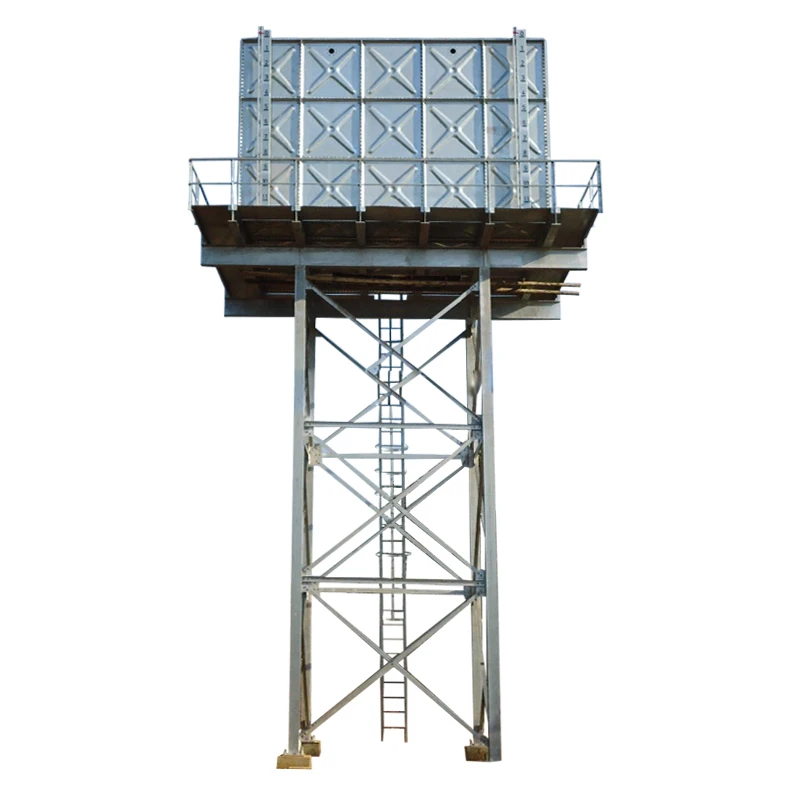

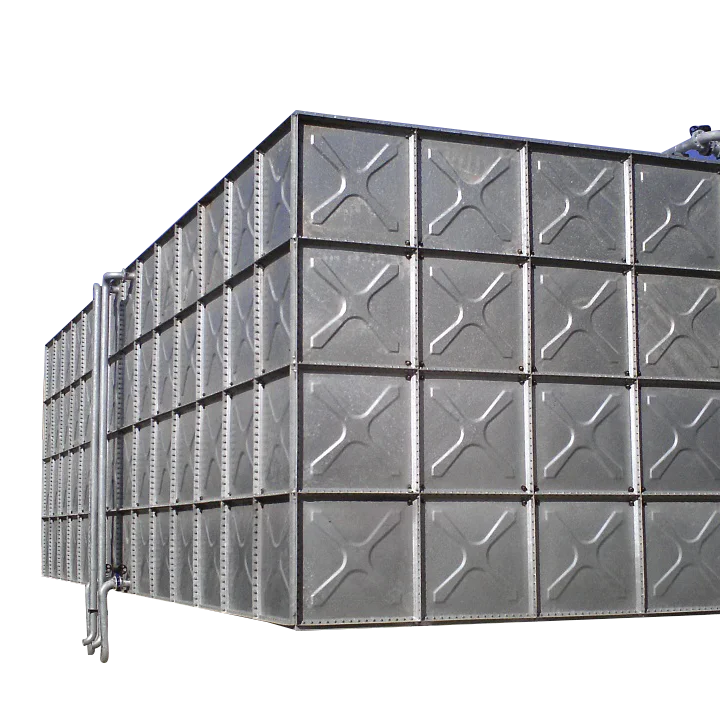

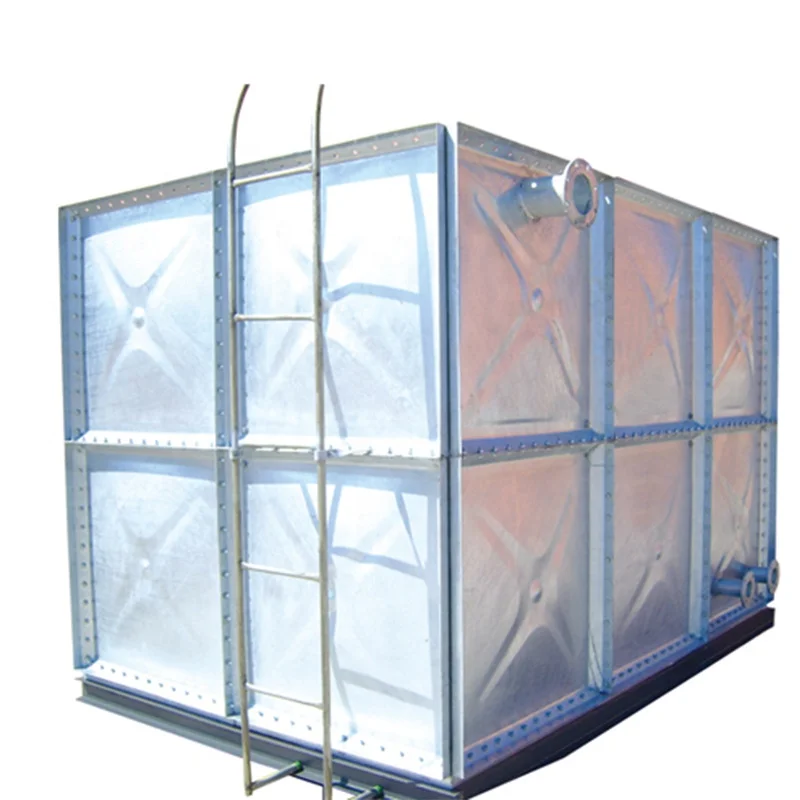

Factory direct supply Hot dipped galvanized steel water storage tank with 5mm thickness 1.22mx1.22m steel panel
- Category: >>>
- Supplier: Hebei Sinta Trading Co. Ltd.
Share on (1600895340512):
Product Overview
Description

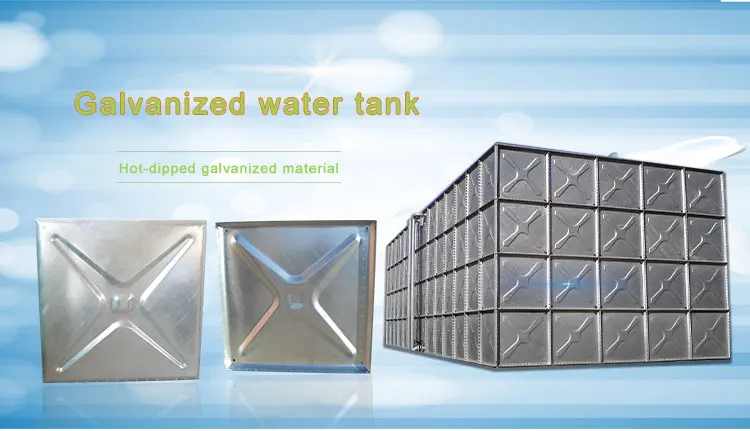

Galvanized pressed steel modular water storage tanks
Hot dip galvanized steel water tank use special slab, the 1000T hydraulic press mold made into different size slab, use bolt, rubber strip to connect into different specifications and forms. It is often used for water storage and other places. Our hot galvanized steel water tank could be custom-made with capacity from 0.125CBM to 5000CBM according to your needs. Generally the height should be no more than 5 meters, the length and width can be limited.Material
The sectional panel tank shall consist of 4"*4" or 1 meter*1 meter panela manufactured from 1.5mm to 5.0mm thickness according to requirement.
Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method
All thanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The top panel is supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.
Products Description
Advantages
1.Tank is easy to clean and conveniently to install and assemble. It can storage not hot water, but also cold water, and has a better shockproof and shock resistant ability.
2.Easy handle and install, free volume design , no leakage, ideal mechanical structure and meet fire and building standard.
3.Anti-corrosion, anti-aging, no distorsion, no infiltration.
4.Strong vibration resistance.
5.Resistance to impact large.
Water Tank Material | Hot dipped galvanized steel | ||
Water Tank Capacity | 1m3-5000m3 | ||
Water Tank Size | According to the water volume or customer's request | ||
Using life | >20 years | ||
Galvanized panel | Panel material | mild carbon steel Q235 A class grade | |
Panel size | 1220mm*1220mm 1000mm*1000mm 1000mm*500mm 500mm*500mm | ||
Panel thickness | 5mm,4.5mm,4mm,3mm,2.5mm,2mm,1.5mm(it is different according to the tank dimension) | ||
Acceessories | Bolt, nut & washers | Hot-dipped galvanized material | |
sealing material | Non-toxic PVC foam tape shall be used in between the joints | ||
Covers | from 1.4mm to 3.0mm of thickness hot-dipped galvanized material | ||
Ladders and level Indicator | hot-dipped galvanize | ||

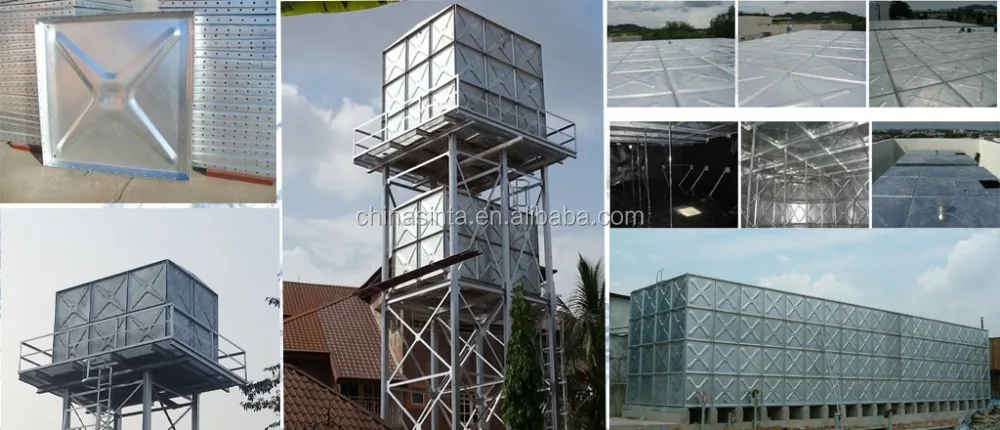

It is also widely used (this galvanized steel water tank) in storage and regulation of living water supply & construction water storage tanks for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense water, chemical, and so on.
value: 6.5-8.5, using life:>20years.
-All welded on-site combination, high strength, good sealing, prevent secondary pollution of water quality.
-Light weight, that is one half of ordinary steel plate water tank.-Reasonable structure design.
-Clean, bright, beautiful appearance.

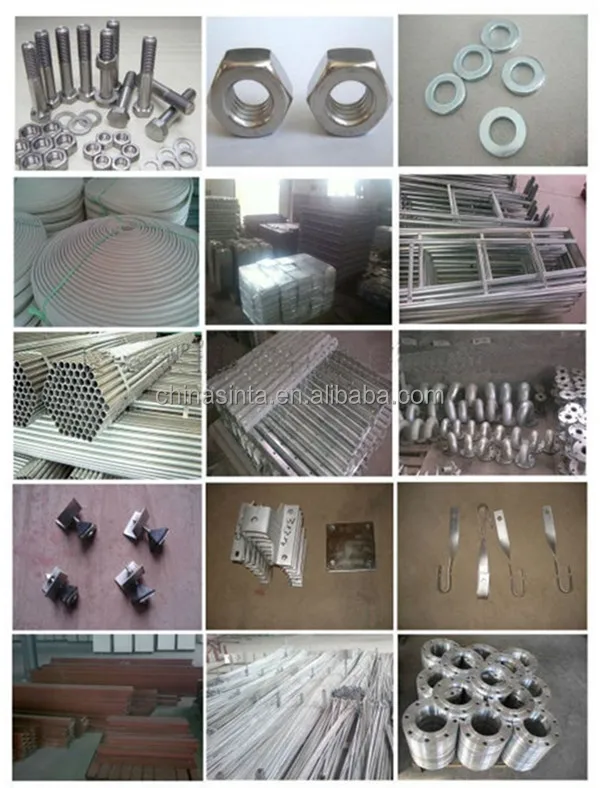

Accessories
1.Bolts, nuts & washers, stainless steel 304 material.
2.Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3.Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4.Ladders and Level Indicator: Internal & external ladder shall be made of stainless steel grade 304 material.
2.Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3.Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4.Ladders and Level Indicator: Internal & external ladder shall be made of stainless steel grade 304 material.

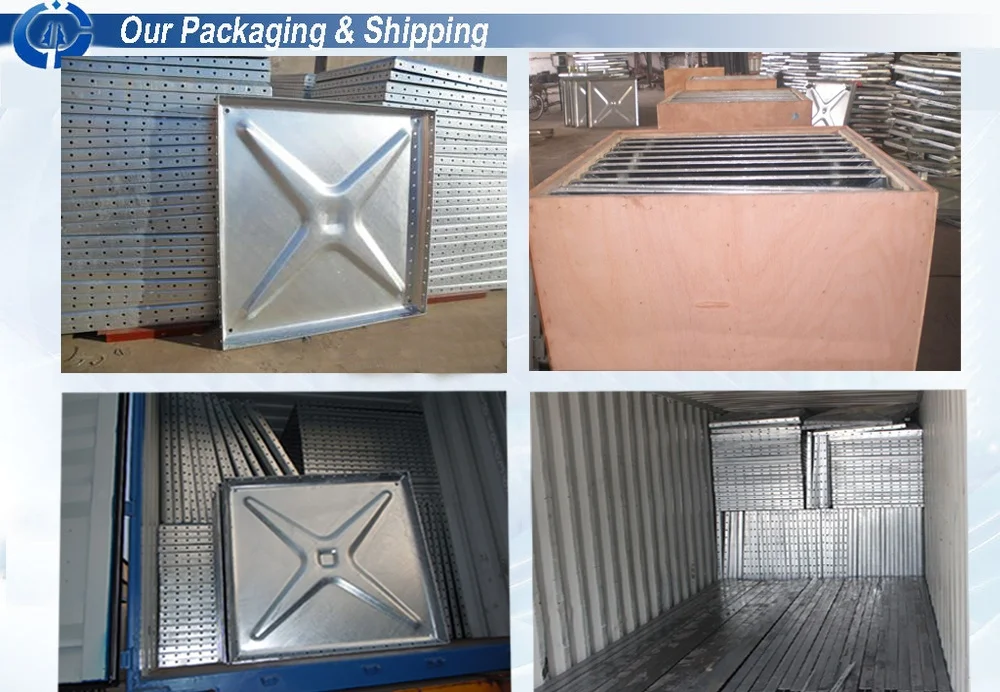

To better ensure the safety of your goods, professional, environmentally friendly,
convenient and efficient packaging services will be provided.
convenient and efficient packaging services will be provided.
Welcome your inquiry anytime. We will sever you 24hours!
About quality, we can supply free sample of Durable FRP Grating For Tree Protection for you.
If ok, welcome your coming to our factory!
Before shipping, we must send pictures/videos for your order.
About quality, we can supply free sample of Durable FRP Grating For Tree Protection for you.
If ok, welcome your coming to our factory!
Before shipping, we must send pictures/videos for your order.
