SENTEC FST310 Accurate Control Electronic Thermal Mass Flow Switch Water Flow Switch/ Paddle flow switch/Liquid flow switch
- Category: Flow Switches >>>
- Supplier: Chengdu,Sentec,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Related Products
Products Description
Product Paramenters
SenTec FST310 electronic flflow switch based on the thermal principle, the sealed probe contains two resistors, one of which is not heated as the detection resistance and the other is not heated as the reference resistance. When the mecum flflows, the heat on the heating resistance is taken away, the resistance value is changed, and the difference between the two resistors is used as the basis for judging the velocity. No moving parts, maintenance-free, easy to install, one type is suitable for a variety of pipe diameter requirements, switch volume continuously adjustable, very low pressure loss, compact structure, LED display flflow trend and switch status.
SPECIFICATION | ||
Flow range | 1...150cm/s(water)，3...300cm/s(oil)，20...2000cm/s(air) | |
Response time | 1-13s, typical values 2s | |
Turn on the current | Max. 400mA(PNP or NPN), Max. 4A(Relay) | |
No-load current | Max. 80mA | |
Signal output | PNP, NPN, relay, Normally open+normally closed (SPDT) | |

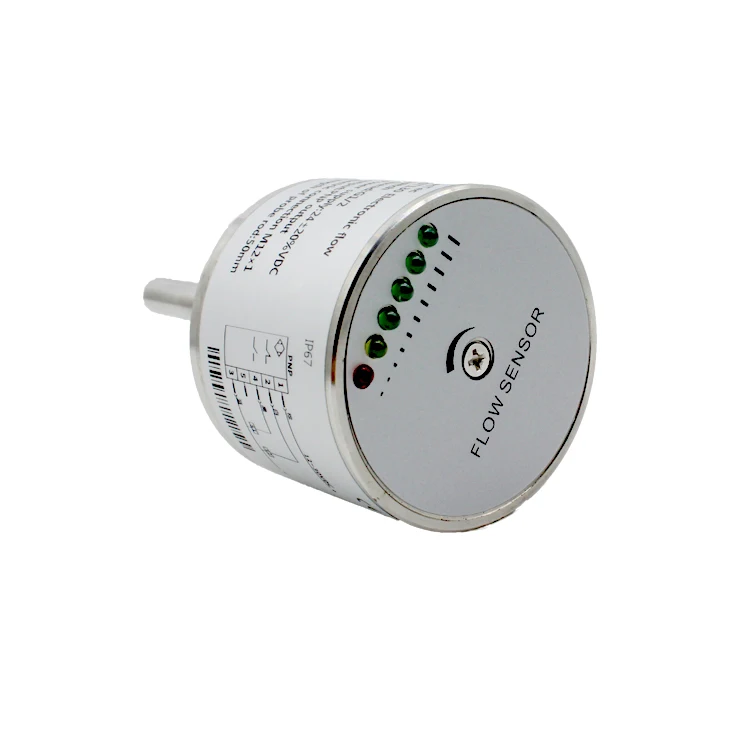

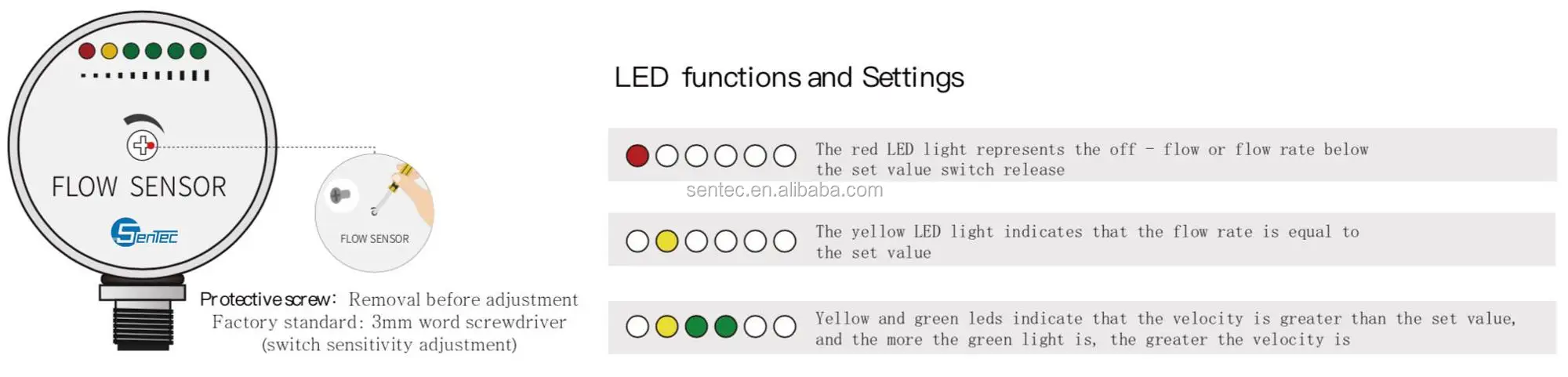

Flow indicator | LED row (6) | |
Pressure range | 100bar | |
Power supply | 24±20%VDC or 230V±15%VAC | |
Medium temperature | -20 ° C ~ 80 ° C | |
Connection mode | M12 plug-in/direction attachment line | |
Material | Stainless steel | |
Protection grade | IP67 | |
SENTEC concentrates on the research and innovation of the sensing technology and keeps developing the high-quality and advanced solutions from the accumulated sensor experiences over last two decades. For decades, SENTEC quality guaranteed products insist strictly manufactured in accordance with ISO, CE directive and fully RoHS compliant. On the basis of large-scaled production factories and international excellent devices, SENTEC inspections, tests and calibrations are well recognized throughout the world with experienced OEM service.
