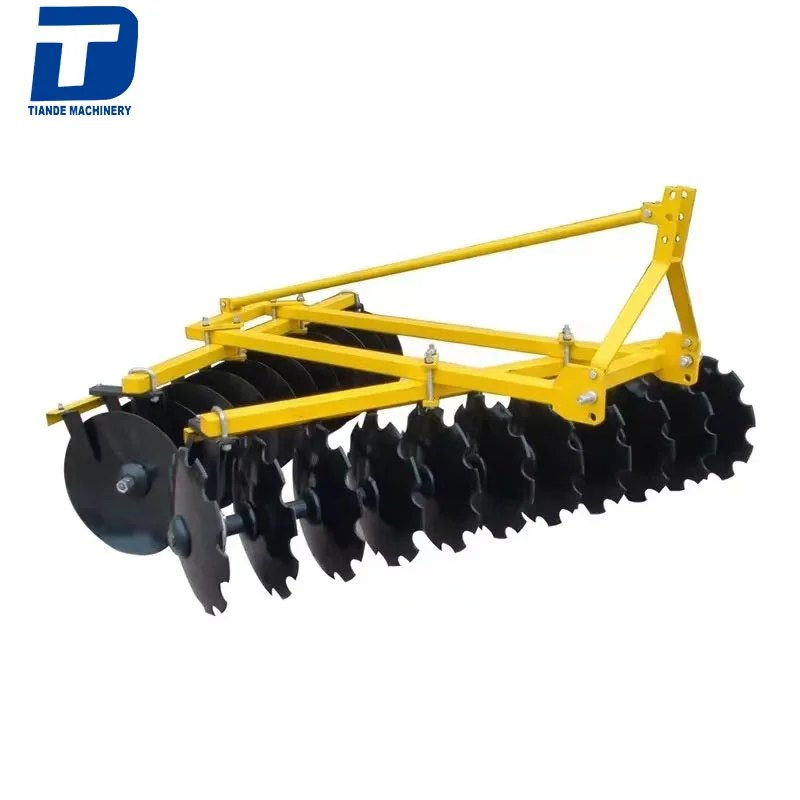

Most Popular Products Tractor 3 Point Mounted Middle Duty Disc Harrow Made In China Agricultural Implement

Product Overview

Description

Product Description

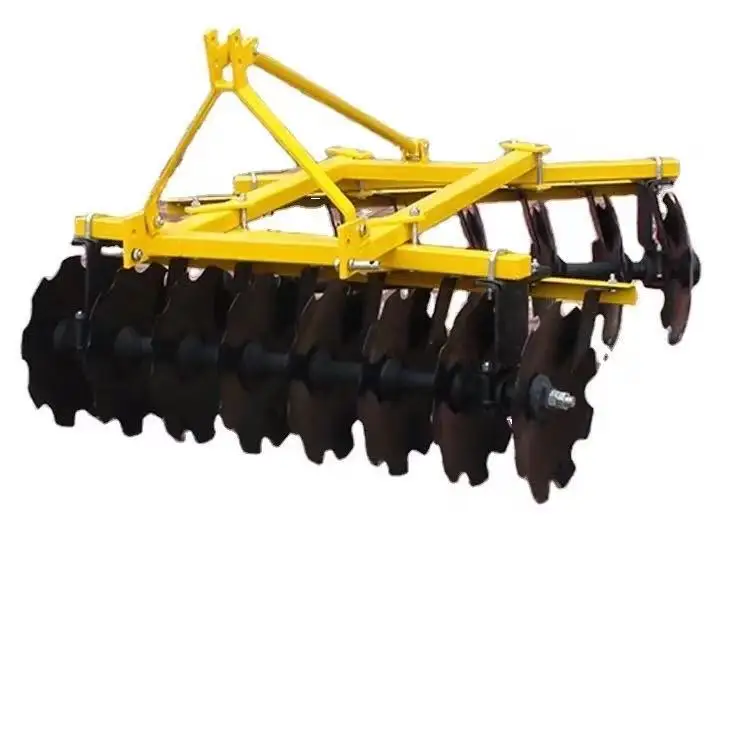

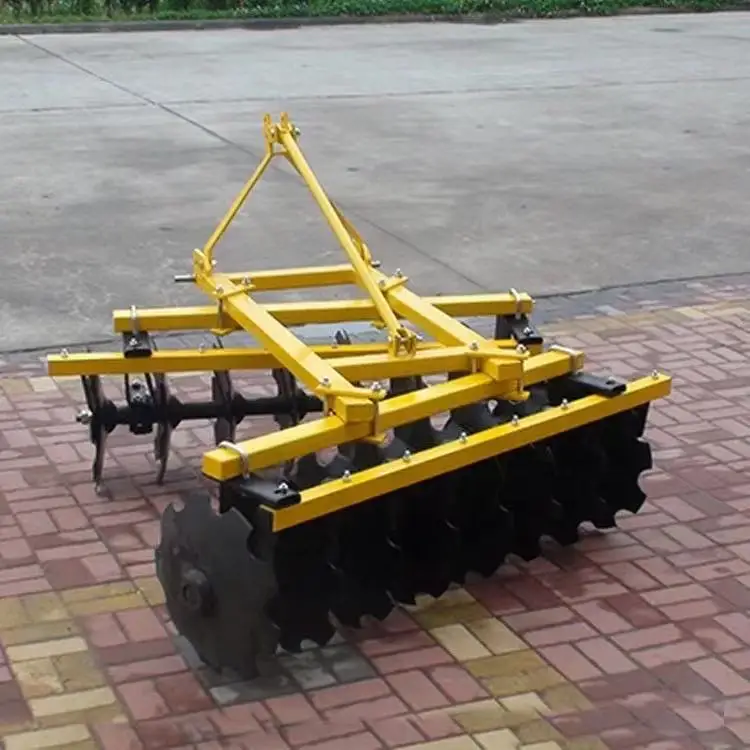

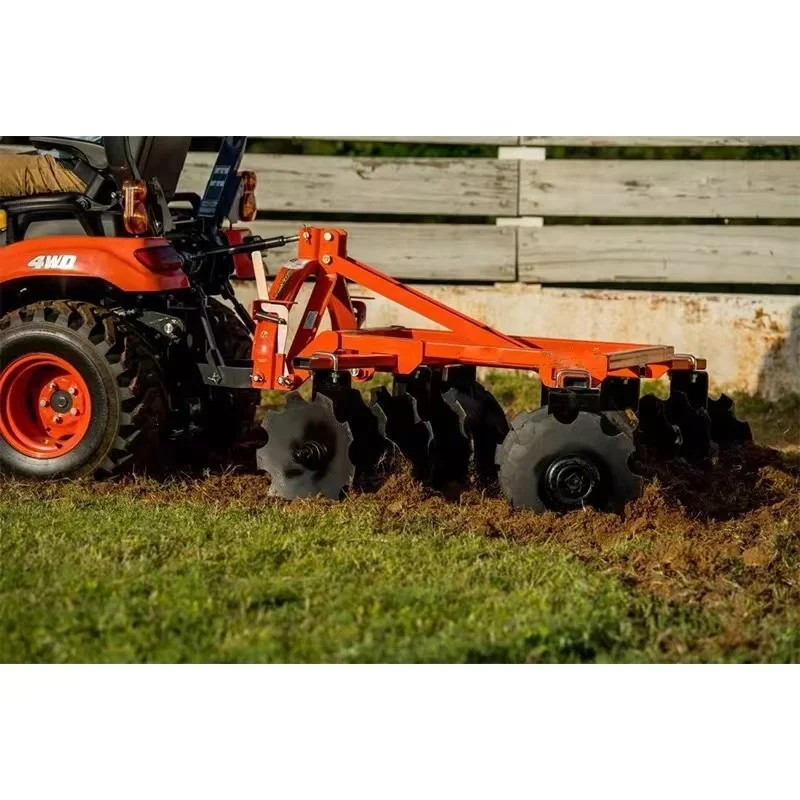

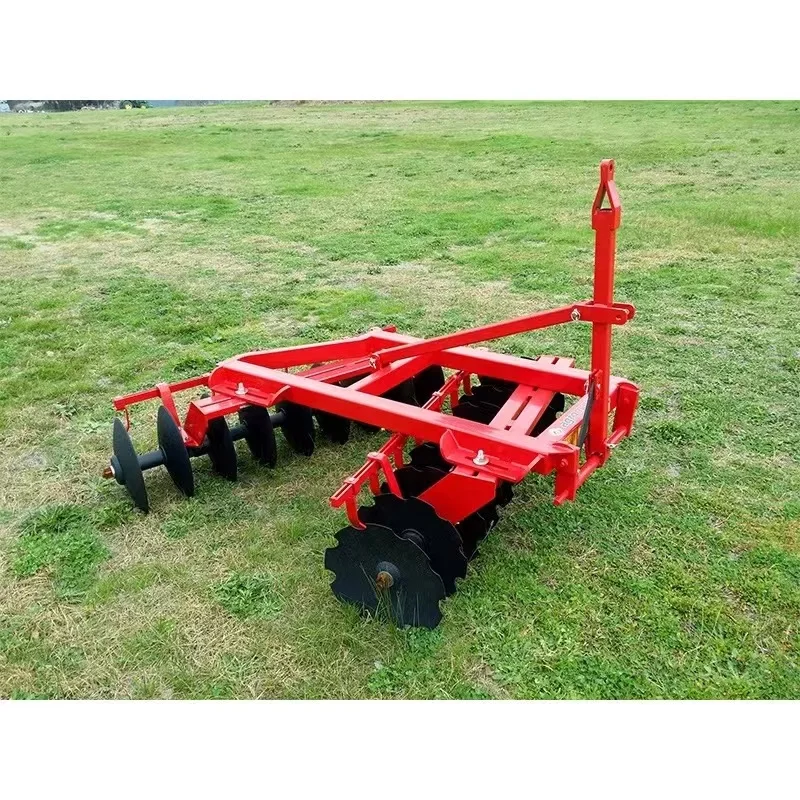

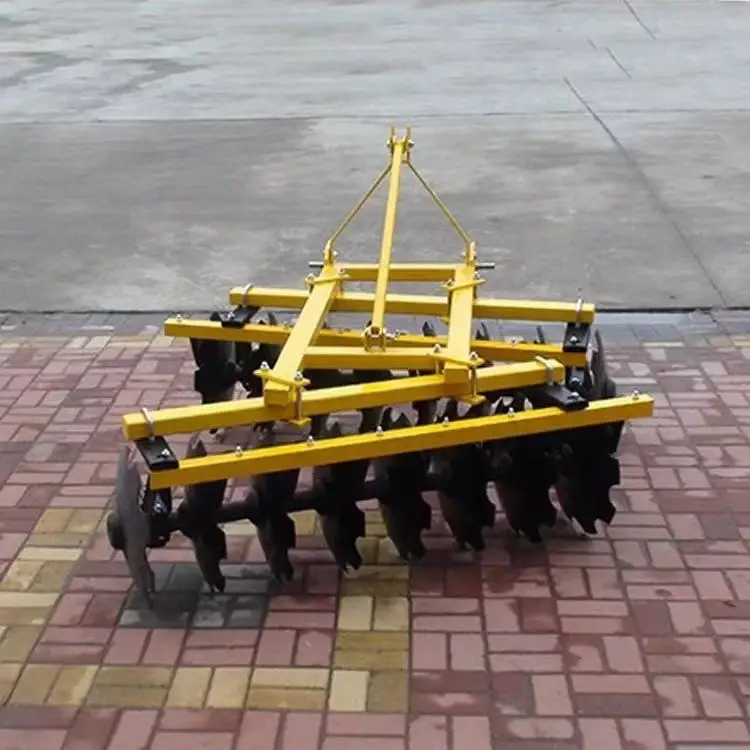

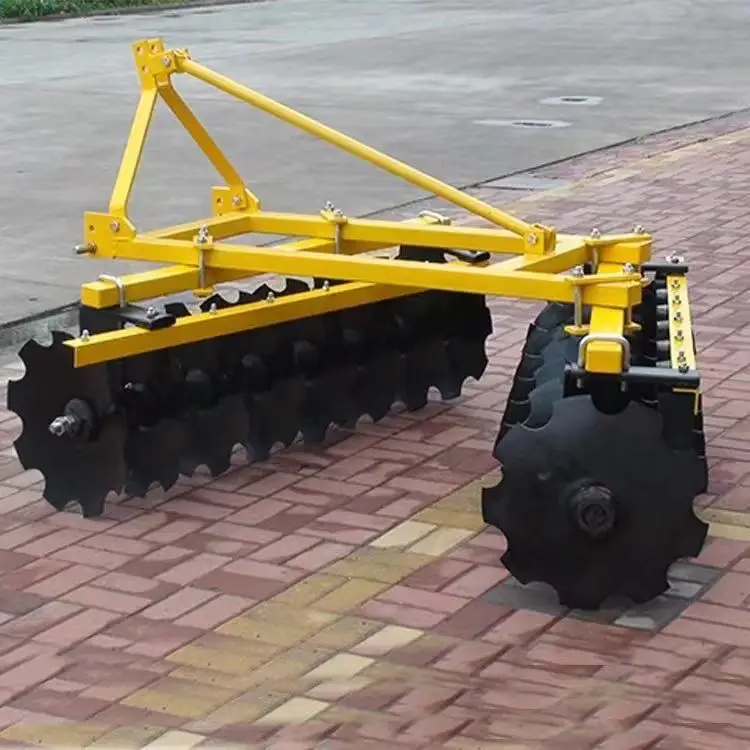

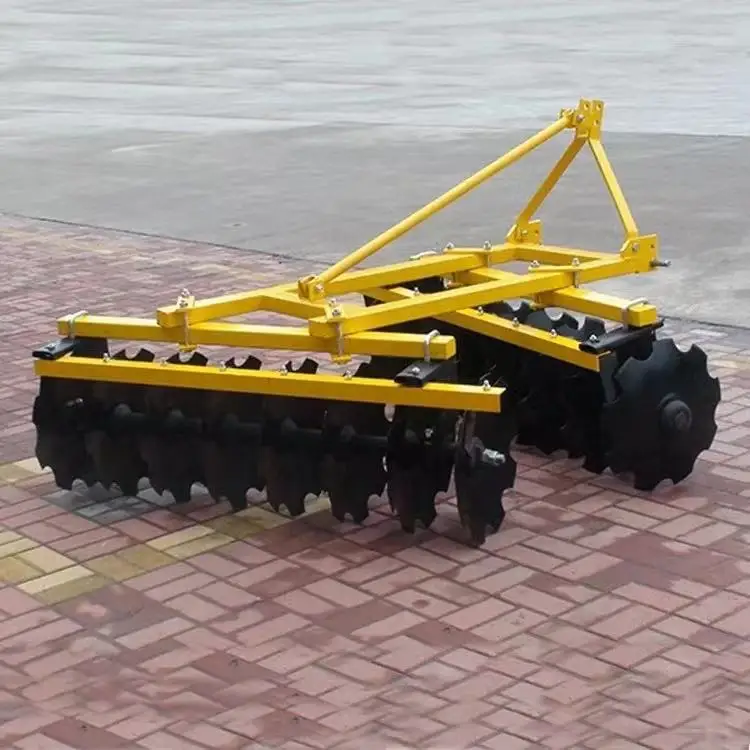

Mounted middle duty disc harrow is used in open field working
for the superficial ploughing,for the shattering of clods,
preparation of soill for sowingburial of organic substances and
remains. It can be used in light and medium soil

Product Features

• Replace plough for soil ploughing on the cooked land


• Suitable for crop stubble before tillage, ground surface slabs, straw shredding and returning to the field, and breaking soil after tillage, leveling and preserving soil moisture


• Flat surface behind the target, loose soil, strong adaptability to heavy clay soil, wasteland and weeds.

Product specification

Model	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Width of cut (mm)	1600	1800	2000	2200	2400	2500
Depth of cut (mm)	140	140	140	140	140	140
No.of disc	14	16	18	20	22	24
Weight (kg)	350	380	420	470	540	650
Tractor power (hp)	30	40	50	60	70	80
Mounted cat	Three point linkage Cat II	Three point linkage Cat II	Three point linkage Cat II	Three point linkage Cat II	Three point linkage Cat II	Three point linkage Cat II

Product Details
