Product Overview

Description



MOKO SMART MK08 module wireless nrf52840 ble5.0 bluetooth chip other networking devices for iot solution
MK08 series is a powerful, highly flexible, ultra low power Bluetooth® 5.0 module based on world leading Nordic® Semiconductor nRF52840 SoC solution, which has a 32bit Arm® Cortex™-M4 CPU with floating point unit running at 64MHz. MK08 series has NFC-A Tag for use in simplified pairing and payment solutions.


Product Description


MK08 series brings out all nRF52840 hardware features and capabilities including USB access, up to +8 dBm transmit power up to 5.5V supply considerations, and NFC tag (type 2 / 4) implementation. Complete regulatory certifications enable faster time to market and reduced development risk completes MOKO SMART’s simplification of your next Bluetooth design!
MK08 supports a wide range of wireless protocols. It supports BLE® (Bluetooth Low Energy), long distance and 2 Mbps, and also supports Bluetooth mesh, 802.15.4, thread, Zigbee, proprietary 2.4 GHz protocol and NFC-A.




MK08 Series BLE module features
Dimension
21*13.8*2.3mm（with shield）
Flash/RAM
1MB/256KB
Interface
UART, SPI, HS-SPI, QSPI, TWI, PDM, I 2S, QDEC, PWM, ADC, NFC, USB
Power Supply
1.7-5.5 V
Operating temp
-40 to +85°C
BLE5.0/5.1 Specification
2 Mbps, CSA #2, Advertising Extensions, Long Range
Cover
Metal shielding with marking
BLE Standard
BLE 5.0/5.1
GPIOs
46
Antenna Type
PCB antenna/u.FL Connector
32.768K Crystal Oscillator
Built inside
Pad package
Plated Half-hole
Other Feature
Bluetooth mesh, ANT+, Thread, Zigbee, 2.4GHz

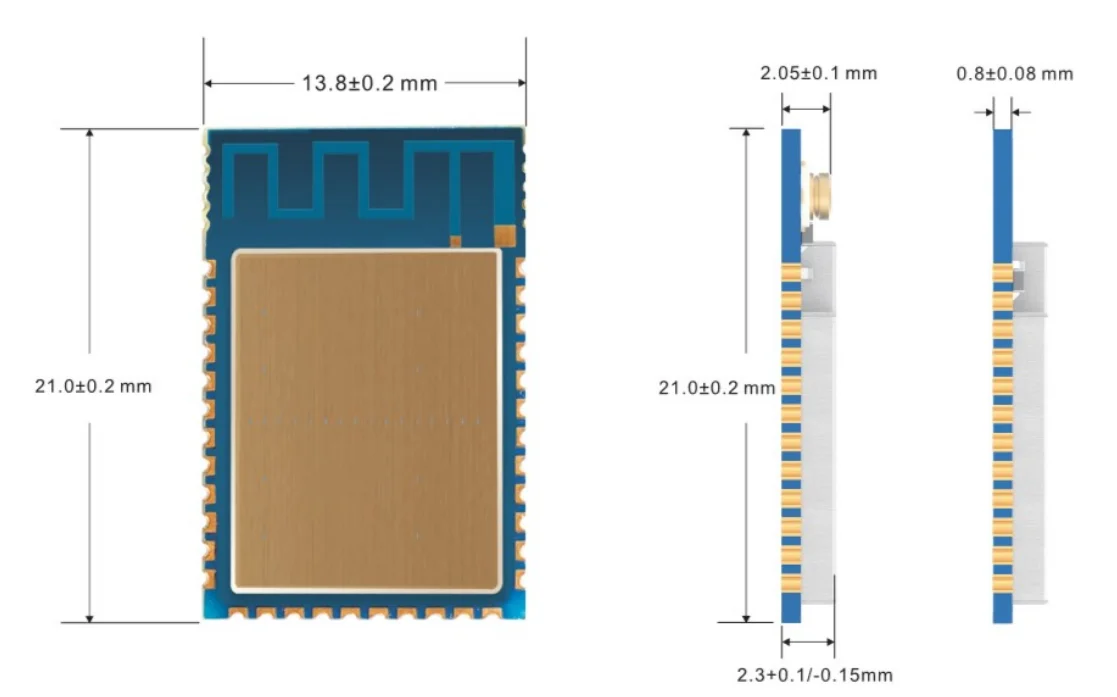

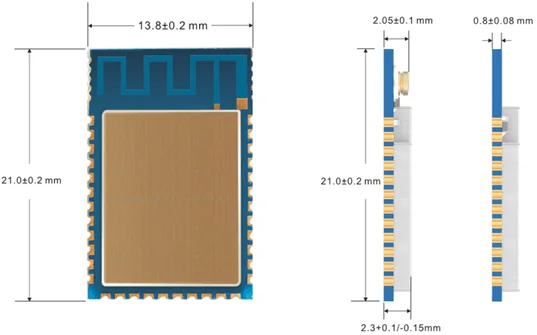

Module Size




Pin Description




Pin No.
Name
Type
Description
1
P0.03
AIN1
Digital I/O
Analog input 1
General purpose I/O
SAADC/COMP/LPCOMP input
2
P0.02
AIN0
Digital I/O
Analog input 0
General purpose I/O
SAADC/COMP/LPCOMP input
3
P0.28AIN4
Digital I/O
Analog input 4
General purpose I/O
SAADC/COMP/LPCOMP input
4
P0.29
AIN5
Digital I/O
Analog input 5
General purpose I/O
SAADC/COMP/LPCOMP input
5
P0.30
AIN6
Digital I/O
Analog input 6
General purpose I/O
SAADC/COMP/LPCOMP input
6
P0.31
AIN7
Digital I/O
Analog input 7
General purpose I/O
SAADC/COMP/LPCOMP input
7
P0.07
Digital I/O
General purpose I/O
8
P0.05
AIN3
Digital I/O
Analog input 3
General purpose I/O
SAADC/COMP/LPCOMP input
9
VDD
Power
Power Supply
10
GND
Power
Ground
11
P0.27
Digital I/O
General purpose I/O
12
P0.26
Digital I/O
General purpose I/O
13
P0.04
AIN2
Digital I/O
Analog input 2
General purpose I/O
SAADC/COMP/LPCOMP input
14
P0.06
Digital I/O
General purpose I/O
15
P0.11
TRACEDATA
Digital I/O
Trace data
General purpose I/O
Trace buffer TRACEDATA
16
P0.08
Digital I/O
General purpose I/O
17
P0.09
NFC1
Digital I/O
NFC input
General purpose I/O
NFC antenna connection
18
P0.10
NFC2
Digital I/O
NFC input
General purpose I/O
NFC antenna connection
19
SWDCLK
Debug
Serial wire debug clock input for debug and
programming
20
SWDIO
Debug
Serial wire debug I/O for debug and
programming
21
P0.12
TRACEDATA
Digital I/O
Trace data
General purpose
Trace buffer TRACEDATA
22
P0.13
Digital I/O
General purpose I/O
23
P0.14
Digital I/O
General purpose I/O
24
P0.15
Digital I/O
General purpose I/O
25
P0.16
Digital I/O
General purpose I/O
26
P0.17
Digital I/O
General purpose I/O
27
P0.18
nRESET
Digital I/O
General purpose I/O
Configurable as pin RESET
28
P0.19
Digital I/O
General purpose I/O
29
P0.20
Digital I/O
General purpose I/O
30
P0.21
Digital I/O
General purpose I/O
31
P0.22
Digital I/O
General purpose I/O
32
P0.23
Digital I/O
General purpose I/O
33
P0.24
Digital I/O
General purpose I/O
34
P0.25
Digital I/O
General purpose I/O
35
P1.10
Digital I/O
General purpose I/O
36
P1.11
Digital I/O
General purpose I/O
37
P1.12
Digital I/O
General purpose I/O
38
P1.13
Digital I/O
General purpose I/O
39
GND
Power
Ground
40
P1.14
Digital I/O
General purpose I/O
41
P1.15
Digital I/O
General purpose I/O
42
VDDH
Power
High voltage power supply
43
GND
Power
Ground
44
P1.08
Digital I/O
General purpose I/O
45
P1.09
TRACEDATA
Digital I/O
Trace data
General purpose I/O
Trace buffer TRACEDATA
46
VBUS
Power
5 V input for USB 3.3 V regulator
47
D-
USB
USB D-
48
D+
USB
USB D+
49
P1.00
TRACEDATA/
SWO
Digital I/O
Trace data
General purpose I/O
Trace buffer TRACEDATA/ Serial wire output
50
P1.01
Digital I/O
General purpose I/O
51
P1.02
Digital I/O
General purpose I/O
52
P1.03
Digital I/O
General purpose I/O
53
P1.04
Digital I/O
General purpose I/O
54
P1.05
Digital I/O
General purpose I/O
55
P1.06
Digital I/O
General purpose I/O
56
P1.07
Digital I/O
General purpose I/O

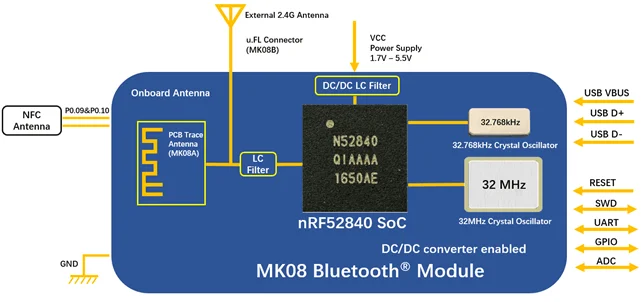

Block Diagram




Application and Solution




Packing & Delivery


Samples:
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.

Orders:
bulk orders usually take about 2 to 3 weeks after payment received
