Quickly Delivery 960*960mm P6 P8 P10 Full Color Smd Rgb Outdoor LED Display Panel LED Screen For Advertising
- Category: >>>
- Supplier: Shenzhen Abxing Industrial Co. Ltd.
Share on (1600895449609):
Product Overview
Description
Products Description
Outdoor Energy-saving Led Display P3.076/P4/P5/P6.667/P8/P10
1、Die-casting Magnesium Outdoor LED Display Magnesium-aluminum die-casting cabinet,93% magnesium, full cabinet weight 27kg.
2、Energy saving, IP65 weather rating, adjust the brightness.Your first choice for outdoor led advertising
1、Die-casting Magnesium Outdoor LED Display Magnesium-aluminum die-casting cabinet,93% magnesium, full cabinet weight 27kg.
2、Energy saving, IP65 weather rating, adjust the brightness.Your first choice for outdoor led advertising
Application Places
Ideal for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate,Hotel, Stage rental,TV,Large market,Playground.
Ideal for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate,Hotel, Stage rental,TV,Large market,Playground.
ITEM | UNIT | ABX960A-P3 | ABX960A-P4 | ABX960A-P5 | ABX960A-P6.667 | ABX960A-P8 | ABX960A-P10 | |||||
Pixel Pitch | mm | 3.076 | 4 | 5 | 6.667 | 8 | 10 | |||||
Pixel Matrix Per | Pixel/sqm | 105625 | 62500 | 40000 | 22500 | 15625 | 10000 | |||||
Module Pixel structure | N/A | SMD1921 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 | |||||
Brightness | nits | 4500-5500Nits | 4500-5500Nits | 4500-5500Nits | 5000-6000Nits | 4500-6000Nits | 4500-7200Nits | |||||
Scan | N/A | 1/13 | 1/13 | 1/10 | 1/6 | 1/5 | 1/4,1/2 | |||||
Cabinet Resolution | Pixel | 240×240 | 192×192 | 160×160 | 144*144 | 120*120 | 96*96 | |||||
Power Con. (Max / Avg) | W/sqm | 600/180 | 600/180 | 600/180 | 600/180 | 600/180 | 600/180 | |||||
Module Dimension | mm | 320x160 | 320x160 | 192x192 | 320x160 | 320x160 | 320x160 | |||||
Cabinet Dimension | mm | 960x960x138 | 960x960x138 | 960x960x138 | 960x960x138 | 960x960x138 | 960x960x138 | |||||
Cabinet Weight | kg | 33kg | 33kg | 33kg | 33kg | 33kg | 33kg | |||||
Service Access | N/A | Rear | Rear | Rear | Rear | Rear | Rear | |||||
View angle | ℃ | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° | |||||
Refresh Rate | Hz | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | |||||
Grey Scale (bit) | bit | 16 | 16 | 16 | 16 | 16 | 16 | |||||
IP Rate | IP | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | |||||
Life span | hrs | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs | |||||
Working Temperature | ℃ | -30-60 ℃ | ||||||||||
Storage Temperature | ℃ | -30-60 ℃ | ||||||||||
Power Supply | V | AC100-240V(50-60Hz) | ||||||||||
Color temperature | N/A | 3000-10000 K(adjustable) | ||||||||||
Led Display Details

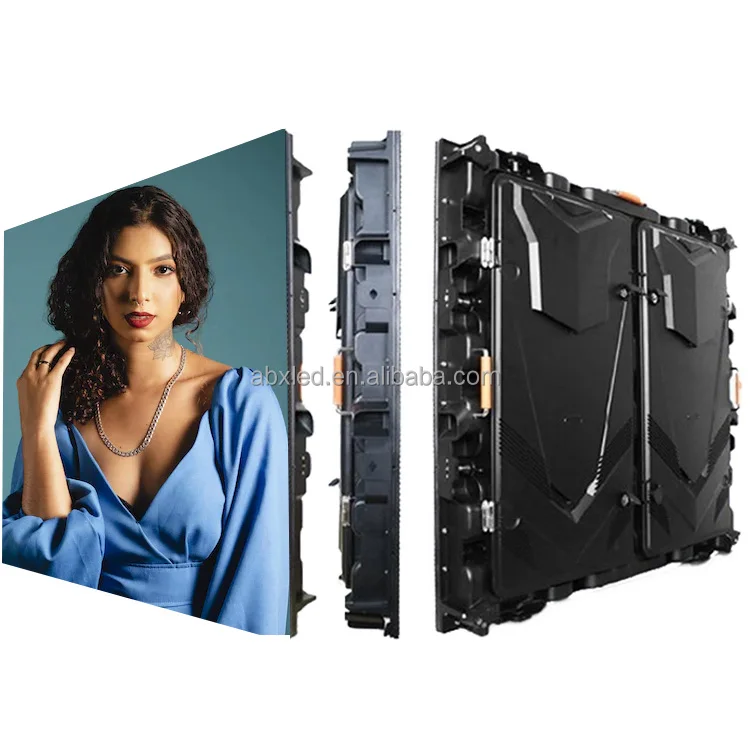

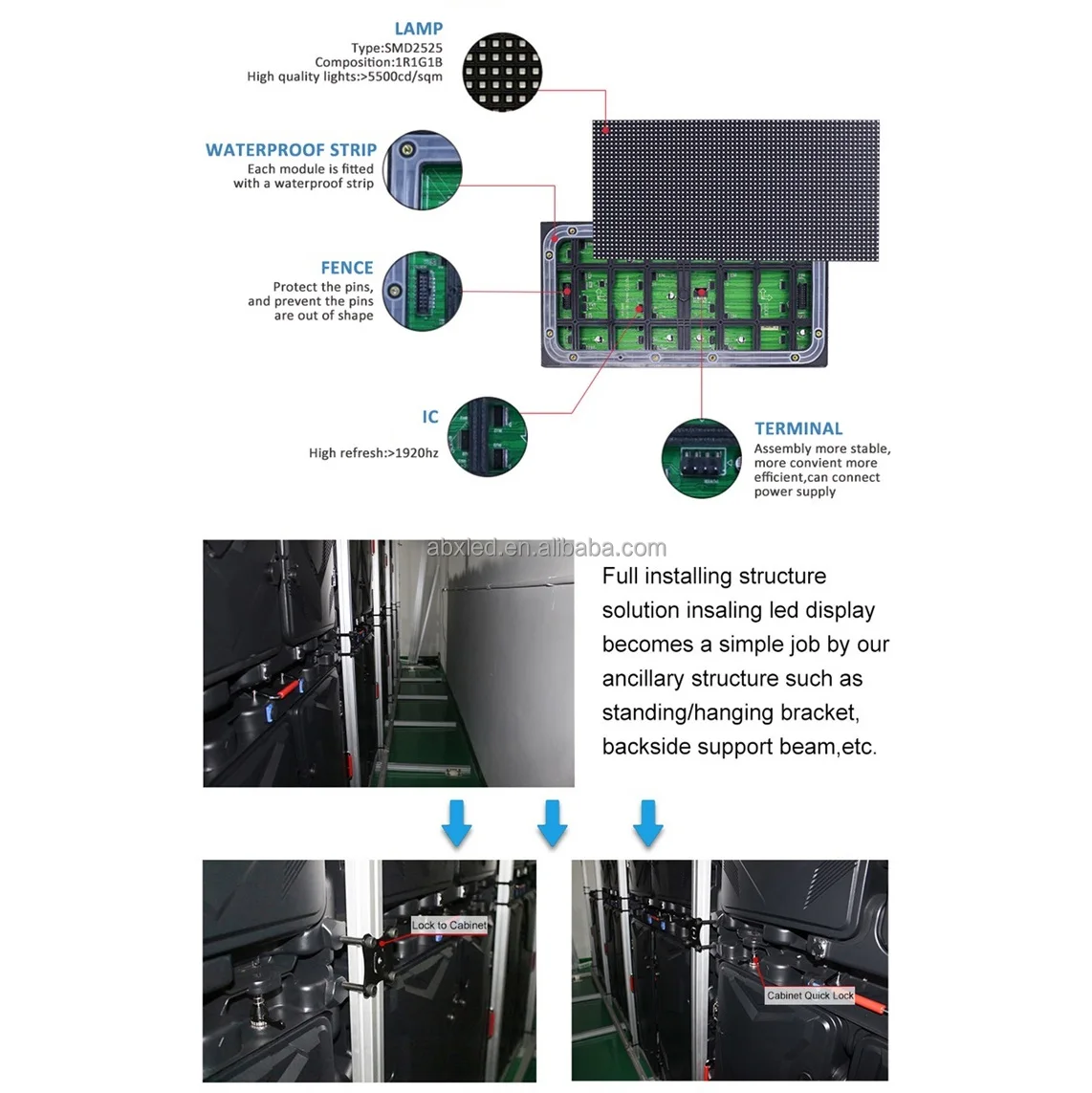

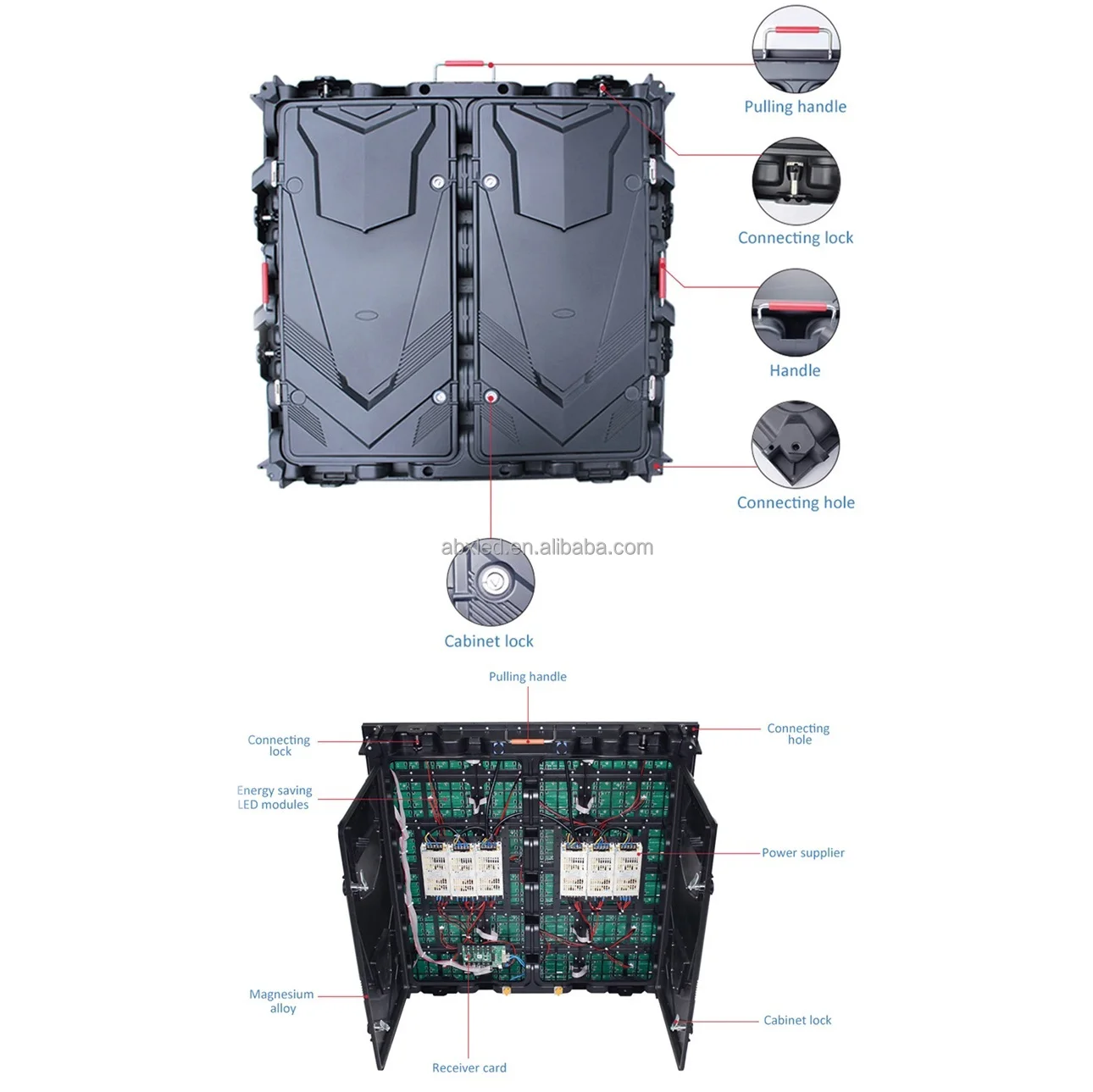

ABX960A LED display is designed with aesthetics and industrial idea.Excellent product came in all details from cabinet handle. cabinet fixed slot, fast lock, Power& signal connector, and more
1.Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle.Changing the pixel spacing is also very convenient, just change the modules.
2.Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
2.Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
ABXLED led LED display screen 3840 high refresh rate and 16 bit high gray level
Our Advantages
*Pre-sales service
*After-Sales Service
*In-Sales Service
*Warranty |Maintenance
* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation our service
*In-Sales Service
*Warranty |Maintenance
* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation our service

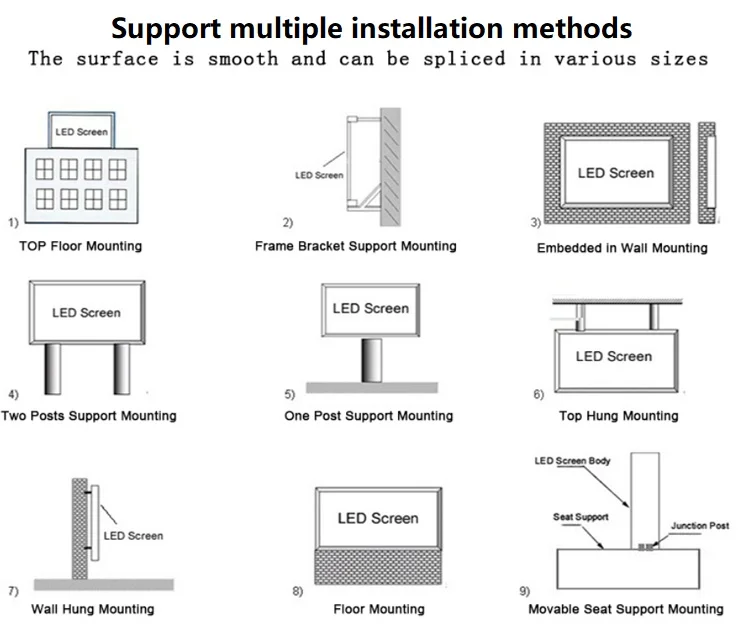

Installation Instructions And System Control

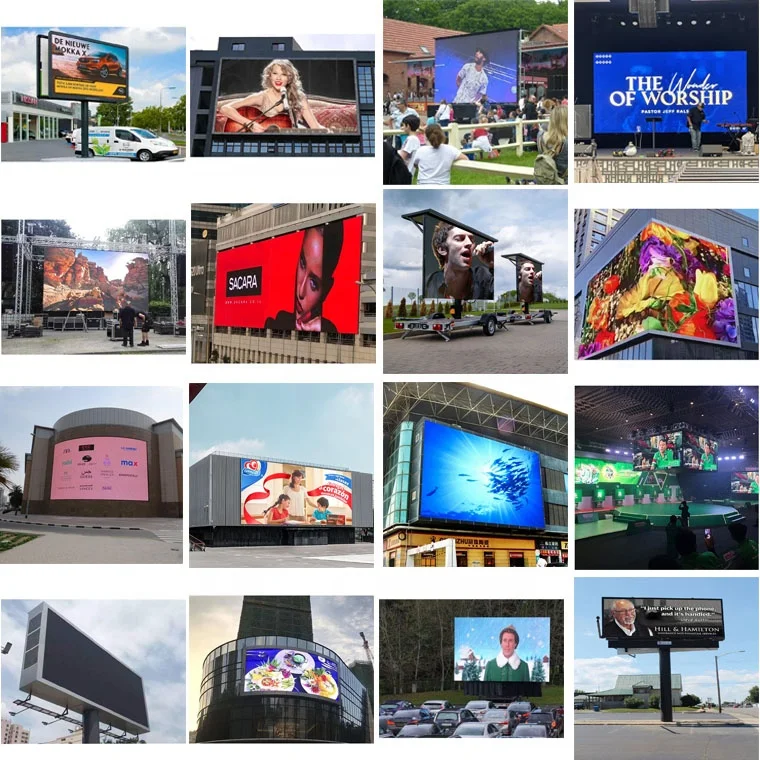

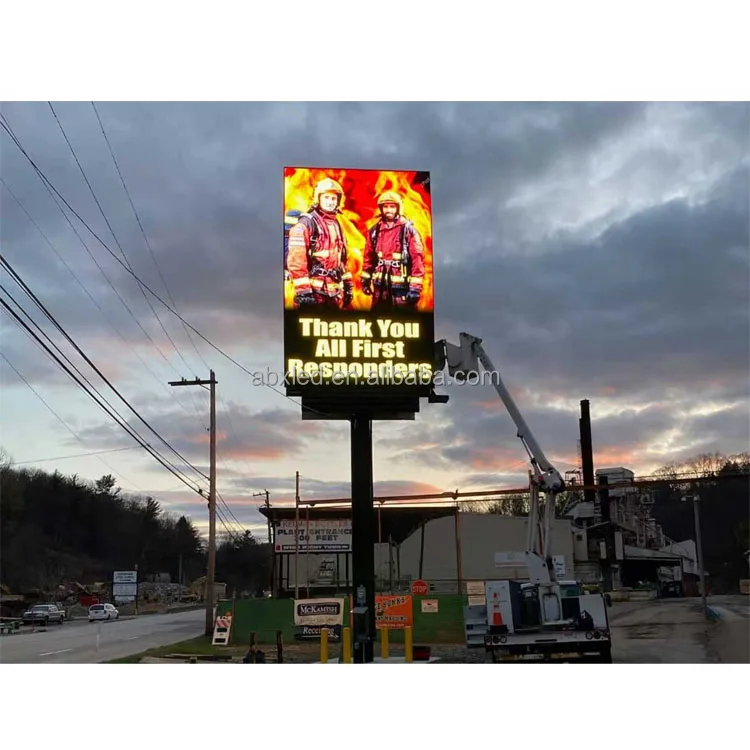

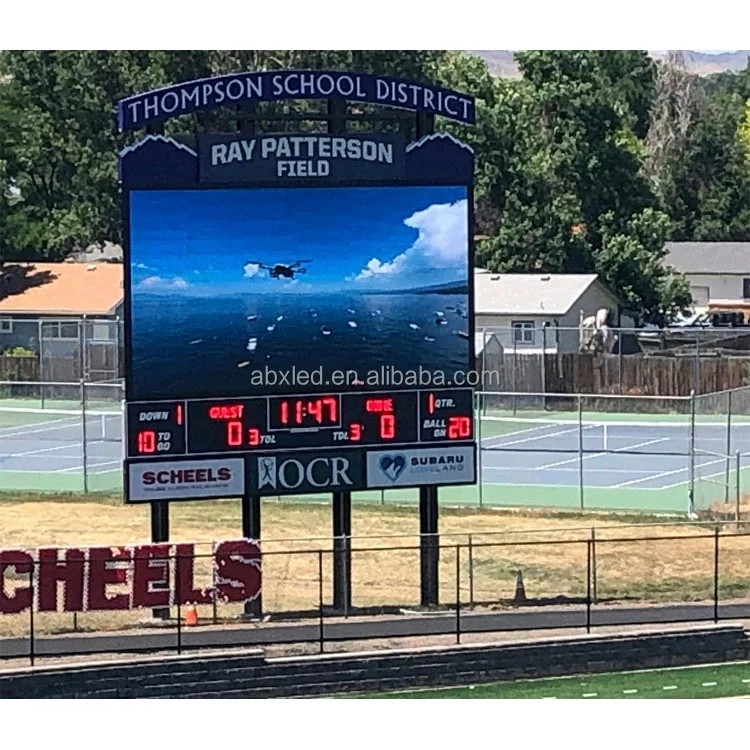

Outdoor Led Display Case
Company Profile
ABXLED is a led screen manufacturer who has seven modern dust-free and static-free production lines, six new high-speed SMT machines, two large-scale lead-free reflow ovens, and more than 150 skilled workers. With over 5,000 square meters of production capacity, our led display products have continuously sought professional international authoritative certifications such as CE,ROHS, FCC, UL, and CCC.
We strictly implement the ISO9001 and 2008 quality management systems. ABXLED maintains a long-term friendly relationship with our customers and has gained a high reputation among customers all over the world.
7 modern dust -free and static-free production lines.
We strictly implement the ISO9001 and 2008 quality management systems. ABXLED maintains a long-term friendly relationship with our customers and has gained a high reputation among customers all over the world.
7 modern dust -free and static-free production lines.
6 new high -speed SMT machines.
With a production capacity of over 5,000 square meters.
With a production capacity of over 5,000 square meters.
Packaging and shipping
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is
smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the
customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then
I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the
production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is
smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the
customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then
I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the
production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
