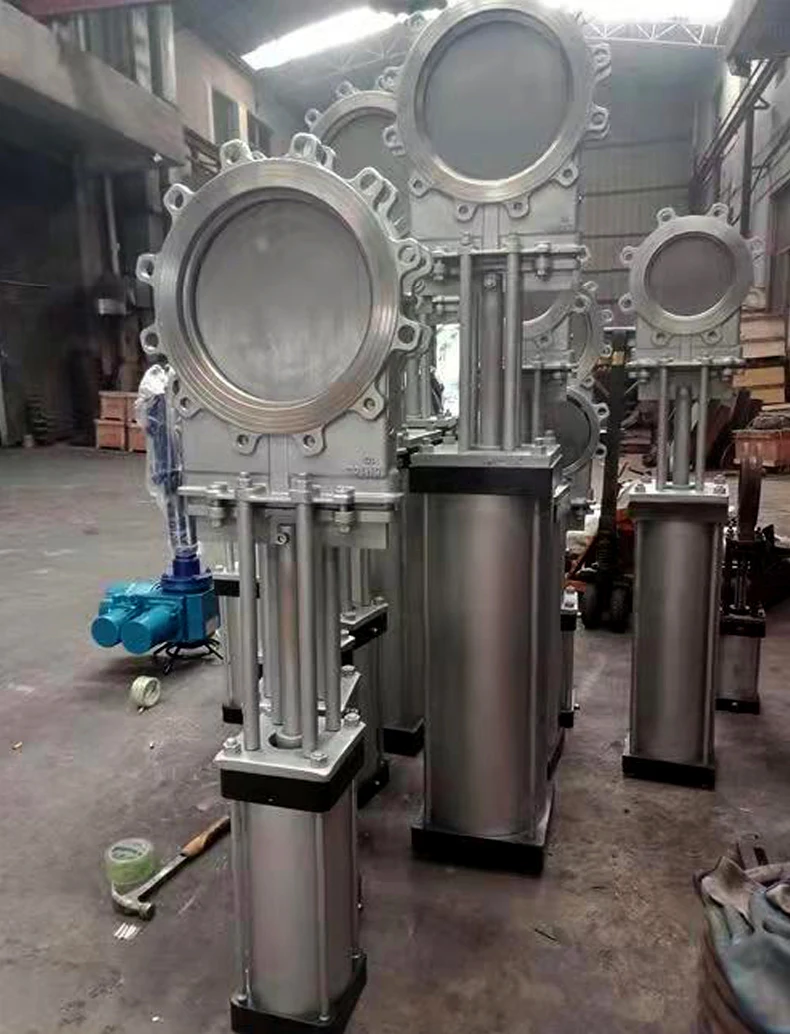

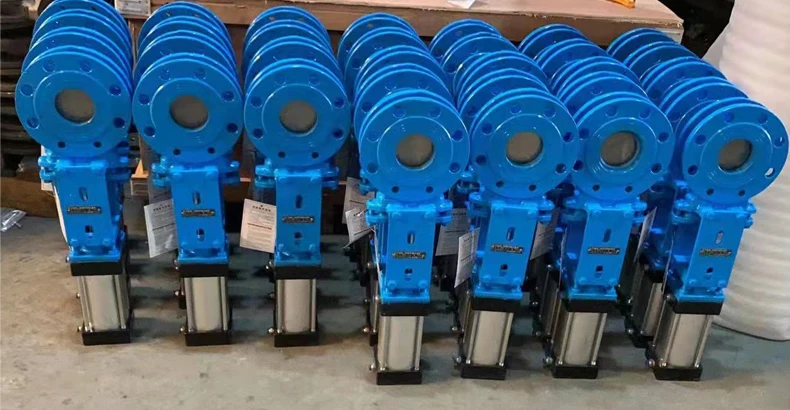

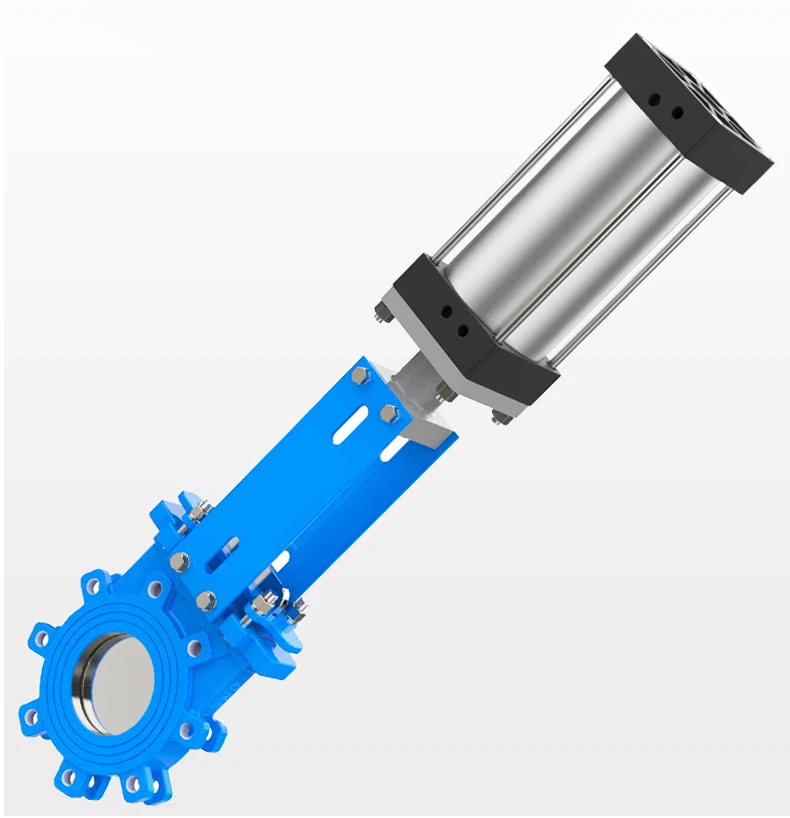

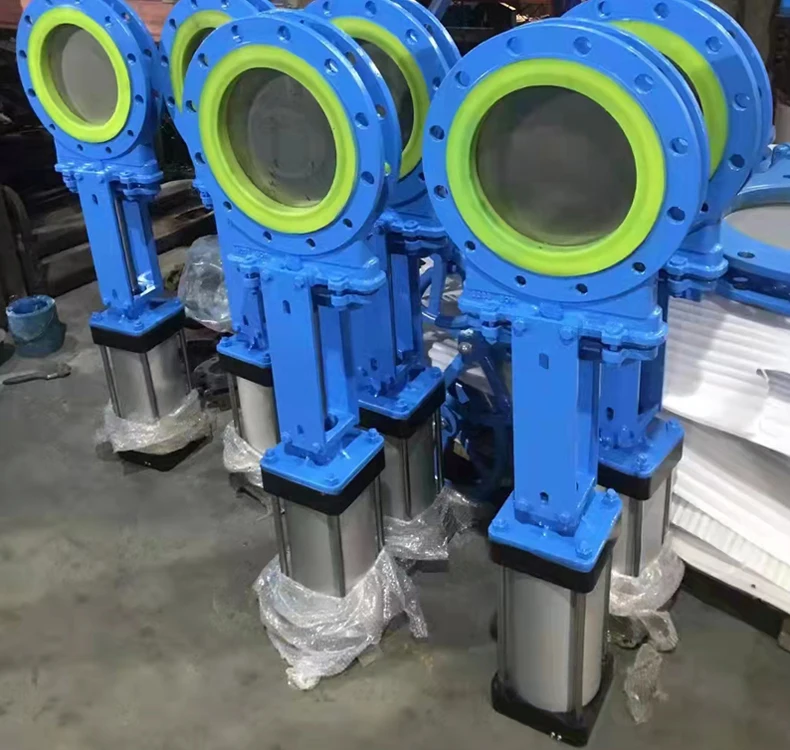

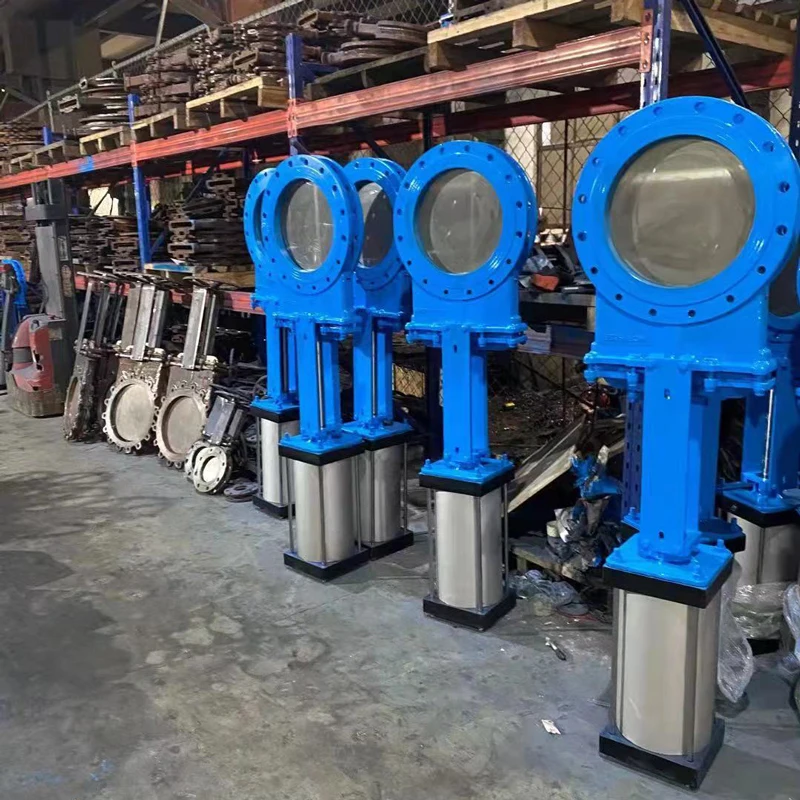

TKFM cast steel insert slurry sludge knife gate valve with pneumatic actuator
- Category: >>>
- Supplier: Shenyang Taike Fluid Control Co. Ltd.
Share on (1600895464101):
Product Overview
Description
Products Description
Advantage features
▲The upper end of the valve plate and the bottom of the valve body are equipped with a gate pressing device, which converts the vertical thrust of the valve stem into a lateral force to realize that the gate closes against the valve seat to form an effective seal.
▲Fully enclosed knife gate valve, the gate is buried in the inner cavity of the valve, completely isolated from the external
environment, and the valve cover is equipped with a round packing bucket, which can effectively avoid the leakage of the fluid medium.
environment, and the valve cover is equipped with a round packing bucket, which can effectively avoid the leakage of the fluid medium.
▲The product is suitable for the automatic control system of the food, brewing, coal, sewage treatment, chemical, steel and other industrial sectors with frequent opening and closing and high environmental protection requirements.
PZ673H、PZ673F、PZ673Y (PN16)(mm) | ||||||||||||
50 | 43 | 160 | 125 | 99 | 285 | 4×M16 | ||||||
65 | 46 | 185 | 145 | 120 | 295 | 4×M16 | ||||||
80 | 46 | 200 | 160 | 135 | 315 | 8×M16 | ||||||
100 | 52 | 220 | 180 | 155 | 365 | 8×M16 | ||||||
125 | 56 | 250 | 210 | 185 | 400 | 8×M16 | ||||||
150 | 56 | 285 | 240 | 210 | 475 | 8×M20 | ||||||
200 | 60 | 340 | 295 | 265 | 540 | 12×M20 | ||||||
250 | 68 | 405 | 355 | 310 | 630 | 12×M22 | ||||||
300 | 78 | 460 | 410 | 375 | 780 | 12×M22 | ||||||
350 | 78 | 520 | 470 | 435 | 885 | 16×M22 | ||||||
400 | 102 | 580 | 525 | 485 | 990 | 16×M27 | ||||||
450 | 114 | 640 | 858 | 545 | 1100 | 20×M27 | ||||||
500 | 127 | 715 | 650 | 609 | 1200 | 20×M30 | ||||||
