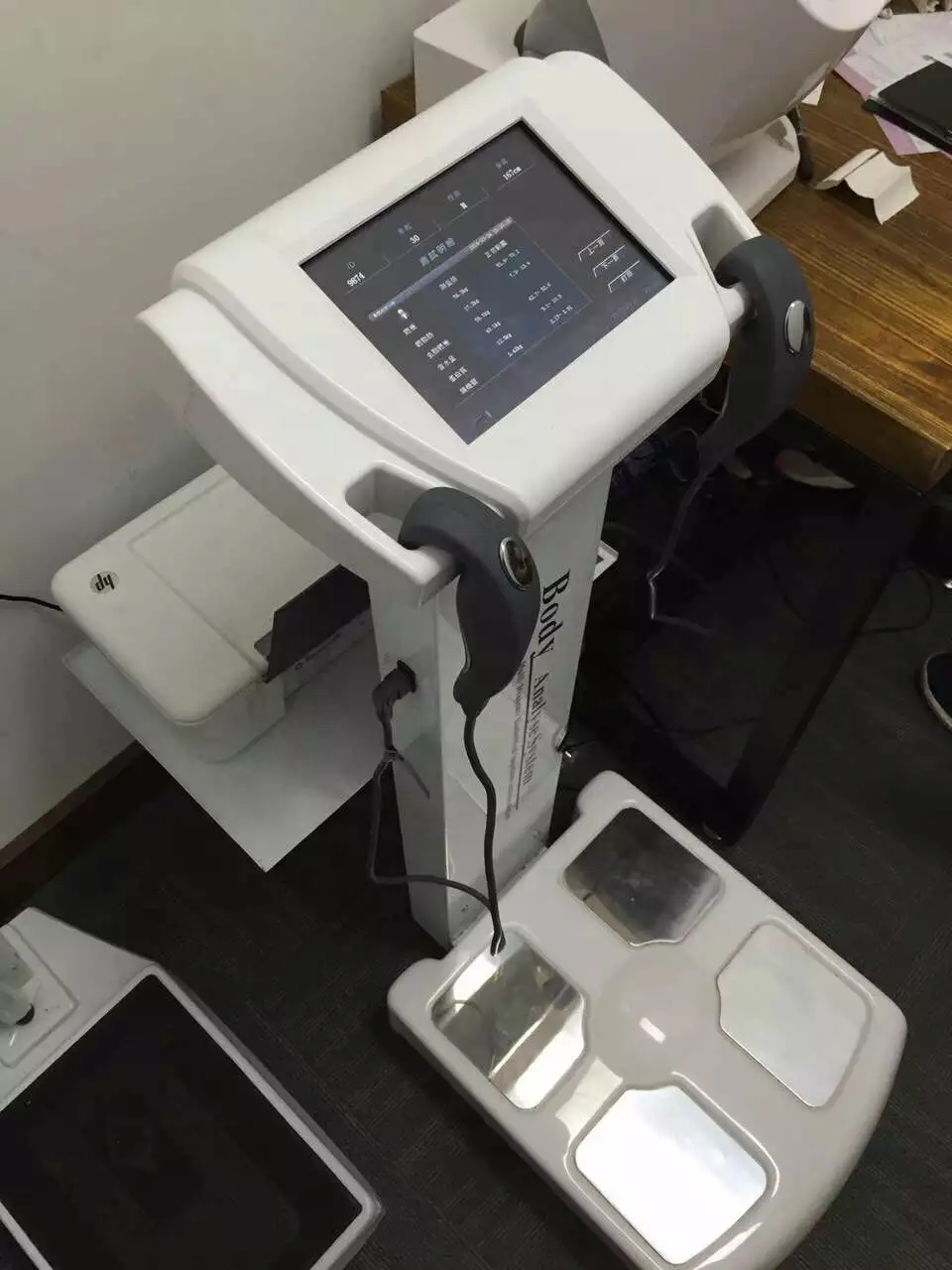

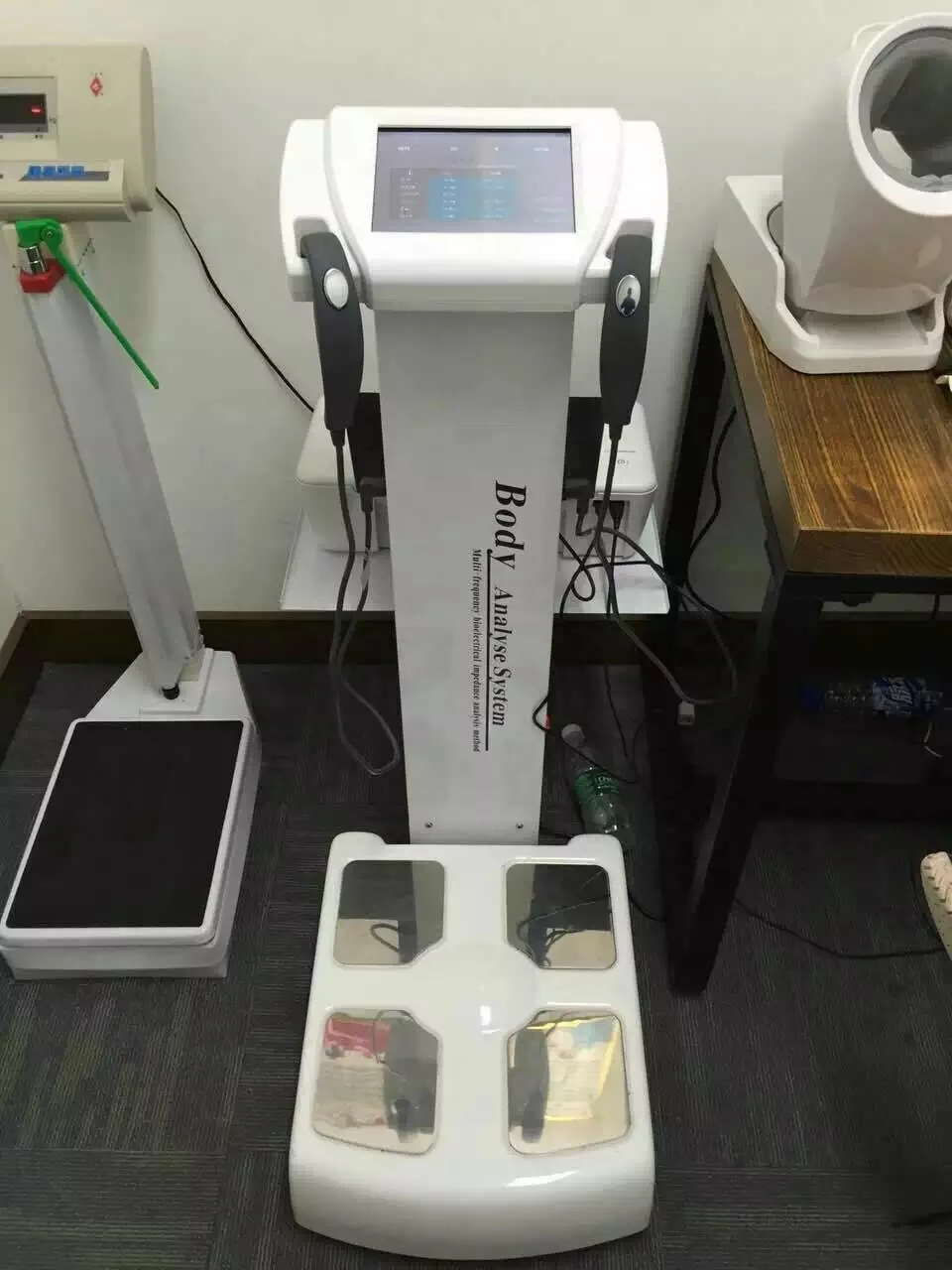

3d Measure Height Weight Fat Health Body Composition Analyzer Machine Price 270 body composition analyzer

Product Overview

Description

Popular body fat analyzer

Accurate body composition analyzer



Introduction

Body Composition Analyzer applies the accurate measurement of AVR micro computer controller. Based on new statistics method DXA, it can detect various elements of human body and analize human health status.The analysis of humanelements: total body water,Protein,Abio-Sault,fat, weight,muscle, BMI, PBF,WHR and moisture ratio indicates through multi-frequency bioelectrical impedance analysis provides a scientific basis for losing weight effectively, which is considered as an epoch-making results of the health industry. It is the analysis of health status from each test that develops a new treatment to weight Losing.

Applied to hospitals, fitness centers, beauty clubs, scientific research centers, institutions, enterprises, government agencies, sports clubs, health management andaccessing agencies,it can help people evaluate their body state accurately, since it has the functions of human body elements analysis,muscle and fat analysis, obesity analysis and healthy assessment.



How it works

GS6.5B uses Bioelectric Impedance Analysis (BIA). BIA sends a small electrical current through your body to determine your body composition. Body composition is based on how much resistance the current encounters, this is known as the impedence. Inside the body, water is the best conductor and offers the least resistance to the current. Since muscle has a higher water volume than fat, the scale can accurately read the amount in your body based on the current's impedance. For the most accurate results our patient's are encouraged to be well hydrated before coming for weigh-ins.



What does it measure

After your body composition analysis, you will be handed a print out with your results. There are fivesections on the print out Input, Results, Desirable Range, Indicator, and Physique Rating. It is important to understand the information in each section while you track your progress.

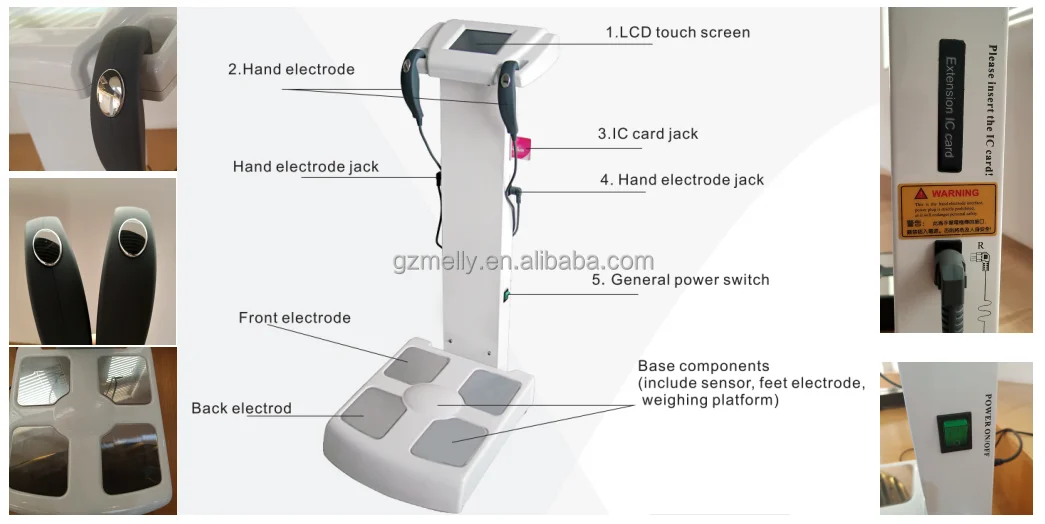

Features

8 point contact eletrode

Multi-frequency bioelectrical impedance analysis (MFBIA)

bioelectrical impedance analysis on the part of left upper limb, right upper limb, trunk,left lower extremity, right lower extremity

     Three differenct frequency(20KHZ, 50KHZ, 100KHZ)

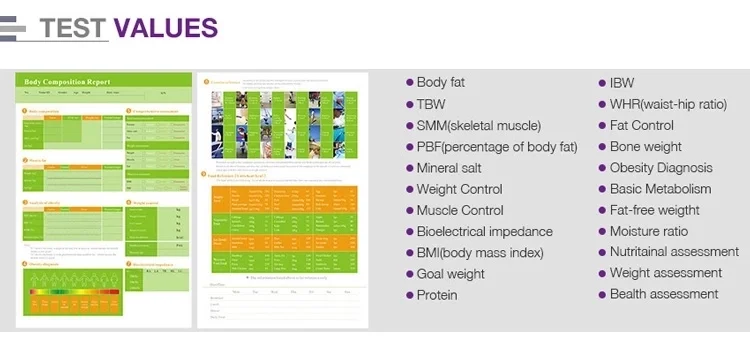

     25 Values of Test

25 test results will be printed by color report ,

2 operating modes:one for usual people, one for sports coach,while other similar ones in the market only have the modes for usual people

GS6.5B has USB line to connect with the computer, and then you could store the customer information easily.

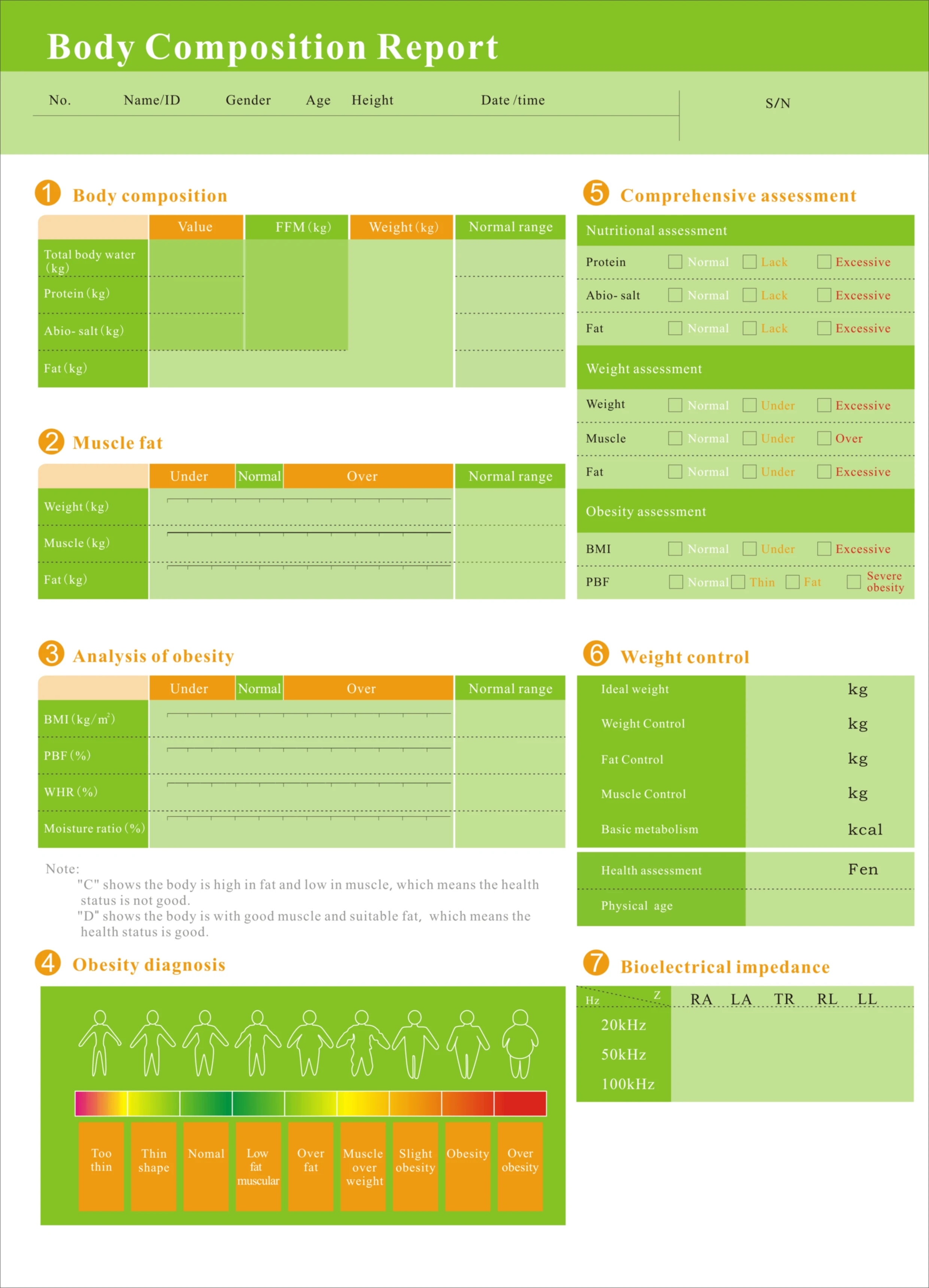

Test Report





Technical Parameters

Test Method	Multi-frequency bioelectrical impedance analysis (MFBIA)
Test Part	bioelectrical impedance analysis on the part of left upper limb, right upper limb, trunk, left lower extremity, right lower extremity
Test Frequency	Three differenct frequency(20KHZ, 50KHZ, 100KHZ)
Electrode Method	8 pointscontact eletrode
Computing method of body components	Do not estimate through empirical value
Output Value(25)	TBW, protein, mineral salt, Body fat, bone weight, Weight,IBW, fat-free weight, SMM(Skeletal muscle), BMI(Body mass index), PDF(percentage of body fat), WHP(waist-hip ratio),moisture ratio, Obesity diagnosis, nutritional assessment, Weight assessment, obesity assessment, Goal weight,Weight control,Fat control, Muscle control, Health assessment, basic metabolism, bioelectrical impedance.
Rated current	less than 180μA
Power	Input power: AC100~240V, 50/60HZ
Screen	320*240 STN LCD Touching Screen
Operation Language	English and Multiple Language Option
Values Storage	50000×10 and SD Card unlimited expansionis available
External Storage	SD Card tranfer to computer for large storage
External Interfaces	RJ-45, USB2
Printer Interfaces	USB
IC Card System	standard IC card control
Printer	A4 color paper ink-jet printer(manufacturers appoint the model), internally installed thermal printer
MEAS. Of Package	49CM*50CM*118CM, GW: 40KG; NW:32KG. MEAS. Of printer package: 63CM*44CM*38CM
Test time	No more than 2 minutes
Operation Environment	Temperature: 10~400°C(50~1040°F),humidity: 30~80%RH, 500~600hPa
Conservation Environment	Temperature: 0~400°C(32~1040°F),humidity: 30~80%RH, 500~600hPa
Test scope of weight	10~200Kg; Test scope of age: 10~99 ages; Test scope of height: 90~200cm
External expansion project	Ultrasonic Height Measurer(selective purchasing)

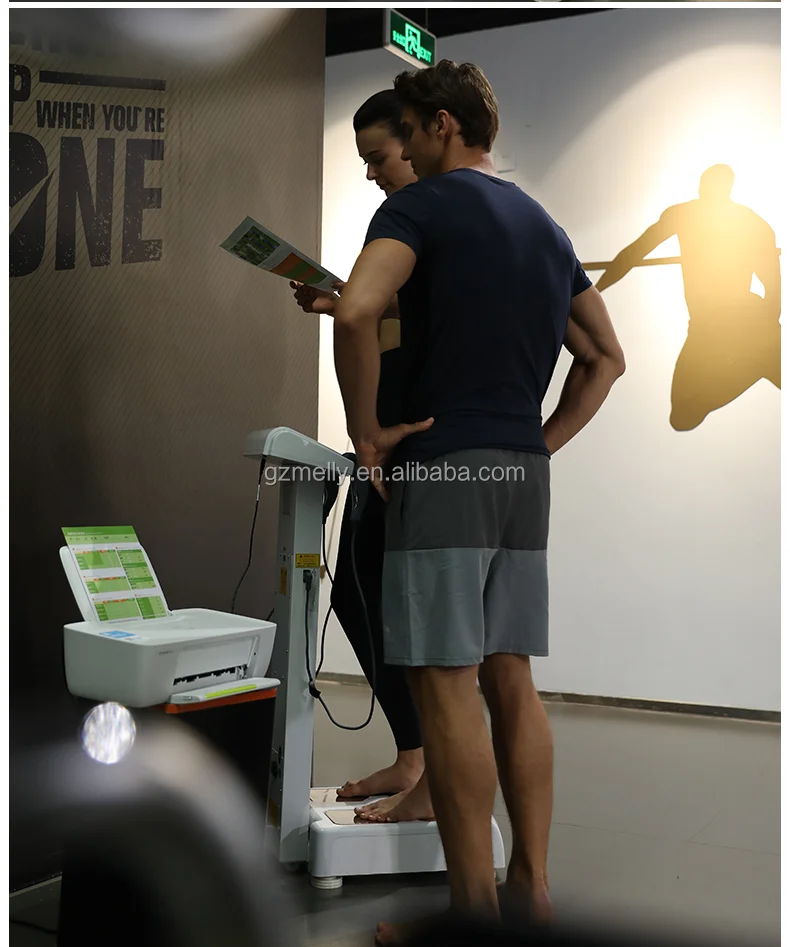

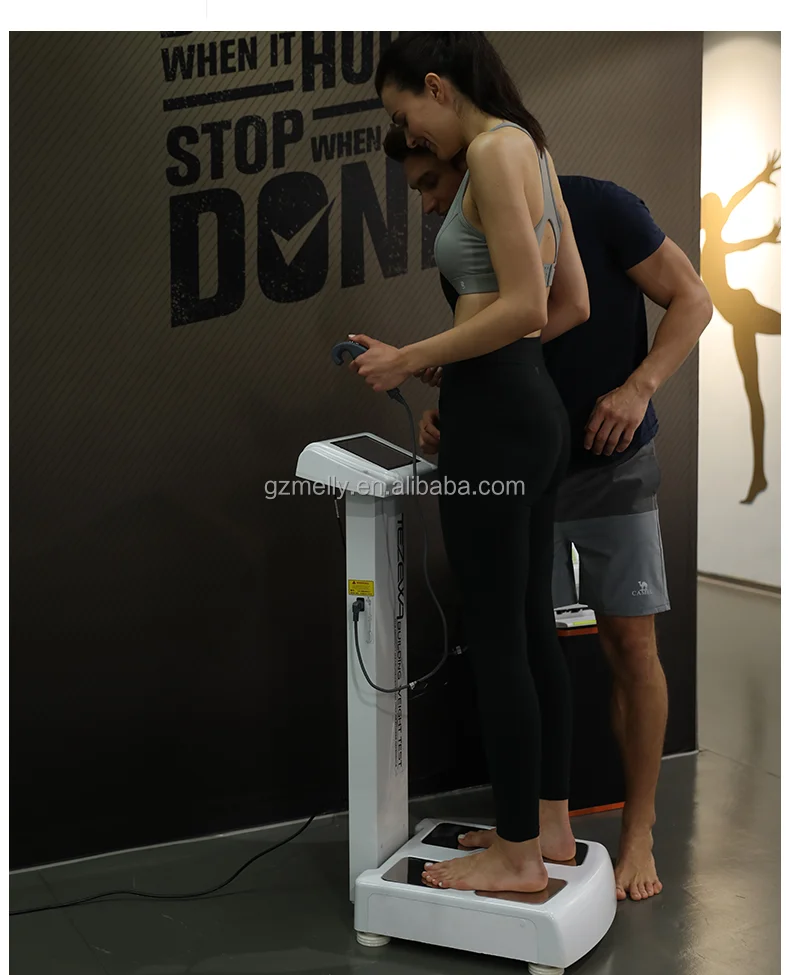

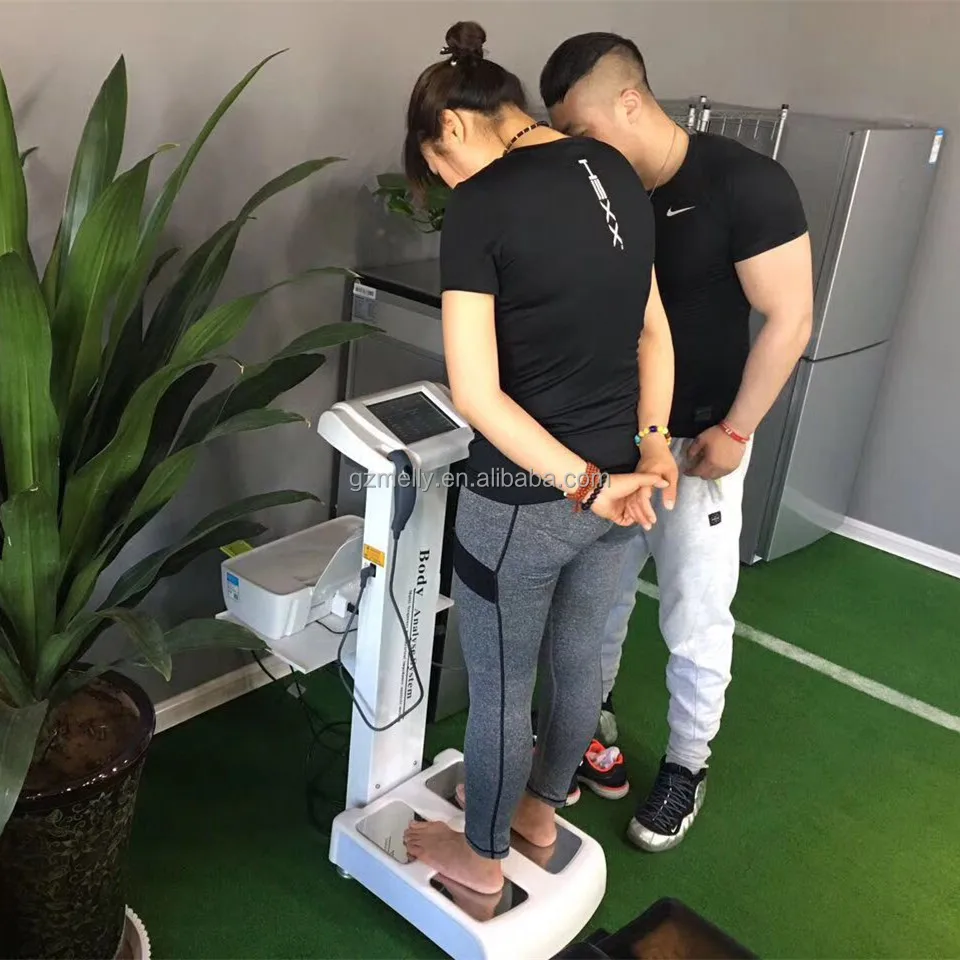

Application

FAQ





1. What if the machine breaks in foreign countries?
We just need the operator tell us what phenomenon of the problems. If it is small problem, we can teach and fix the machine immediately. If need parts, we send parts immediately and teach how to change the parts, which is very easy.

2. I have never used such a machine. How can I learn it?
With machine, we will send manual to teach you how to use machine. And we also can online training by skype or phone call.

3. If the machine is returned by customs, what will you do?
We will find why your customs return our machine and find solutions and will send a brand new machine to you immediately. If you cannot receive the machine at all, we will return your money. And machine will come back to us.

4. What courier you often use?
We mostly use DHL which is the best courier and fastest. But we also accept other couriers like UPS, TNT, Fedex, EMS, by air or by sea.

5. Can you put my LOGO on the start screen instead of yours?
Yes. You just need to send us a picture of your logo in high quality. Then we put your logo on start screen of the machine.

6. What is payment terms
We accept all popular payment terms like wire transfer, western union transfer,moneygram, escrow, credit, and cash.

7. What is your delivery time?
We need only 2~5 days according to different machines and different quantity of your orders.
For more questions, pls feel free to contact us.

8. Why should you choose us?
Powerful factory, giving the competitive price and best technology support 12-years’ experience in producing beauty machine, strong R&D 1 years-warranty and 8/24 online after-sale service CE Certification, the key for you to legally use and sell the machine Diversity of customized service, strong OEM & ODM capability available.



Warranty

1.Any accessory failure occurs during the first three months from the date of delivery; we will provide free accessories for buyer to replace, but buyers should provide the failure report and afford the freight charge.

2.We can provide technical guidance for the maintenance of free within a year,and if the host is broken within a year, we can also provide free.

3.Any mainframe failure occurs, you can contact with our service center at anytime you need.

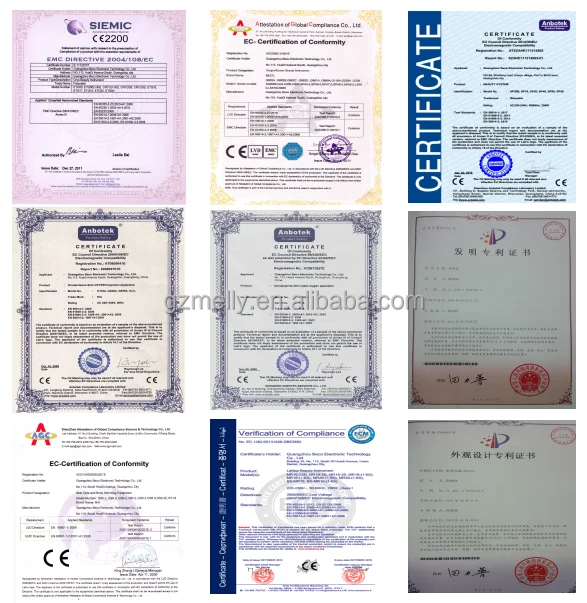

Certification
