VNICE CAN BUS RS485 48v 14S 150A lithium iron phosphate NCM monitoring battery management system bms
VNICE CAN BUS RS485 48v 14S 150A lithium iron phosphate NCM monitoring battery management system bms
VNICE CAN BUS RS485 48v 14S 150A lithium iron phosphate NCM monitoring battery management system bms
VNICE CAN BUS RS485 48v 14S 150A lithium iron phosphate NCM monitoring battery management system bms

VNICE CAN BUS RS485 48v 14S 150A lithium iron phosphate NCM monitoring battery management system bms

Share on (1600895605301):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


Battery type and serial number
Battery type and serial number
LFP(16S/15S)
NCM(14S/13S)
Continuously charging/discharging current
Continuously charging/discharging current
50A
100A
150A
200A
50A
100A
150A
200A
Communication protocol
Communication protocol
CANBUS（defult） RS485(Please contact Sale man)
Custom function
Custom function
Heating function、External switch、RS485 protocol
Discharge Output Impedance
Discharge Output Impedance
<2mΩ
Working Temperture
Working Temperture
-20℃-70℃
compensating impedance
compensating impedance
10mΩ
Pre-charging
Pre-charging
0-3000ms
Current Balance
Passive balance
150mA(Max)

Power consumption
Working mode power consumption
<40mA
Sleeping mode power consumption
0uA

Capacity protection
Nominal capacity
5-500Ah
Remaining capacity protection
5%

Short Circuit protection
Short circuit protection lock
Continuously short in the output circuit
Short circuit protection lock times
5 times
Short circuit protection lock release
Connected with charger
Individual cell voltage protection
Over voltage protection
3650mV
4200mV
Over voltage protection
2700mV
2900mV

Voltage protection
Over voltage protection
57.6V
58V
Under voltage protection
41.6V
40.6V

Current protection
Current protection
60A
110A
160A
210A
60A
110A
160A
210A
Over current protection time delay
30ms
Current limiting(charging)
Passive current limiting
10A

Heating function
Start
0℃
Stop
10℃

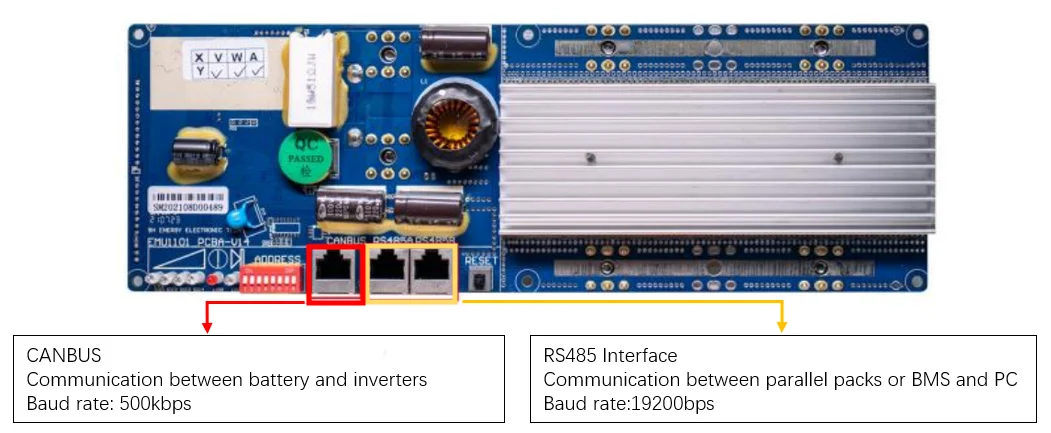

CANBUS mother board
Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching
inverter brand, which can be automatically matched or manually switched:
The default is the Pylontech CANBUS protocol
Goodwe/Growatt/Sermatec/Renac/IMEON
Victron/LUXPOWER/Sofar/Deye/Foxess
TBB POWER/Solis/SMA

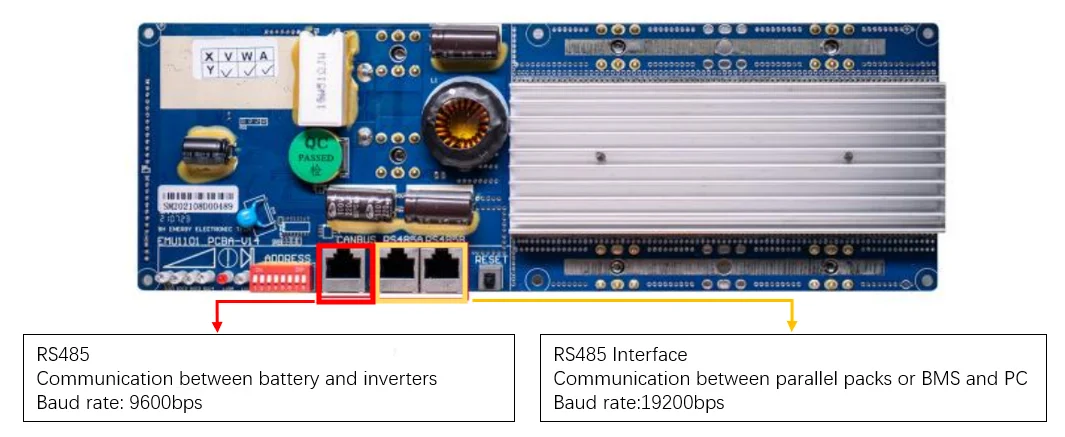

RS485 mother board
Now our RS485 communication board supports these brands of inverters,The BMS with RS485 communication has a built-in RS485
protocol, please confirm with the salesman before buying what you need is that one RS485 protocol:
The default is the Pylontech RS485 protocol
Voitronic
Phocos
Growatt.


Company Profile






VnicePower is a lithium battery manufacturer dedicated to building the safest lithium battery in the world, VnicePower specialized in the one-stop solution for residential battery energy storage system and small industrial and commercial battery energy storage systems.
VnicePower provides OEM and ODM services, continuously improves its manufacturing system, and provides the most advanced products, with customer expectations exceeding quality and price. Our continuous commitment to R & D has provided distributors and OEM customers with innovative and reliable products at reasonable prices to meet customers' unique demand for lithium ion batteries and LIFEPO4 batteries.


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
