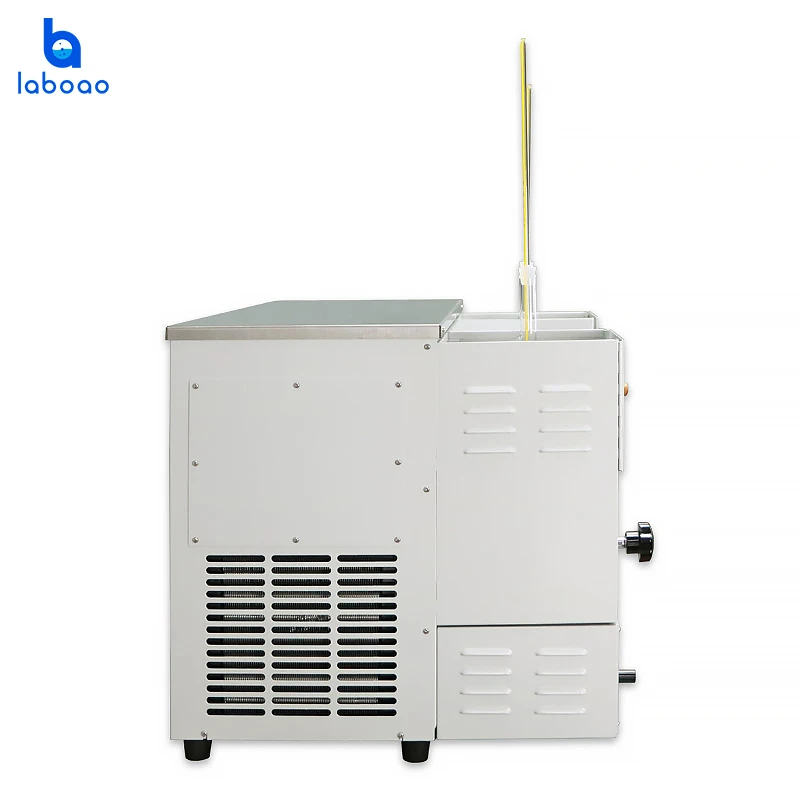

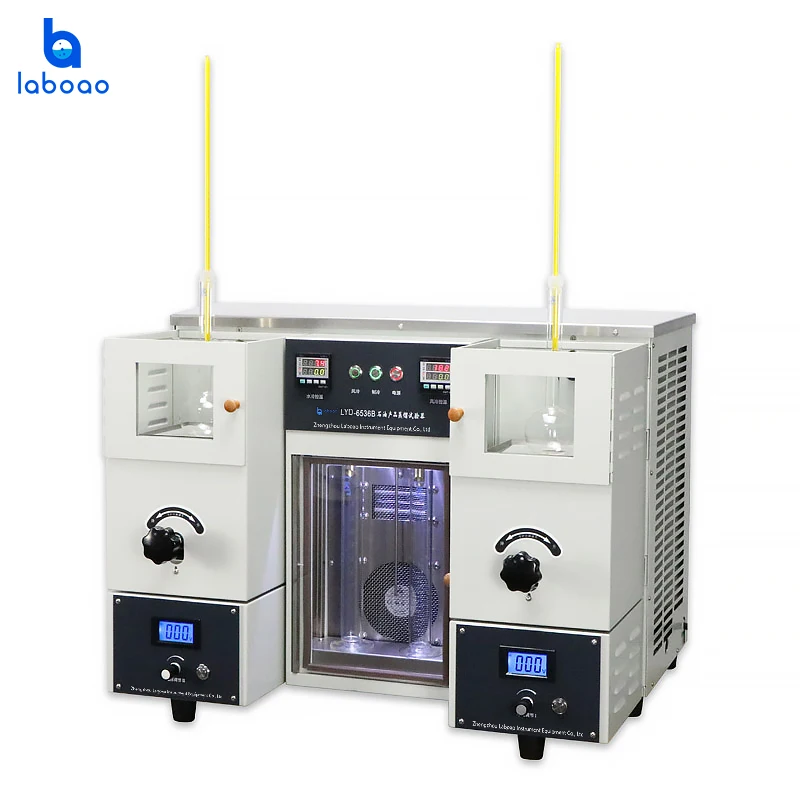

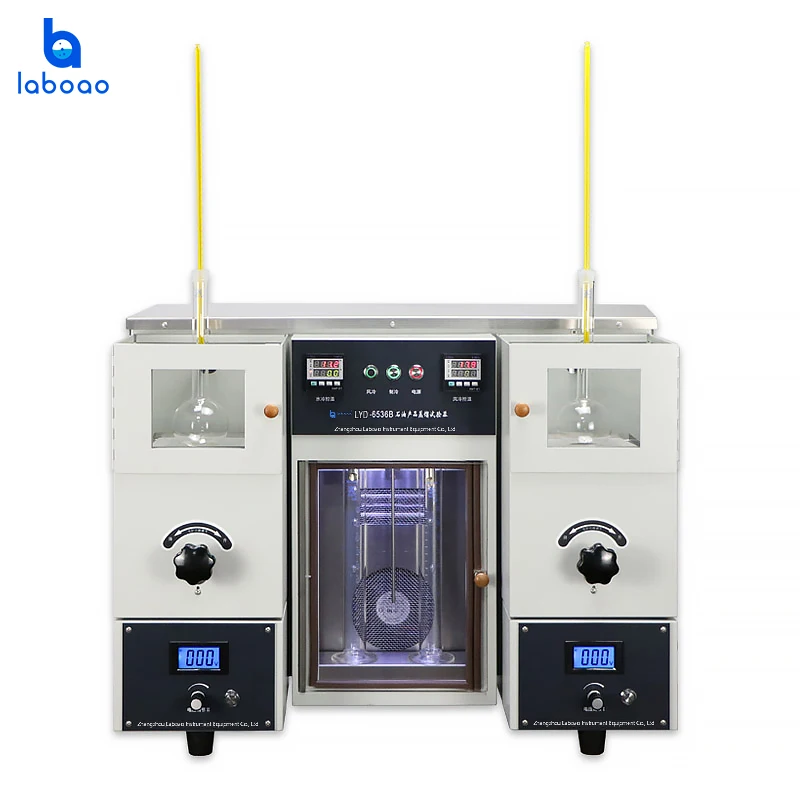

LABOAO LYD 6536B Advanced Refrigerated Double Petroleum Distillation Tester
- Category: >>>
- Supplier: Zhengzhou Laboao Instrument Equipment Co. Ltd.
Share on (1600895607151):
Product Overview
Description
Product Details
This dual-channel, low-temperature distillation tester features a front-mounted design with compressor refrigeration, allowing a cold bath temperature control range of (0~60) ℃ with arbitrary settings. Equipped with a special lifting device and individually adjustable heating power for each channel, it adheres to standards GB/T6536 and ASTM D86, making it ideal for determining the distillation characteristics of diverse petroleum products. Notably, with a minimum condenser pipe temperature reaching 0℃, it serves as an ideal solution for low-temperature conditions in petroleum product testing.
Model | LYD-6536B |
Power supply | AC(220±10%)V, 50Hz |
Total power consumption | ≤5400W |
Receiving cylinder | 100ml, division value is 1ml |
Distillation flask | 125ml,meet the requirements of GB/T 6536 and ASTM D86 |
Thermometer | (-2~300)℃ and (-2~400)℃. Division value 1℃. |
Flask support board | SiC |
bore diameter is | φ32mm, φ38mm, φ50mm |
Temperature controller | (1)Range:0 ℃ to 60 ℃ (2)Accuracy:±0.5℃ (3)Display:LED |
Ambient temperature | 15℃～35℃ |
Relative humidity | ≤85% |
Refrigerated compressor | New-type refrigeration compressor |
Dimension | 730mm×530mm×580mm |
Net weight | 59kg |
Our Advantages
1. Efficient Dual-Unit Operation: The instrument adopts a low-temperature, dual-unit working mode, allowing the minimum temperature to be set at 0℃. This enables simultaneous testing of one or two samples, significantly enhancing work efficiency.
2. Rapid Cooling with Special Structure: The special design structure facilitates fast cooling, with the bath temperature capable of reaching 0℃ from room temperature within just 50 minutes. This ensures swift preparation for testing, saving valuable time in laboratory procedures.
3. Enhanced Safety with Special Heating Furnace: A special heating furnace is incorporated to ensure the safety of the test environment. The heating power is continuously adjustable, providing flexibility to meet specific test requirements while prioritizing operator safety.
2. Rapid Cooling with Special Structure: The special design structure facilitates fast cooling, with the bath temperature capable of reaching 0℃ from room temperature within just 50 minutes. This ensures swift preparation for testing, saving valuable time in laboratory procedures.
3. Enhanced Safety with Special Heating Furnace: A special heating furnace is incorporated to ensure the safety of the test environment. The heating power is continuously adjustable, providing flexibility to meet specific test requirements while prioritizing operator safety.
Company Profile
FAQ
Q: How does the dual-unit working mode enhance the efficiency of the distillation tester?
A: The dual-unit working mode significantly improves efficiency by allowing simultaneous testing of one or two samples. This feature streamlines laboratory processes, reducing testing time and enhancing overall workflow.
Q: Can you provide more details on the specially designed structure and its impact on the cooling speed of the instrument?
A: Certainly. The instrument's special structure ensures rapid cooling, enabling the bath temperature to reach 0℃ from room temperature within just 50 minutes. This swift cooling process optimizes preparation time for efficient testing.
Q: How does the adjustable heating power contribute to the safety and flexibility of the testing environment?
A: The adjustable heating power, part of the special heating furnace design, ensures both safety and flexibility. It allows continuous adjustment to meet specific test requirements while prioritizing a secure testing environment and operator well-being.
Q: Can you elaborate on the adaptability of the distillation tester for various testing needs, especially in terms of dual-unit operation?
A: The dual-unit operation not only enhances efficiency but also showcases the instrument's adaptability to diverse testing needs. Whether testing one or two samples simultaneously, it caters to the varying requirements of different laboratory scenarios.
Q: How does the instrument balance rapid cooling with maintaining accuracy in testing results?
A: The specially designed structure not only ensures rapid cooling but also maintains accuracy in testing results. This balance is a key feature, allowing users to benefit from time efficiency without compromising the precision of their distillation tests.
A: The dual-unit working mode significantly improves efficiency by allowing simultaneous testing of one or two samples. This feature streamlines laboratory processes, reducing testing time and enhancing overall workflow.
Q: Can you provide more details on the specially designed structure and its impact on the cooling speed of the instrument?
A: Certainly. The instrument's special structure ensures rapid cooling, enabling the bath temperature to reach 0℃ from room temperature within just 50 minutes. This swift cooling process optimizes preparation time for efficient testing.
Q: How does the adjustable heating power contribute to the safety and flexibility of the testing environment?
A: The adjustable heating power, part of the special heating furnace design, ensures both safety and flexibility. It allows continuous adjustment to meet specific test requirements while prioritizing a secure testing environment and operator well-being.
Q: Can you elaborate on the adaptability of the distillation tester for various testing needs, especially in terms of dual-unit operation?
A: The dual-unit operation not only enhances efficiency but also showcases the instrument's adaptability to diverse testing needs. Whether testing one or two samples simultaneously, it caters to the varying requirements of different laboratory scenarios.
Q: How does the instrument balance rapid cooling with maintaining accuracy in testing results?
A: The specially designed structure not only ensures rapid cooling but also maintains accuracy in testing results. This balance is a key feature, allowing users to benefit from time efficiency without compromising the precision of their distillation tests.
