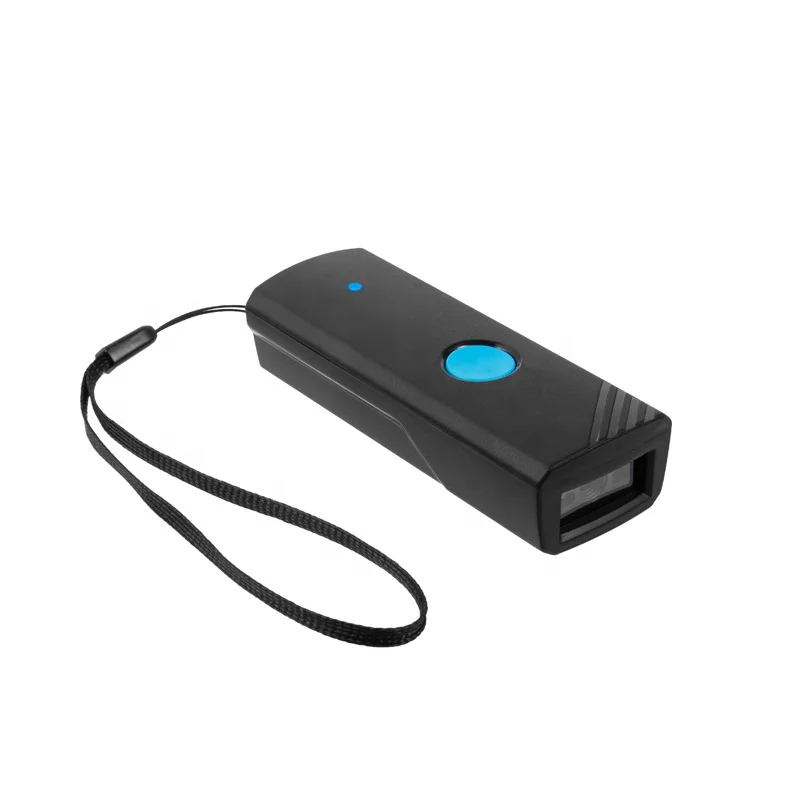

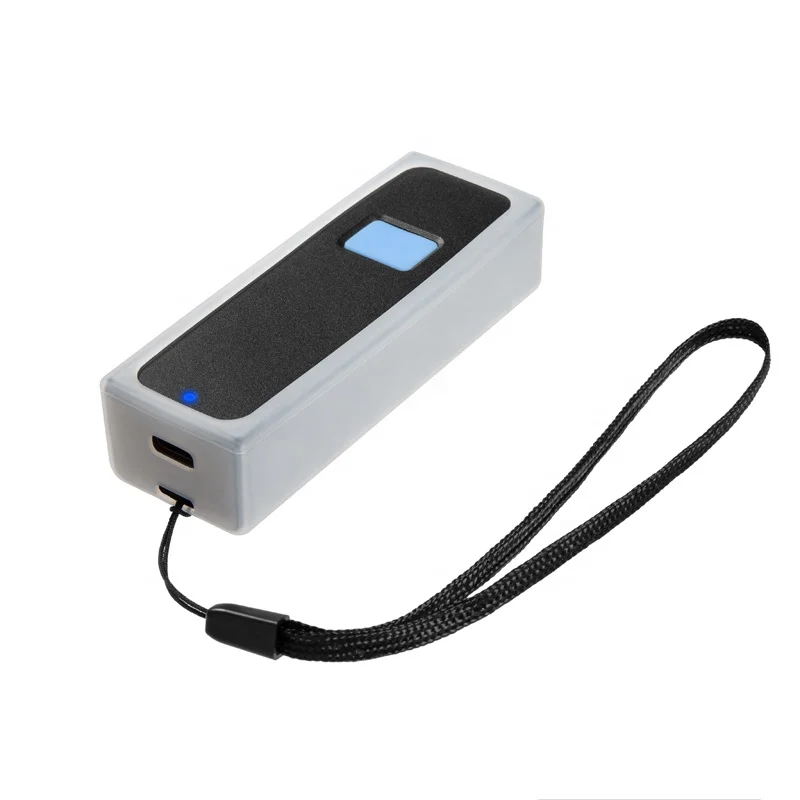

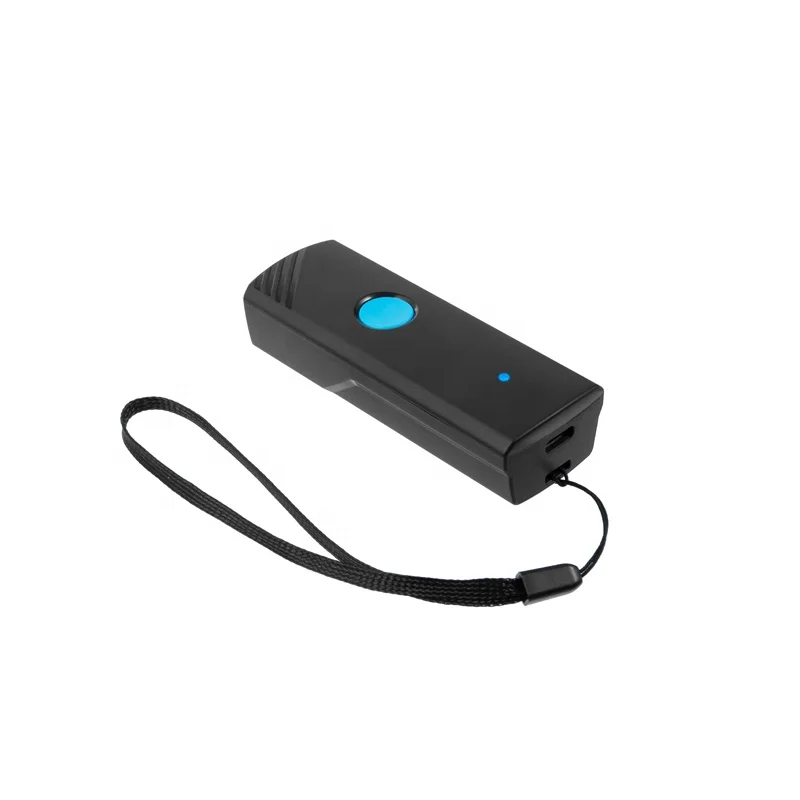

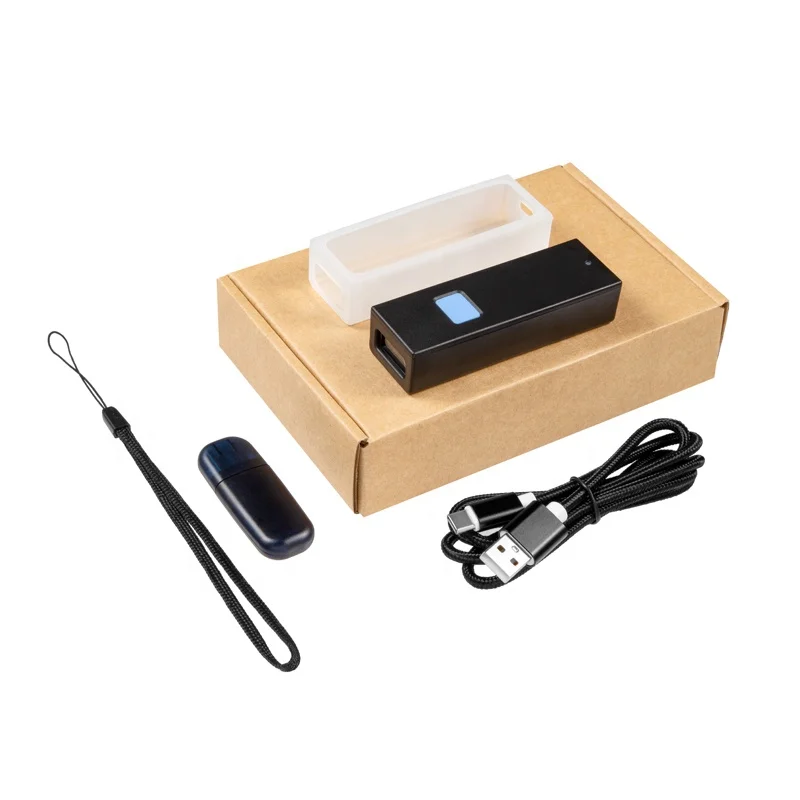

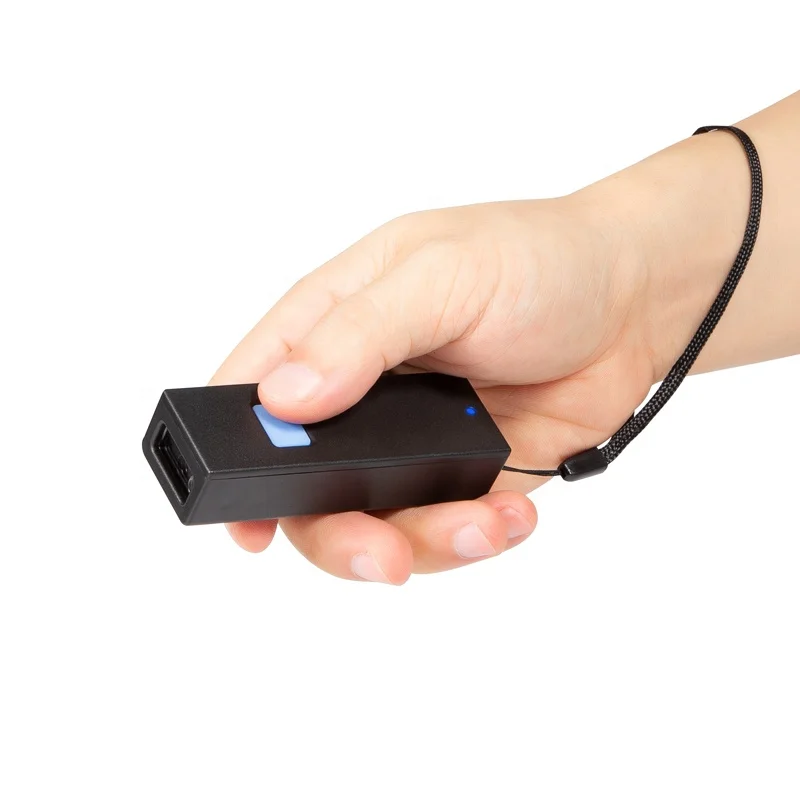

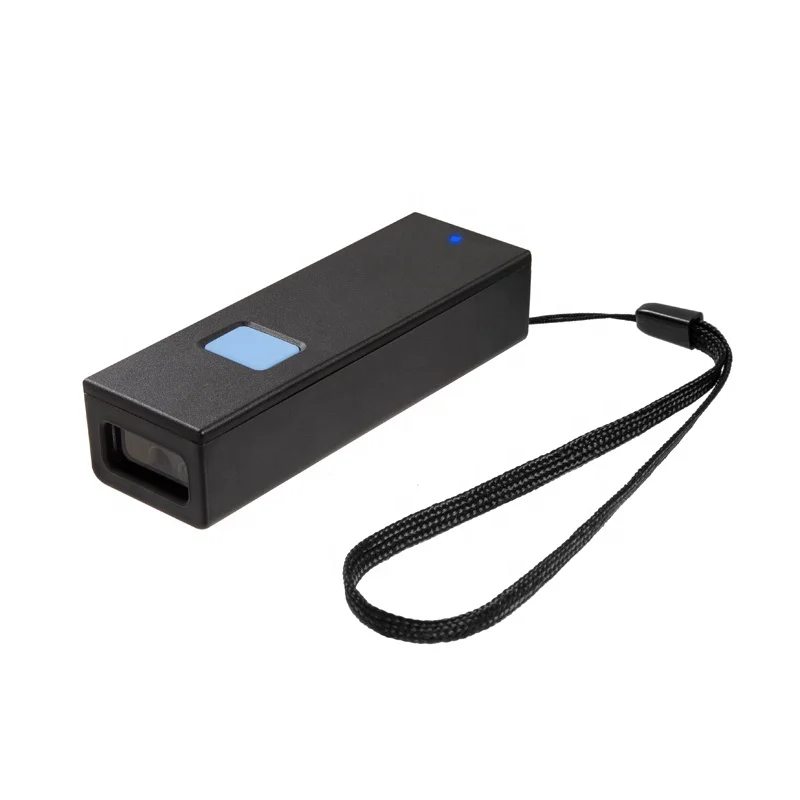

16MB Memory 800mAh Battery Offline Working Blue tooth USB Portable Bar Code Decoder 2.4GHz Wireless Barcode Scanner
- Category: >>>
- Supplier: Shenzhen Honor Way Electronic Co. Ltd.
Share on (1600895653077):
Product Overview
Description
16MB Memory 800mAh Battery Offline Working Blue tooth USB Portable Bar Code Decoder 2.4GHz Wireless Barcode Scanner
Product Description
Feature
1. ARM 32-bit 1GHz CPU
2. Support 1D/2D barcode on paper and screen
3. Instant upload, inventory mode(16MB memory)
4. Blue tooth4.0, 2.4GHz RF communication
5. Continuously working 10hous,store 10K data
6. Transmission distance-Blue tooth 50m,RF 100m
7. Automatically sleep and pair(last paired device)
Parameter
Model Number | CMOS (HW-6280) CCD(HW-6280C) |
Image Sensor | CMOS 640*480 30fps |
Resolution | 4mil(CCD), 4mil(CMOS) |
Decoding capacity | Support paper and screen barcodes |
2D: QR, Micro QR, PDF417, Micro PDF417, DataMatrix , AZTEC etc. | |
1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc. | |
Light Source | 625±10nm Visible red LED,white LED |
Scan Angle | Rotation360°,tilt±55°,skew±55° |
Min Contrast | 25% |
Typical DOF | EAN13(13mul) 50 -260mm Code39(10mil) 35 -205mm FDF417(10mil) 50 - 215mm Data Matrix(10mil) 50 - 160mm QR Code(15mil) 50 - 210mm Performance may be impacted by bar code quality and environmental conditions |
Communication | USB(KBW/COM) Blue tooth 2.4GHz RF wireless(USB dongle) |
Blue tooth Protocol | Blue tooth HID,SPP,BLE |
Transmission Distance | Blue tooth—50M 2.4GHz 100M open air |
Working Voltage | DC 5±10%VDC |
Power | 190mA(working) 7mA(standby) 5uA(sleep) |
Battery | 800mAH continuously work 10hours,charge time 3-4H |
Memory Size | 16MB store 10K barcodes |
Dimensions | 88*30*20mm |
Weight | 40g |
Indication | Buzzer & LED &Vibration |
Material | ABS+PC |
Working Tem | -20~50℃ |
Storage Tem | -40~70℃ |
Humidity | 5%-95%(Non-condensing) |
Light Immunity | 0~100,000Lux |
Drop Test | 1.8M |
waterproof level | IP41 |
