Regulator 12V 24V 48V LCD Intelligent 45A Panel Battery Power PWM Solar Charge Controller For monitoring system
- Category: >>>
- Supplier: Hangzhou Maixi Electronics Co. Ltd.
Share on (1600895779745):
Product Overview
Description

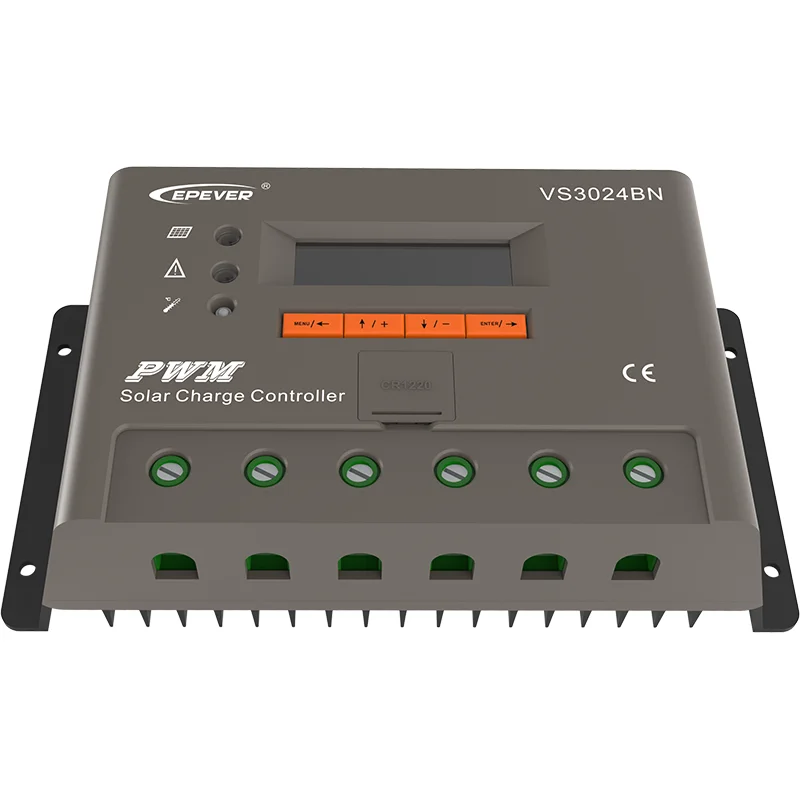

Regulator 12V 24V 48V LCD Intelligent 45A Panel Battery Power PWM Solar Charge Controller For monitoring system
Product Description

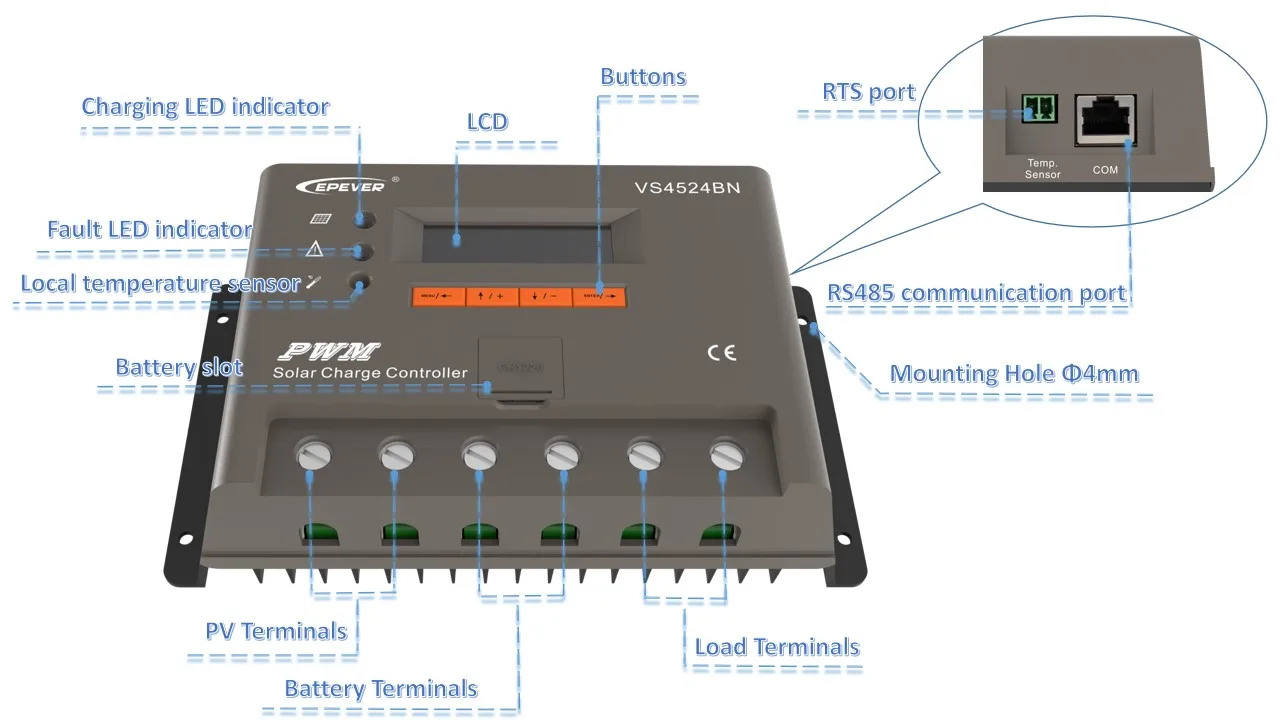

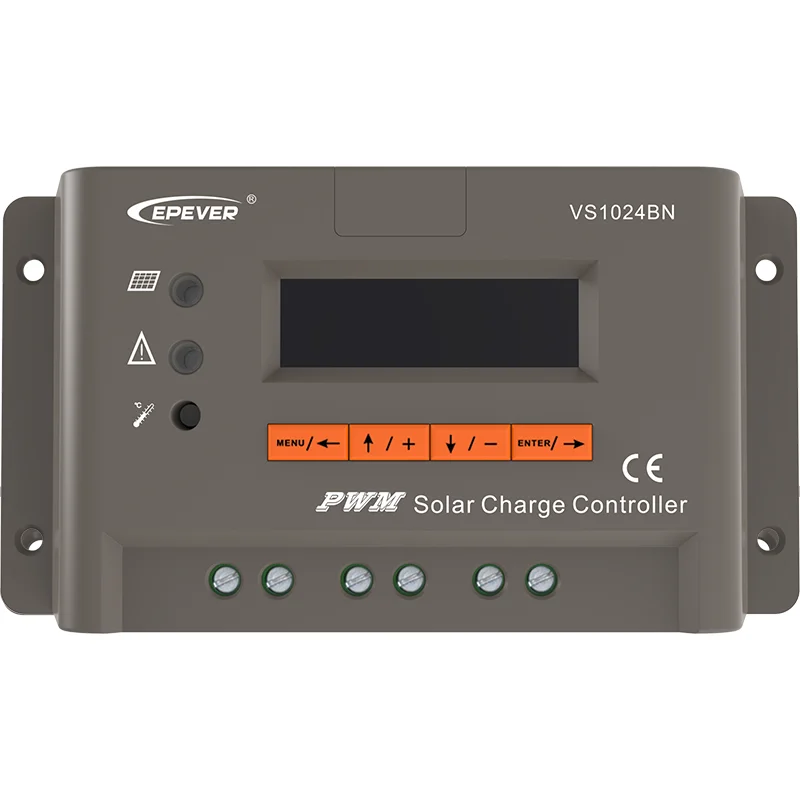

VS-BN series is the PWM charge controller with dot matrix LCD display and RS485 communication interface. It is widely applied to off-grid system which needs high reliability and quality products, such as small power systems,mobile lighting, monitoring system, etc.

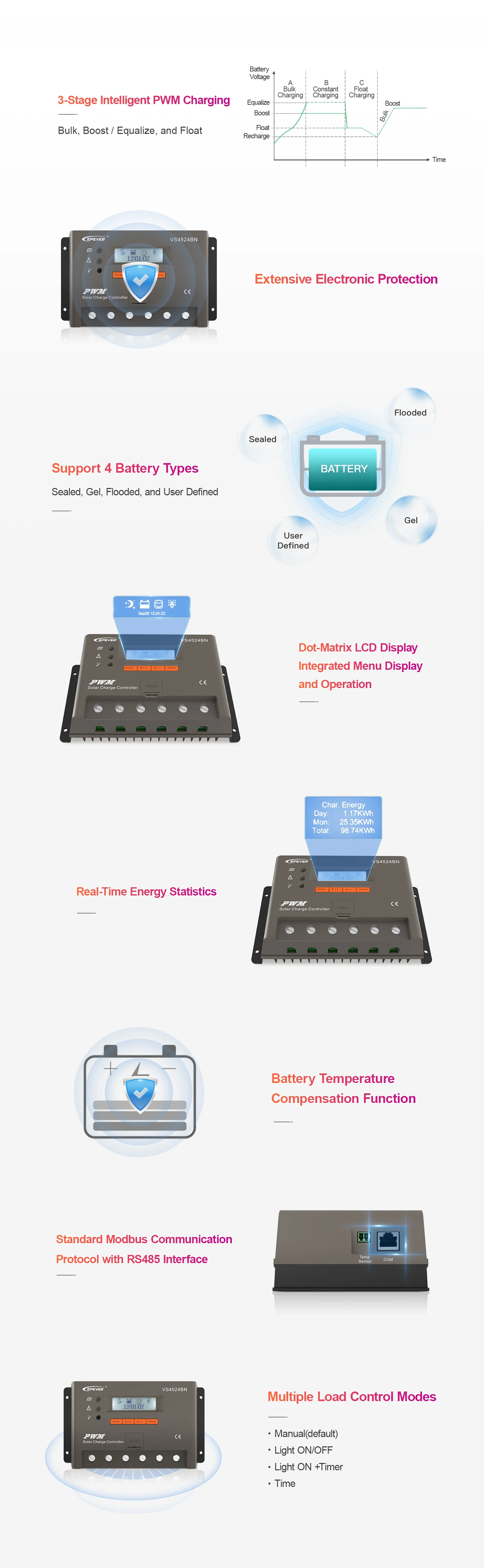

Highlights:
* Series PWM charging mode* Dot-matrix LCD display, integrated menu display, and operation
* Excellent EMC design
* Multiple load control modes
* Real-time energy statistics
* Extensive electronic protection
* Real-time data monitoring and parameters setting
* Standard Modbus communication protocol with RS485 interface
* Excellent EMC design
* Multiple load control modes
* Real-time energy statistics
* Extensive electronic protection
* Real-time data monitoring and parameters setting
* Standard Modbus communication protocol with RS485 interface
Paramenters

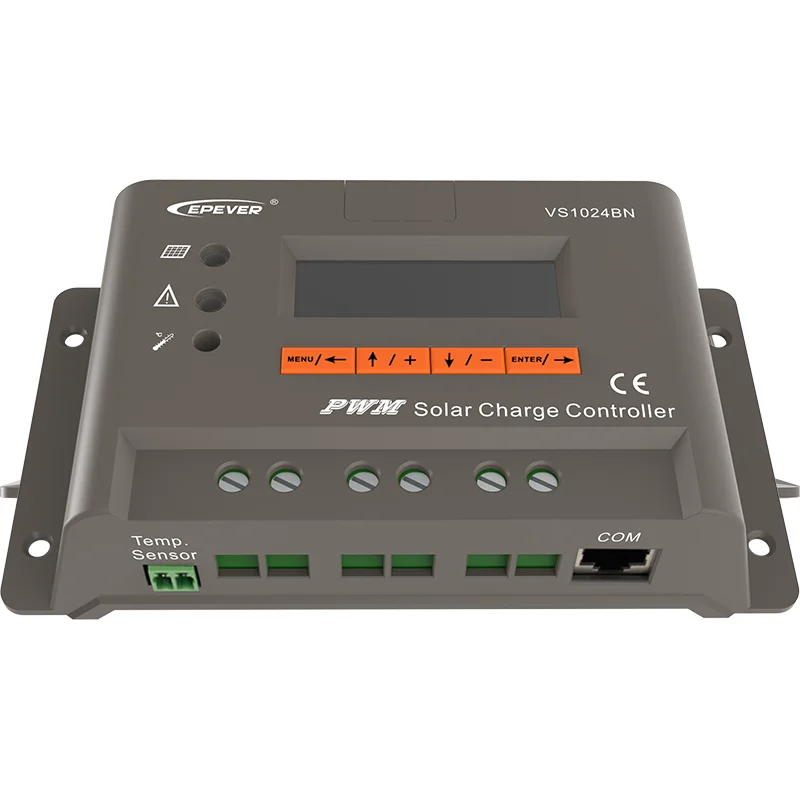

Model | VS1024BN | VS2024BN | VS3024BN | VS4524BN | |||
Nominal system voltage | 12/24VDC/Auto | ||||||
Battery type | Sealed(Default)/Gel/Flooded/User | ||||||
Battery input voltage range | 8V～32V | ||||||
Rated charge current | 10A | 20A | 30A | 45A | |||
Rated discharge current | 10A | 20A | 30A | 45A | |||
Max. PV open circuit voltage | 48V | 48V | 48V | 48V | |||
Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defifined:9-17V | ||||||
Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defifined:9-17V | ||||||
Float voltage | Gel/Sealed/Flooded:13.8V,User-defifined:9-17V | ||||||
Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defifined:9-17V | ||||||
Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defifined:9-17V | ||||||
Self-consumption | ≤15mA@12V; ≤13mA@24V; ≤9mA@36V; ≤8mA@48V | ||||||
Temperature compensation | `-3mV/℃/2V (Default) | ||||||
Relative humidity | ≤95%(N.C.) | ||||||
Enclosure | IP30 | ||||||

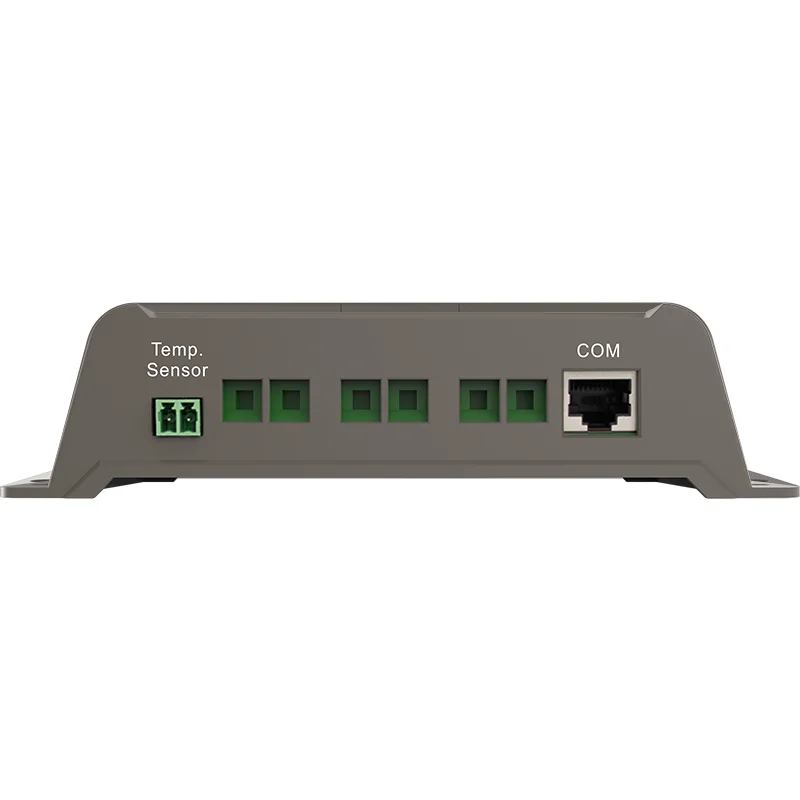

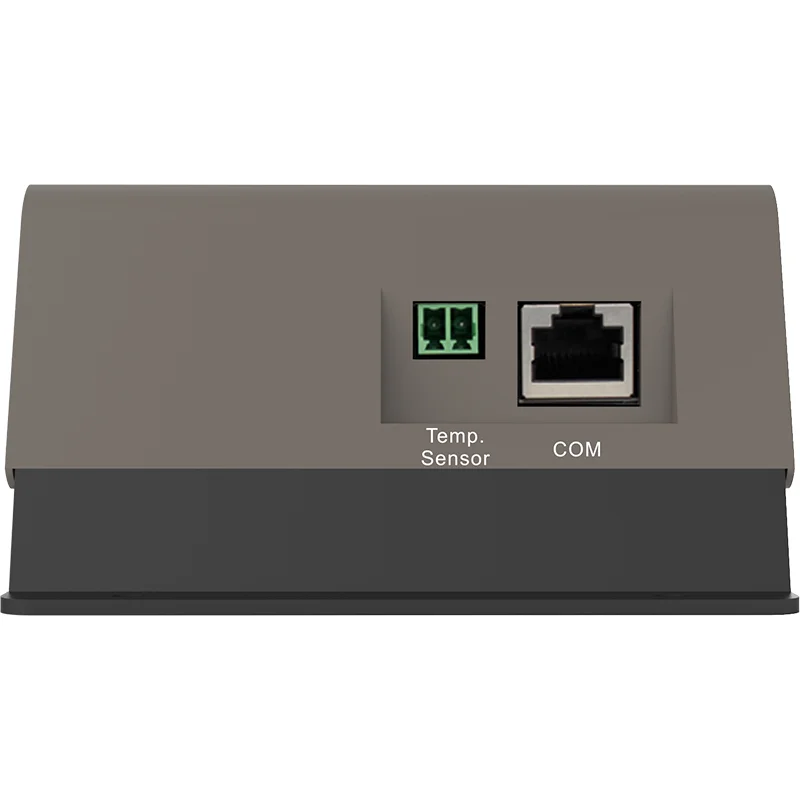

Communication interface | RS485(RJ45) | ||||||
Grounding | Common negative | ||||||
Operating temperature range | ~25℃～+55℃ | ||||||
Dimensions(LxWxH)(mm) | 162×87×39.5 | 162×102×49.5 | 200.6×105.8×57.7 | 200.6×111.8×58.6 | |||
Net Weight | 0.3Kg | 0.4Kg | 0.7Kg | 0.8Kg | |||

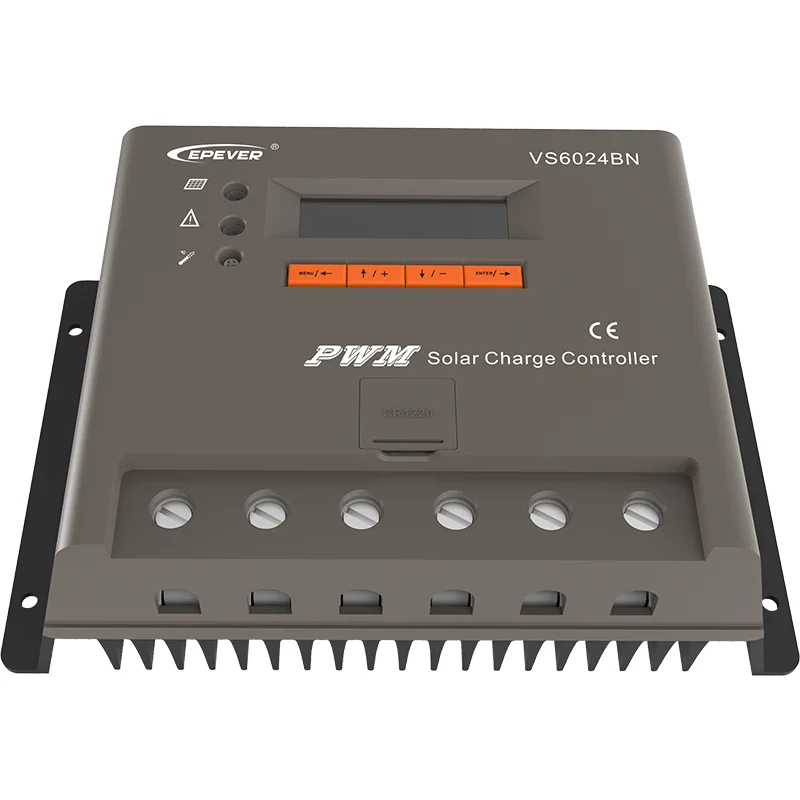

Model | VS6024BN | VS4548BN | VS6048BN | ||||
Nominal system voltage | 12/24VDC/ Auto | 12/24/36/48VDC/Auto | |||||
Battery type | Sealed(Default)/Gel/Flooded/User | ||||||
Battery input voltage range | 8V～32V | 8V～64V | 8V～64V | ||||
Rated charge current | 60A | 45A | 60A | ||||
Rated discharge current | 60A | 45A | 60A | ||||
Max. PV open circuit voltage | 48V | 48V | 96V | ||||
Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defifined:9-17V | ||||||
Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defifined:9-17V | ||||||
Float voltage | Gel/Sealed/Flooded:13.8V,User-defifined:9-17V | ||||||
Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defifined:9-17V | ||||||
Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defifined:9-17V | ||||||
Self-consumption | ≤15mA@12V; ≤13mA@24V; ≤9mA@36V; ≤8mA@48V | ||||||
Temperature compensation | -3mV/℃/2V (Default) | ||||||
Relative humidity | ≤95%(N.C.) | ||||||
Enclosure | IP30 | ||||||
Communication interface | RS485(RJ45) | ||||||
Grounding | Common negative | ||||||
Operating temperature range | ~25℃～+55℃ | ||||||
Dimensions(LxWxH)(mm) | 204.8×131.9×67 | 204.8×122×66.6 | 204.8×173.9×63.8 | ||||
Net Weight | 1.3Kg | 1.20Kg | 1.60Kg | ||||
Packing & Delivery
The PWM solar charge controllers packed by customized Inner&Outer cartons+wooden pallets available for sea shipment to protect the goods arrived in good conditions.
Package can be customized according to customer's demands(LOGO design)
Package can be customized according to customer's demands(LOGO design)
We chose most economical shipment according to customer demands(By international EXPRESS(DHL, FedEx, UPS, TNT), By Air, By Train, By Sea all available).
We support DDP solution(Delivered Duty Paid), which helps you import the products easily.
We support DDP solution(Delivered Duty Paid), which helps you import the products easily.
Application
The VS-BN PWM solar charge controllers can be used for solar home system, traffic signal, solar street light, solar garden lamp, etc, pleasured to discuss your solar system details.

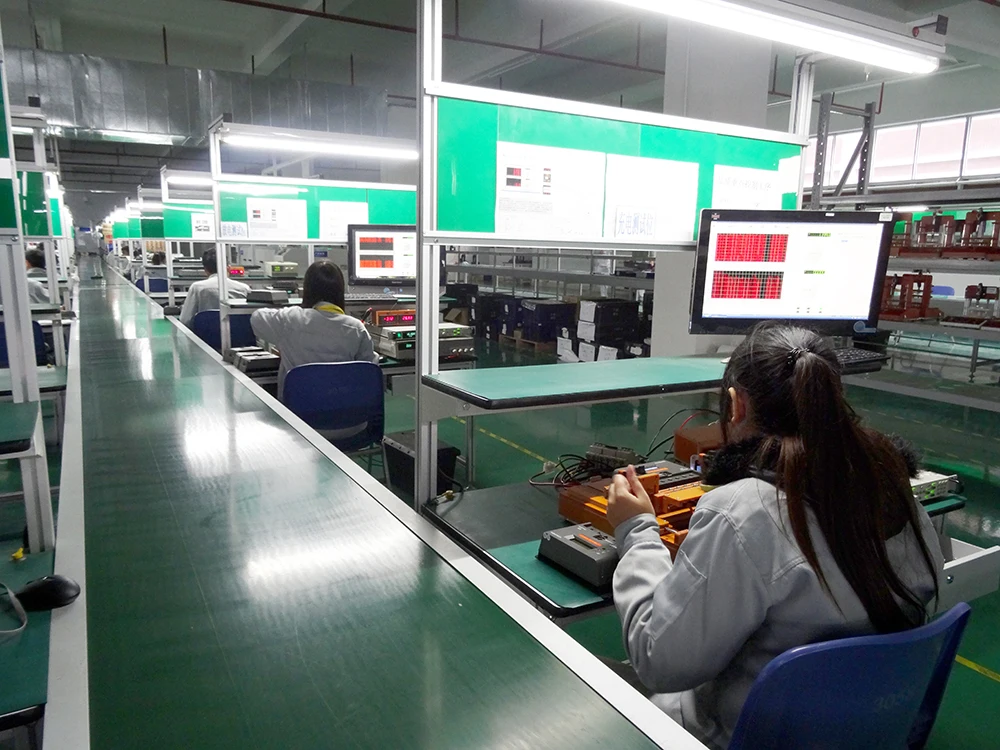

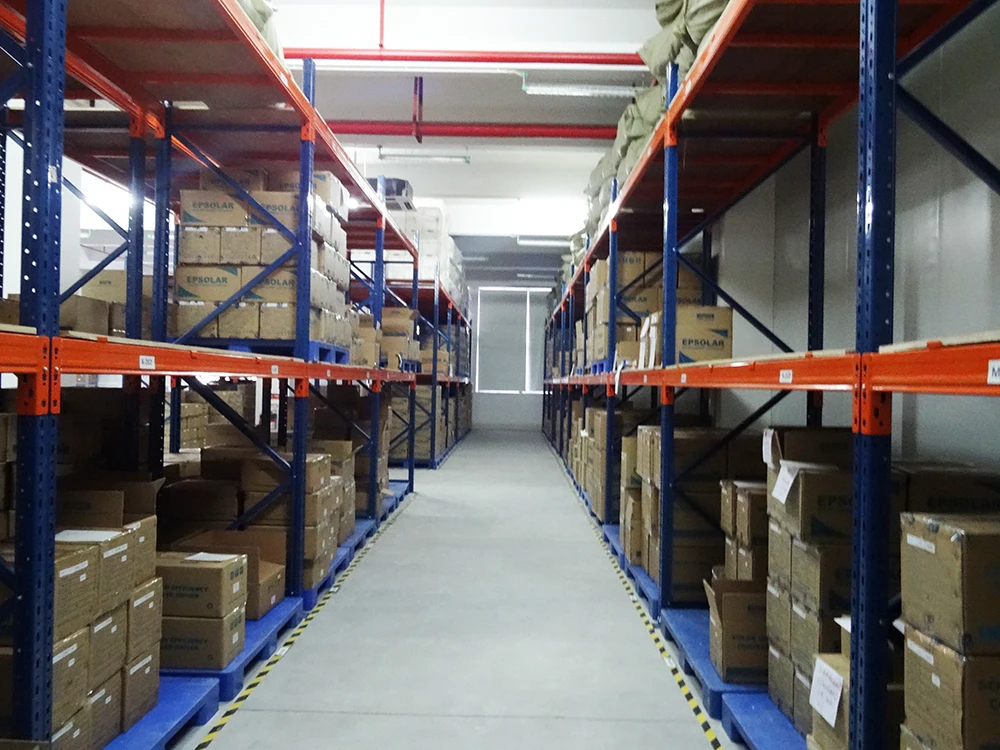

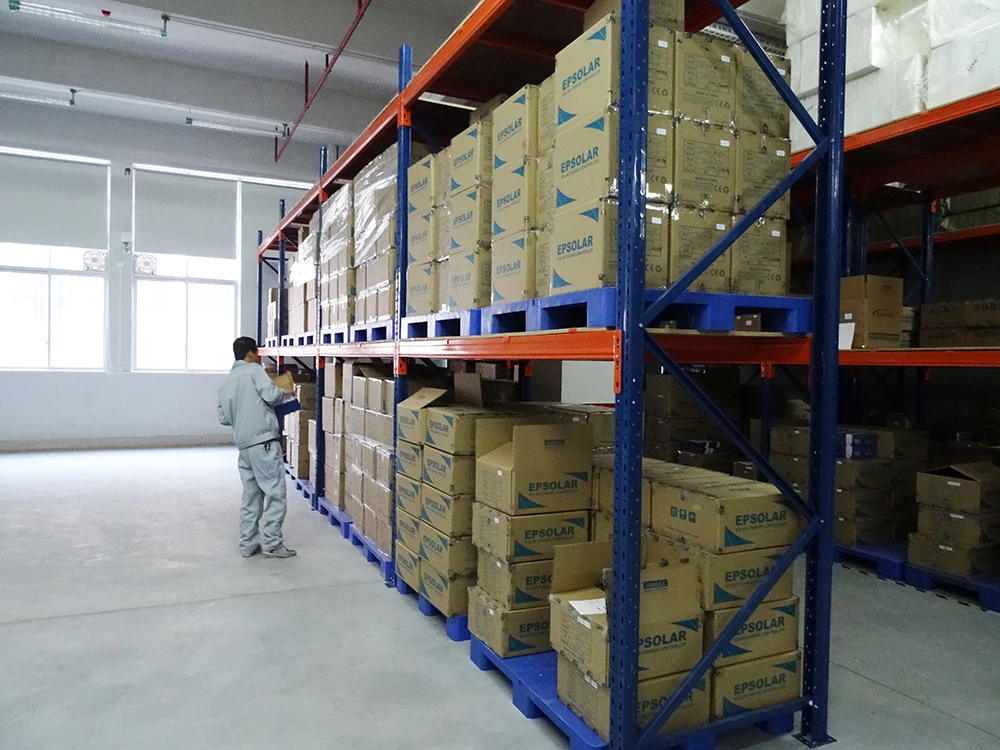

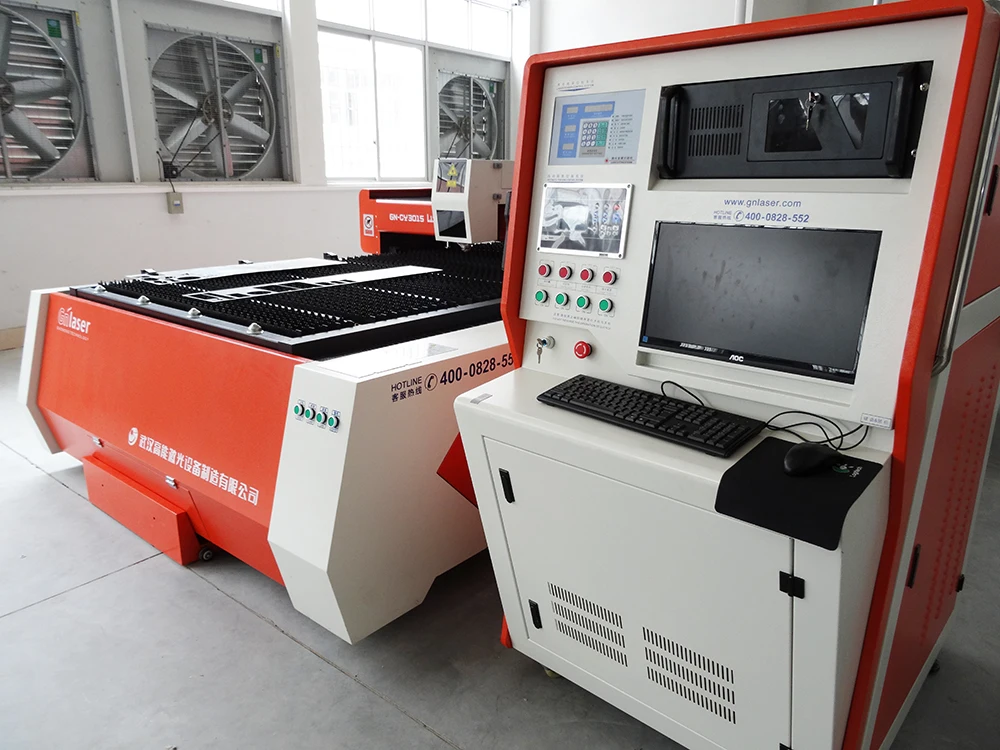

Workshop
